- Engine:Japanese or Chinese engine
- Loading center:600mm
- Color:Customized
- Tire:Pneumatic ( Solid is optional)
- Wheel base:2250mm
- Warranty:1 year or 2000 working hours
- Mast:2 Stage (3 Stage is optional)
- Optional:side shifter, fork positioner,Cab with A/C etc
- Transmission type:Hydraulic or Mechanical
- Number of cylinders:6
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:France
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Japan
- Local Service Location:Australia
- Local Service Location:Kenya
- Local Service Location:South Korea
- Local Service Location:Chile
- Local Service Location:Bangladesh
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Showroom Location:United States
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Sri Lanka
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Bearing
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3183*1485*2350mm
- Certification:CE/ISO9001
After-sale Service:
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (whichever occurs first) period quality warranty.
All the product of LTMG supplied with one year or 2000 working hours (whichever occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

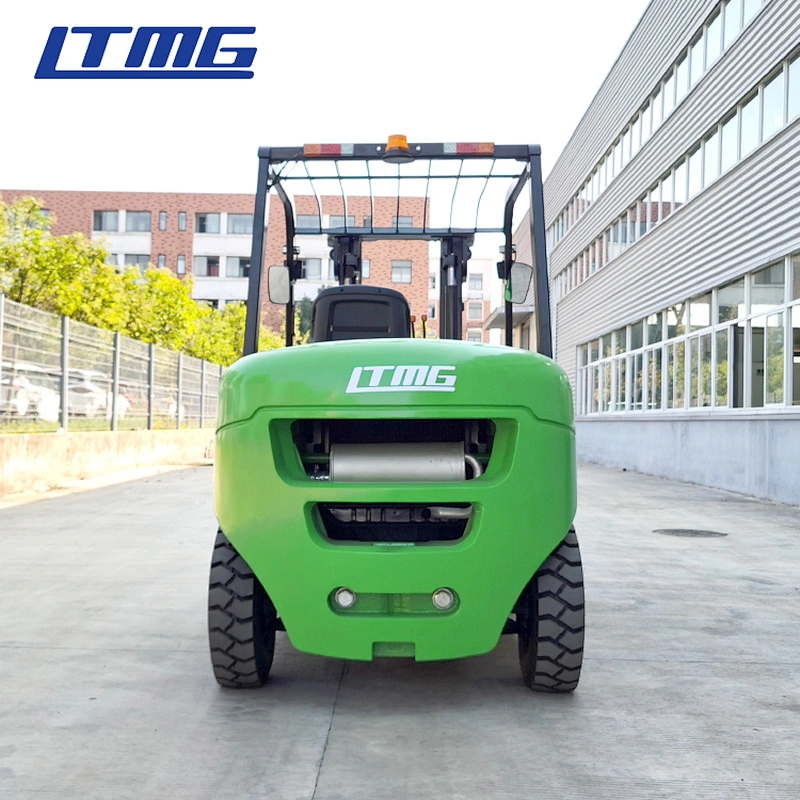

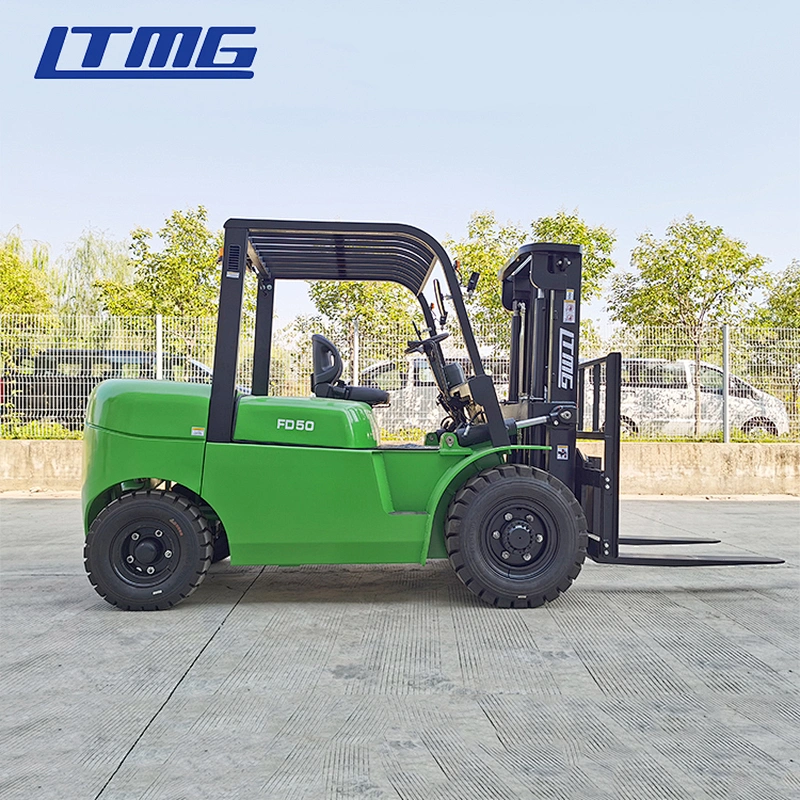

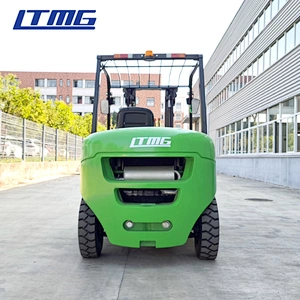

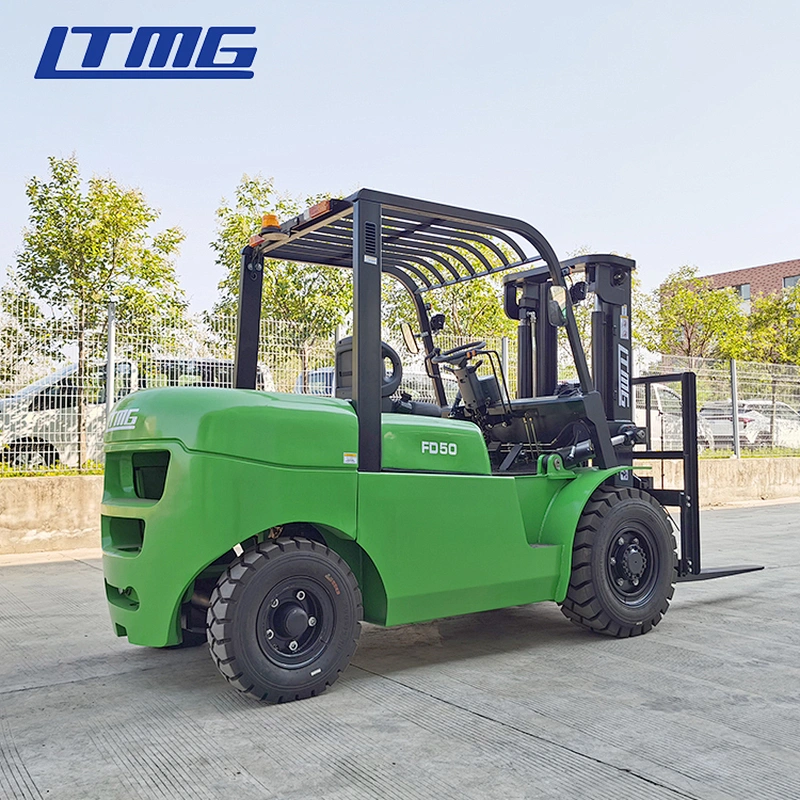

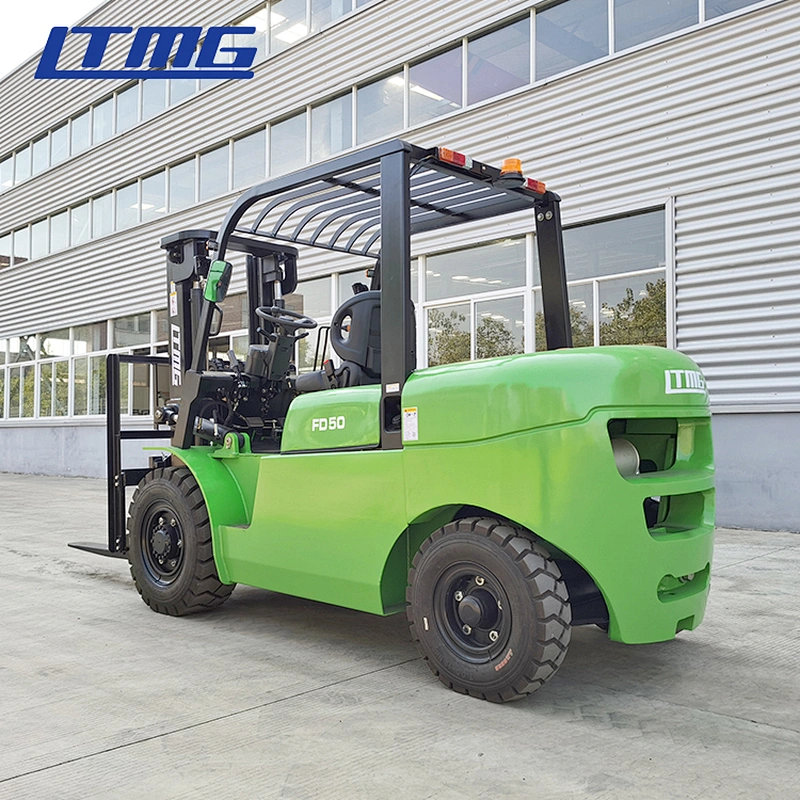

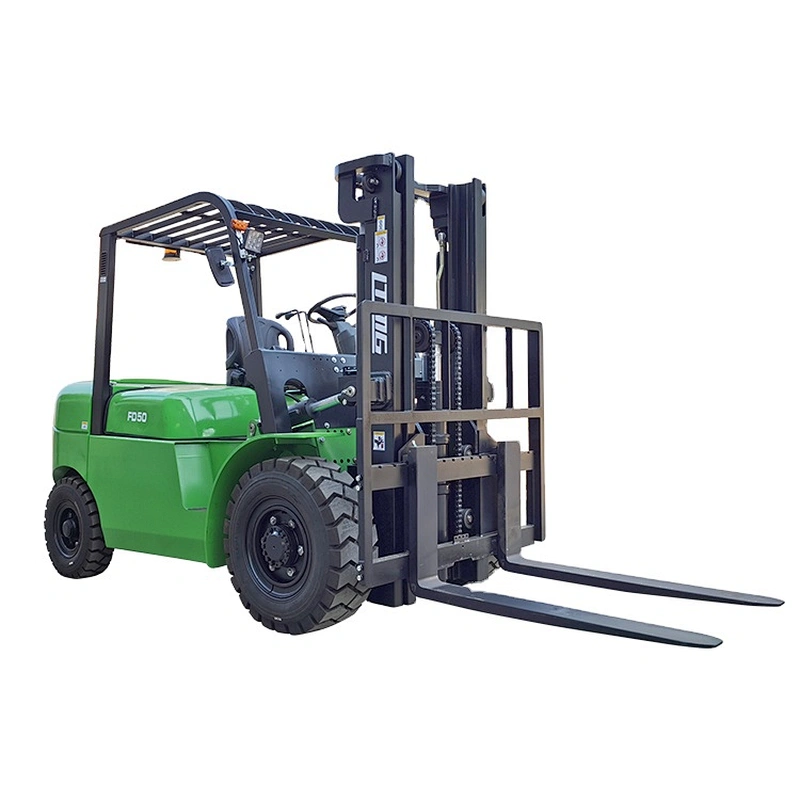

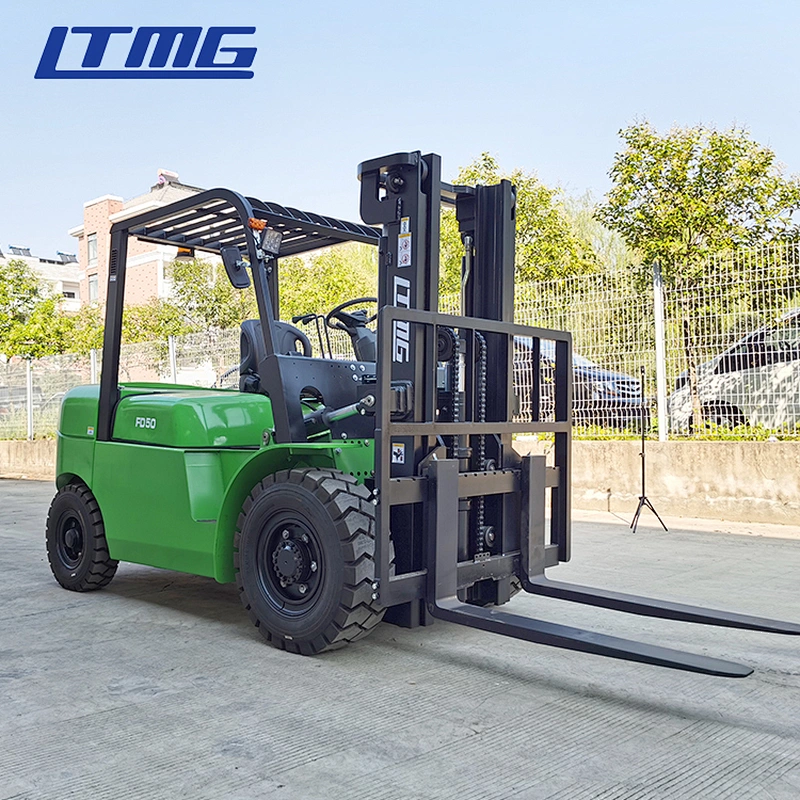

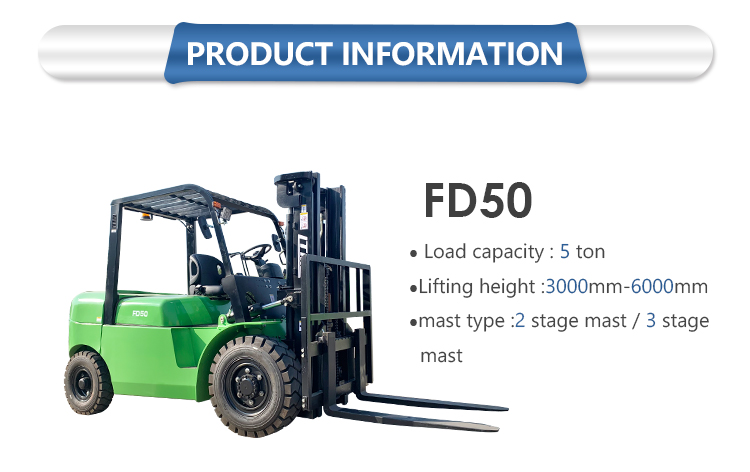

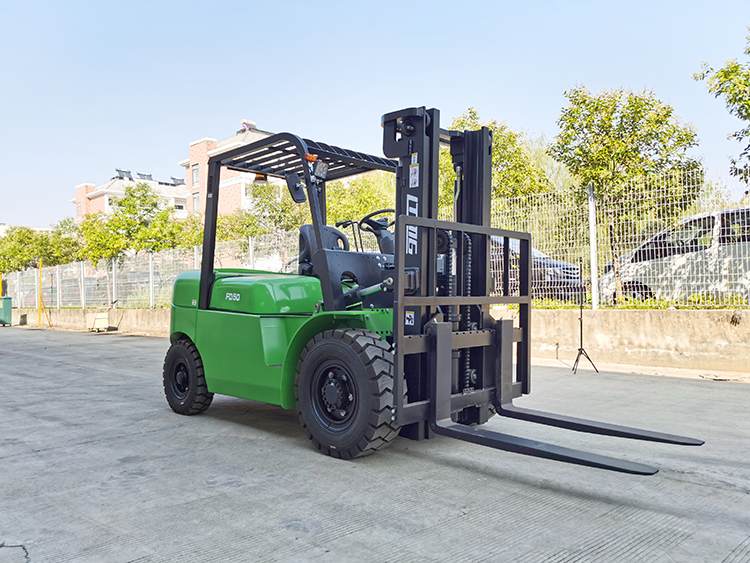

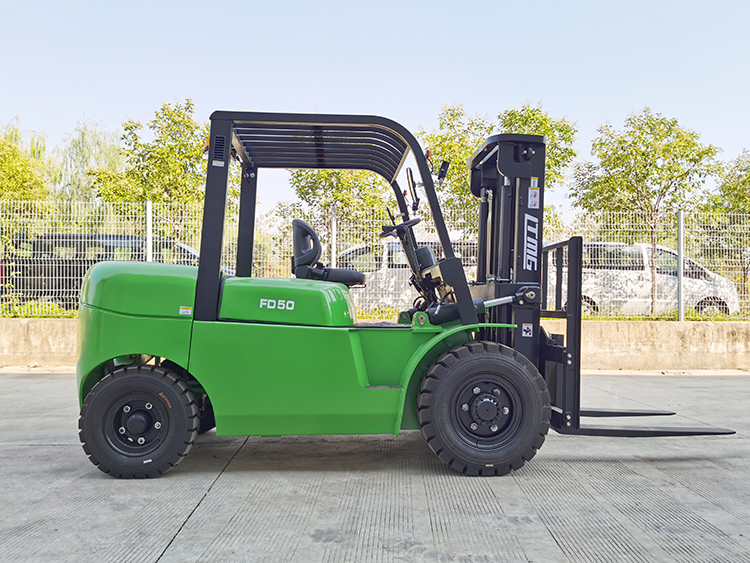

LTMG 3 ton 4 ton 5 ton forklift specification as below: | ||||||||||
Model | FD30 | FD40 | FD50 | |||||||
Power type | Diesel | Diesel | Diesel | |||||||
Rated capacity | kg | 3000 | 4000 | 5000 | ||||||
Load center | mm | 500 | 500 | 500 | ||||||
Lift height | mm | 3000 | 3000 | 3000 | ||||||
Fork size | L*W*T | mm | 1070*125*45 | 1070*150*50 | 1070*150*50 | |||||
Mast tilt angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | |||||
Fork Overhang(Wheel center to fork face) | mm | 480 | 495 | 579 | ||||||
Ground clearance | mm | 140 | 140 | 150 | ||||||
Overall dimension | Length to face of fork (without fork) | mm | 2730 | 2890 | 3260 | |||||
Overall width | mm | 1225 | 1410 | 1460 | ||||||
Mast lowered height | mm | 2115 | 2195 | 2270 | ||||||
Mast extended height (with backrest) | mm | 4150 | 4180 | 4165 | ||||||
Overhead guard height | mm | 2090 | 2120 | 2340 | ||||||
Turning radius(outside) | mm | 2440 | 2700 | 2910 | ||||||
Speed | Travel(Full load) | km/h | 20 | 19 | 25 | |||||
Lifting(Full load) | mm/s | 510 | 320 | 380 | ||||||
Max gradeability | % | 20 | 20 | 20 | ||||||
Tyre | Front | mm | 28*9-15-12PR | 250-15-16PR | 300-15-18PR | |||||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||||
Wheel base | mm | 1700 | 1900 | 2100 | ||||||
Service weight | kg | 4300 | 5100 | 6880 | ||||||
Engine | Model | C240 | 4JG2PE-01 | 6BG1-05 | ||||||
Manufacture | Isuzu | Isuzu | Isuzu | |||||||
Rated output | kw | 35.4/2500 | 46/2450 | 68.4/2000 | ||||||
Rated torque | N.m | 137.7/1800 | 184.7/1800 | 333/1500 | ||||||
No of cylinder | 4 | 4 | 6 | |||||||
Bore*stroke | 86*102 | 95.4*107 | 105*125 | |||||||
Displacement | cc | 2369 | 3059 | 6494 | ||||||
Fuel tank capacity | L | 70 | 70 | 105 | ||||||
Transmission | Type | Hydraulic/Manual | Hydraulic/Manual | Hydraulic/Manual | ||||||
Stage FWD/RVS | 1/1 | 1/1 | 2/1 | |||||||

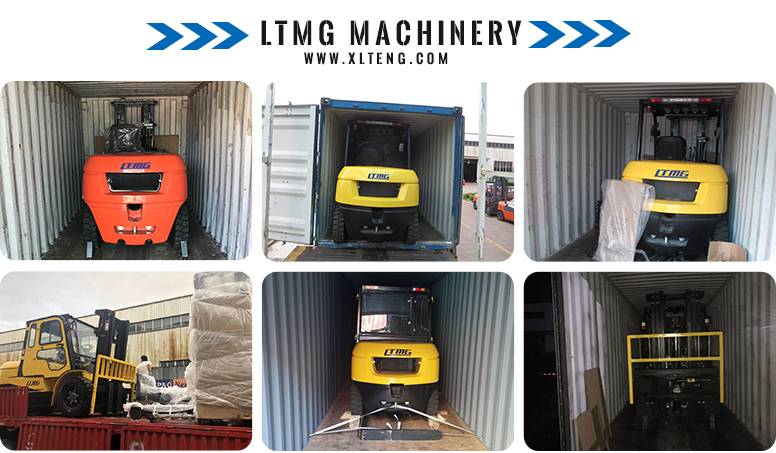

Common loading solutions | ||||||||
Container type | 1.5 ton -2.5 ton | 3 ton -3.5 ton | 4 ton-5 ton | 7 ton -10ton | ||||
20GP | 3 units | 3 units /2 units | 1unit / 2 units | / | ||||
40HQ | 6 units | 5 units | 3 units /4 units | 1unit /2 units | ||||
PS: different mast type and forklift configuration ,the loading solution is different ;if you want know more detail you click here to send the inquiry . | ||||||||
