- Power type:Diesel
- Model:FD40
- Loading Capacity:4000kg
- Load Center:500mm
- Lift height:3000mm-6000mm
- Mast type:2 stages/ optional
- Engine:Japanese
- Tire:soild/pnuematic
- Weight:4500kg
- Fork Size:1900mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Home Use
- Applicable Industries:Construction works
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Chile
- Local Service Location:South Africa
- Showroom Location:Egypt
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:00mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2890x1410x2195mm
- Certification:CE/ISO

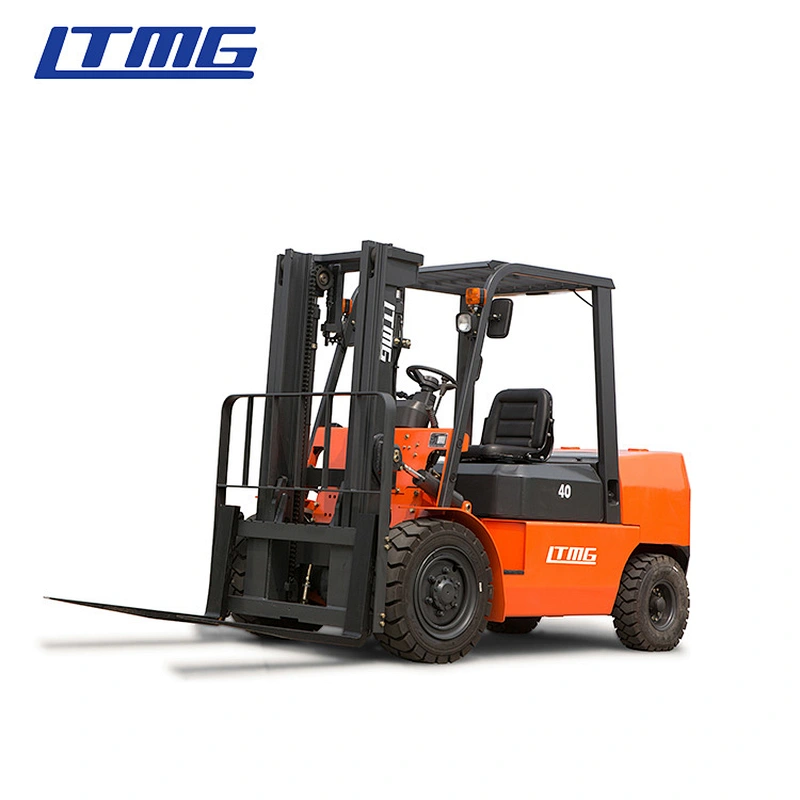

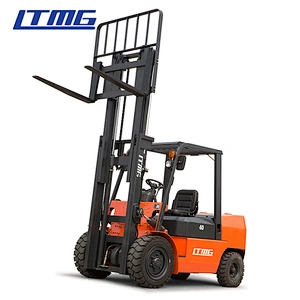

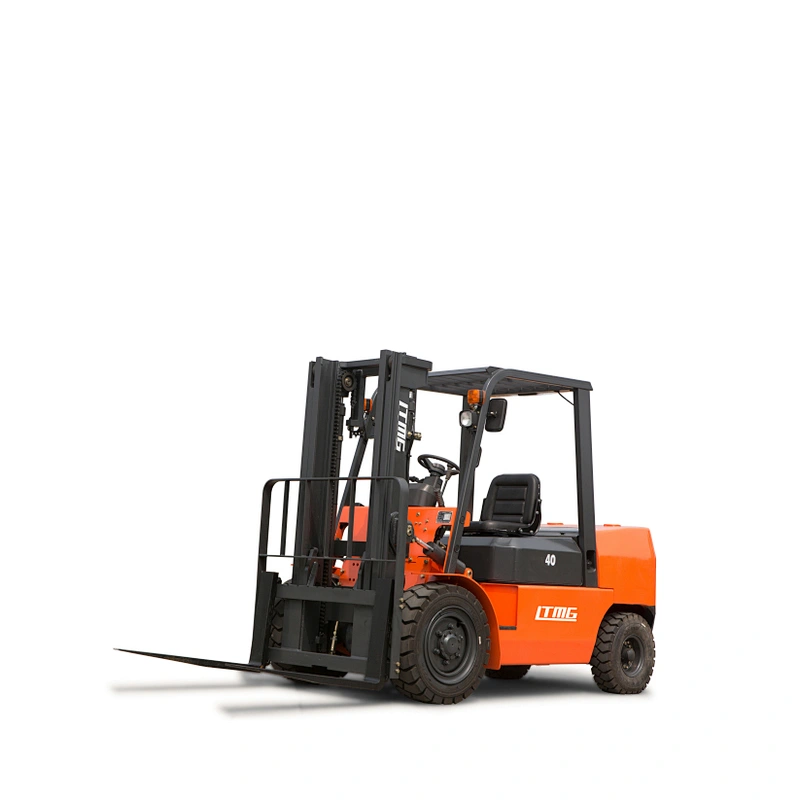

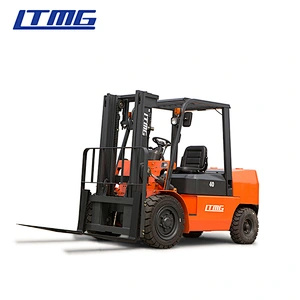

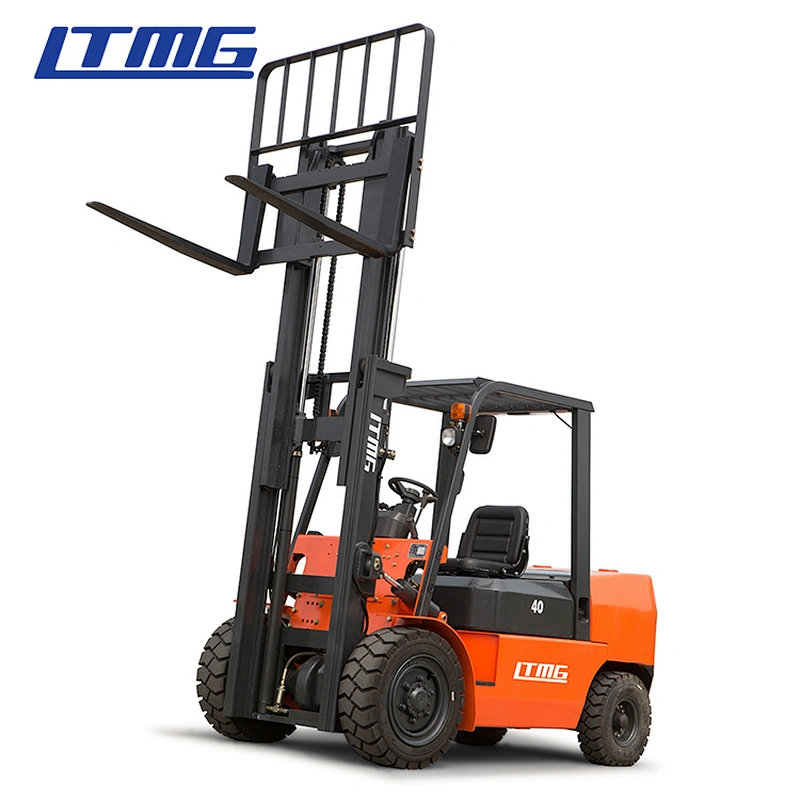

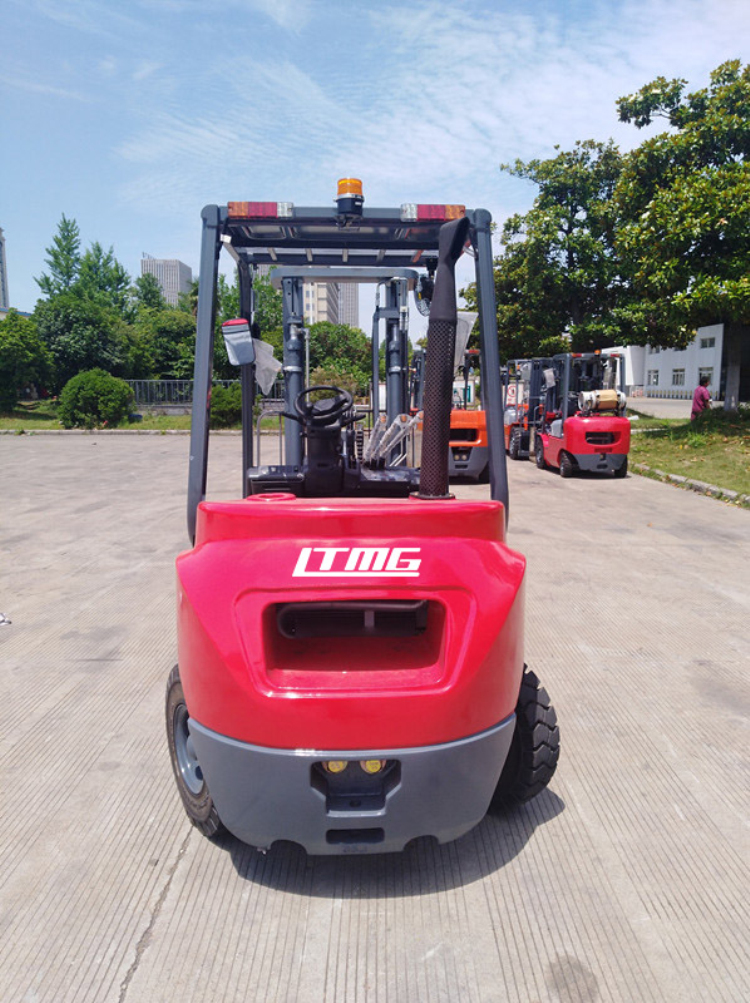

Product Description
Model | FD40 |
Power Type | Diesel |
Rated Capacity | 4000kg |
Load Centre | 500mm |
Lift Height | 3000mm |
Fork Size(L*W*H) | 1070*125*50mm |
Mast Tilt Angle(F/R) | 6°/12° |
Front Overhang (Wheel center to fork face) | 495mm |
Ground Clearance（Bottom of mast） | 140mm |
Length to face of fork(Without fork) | 2890mm |
Overall Width | 1410mm |
Mast Lowered Height | 2195mm |
Mast Lowered Height | 4180mm |
Overhead Guard Height | 2120mm |
Turning Radius (outside) | 2700mm |
Travel (Empty load) | 19km/h |
Lifting (Full load) | 320mm/s |
Max.Gradeability (No load/Full load) | 20% |
Tire Front | 250-15-16PR |
Tire Rear | 6.50-10-10PR |
Wheelbase | 1900mm |
Service weight | 5100kg |
Engine Model | 4TNE98 |
Engine Manufacture | YANMAR |
Rated output/r.p.m. | 43/2300 kw |
Rated torque/r.p.m. | 177.6-196.3/1700 Nm |
Bore×Stroke | 98×110mm |
Displacement | 3318cc |
Fuel Tank Capacity | 70L |
Transmission Type | Hydraulic |

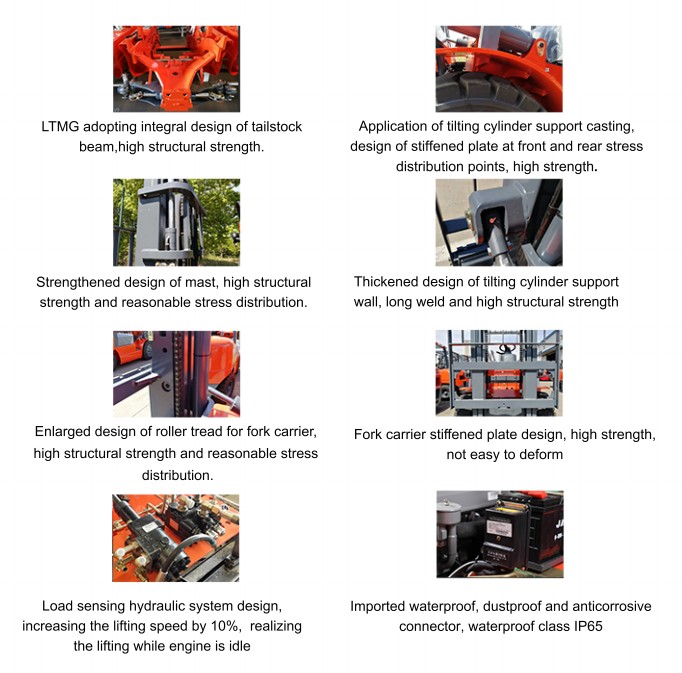

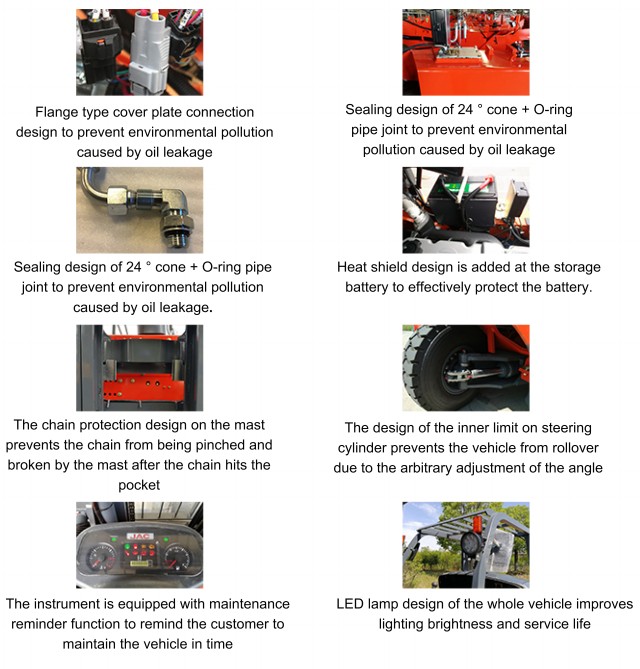

Product Features

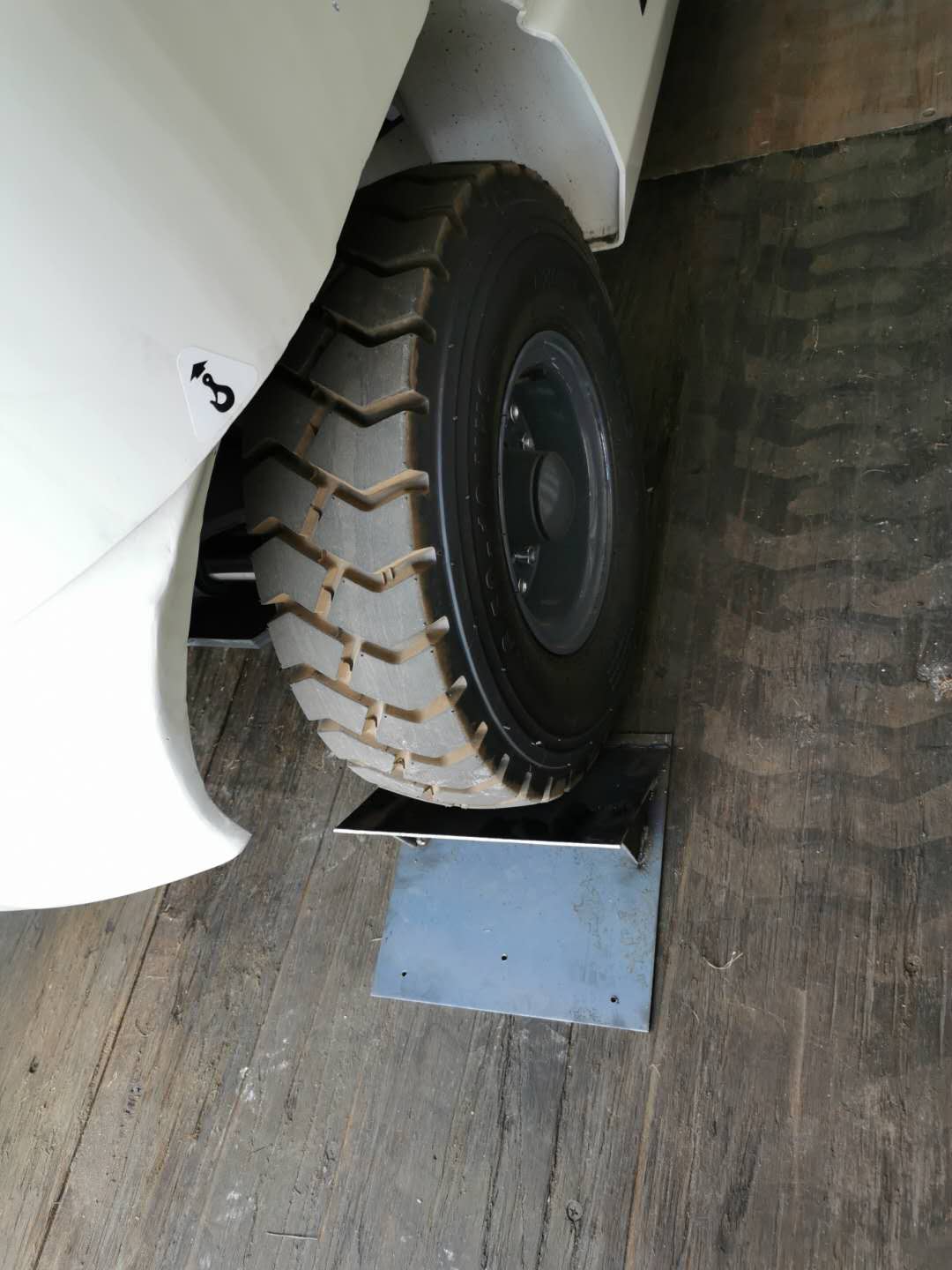

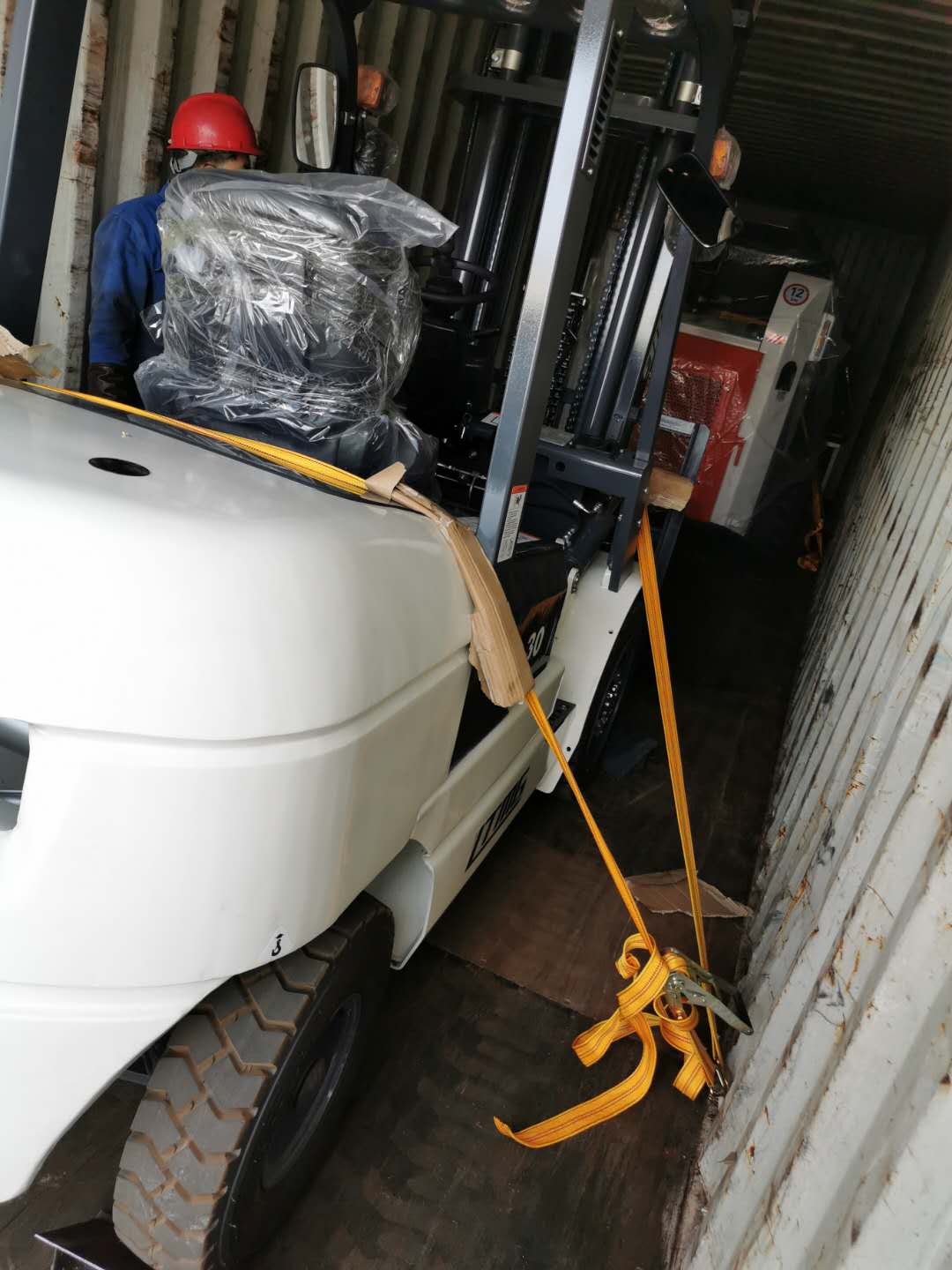

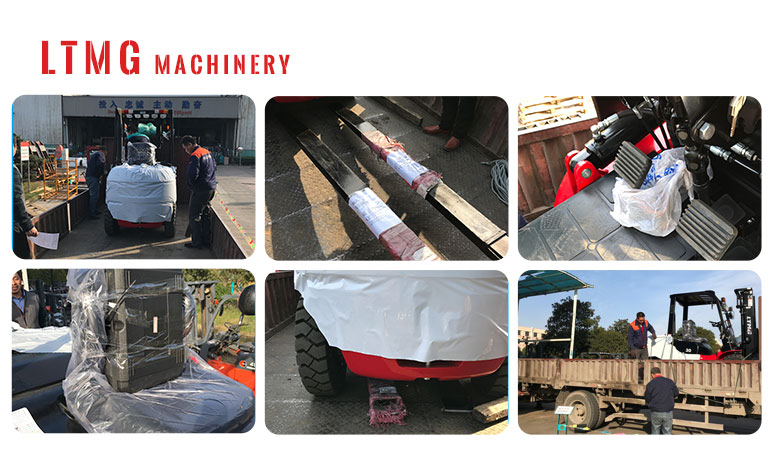

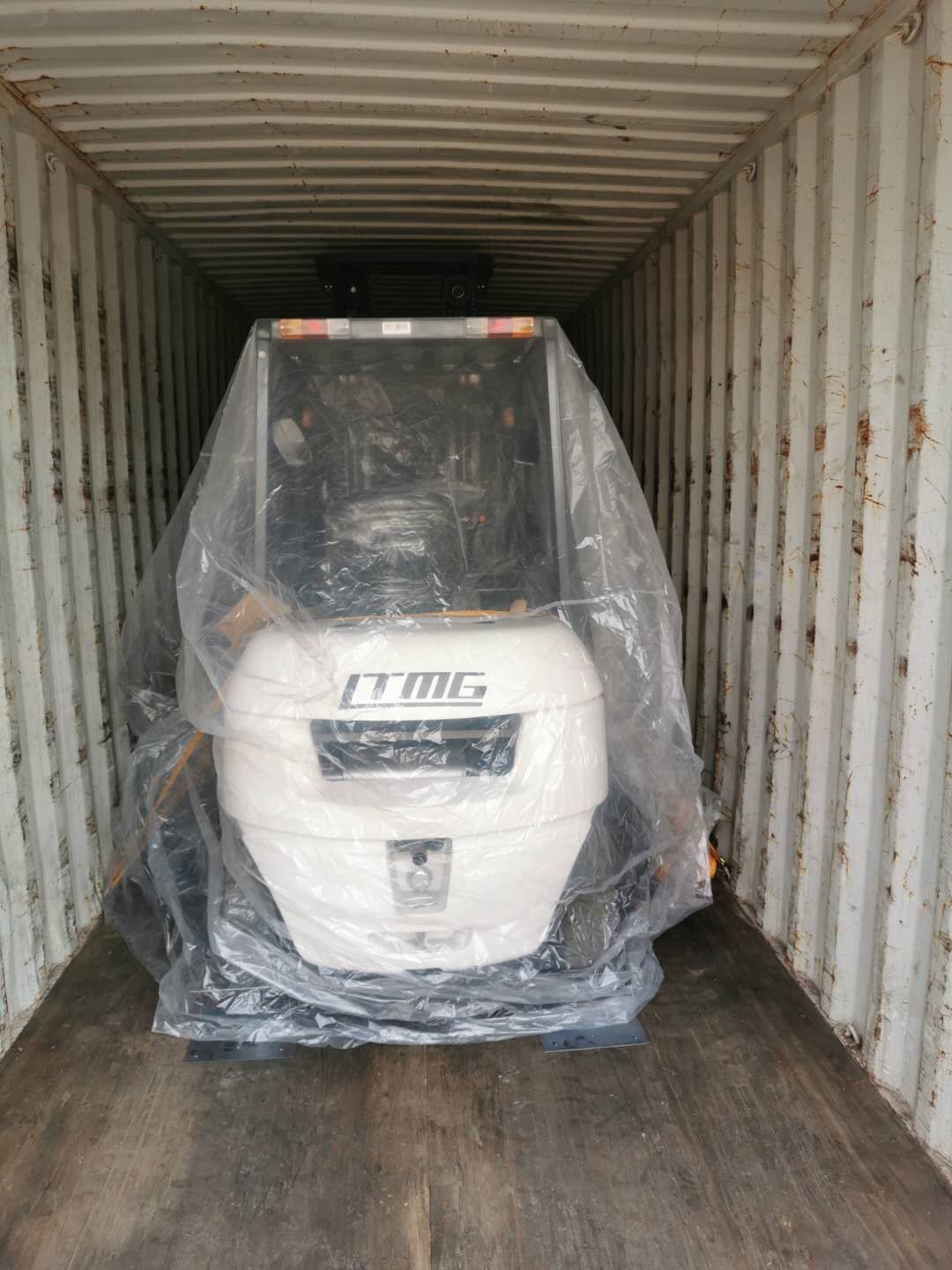

Packing&Shipping

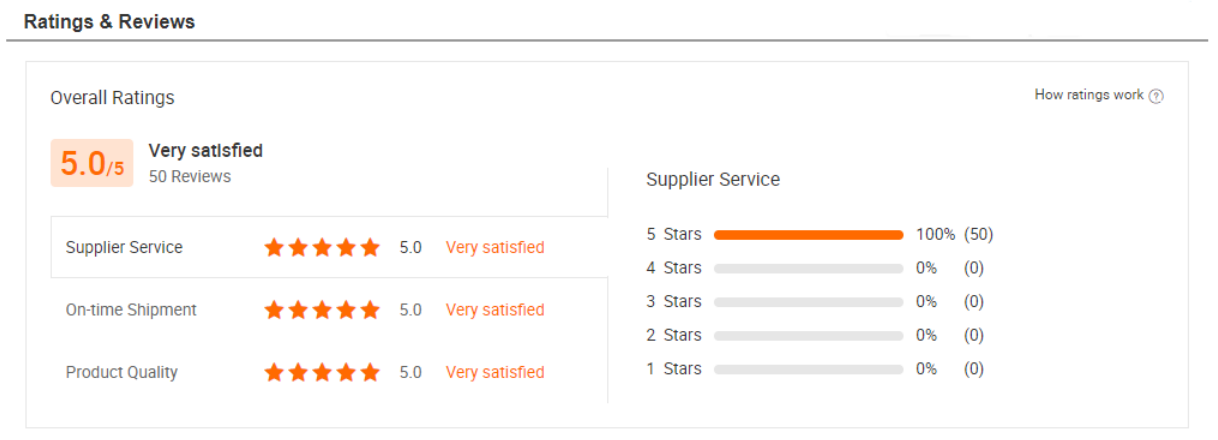

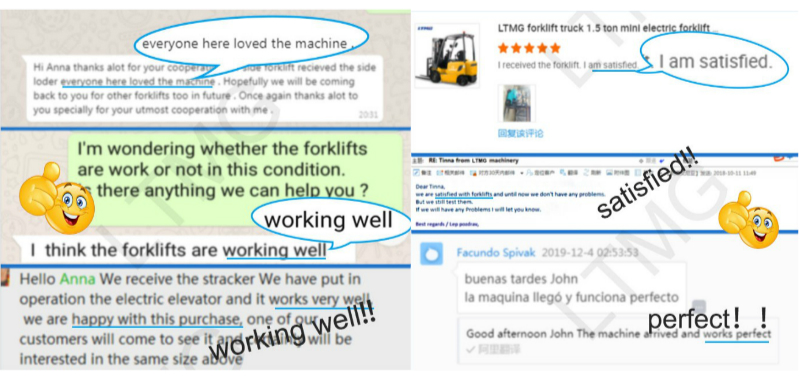

Comments from Customer
After Sales Service
warranty
LTMG guarantee to supply free replacement parts to defective of LTMG product (As below) which proved to be defective in material or workmanship when under proper operation during the below period time from date of B/L date. In the guarantee time, LTMG can replace the spare part to you with next bargain for free. Or LTMG will supply the free-of-charge spare parts while the buyers charge for all the postage and taxation for the spare parts delivered from the Seller.

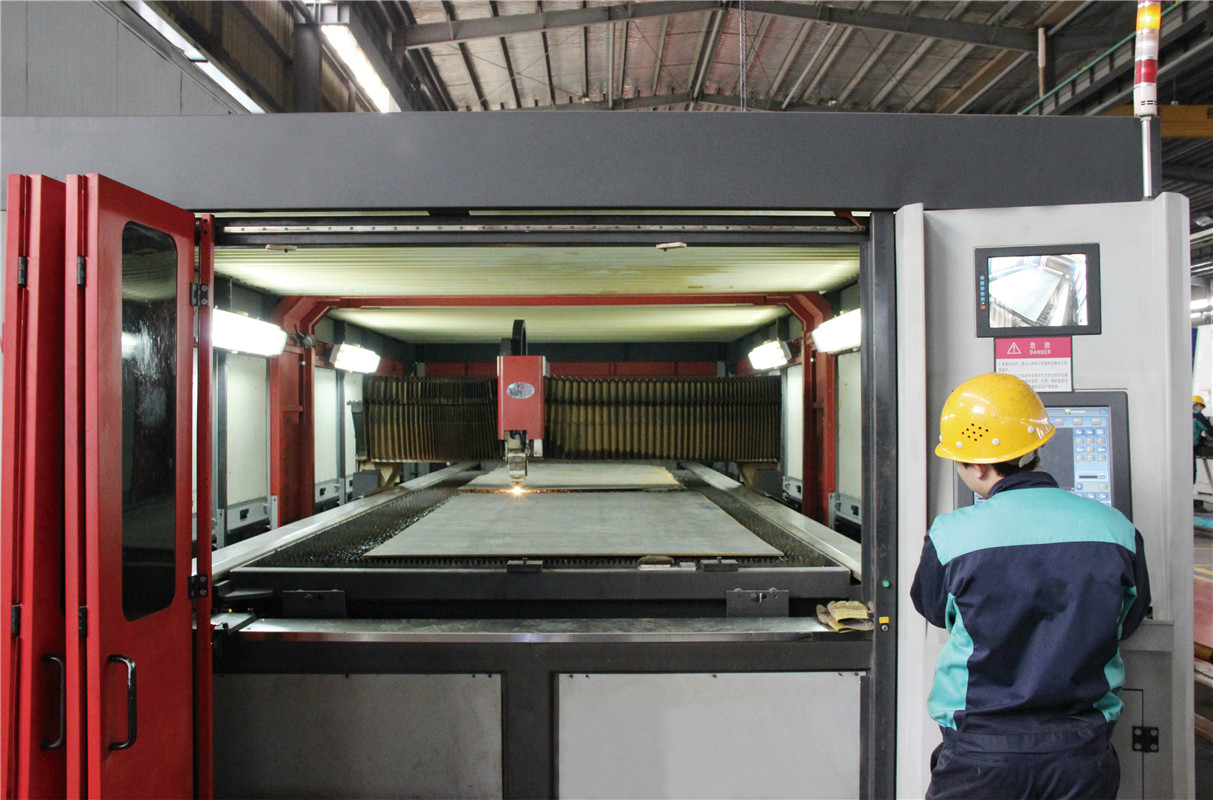

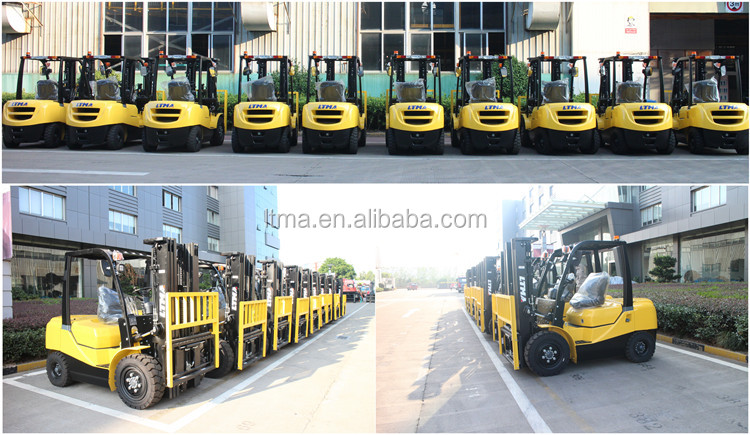

Company Introduction
LTMG MachineryGroup Co., Ltd., which was established in 2001, is a leading manufacturer of Earth moving Equipment,Material Handling Equipment and Quarry Equipment industry. LTMG with a 80,000 square meters production base. After 16 years growing, now LTMG has more than 3000 staffs, among which 100 technicians have more than 10 years experience in forklift and wheel loader manufacturing industry, with rich experience and comprehensive technology.
Our Services & Strength
LTMG is ISO9001: 2000 quality management system certified and SGS approved. Company products with excellent quality and perfect after-sales services, Products gets the"CE certificate"North America EPA certificate and Russia GOST certificate and so on. With the Honor of Chinese famous quality products. Abiding by Contracts and Keeping Promises Enterprise, Safety Production Model Price. Project Construction Recommend Products and so on.
