- Warranty:one year or 2000 working hours
- Engine:Isuzu C240 / mitsubishi /Chinese engine
- Free size:1070X125X45mm
- Load Center:500mm
- Free lift:150mm
- Tire:Pneumatic Tire or solid is optional

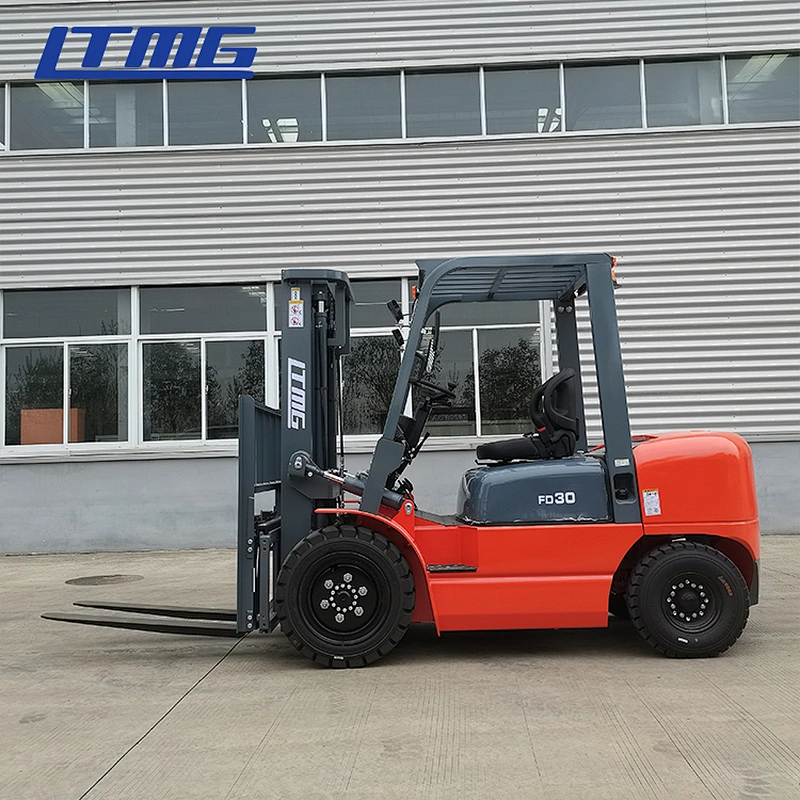

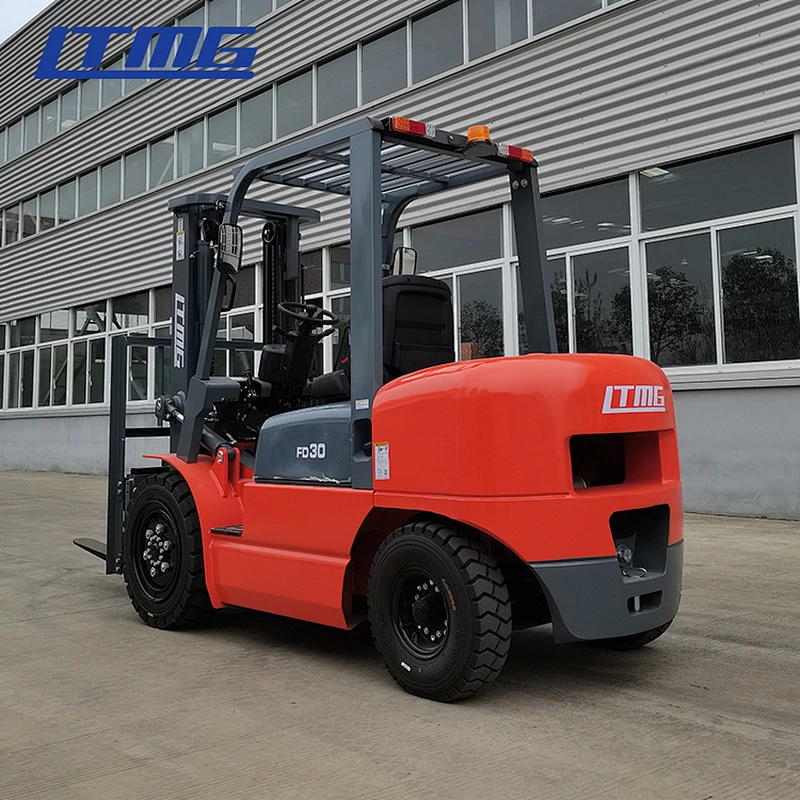

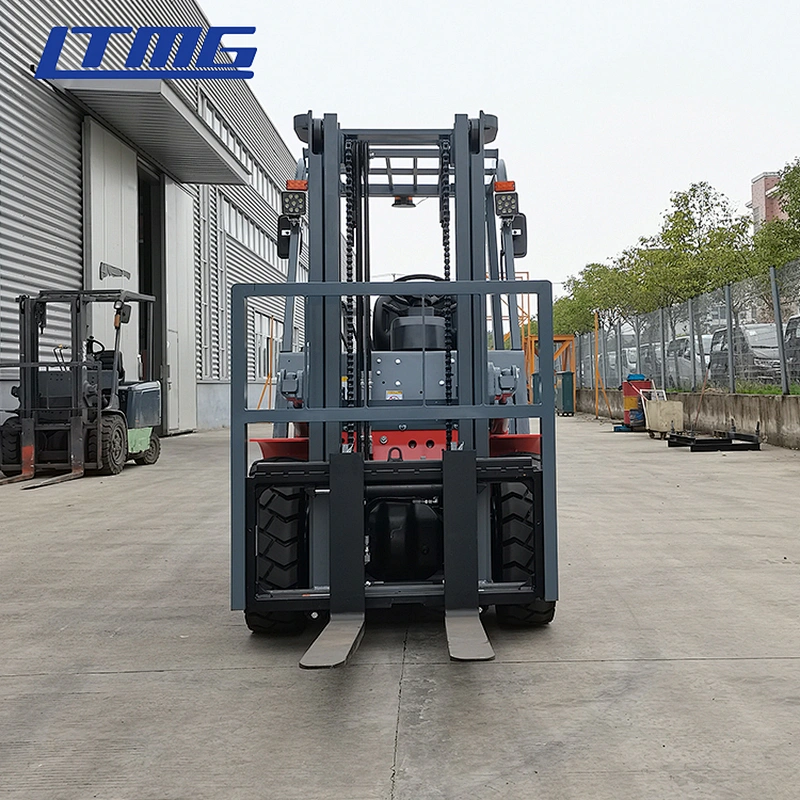

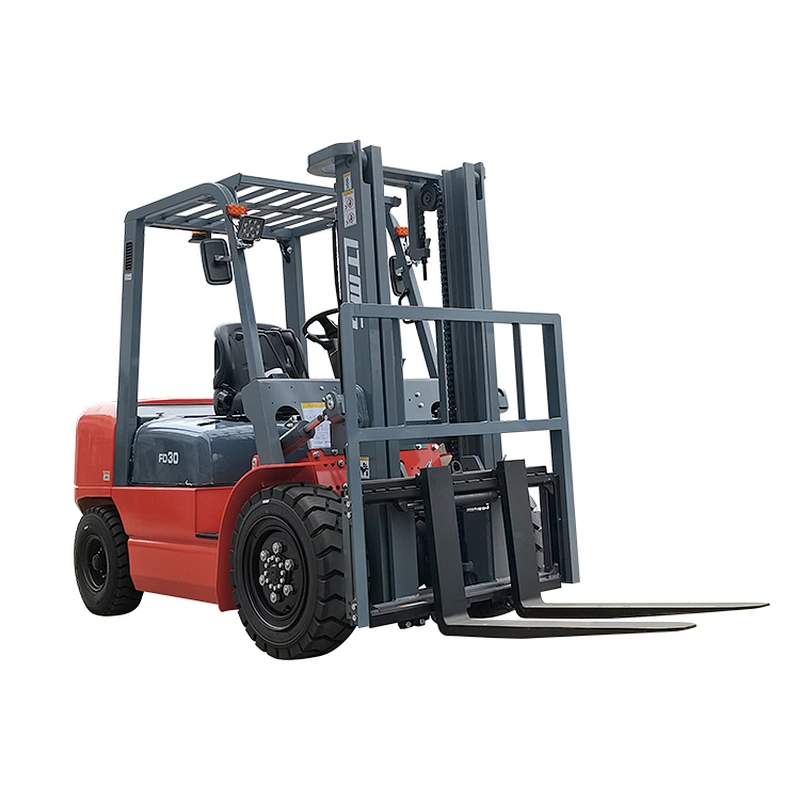

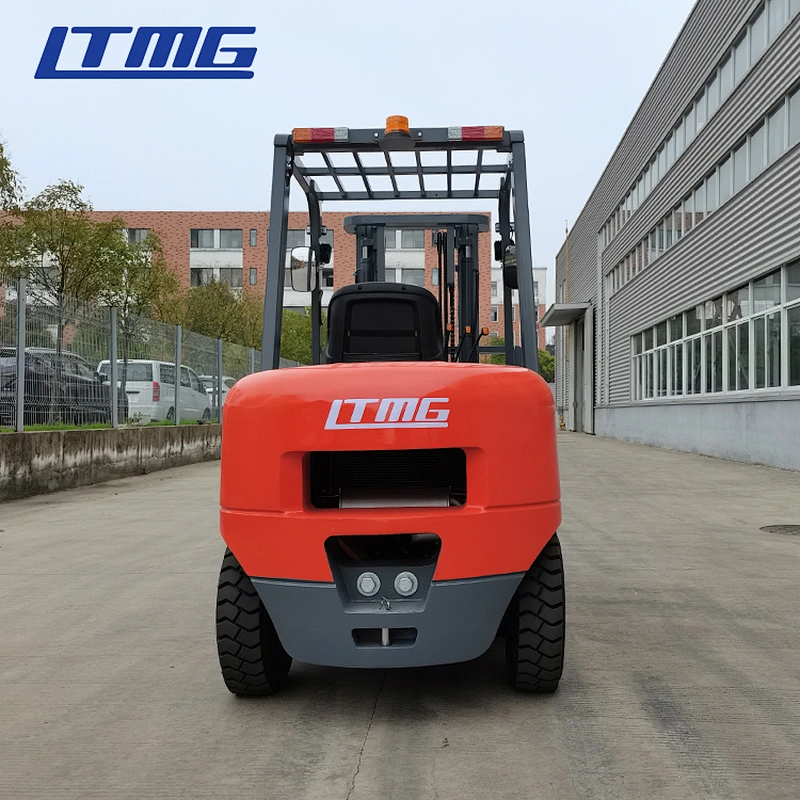

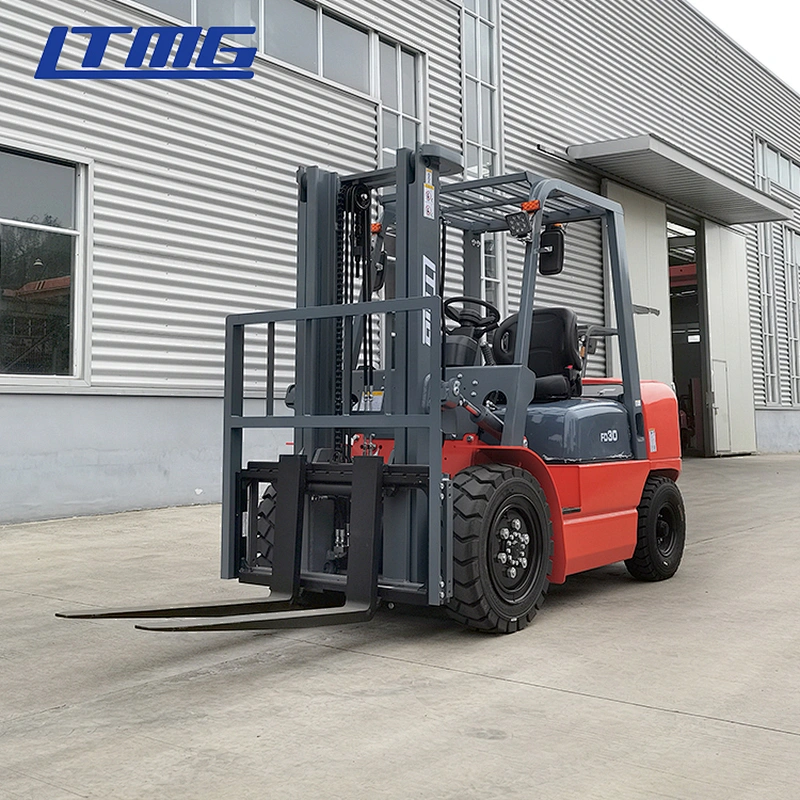

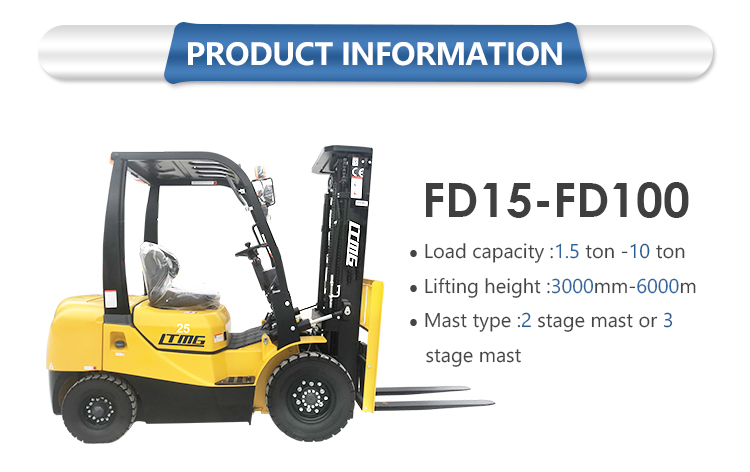

- Product Name:LTMG brand diesel forklift 3 ton 5 ton forklift truck
- Cab with A/C:Optional
- Wheelbase:1700mm
- Transmission type:hydraulic ( automatic )
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Canada
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Viet Nam
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Canada
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Pump
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:125
- Overall Dimensions:2705*1225*2075
- Certification:CE/ISO9001
- Marketing Type:Hot Product 2021
Standard configuration

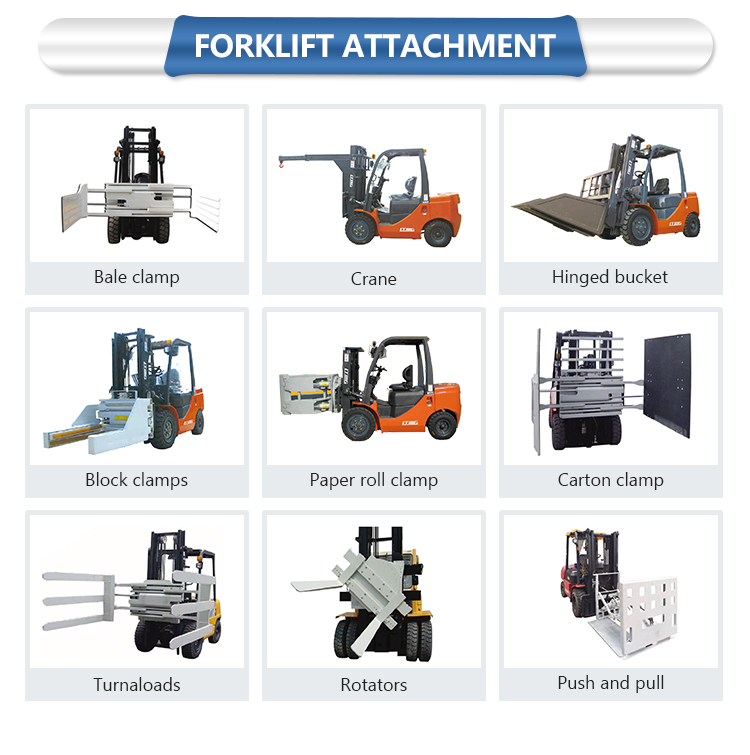

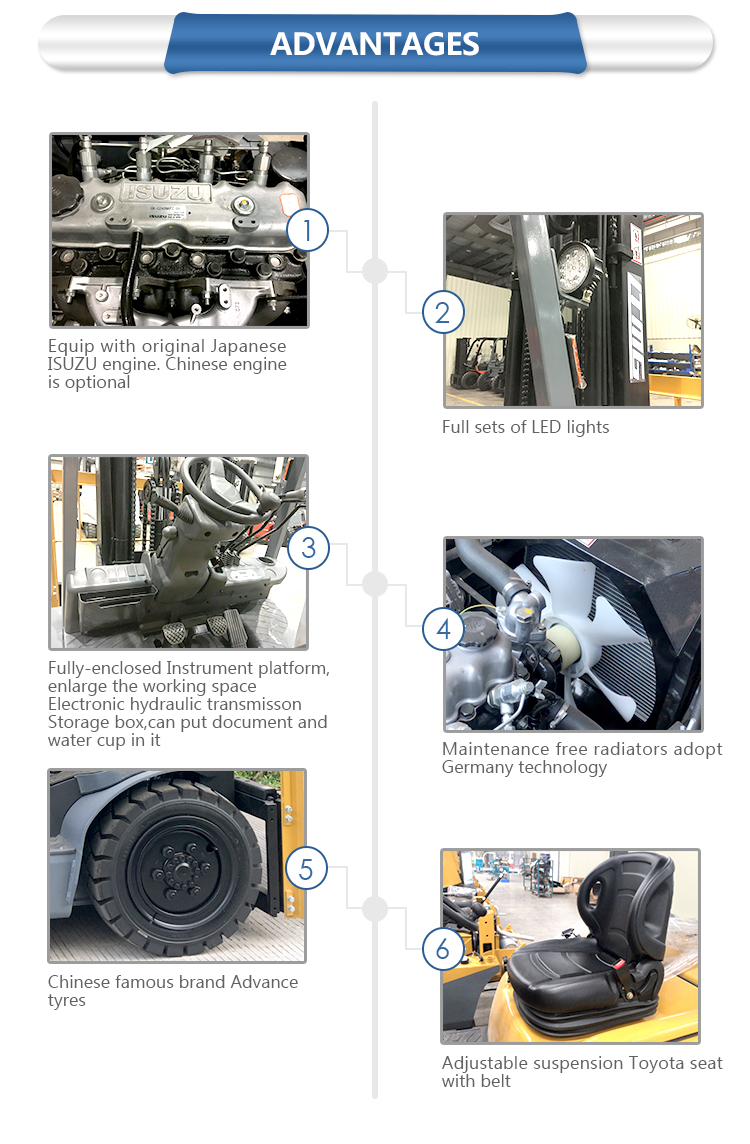

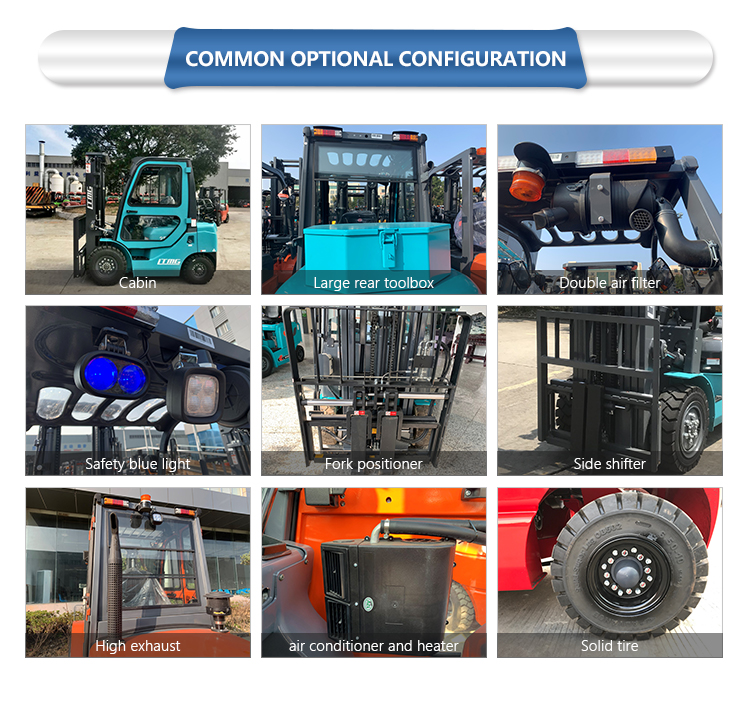

1.Equipped with Chinese powerful and reliable engines with excellent environmental performance; 2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.3.install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.Optional1.Japan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.2.Lifting Height 3m-7m3.Full-free Duplex or Triplex Mast4.Side Shift, Solid Tires, Suspension Seat, fork positioner .5.Driver's Cabin, Customized Color, air-conditioner, etc.6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Specifications of 3 ton forklift truck | ||||||
Model | FD30 | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2705 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised(with backrest) | mm | 4250 | ||||
Height to head guard | mm | 2140 | ||||
Turning raduis(outside) | mm | 2445 | ||||
Front face of fork to front axle | mm | 480 | ||||
Min. right angle stacking aisle | without load length&clearence | mm | 2925 | |||
Speed | Max Travelling full/no load | km/h | 18/19.5 | |||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/450 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 | |||
Manual shift T/M full/no load | kg | 1550/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |||
Manual shift T/M full/no load | % | 18/20 | ||||
Truck weight | kg | 4380 | ||||
Weight distribution | Full load front/rear | kg | 6490/890 | |||
No load front/rear | kg | 1670/2700 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1000/970 | |||
Ground clearence | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/80 | |||
Engine | Model | ISUZU C240 | ||||
Rated power | kw/rpm | 34.3/2500 | ||||
Rated torque | N.m/rpm | 138/1800 | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.369 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |||
