- Load Center:500mm
- Color:Customized
- Mast:2 Stage/3 Stage
- Free Lift:150mm
- Fork Length:1070mm
- Fork Size:1070*125*45mm
- Wheelbase:1700mm
- Engine:Chinese or Japanese engine
- Mast Tilt Angle:6°/12°

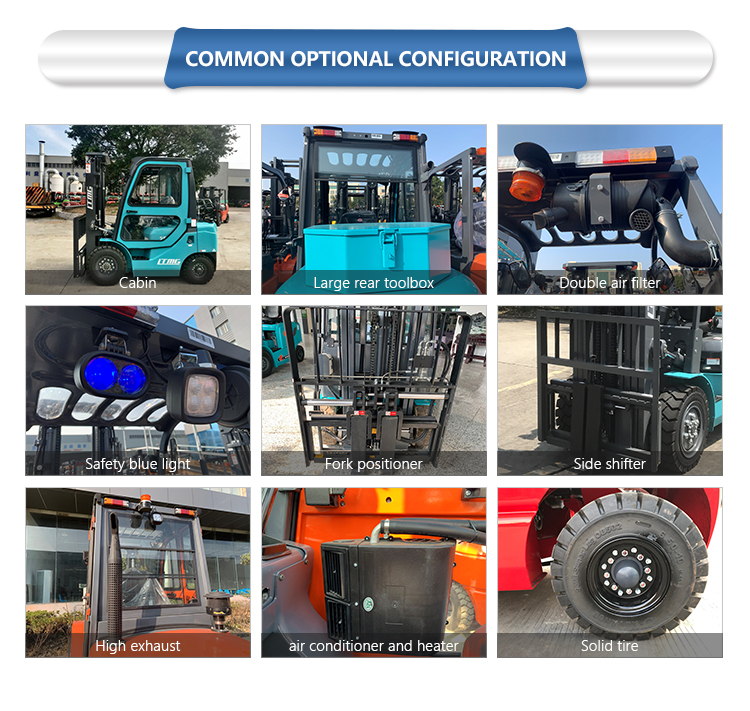

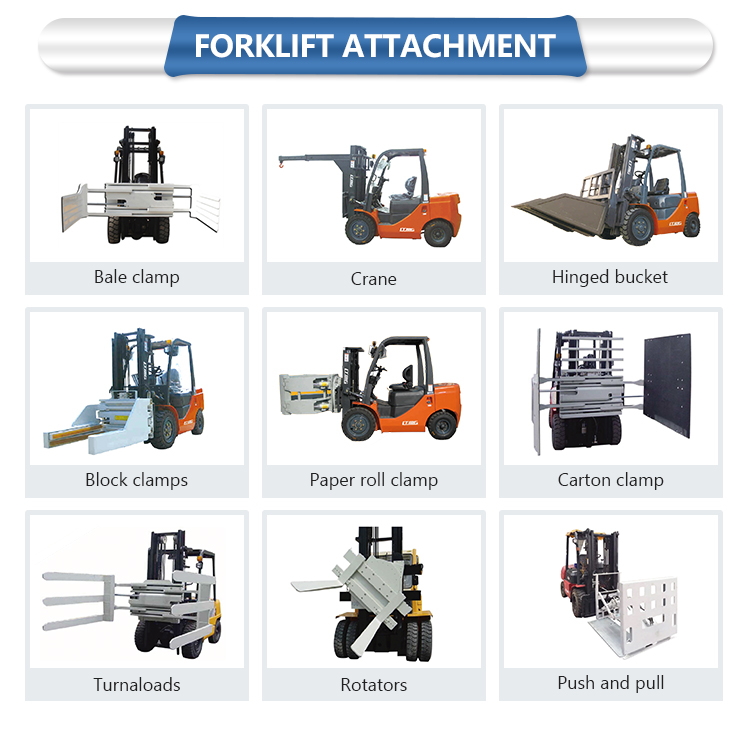

- Optional:side shift, lifting height, enclosed cab, etc
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Restaurant
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Spain
- Showroom Location:Kenya
- Showroom Location:South Korea
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:140mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2775*1225*2115
- Certification:CE/ISO9001

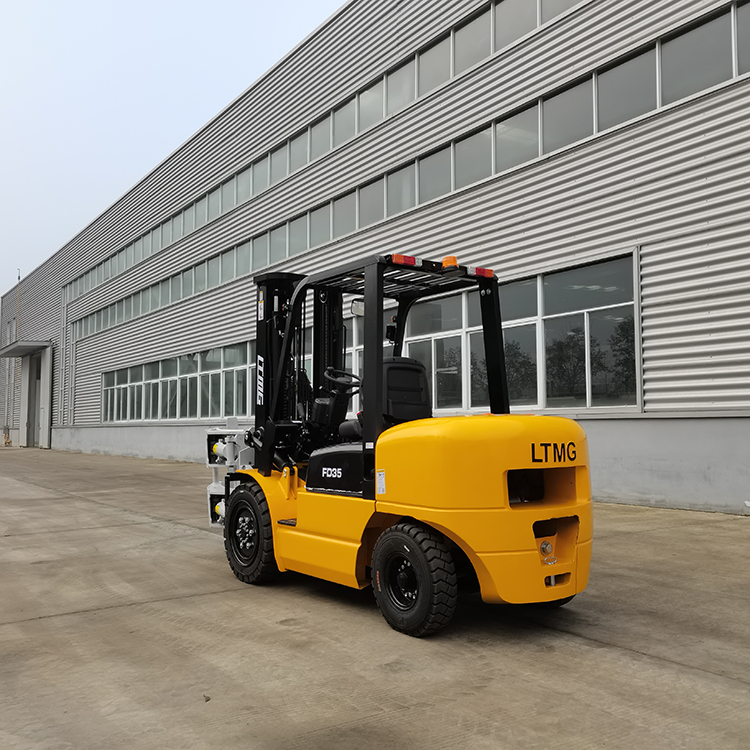

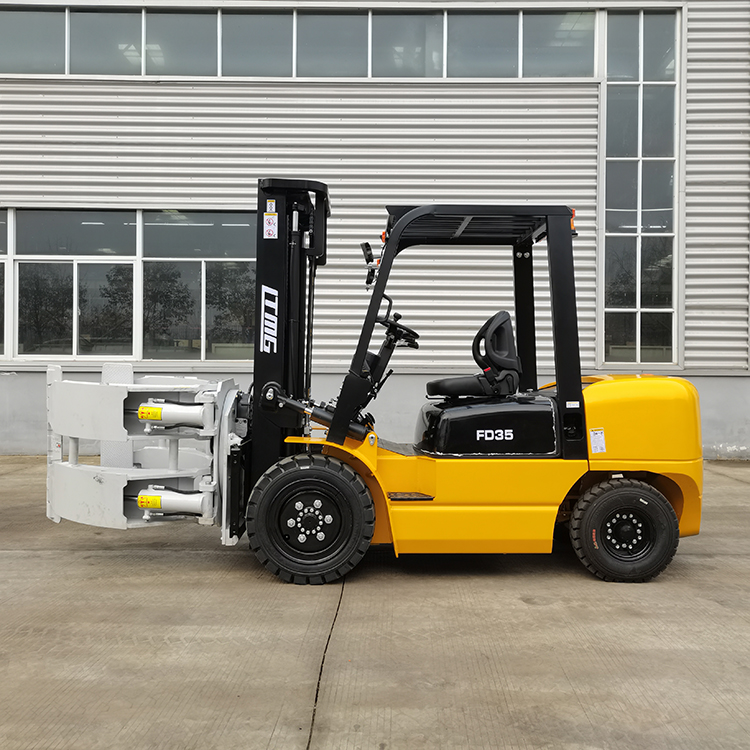

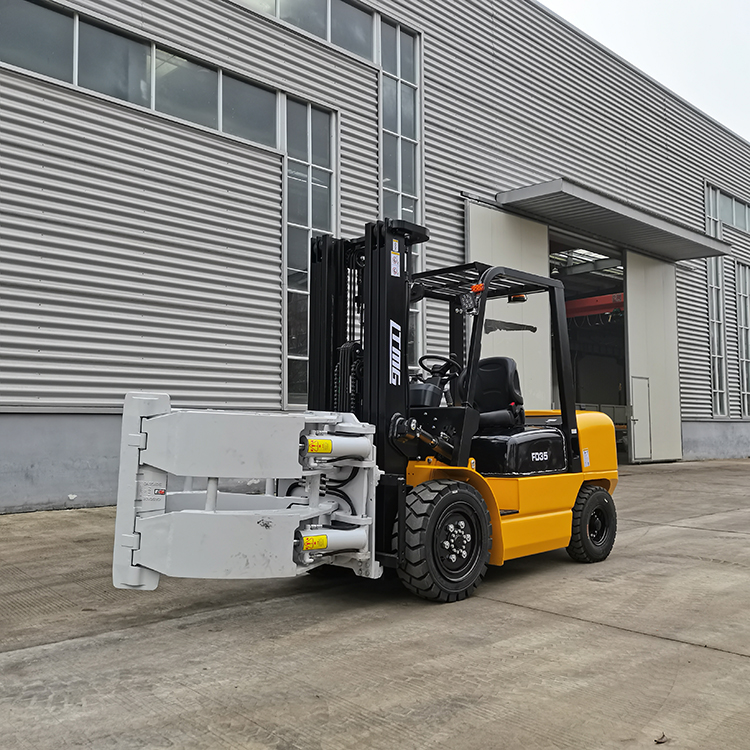

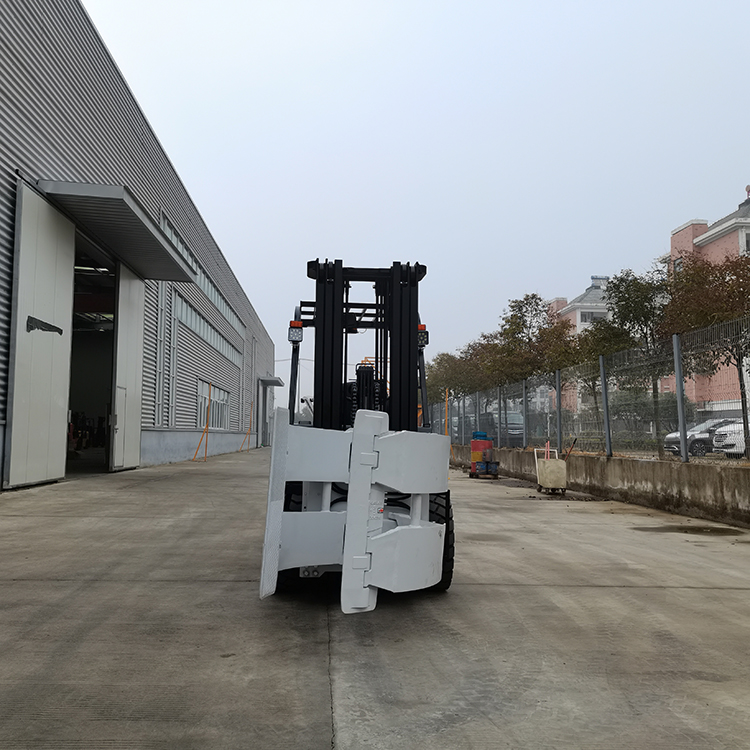

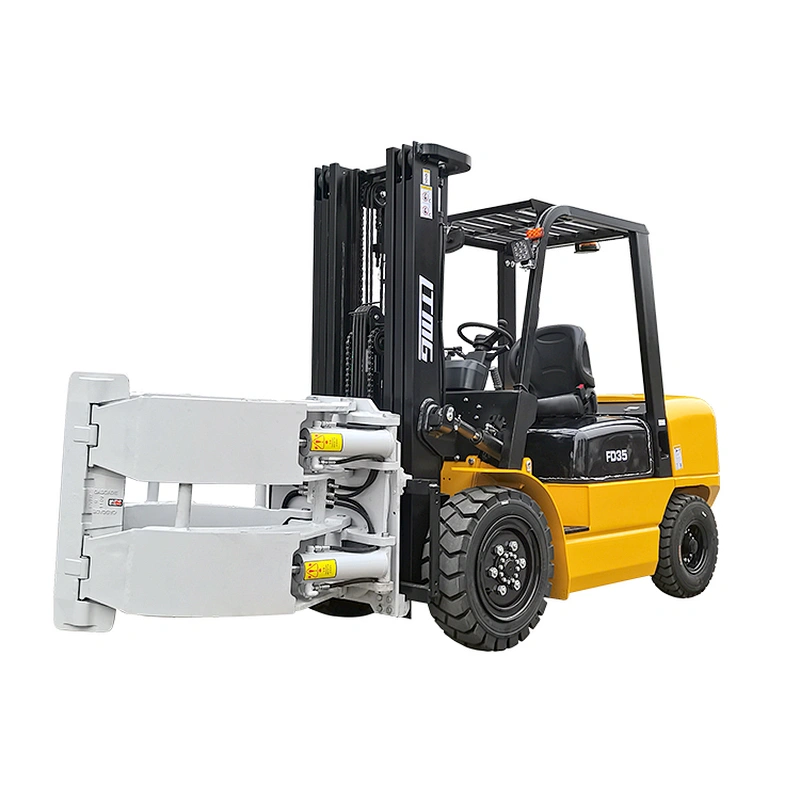

General | 1 | Model | FD35 | |||||
2 | Power Type | Diesel | ||||||
3 | Rated Capacity | kg | 3500 | |||||
4 | Load Centre | mm | 500 | |||||
Characteristic&Dimension | 5 | Lift Height | mm | 3000 | ||||
6 | Fork Size | L×W×T | mm | 1070×125×50 | ||||
7 | Mast Tilt Angle | F/R | Deg | 6°/12° | ||||
8 | Front Overhang (Wheel center to fork face) | mm | 485 | |||||
9 | Ground Clearance（Bottom of mast） | mm | 140 | |||||
10 | Overall Dimension | Length to face of fork(Without fork) | mm | 2775 | ||||
11 | Overall Width | mm | 1225 | |||||
12 | Mast Lowered Height | mm | 2115 | |||||
13 | Mast Extended Height(With backrest) | mm | 4150 | |||||
14 | Overhead Guard Height | mm | 2090 | |||||
15 | Turning Radius (outside) | mm | 2480 | |||||
Performance | 16 | Speed | Travel (Empty load) | km/h | 20 | |||
17 | Lifting (Full load) | mm/s | 440 | |||||
18 | Max.Gradeability (No load/Full load) | % | 20 | |||||
Chassis | 19 | Tire | Front | mm | 28×9-15-12PR | |||
20 | Rear | mm | 6.50-10-10PR | |||||
21 | Wheelbase | mm | 1700 | |||||
22 | Service weight | kg | 4500 | |||||
Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | 12/80 | |||
24 | Engine | Model | 4JG2PE-01 | |||||
25 | Manufacture | ISUZU | ||||||
26 | Rated output/r.p.m. | kw | 46/2450 | |||||
27 | Rated torque/r.p.m. | N·m | 184.7/1600-1800 | |||||
28 | No.of Cylinder | 4 | ||||||
29 | Bore×Stroke | mm | 95.4×107 | |||||
30 | Displacement | cc | 3059 | |||||
31 | Fuel Tank Capacity | L | 60 | |||||
32 | Transmission | Type | Hydraulic | |||||
33 | Stage | FWD/RVS | 1/1 | |||||
Standard Configuration:
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.

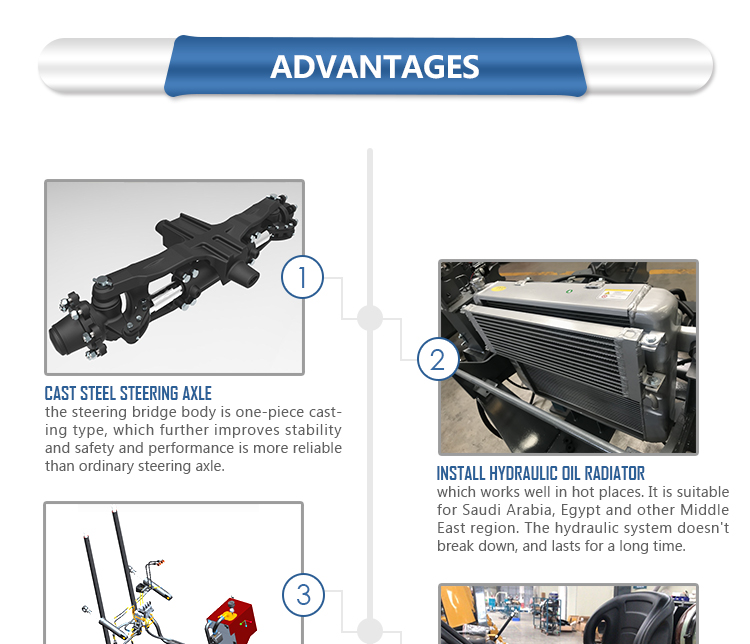

》TheCasting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.

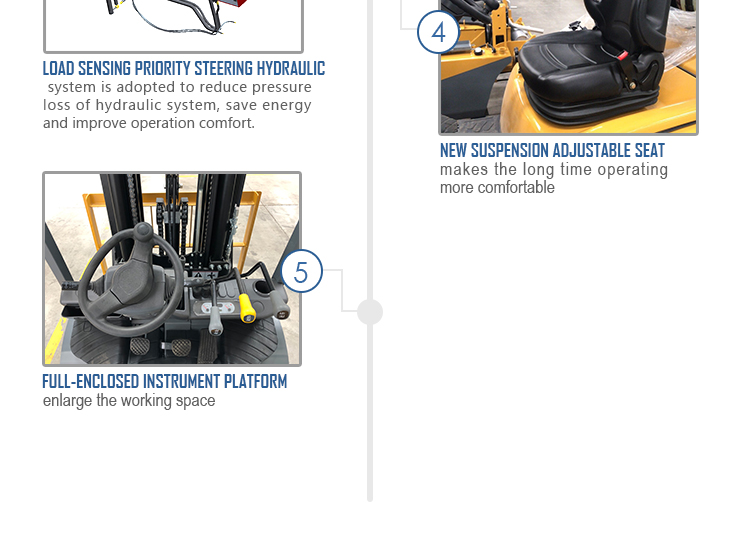

》AdoptPriority Steering System, which improve the work efficiency.
》OriginalToyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》TheCasting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》AdoptPriority Steering System, which improve the work efficiency.
》OriginalToyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
LTMG always treat after-sale service as important as sale.
.All the product of LTMG supplied with one year or 2000 working hours (which occurs
first) period quality warranty.Detail clauses and policies please check our website and product certificate.
first) period quality warranty.Detail clauses and policies please check our website and product certificate.
