- Loading Capacity:5000kg
- Mast:Duplex Mast or triplex mast
- Brand:LTMG
- Item:diesel forklift
- Engine:Chinese Engine
- Load Center:500mm
- Displacement:6494cc
- Turning Radius:2940mm
- Service weight:6700kg
- website:www.xlteng.com
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:warehouse logistics
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:South Africa
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 YEAR
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:3260*1460*23400mm
- Certification:CE/ISO9001:2008

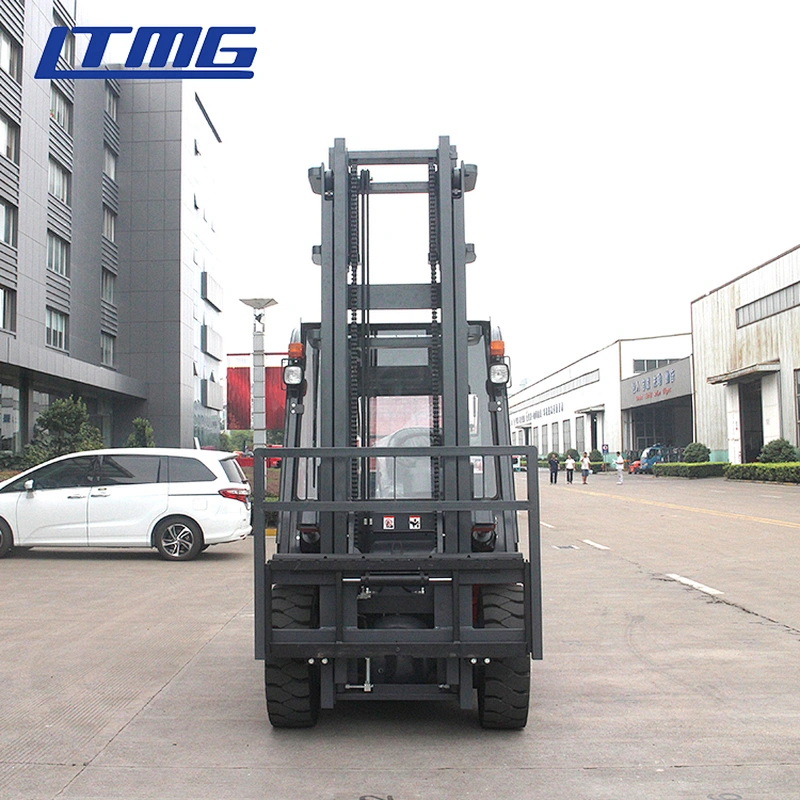

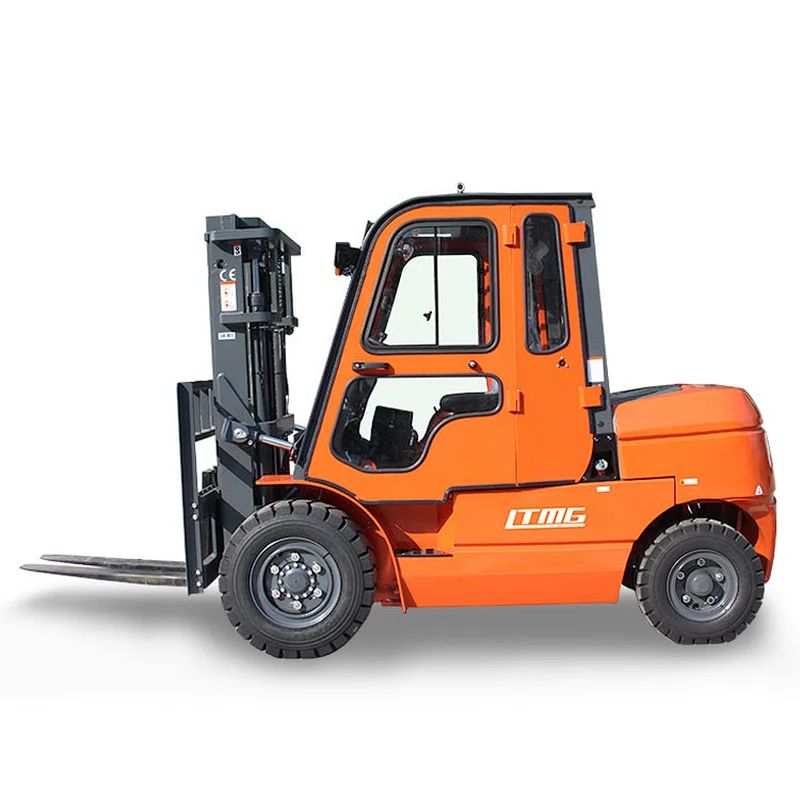

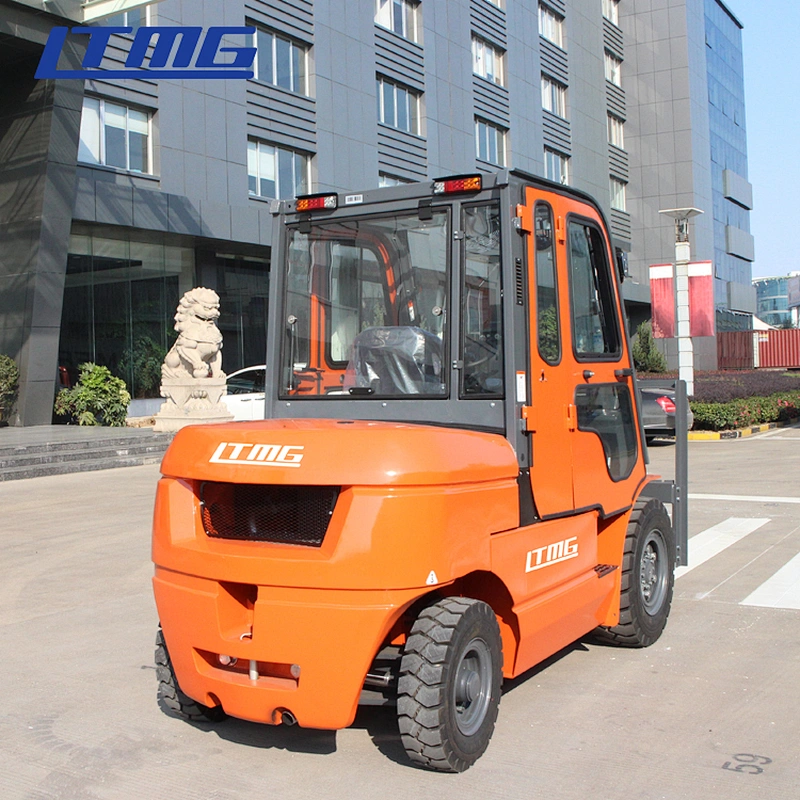

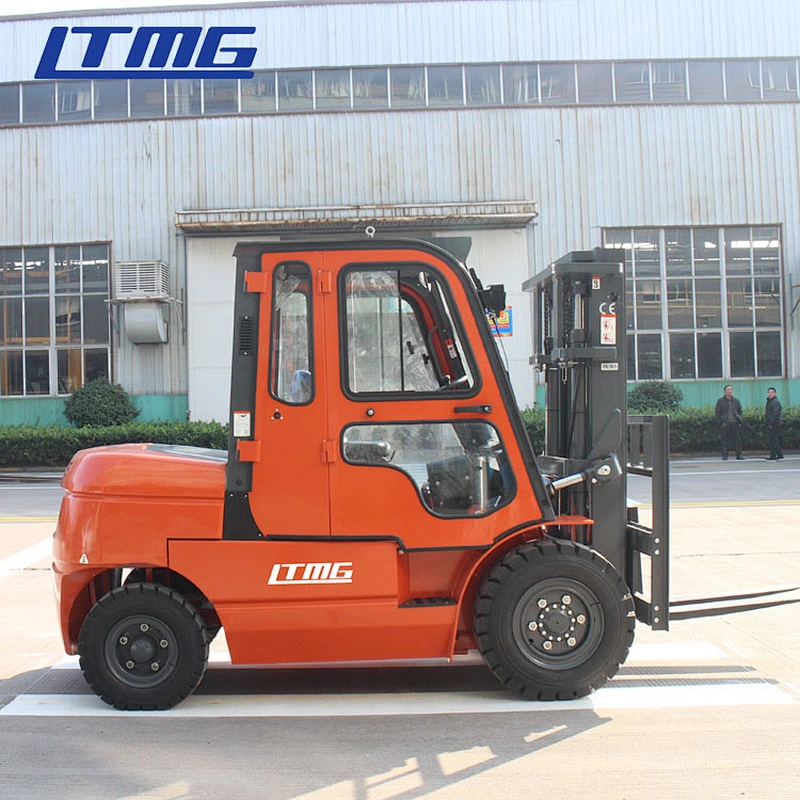

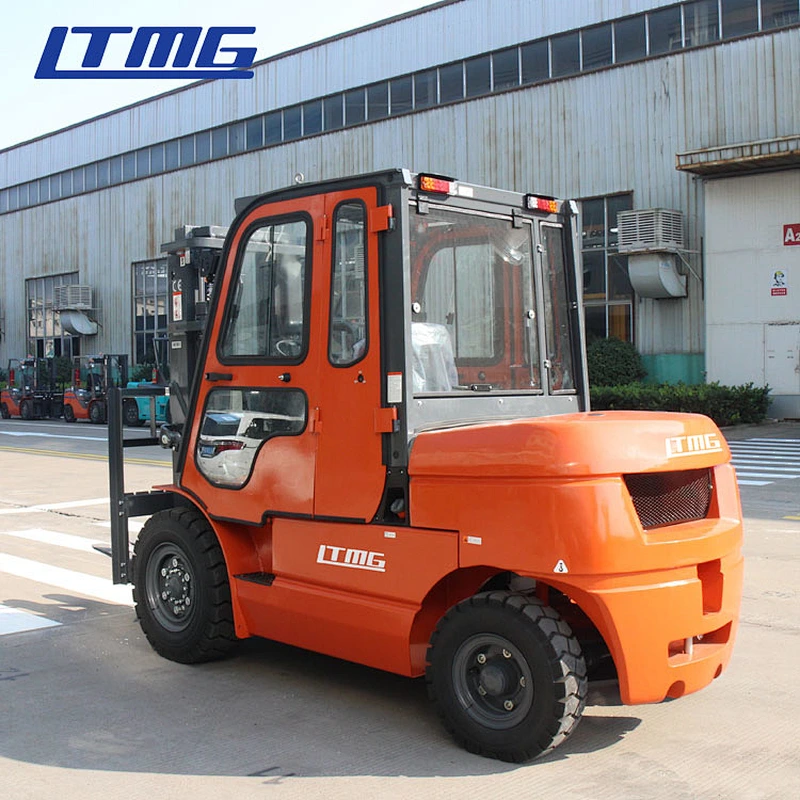

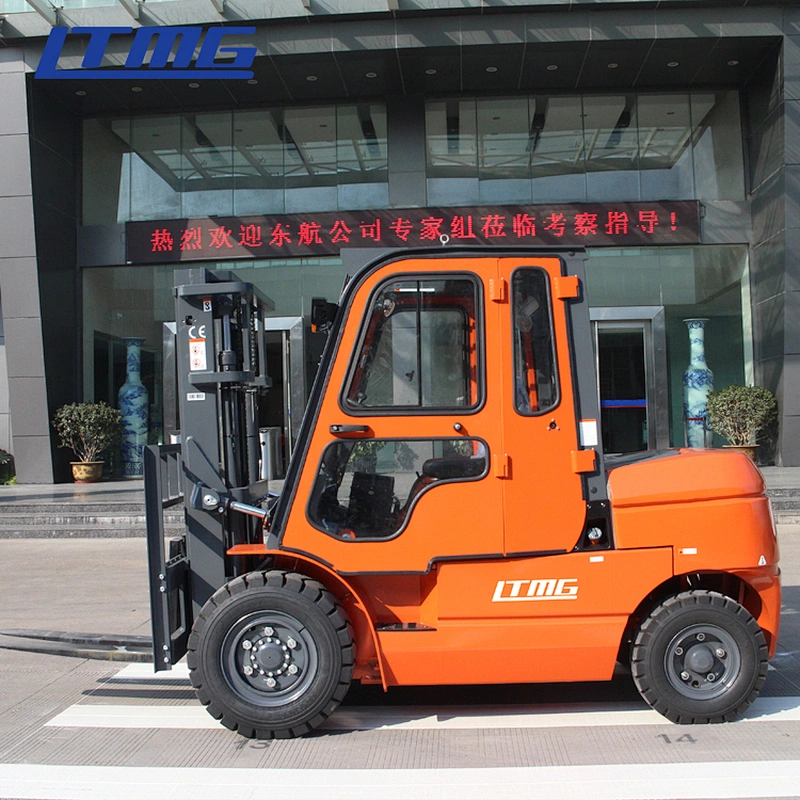

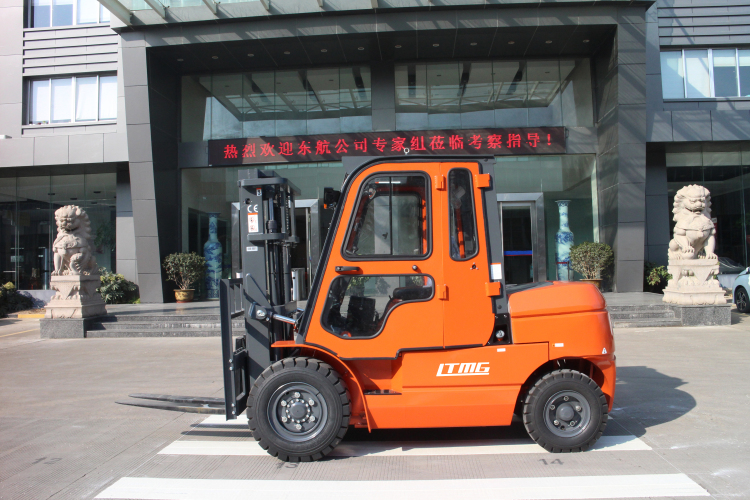

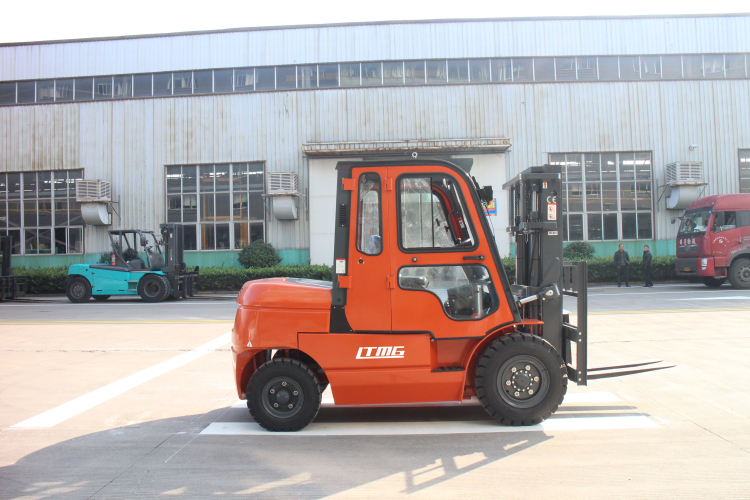

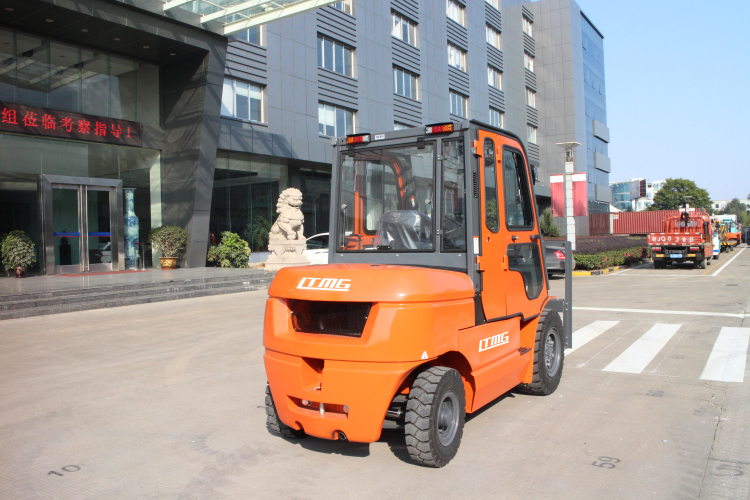

LTMG 5ton Diesel Forklift with Enclosed cabin, AC and Free heater

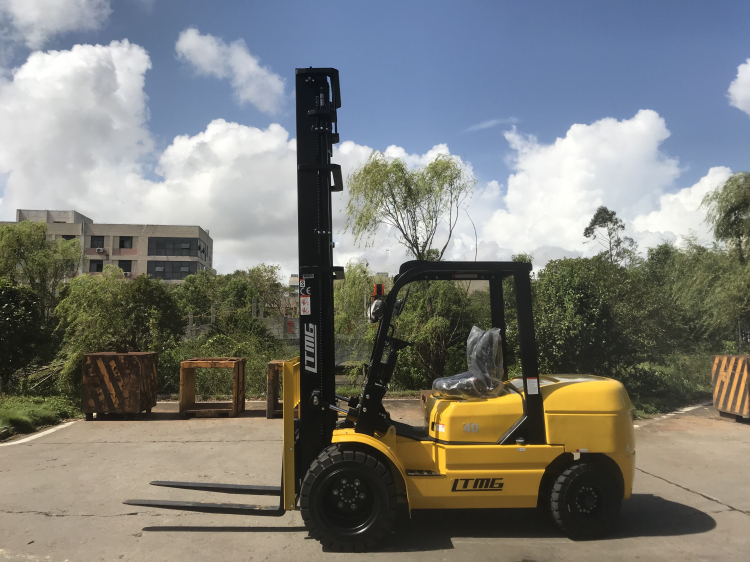

LTMG 4ton Diesel Forklift with 2 Stage Mast and 6m Lifting Height

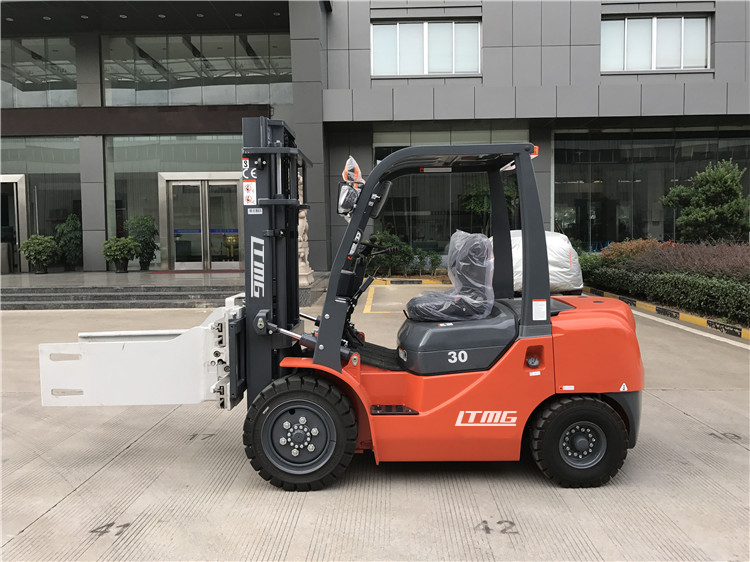

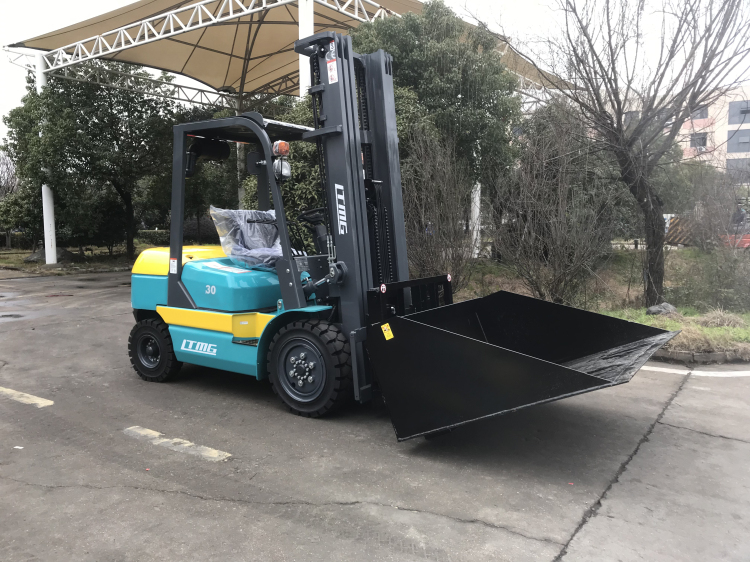

LTMG 3ton Diesel Forklift with Various Forklift Attachments: Hinged Bucket, Bale Clamp etc
The Specification of 5ton Diesel forklift | ||||
Model | FD50 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 5000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×150×50 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 579 | ||
Ground Clearance（Bottom of mast） | mm | 150 | ||
Length to face of fork(Without fork) | mm | 3260 | ||
Overall Width | mm | 1460 | ||
Mast Lowered Height | mm | 2270 | ||
Mast Extended Height(With backrest) | mm | 4165 | ||
Overhead Guard Height | mm | 2340 | ||
Turning Radius (outside) | mm | 2910 | ||
Travel Speed(Full load) | km/h | 25 | ||
Lifting Speed(Full load) | mm/s | 380 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 300-15-18PR | ||
Rear Tire | mm | 7.00-12-12PR | ||
Wheelbase | mm | 2100 | ||
Service weight | kg | 6700 | ||
Battery(Voltage/Capacity) | V/Ah | (12/80) x 2 | ||

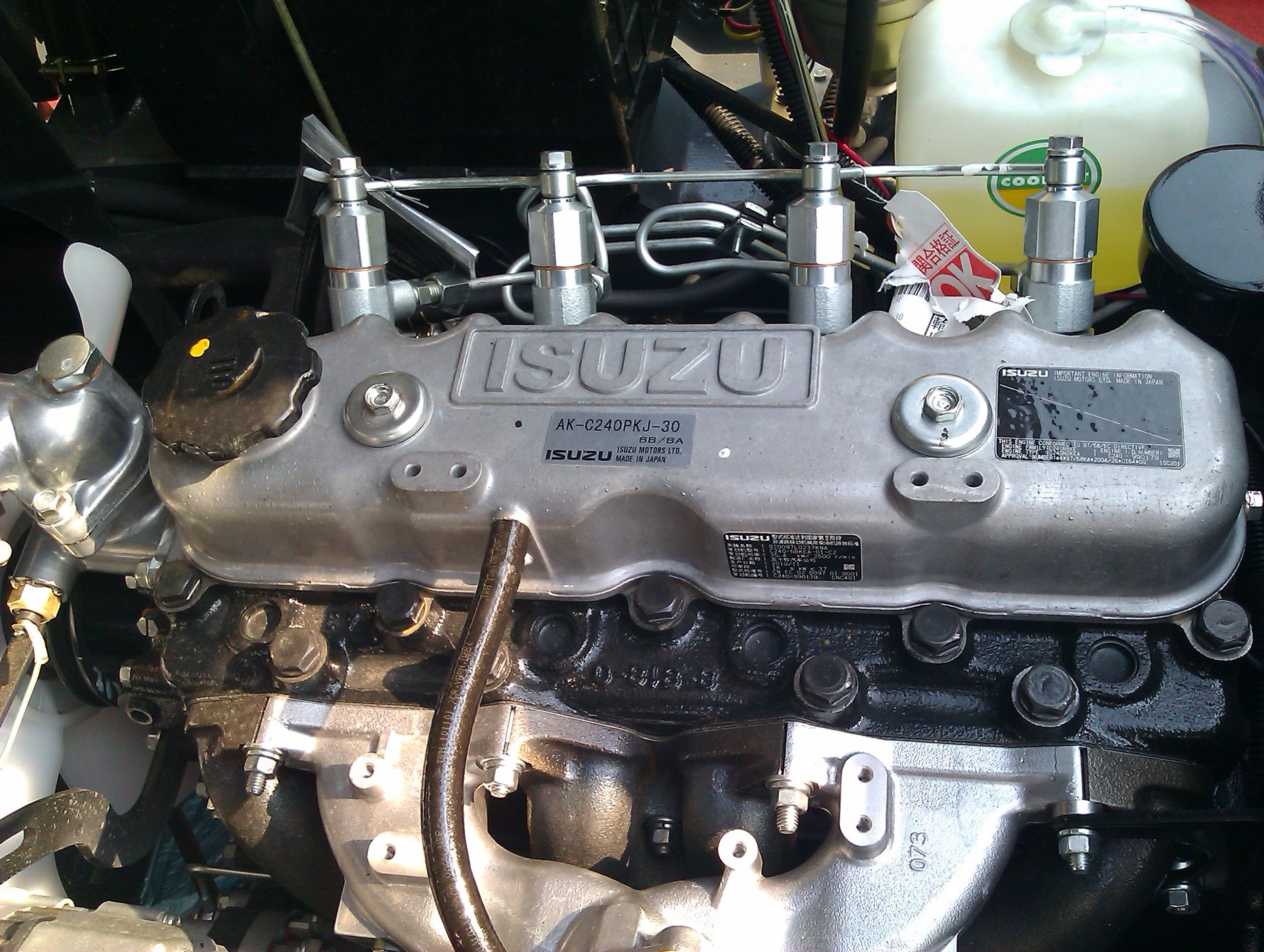

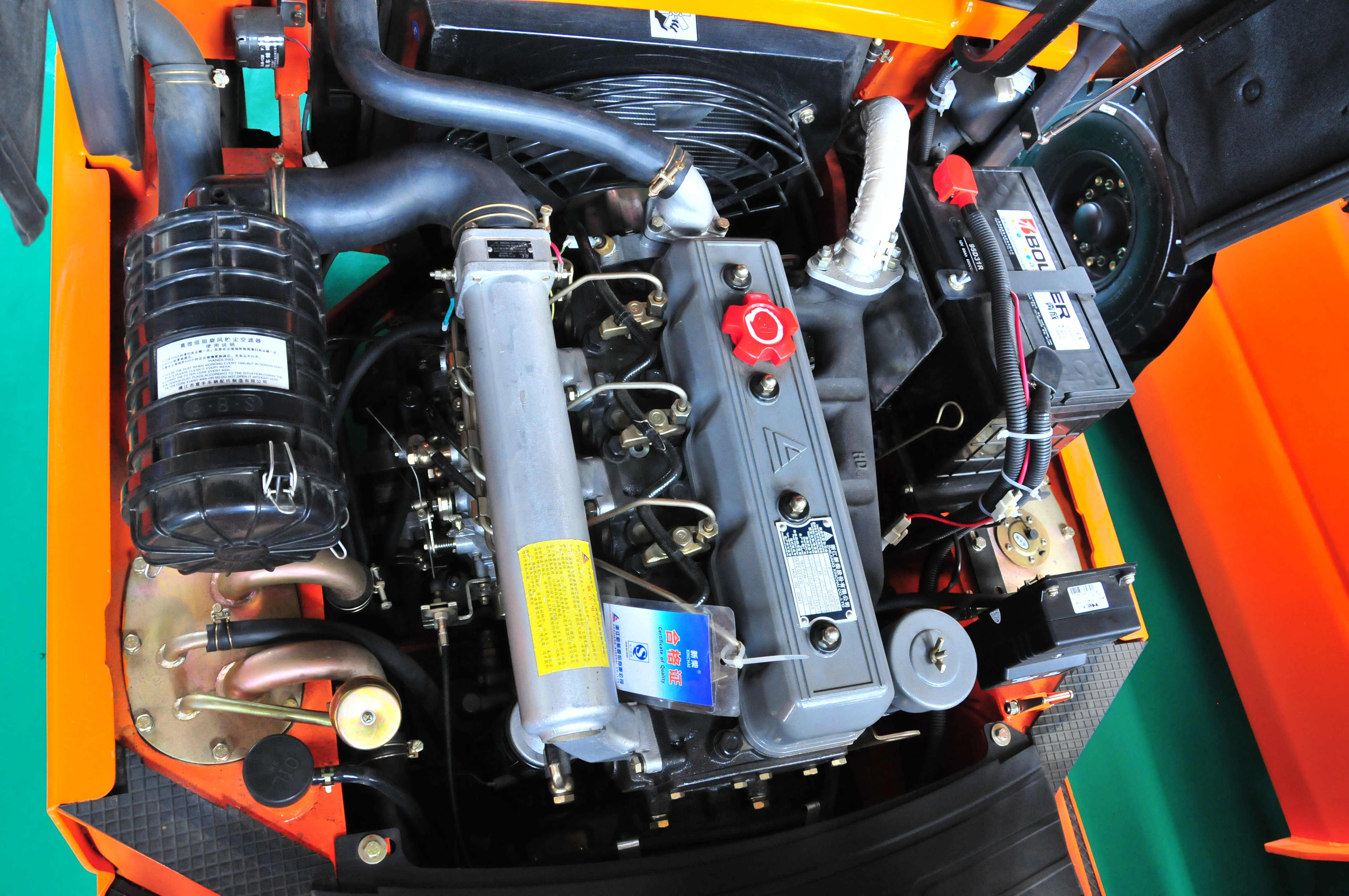

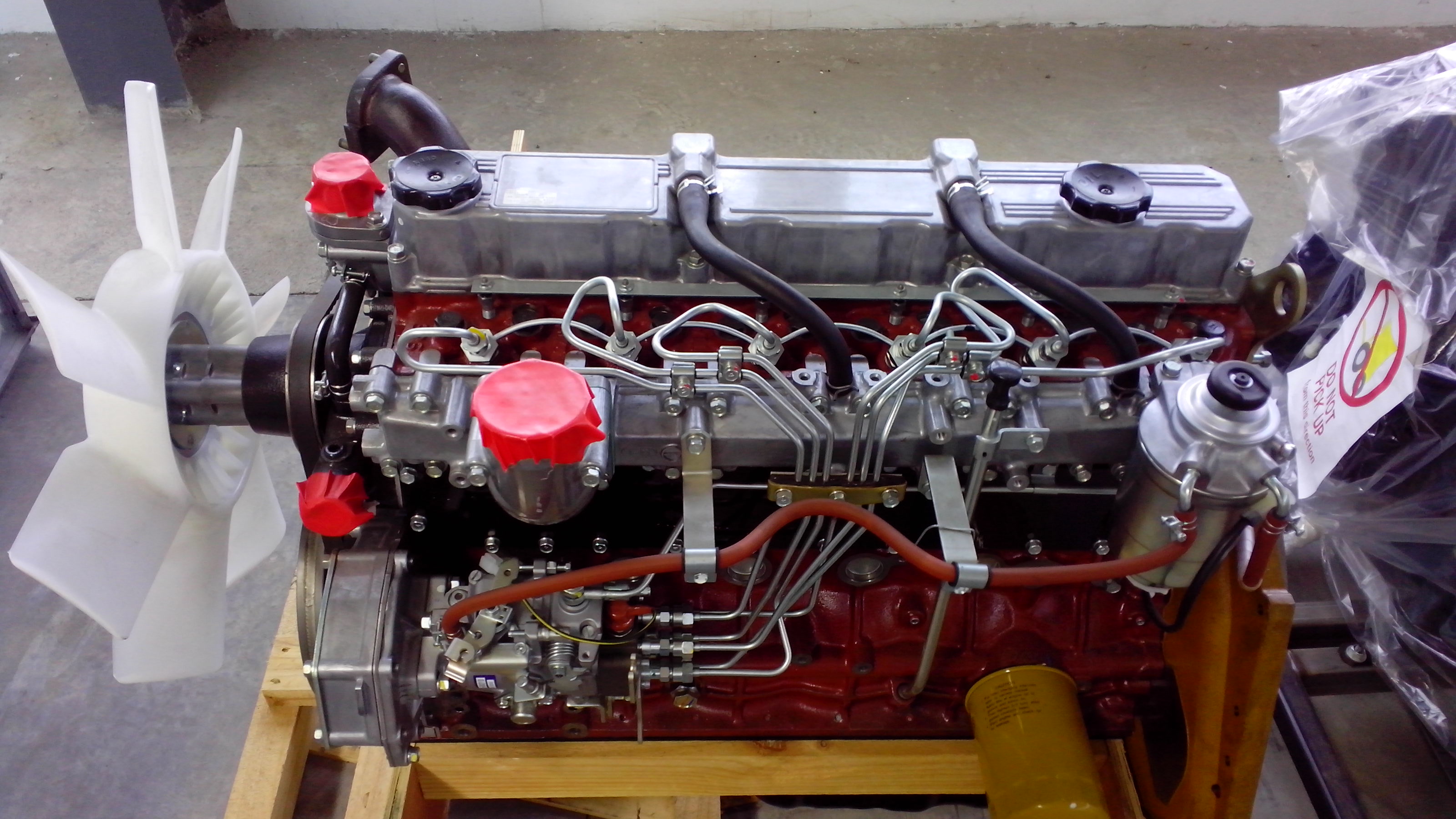

Engine Model | 6BG1-02 | |||
Manufacture | ISUZU | |||
Rated output/r.p.m. | kw | 82.4/2000 | ||
Rated torque/r.p.m. | N·m | 416.8/1500 | ||
No.of Cylinder | 6 | |||
Bore×Stroke | mm | 105×125 | ||
Displacement | cc | 6494 | ||
Fuel Tank Capacity | L | 130 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 2/1 | ||

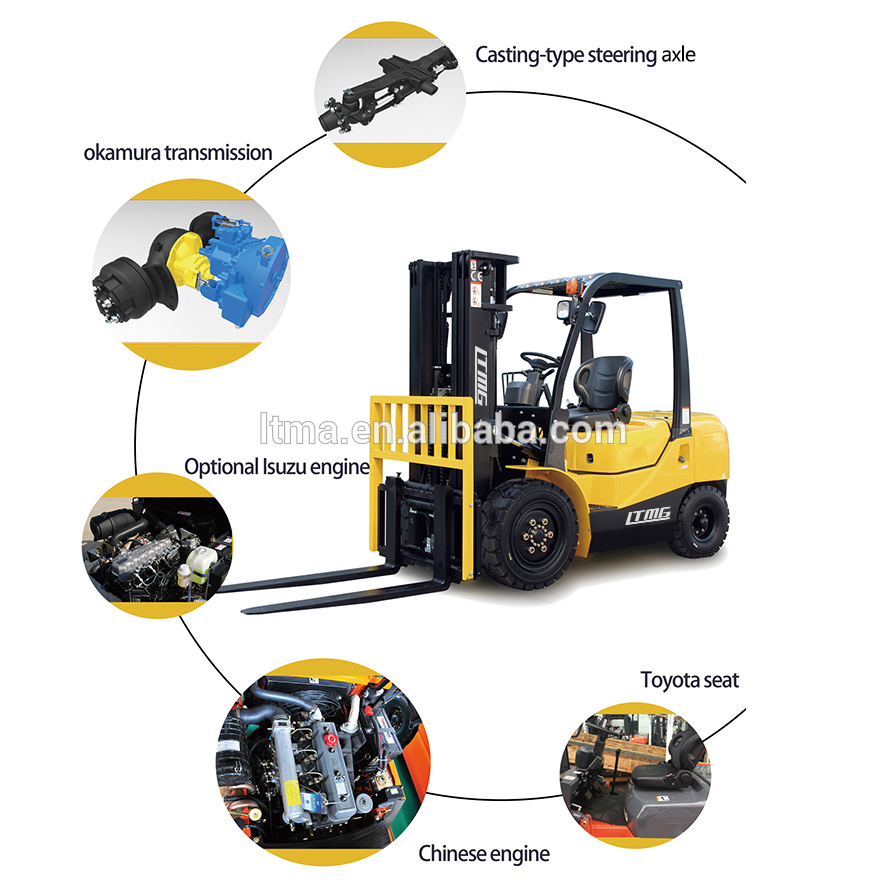

Standard Configuration
2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Give priority to the system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.Original Toyota seat, Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
Optional Configuration
2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Give priority to the system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.Original Toyota seat, Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours(which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Q1. Why choose us?
A: As a manufacturer, LTMG machinery is committed to offer not only products with high quality, high performance and competitive price, but also in-time delivery and comprehensive after-services.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more LTMG machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty or 2000 hours (which occurs firdt) for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our website to get more videos: http://www.xlteng.com/
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
