- Condition:New
- Place of Origin:CN
- Power Souce:LP Gas Engine
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:3000mm-6000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2530*1150*1995
- Certification:CE/ISO9001

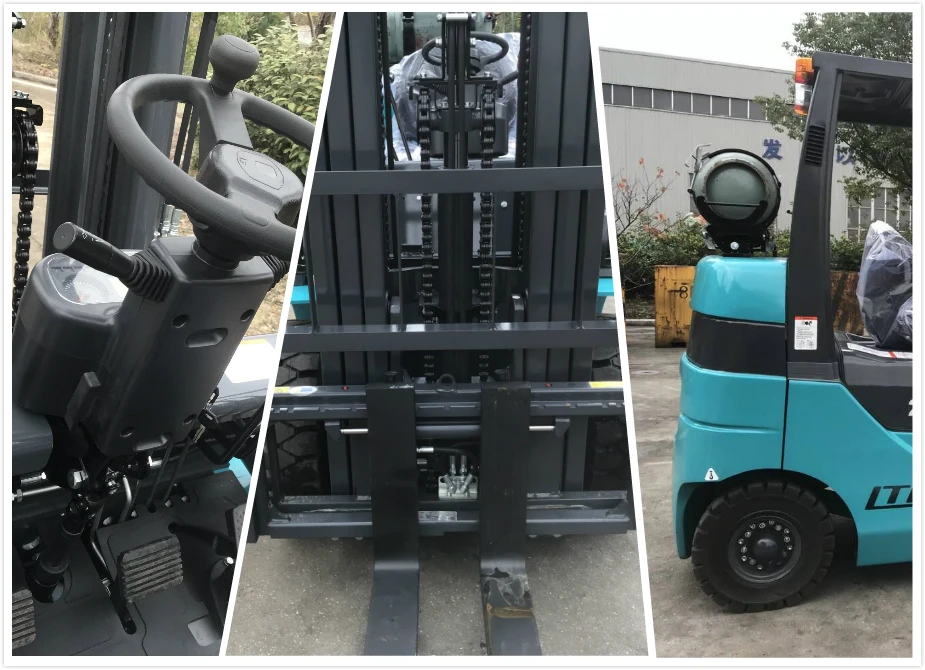

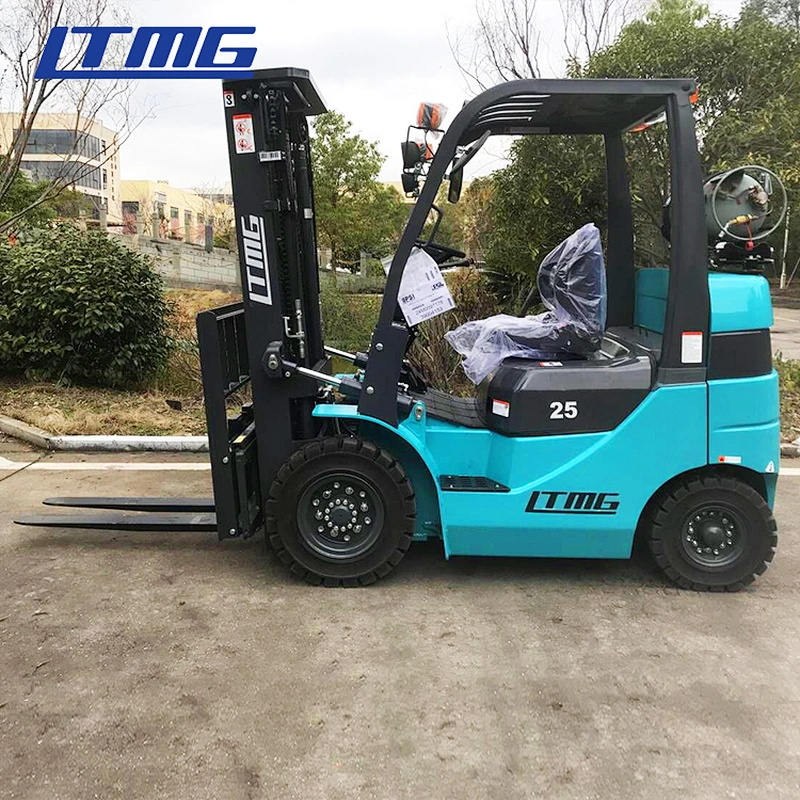

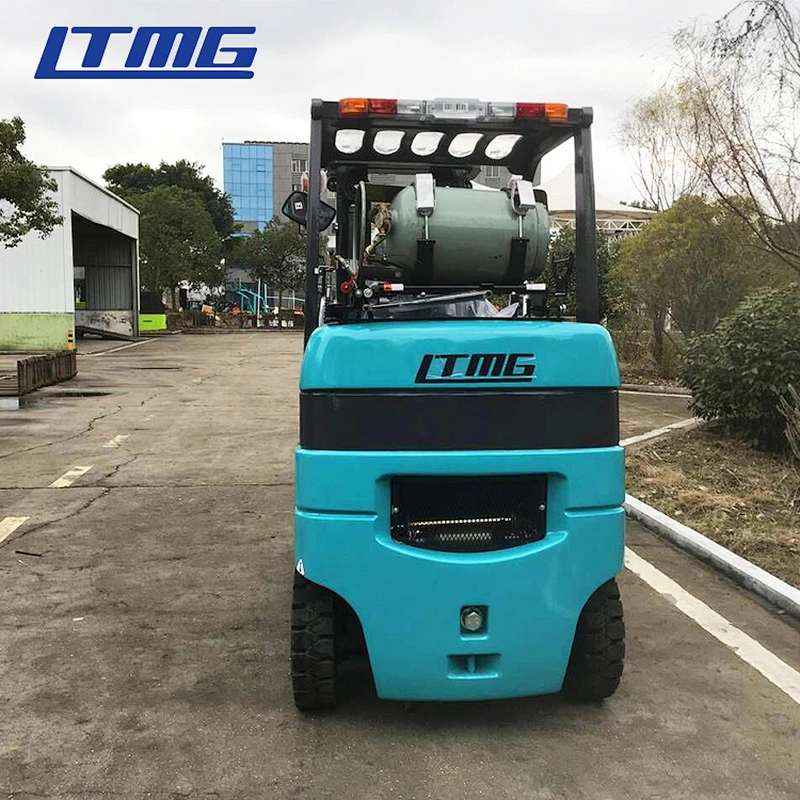

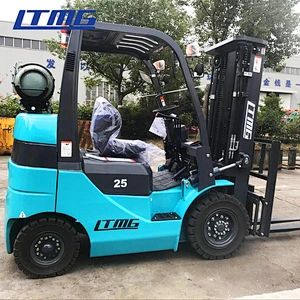

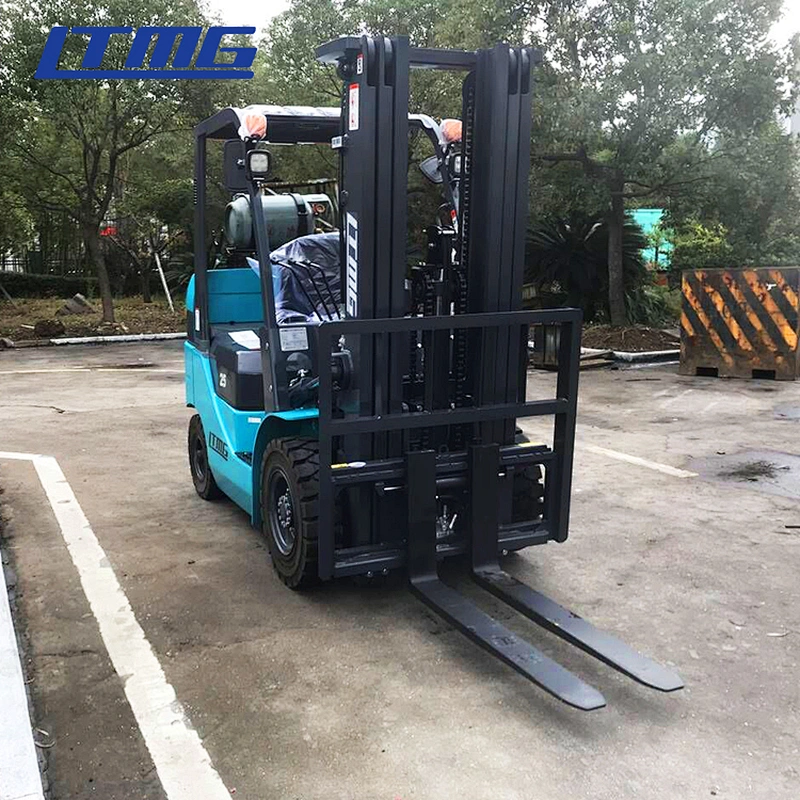

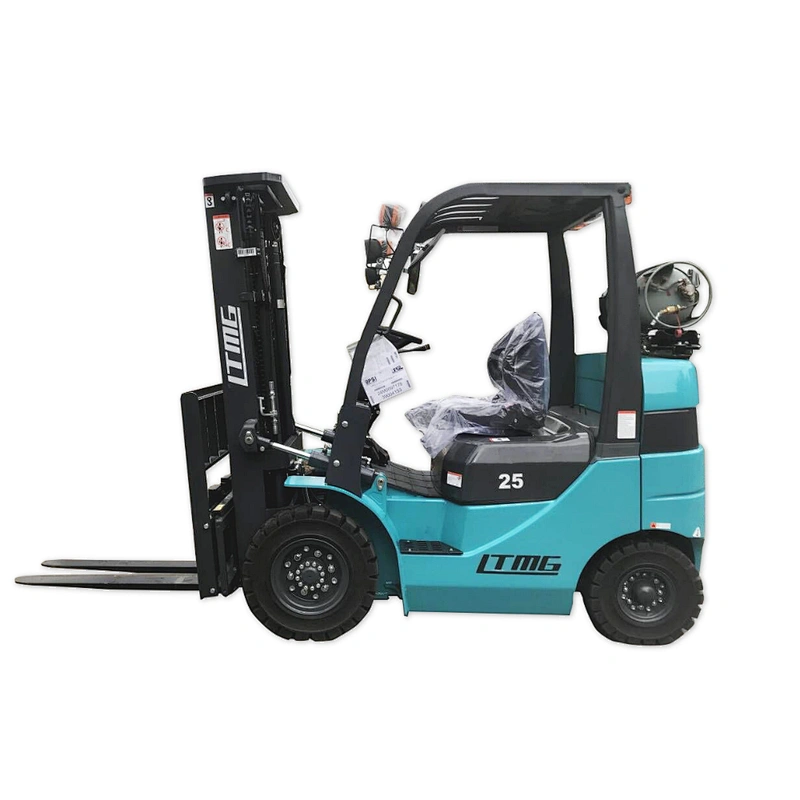

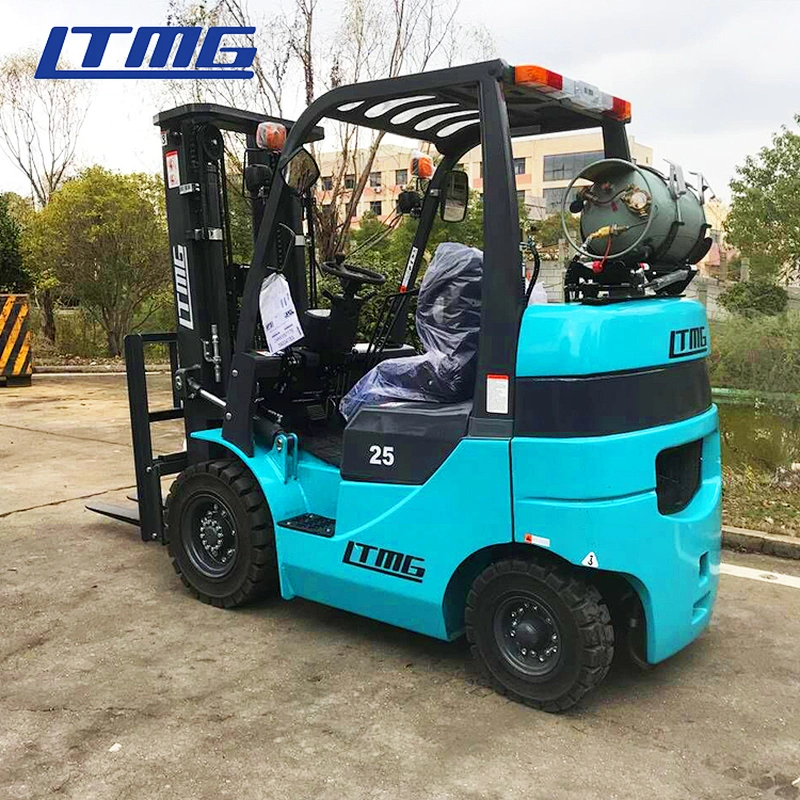

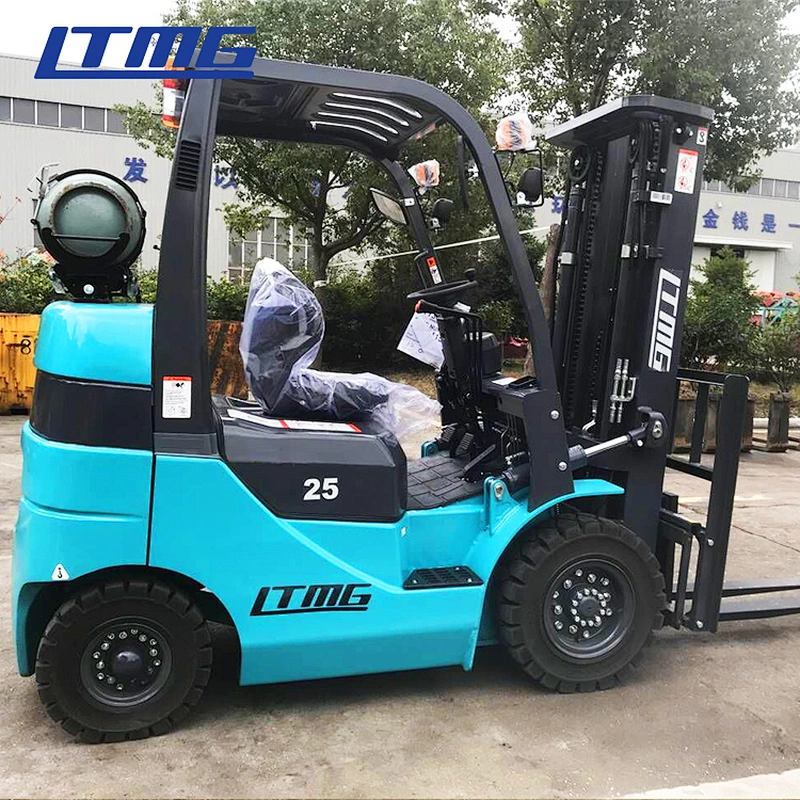

Product Description
Hydraulic shift
Easier to control and drive.
Side shfter and 3 stage mast
Work in container and height limited place.
Special counterbalance
Special designed for narrow aisle warehouse.
What are the features of our products?
-Adopt TCM type transmission, steering axle
- Equipped with The USA import PSI engine.Meet with EPA certification.
-Adopt TCM type transmission, steering axle
- Equipped with The USA import PSI engine.Meet with EPA certification.
Good sale at the USA.
- Chinese economical Guangqin engine and Japanese Nissan(GCT) engine are optional
-Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals,Toyota seat with safety
belt,cooper tank and so on
-Attachments can be equipped as customer's requirements, such as paper roll,forklift rotator,
clamp etc.
-Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals,Toyota seat with safety
belt,cooper tank and so on
-Attachments can be equipped as customer's requirements, such as paper roll,forklift rotator,
clamp etc.
Model | FG20 | FG25 | |||||
Power Type | LPG & Gasoline | LPG & Gasoline | |||||
Rated Capacity | kg | 2000 | 2500 | ||||
Load Centre | mm | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 445 | 445 | ||||
Ground Clearance（Bottom of mast） | mm | 80 | 80 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2355 | 2355 | |||
Overall Width | mm | 1110 | 1110 | ||||
Mast Lowered Height | mm | 2070 | 2070 | ||||
Mast Extended Height(With backrest) | mm | 4070 | 4070 | ||||
Overhead Guard Height | mm | 2080 | 2080 | ||||
Turning Radius (outside) | mm | 2110 | 2110 | ||||
Speed | Travel (Full load) | km/h | 17 | 17 | |||
Lifting (Full load) | mm/s | 530 | 530 | ||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | ||||
Tire | Front | mm | 21*7*15 | 21*7*15 | |||
Rear | mm | 16(1/4)*6*11(1/4) | 16(1/4)*6*11(1/4) | ||||
Wheelbase | mm | 1400 | 1400 | ||||
Service weight | kg | 3445 | 3655 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |||
Engine | Model | GM 3.0 | |||||
Manufacture | PSI | ||||||
Rated output/r.p.m. | kw | 40/2500 | |||||
Rated torque/r.p.m. | N·m | 200/1600 | |||||
No.of Cylinder | 4 | ||||||
Bore×Stroke | mm | 101.6X91.44 | |||||
Displacement | cc | 3000 | |||||
Fuel Tank Capacity | L | 60 | |||||
Transmission | Type | Hydraulic | |||||
Stage | FWD/RVS | 2/2 | |||||

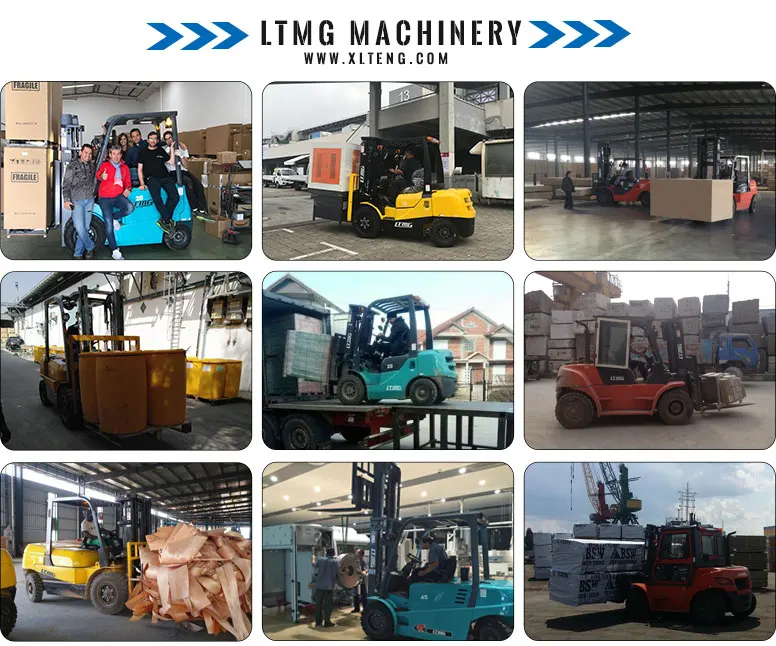

Machine application
LTMG sale to 84 countries at 2017-2019,can you find our machine at your country?

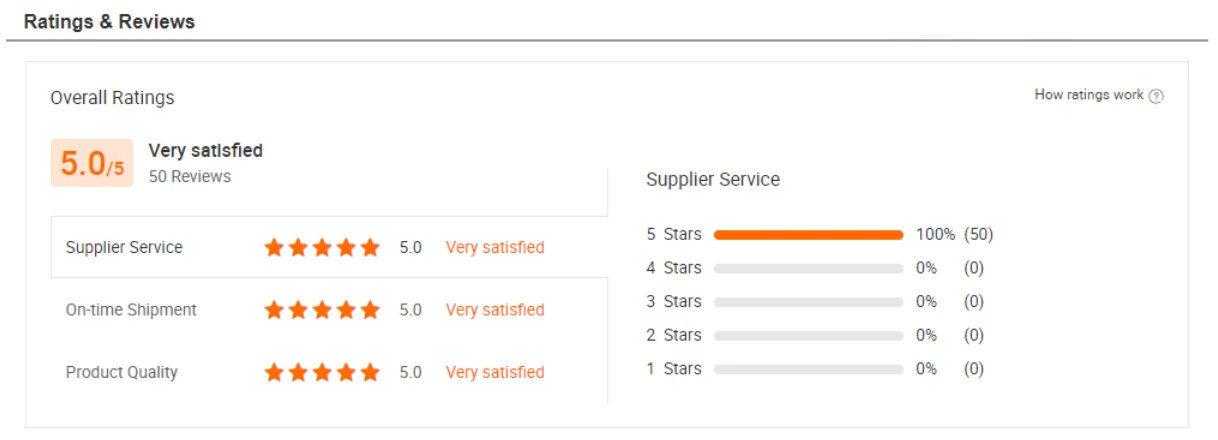

The praise rate is as high as 100%, we provide you with high-quality services, and you leave us five-star praise.

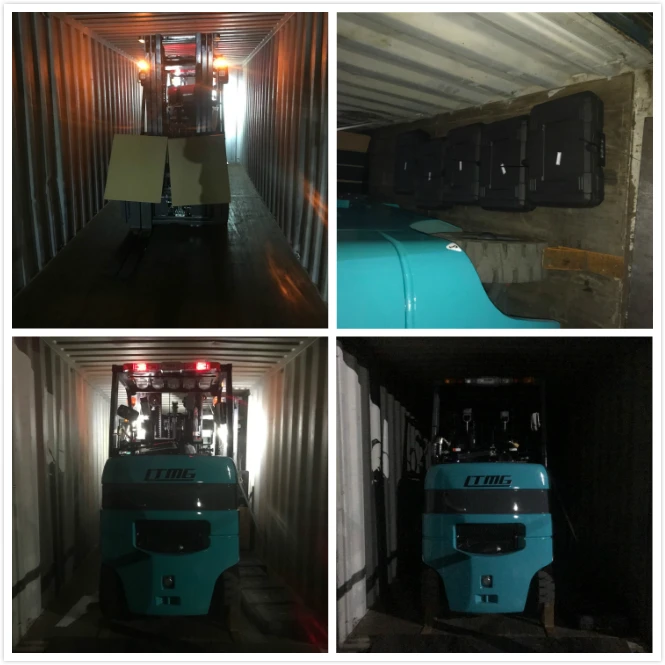

Shipping & Packaging
5 units can be fixed into 40 HQ container with nude packing.

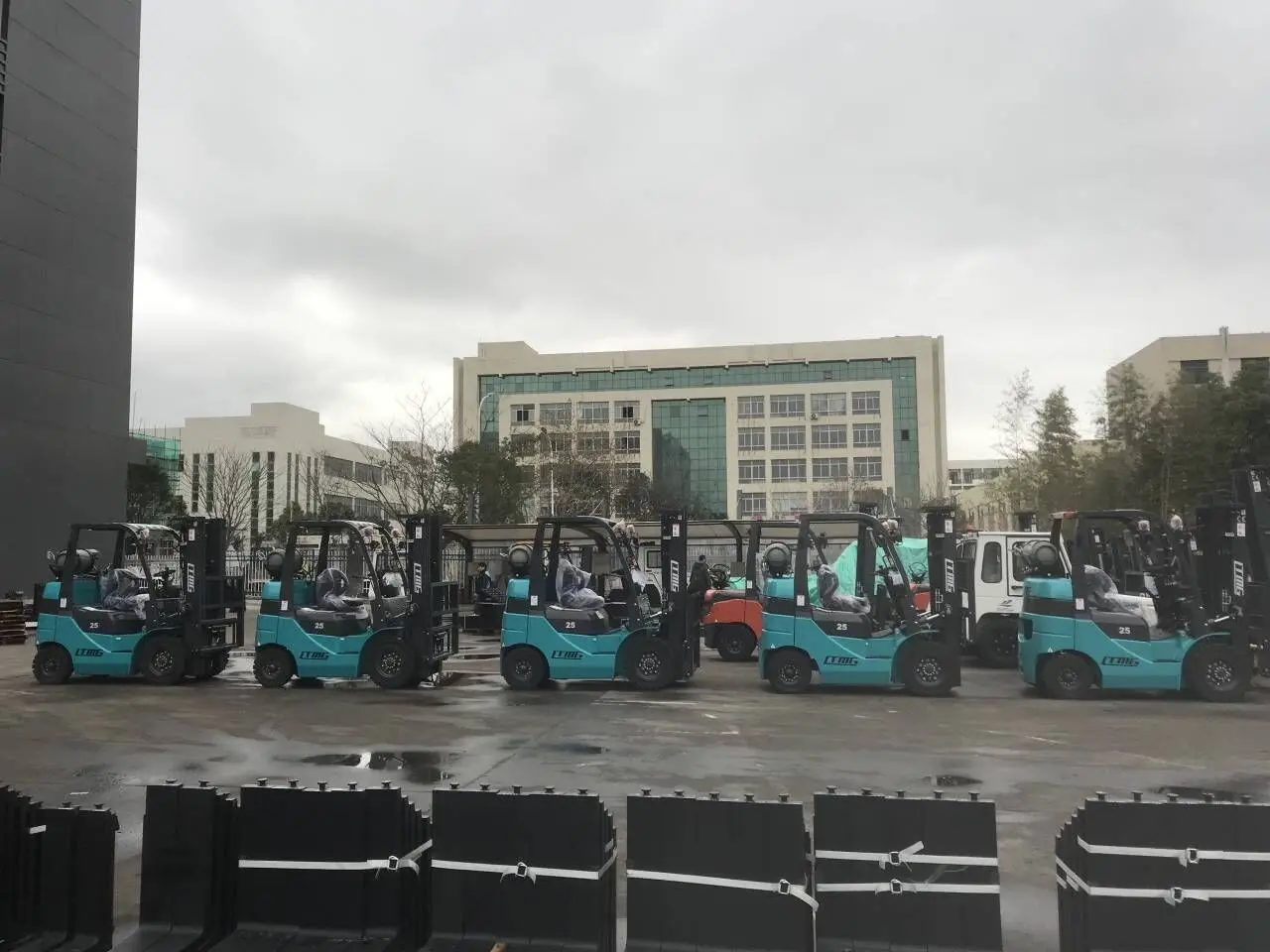

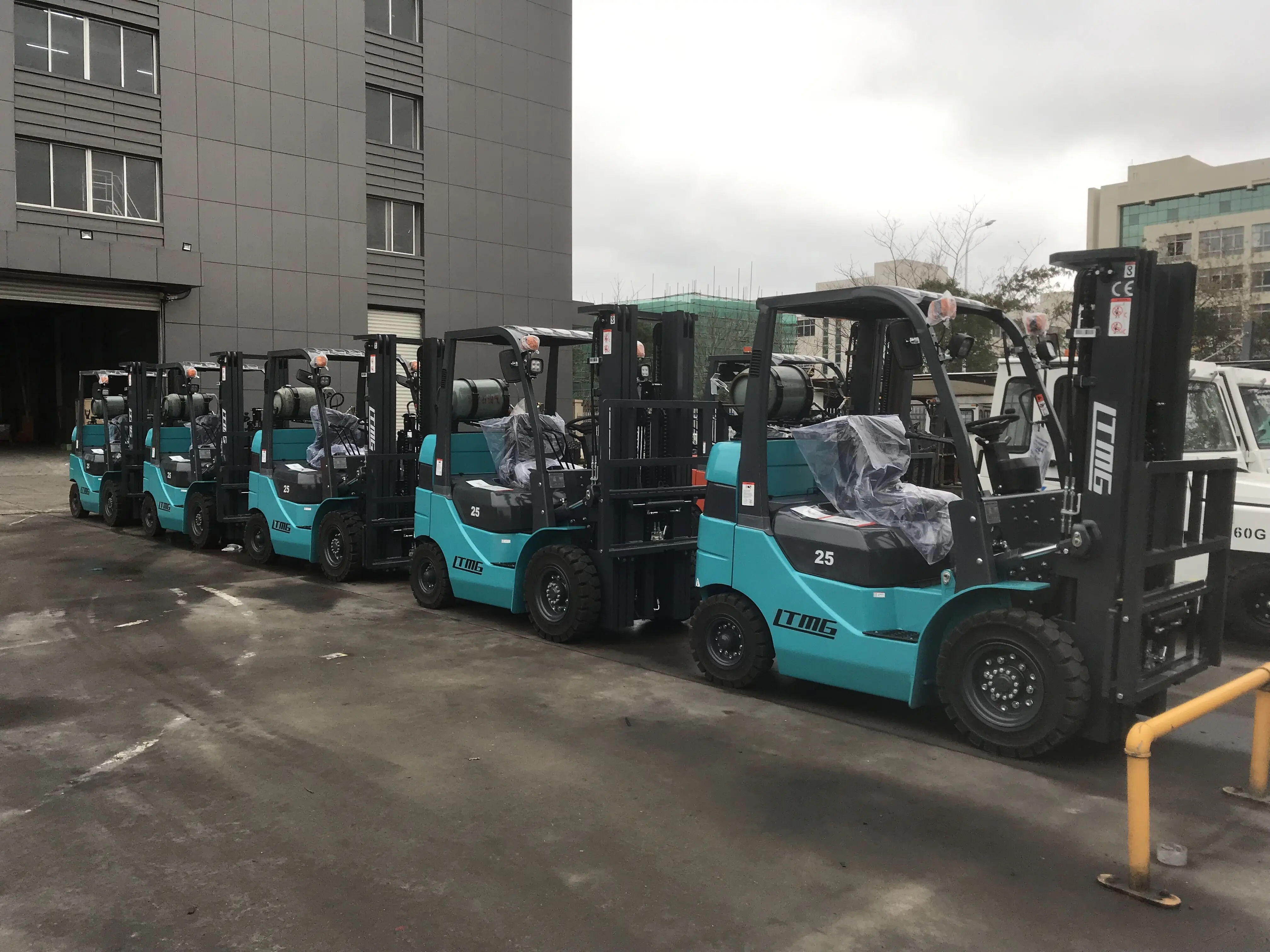

Our factory
Customers Show
After-Sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
