- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Place of Origin:CN;FUJ
- Power Souce:LP Gas Engine
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:3450*2010*2550mm
- Certification:CE/ISO9001:2008/EPA

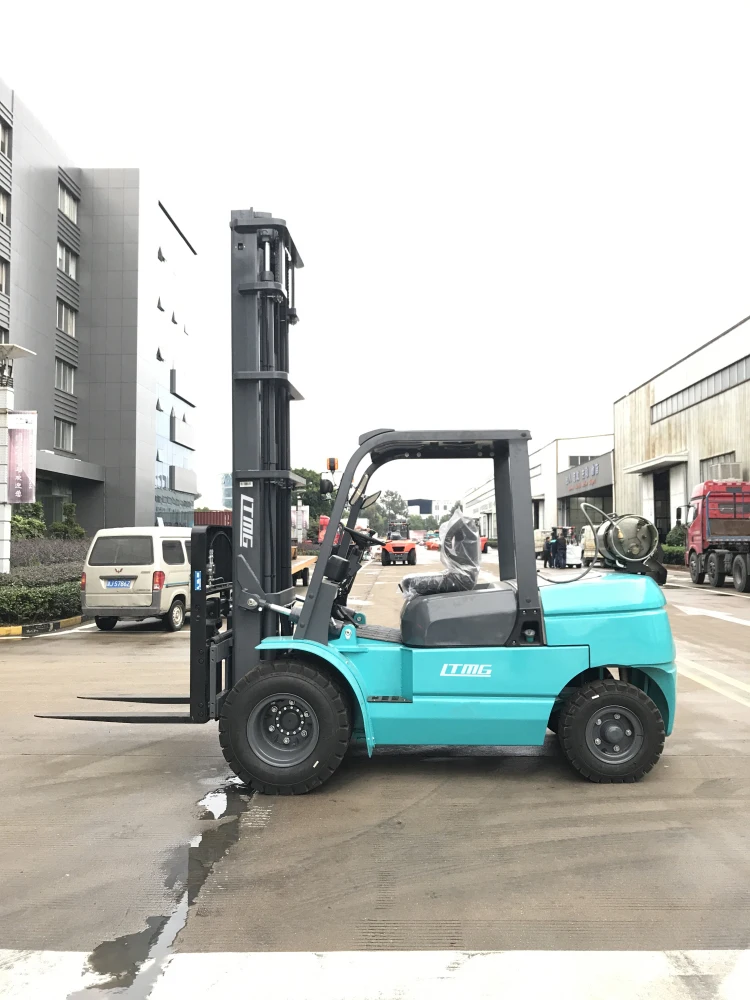

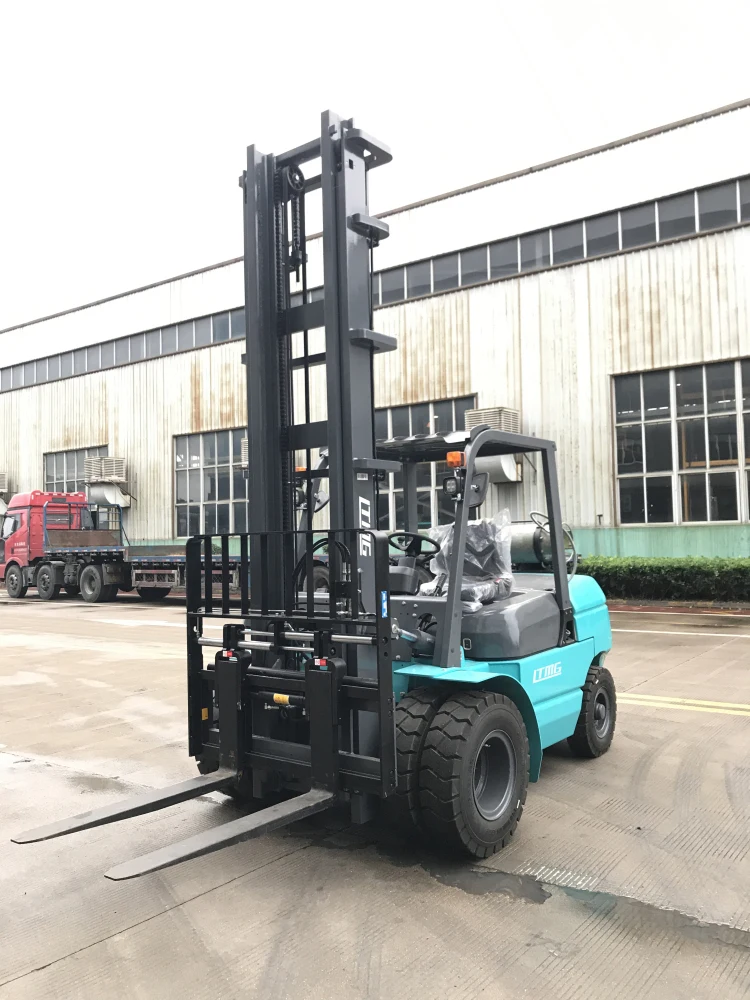

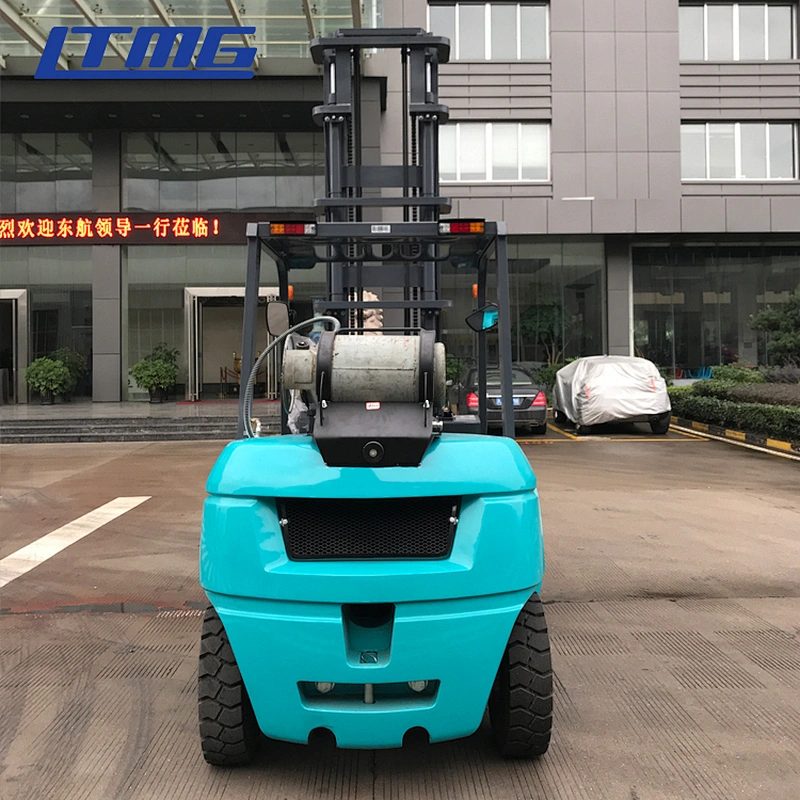

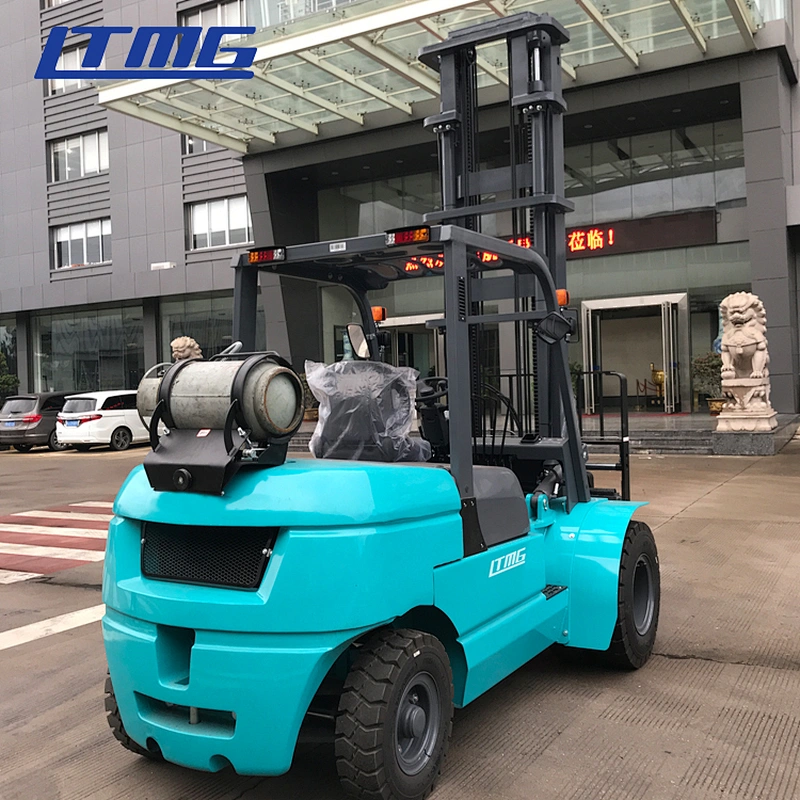

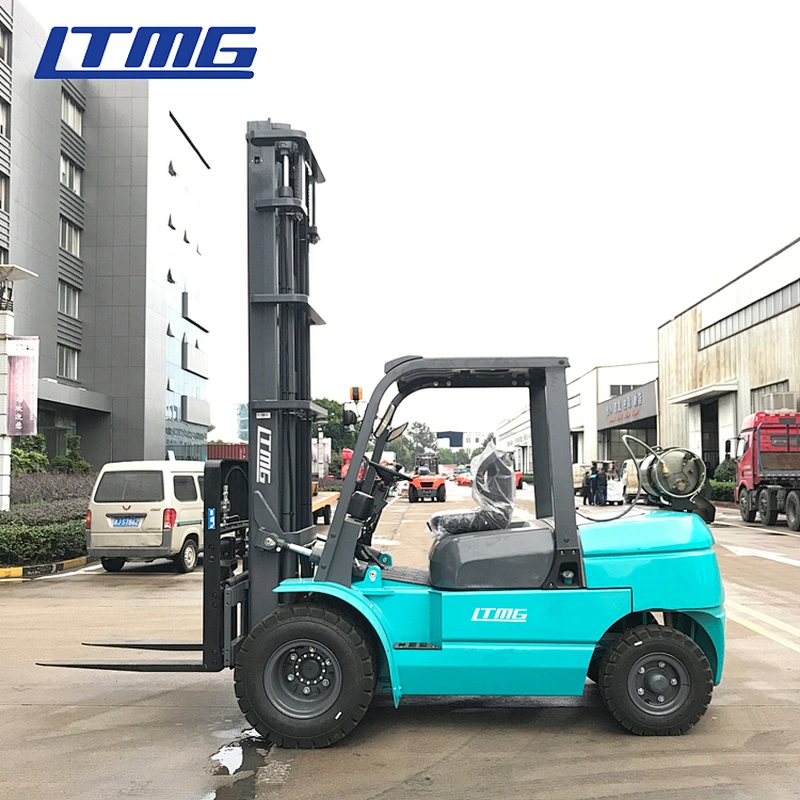

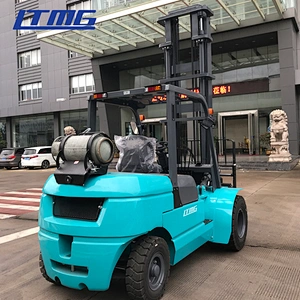

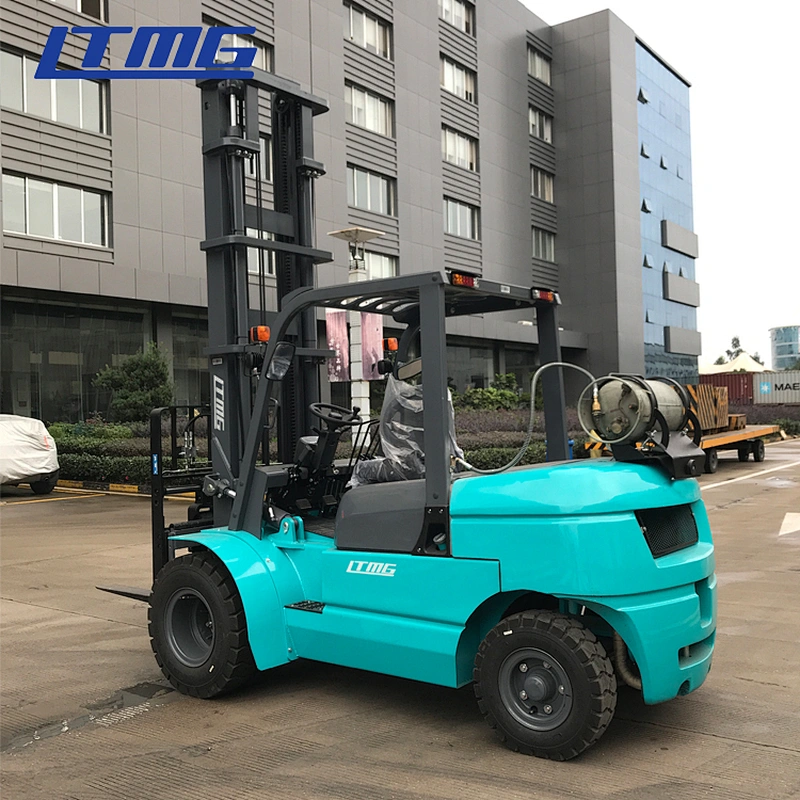

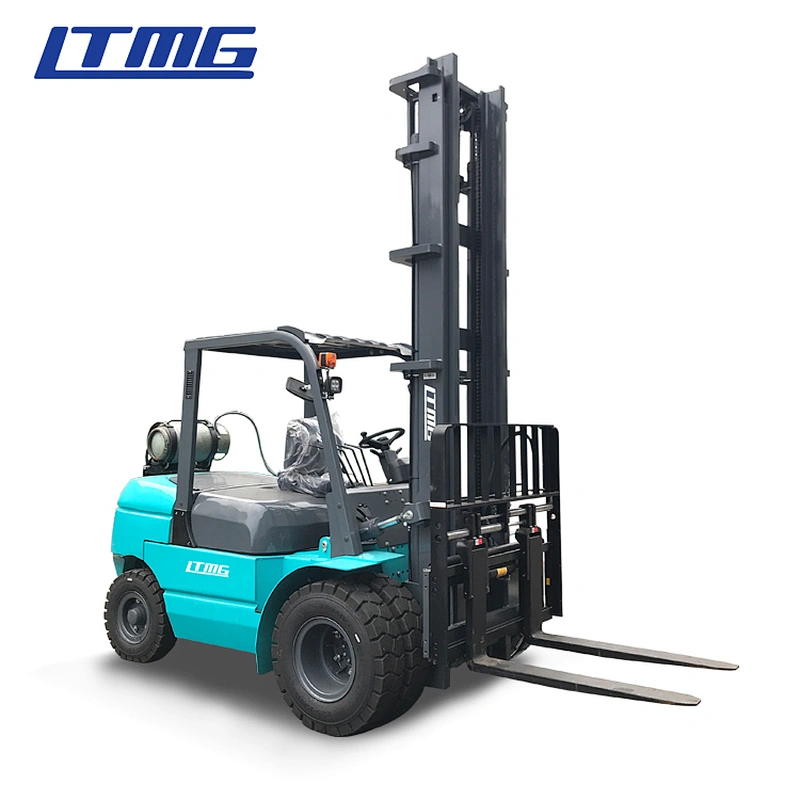

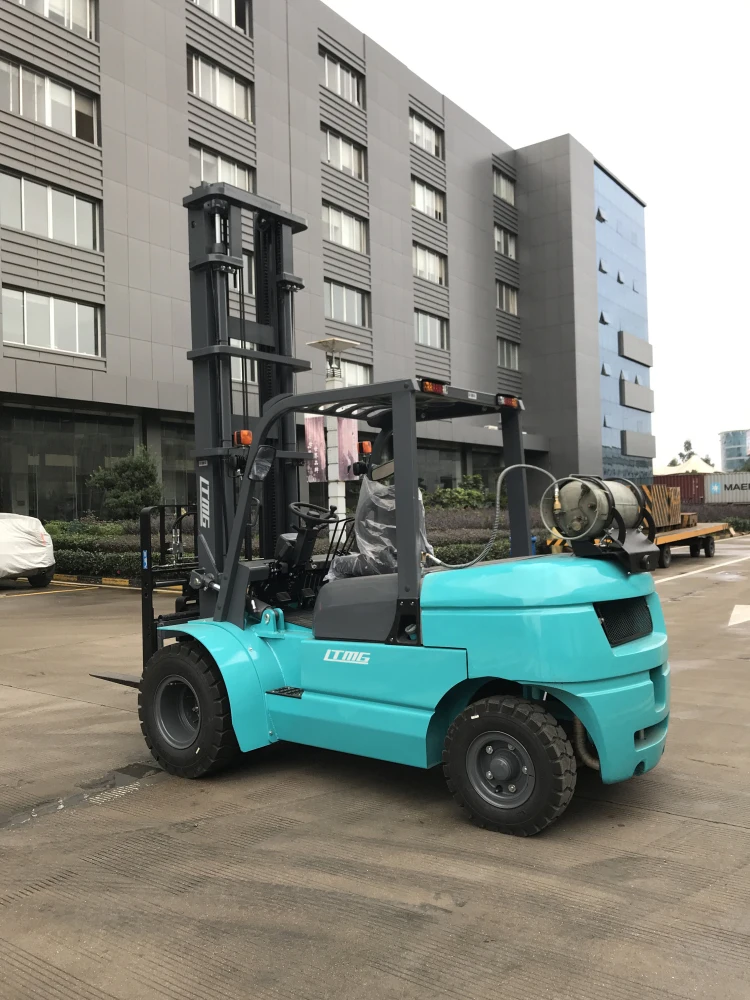

The Specification of 5ton LPG forklift | ||||
Model | FG50 | |||
Power Type | LPG | |||
Rated Capacity | kg | 5000 | ||
Load Centre | mm | 600 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T) | mm | 1220×150×60 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Fork Overhang (Wheel center to fork face) | mm | 590 | ||
Ground Clearance（Bottom of mast） | mm | 200 | ||
Length to face of fork(Without fork) | mm | 3440 | ||
Overall Width | mm | 2010 | ||
Mast Lowered Height | mm | 2500 | ||
Mast Extended Height(With backrest) | mm | 4415 | ||
Overhead Guard Height | mm | 2430 | ||
Turning Radius (outside) | mm | 3250 | ||
Travel Speed (Full load) | km/h | 30 | ||
Lifting Speed(Full load) | mm/s | 500 | ||
Max.Gradeability | % | 20 | ||
Front Tyre | mm | 8.25-15-14PR | ||
Rear Tyre | mm | 8.25-15-14PR | ||
Wheelbase | mm | 2250 | ||
Self weight | kg | 8150 | ||
Battery Voltage/Capacity | V/Ah | 12/120 | ||
Engine Model | PSI4.3L | |||
Manufacture | PSI | |||
Rated output/r.p.m. | kw | 76/2300 | ||
Rated torque/r.p.m. | N·m | 324/1700 | ||
No.of Cylinder | 6 | |||
Bore×Stroke | mm | 101.6×88.4 | ||
Displacement | cc | 4300 | ||
Fuel Tank Capacity | L | 125 | ||
Transmission Type | Hydraulic | |||
Transmission Stage | FWD/RVS | 2/2 | ||

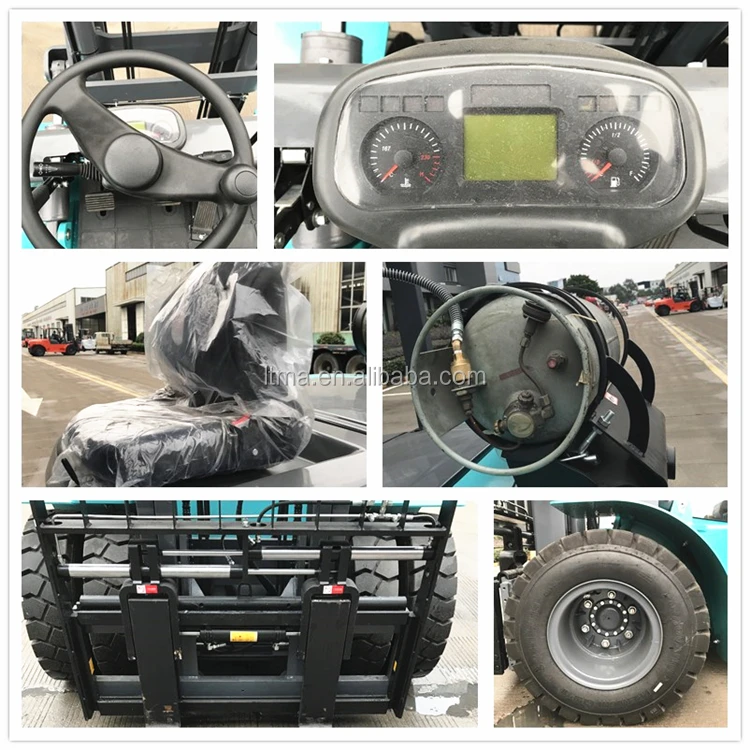

2.An all aluminum radiator core provides constant engine coolant temperature control through faster heat dissipation. Combination engine coolant and transmission fluid radiator is designed for maximum air flow passing through the counterweight.
3.Latest technology LPG engines have EPA tier 3 and EU stage IIIA rated engines certified to meet/exceed CARB emissions.
4.high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency
5.New designed overhead guard protective device prevent the sudden accidents:The lifting system adopts buffering technology to reduce shock and vibration of the mast.
Pre-Sales Service
After-Sales Service
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
