6 ton diesel forklift

Model NO.: FD60
Price:: USD 19171.00-19171.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 400 unit / Month
Country of Origin: Ningbo

Quantity:

Product Description

Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Farms
Applicable Industries:Home Use
Applicable Industries:Printing Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Spare parts
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Indonesia
Local Service Location:Mexico
Local Service Location:Kenya
Local Service Location:Chile
Local Service Location:Colombia
Local Service Location:South Africa
Showroom Location:Colombia
Showroom Location:Australia
Condition:New
Place of Origin:CN;FUJ
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Free spare parts
Brand Name:LTMG
Max. Lifting Height:6000mm
Min. Lifting Height:0mm
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3440*2010*2500mm
Certification:CE/ISO9001:2008

Product Description

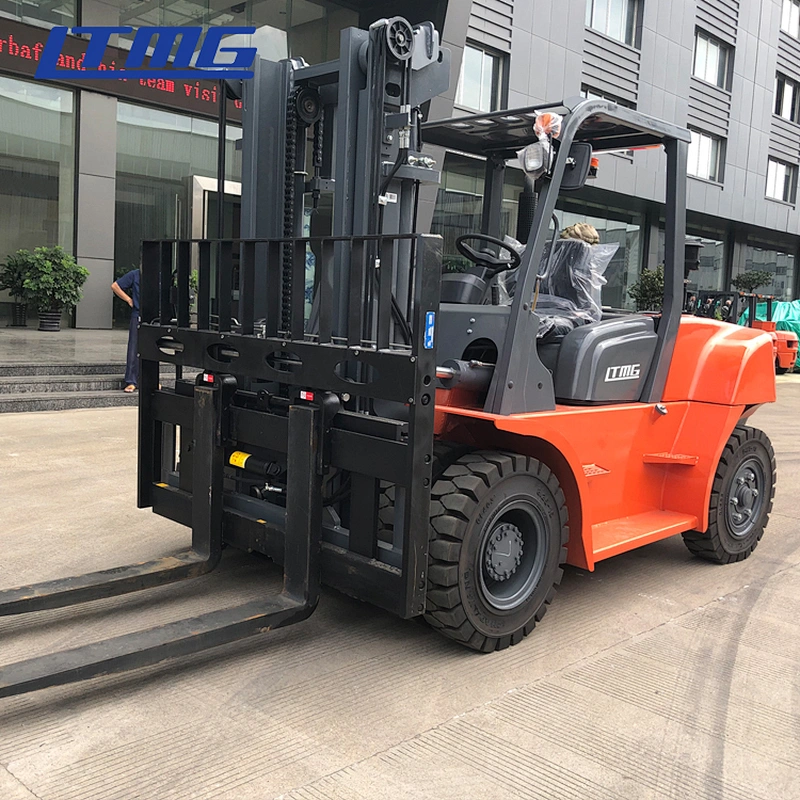

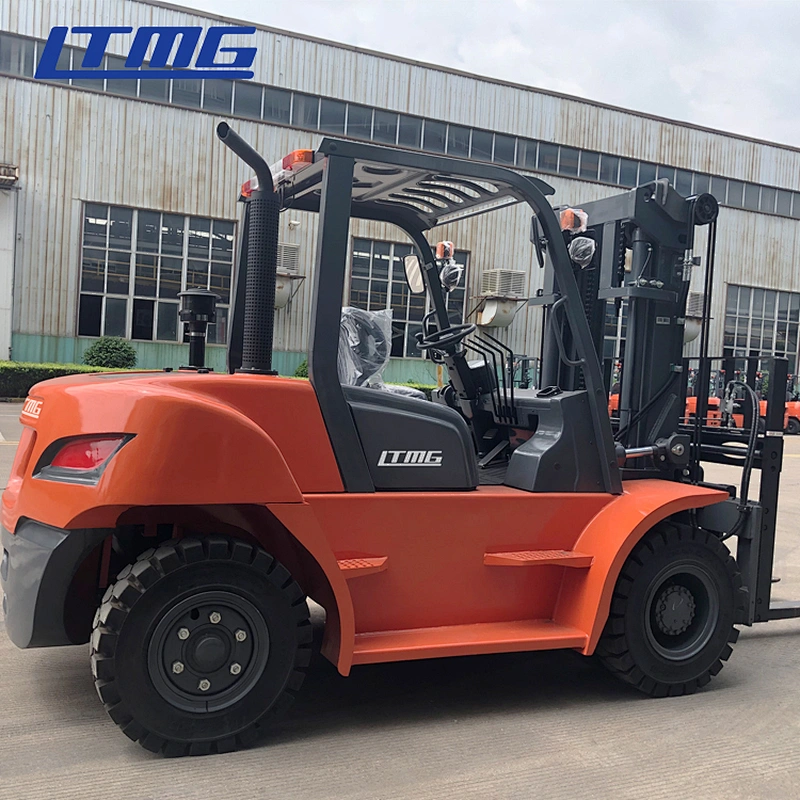

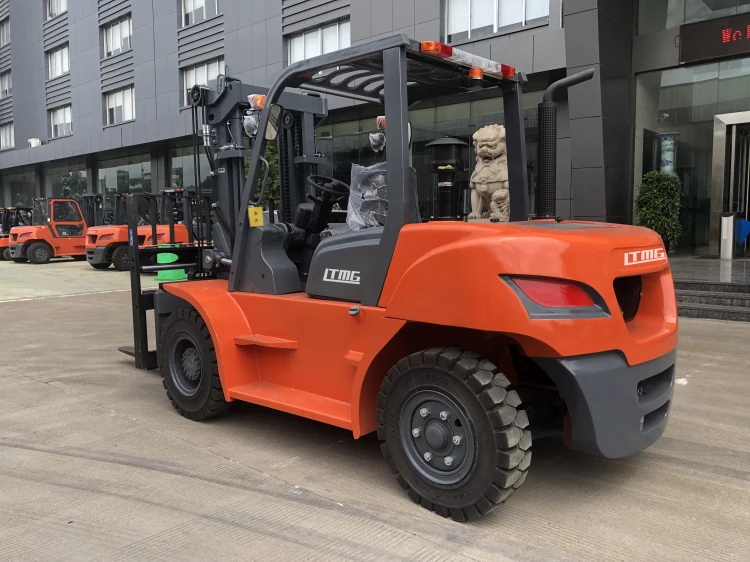

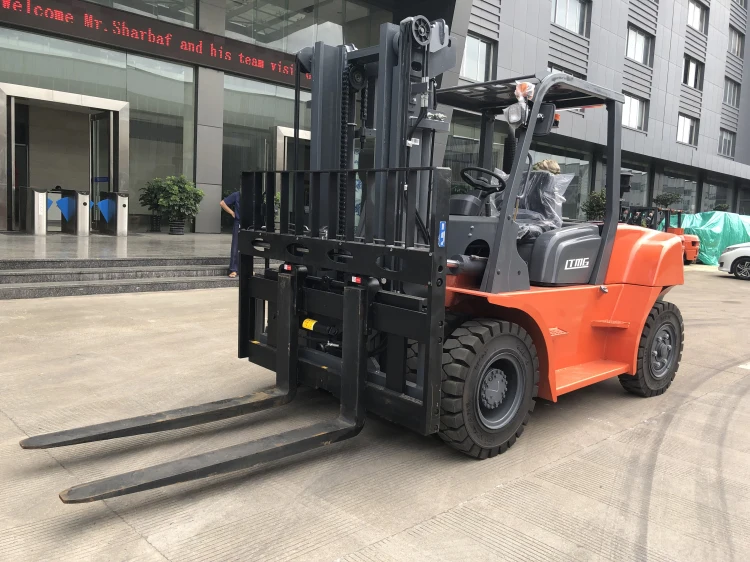

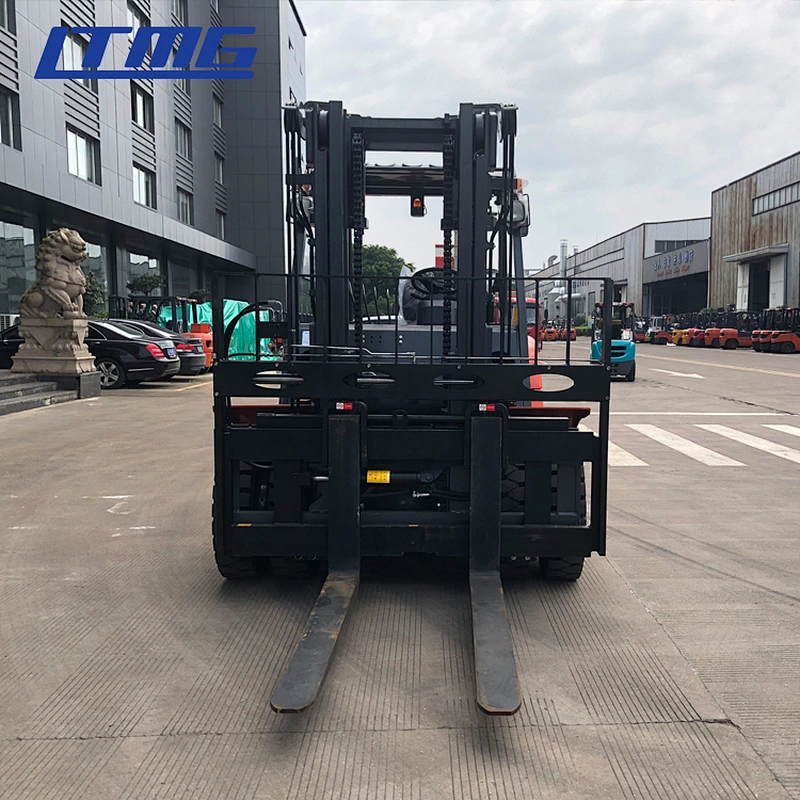

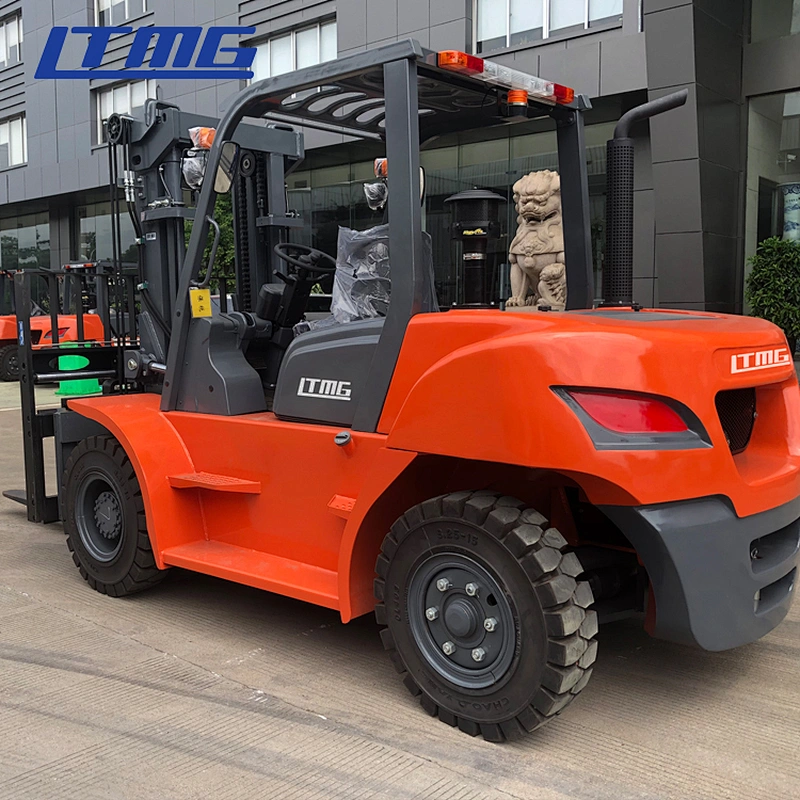

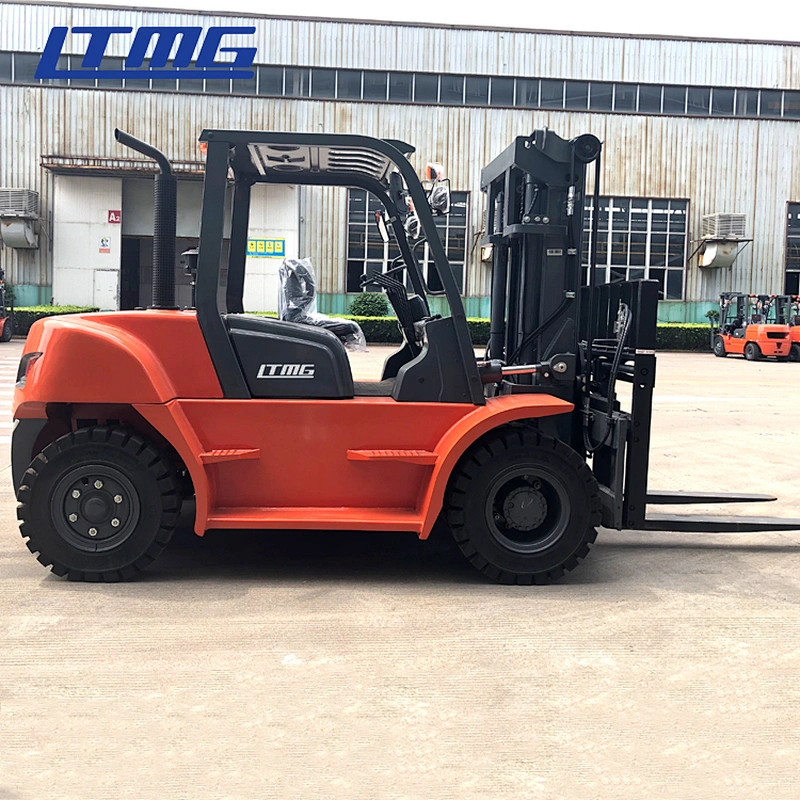

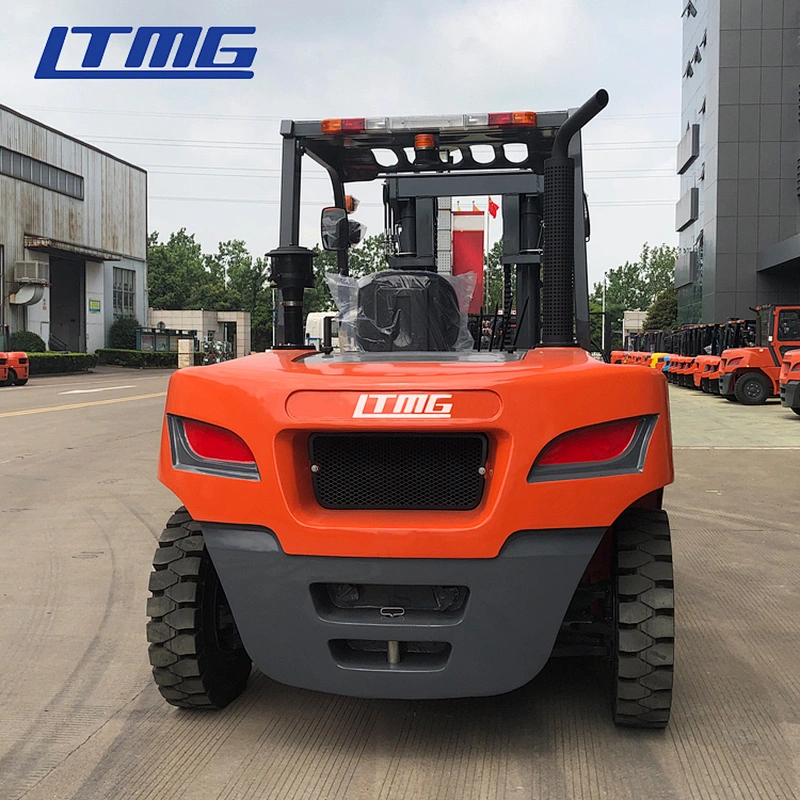

LTMG 6 ton diesel forklift

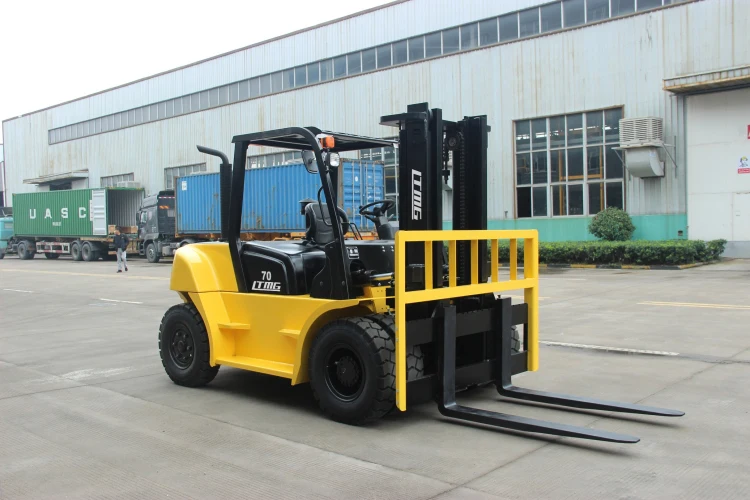

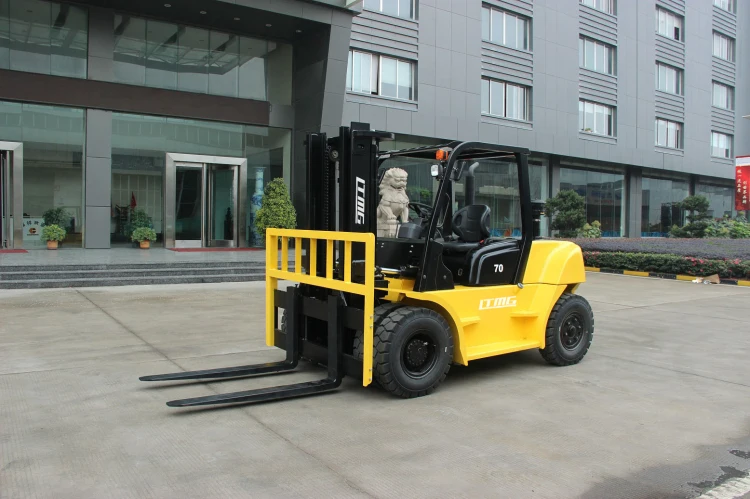

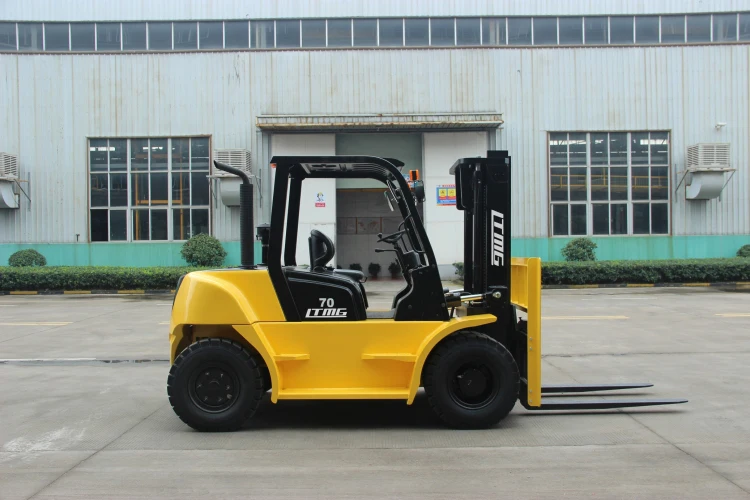

LTMG 7 ton diesel forklift

The specification of LTMG 4 ton diesel forklift
General	Model						FD60
		Power Type						Diesel
		Rated Capacity					kg	6000
		Load Centre					mm	600
Characteristic&Dimension	Lift Height					mm	3000
		Fork Size			L×W×T	mm	1220×150×60
		Mast Tilt Angle			F/R	Deg	6°/12°
		Front Overhang (Wheel center to fork face)					mm	590
		Ground Clearance(Bottom of mast)					mm	200
		Overall Dimension			Length to face of fork(Without fork)	mm	3440
						Overall Width	mm	2010
						Mast Lowered Height	mm	2500
						Mast Extended Height(With backrest)	mm	4415
						Overhead Guard Height	mm	2430
		Turning Radius (outside)					mm	3250
Performance	Speed			Travel (Empty load)	km/h	30
	Speed					Lifting (Full load)	mm/s	500
		Max.Gradeability (No load/Full load)					%	20
Chassis	Tire			Front	mm	8.25-15-14PR
	Tire					Rear	mm	8.25-15-14PR
		Wheelbase					mm	2250
		Service weight					kg	8750
Power&Transmission	Battery	Voltage/Capacity			V/Ah	(12/80) x 2
		Engine	Model				6BG1-02
				Manufacture				ISUZU
				Rated output/r.p.m.			kw	82.4/2000
				Rated torque/r.p.m.			N·m	416/1600
				No.of Cylinder				6
				Bore×Stroke			mm	105×125
				Displacement			cc	6494
				Fuel Tank Capacity			L	125
		Transmission	Type				Hydraulic
			Stage	FWD/RVS		2/2

Product Features

Heigh Quality Standard Configuration of LTMG Diesel Forklift

1. Advanced Hydraulic Automatic Transmission.

2. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.

3. Electric-hydraulic Directional Control Valve.

4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.

5. The Maintenance Free Radiators adopt Germany Technology.

6. Adopt Priority Steering System, which improve the work efficiency.

7. Original Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.

8. Thicker reinforcing overhead guard protective device, ensure the safety.

9.Middle muffler, more environmental.

Packing & Delivery

Our Factory

LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 100 countries and regions around the world.

Exhibition & Clients

LTMG taked part in many domestic and foreign exhibitions every year.

LTMG focus on the quality of products and the service to customers.

The quality and service has been recognized by our customers.

After-Sales Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
