- Color:Customer Demanded
- Engine:ISUZU/ Mitsubishi
- Tire:Pneumatic Tire
- Wheel base:2250mm
- Warranty:1 year or 2000 working hours
- Mast:2 Stage (3 Stage is optional)
- Optional:side shifter, fork positioner,Cab with A/C
- Transmission type:Automatic Tranmission
- Load Center:500mm/Diesel Forklift
- Number of cylinders:6
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Energy & Mining
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Viet Nam
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Malaysia
- Local Service Location:Colombia
- Showroom Location:Egypt
- Showroom Location:Peru
- Showroom Location:Russia
- Showroom Location:Kazakhstan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3455*1995*2500mm
- Certification:CE/ISO9001

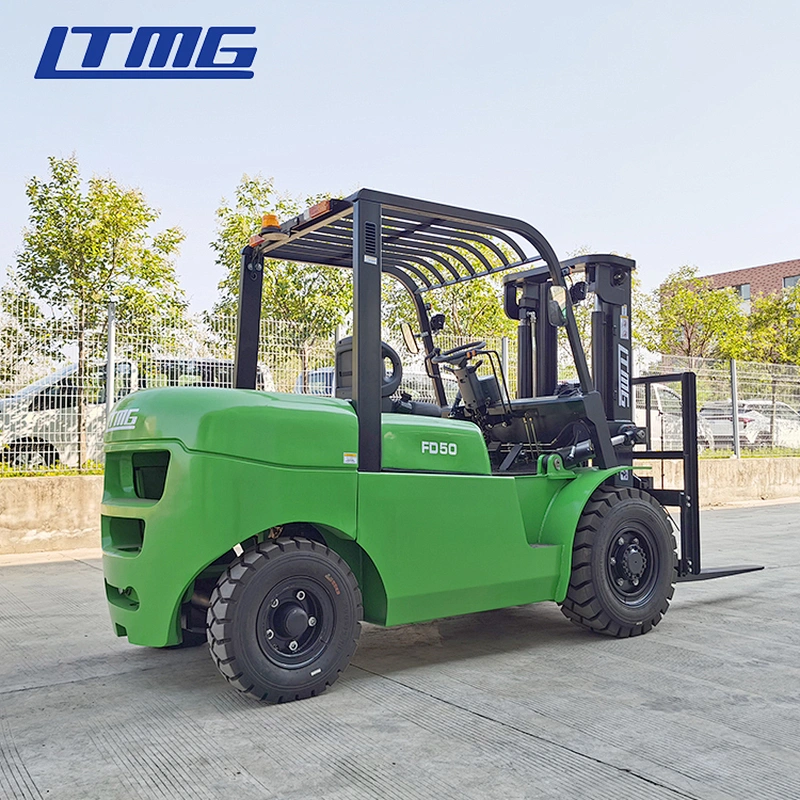

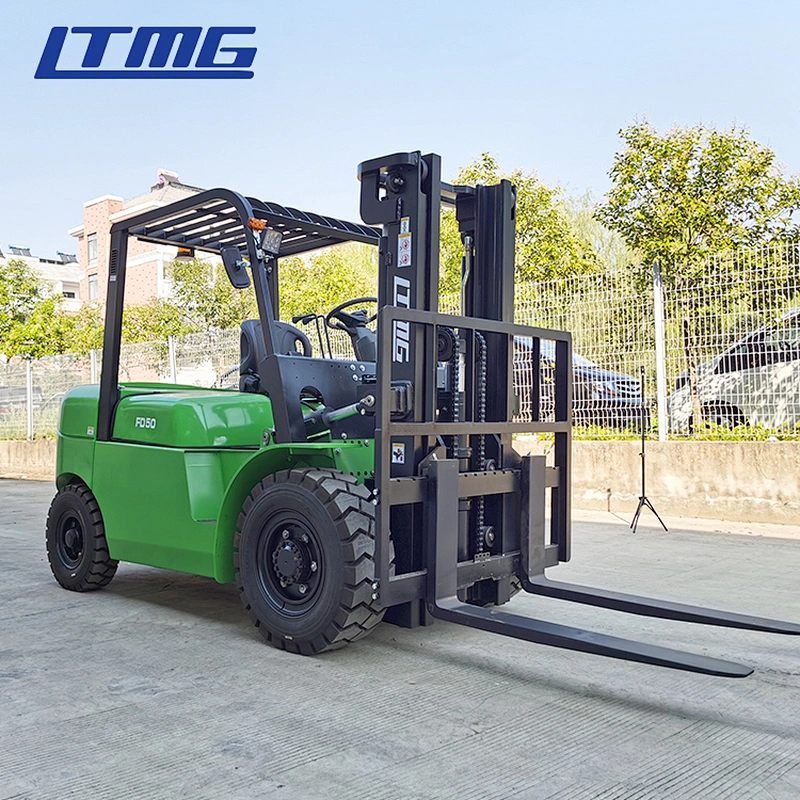

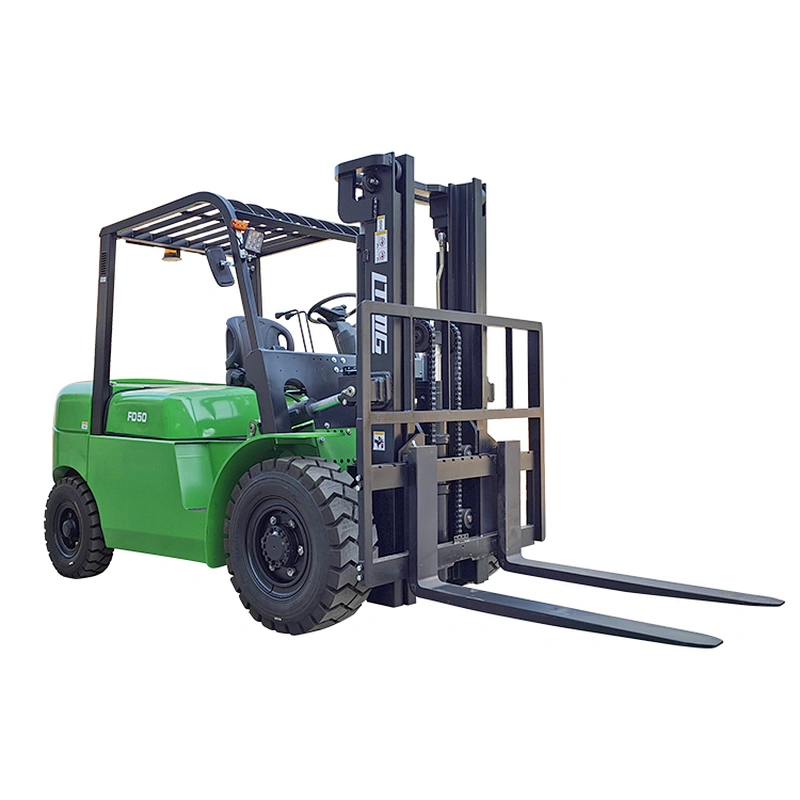

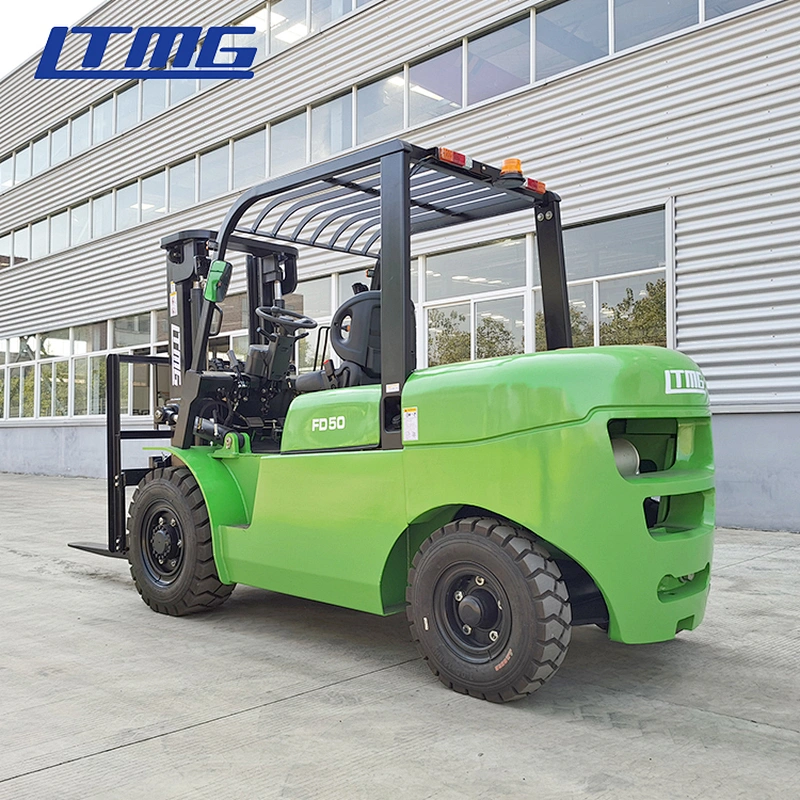

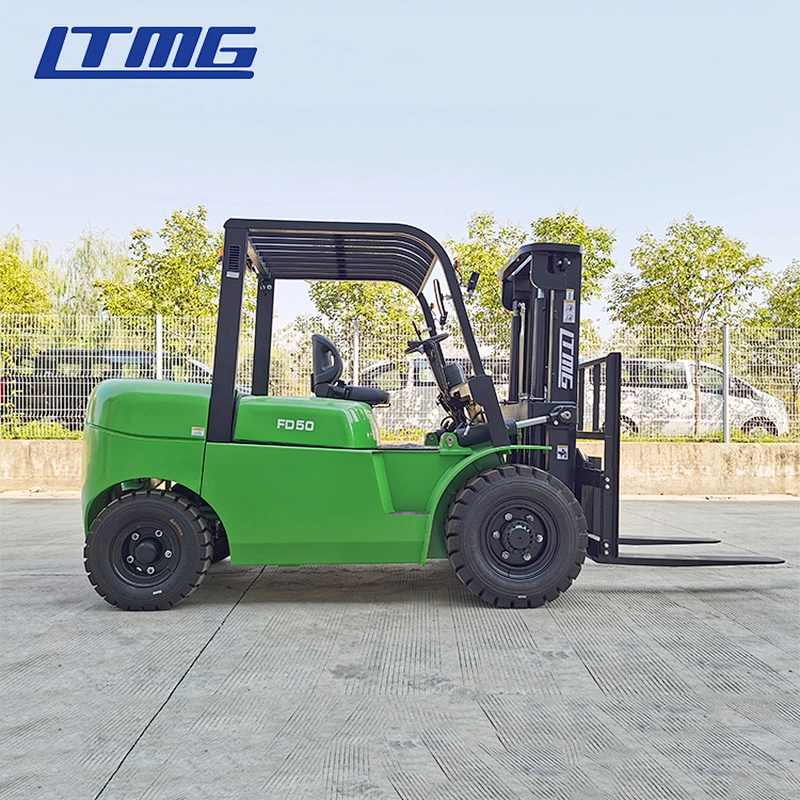

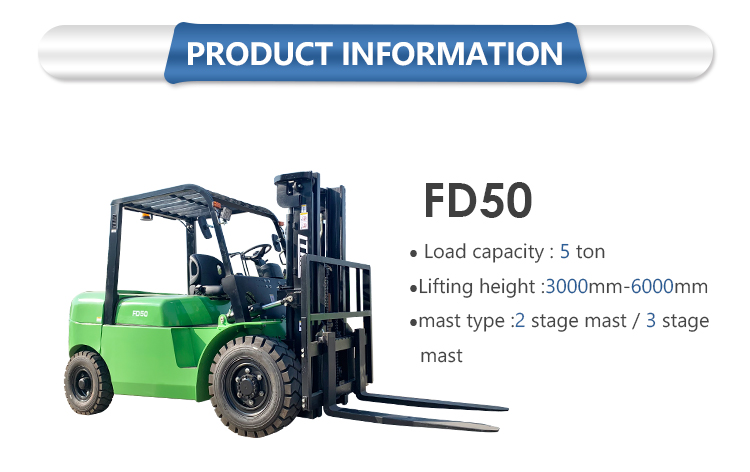

Specifications of 5 ton diesel forklift | ||||||
Manufacturer | LTMG | |||||

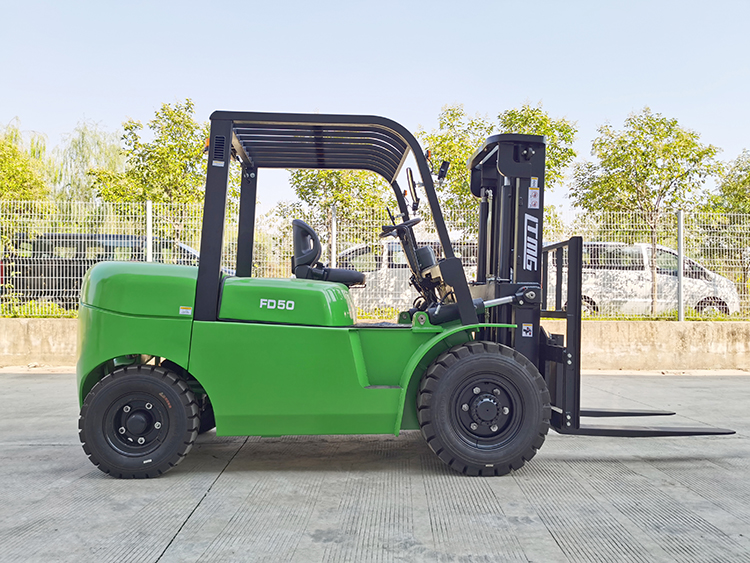

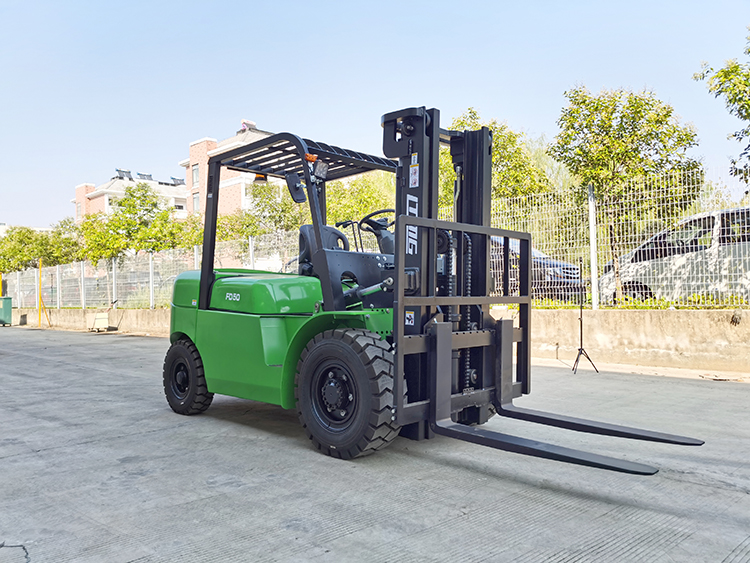

Model | FD50 | |||||
Load capacity | 5000 kg | |||||
Load center | 600 mm | |||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | 3000 mm | |||||
Free lift | 140 mm | |||||
Fork size | L*W*T | 1220*150*60 mm | ||||
Tilt range | Mast forward/backward | 6/12 deg | ||||
Overall length(without fork) | 3183 mm | |||||
Total width | 1485 mm | |||||
Mast height (fork lowering) | 2390 mm | |||||
Overall height fork raised | With backrest | 4295 mm | ||||
Height to head guard | 2270 mm | |||||
Turning raduis(outside) | 2865 mm | |||||
Front face of fork to front axle | 560 mm | |||||
Min. right angle stacking aisle | pallet size :1100×1100 add clearence | 4670 mm | ||||
Speed | Max Travelling full/no load | 18/19 km/h | ||||
Lifting full/no load | 380/430 mm/s | |||||
Lowering full/no load | 380/340 mm/s | |||||
Max.drawbar pull | full/no load | 4500/2000 kg | ||||
Gradeability at 1.6km/h | full load | 25% | ||||
Truck weight | 7000 kg | |||||
Weight distribution | Full load front/rear | 10280/1790 kg | ||||
No load front/rear | 3330/4500 kg | |||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 300-15-18PR | ||||
rear axle | 7.00-12-12PR | |||||
Wheelbase | 2000mm | |||||
Tread | Front/rear | 1180/1190mm | ||||
Ground clearence | At lowest point(mast) | 100mm | ||||
Frame | 240mm | |||||
Brake | Service brake | power brake | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 2-12/80(V/AH) | ||||
Engine | Model | MITSUBISHI S6S | ISUZU 6BG1 | |||
Rated power | 52/2300(kw/rpm) | 112/2000(kw/rpm) | ||||
Rated torque | 248/1700(N-m/rpm) | 42.5/1500(N-m/rpm) | ||||
Number of cylinders | 6 | 6 | ||||
Displacement | 4.996L | 6.494L | ||||
Fuel tank capacity | 80L | |||||
Transmission | shift stage(front/rear type) | 2-1 power shift T/M | ||||
Operating pressure | Hydraulic system pressure | 200 kg/cm² | ||||
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
