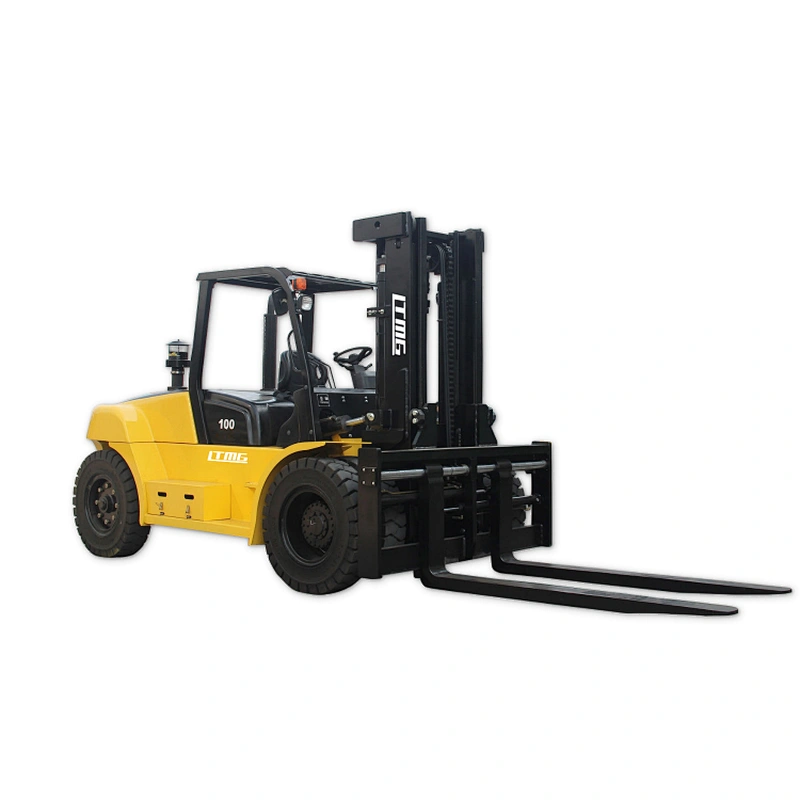

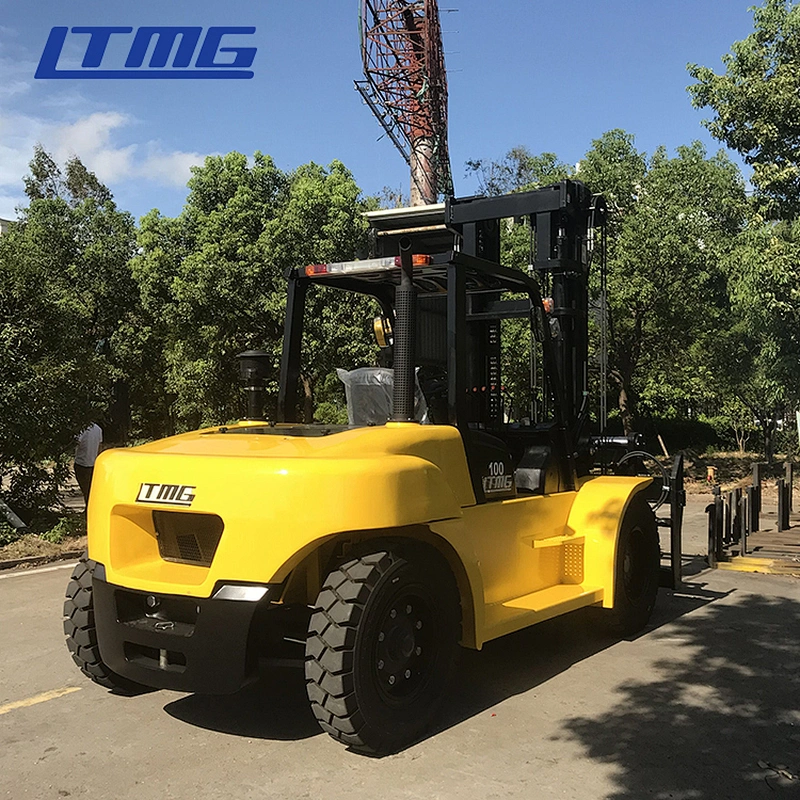

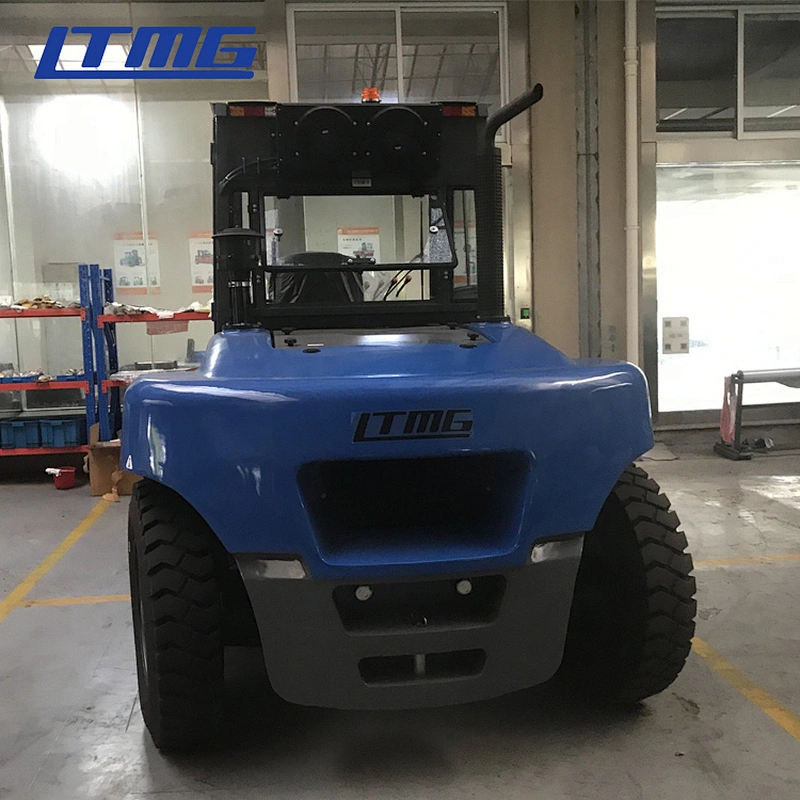

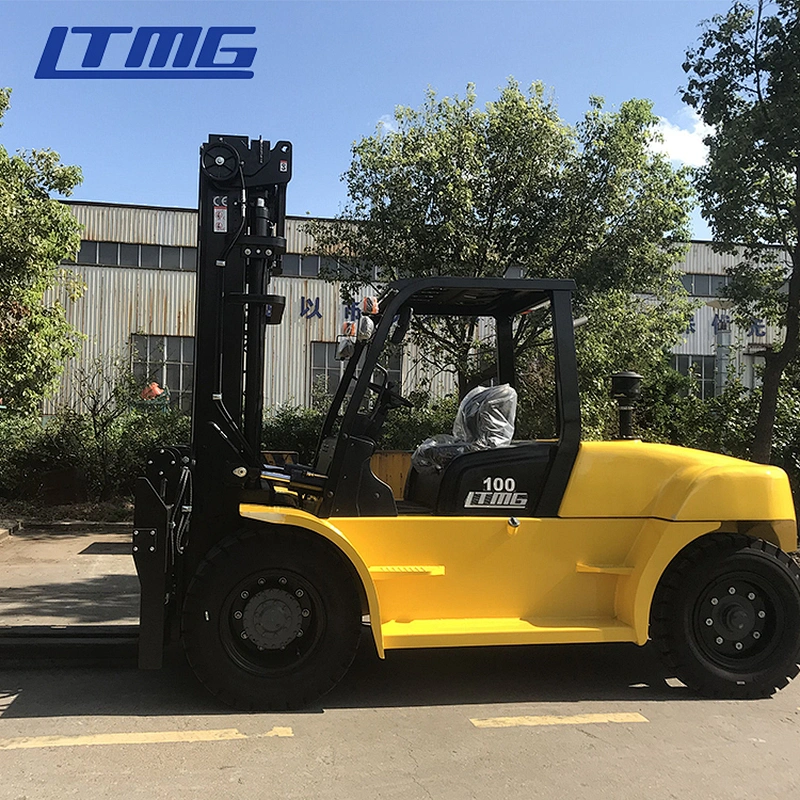

LTMG New large forklifts 10000kg forklift truck 10 ton 12 tonb diesel forklift with cab

LTMG New large forklifts 10000kg forklift truck 10 ton 12 tonb diesel forklift with cab

Price:: US $ 16543.00-21000.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 300.0 unit / Month
Country of Origin: Xiamen

Quantity:

Product Description

Type:Powered Pallet Truck
Product Name:Diesel Forklift Truck
Color:Customized Color
Engine:ISUZU,Mitsubishi or Chinese engine
Mast:2-3 Stages
Ground clearance:230 mm
Options:Side-shifter,rotator,forkpositioner
Load Center:600mm
Transmission:Hydraulic Transmission
Tire:Pneumatic Standard or solid tire
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Construction works
After Warranty Service:Online support
Local Service Location:Turkey
Local Service Location:Germany
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Japan
Local Service Location:Argentina
Local Service Location:South Korea
Local Service Location:UAE
Local Service Location:Romania
Local Service Location:South Africa
Local Service Location:Ukraine
Local Service Location:Nigeria
Showroom Location:Canada
Showroom Location:United Kingdom
Showroom Location:France
Showroom Location:Philippines
Showroom Location:Saudi Arabia
Showroom Location:Indonesia
Showroom Location:Mexico
Showroom Location:Russia
Showroom Location:Kenya
Showroom Location:UAE
Showroom Location:Sri Lanka
Showroom Location:Romania
Showroom Location:Kazakhstan
Showroom Location:Tajikistan
Showroom Location:Malaysia
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Core Components:Gearbox
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Overall Dimensions:4280*2170*2510
Fork Width:175mm
Fork Length:1520mm
Min. Lifting Height:0
Certification:CE&ISO9001

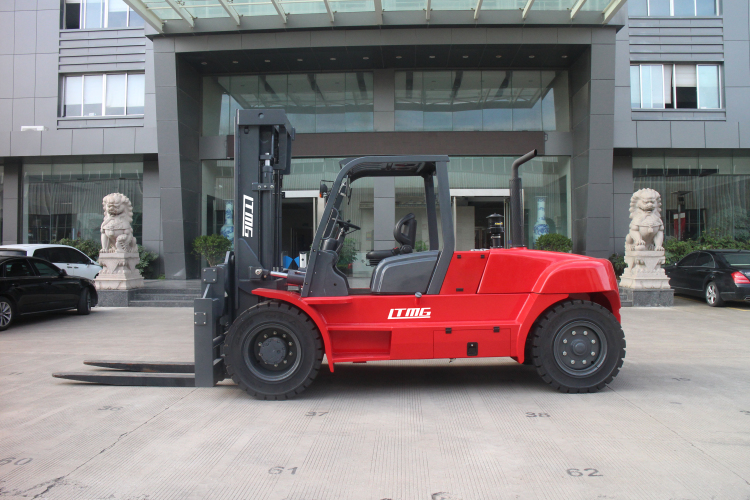

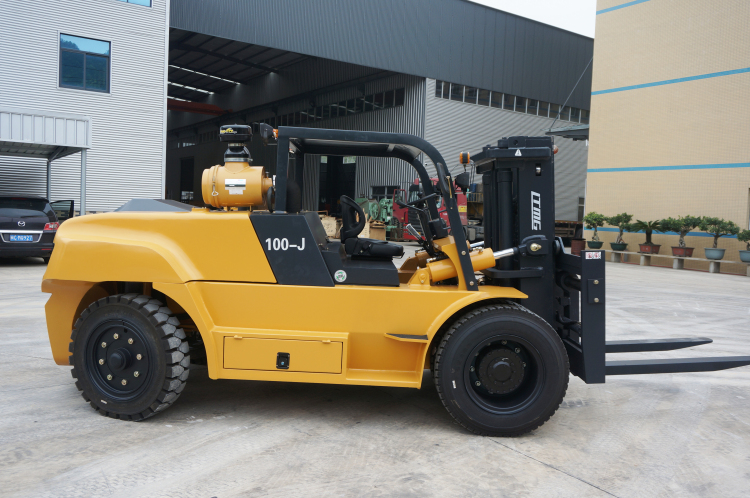

Product Show

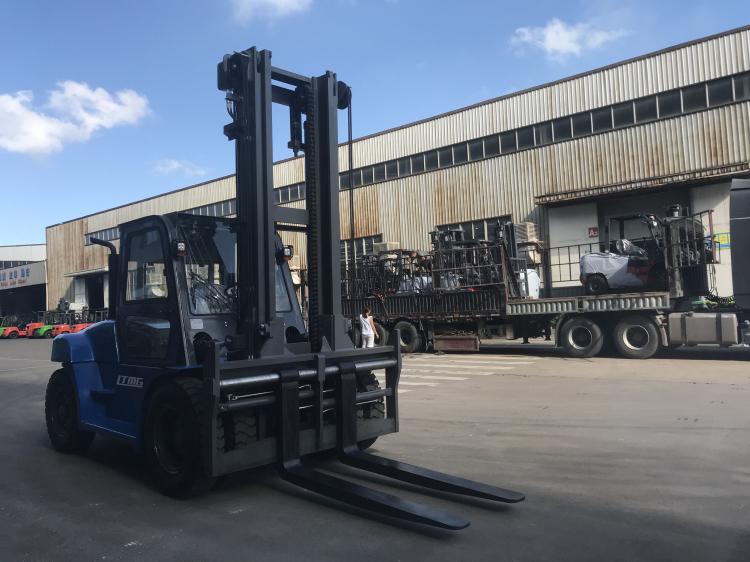

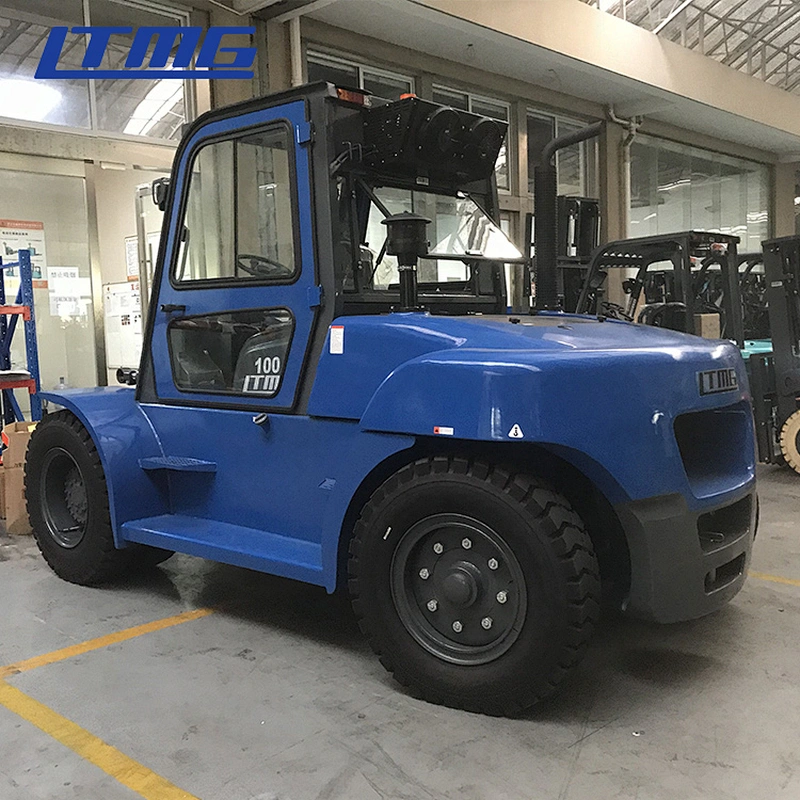

Long wheelbase, increase the space of cab, operate comfortably

The front windshield USES toughened glass and installs wiper safe operation , suits for the rain and snow weather environment

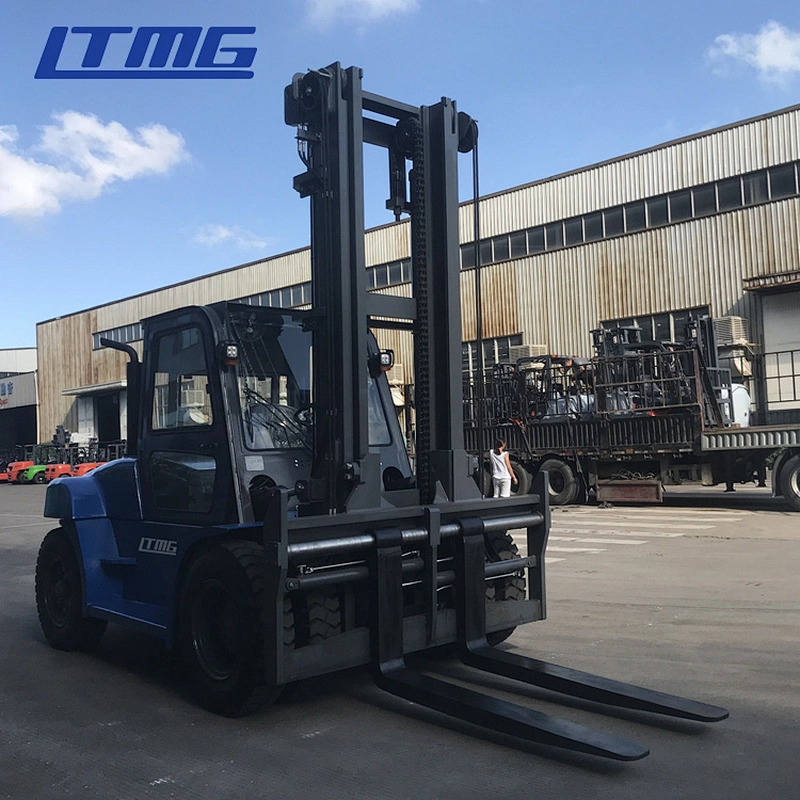

Container operation forklift

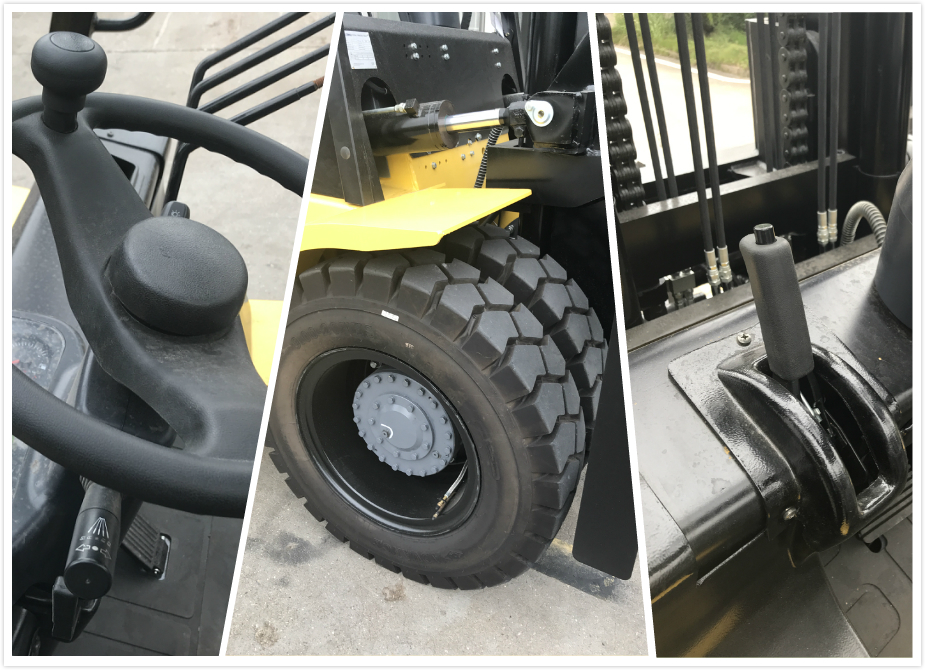

Product's details

1	Model						FD100	FD120
2	Power Type						Diesel	Diesel
3	Rated Capacity					kg	10000	12000
4	Load Centre					mm	600	600
5	Lift Height					mm	3000	3000
6	Fork Size			L×W×T	mm	1520×175×85	1520×180×100
7	Mast Tilt Angle			F/R	Deg	6°/12°	6°/12°
8	Fork Overhang (Wheel center to fork face)					mm	739	754
9	Ground Clearance（Bottom of mast）					mm	230	230
10	Overall Dimension			Length to face of fork(Without fork)	mm	4280	4685
11					Overall Width	mm	2170	2200
12					Mast Lowered Height	mm	2830	3080
13					Mast Extended Height(With backrest)	mm	4335	4500
14					Overhead Guard Height	mm	2510	2540
15	Turning Radius (outside)					mm	3970	4700
16	Speed			Travel (Full load)	km/h	30	30
17	Speed				Lifting (Full load)	mm/s	270	270
18	Max.Gradeability					%	20	20
19	Tyre			Front	mm	9.00-20-14PR	11.00-20-16PR
20	Tyre				Rear	mm	9.00-20-14PR	9.00-20-14
21	Wheelbase					mm	2800	3200
22	Self weight					kg	13100	14500
23	Battery	Voltage/Capacity			V/Ah	(12/80) x 2	(12/80) x 2
24	Engine	Model				6BG1-QC02	QSB4.5-C130
25			Manufacture				ISUZU	CUMMINS
26			Rated output/r.p.m.			kw	82.4/2000	97/2200
27			Rated torque/r.p.m.			N·m	416/1600	622/1500
28			No.of Cylinder				6	6
29			Bore×Stroke			mm	105×125	107×124
30			Displacement			cc	6494	4500
31			Fuel Tank Capacity			L	135	150
32	Transmission	Type				Hydraulic	Hydraulic
33	Transmission		Stage	FWD/RVS		2/2	2/2

Product Advantage

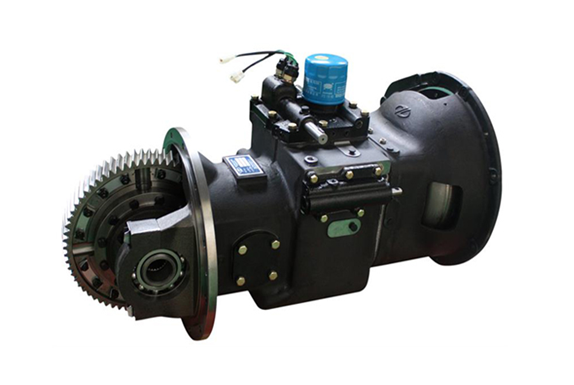

Gradeability improving style transmission

efficiency 5% improved

climbing torque 8% increase

noise 3~5dB reduced

thermal equilibrium temperature

8~10° decreased.

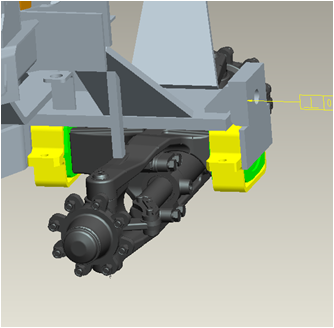

Steering axle

The steering axle will be replaced by integral casting, with better strength and more accurate size. At the same time, the connection with the frame will be replaced by soft connection, which can greatly reduce the vibration.

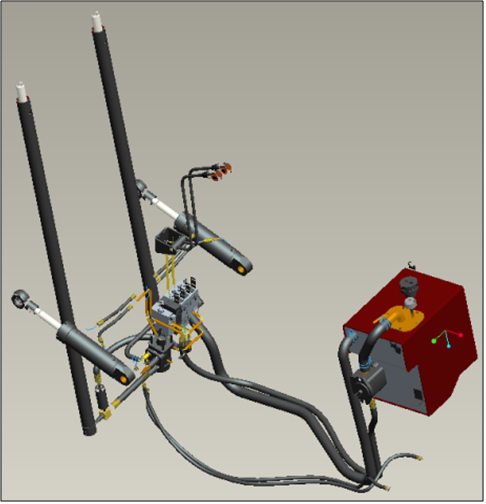

Hydraulic System

Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve

operation comfort.

Optional

1.Japan engine,Germany engine are optional.
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.

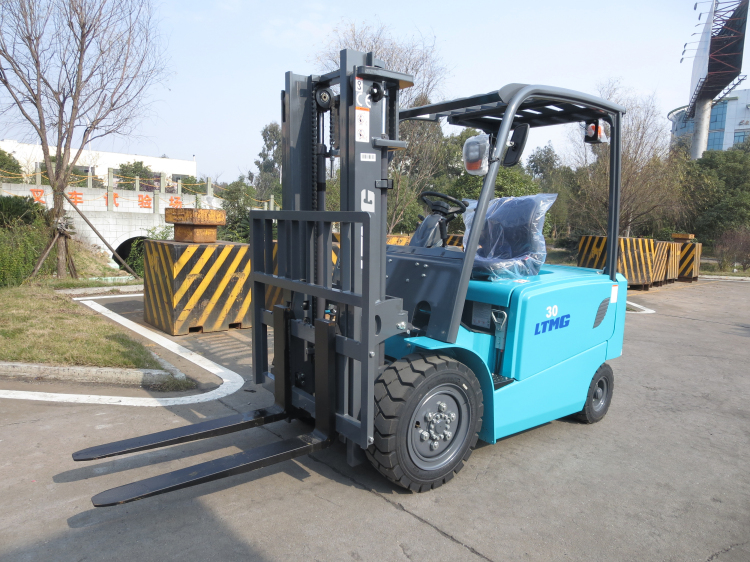

Electric Forklift

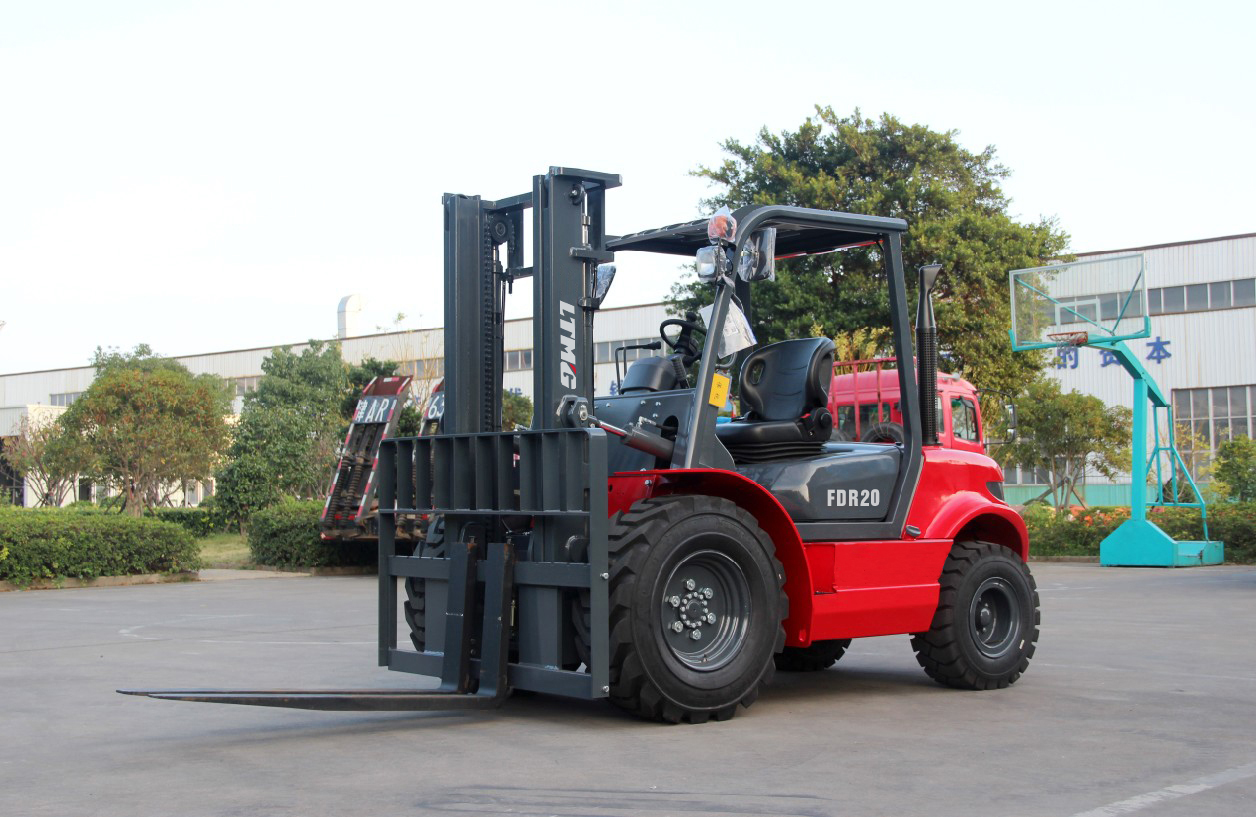

Rough Terrain Forklift

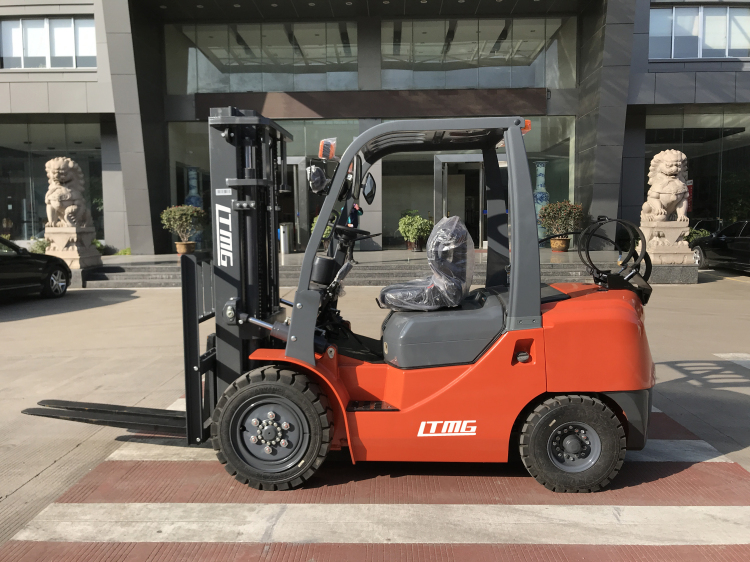

LPG&Gasoline Forklift

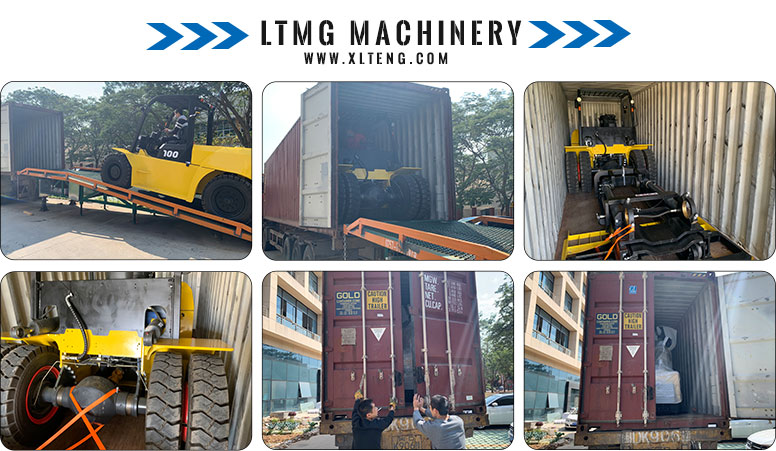

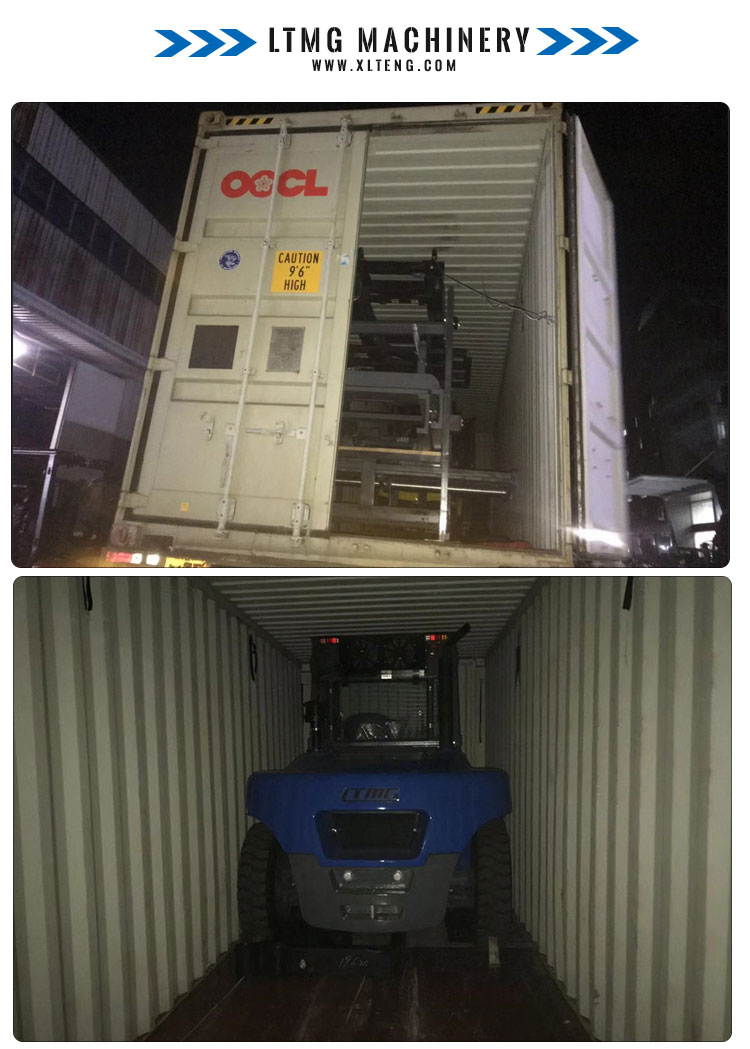

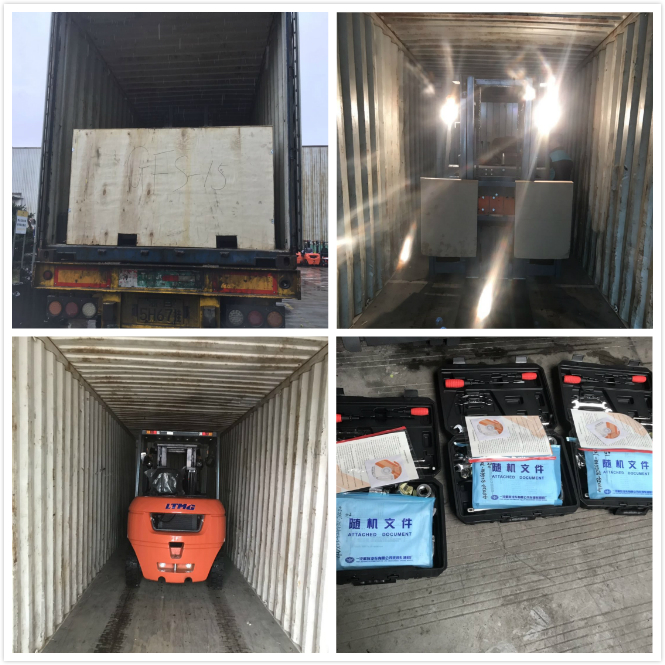

Packing&Shipping

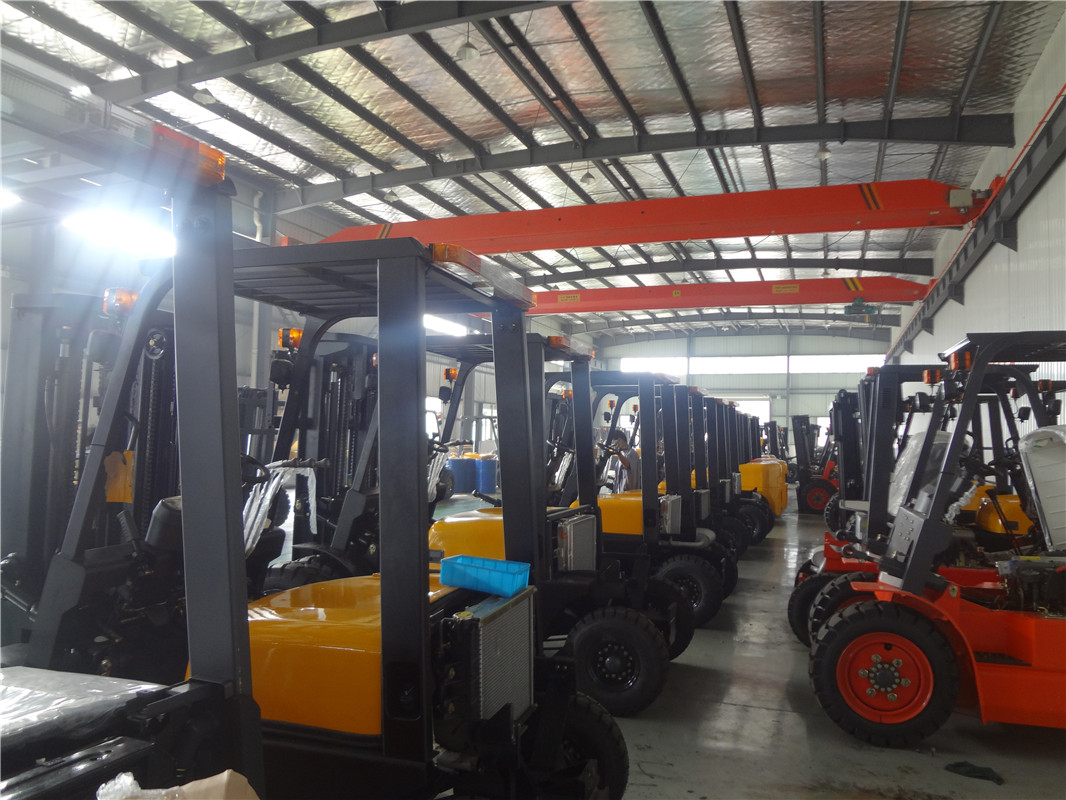

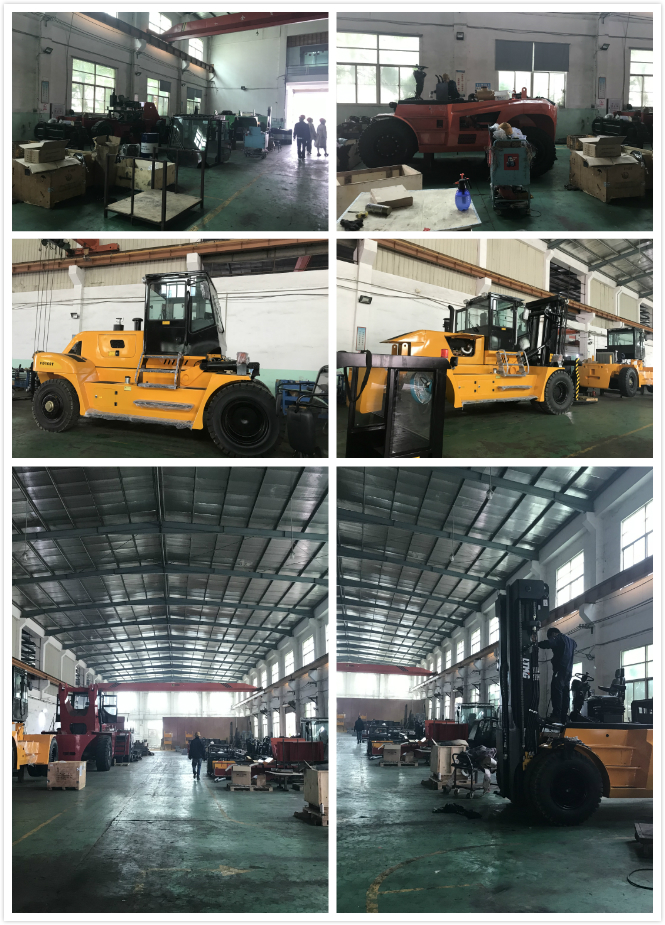

Company Introduction

Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .

Customer

After-Sales Service

LTMG always treat after-sale service as important as sale.

Nowadays more than 50 agents around the world can supply professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
