- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Field maintenance and repair service
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2460x1150x1995mm
- Certification:CE/ISO9001:2008
- Applicable Industries:warehouse logistics
Product Description

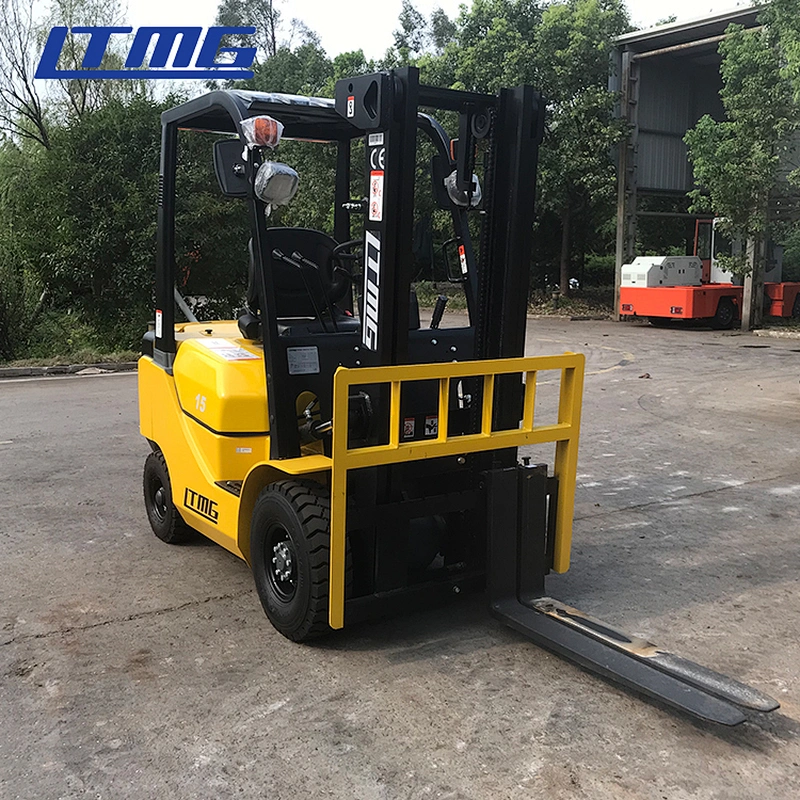

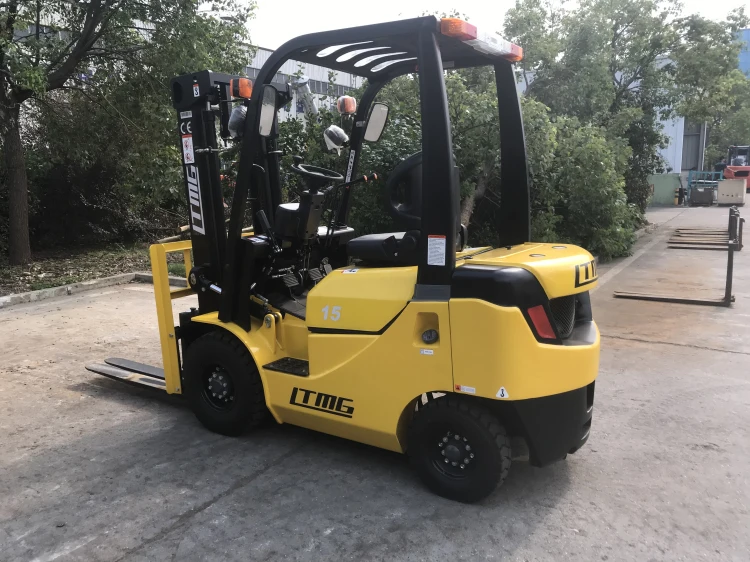

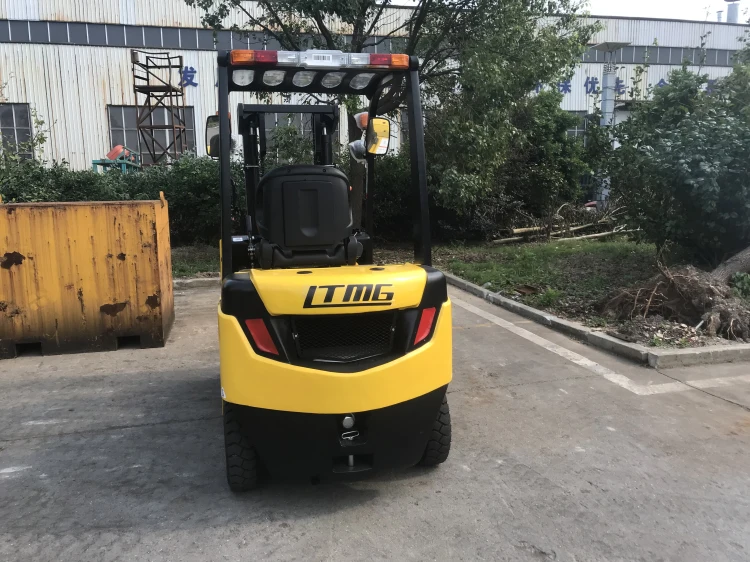

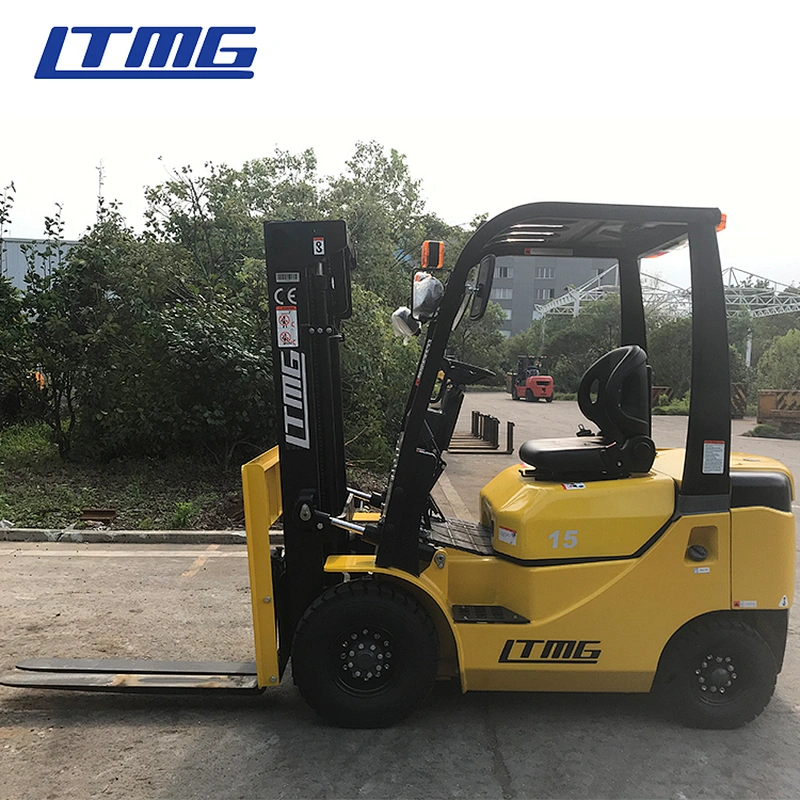

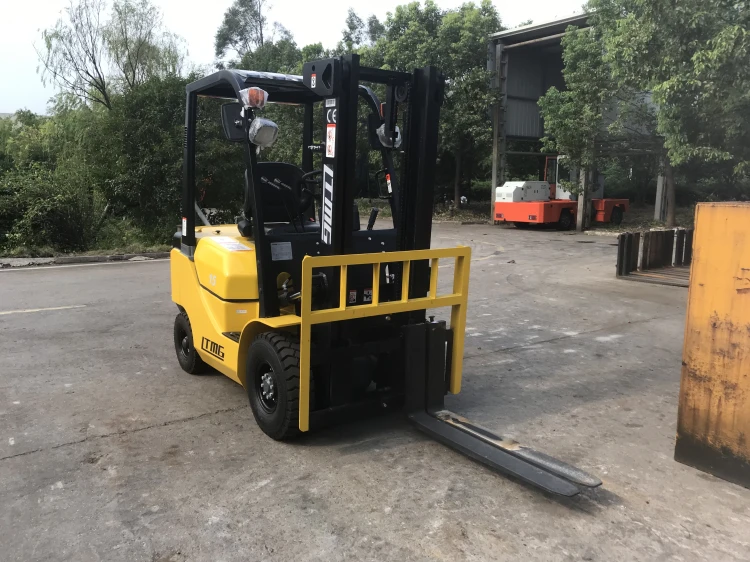

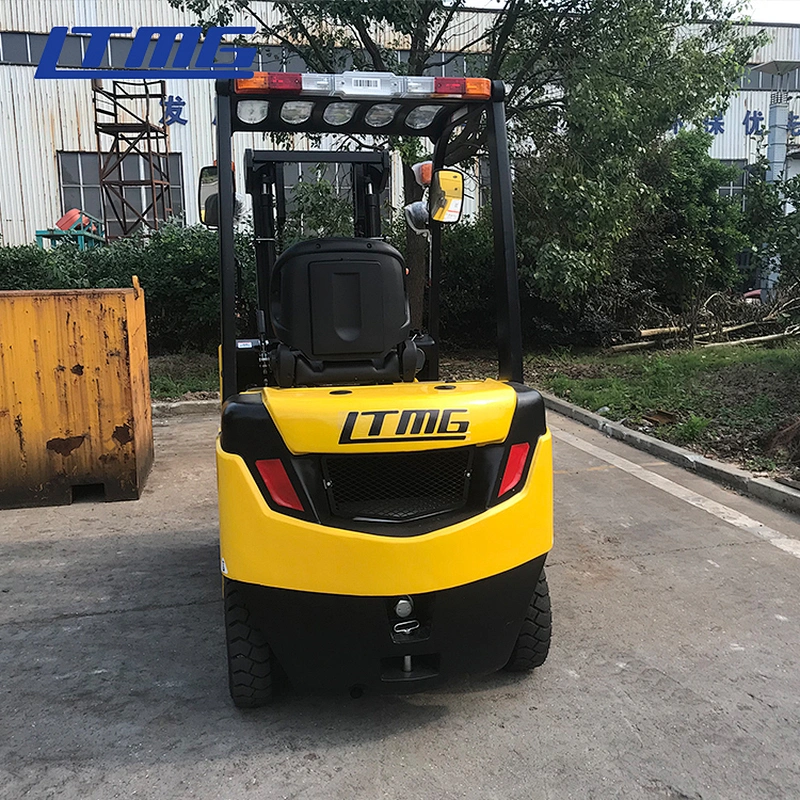

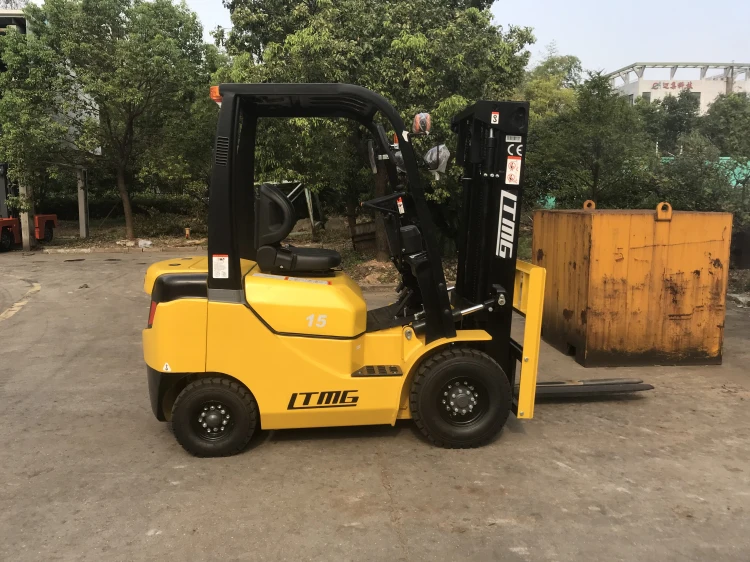

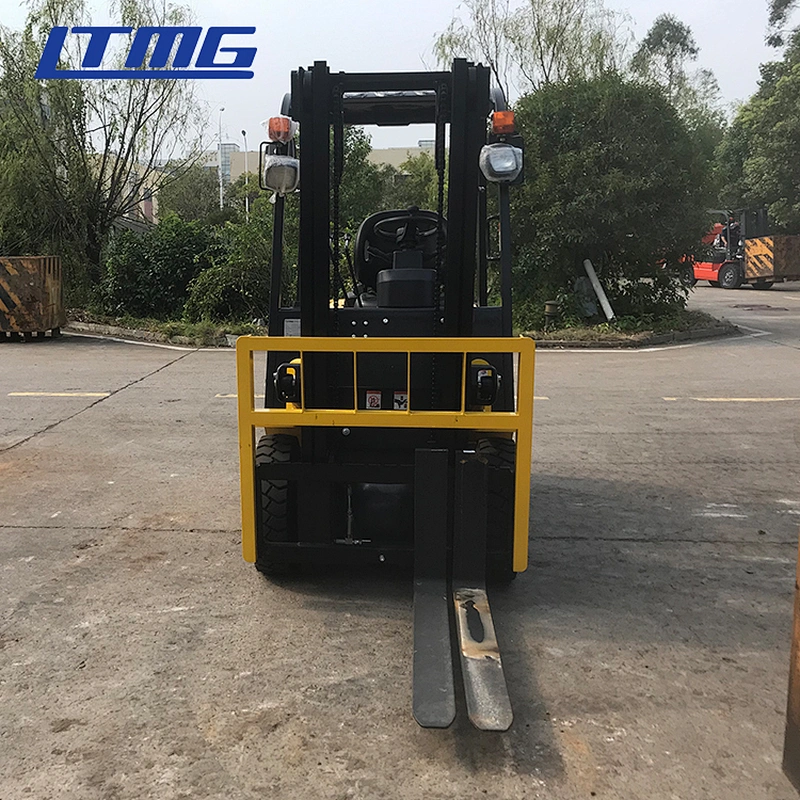

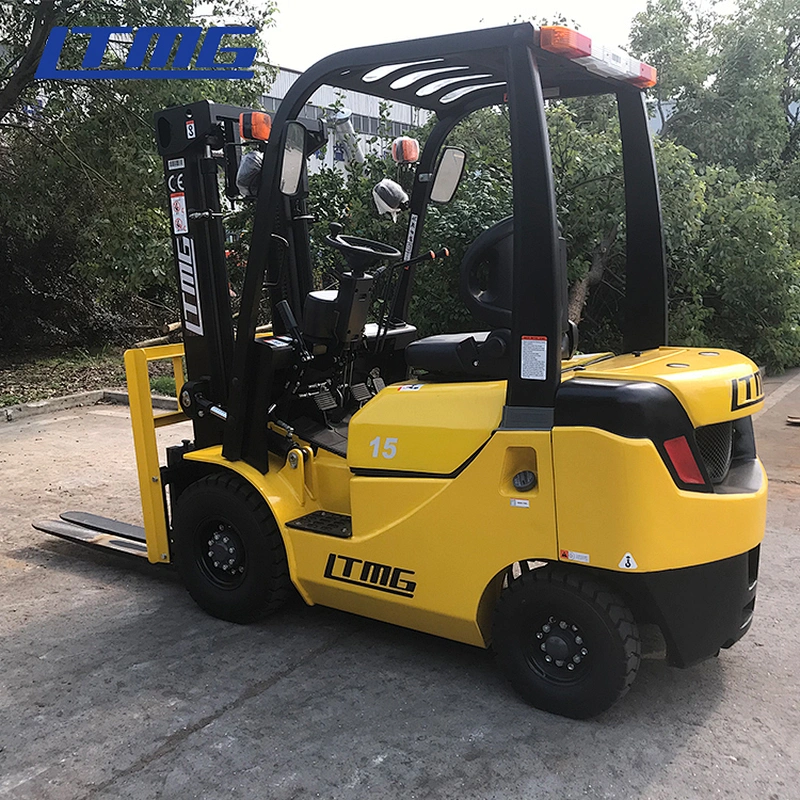

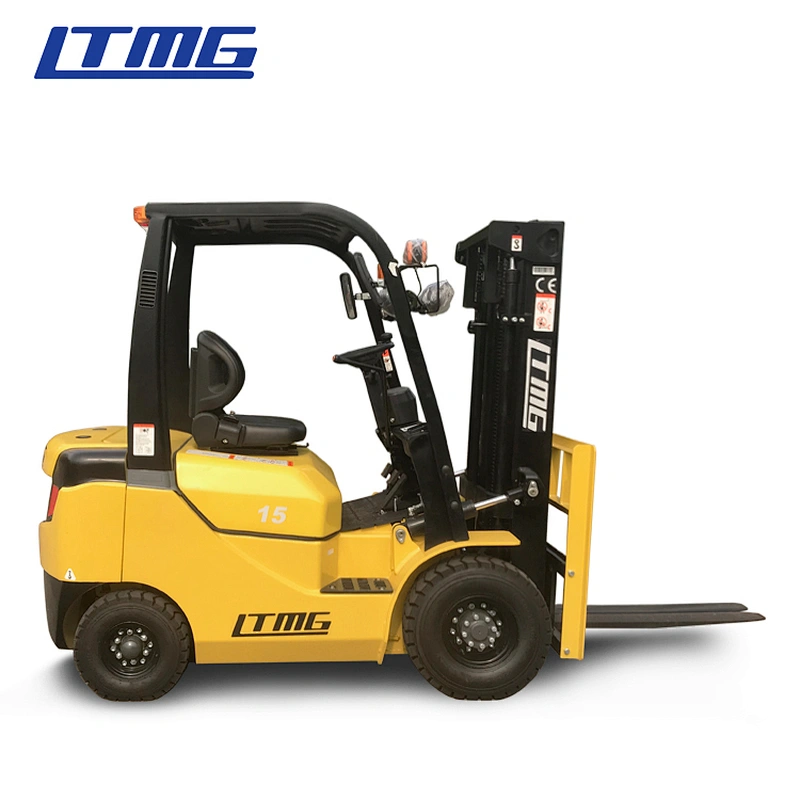

LTMG new design 1500kg 1800kg 2000kg forklift 1.5 ton 1.8 ton 2 ton diesel forklift
1. A set of spare parts and some quick -wearing parts free for customers

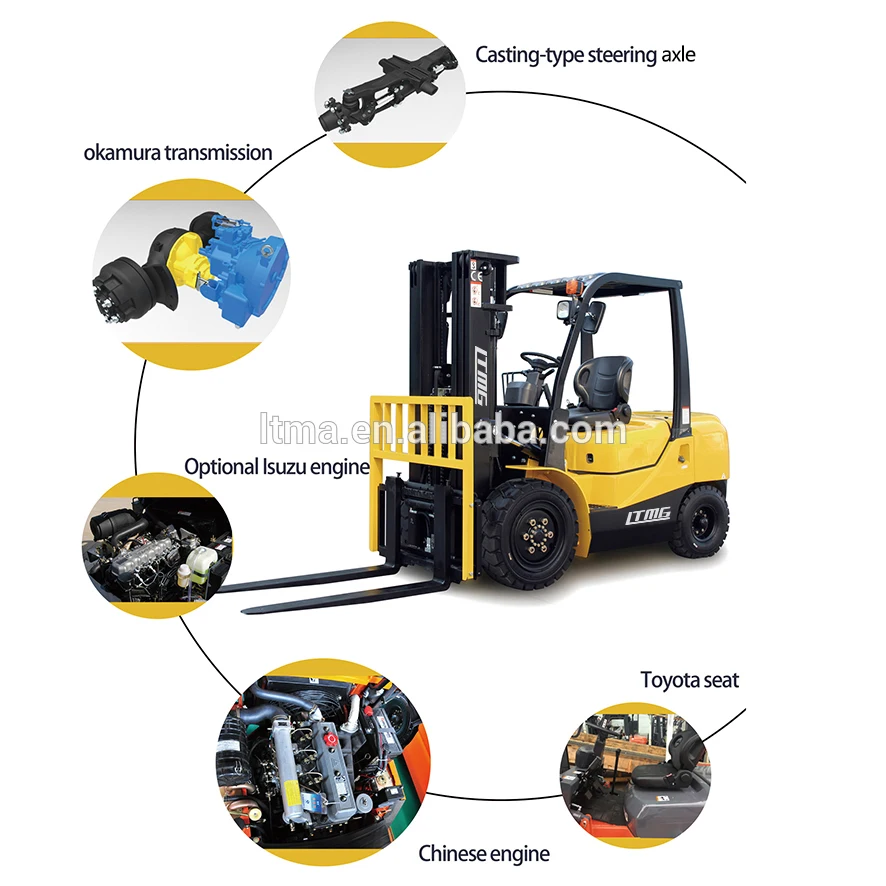

2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Give priority to the system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.Original Toyota seat, Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Give priority to the system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.Original Toyota seat, Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
Specifications of 1.5 ton 2 ton mini forklift | ||||||
Model | FD15 | FD20 | ||||
Power Type | Diesel | Diesel | ||||
Rated Capacity | kg | 1500 | 2000 | |||
Load Centre | mm | 500 | 500 | |||
Lift Height | mm | 3000 | 3000 | |||
Fork Size(L×W×T ) | mm | 920×120×35 | 1070×120×40 | |||
Mast Tilt Angle(F/R) | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 410 | 465 | |||
Ground Clearance（Bottom of mast） | mm | 110 | 110 | |||
Length to face of fork(Without fork) | mm | 2285 | 2595 | |||
Overall Width | mm | 1086 | 1150 | |||
Mast Lowered Height | mm | 1995 | 2070 | |||
Mast Extended Height(With backrest) | mm | 3940 | 4070 | |||
Overhead Guard Height | mm | 2040 | 2070 | |||
Turning Radius (outside) | mm | 2055 | 2310 | |||
Travel Speed(Full load) | km/h | 15 | 19 | |||
Lifting Speed(Full load) | mm/s | 450 | 530 | |||
Max.Gradeability (No load/Full load) | % | 20 | 20 | |||
Front Tire | mm | 6.50-10-12PR | 7.00-12-12PR | |||
Rear Tire | mm | 5.00-8-10PR | 6.00-9-10PR | |||
Wheelbase | mm | 1400 | 1600 | |||
Service weight | kg | 2820 | 3590 | |||
Battery(Voltage/Capacity) | V/Ah | 12/80 | 12/80 | |||
Engine Model | C240 | C240 | ||||
Manufacture | ISUZU | ISUZU | ||||
Rated output/r.p.m. | kw | 35.4/2500 | 35.4/2500 | |||
Rated torque/r.p.m. | N·m | 137.7/1800 | 137.7/1800 | |||
No.of Cylinder | 4 | 4 | ||||
Bore×Stroke | mm | 86×102 | 86×102 | |||
Displacement | cc | 2369 | 2369 | |||
Fuel Tank Capacity | L | 45 | 60 | |||
Transmission Type | Hydraulic | Hydraulic | ||||
Stage | 1/1 | 1/1 | ||||
Product Features
Blue light

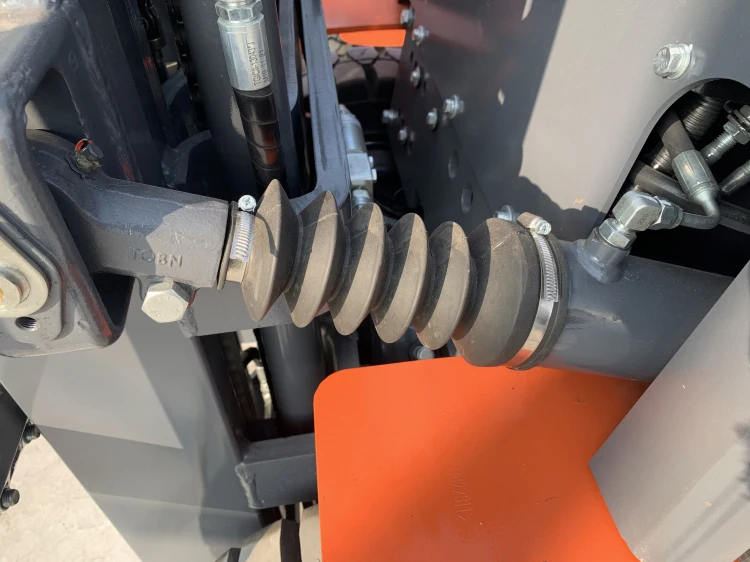

Cylinder protector

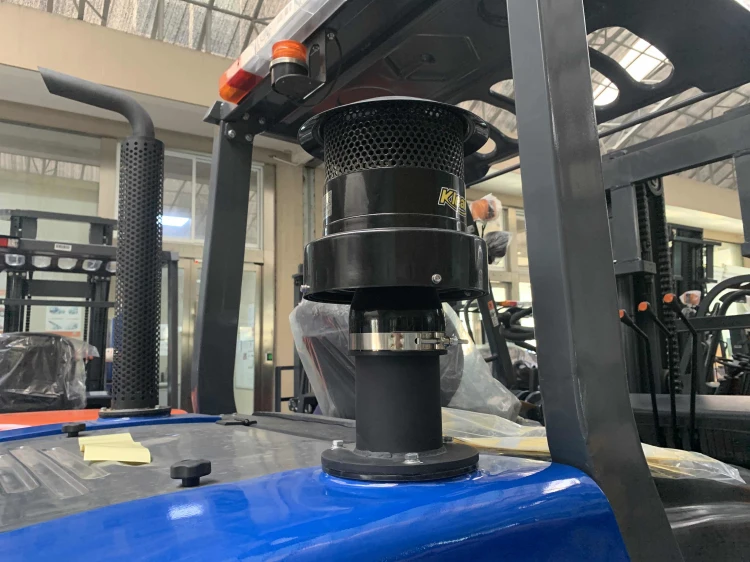

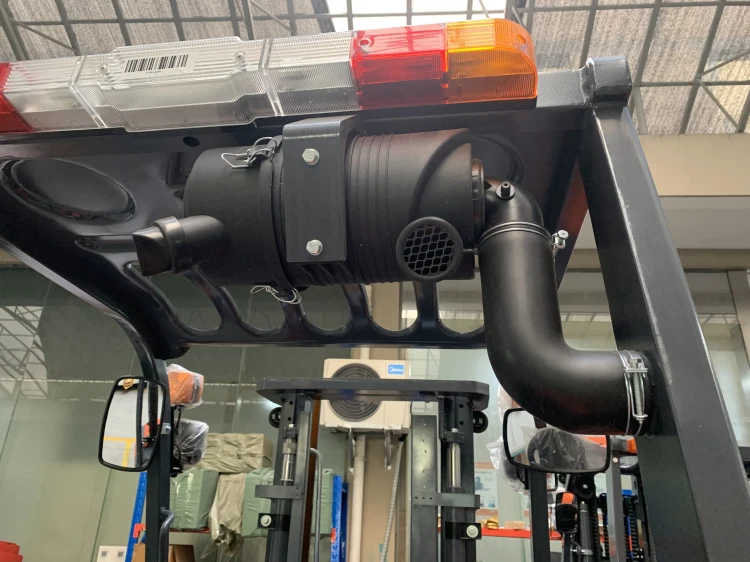

Double Air-Filter (suitable for the Small tonnage forklift )
Double Air-Filter (suitable for the Large-tonnage forklift )

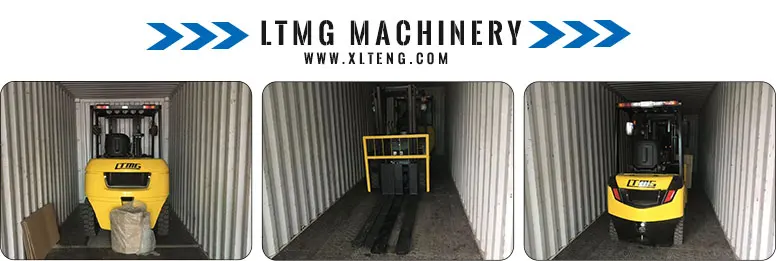

Packing & Delivery
Company Information
Contact us
LTMG Customers
LTMG Service
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with1 year or 2000 working hours (which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
