- Brand:LTMG
- Transmission type:Automatic Tranmission
- Engine:Isuzu
- Fuel tank:60L
- Fork size:1070*125*50mm
- Turning radius:2495mm
- wheelbase:1700mm
- truck weight:4780kg
- Tire:Solid
- Lifting height:7.5M
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2835*1740*2110mm
- Certification:CE ISO

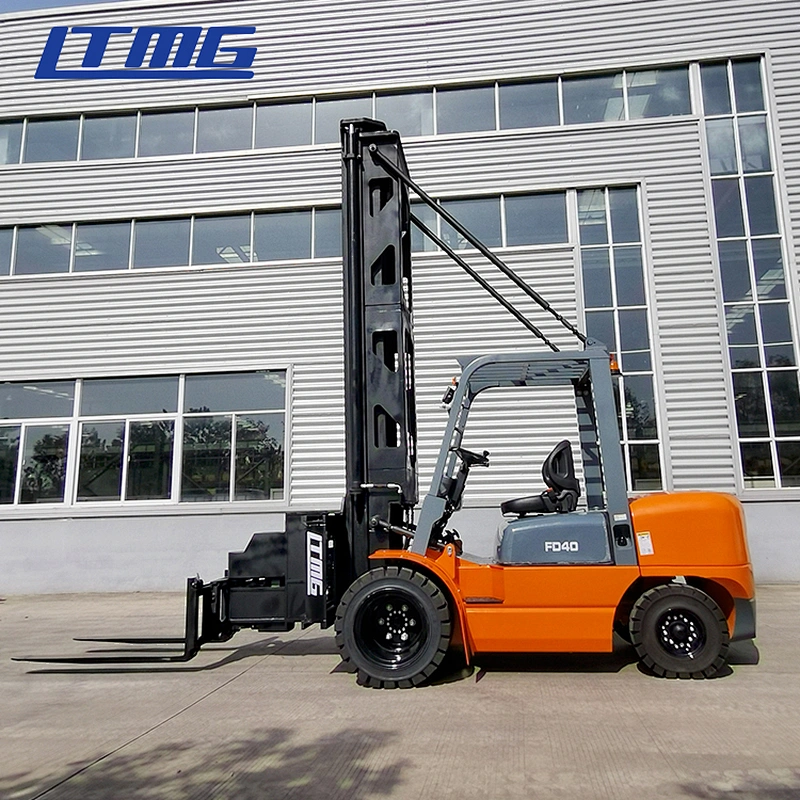

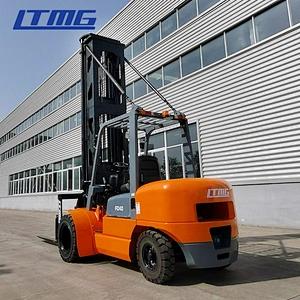

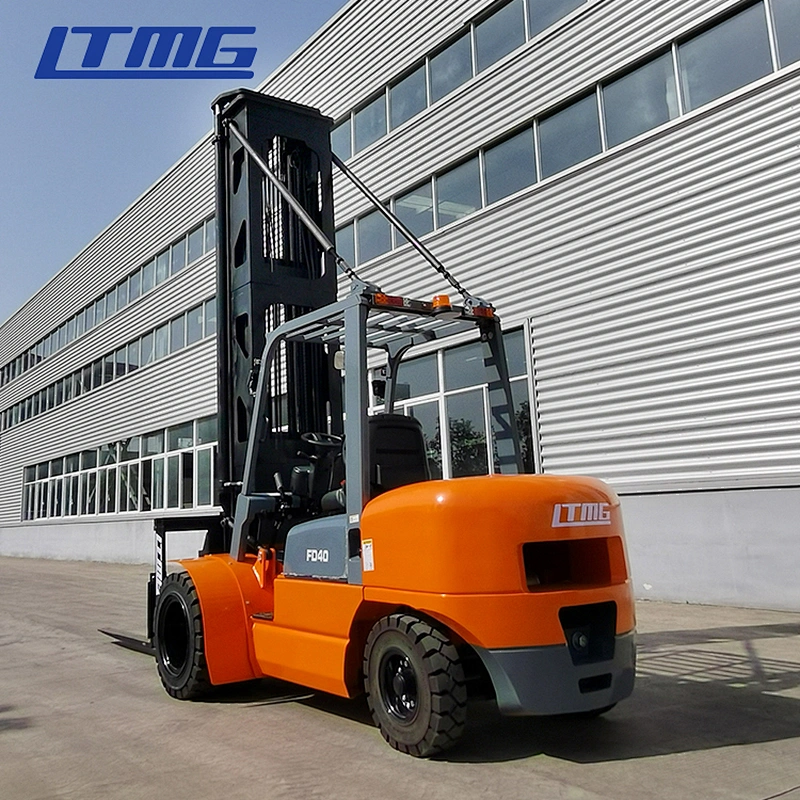

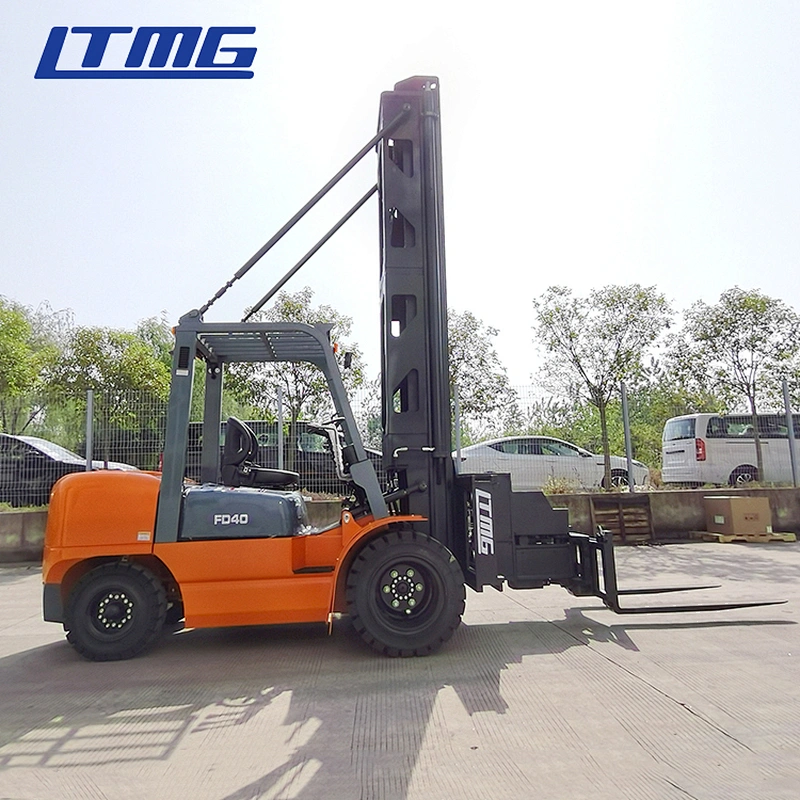

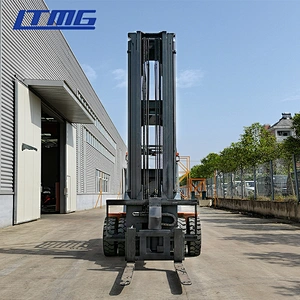

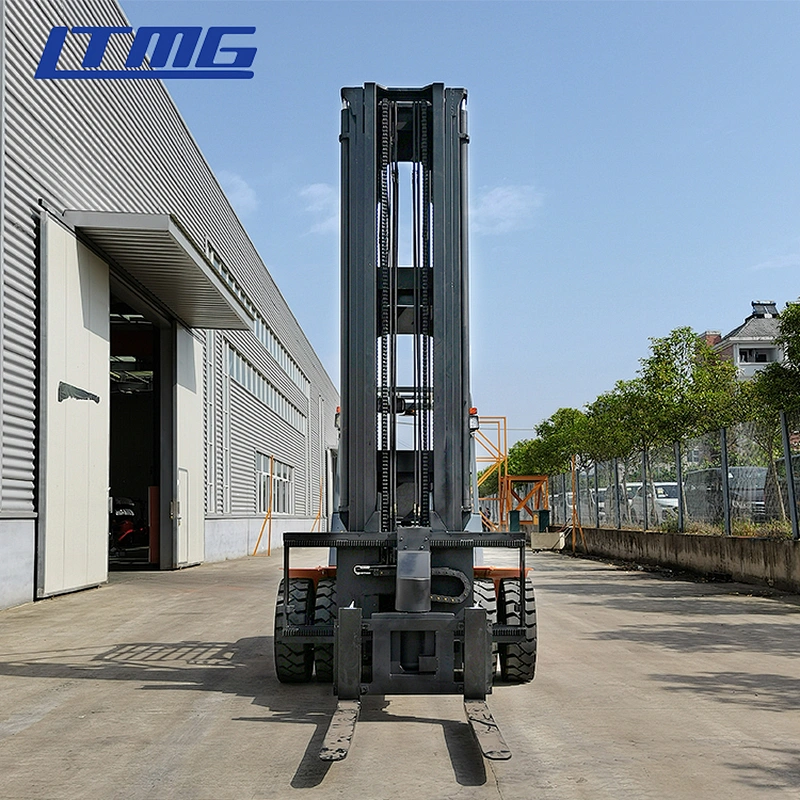

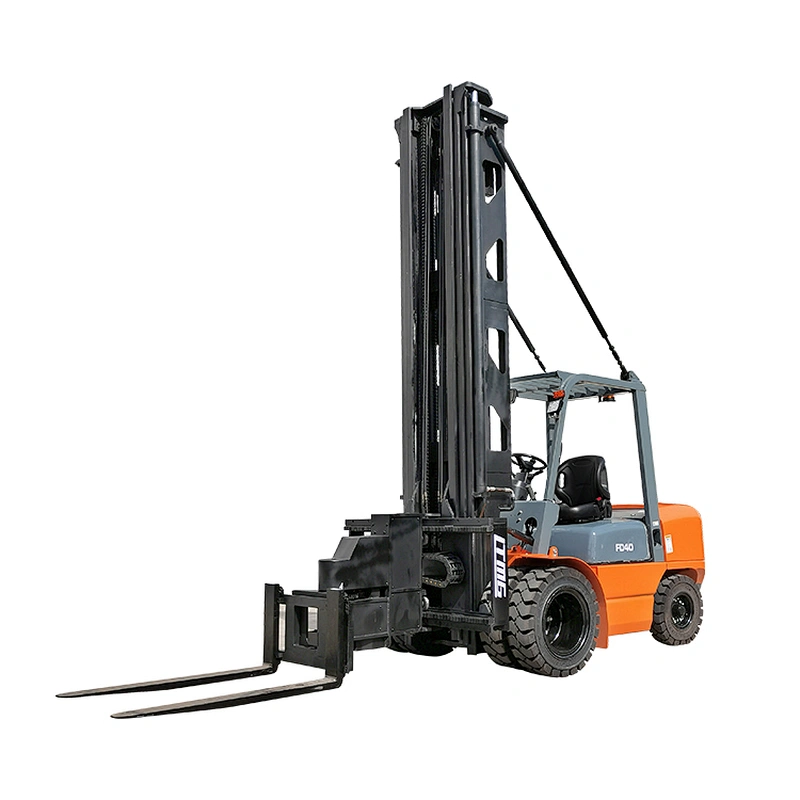

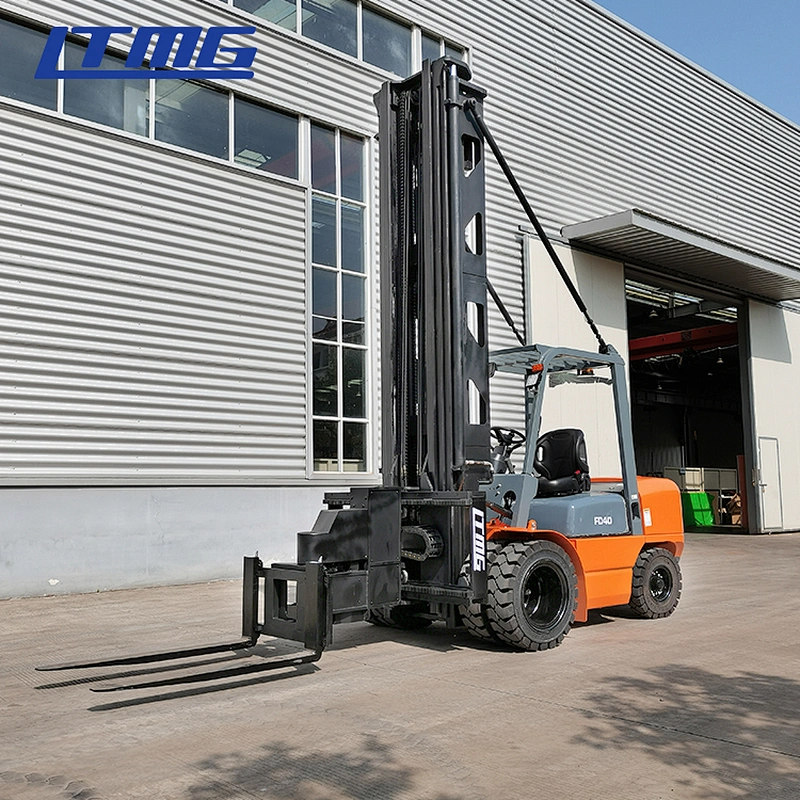

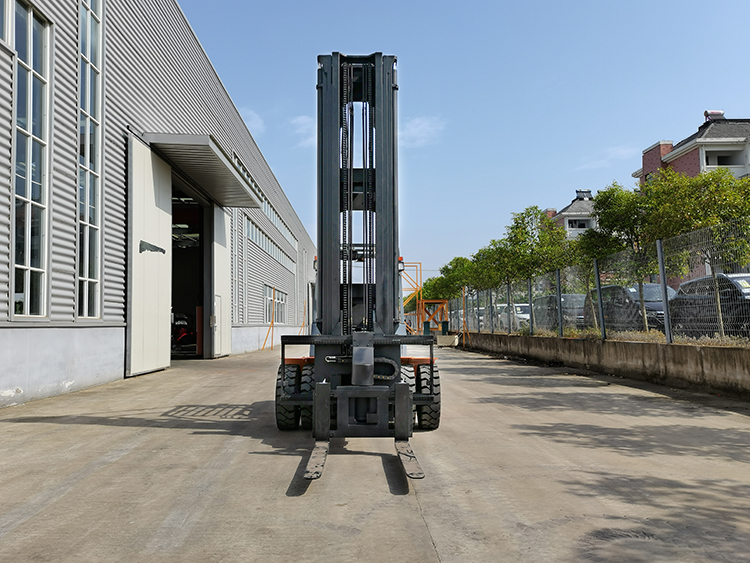

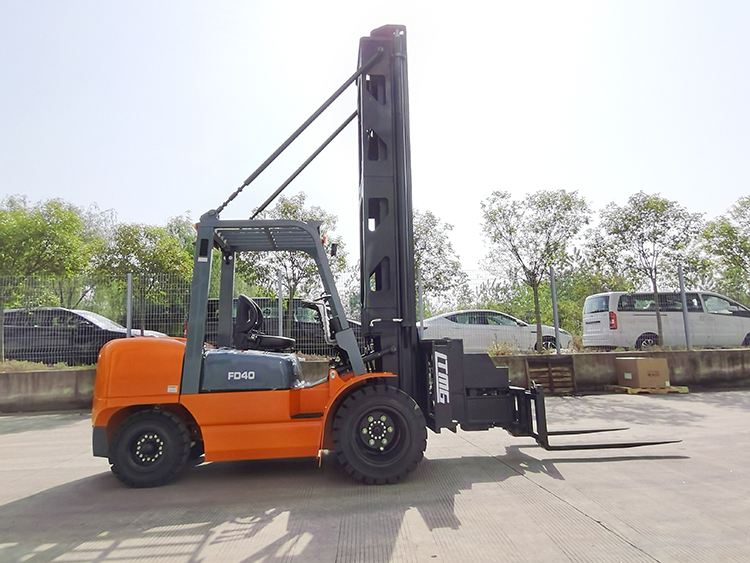

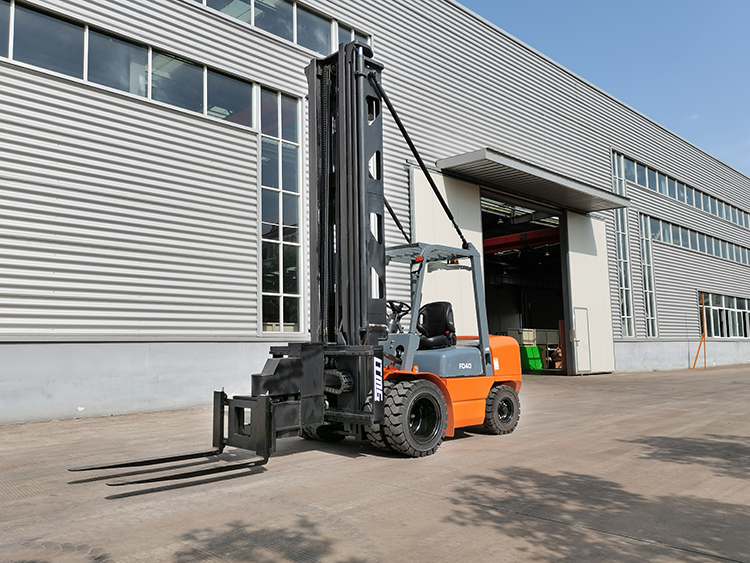

3.8 ton forklift feature
Lifting capacity: 3.8 ton7.5m lifting height 3-stage mast Hydraulic transmissionISUZU 4JG2 enginesolid tyresDual front tiresCamerawhen Lifting 7.5m can lifting 300kg loadAisle size: 2m
Specification of 3.8 ton forklift | ||||||
Model | FD38 | |||||
Power Type | Diesel | |||||
Rated Capacity | 3800 | |||||
Load Centre | 500 | |||||
Lift Height | 3000 | |||||
Fork Size | L×W×T | 1070×125×50 | ||||
Mast Tilt Angle | F/R | 6°/12° | ||||
Front Overhang (Wheel center to fork face) | 485 | |||||
Ground Clearance（Bottom of mast） | 140 | |||||
Overall Dimension | Length to face of fork(Without fork) | 2835 | ||||
Overall Width | 1230 | |||||
Mast Lowered Height | 2150 | |||||
Mast Extended Height(With backrest) | 4175 | |||||
Overhead Guard Height | 2110 | |||||
Turning Radius (outside) | 2570 | |||||
Speed | Travel (Empty load) | 20 | ||||
Lifting (Full load) | 430 | |||||
Max.Gradeability (No load/Full load) | 20 | |||||
Tire | Front | 28×9-15-12PR | ||||
Rear | 6.50-10-10PR | |||||
Wheelbase | 1800 | |||||
Service weight | 4900 | |||||
Battery | Voltage/Capacity | 12/80 | ||||
Engine | Model | 4TNE98 | ||||
Manufacture | YANMAR | |||||
Rated output/r.p.m. | 43/2300 | |||||
Rated torque/r.p.m. | 177.6-196.3/1700 | |||||
No.of Cylinder | 4 | |||||
Bore×Stroke | 98×110 | |||||
Displacement | 3318 | |||||
Fuel Tank Capacity | 70 | |||||
Transmission | Type | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | ||||
