- Product Type:Diesel forklift
- Item:2 ton forklift
- Load Center:500mm
- Lifting Height:3000mm - 6000mm
- Mast:2 stage mast / 3 stage mast
- Engine:Chinese Xinchai / Japanese Isuzu or Mitsubishi or mitsubishi
- Tire:Pneumatc tires or Solid tires
- Transmission type:Hydraulic
- Color:Customized Color

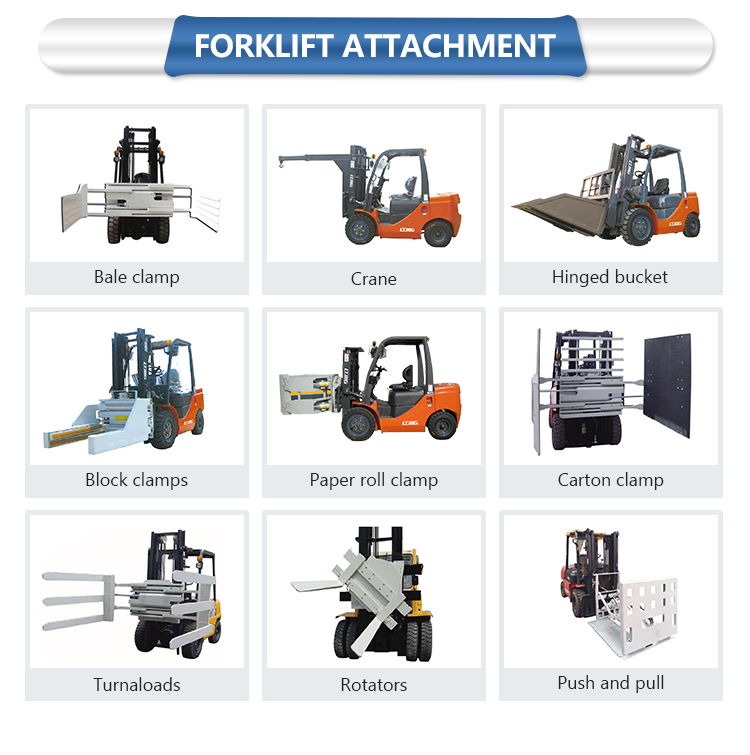

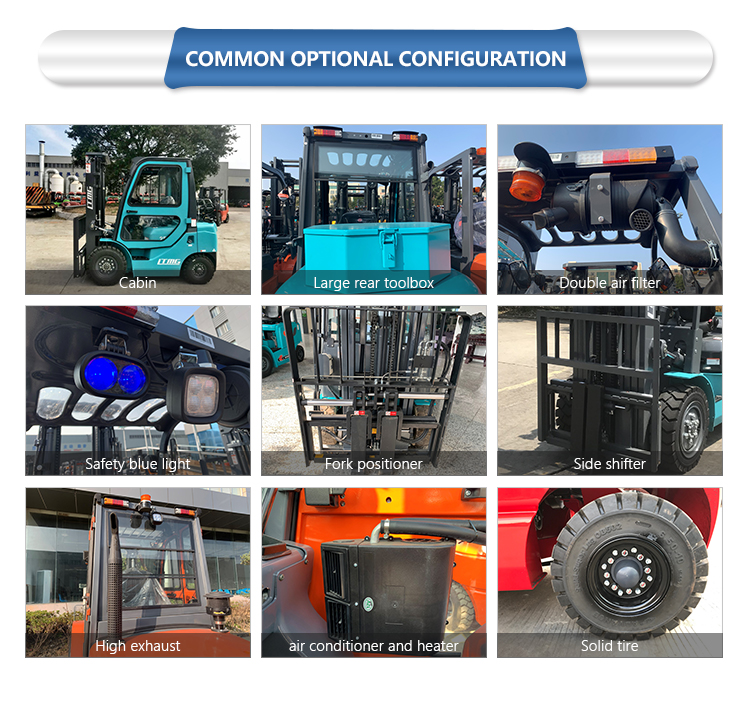

- Options:Mast, Side shifter, Fork positioner, Cabin, Air conditioner
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:France
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Gear
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070
- Fork Width:120
- Overall Dimensions:2595*1150*2070
- Certification:CE/ISO9001

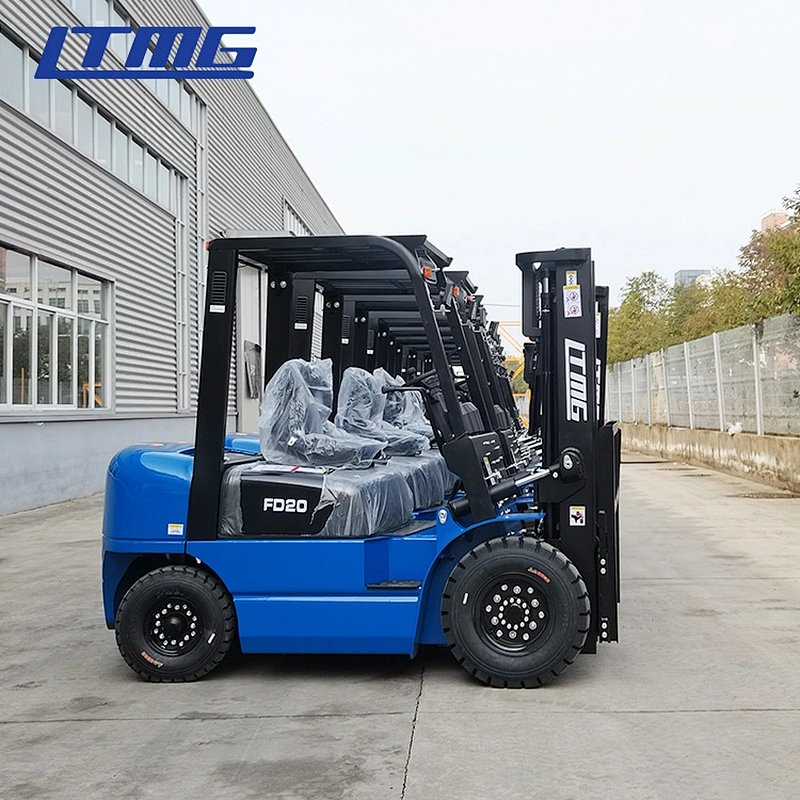

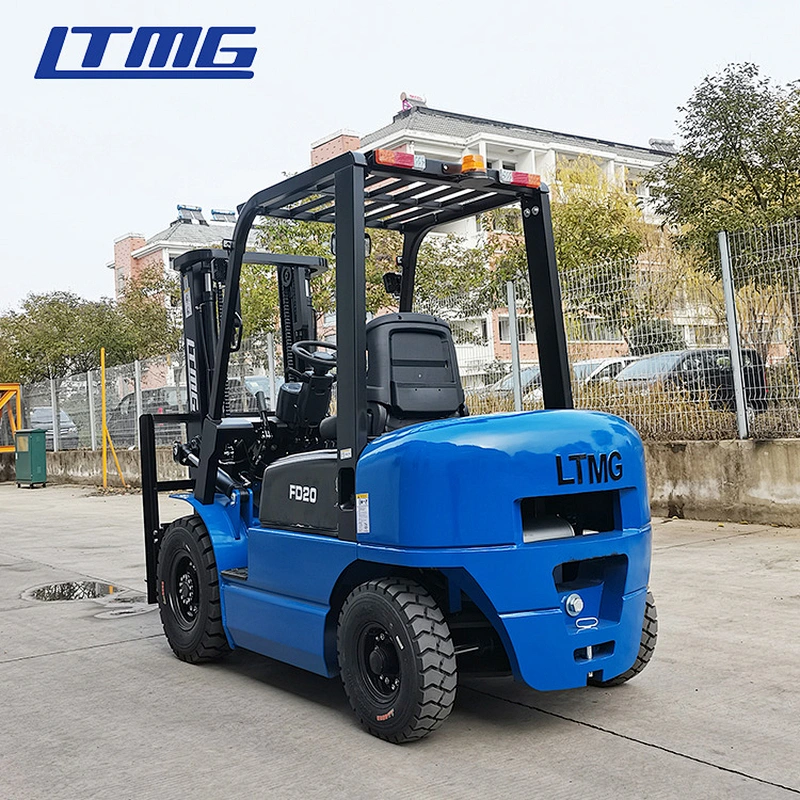

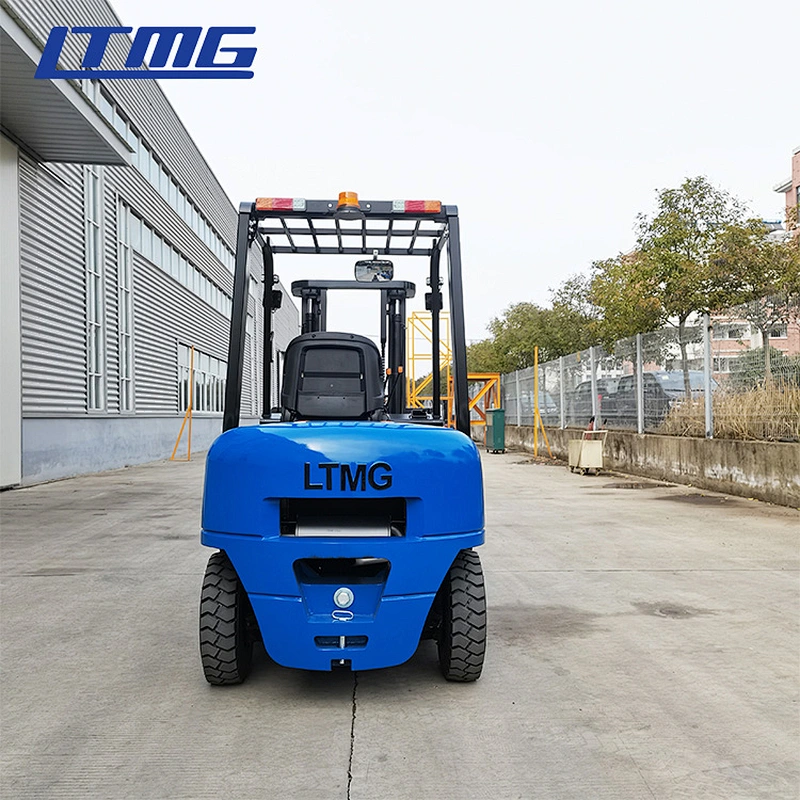

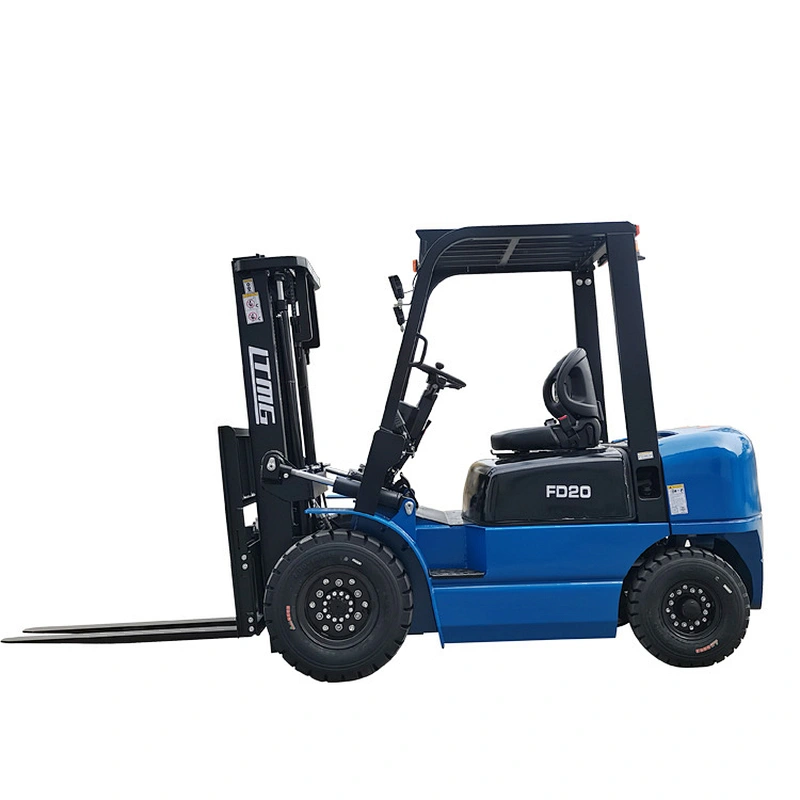

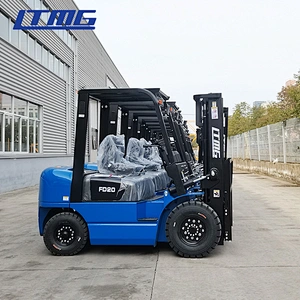

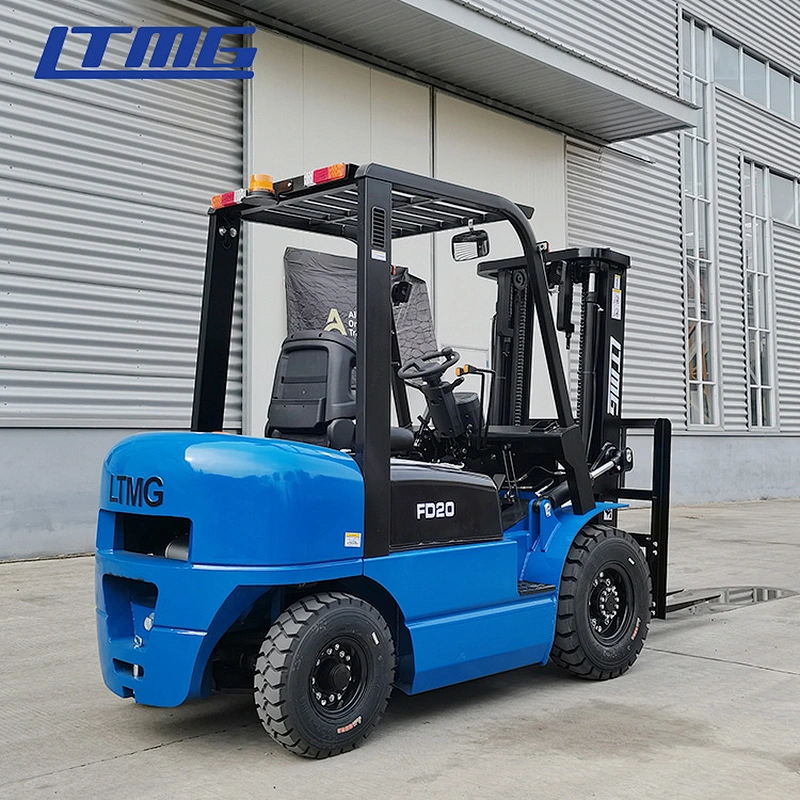

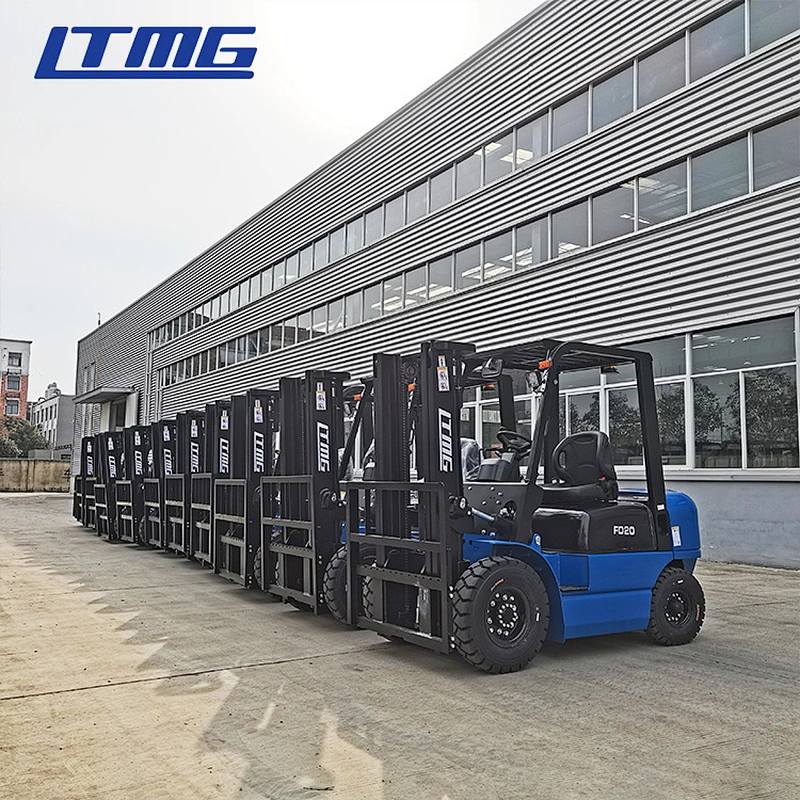

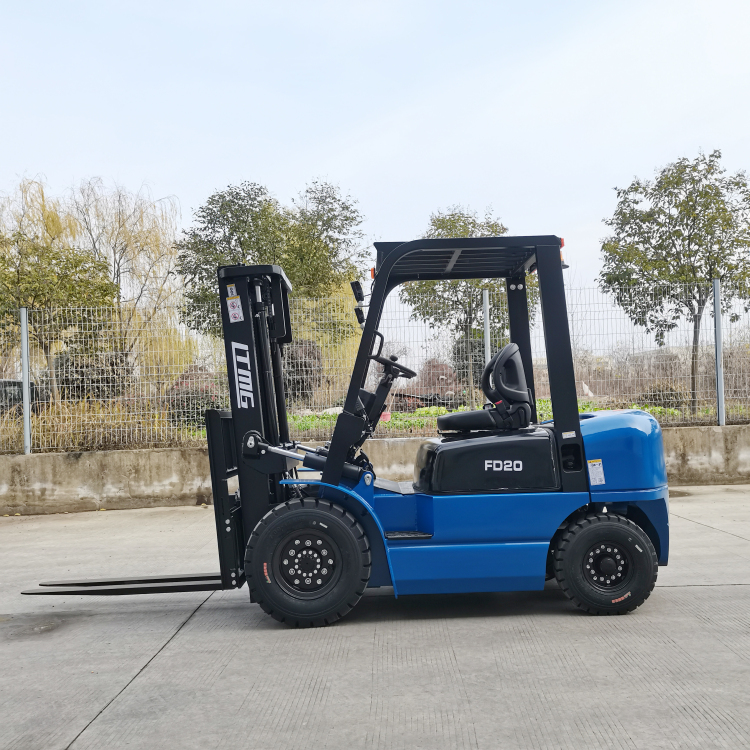

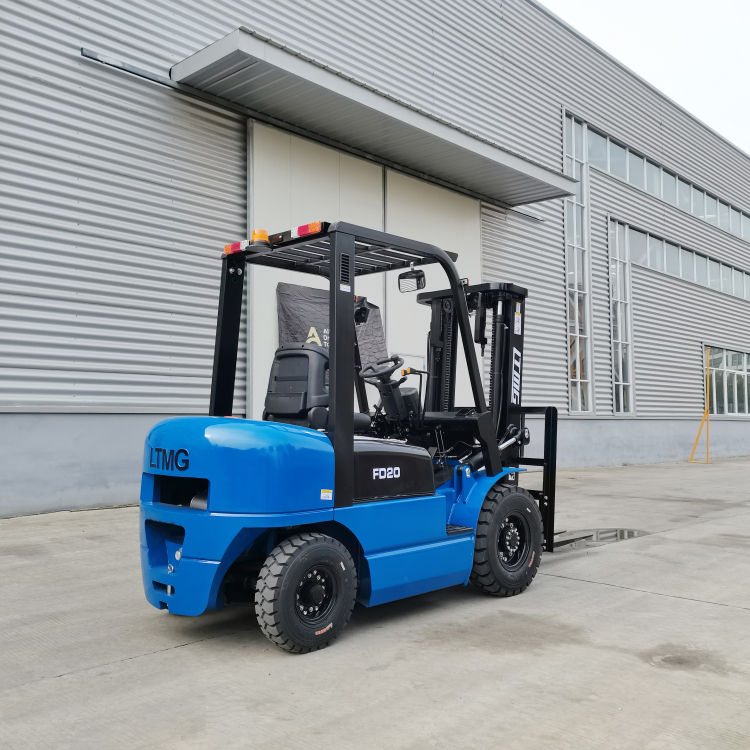

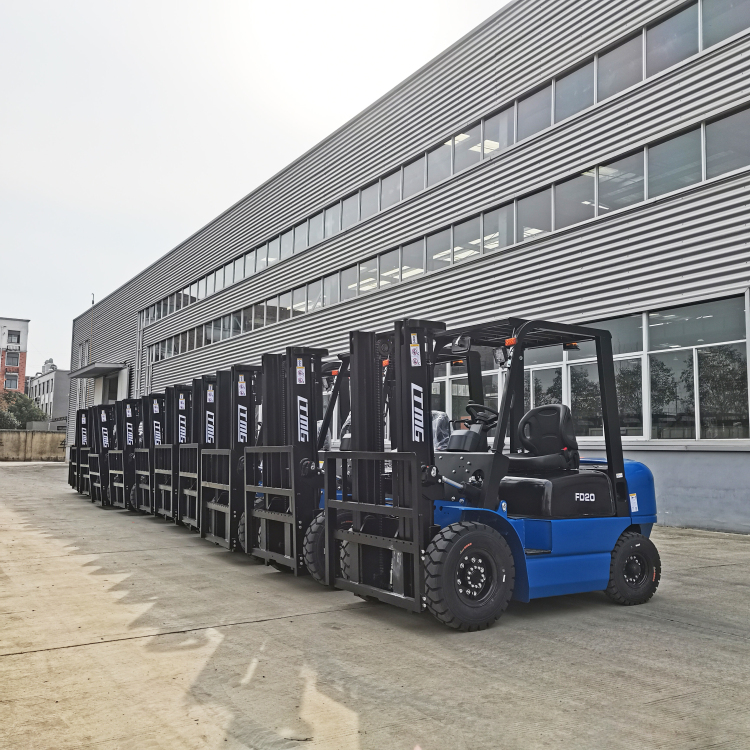

2 ton diesel forklift specifications
Model | FD20 | |||||
Power Type | Diesel | |||||
Rated Capacity | kg | 2000 | ||||
Load Centre | mm | 500 | ||||
Lift Height | mm | 3000 | ||||
Fork Size | L×W×T | mm | 1070×120×40 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 465 | ||||
Ground Clearance（Bottom of mast） | mm | 110 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | |||
Overall Width | mm | 1150 | ||||
Mast Lowered Height | mm | 2070 | ||||
Mast Extended Height(With backrest) | mm | 4070 | ||||
Overhead Guard Height | mm | 2070 | ||||
Turning Radius (outside) | mm | 2310 | ||||
Speed | Travel (Full load) | km/h | 19 | |||
Lifting (Full load) | mm/s | 530 | ||||
Max.Gradeability (No load/Full load) | % | 20 | ||||
Tire | Front | mm | 7.00-12-12PR | |||
Rear | mm | 6.00-9-10PR | ||||
Wheelbase | mm | 1600 | ||||
Service weight | kg | 3590 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||
Engine | Model | C240 | ||||
Manufacture | ISUZU | |||||
Rated output/r.p.m. | kw | 35.4/2500 | ||||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||||
No.of Cylinder | 4 | |||||
Bore×Stroke | mm | 86×102 | ||||
Displacement | cc | 2369 | ||||
Fuel Tank Capacity | L | 60 | ||||
Transmission | Type | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | ||||
LTMG always treat after-sale servive as important as sale.All the product of LTMG supplied with one year or 2000 working hours(which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
