- Type:Powered Pallet Truck
- Engine:Isuzu / mitsubishi/ Chinese engine
- Load capacity:3500kg
- Free lift:1070x125x50mm
- Fork size:Optional
- Item:3 ton diesel forklift truck price
- Load Center:500mm
- Tire:Pneumatic ( solid is optional)
- Transmission type:Automatic Tranmission

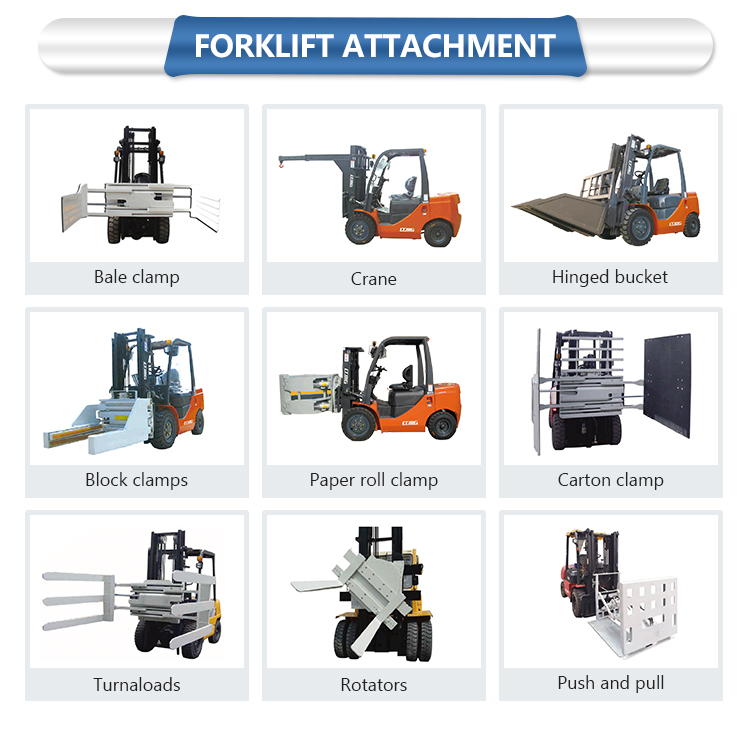

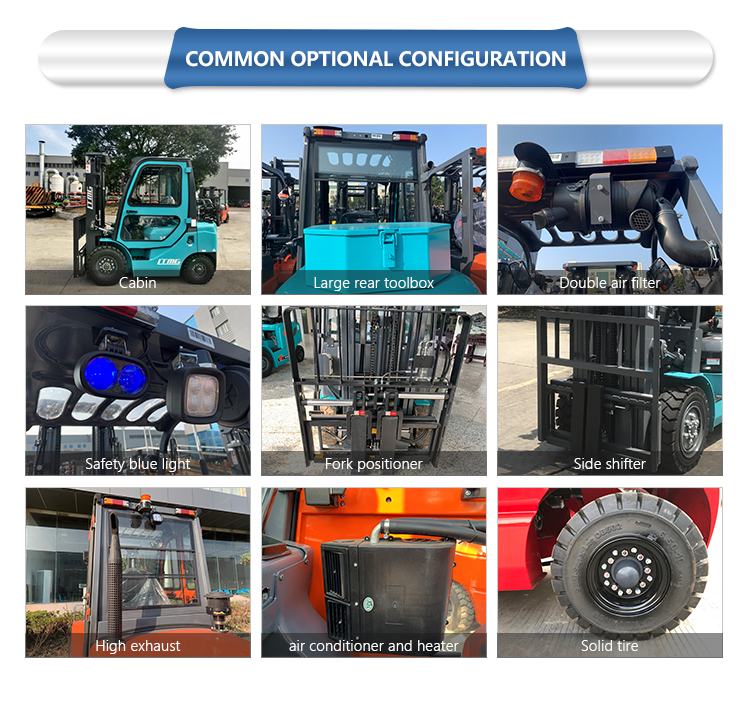

- Optional attachment:Side shifter,Fork extension,paper roller clamp,et
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Egypt
- Local Service Location:Saudi Arabia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Japan
- Local Service Location:Malaysia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:South Korea
- Local Service Location:Colombia
- Local Service Location:Bangladesh
- Local Service Location:South Africa
- Showroom Location:Viet Nam
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Algeria
- Showroom Location:Sri Lanka
- Showroom Location:Bangladesh
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:125
- Overall Dimensions:2760*1285*2075
- Certification:CE/ISO9001
- Marketing Type:New Product 2021
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents and 21 after sales center around the world can supply LTMG professional after-sale service.All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Standard Configuration
》Hydraulic AutomaticTransmission.
》Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》TheCasting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》AdoptPriority Steering System, which improve the work efficiency.
》OriginalToyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.

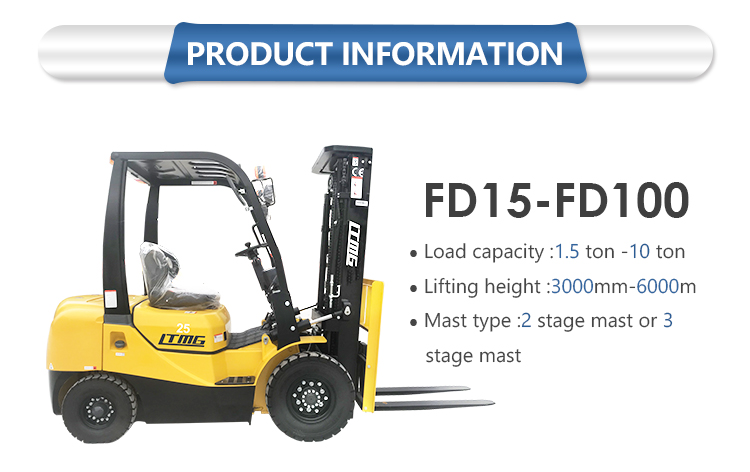

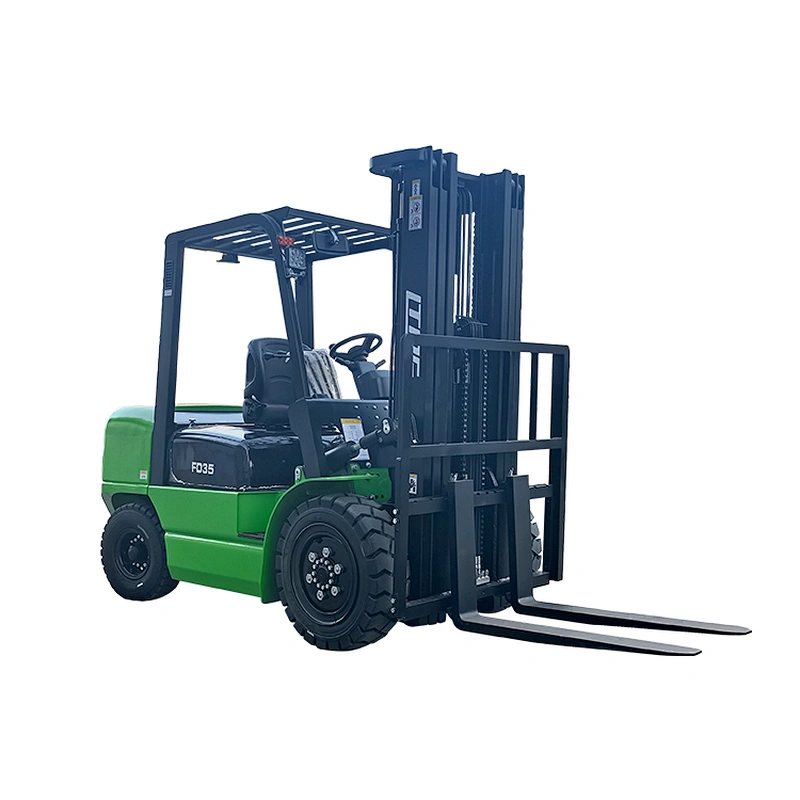

Model | UNIT | FD35T | |||
Performance | Power Unit | Diesel | |||
Operator Type | Driver/seat | ||||
Rated Capacity | kg | 3500 | |||
Load Center | mm | 500 | |||
Max. Lifting Height | mm | 3000 | |||
Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | |||
Free Lift Height | mm | 150 | |||
Turning Radius | mm | 2415 | |||
Lifting Speed (Loaded/Unloaded) | mm/s | 400/450 | |||
Lowering Speed (Loaded/Unloaded) | mm/s | 400/370 | |||
Travelling Speed (Loaded/Unloaded) | km/h | 20/21 | |||
Max. Gradeability (Loaded) | % | 21 | |||
Max. Drawbar Pull (Loaded) | n | 17 | |||
Dimensions | Overall length (without fork) | mm | 2770 | ||
Overall Width | mm | 1220 | |||
Overhead Guard Height | mm | 2145 | |||
Fork Size (LxWxT) | mm | 1220×125×50 | |||
Mast Height (Fork lowered) | mm | 2175 | |||
Truck Weight | kg | 4500 | |||
Tyre Size (Front/Rear) | 28×9-15-14PR/6.5-10-10PR | ||||
Engine | Brand | ISUZU | XINCHAI | ||
Model | 4JG2 | C495 | |||
Rated Power | kw/rpm | 44.8/2450 | 42/2650 | ||
Rated torque | n-m/rpm | 186/1800 | 174/1600 | ||
Number of cylinder | 4 | 4 | |||
Displacement | 3.06 | 2.8 | |||

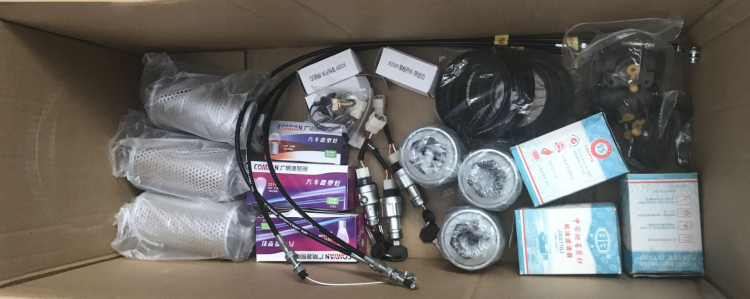

A set of spare parts ship with the forklift as our gift
