- Condition:New
- Place of Origin:CN;FUJ
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Field maintenance and repair service
- Brand Name:LTMG
- Max. Lifting Height:3m~6m
- Min. Lifting Height:0m
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2705*1225*2075mm
- Certification:CE/ISO9001

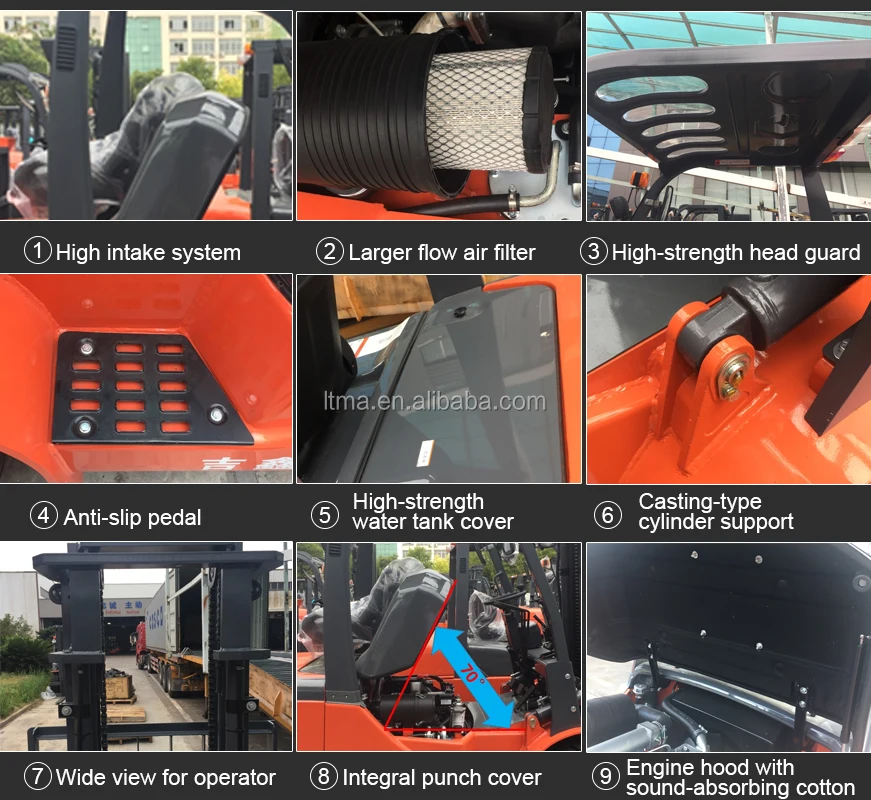

What are the features of our products?

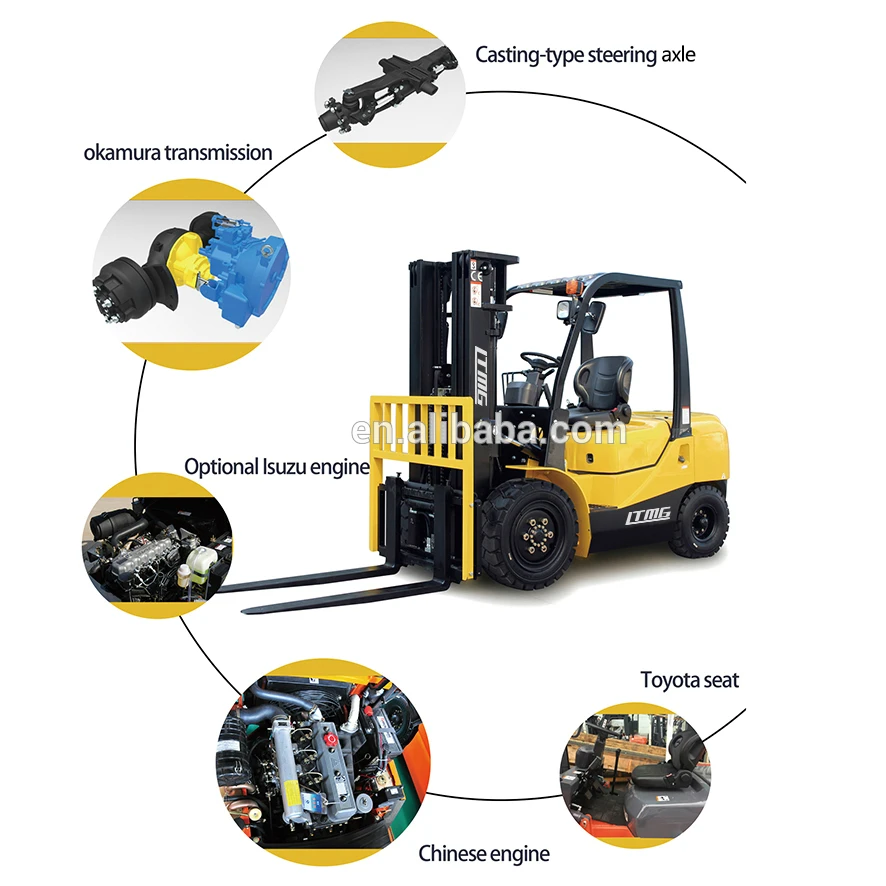

1.Original Isuzu or Mitsubishi engines,high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.
2.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
3.Thicker reinforcing plate ensures the safety and efficiency.
4.New designed overhead guard protective device prevent the sudden accidents.
5.Bigger and non-slip step make the operating convenient and safe.

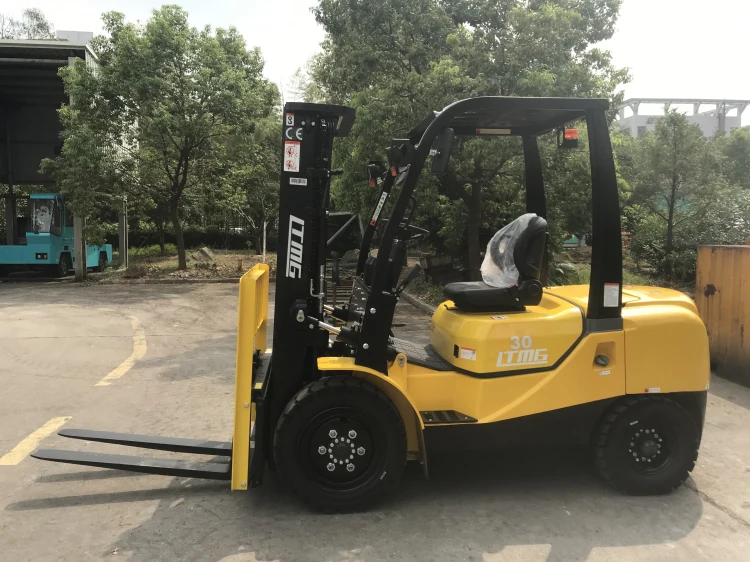

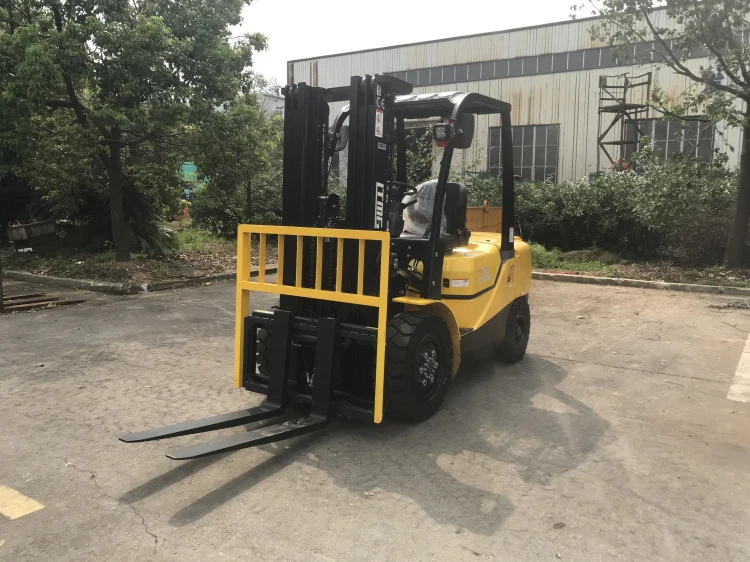

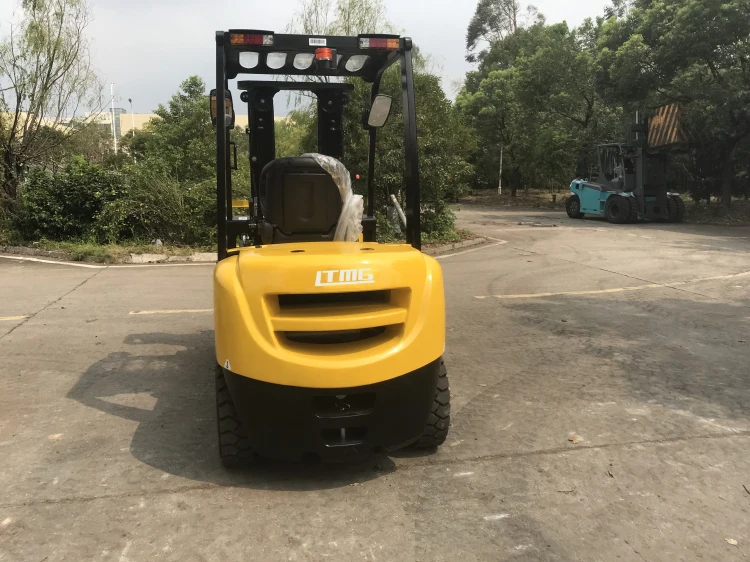

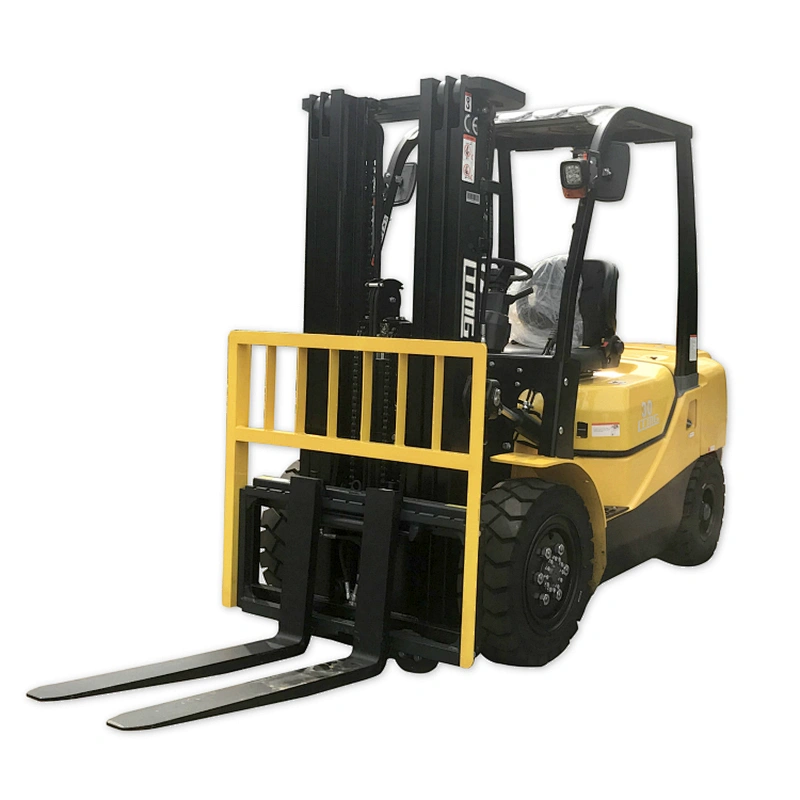

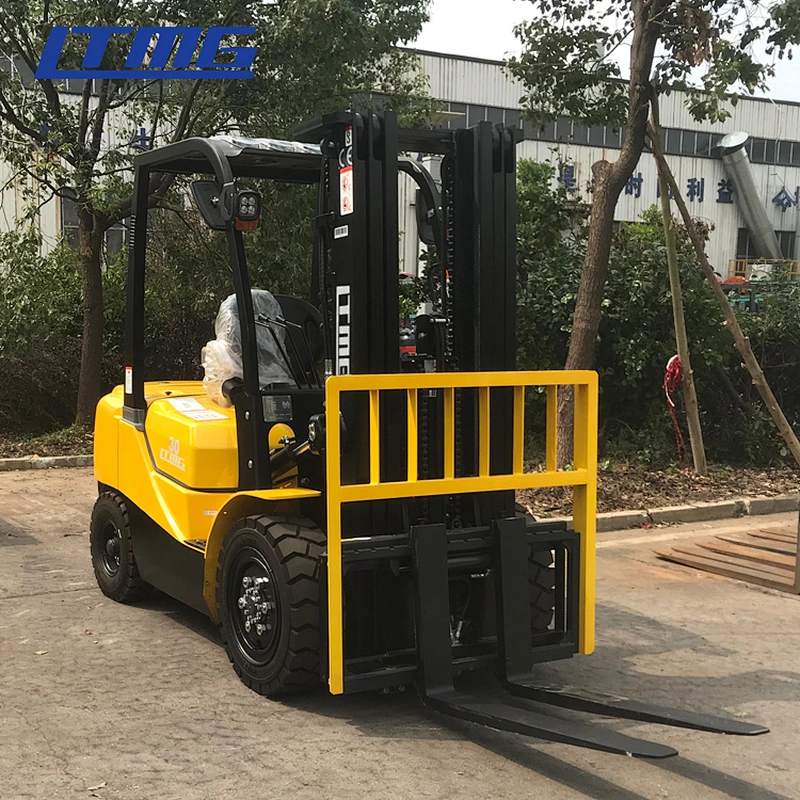

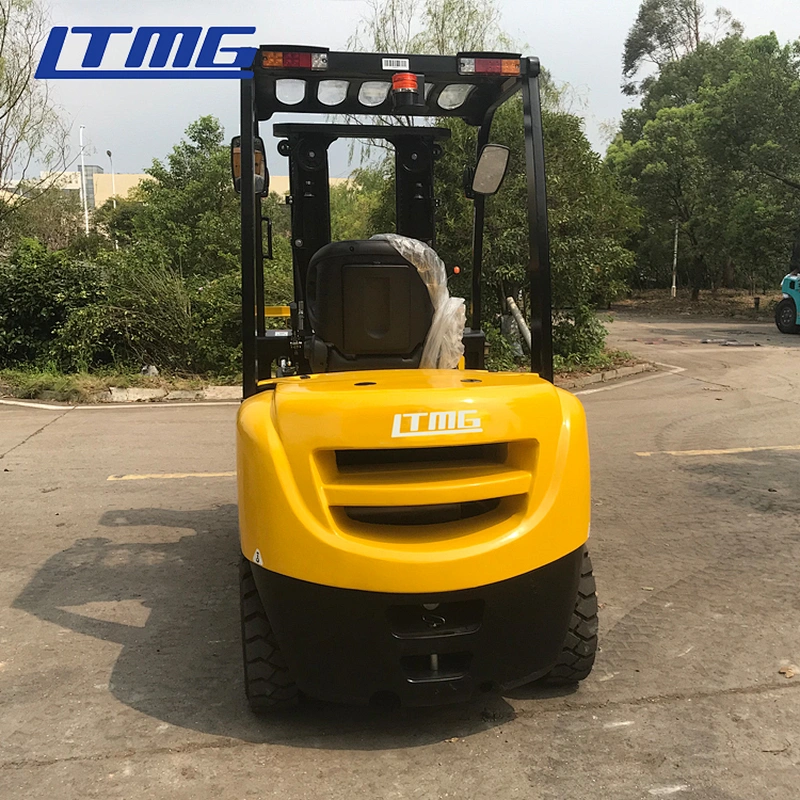

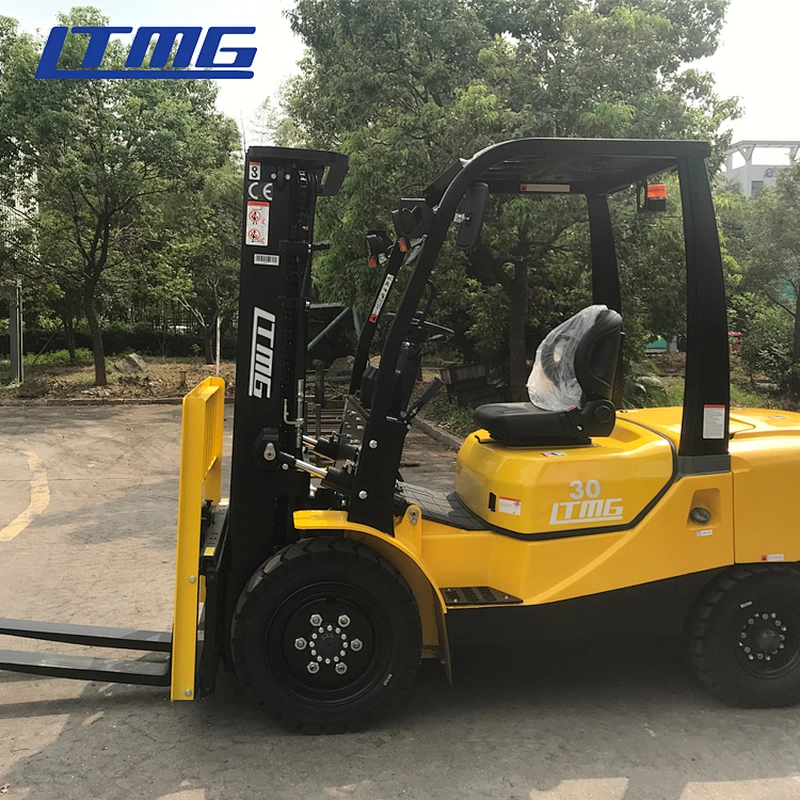

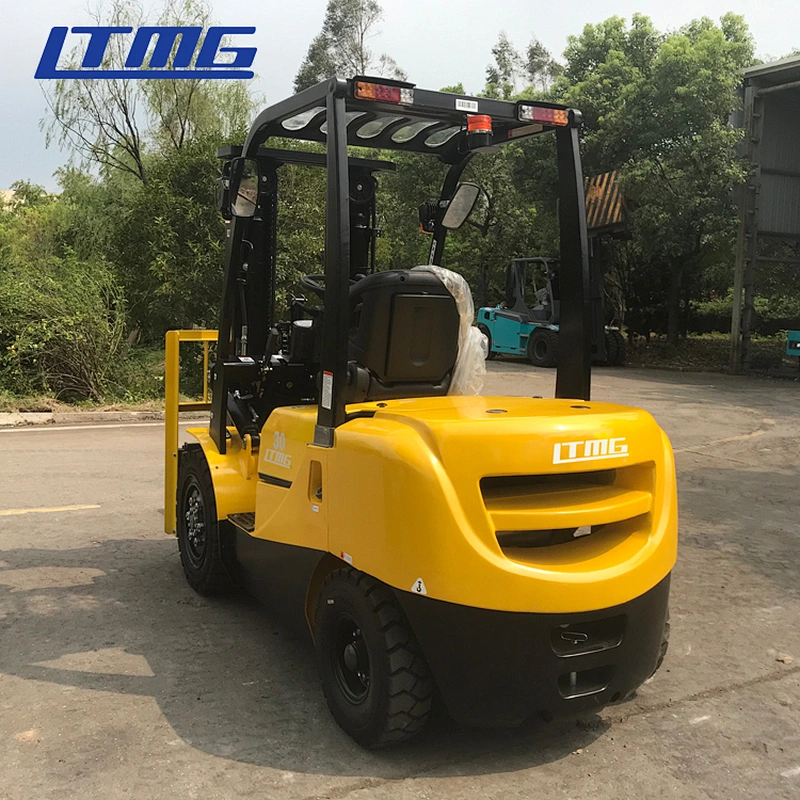

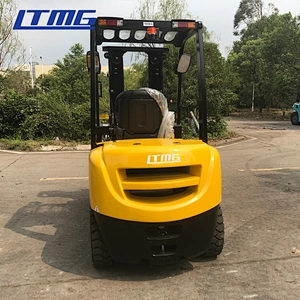

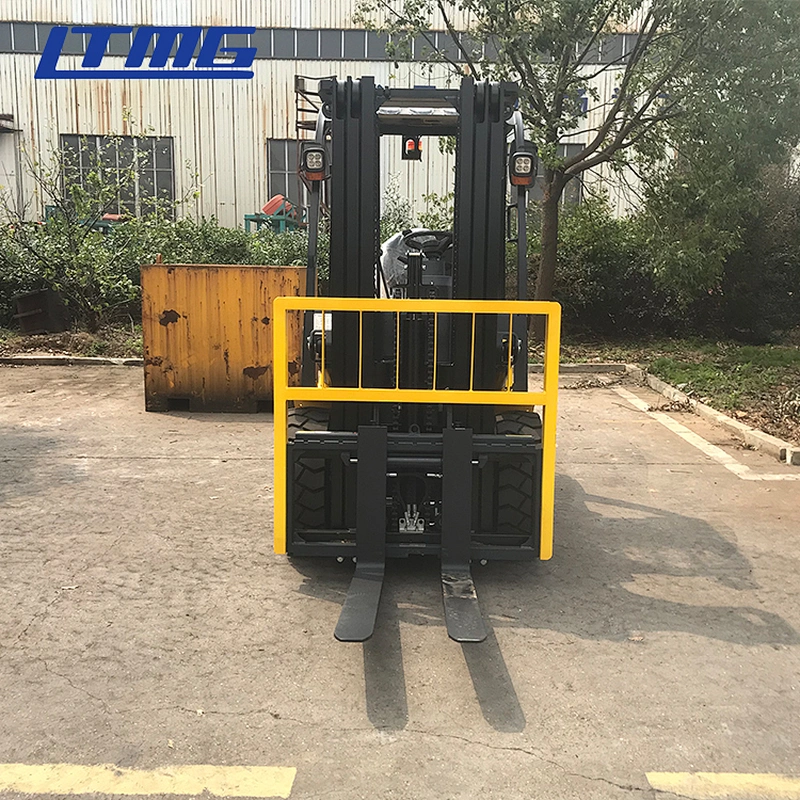

Specifications for hydraulic transmission 3 ton diesel forklift | ||||||
Manufacturer | LTMG | |||||
Model | Power shift T/M | FD30 | ||||
Manual shift T/M | FD30 | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2705 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised(with backrest) | mm | 4250 | ||||
Height to head guard | mm | 2140 | ||||
Turning raduis(outside) | mm | 2445 | ||||
Front face of fork to front axle | mm | 480 | ||||
Min. right angle stacking aisle | without load length&clearence | mm | 2925 | |||
Speed | Max Travelling full/no load | km/h | 18/19.5 | |||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/450 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 | |||
Manual shift T/M full/no load | kg | 1550/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |||
Manual shift T/M full/no load | % | 18/20 | ||||
Truck weight | kg | 4380 | ||||
Weight distribution | Full load front/rear | kg | 6490/890 | |||
No load front/rear | kg | 1670/2700 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1000/970 | |||
Ground clearence | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/80 | |||
Engine | Model | ISUZU C240 | ||||
Rated power | kw/rpm | 34.3/2500 | ||||
Rated torque | N.m/rpm | 138/1800 | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.369 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |||
The quality of our LTMG forklift has been recognized by our customers.
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://www.xlteng.com/ (Group)
http://www.ltma-forklift.com/ (Forklift)
http://www.ltma-loader.com/ (Loader)
http://www.airport-gse.com/ (Airport GSE)
After-sale Service

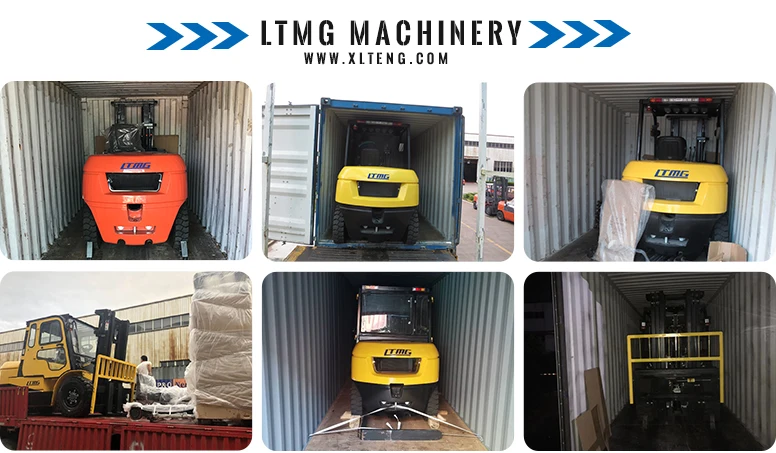

Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
