- Product type:Heavy Duty Forklift

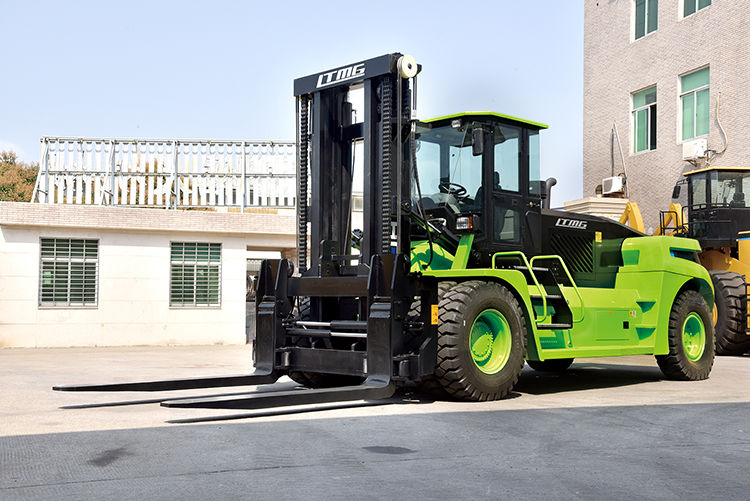

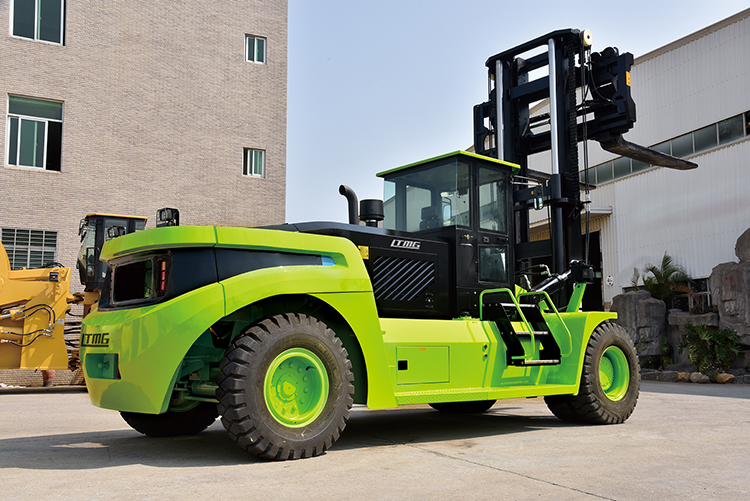

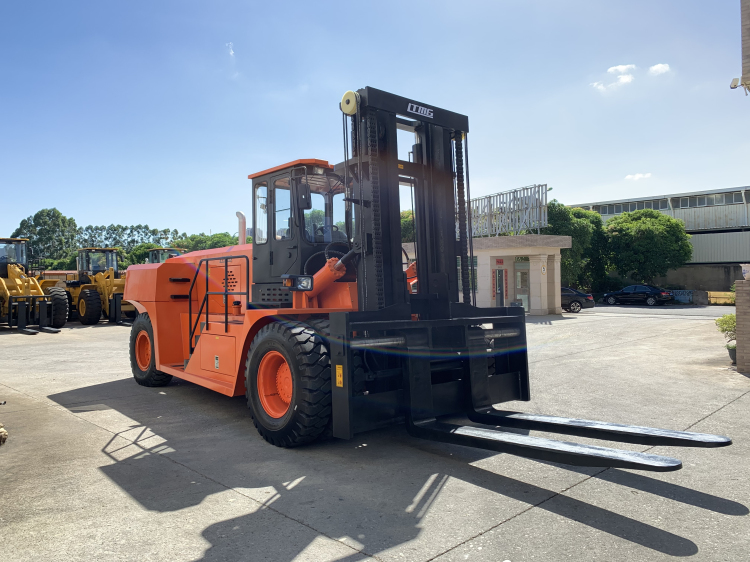

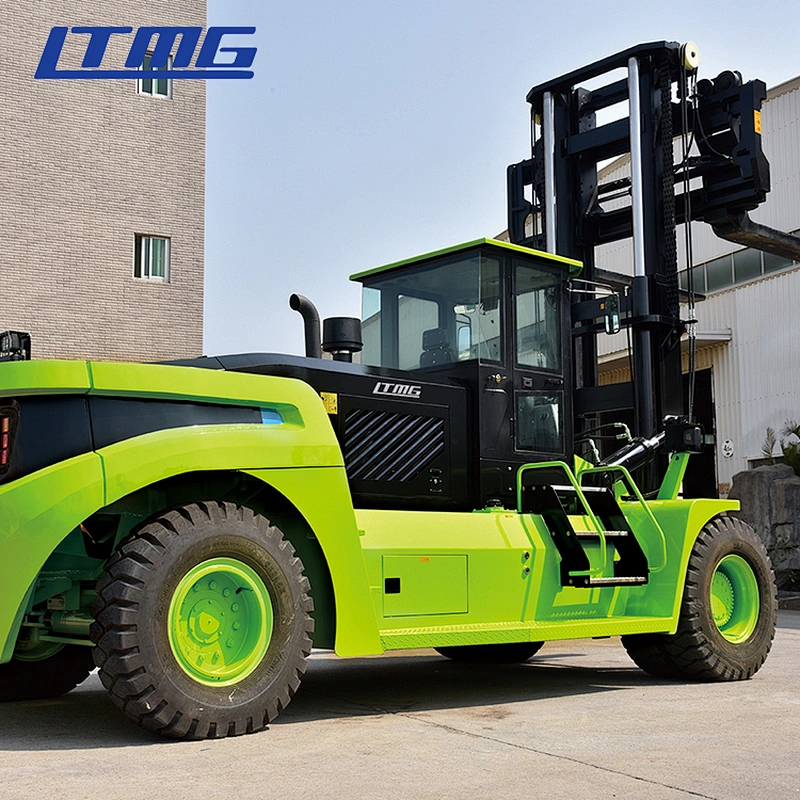

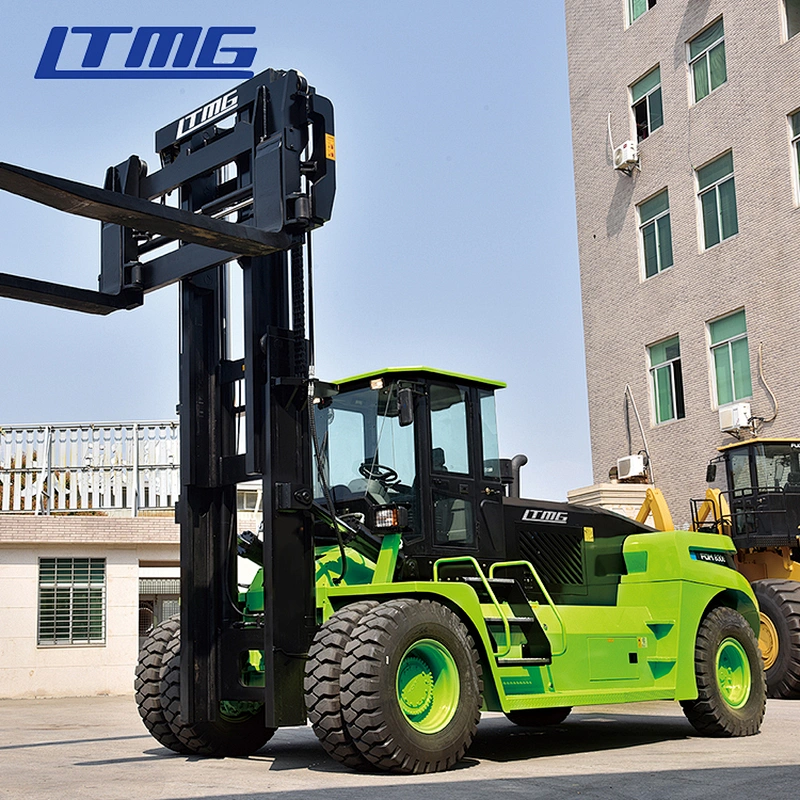

- Item:30 ton diesel forklift
- Mast:2 Stage/3 Stage
- Load Center:1220mm
- Weight:38000kg
- Engine:Weichai engine/Cumins engine
- Rated power:178KW
- Transmission:Hanchi Transmission
- Min. turning radius:6160mm
- Hydraulic system:Paker
- Applicable Industries:Construction works
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Japan
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Kenya
- Local Service Location:Argentina
- Local Service Location:South Korea
- Local Service Location:Chile
- Local Service Location:UAE
- Local Service Location:Colombia
- Local Service Location:Algeria
- Local Service Location:Sri Lanka
- Local Service Location:Romania
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Local Service Location:Kyrgyzstan
- Local Service Location:Nigeria
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Kenya
- Showroom Location:Argentina
- Showroom Location:South Korea
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Bangladesh
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Kyrgyzstan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Gear
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:2400mm
- Fork Width:320mm
- Overall Dimensions:8950*3060*3970mm
- Certification:CE/ISO9001

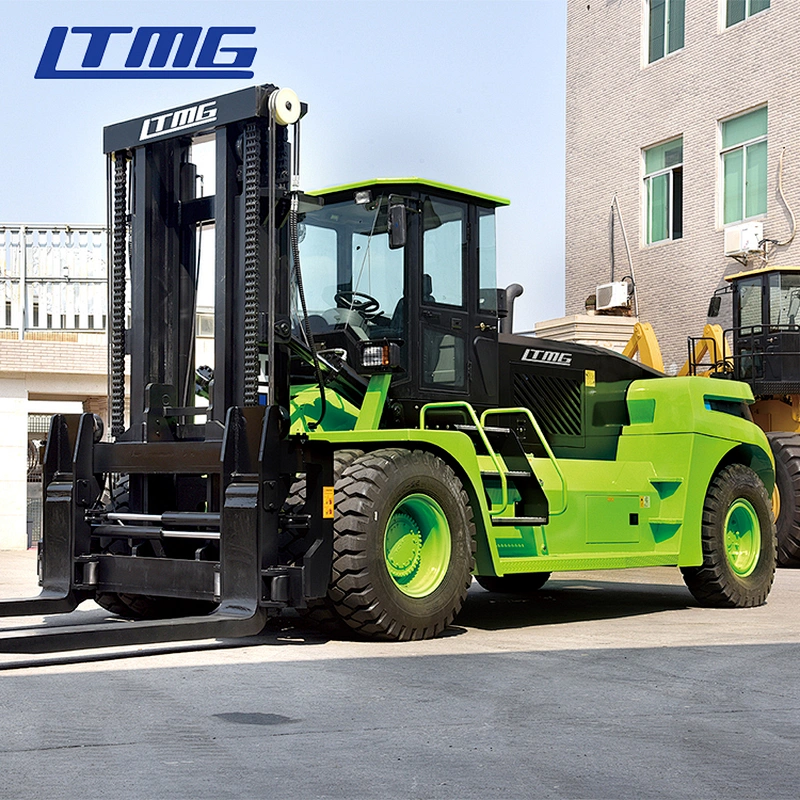

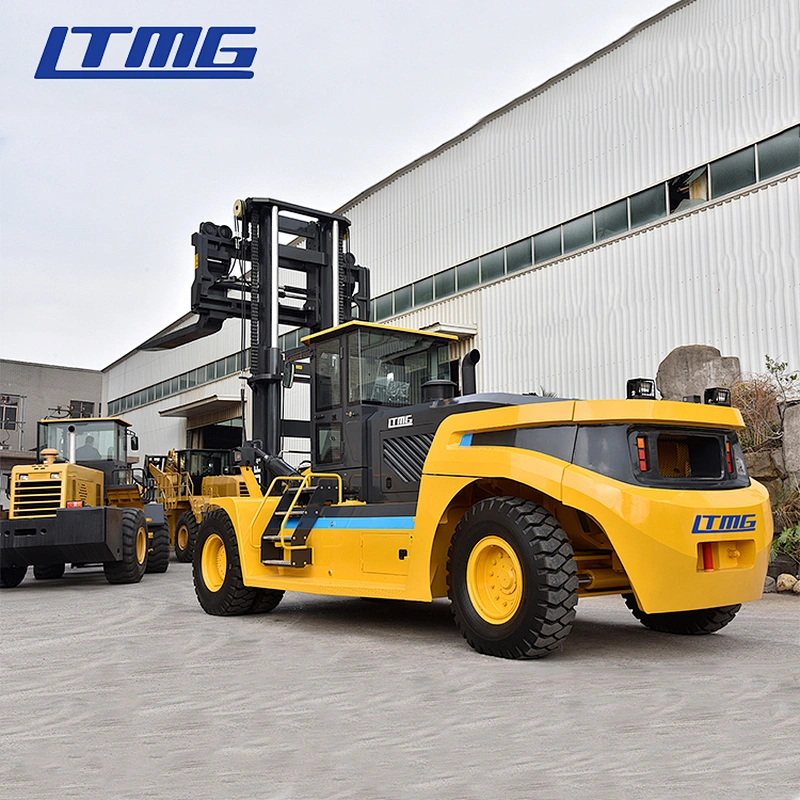

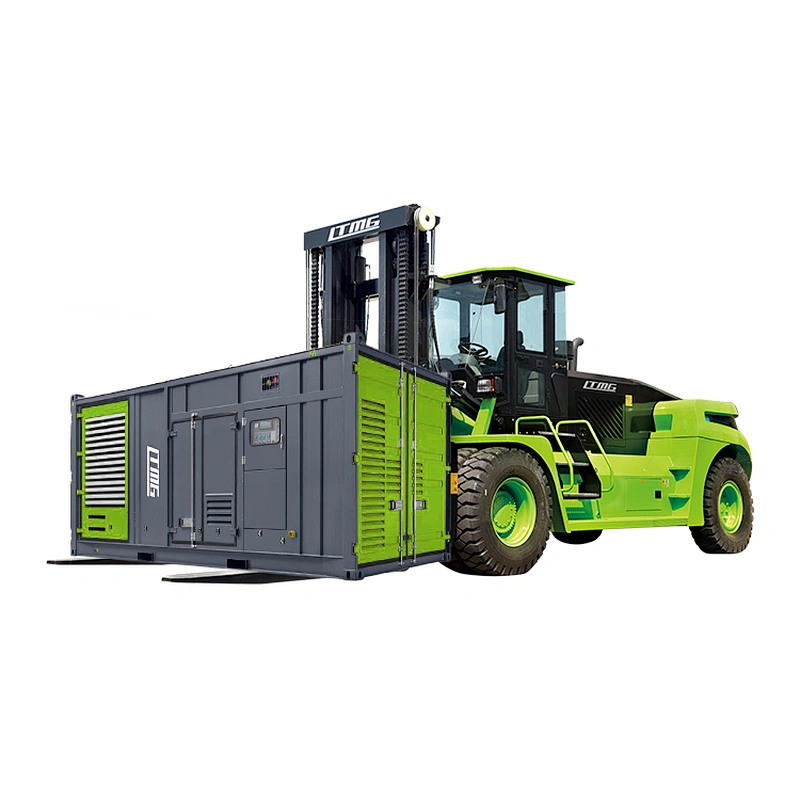

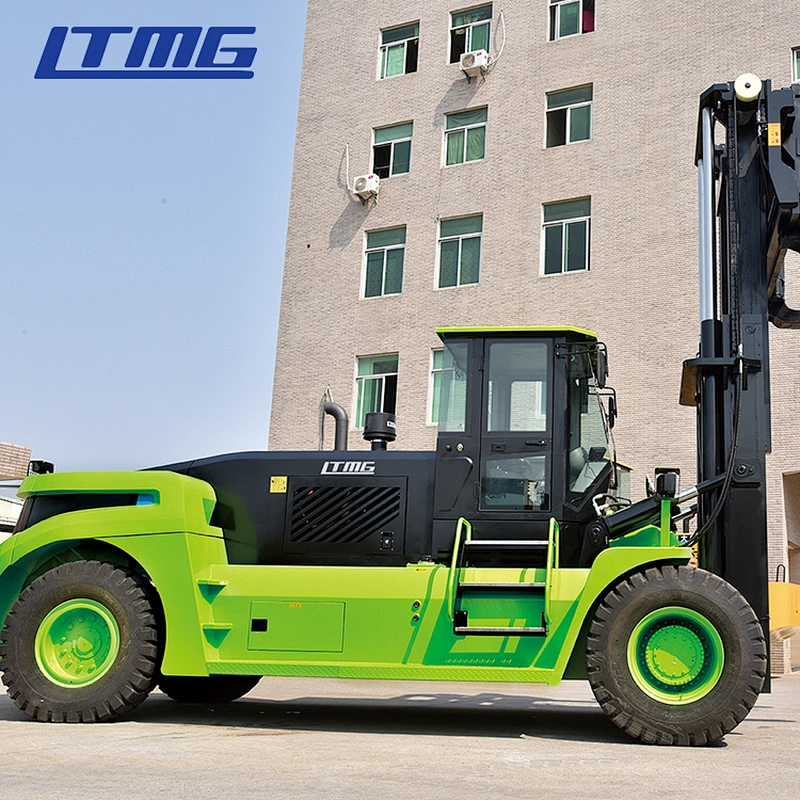

The specification of LTMG Heavy duty forklift 30 ton 32 ton diesel forklift | ||||||||
Model | FD300 | FD320 | ||||||
Features | Rated Load | Q(Kg) | 30000 | 32000 | ||||
Load Center | c(mm) | 1220 | 1220 | |||||
Wheelbase | y(mm) | 4400 | 4800 | |||||
Weight | Weight | kg | 38000 | 42000 | ||||
Chassis | Tire Specs:Front | 14.00-24 | 16.00-25 | |||||
Tire Specs:Rear | 14.00-24 | 16.00-25 | ||||||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | 4/2 | ||||||
Wheel tread:Front | b3(mm) | 2220 | 2430 | |||||
Wheel tread:Rear | b4(mm) | 2300 | 2230 | |||||
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | 6/12 | ||||
Mast height(fork lowering) | h1(mm) | 3970 | 4150 | |||||
Mast lifting height | h2(mm) | 4000 | 4000 | |||||
Max.height | h3(mm) | 5940 | 6120 | |||||
height to head guard(height to cab) | h4(mm) | 3440 | 3460 | |||||
Overall height(with forks) | L3(mm) | 8950 | 9460 | |||||
Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 6550 | 7060 | |||||
Overall width | b1(mm) | 3060 | 3360 | |||||
Fork dimension | (mm) | 2400*320*110 | 2400*320*120 | |||||
Fork carriage width | b2(mm) | 3000 | 3000 | |||||
Mast min ground(with load) | m1(mm) | 350 | 400 | |||||
Wheelbase center min ground(with load) | m2(mm) | 420 | 460 | |||||
Min.turning Radius | Wa(mm) | 6160 | 6600 | |||||
Travel speed(with load/without load) | km/h | 24/28 | 25/28 | |||||
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 | 260/280 | ||||
tractionn | KN | 180 | 200 | |||||
gradeability(with load/without load) | % | 20/22 | 20/20 | |||||
Driving brake | Hydraulic clamp disvc | Hydraulic clamp disvc | ||||||
Engine | Engine brand/model | Optional one | WeiChai Engine | WeiChai Engine | ||||
WD10G240E | WD10G240E | |||||||
Optional two | Cumins | Cumins | ||||||
Rated Output | 178(Kw) | 178(Kw) | ||||||
Cylinder No | 6 | 6 | ||||||
Others | Transmission gears(Front/rear) | 2/1 | 2/1 | |||||

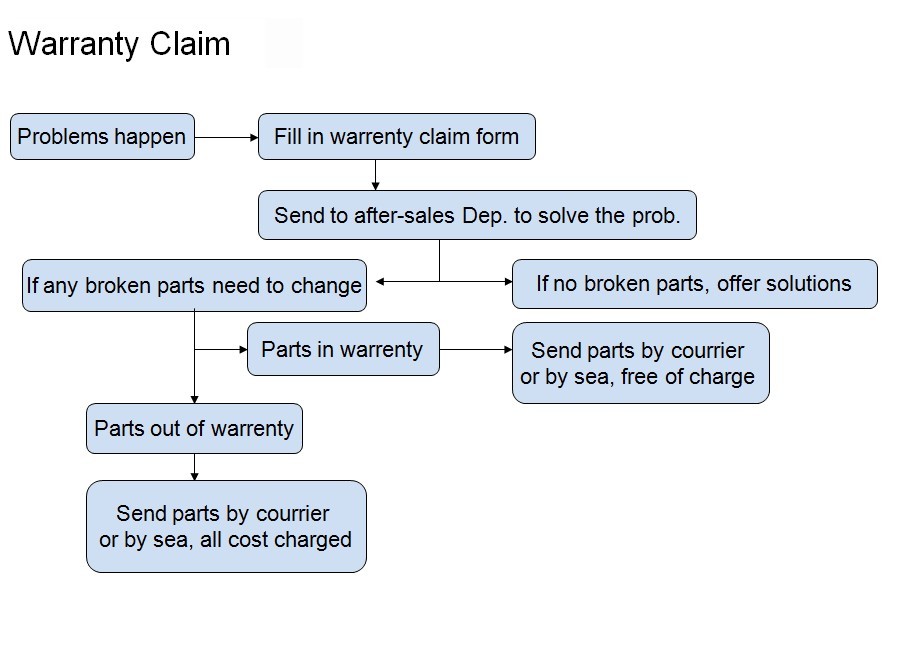

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
