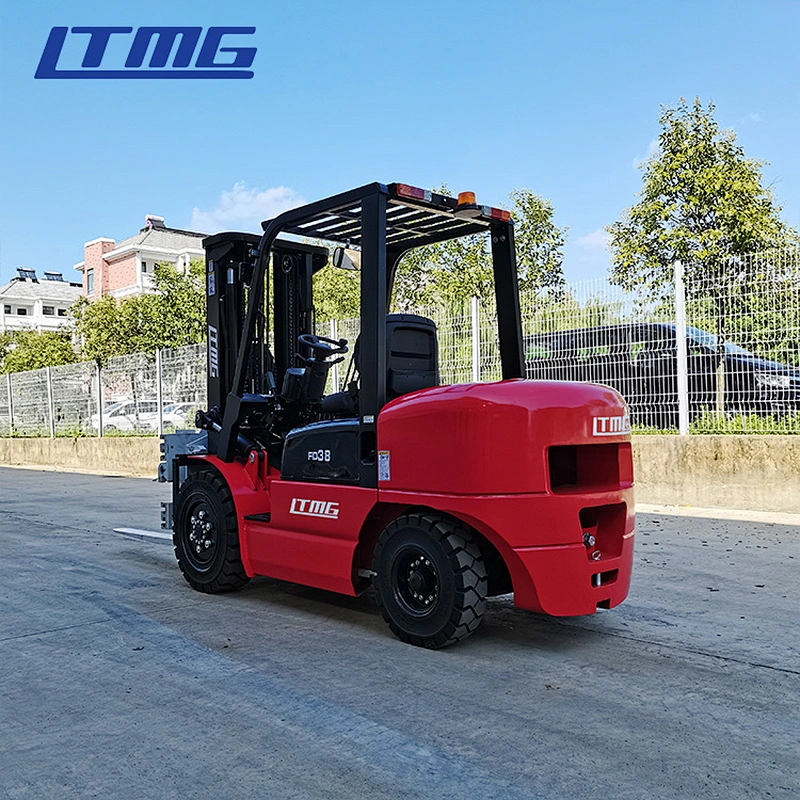

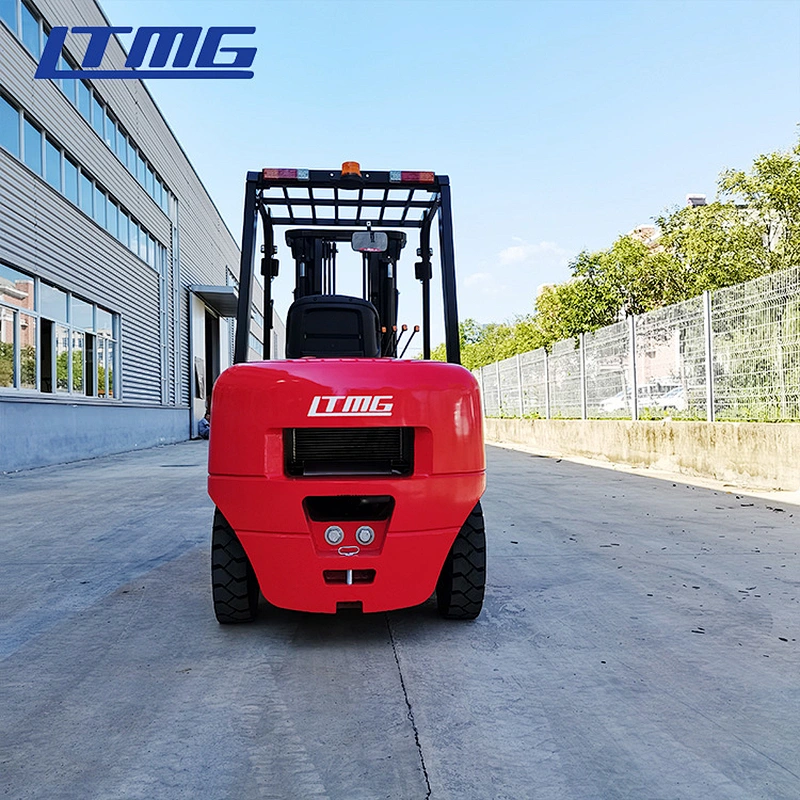

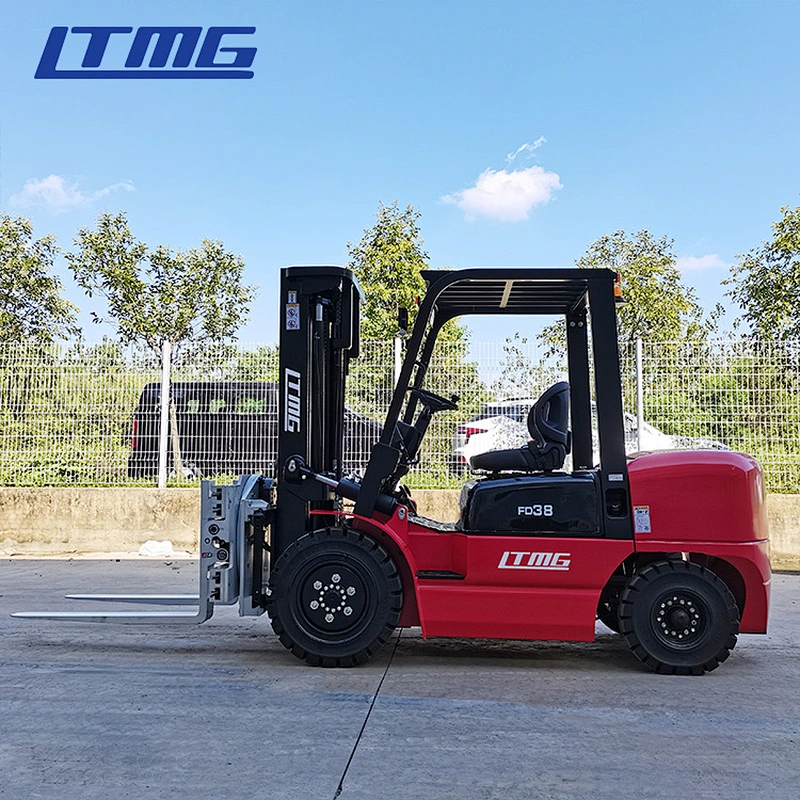

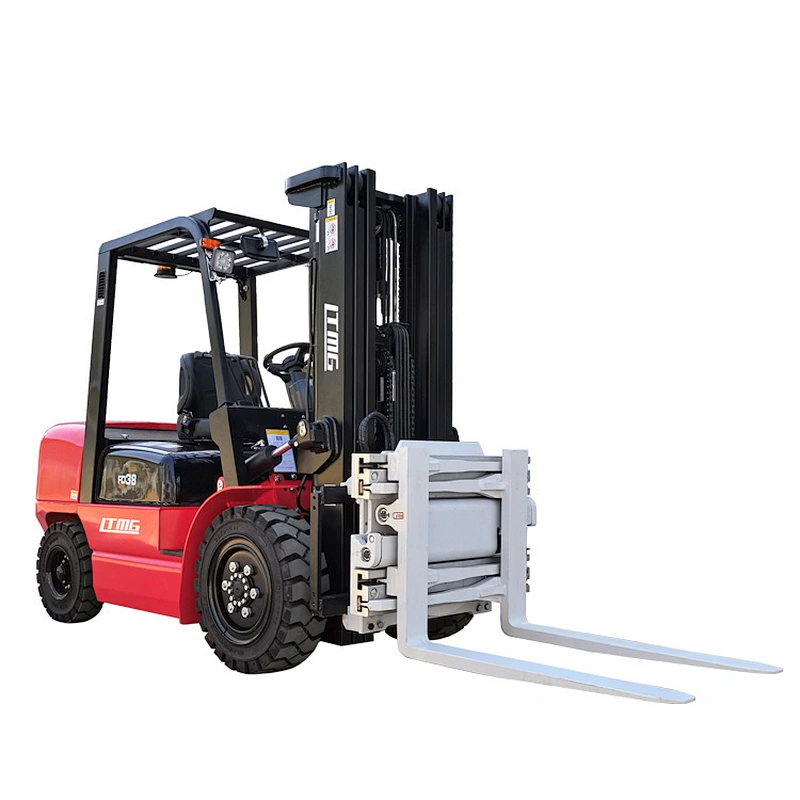

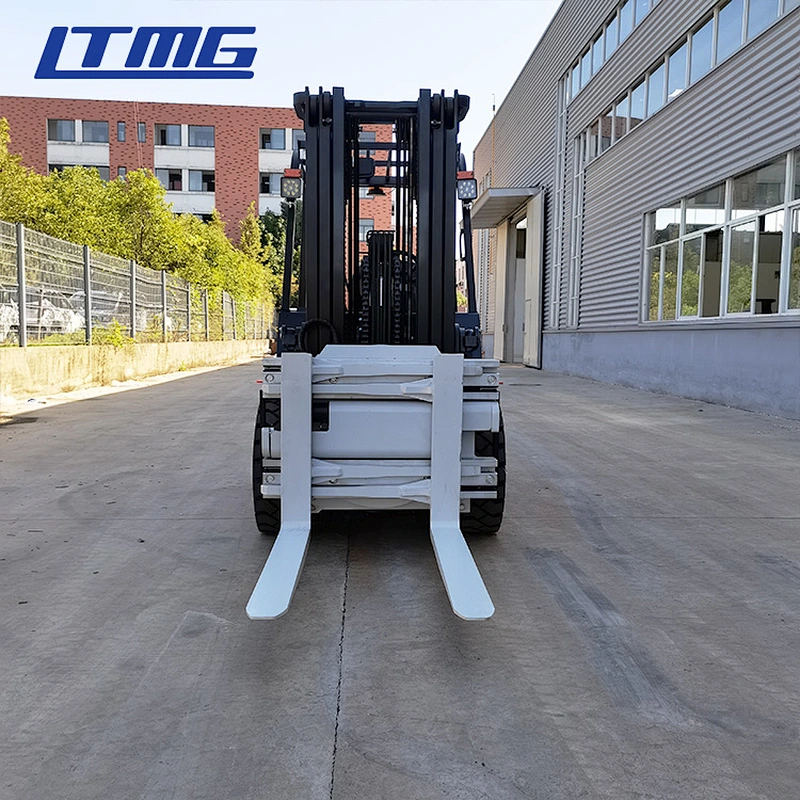

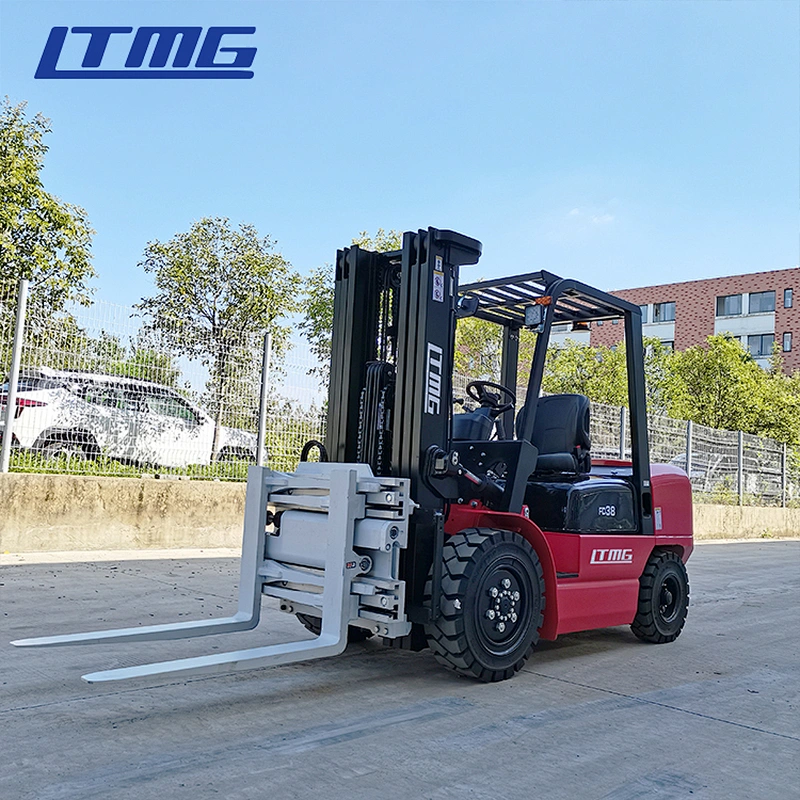

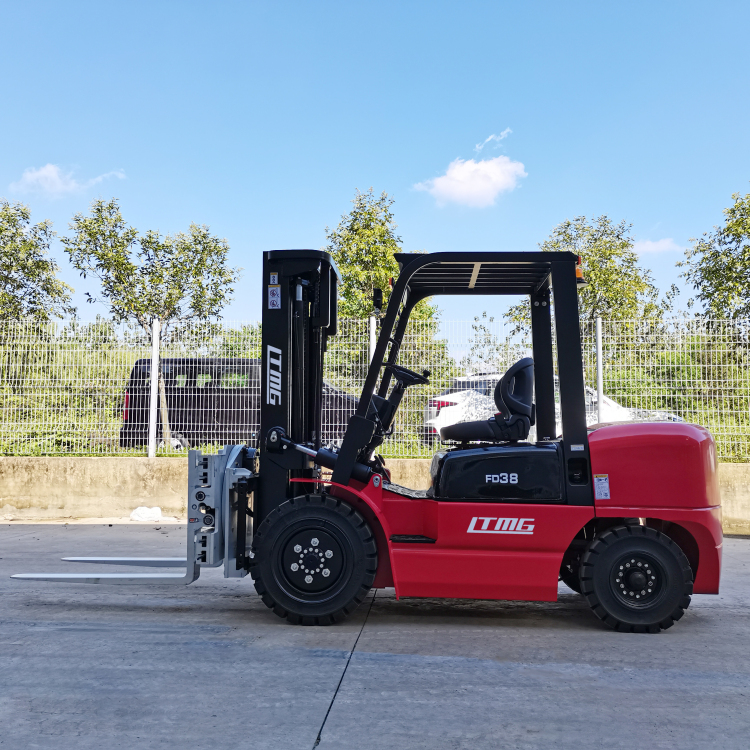

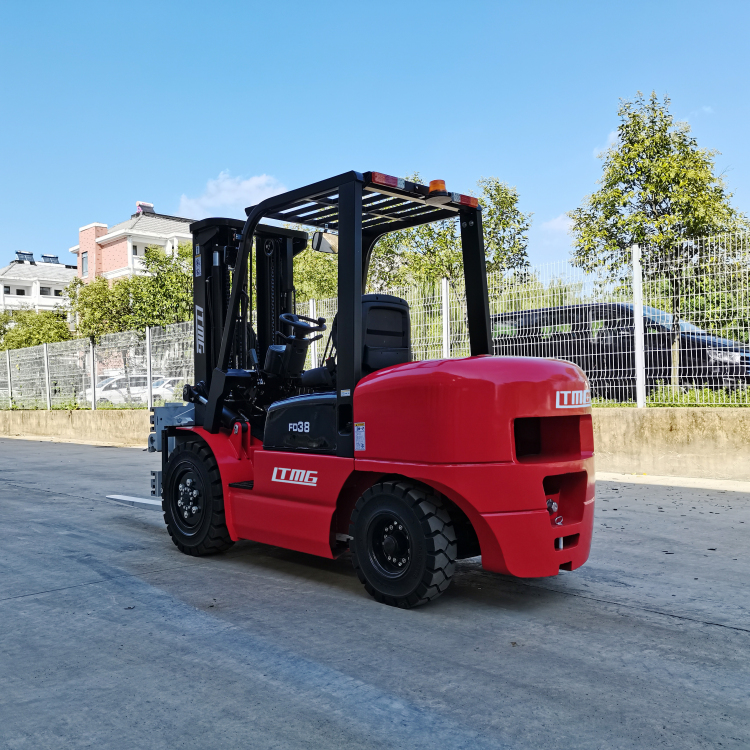

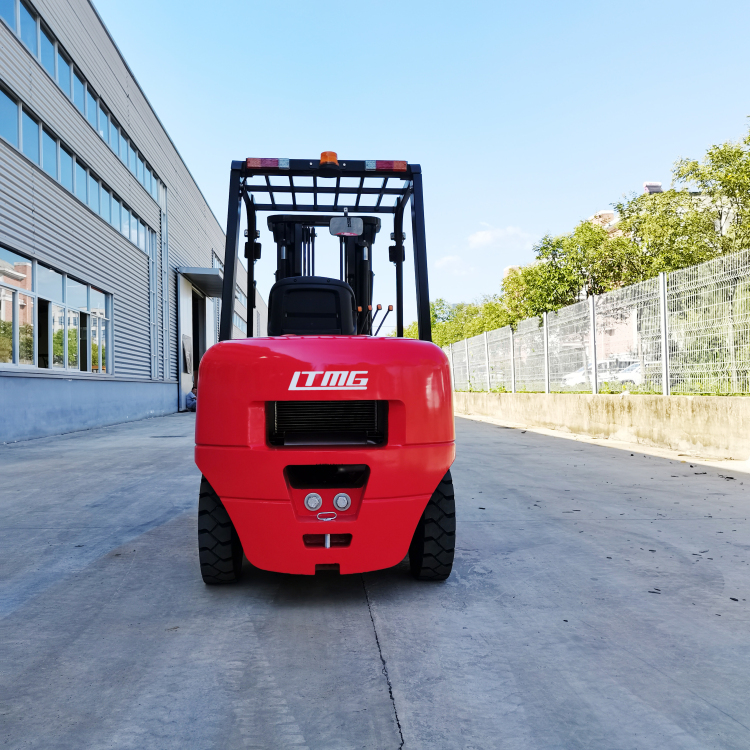

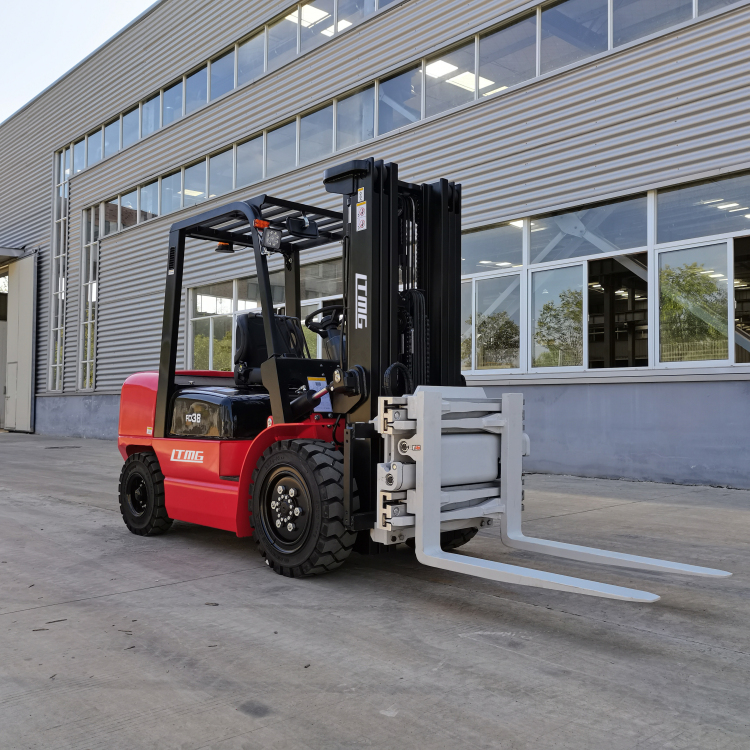

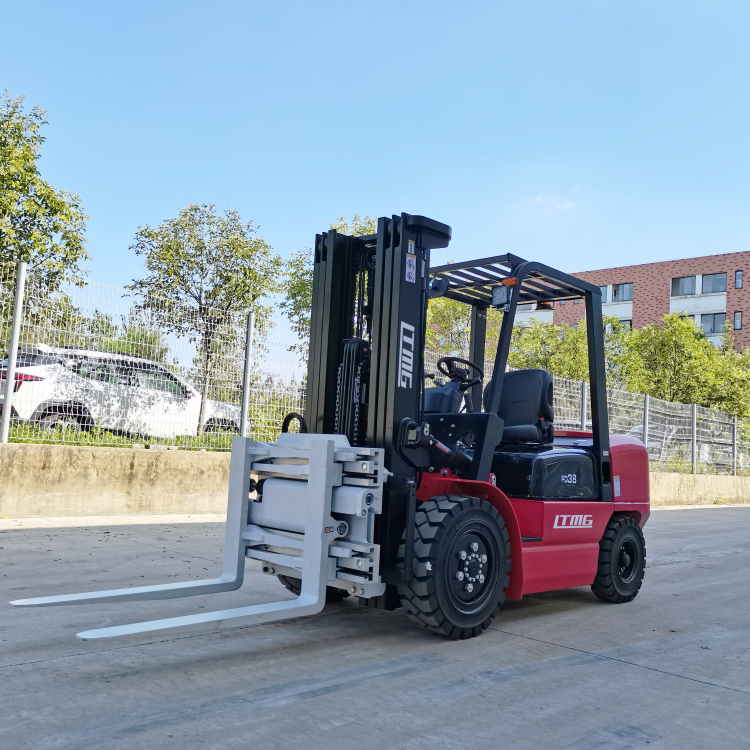

- Product Name:LTMG forklift attachment 4 ton forklift price with rotator forks clamp
- Load Center:500mm
- Lifting Height:3000mm - 6000mm
- Mast:2 stage mast or 3 stage mast
- Engine:Chinese Xinchai / Japanese Isuzu or mitsubishi
- Tyre:Pneumatc tyre or Solid tyre
- Transmission type:Automatic Tranmission
- Color:Customer Demanded
- Ground clearance:140mm
- Max. Gradeability:20
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Local Service Location:Tajikistan
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Chile
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Material Handling Equipment
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:2890*1410*2195 mm
- Certification:CE/ISO9001
The specification of 4 ton forklift | ||||||||||
General | Model | FD40 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 4000 | ||||||||
Load Centre | mm | 500 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1070×125×50 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 495 | ||||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2890 | |||||||
Overall Width | mm | 1410 | ||||||||
Mast Lowered Height | mm | 2195 | ||||||||
Mast Extended Height(With backrest) | mm | 4180 | ||||||||
Overhead Guard Height | mm | 2120 | ||||||||
Turning Radius (outside) | mm | 2700 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 19 | ||||||
Lifting (Full load) | mm/s | 320 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 250-15-16PR | ||||||
Rear | mm | 6.50-10-10PR | ||||||||
Wheelbase | mm | 1900 | ||||||||
Service weight | kg | 5100 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||||
Engine | Model | 4TNE98 | ||||||||
Manufacture | YANMAR | |||||||||
Rated output/r.p.m. | kw | 43/2300 | ||||||||
Rated torque/r.p.m. | N·m | 177.6-196.3/1700 | ||||||||
No.of Cylinder | 4 | |||||||||
Bore×Stroke | mm | 98×110 | ||||||||
Displacement | cc | 3318 | ||||||||
Fuel Tank Capacity | L | 70 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 1/1 | ||||||||
1. 2-stage mast 6m lifting height
2. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
3. Dual front solid tires
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
