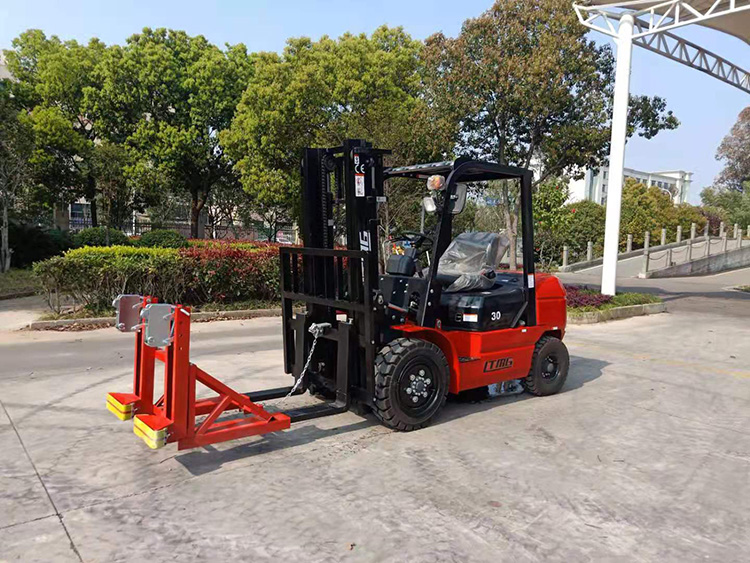

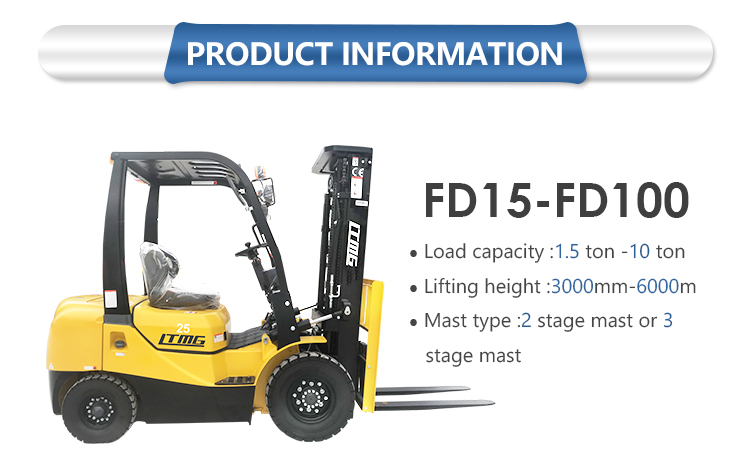

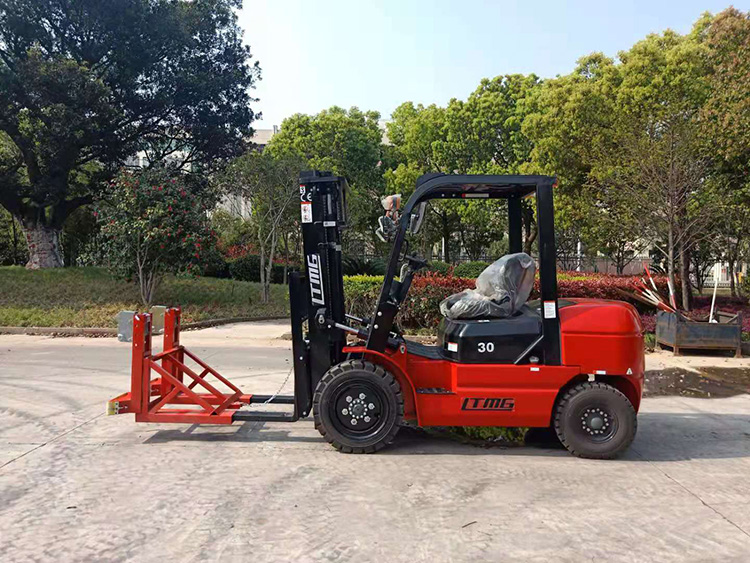

- Item:LTMG warehouse forklift 2ton mini diesel forklift for sale
- certification:CE & ISO
- Engine:Chinese engine
- Fork length:1070mm
- Truck weight:3330kg
- Wheel base:1600mm Forklift Truck
- Tire type:Pneumatic
- Warranty:1 year or 2000 working hours
- lifting height:3000mm
- website:www.xlteng.com
- After Warranty Service:Video technical support
- After Warranty Service:Online support

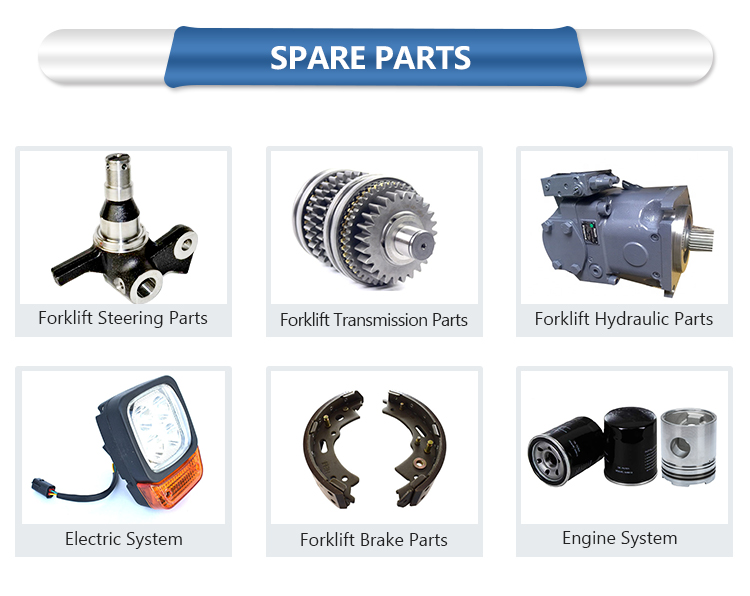

- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:United States
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;ZHE
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:warehouse logistics
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2460x1150x1995mm
- Certification:CE/ISO9001:2008
Standard Configuration
1.Hydraulic AutomaticTransmission.2.Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.3. Electric-hydraulic Directional Control Valve.4. TheCasting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.5. The Maintenance Free Radiators adopt Germany Technology.6. Adopt Priority Steering System, which improve the work efficiency.7. Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.8. Thicker reinforcing overhead guard protective device, ensure the safety.9. Middle muffler, more environmental.
Specifications of 3ton & 4ton mini forklift | ||||||||
Model | FD30 | FD40 | ||||||
Power Type | Diesel | Diesel | ||||||
Rated Capacity | kg | 3000 | 4000 | |||||
Load Centre | mm | 500 | 500 | |||||
Lift Height | mm | 3000 | 3000 | |||||
Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | ||||
Front Overhang (Wheel center to fork face) | mm | 480 | 495 | |||||
Ground Clearance（Bottom of mast） | mm | 140 | 140 | |||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2780 | 2890 | ||||
Overall Width | mm | 1230 | 1410 | |||||
Mast Lowered Height | mm | 2115 | 2195 | |||||
Mast Extended Height(With backrest) | mm | 4175 | 4180 | |||||
Overhead Guard Height | mm | 2110 | 2120 | |||||
Turning Radius (outside) | mm | 2520 | 2700 | |||||
Speed | Travel (Empty load) | km/h | 20 | 19 | ||||
Lifting (Full load) | mm/s | 510 | 320 | |||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | |||||
Tire | Front | mm | 28×9-15-12PR | 250-15-16PR | ||||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | |||||
Wheelbase | mm | 1800 | 1900 | |||||
Service weight | kg | 4250 | 5100 | |||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | ||||
Engine | Model | C240 | 4TNE98 | |||||
Manufacture | ISUZU | YANMAR | ||||||
Rated output/r.p.m. | kw | 35.4/2500 | 43/2300 | |||||
Rated torque/r.p.m. | N·m | 137.7/1800 | 177.6-196.3/1700 | |||||
No.of Cylinder | 4 | 4 | ||||||
Bore×Stroke | mm | 86×102 | 98×110 | |||||
Displacement | cc | 2369 | 3318 | |||||
Fuel Tank Capacity | L | 70 | 70 | |||||
Transmission | Type | Hydraulic | Hydraulic | |||||
Stage (FWD/RVS) | 1/1 | 1/1 | ||||||
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents and 21 after sales center around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
