- Color:Customer Demanded
- Engine:ISUZU/ Mitsubishi
- Tire:Pneumatic Tire
- Wheel base:2250mm
- Warranty:1 year or 2000 working hours
- Mast:2 Stage (3 Stage is optional)
- Optional:side shifter, fork positioner,Cab with A/C
- Transmission type:Automatic Tranmission
- Load Center:500mm/Diesel Forklift
- Number of cylinders:6
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Spain
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Colombia
- Local Service Location:Romania
- Local Service Location:Bangladesh
- Local Service Location:Kazakhstan
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Argentina
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3455*1995*2500mm
- Certification:CE/ISO9001
Product Description
After-sale Service:
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (whichever occurs first) period quality warranty.
All the product of LTMG supplied with one year or 2000 working hours (whichever occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

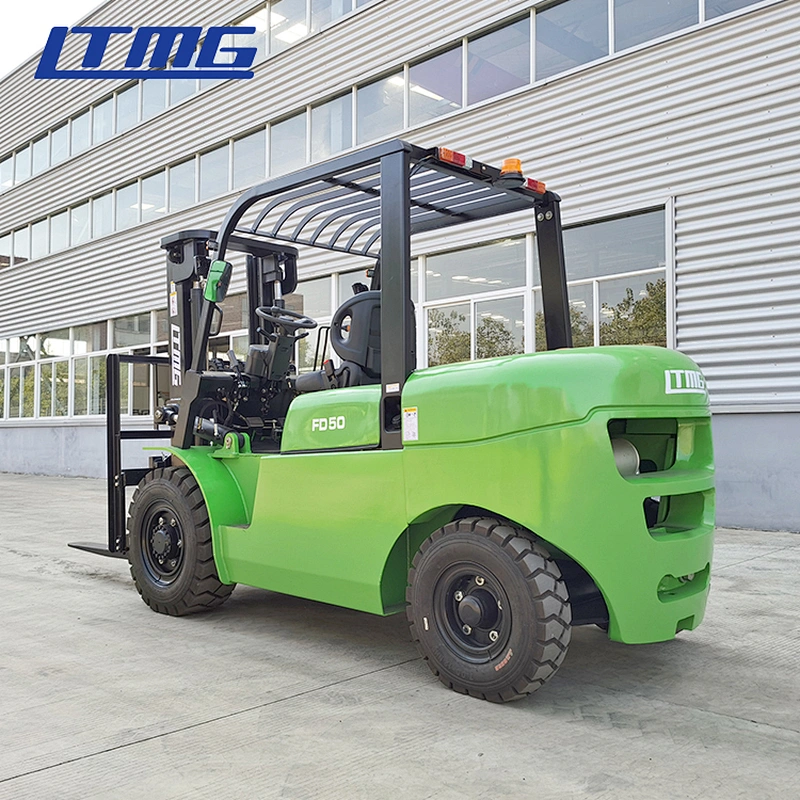

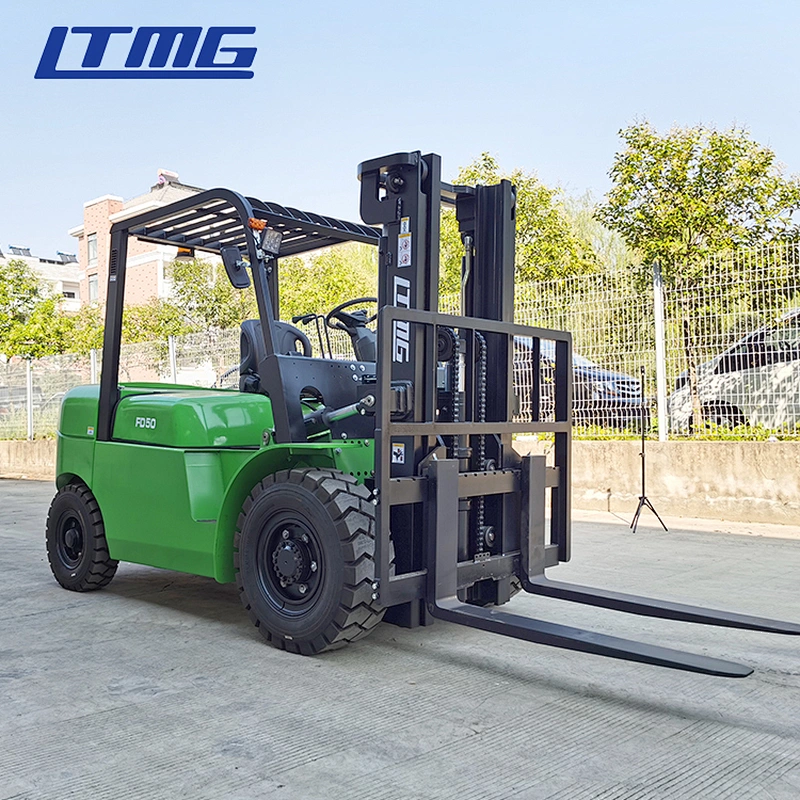

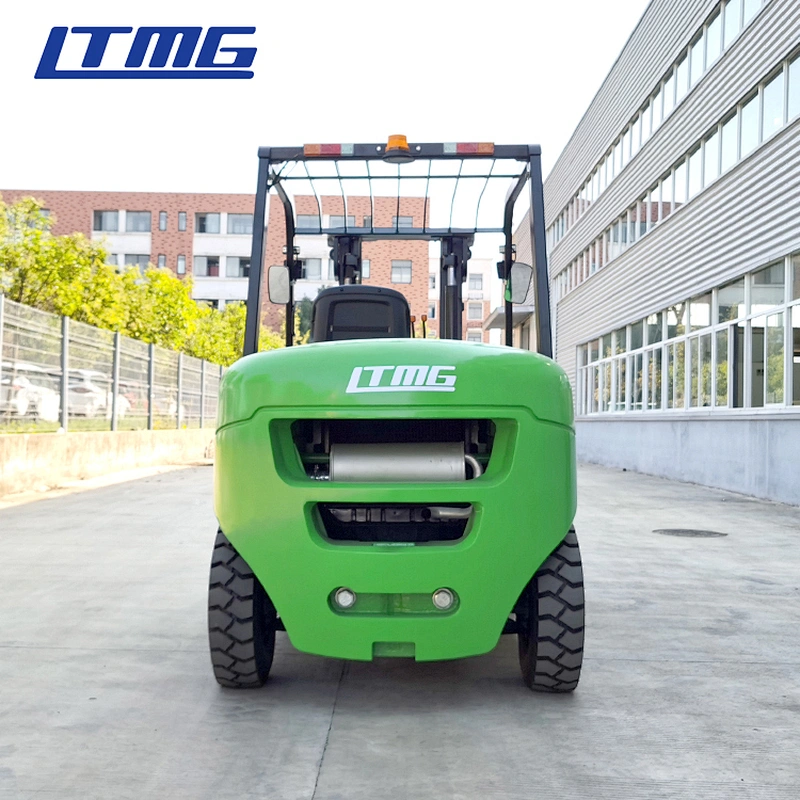

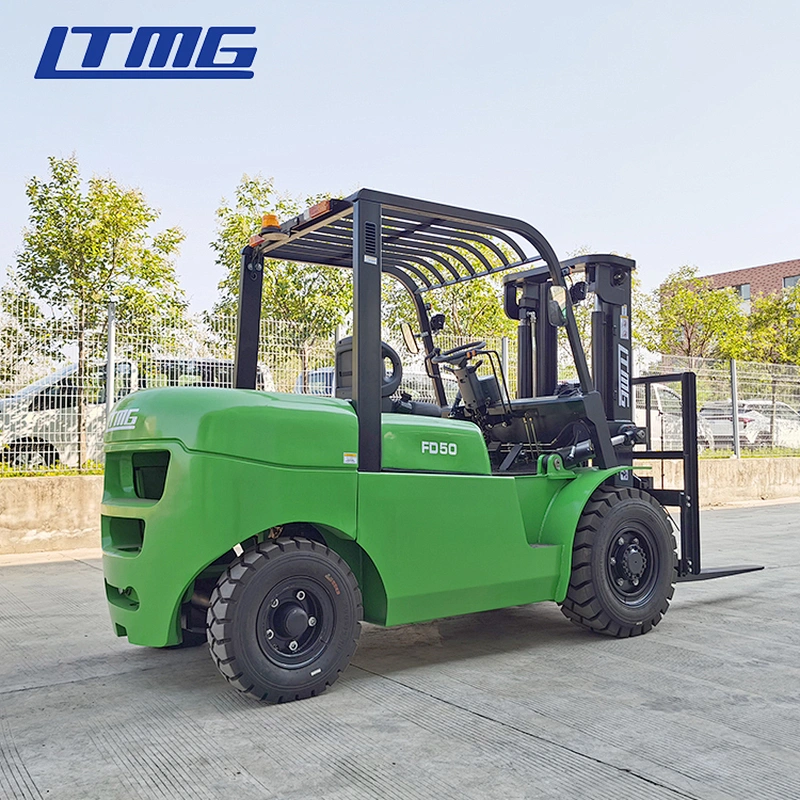

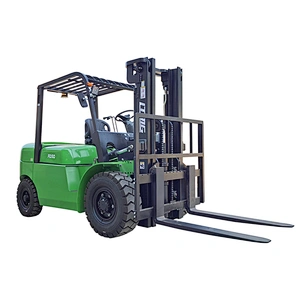

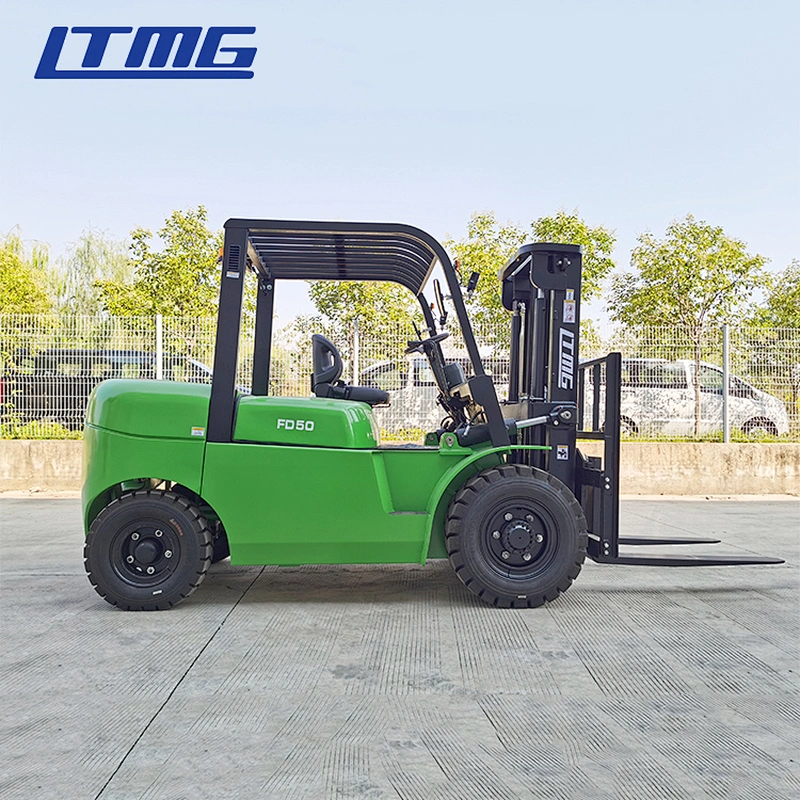

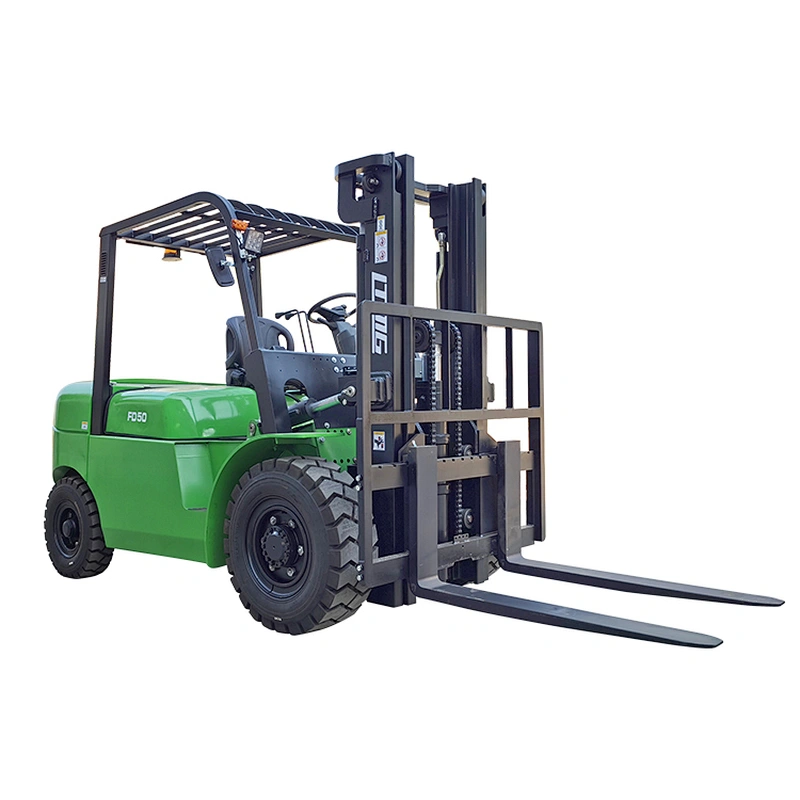

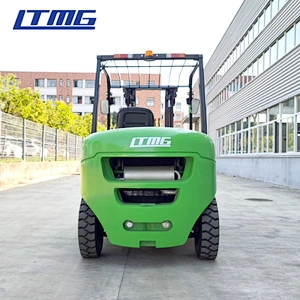

LTMG 3 ton 4 ton 5 ton forklift specification as below: | ||||||||||

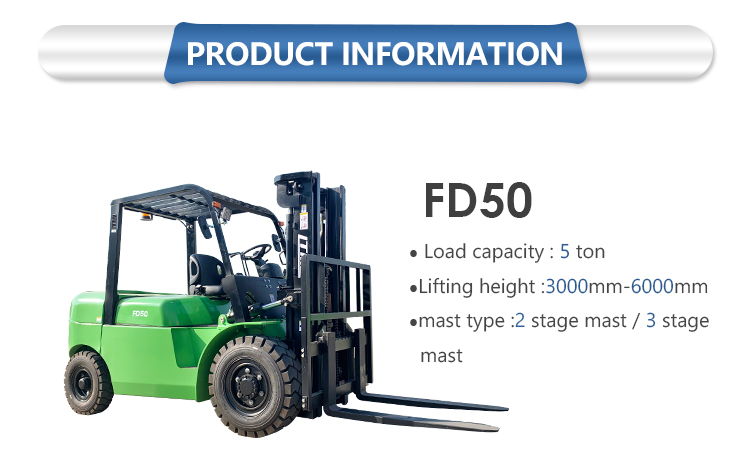

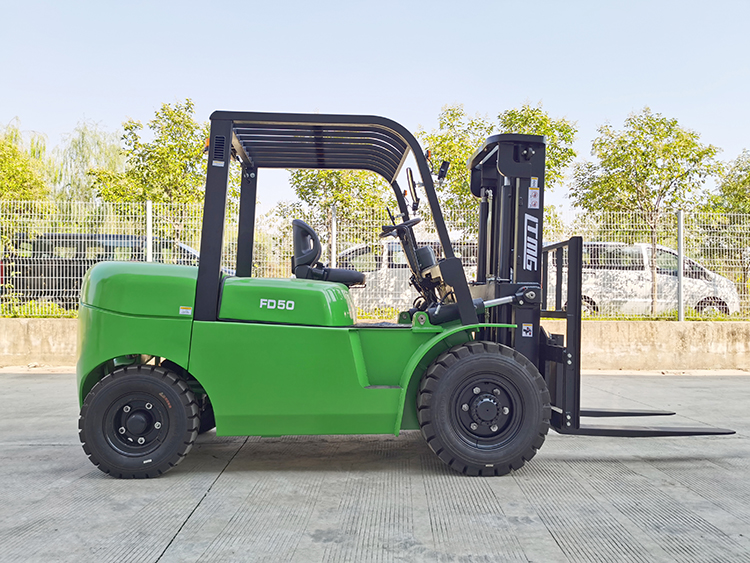

Model | FD30 | FD40 | FD50 | |||||||
Power type | Diesel | Diesel | Diesel | |||||||
Rated capacity | kg | 3000 | 4000 | 5000 | ||||||
Load center | mm | 500 | 500 | 500 | ||||||
Lift height | mm | 3000 | 3000 | 3000 | ||||||
Fork size | L*W*T | mm | 1070*125*45 | 1070*150*50 | 1070*150*50 | |||||
Mast tilt angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | |||||
Fork Overhang(Wheel center to fork face) | mm | 480 | 495 | 579 | ||||||
Ground clearance | mm | 140 | 140 | 150 | ||||||
Overall dimension | Length to face of fork (without fork) | mm | 2730 | 2890 | 3260 | |||||
Overall width | mm | 1225 | 1410 | 1460 | ||||||
Mast lowered height | mm | 2115 | 2195 | 2270 | ||||||
Mast extended height (with backrest) | mm | 4150 | 4180 | 4165 | ||||||
Overhead guard height | mm | 2090 | 2120 | 2340 | ||||||
Turning radius(outside) | mm | 2440 | 2700 | 2910 | ||||||
Speed | Travel(Full load) | km/h | 20 | 19 | 25 | |||||
Lifting(Full load) | mm/s | 510 | 320 | 380 | ||||||
Max gradeability | % | 20 | 20 | 20 | ||||||
Tyre | Front | mm | 28*9-15-12PR | 250-15-16PR | 300-15-18PR | |||||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||||
Wheel base | mm | 1700 | 1900 | 2100 | ||||||
Service weight | kg | 4300 | 5100 | 6880 | ||||||
Engine | Model | C240 | 4JG2PE-01 | 6BG1-05 | ||||||
Manufacture | Isuzu | Isuzu | Isuzu | |||||||
Rated output | kw | 35.4/2500 | 46/2450 | 68.4/2000 | ||||||
Rated torque | N.m | 137.7/1800 | 184.7/1800 | 333/1500 | ||||||
No of cylinder | 4 | 4 | 6 | |||||||
Bore*stroke | 86*102 | 95.4*107 | 105*125 | |||||||
Displacement | cc | 2369 | 3059 | 6494 | ||||||
Fuel tank capacity | L | 70 | 70 | 105 | ||||||
Transmission | Type | Hydraulic/Manual | Hydraulic/Manual | Hydraulic/Manual | ||||||
Stage FWD/RVS | 1/1 | 1/1 | 2/1 | |||||||

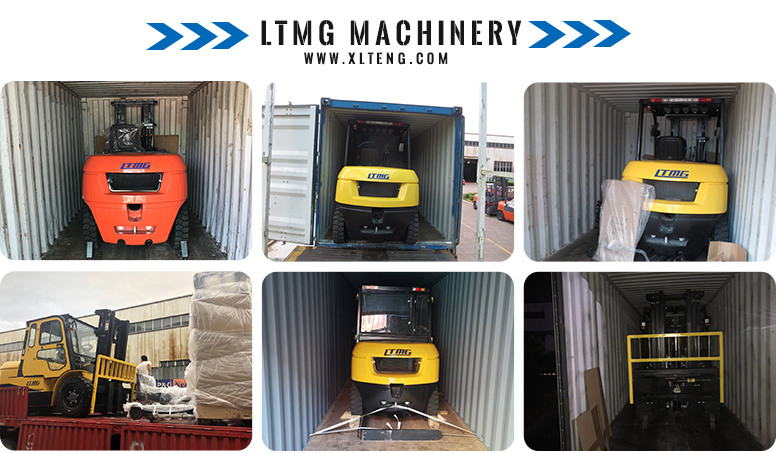

Common loading solutions | ||||||||
Container type | 1.5 ton -2.5 ton | 3 ton -3.5 ton | 4 ton-5 ton | 7 ton -10ton | ||||
20GP | 3 units | 3 units /2 units | 1unit / 2 units | / | ||||
40HQ | 6 units | 5 units | 3 units /4 units | 1unit /2 units | ||||
