- Type:Powered Pallet Truck
- Product Name:4 tons Side Shift Forklift
- Color:Customized Color
- Engine:ISUZU,Mitsubishi or Chinese engine
- Mast:2-3 Stages
- Ground clearance:140mm
- Options:Side-shifter,rotator,forkpositioner
- Load Center:500mm
- Transmission:Hydraulic Transmission
- Tire:Pneumatic Standard or solid tire
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Port
- After Warranty Service:Online support
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Spain
- Local Service Location:Japan
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Canada
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Kenya
- Showroom Location:UAE
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:120mm
- Overall Dimensions:2835*1230*2110mm
- Certification:CE&ISO9001

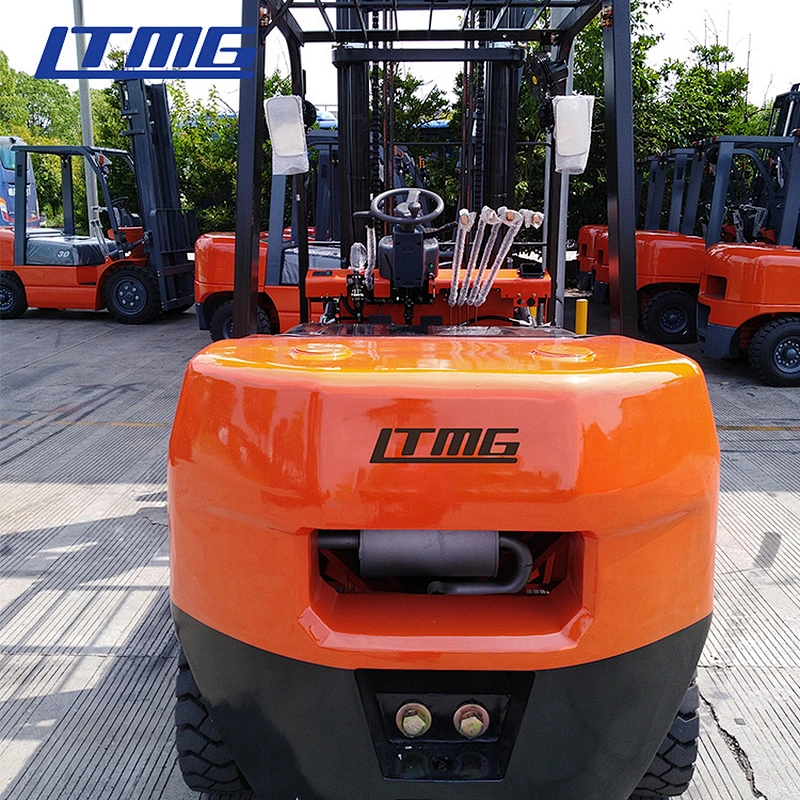

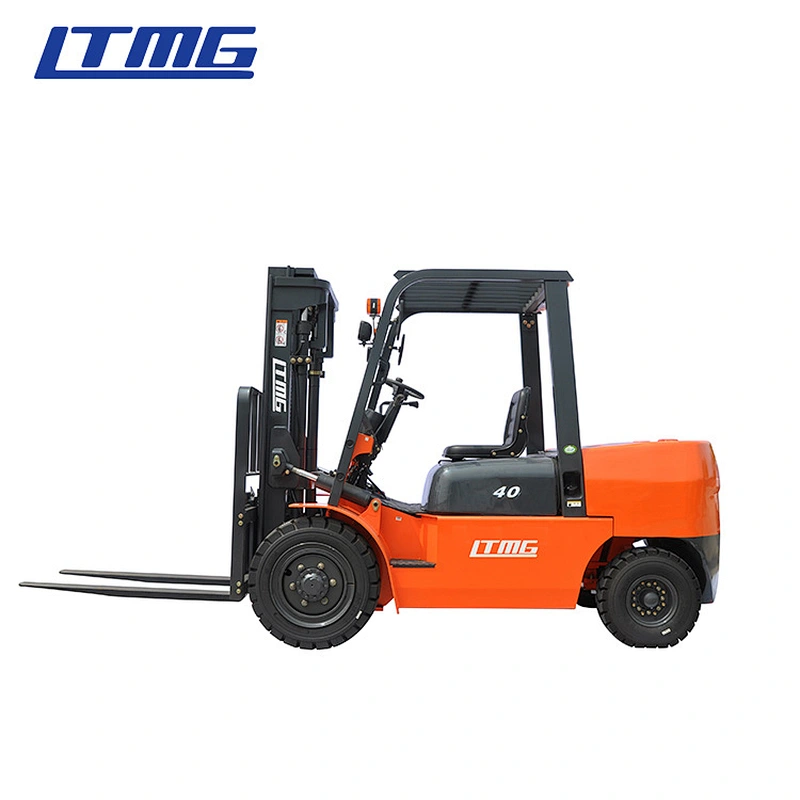

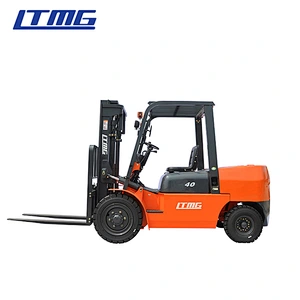

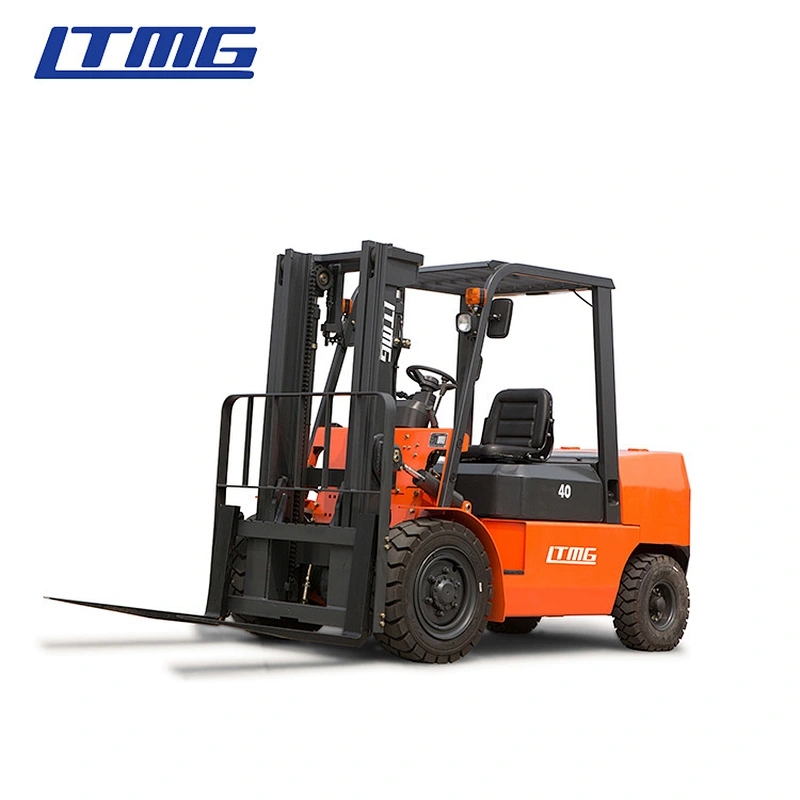

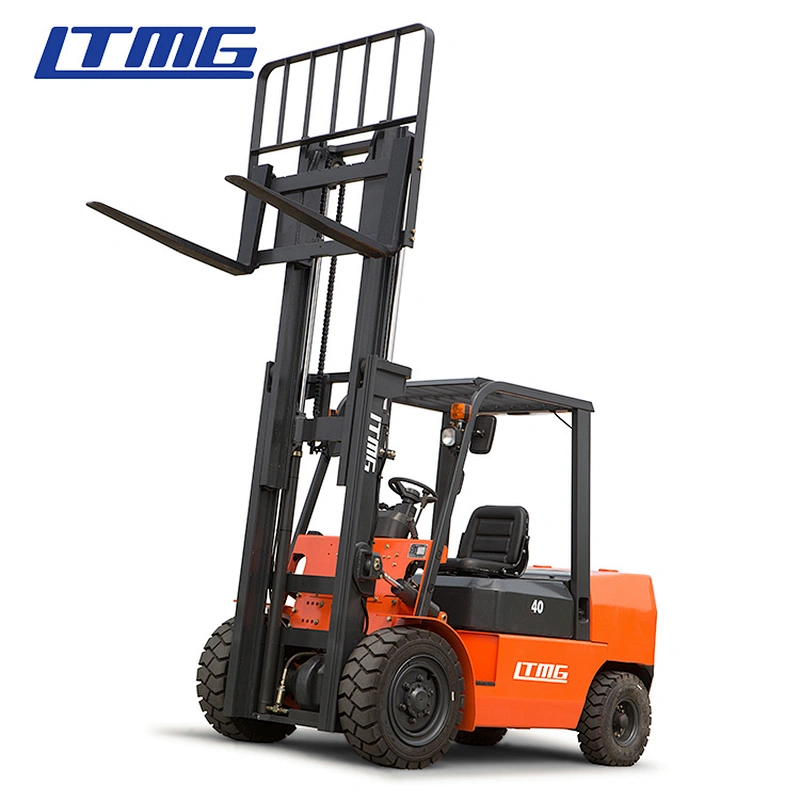

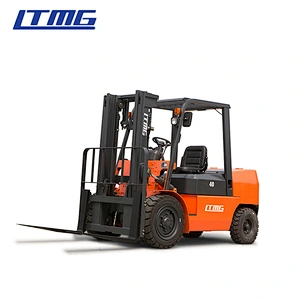

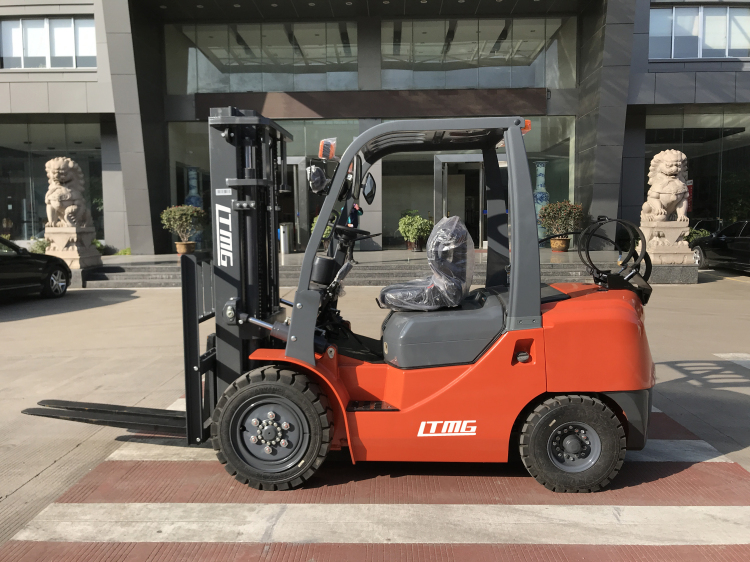

Product Show

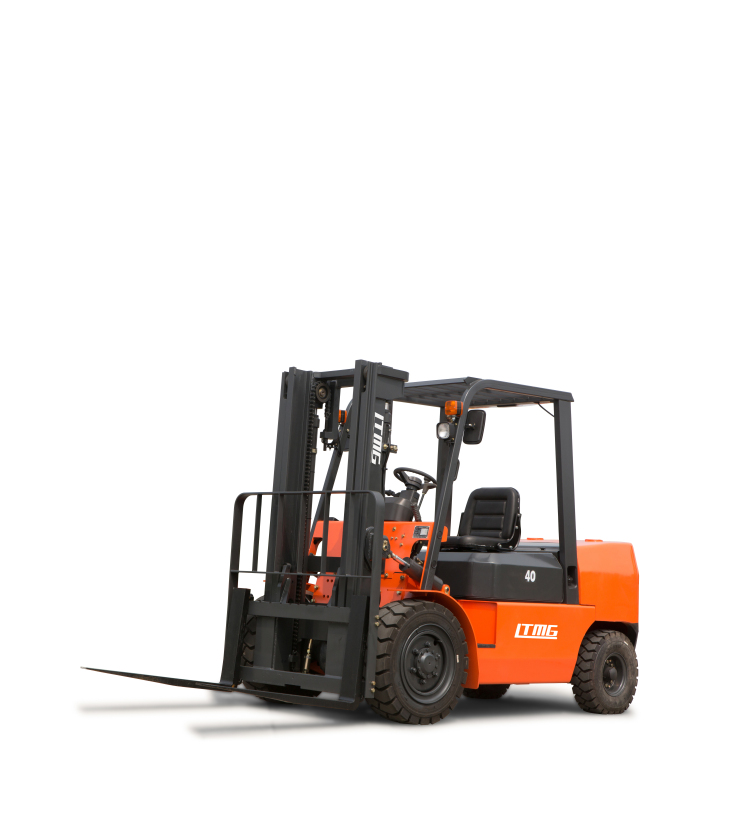

LTMG FD40 Side Shift Forklift High Lift Forklift Diesel Power 2 tons 3 tons 4 tons 5 tons Capacity Lifter
Product Parameter
Model | FD35 | FD40 | |||||
Power Type | Diesel | Diesel | |||||
Rated Capacity | kg | 3500 | 4000 | ||||
Load Centre | mm | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1070×125×50 | 1070×120×40 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 485 | 495 | ||||
Ground Clearance（Bottom of mast） | mm | 140 | 140 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2835 | 2890 | |||
Overall Width | mm | 1230 | 1410 | ||||
Mast Lowered Height | mm | 2150 | 2195 | ||||
Mast Extended Height(With backrest) | mm | 4175 | 4180 | ||||
Overhead Guard Height | mm | 2110 | 2120 | ||||
Turning Radius (outside) | mm | 2570 | 2700 | ||||
Speed | Travel (Full load) | km/h | 20 | 20 | |||
Lifting (Full load) | mm/s | 440 | 320 | ||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | ||||
Tire | Front | mm | 28*9-15-12PR | 250-15-16PR | |||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | ||||
Wheelbase | mm | 1800 | 1800 | ||||
Service weight | kg | 4700 | 5100 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |||
Engine | Model | Xinchai or 4JG2PE-01 | |||||
Manufacture | Xinchai or ISUZU | ||||||
Rated output/r.p.m. | kw | 46/2450 | |||||
Rated torque/r.p.m. | N·m | 184.7/1800 | |||||
No.of Cylinder | 4 | ||||||
Bore×Stroke | mm | 95.4×107 | |||||
Displacement | cc | 3059 | |||||
Fuel Tank Capacity | L | 70 | |||||
Transmission | Type | Hydraulic | |||||
Stage | FWD/RVS | 1/1 | |||||

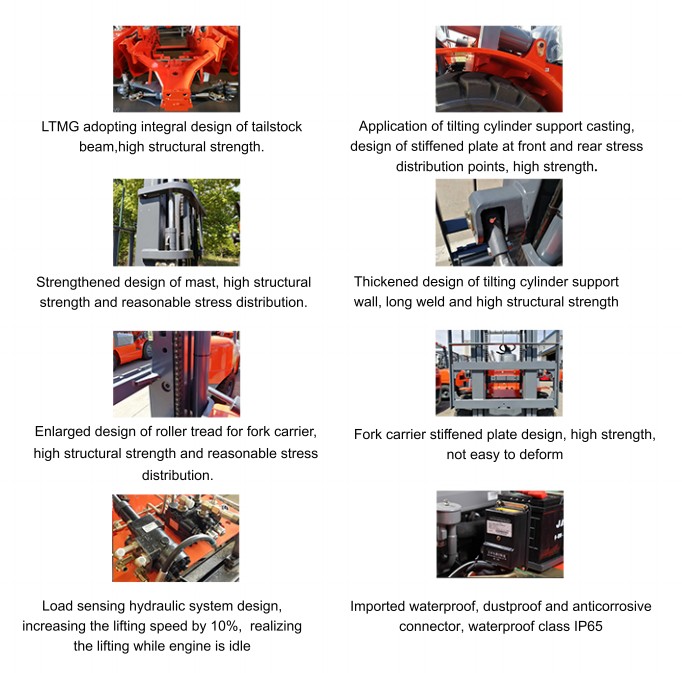

Product Advantage
Optional
1.many kinds of engine optional
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
1.many kinds of engine optional
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Related Products

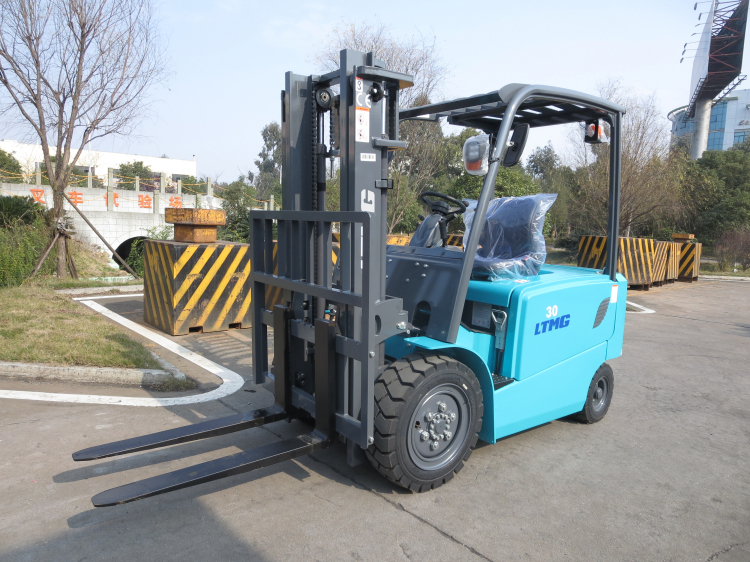

Electric Forklift

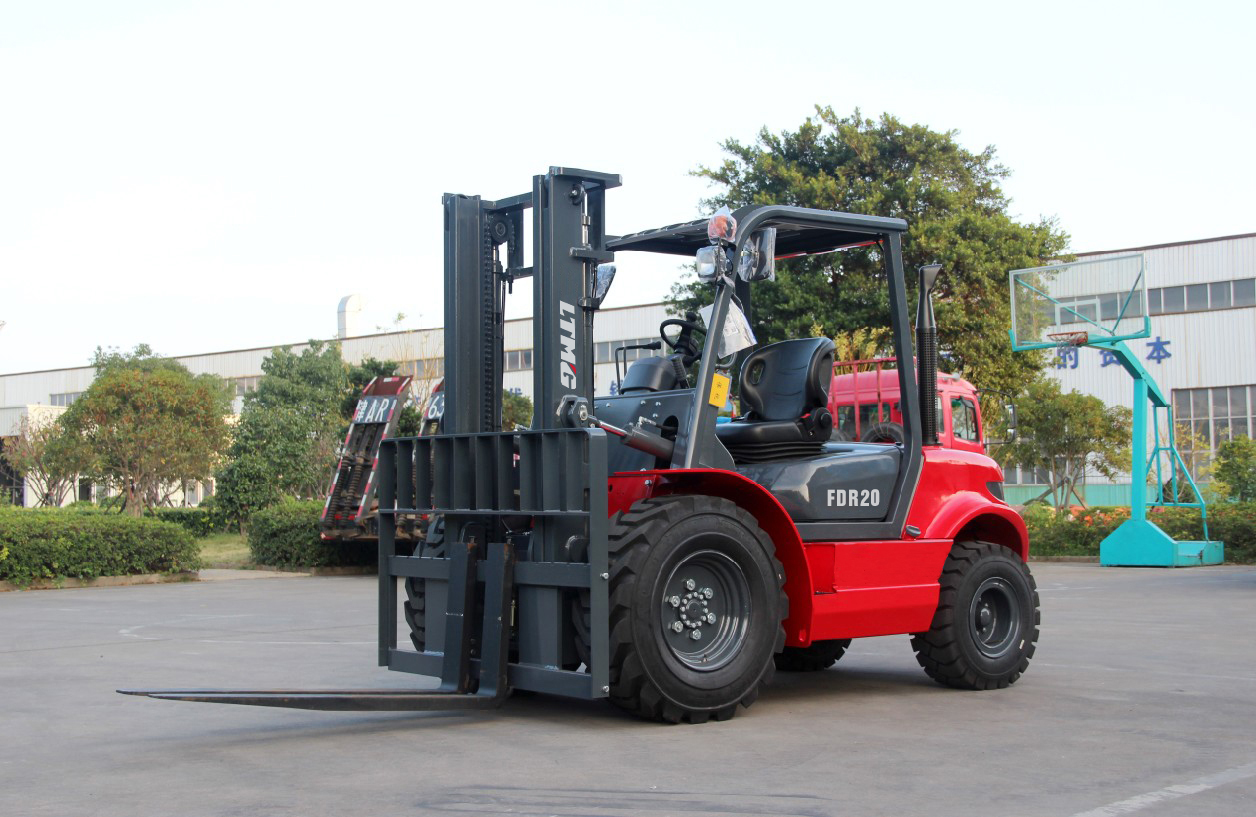

Rough Terrain Forklift
LPG&Gasoline Forklift

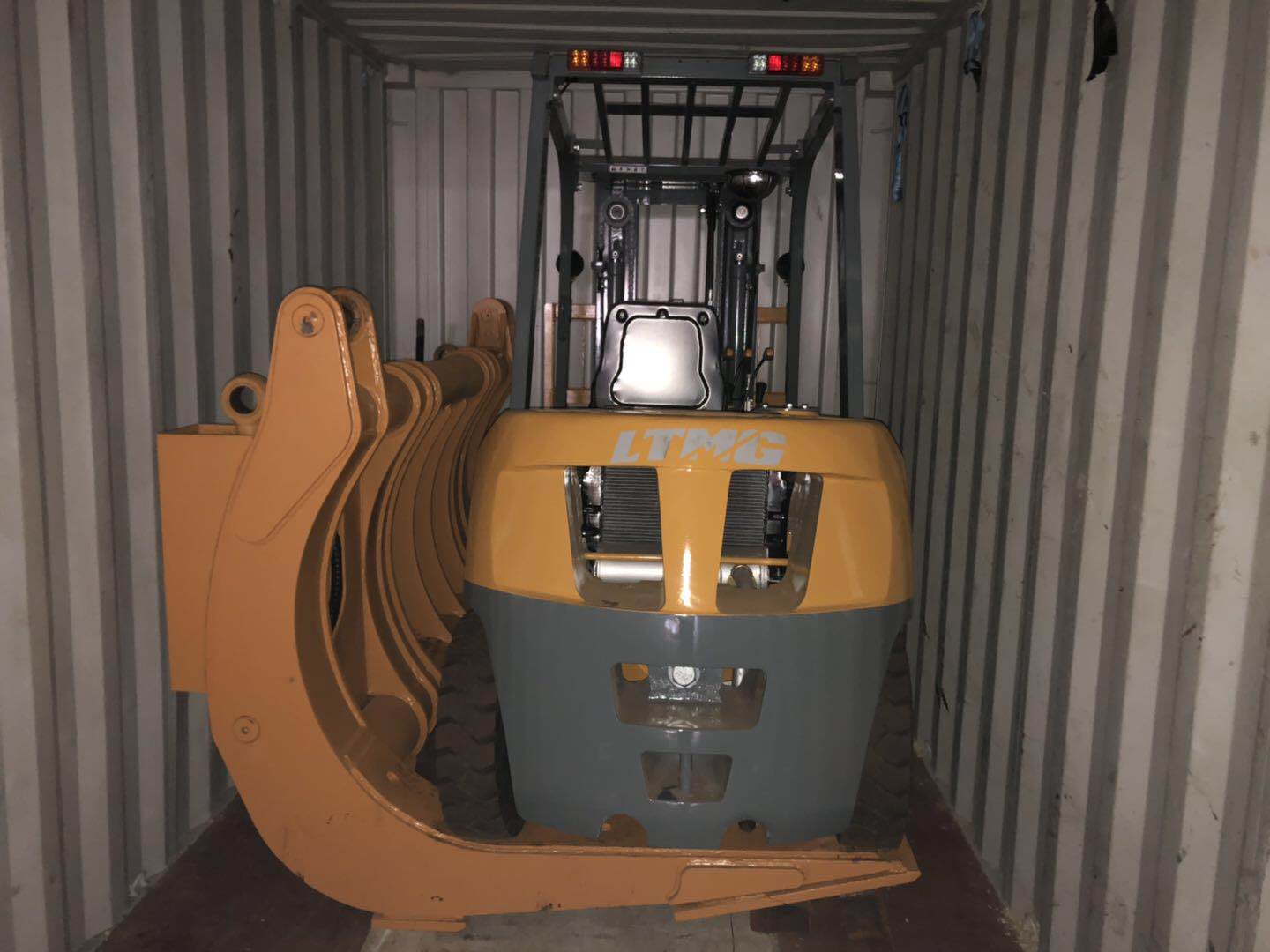

Packing&Shipping

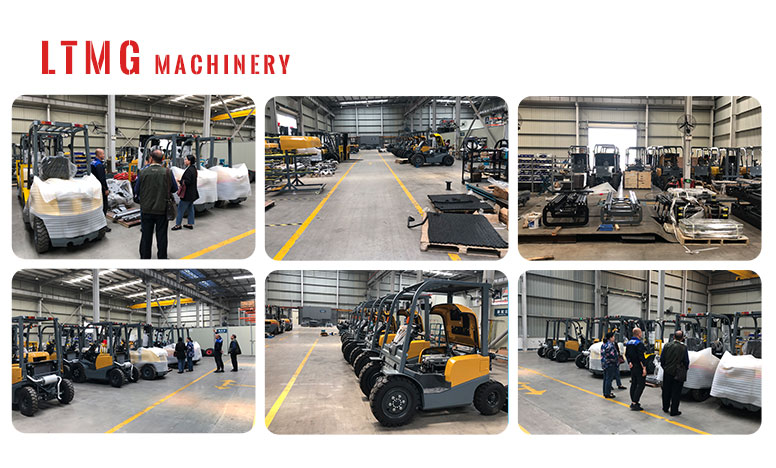

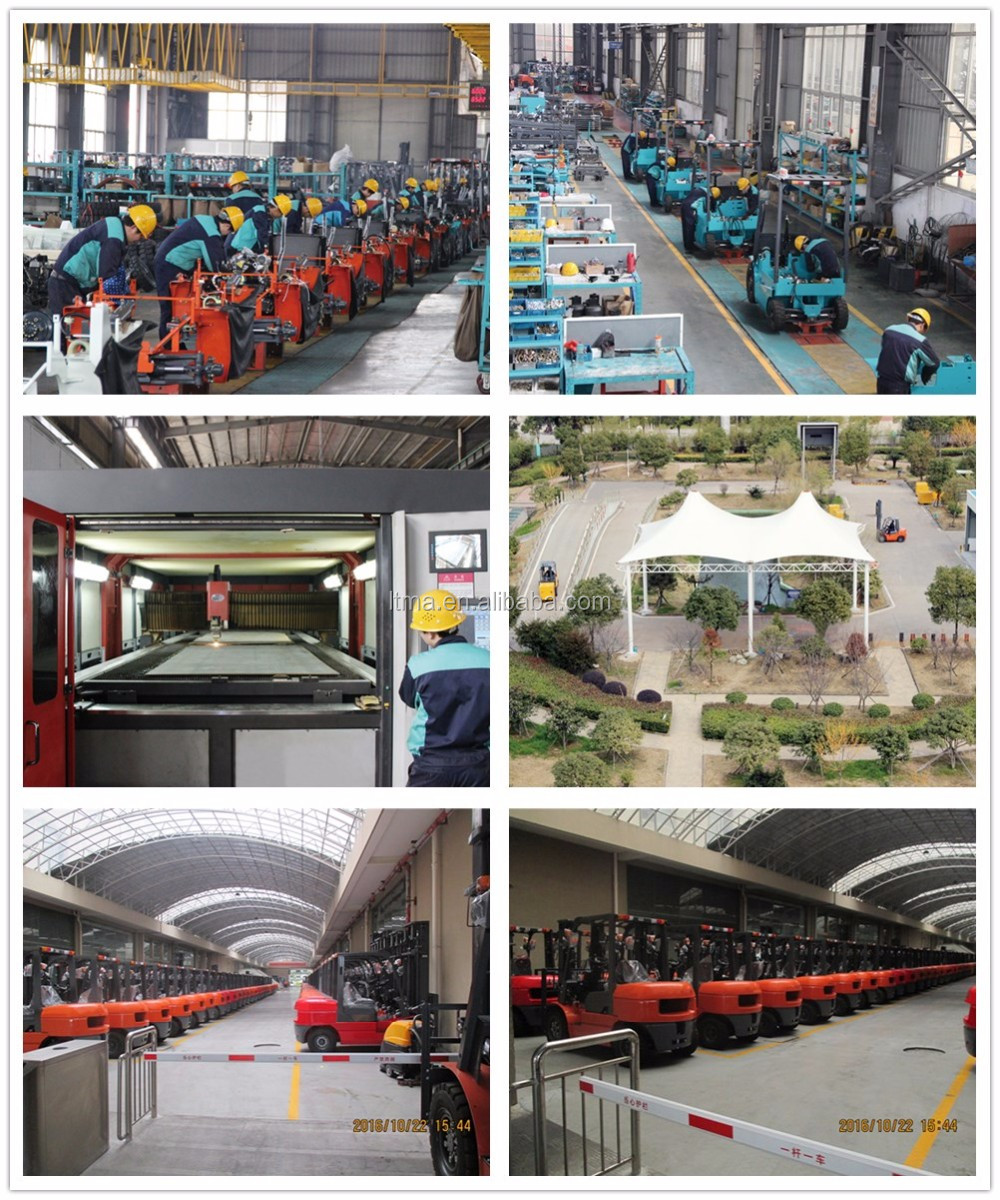

Company Introduction
