- Warranty:one year or 2000 working hours
- Engine:Isuzu C240 / mitsubishi /Chinese engine
- Free size:920*120*35mm
- Load Center:500mm
- Lifting height:3000mm
- Tire:Pneumatic Tire or solid is optional

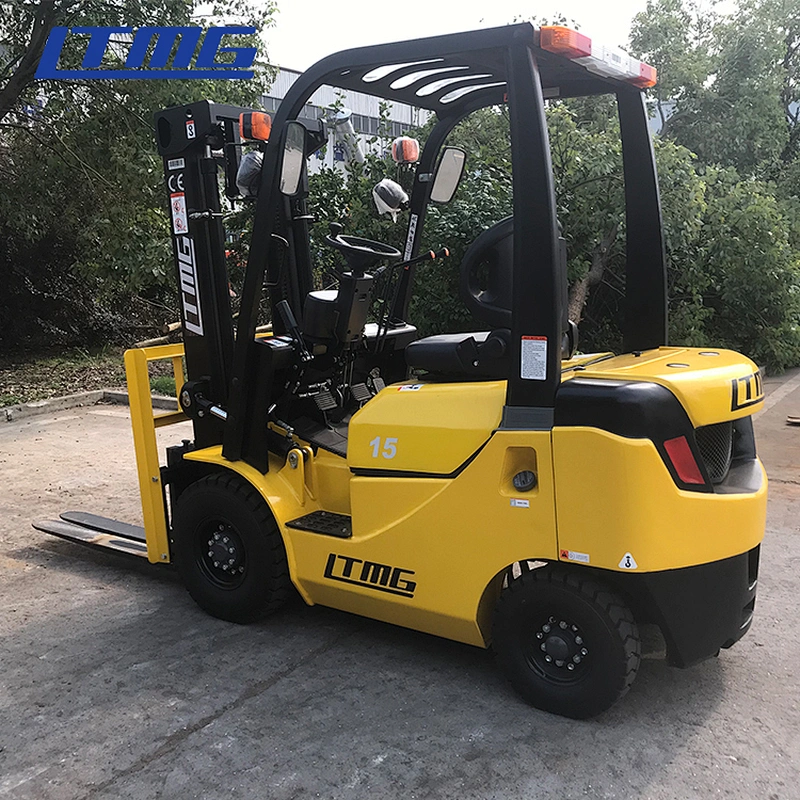

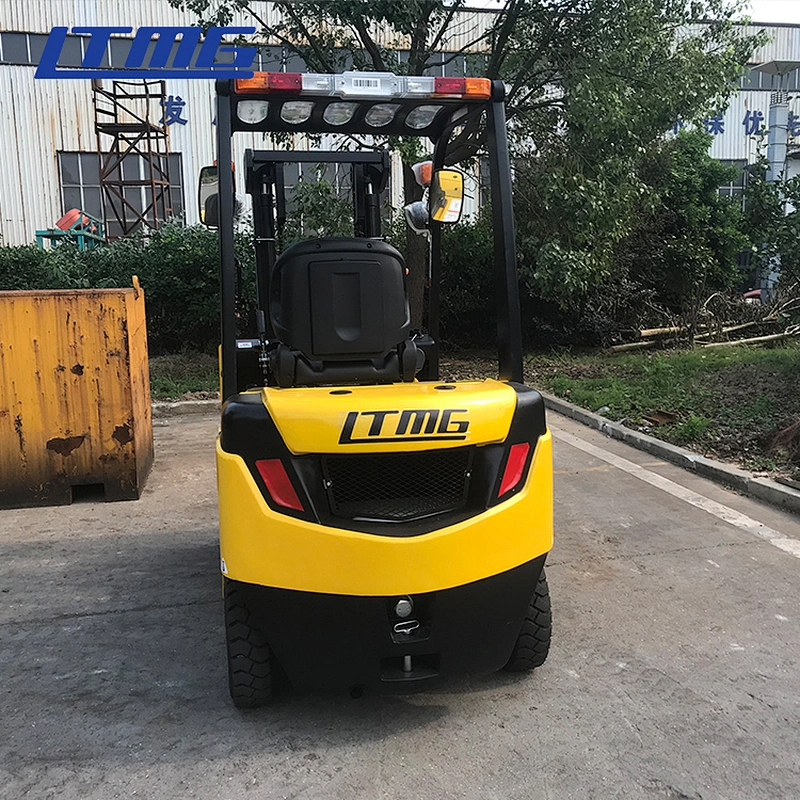

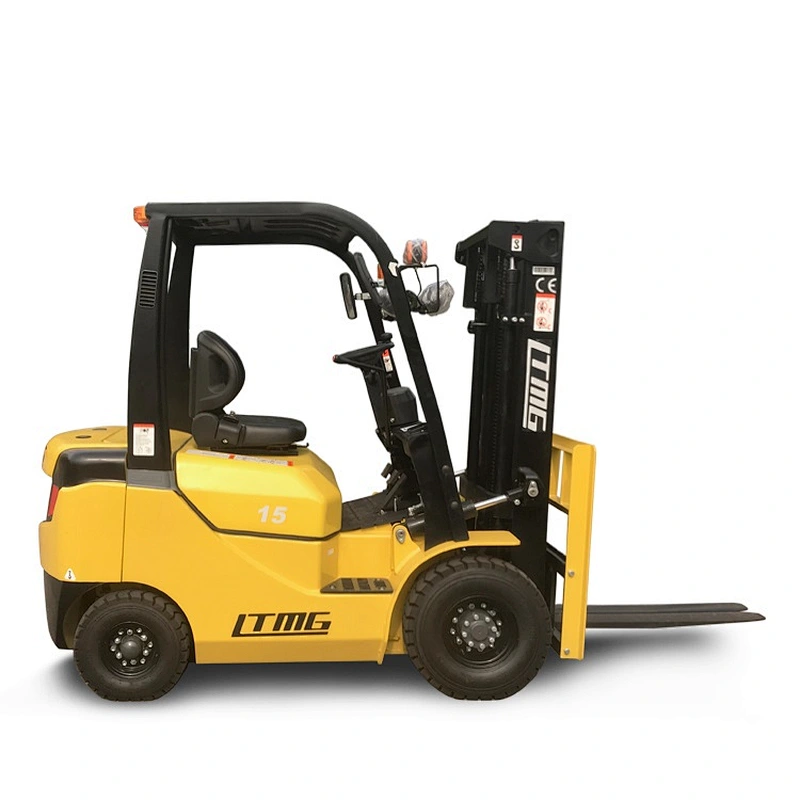

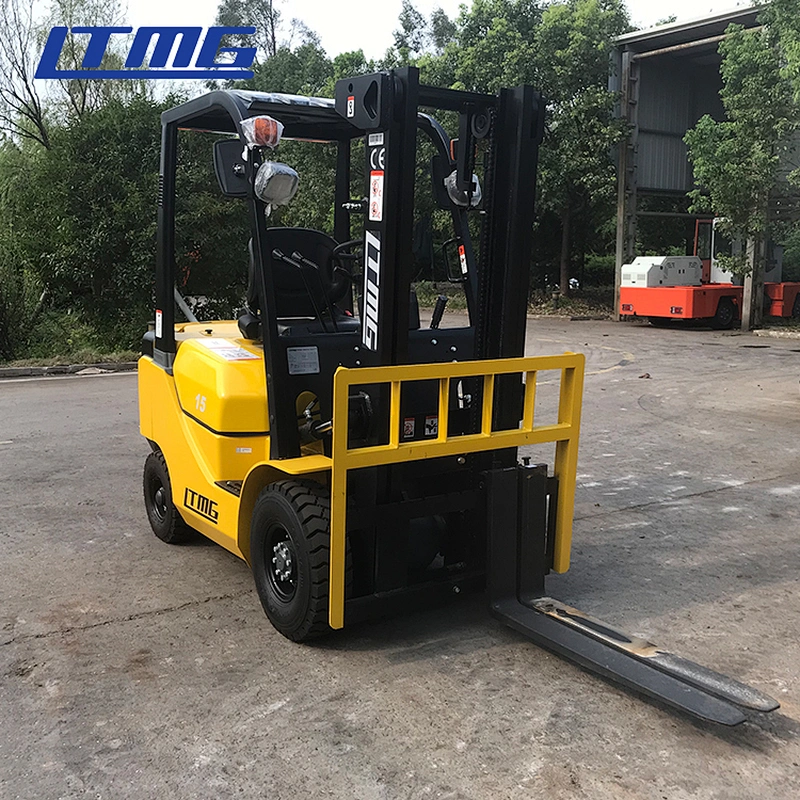

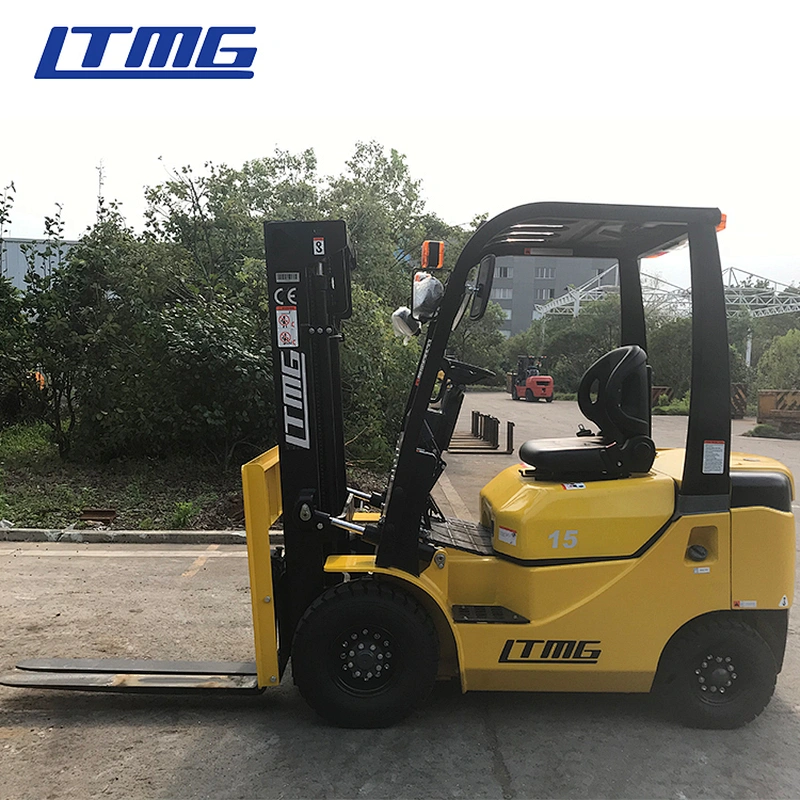

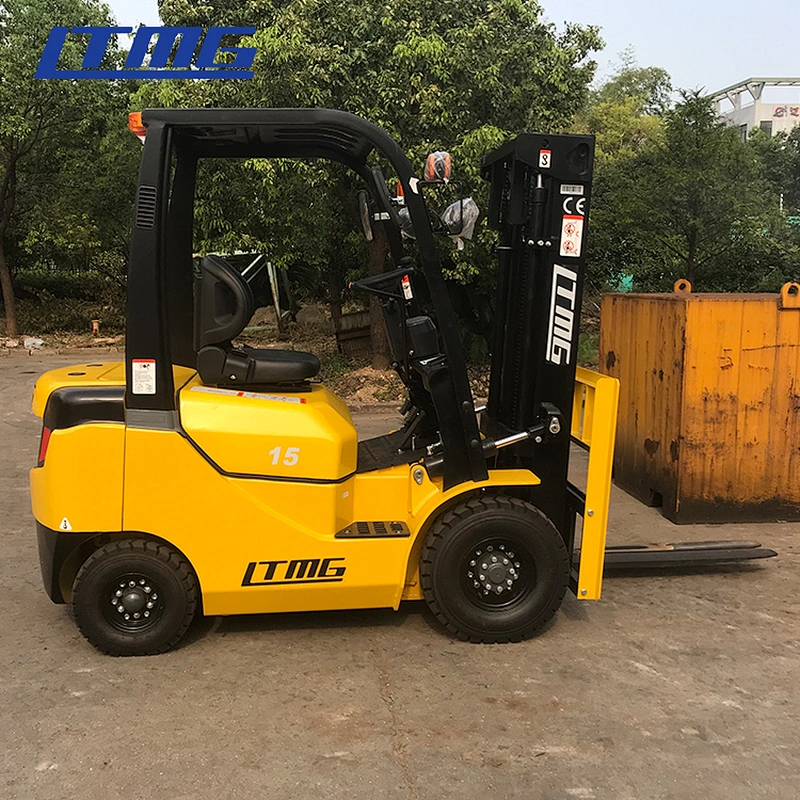

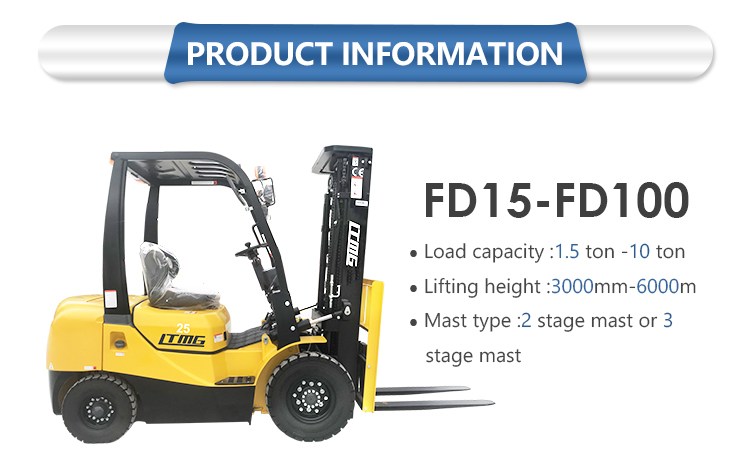

- Product Name:LTMG brand diesel forklift 3 ton 5 ton forklift truck
- Cab with A/C:Optional
- Wheelbase:1400mm
- Transmission type:hydraulic ( automatic )
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Canada
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Viet Nam
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Canada
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Pump
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:120
- Overall Dimensions:2285*1086*2040
- Certification:CE/ISO9001
- Marketing Type:Hot Product 2021
Standard configuration

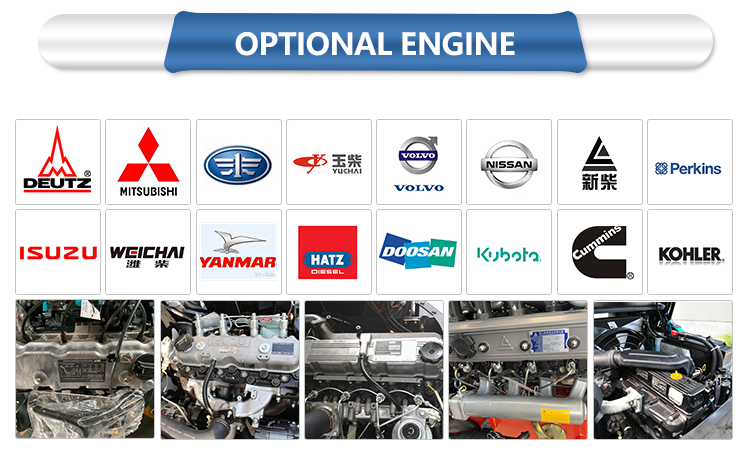

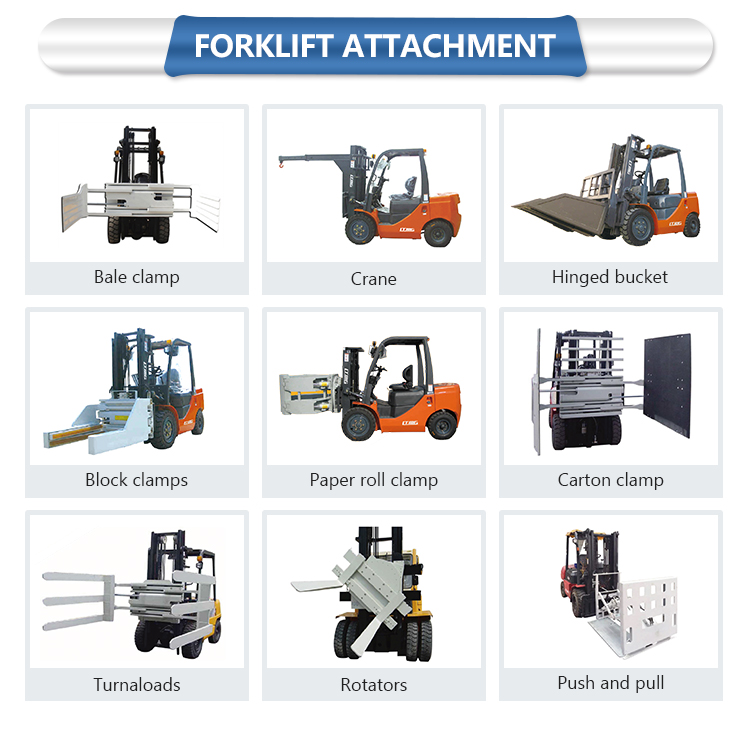

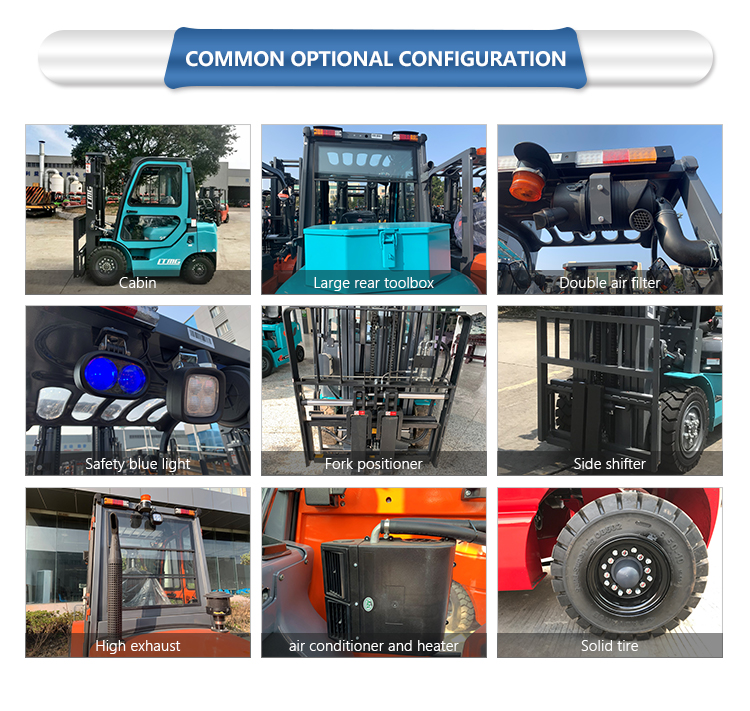

1.Equipped with Chinese powerful and reliable engines with excellent environmental performance; 2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.3.install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.Optional1.Japan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.2.Lifting Height 3m-7m3.Full-free Duplex or Triplex Mast4.Side Shift, Solid Tires, Suspension Seat, fork positioner .5.Driver's Cabin, Customized Color, air-conditioner, etc.6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
General | 1 | Model | FD15 | |||||
2 | Power Type | Diesel | ||||||
3 | Rated Capacity | kg | 1500 | |||||
4 | Load Centre | mm | 500 | |||||
Characteristic&Dimension | 5 | Lift Height | mm | 3000 | ||||
6 | Fork Size | L×W×T | mm | 920×120×35 | ||||
7 | Mast Tilt Angle | F/R | Deg | 6°/12° | ||||
8 | Front Overhang (Wheel center to fork face) | mm | 410 | |||||
9 | Ground Clearance（Bottom of mast） | mm | 110 | |||||
10 | Overall Dimension | Length to face of fork(Without fork) | mm | 2285 | ||||
11 | Overall Width | mm | 1086 | |||||
12 | Mast Lowered Height | mm | 1995 | |||||
13 | Mast Extended Height(With backrest) | mm | 3940 | |||||
14 | Overhead Guard Height | mm | 2040 | |||||
15 | Turning Radius (outside) | mm | 2055 | |||||
Performance | 16 | Speed | Travel (Full load) | km/h | 15 | |||
17 | Lifting (Full load) | mm/s | 450 | |||||
18 | Max.Gradeability (No load/Full load) | % | 20 | |||||
Chassis | 19 | Tire | Front | mm | 6.50-10-12PR | |||
20 | Rear | mm | 5.00-8-10PR | |||||
21 | Wheelbase | mm | 1400 | |||||
22 | Service weight | kg | 2820 | |||||
Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | 12/80 | |||
24 | Engine | Model | C240 | |||||
25 | Manufacture | ISUZU | ||||||
26 | Rated output/r.p.m. | kw | 35.4/2500 | |||||
27 | Rated torque/r.p.m. | N·m | 137.7/1800 | |||||
28 | No.of Cylinder | 4 | ||||||
29 | Bore×Stroke | mm | 86×102 | |||||
30 | Displacement | cc | 2369 | |||||
31 | Fuel Tank Capacity | L | 45 | |||||
32 | Transmission | Type | Hydraulic | |||||
33 | Stage | FWD/RVS | 1/1 | |||||
