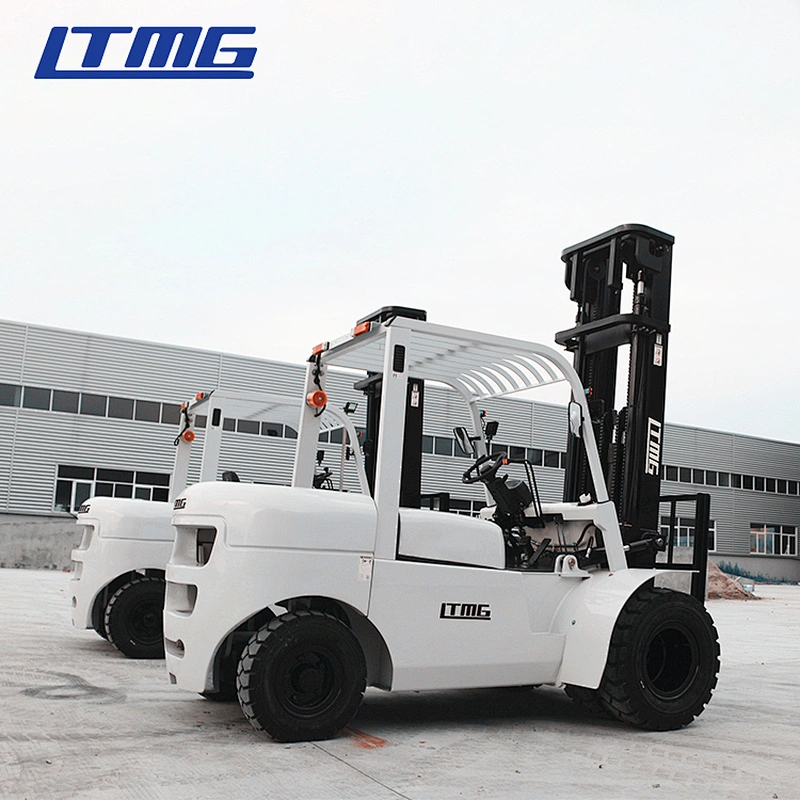

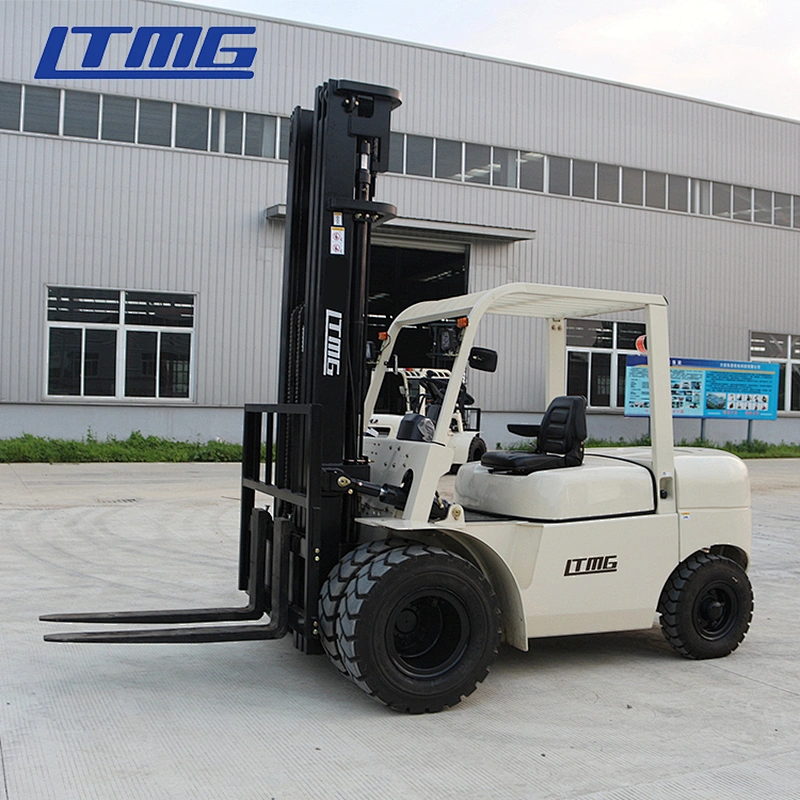

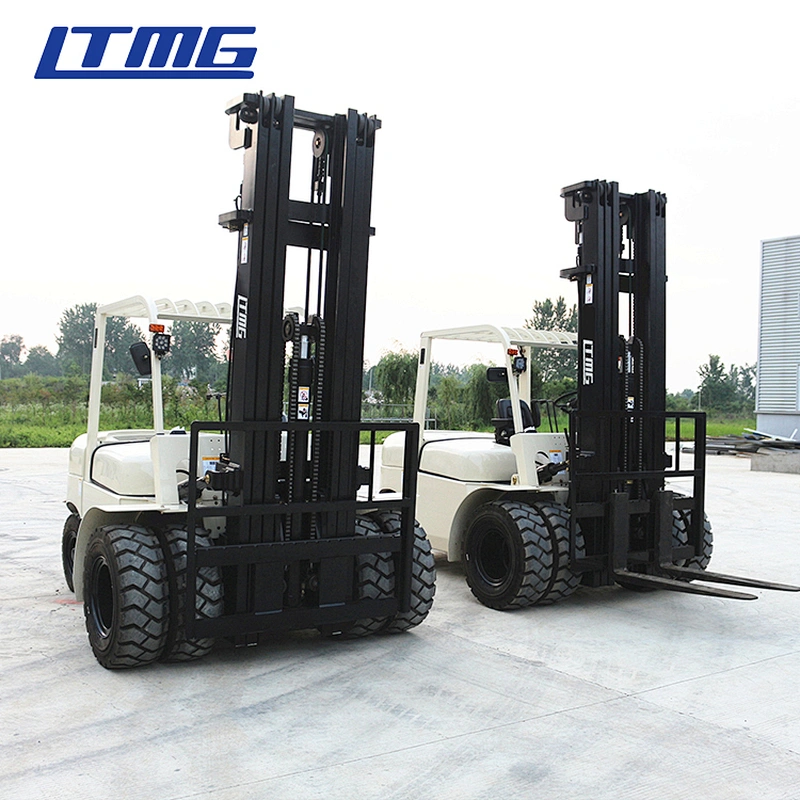

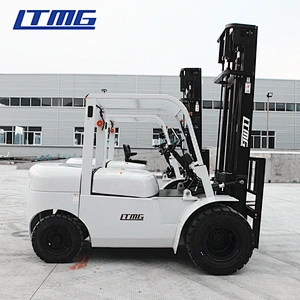

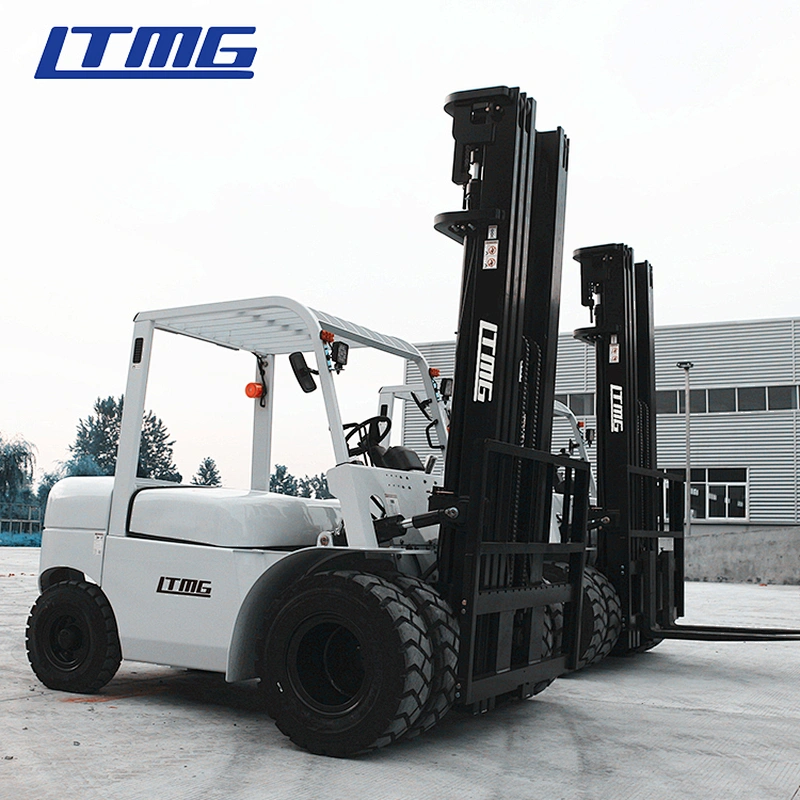

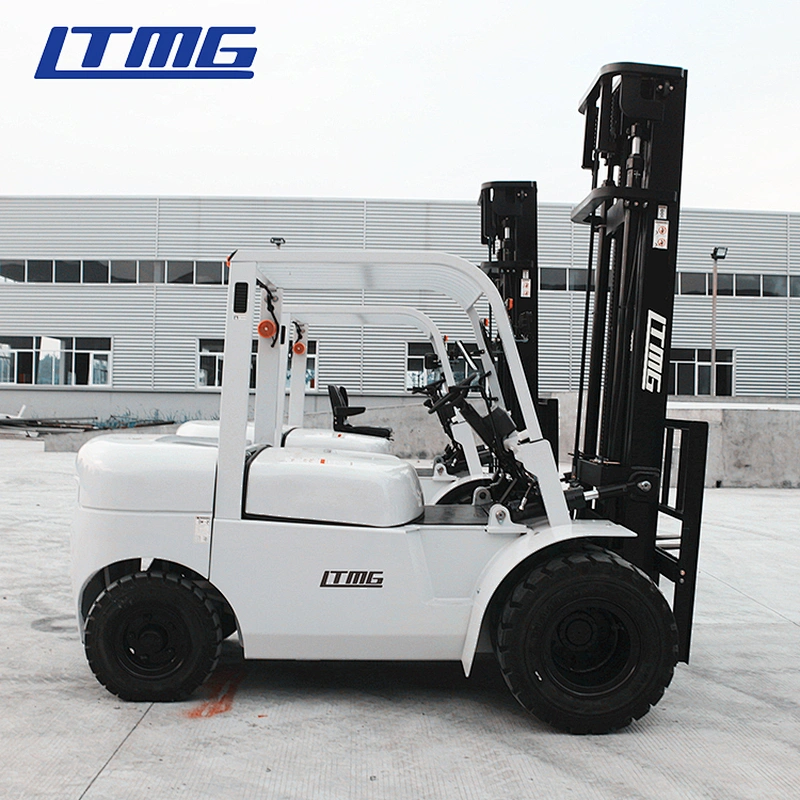

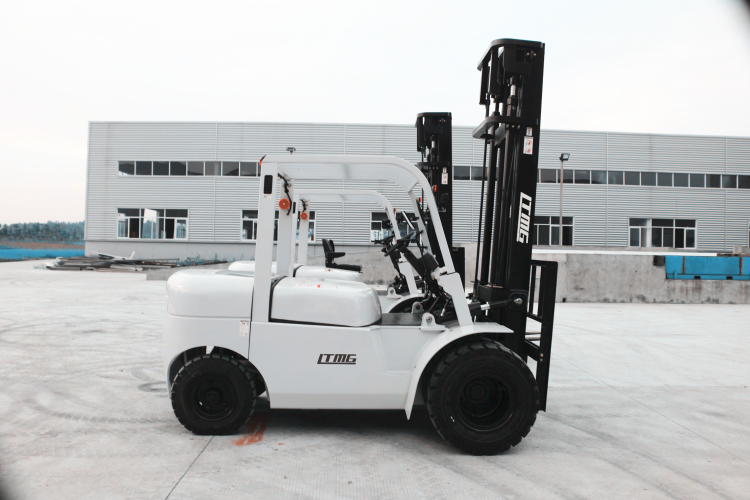

LTMG Chinese 3 ton 5 ton Lifting Forklift CPCD50 with Low Price 3 Meters Mast Diesel Engine

LTMG Chinese 3 ton 5 ton Lifting Forklift CPCD50 with Low Price 3 Meters Mast Diesel Engine

Price:: US $ 18230.00-19260.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 500.0 unit / Month
Country of Origin: Shanghai, China

Quantity:

Product Description

After-sales Service Provided:Overseas third-party support available
Item:5 ton forklift
Engine:Chinese Brand engine, Japanese engine optional
Warranty:1 year or 2000 working hours,which occurs first
Service Weight:8150Kg
Brand:LTMG
Wheelbase:2250mm
Lifting height:3000mm
Transmission:Mechanical/Automatic
Color:Customer Demanded
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Farms
Applicable Industries:Retail
Applicable Industries:Construction works
Applicable Industries:Warehouse
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
Local Service Location:Egypt
Local Service Location:Canada
Local Service Location:United Kingdom
Local Service Location:United States
Local Service Location:Italy
Local Service Location:France
Local Service Location:Germany
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Saudi Arabia
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Australia
Local Service Location:UAE
Local Service Location:South Africa
Showroom Location:Egypt
Showroom Location:Canada
Showroom Location:United Kingdom
Showroom Location:United States
Showroom Location:France
Showroom Location:Saudi Arabia
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:South Africa
Showroom Location:Malaysia
Showroom Location:Morocco
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Online support
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Pressure vessel
Core Components:Bearing
Core Components:Gear
Core Components:Pump
Core Components:Gearbox
Core Components:Engine
Place of Origin:CN;JIA
Brand Name:LTMG
Min. Lifting Height:200mm
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3440*2010*2430mm
Certification:CE/ISO9001:2008

Product Description

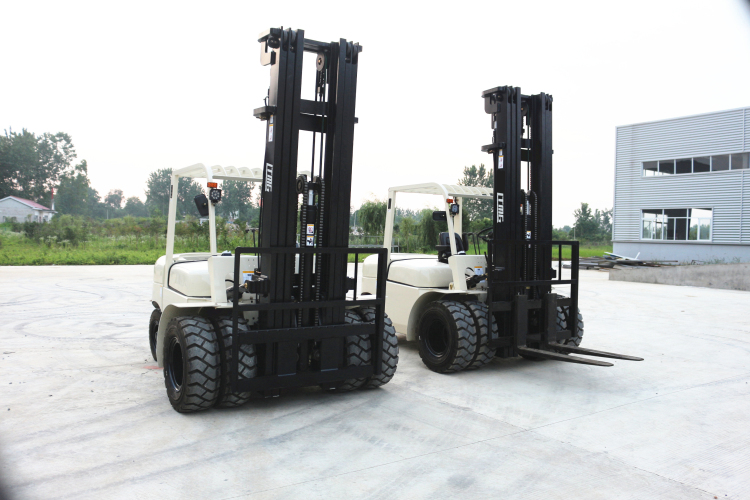

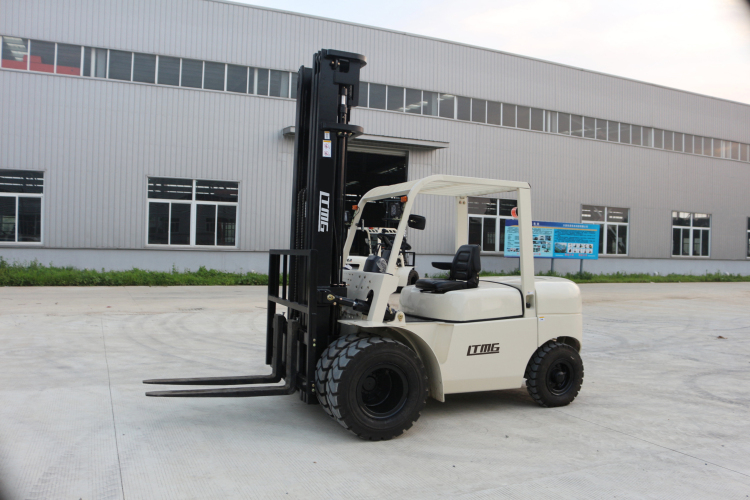

LTMG Chinese 3 ton 5 ton Lifting Forklift CPCD50 with Low Price 3 Meters Mast Diesel Engine

Specification of LTMG 5 ton diesel Lifting Forklift CPCD50 FD50
Manufacturer			LTMG
Model		Power shift T/M	FD50
Model			Manual shift T/M	FD50
Load capacity		kg	5000
Load center		mm	600
Power unit			Diesel
Operator type			Driver/seat
Tire type			Pneumatic
Wheel	Front/rear		4/2
Max. lifting height		mm	3000
Ground Clearance		mm	200
Fork size	LWT	mm	122015070
Tilt range	Mast forward/backward	deg	6/12
Overall length(without fork)		mm	3440
Total width		mm	2010
Mast height (fork lowering)		mm	2500
Overall height fork raised	With backrest	mm	4415
Height to head guard		mm	2430
Turning raduis(outside)		mm	3250
Front face of fork to front axle		mm	590
Speed	Max Travelling full/no load	km/h	30
		Lifting full/no load	mm/s	500
		Lowering full/no load	mm/s	550
Truck weight		kg	8150
Tires	Number	front/rear	4/2
		Model	front axle	8.25-15-14PR
		Model		rear axle	8.25-15-14PR
Wheelbase		mm	2250
Brake	Service brake		Hydraulic-foot pedal
Brake		Parking brake		Mechanical-hand lever
Battery	Voltage/capacity	V/AH	12/80
Engine	Model		XiChai or ISUZU
		Rated power	kw/rpm	82.4/2000
		Rated torque	N.m/rpm	416/1600
		Number of cylinders		6
		Placement	L	6.5
		Fuel tank capacity	L	125
Transmission	Speed forward/backward	Power shift T/M Manual shift T/M	2F-2R
Operating pressure	Hydraulic system pressure	kg/cm²

Product Features

Good Operating Experience:

1.High Strength Overhead Guard

The overhead guard adopts the high strength steel sheet to press molding, providing moresophisticated security for the driver, it can also prevent wind and rain.

2.Reliable Lifting System

Wide view mast design, ensure the driver has an excellent view,which makes loading and unloading operations more secure andefficient.

3.High Performance Hydraulic System

Load sensing priority steering hydraulicsystem design，flexible steering, mast liftspeed increased by 20%

4.Comfortable Driving Space

All accessories like engine, gear box are support bydomestic and world famous brand, high quality, reliableafter-sales.

Abundant Optional Cofiguration:

1. Standard Config Chinese Brand Engine Xinchai, Yuchai, Xichai, Imported Japan Engine, US Engine, German Engine like ISUZU, Mitsubishi, Nissan, Yanmar, Deutz, PSI, Hatz Optional

2. Mechanical and Hydraulic Automatic Transmission can be chosen.

3. Customized Mast: 2 stage, full free 2 stage , 3 stage mast lift 3~7meters optional;
4.Shimadzu's PumpValve,Eaton Pipe andNOK Hydraulic Cylinder Seals.
5. Electric-hydraulic Directional Control Valve.
6. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
7. The Maintenance Free Radiators adopt Germany Technology.
8. Adopt Priority Steering System, which improve the work efficiency.
9. Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
10. Thicker reinforcing overhead guard protective device, ensure the safety.
11.Middle muffler, more environmental.

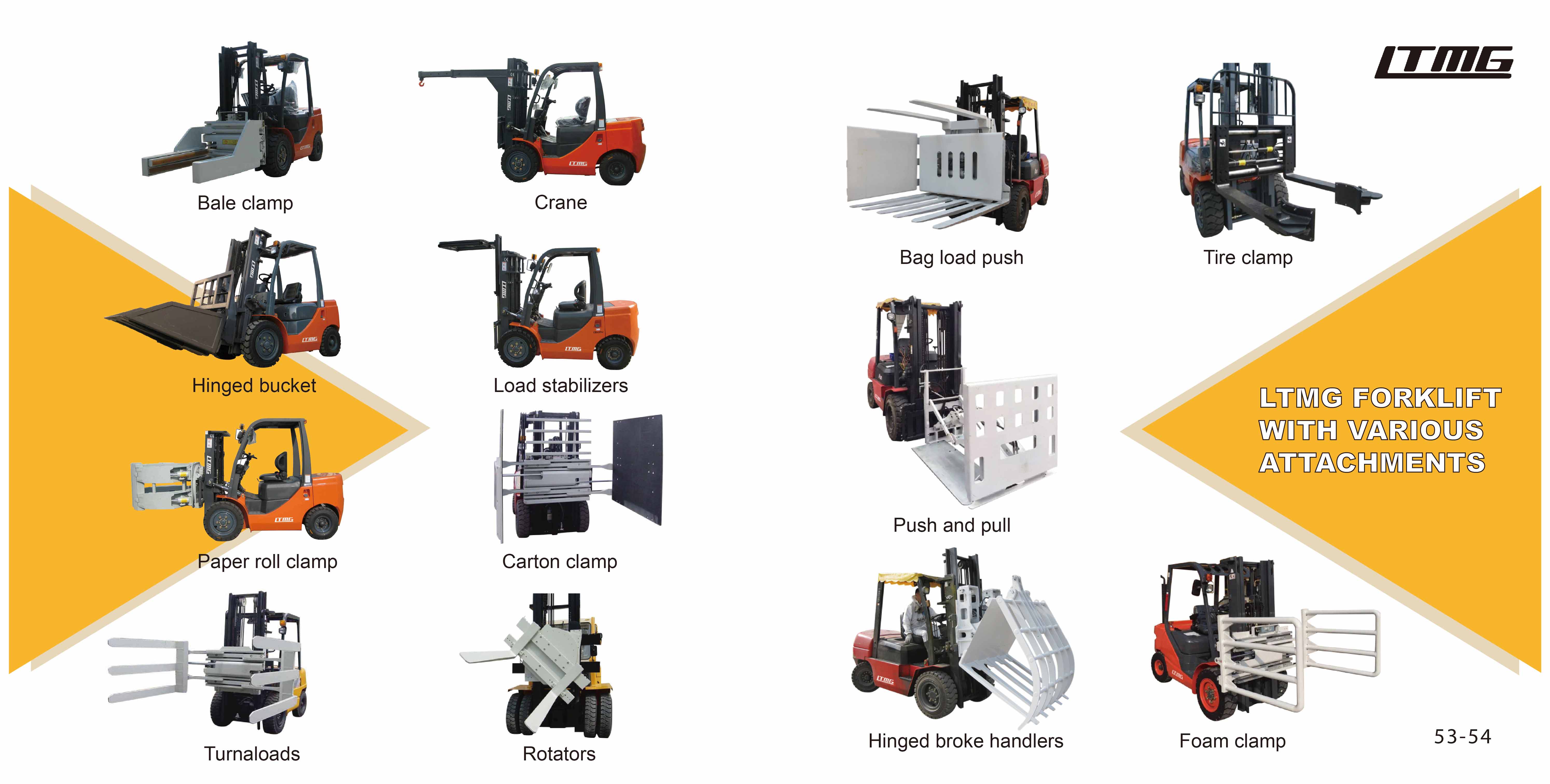

Optional attachment

Customers

After-sale Service.

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (whichever occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
