- Type:Powered Pallet Truck
- After-sales Service Provided:Overseas third-party support available
- Optional:cab wtih AC, side shifter, etc
- Engine:Isuzu ( Chinese engine is optional)
- Warranty:1 year or 2000 working hours
- Truck weight:9450kg
- Tire type:Pnenumatic (double front tyes)
- Ground clearence:190mm
- Height to head guard:2450mm
- Free lift:210mm
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Applicable Industries:warehouse and logistics
- Max. Lifting Height:3000mm
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:3590*1995*2500MM
- Fork Width:150mm
- Fork Length:1220mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0mm

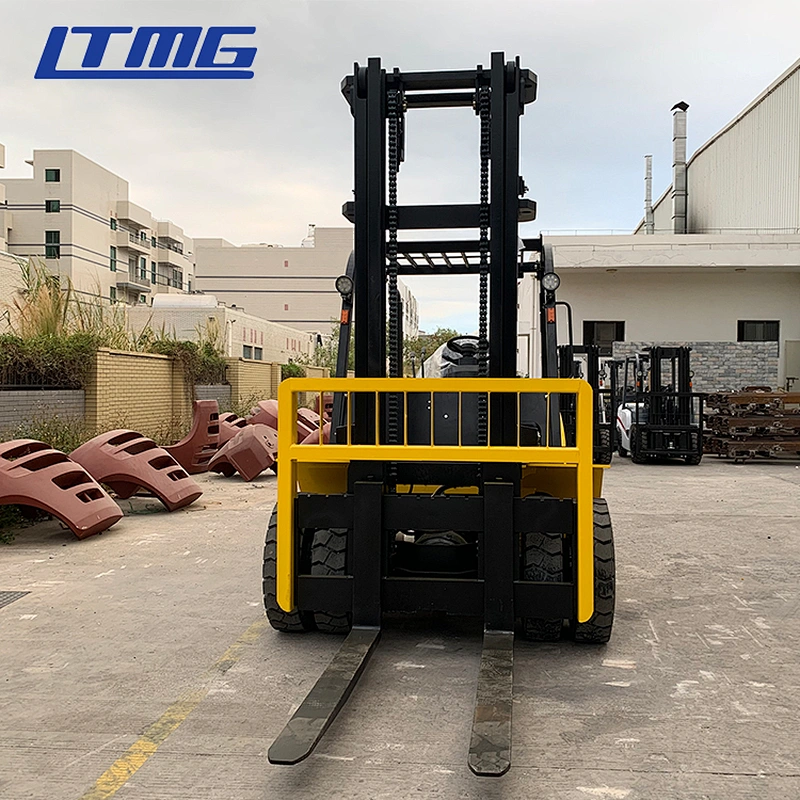

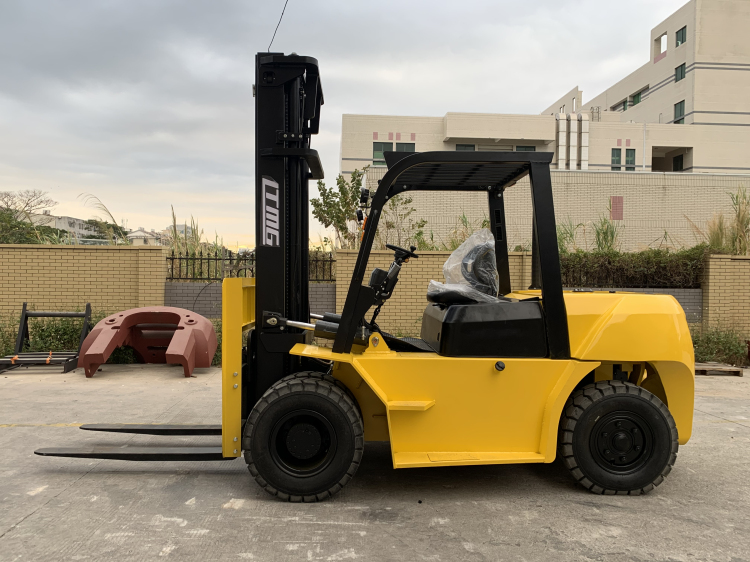

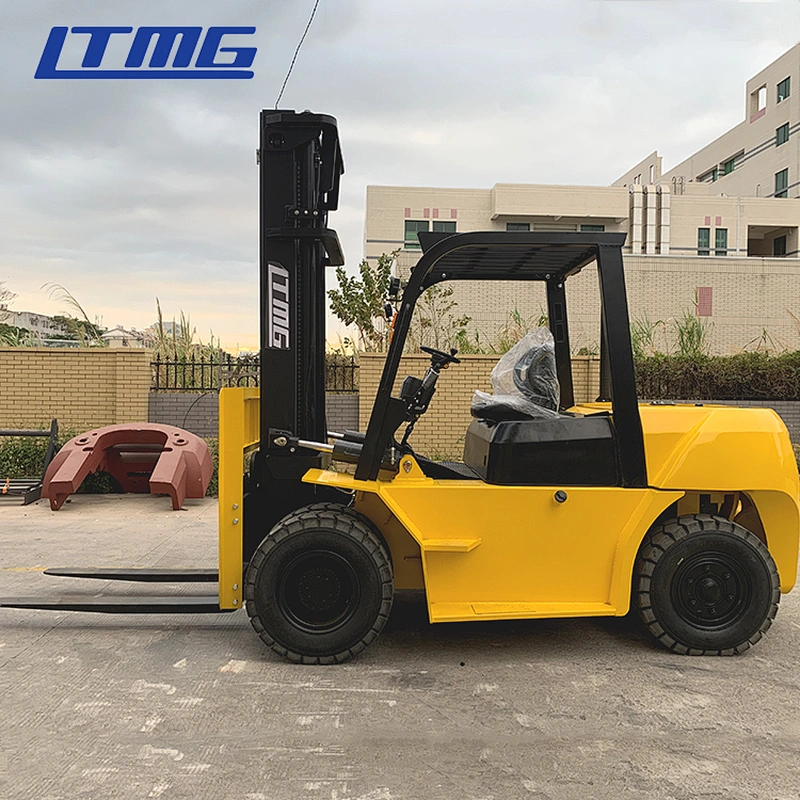

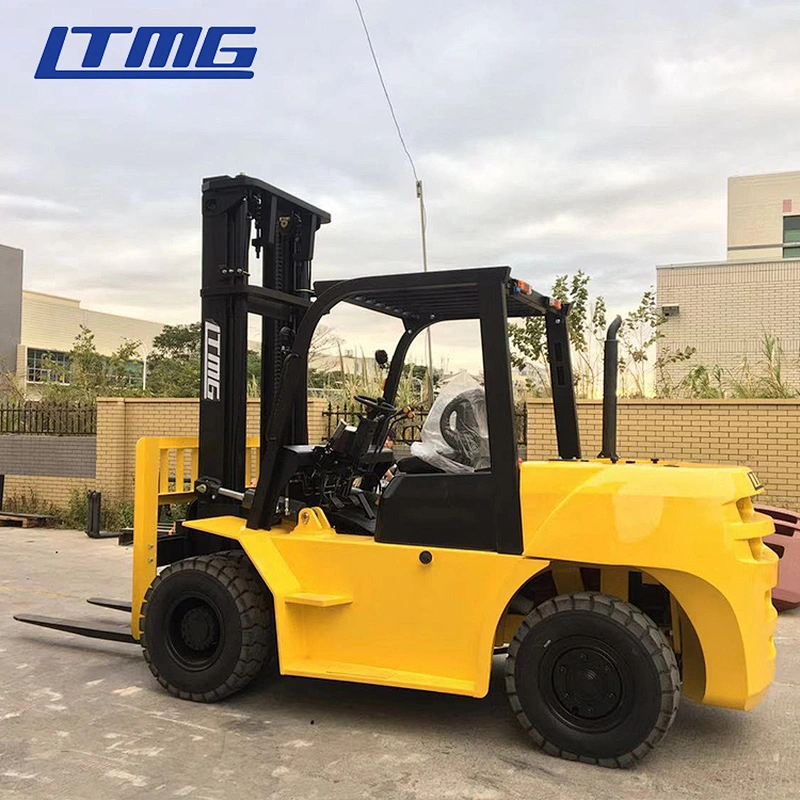

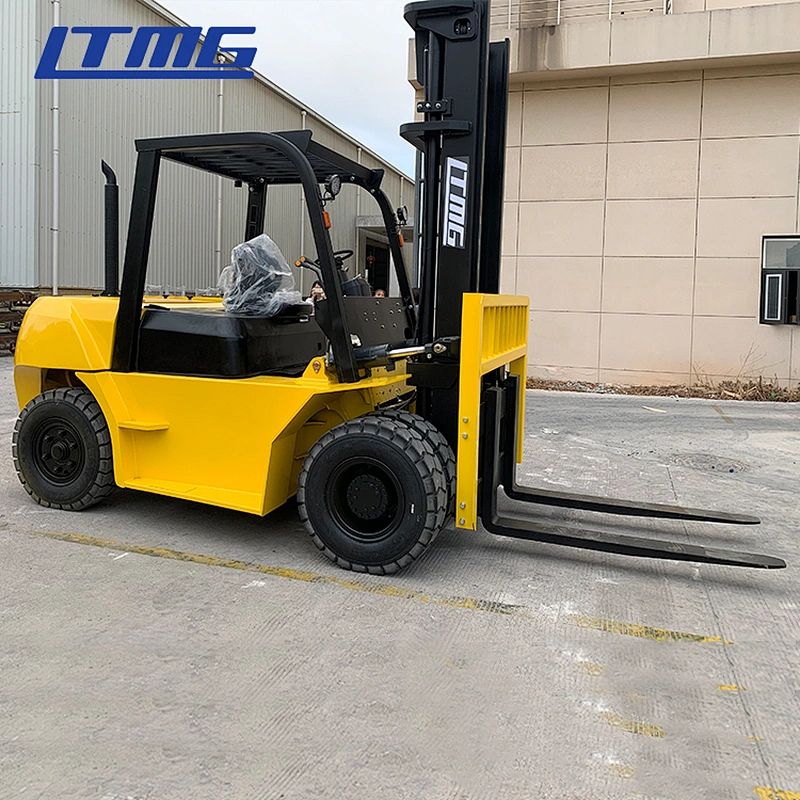

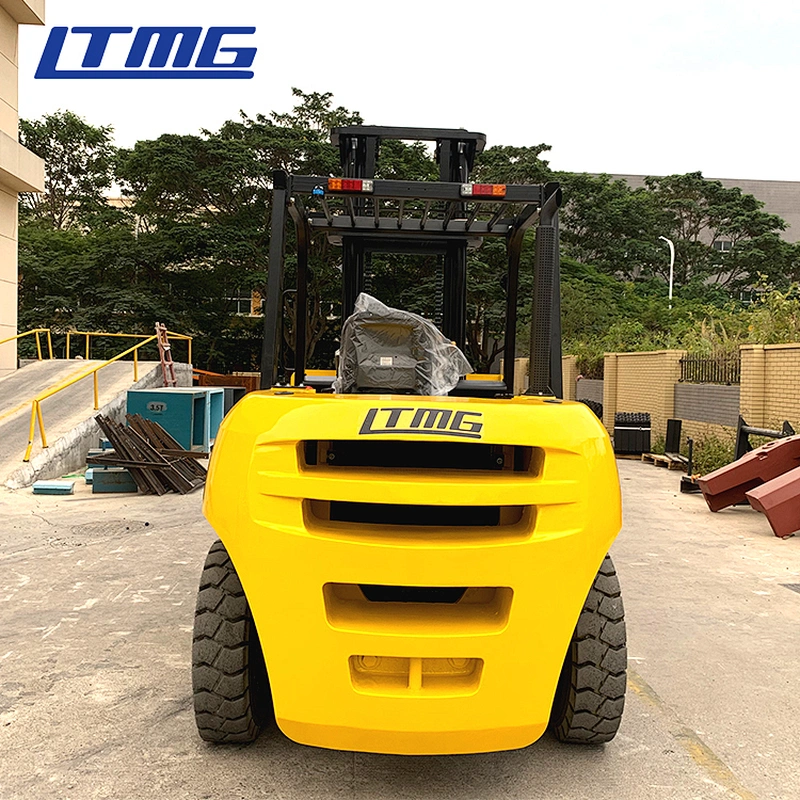

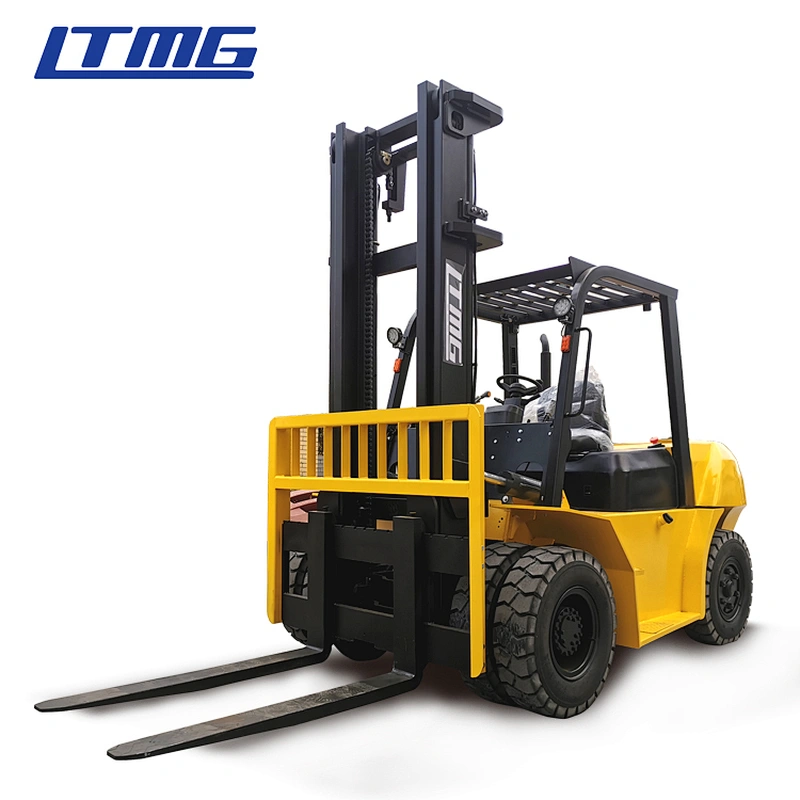

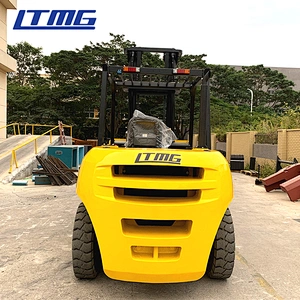

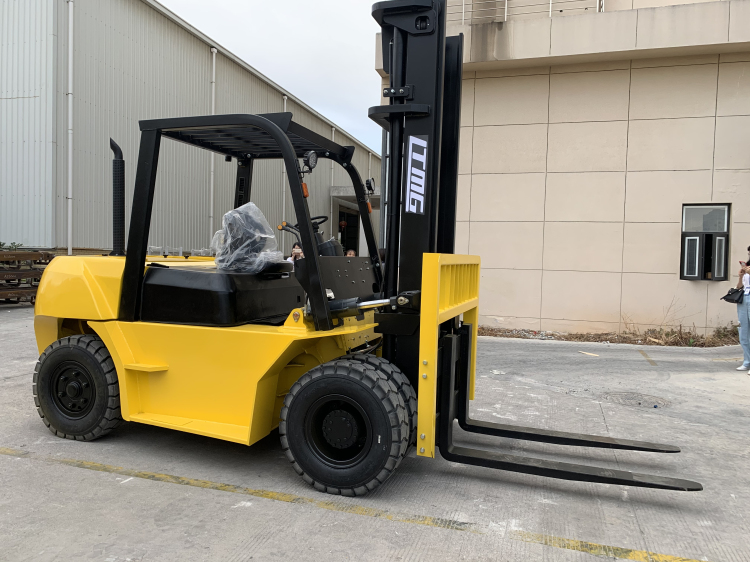

The Specification of 7ton diesel forklift | ||||||||||
Model | FD70 | |||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 7000 | ||||||||
Load Centre | mm | 600 | ||||||||
Lift Height | mm | 3000 | ||||||||
Fork Size | L×W×T | mm | 1220×150×70 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Fork Overhang (Wheel center to fork face) | mm | 595 | ||||||||
Ground Clearance(Bottom of mast) | mm | 200 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 3565 | |||||||
Overall Width | mm | 2010 | ||||||||
Mast Lowered Height | mm | 2500 | ||||||||
Mast Extended Height(With backrest) | mm | 4415 | ||||||||
Overhead Guard Height | mm | 2430 | ||||||||
Turning Radius (outside) | mm | 3350 | ||||||||
Travel (Full load) | km/h | 30 | ||||||||
Lifting (Full load) | mm/s | 460 | ||||||||
Max.Gradeability | % | 20 | ||||||||
Tyre | Front | mm | 8.25-15-14PR | |||||||
Rear | mm | 8.25-15-14PR | ||||||||
Wheelbase | mm | 2250 | ||||||||
Self weight | kg | 9750 | ||||||||
Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | |||||||
Engine | Model | 6BG1-02 | ||||||||
Manufacture | ISUZU | |||||||||
Rated output/r.p.m. | kw | 82.4/2000 | ||||||||
Rated torque/r.p.m. | N·m | 416/1600 | ||||||||
No.of Cylinder | 6 | |||||||||
Bore×Stroke | mm | 105×125 | ||||||||
Displacement | cc | 6494 | ||||||||
Fuel Tank Capacity | L | 125 | ||||||||
Type | Hydraulic | |||||||||
Stage | FWD/RVS | 2/2 | ||||||||

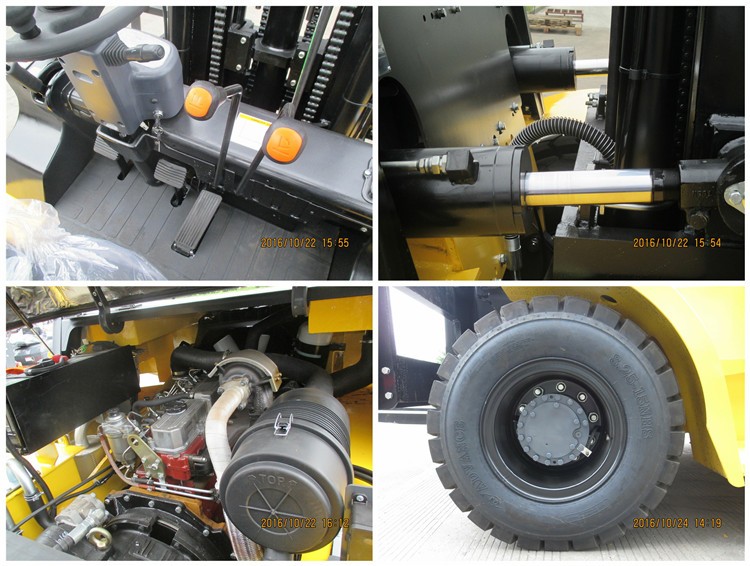

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clientstwelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

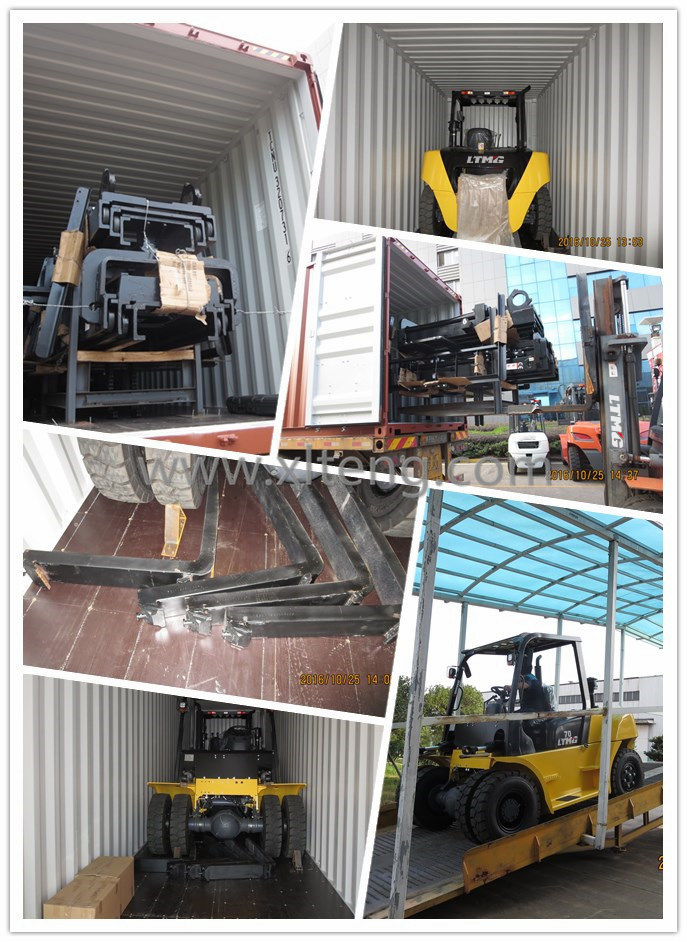

6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
Welcome to contact us for further questions!
