- Type:Manual Pallet Truck
- After-sales Service Provided:Overseas third-party support available

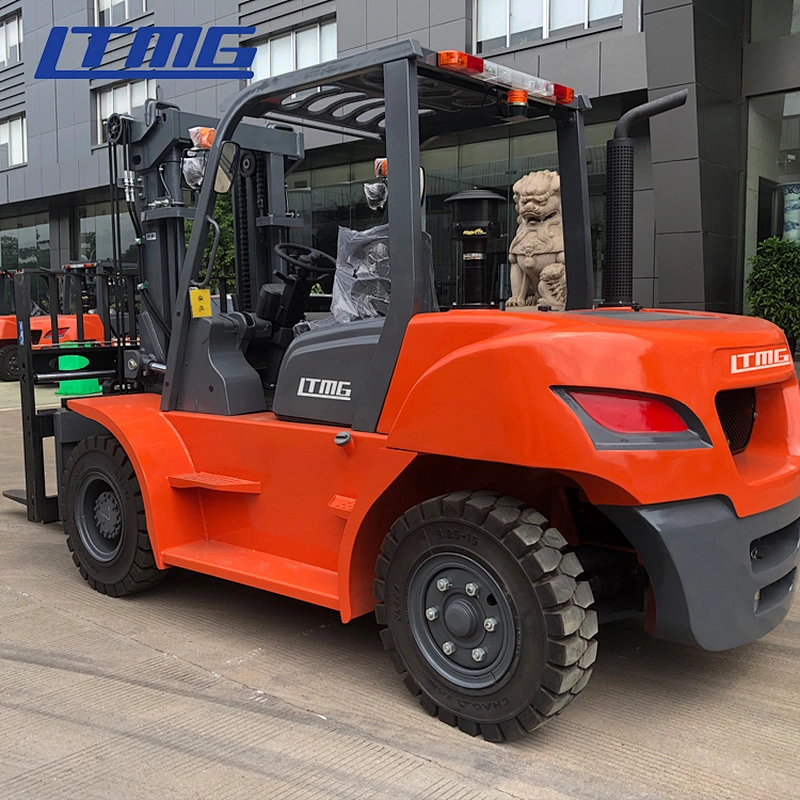

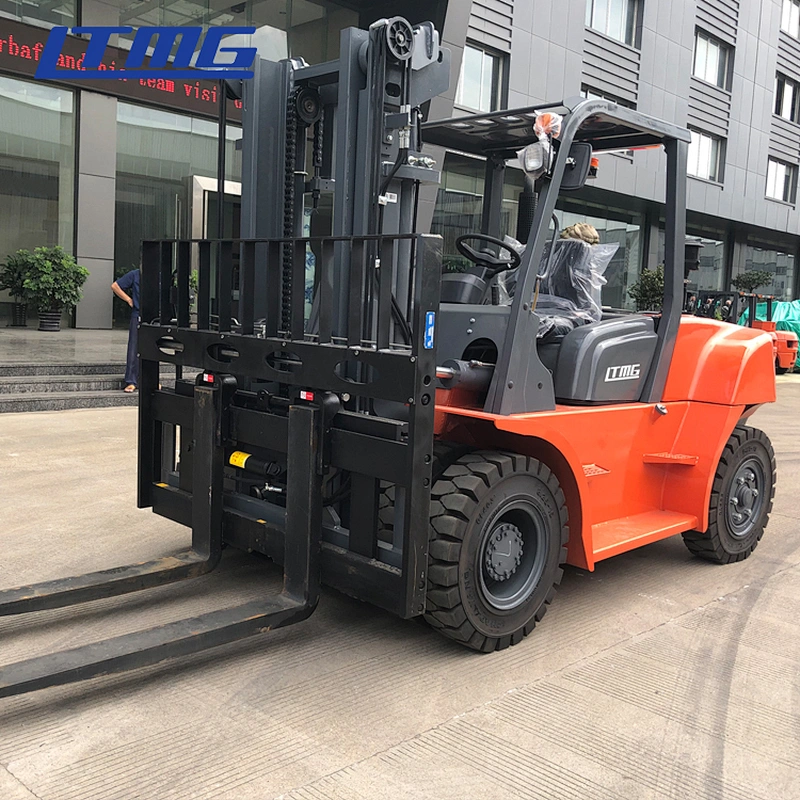

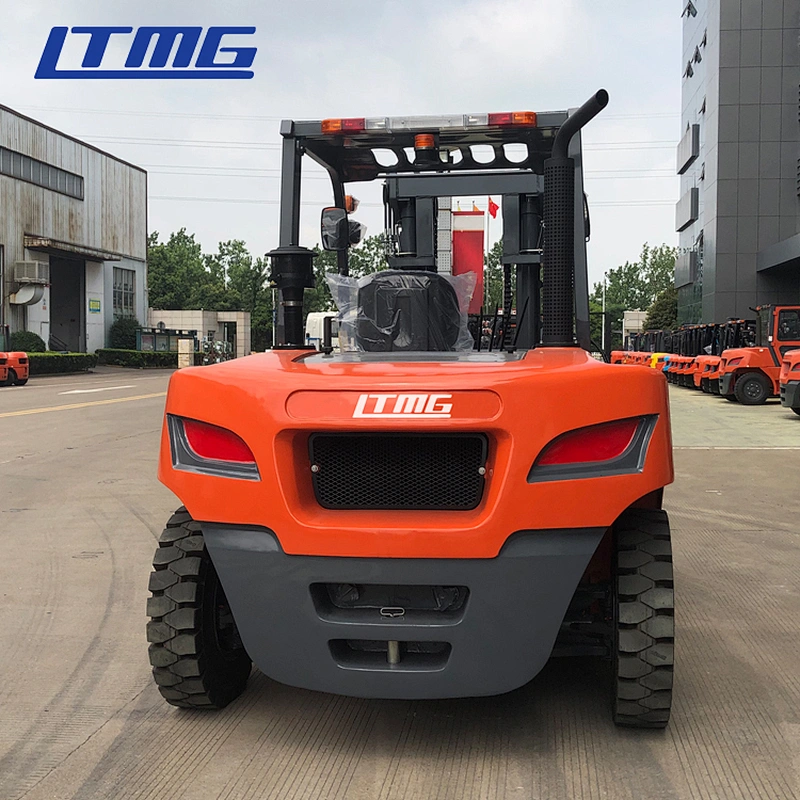

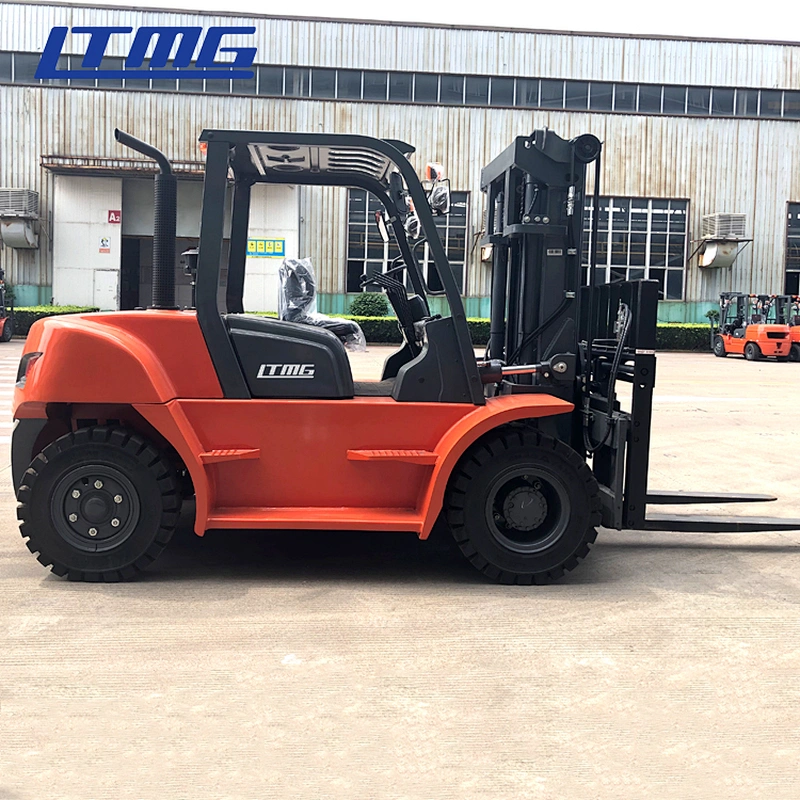

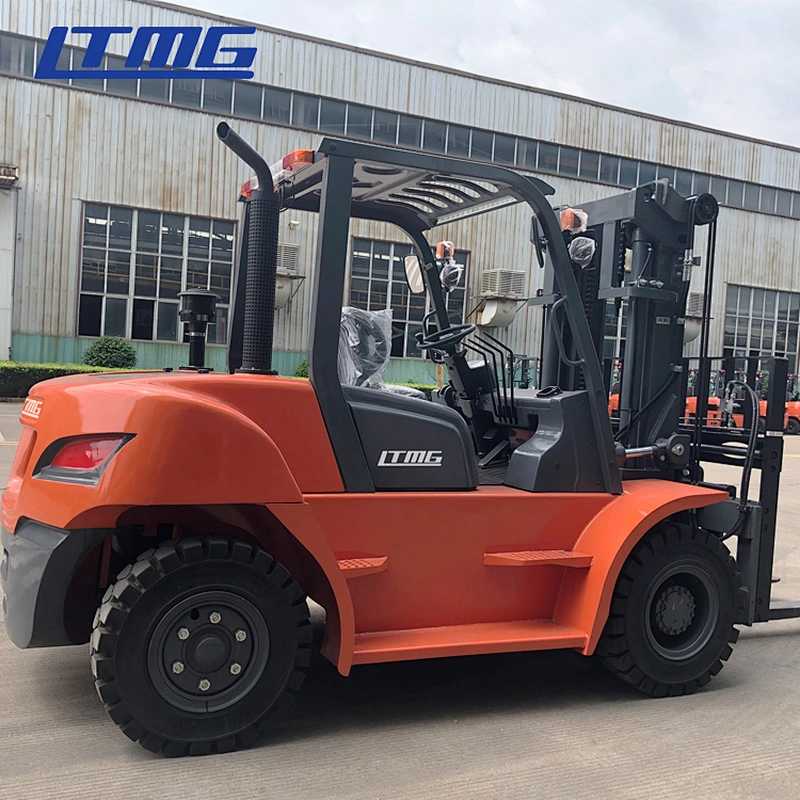

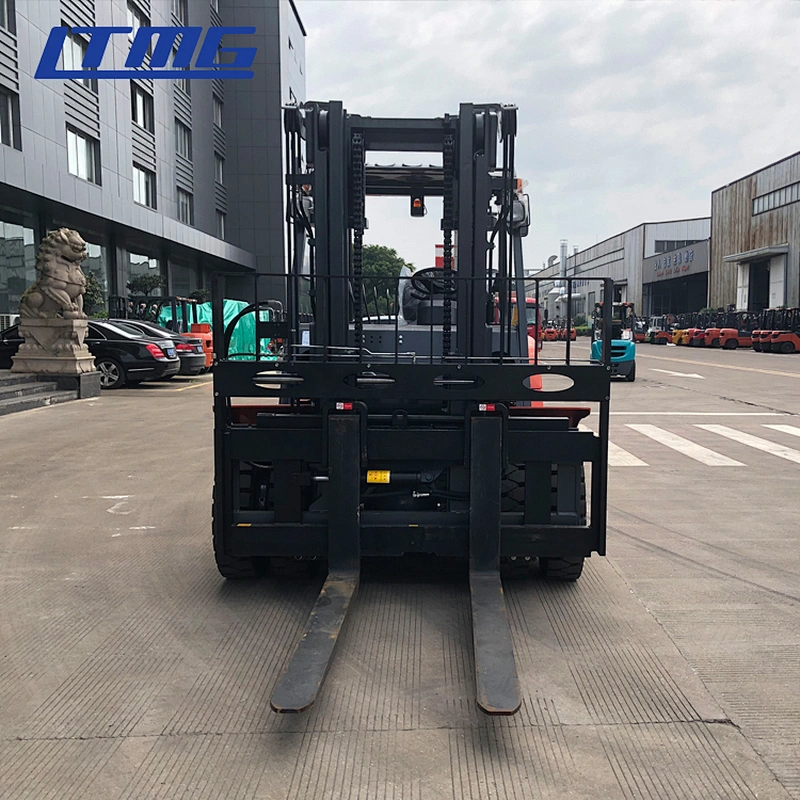

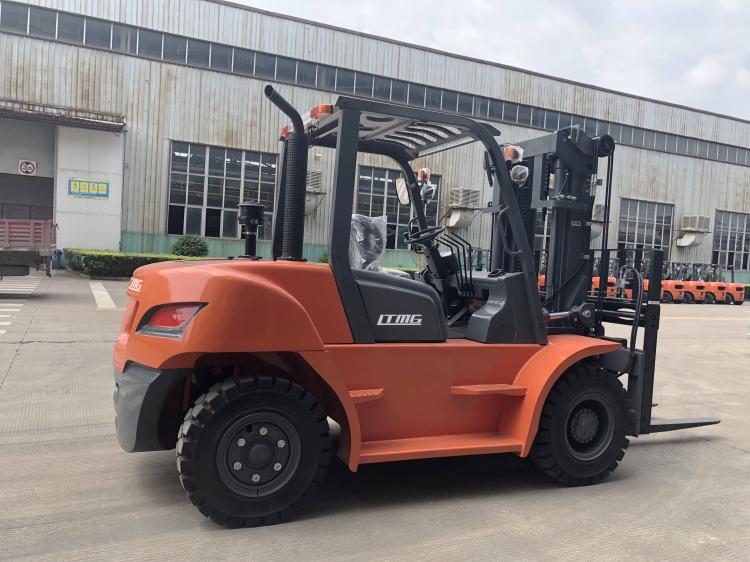

- Item:ltmg 6ton diesel forklift
- Power type:Diesel Forklift
- Tire:Pneumatic Tire
- Load center:600mm
- Engine:Isuzu engine
- Warranty:1 Year/2000 Working Hours
- Brand:LTMG
- website:www.xlteng.com
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- Local Service Location:Brazil
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Brazil
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:3530*1995*2500mm
- Fork Width:150mm
- Fork Length:1220mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0mm

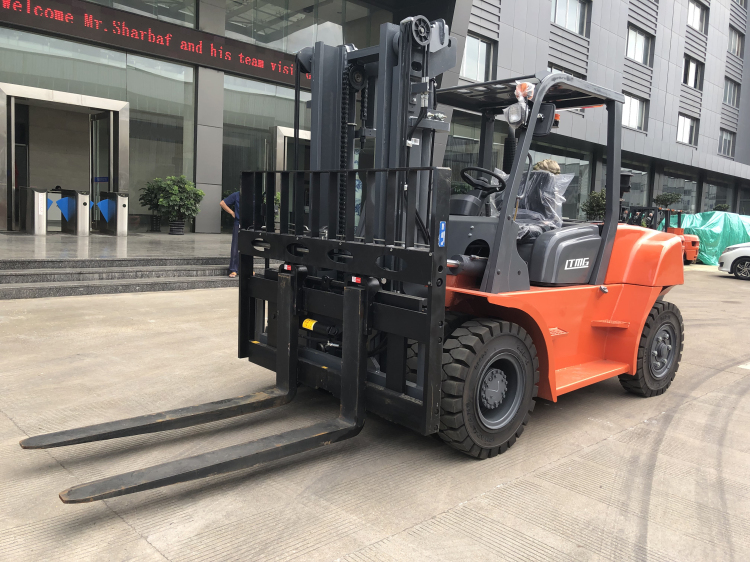

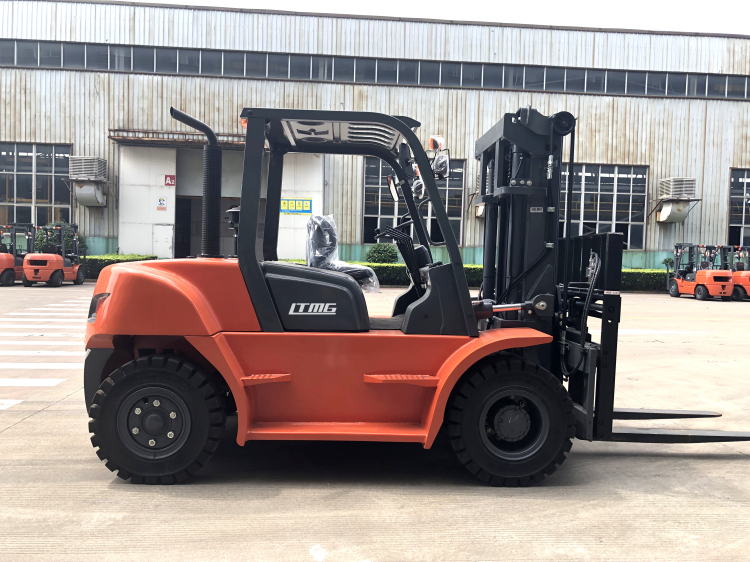

The Specification of 6ton Diesel Forklift | ||||
Model | FD60 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 6000 | ||
Load Centre | mm | 600 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1220×150×60 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 590 | ||
Ground Clearance（Bottom of mast） | mm | 200 | ||
Length to face of fork(Without fork) | mm | 3440 | ||
Overall Width | mm | 2010 | ||
Mast Lowered Height | mm | 2500 | ||
Mast Extended Height(With backrest) | mm | 4415 | ||
Overhead Guard Height | mm | 2430 | ||
Turning Radius (outside) | mm | 3250 | ||
Travel Speed(Full load) | km/h | 30 | ||
Lifting Speed(Full load) | mm/s | 500 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 8.25-15-14PR | ||
Rear Tire | mm | 8.25-15-14PR | ||
Wheelbase | mm | 2250 | ||
Service weight | kg | 8750 | ||
Battery(Voltage/Capacity) | V/Ah | (12/80) x 2 | ||
Engine Model | 6BG1-02 | |||
Manufacture | ISUZU | |||
Rated output/r.p.m. | kw | 82.4/2000 | ||
Rated torque/r.p.m. | N·m | 416/1600 | ||
No.of Cylinder | 6 | |||
Bore×Stroke | mm | 105×125 | ||
Displacement | cc | 6494 | ||
Fuel Tank Capacity | L | 125 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 2/2 | ||
LTMG always treat after-sale as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours(which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
Welcome to contact us for further questions!
