- Type:Powered Pallet Truck
- Engine:ISUZU/ Mitsubishi (Chinese engine optional)
- Loading center:600mm
- Color:Customized
- Tire:Pneumatic ( Solid is optional)
- Wheel base:2250mm
- Mast:2 Stage (3 Stage is optional)
- Optional:side shifter, fork positioner,Cab with A/C etc
- Transmission type:Hydraulic or Mechanical
- Number of cylinders:6
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:United Kingdom
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Viet Nam
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Kenya
- Local Service Location:Argentina
- Local Service Location:South Korea
- Local Service Location:Chile
- Local Service Location:UAE
- Local Service Location:Colombia
- Local Service Location:Algeria
- Local Service Location:Sri Lanka
- Local Service Location:Romania
- Local Service Location:Bangladesh
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Local Service Location:Kyrgyzstan
- Local Service Location:Uzbekistan
- Local Service Location:Tajikistan
- Showroom Location:Egypt
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3183*1485*2350mm
- Certification:CE/ISO9001

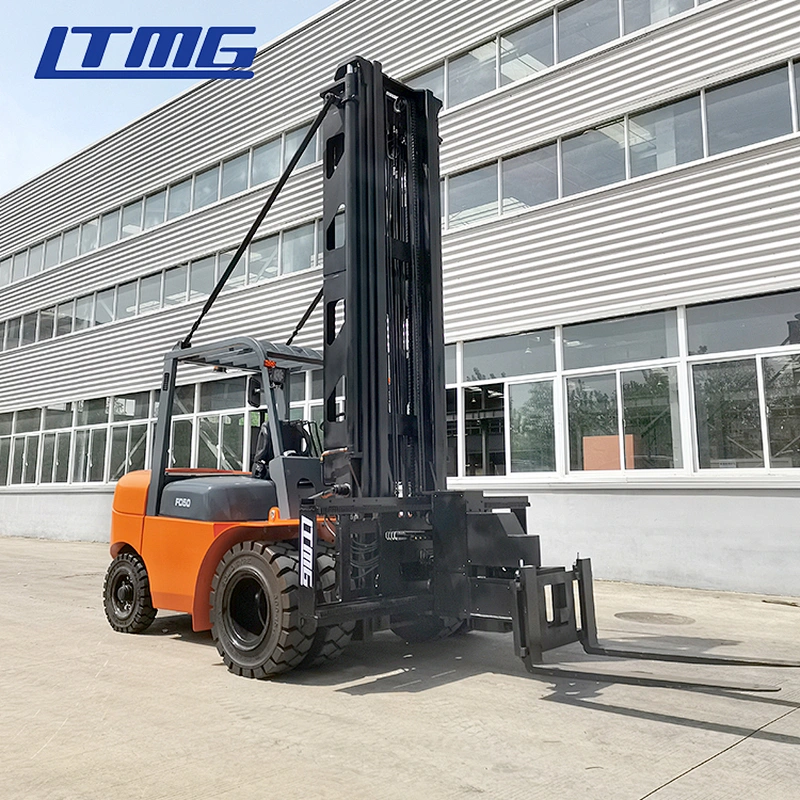

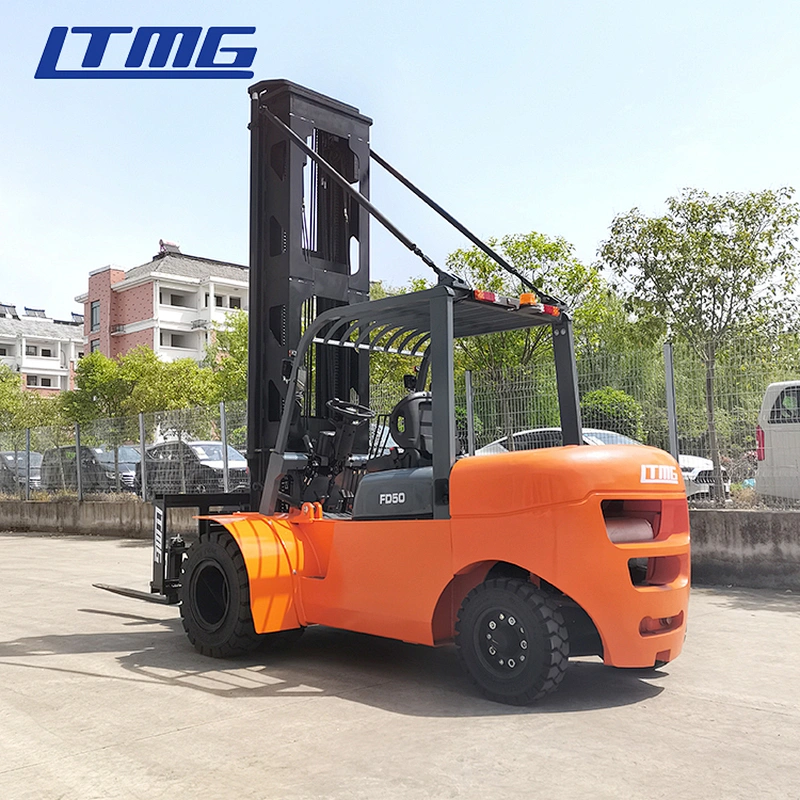

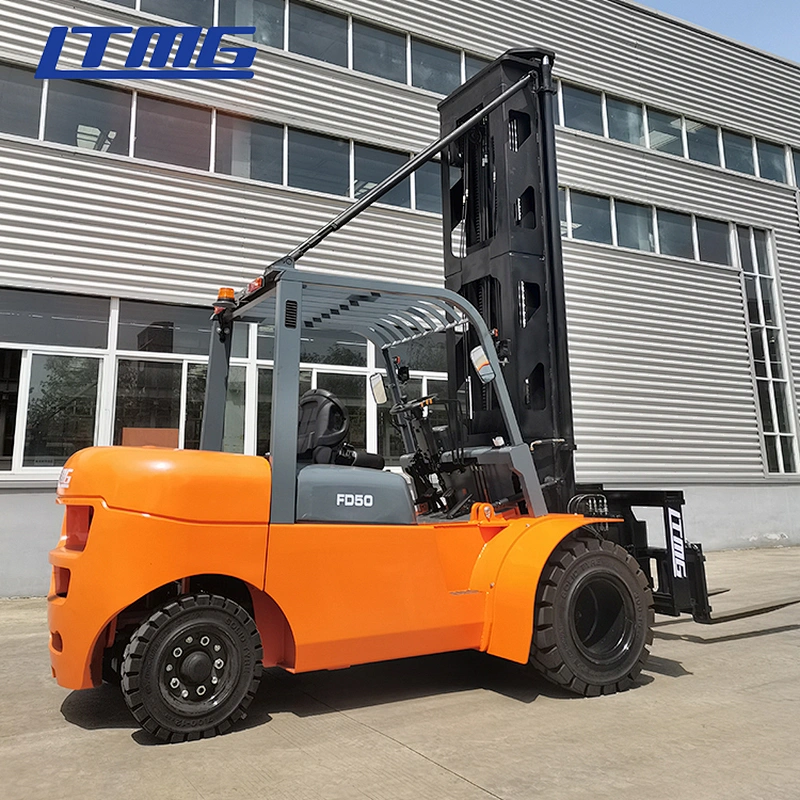

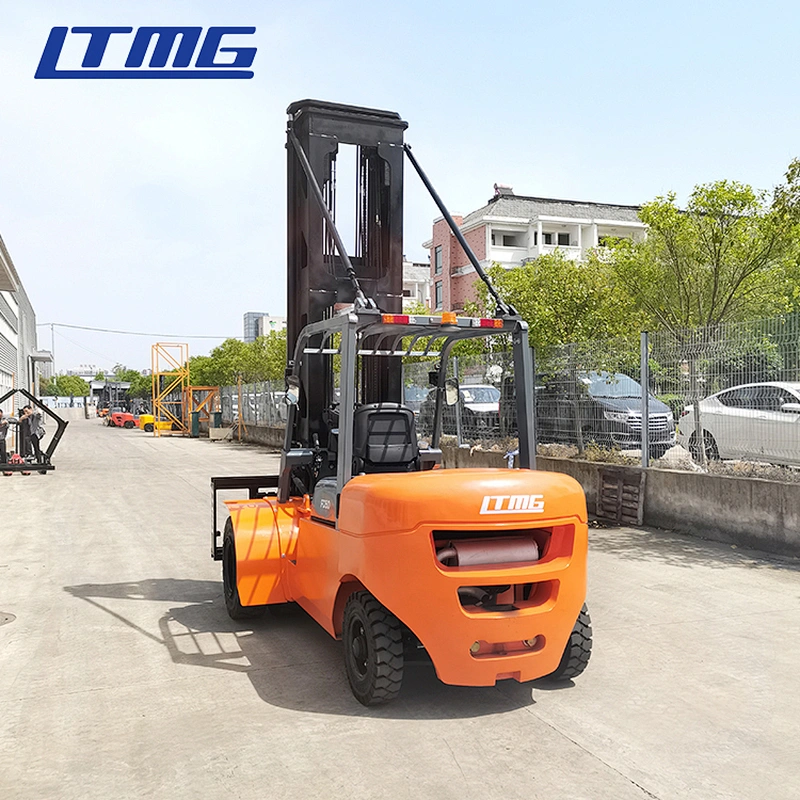

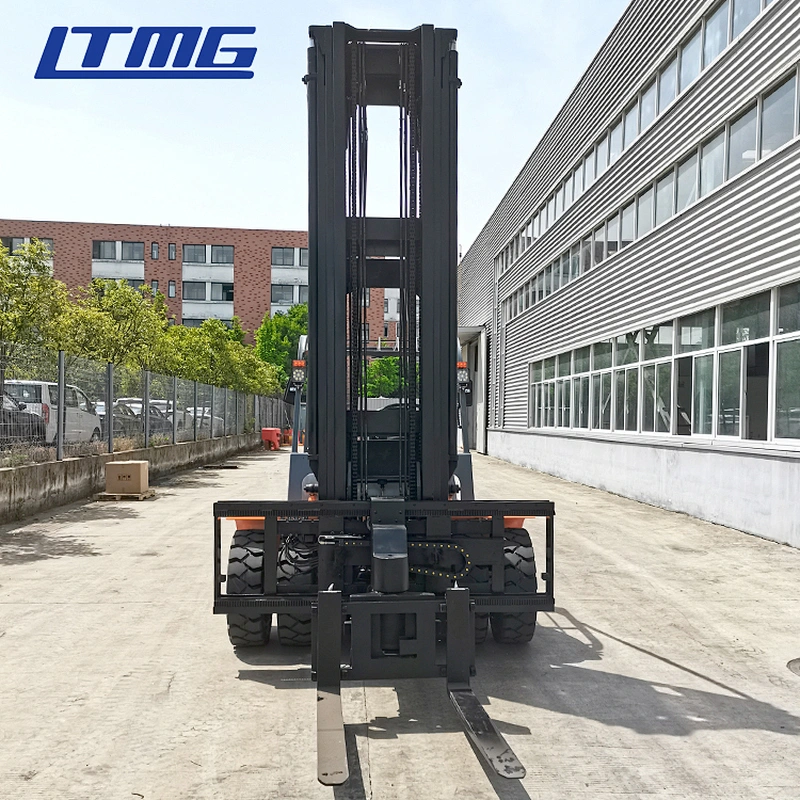

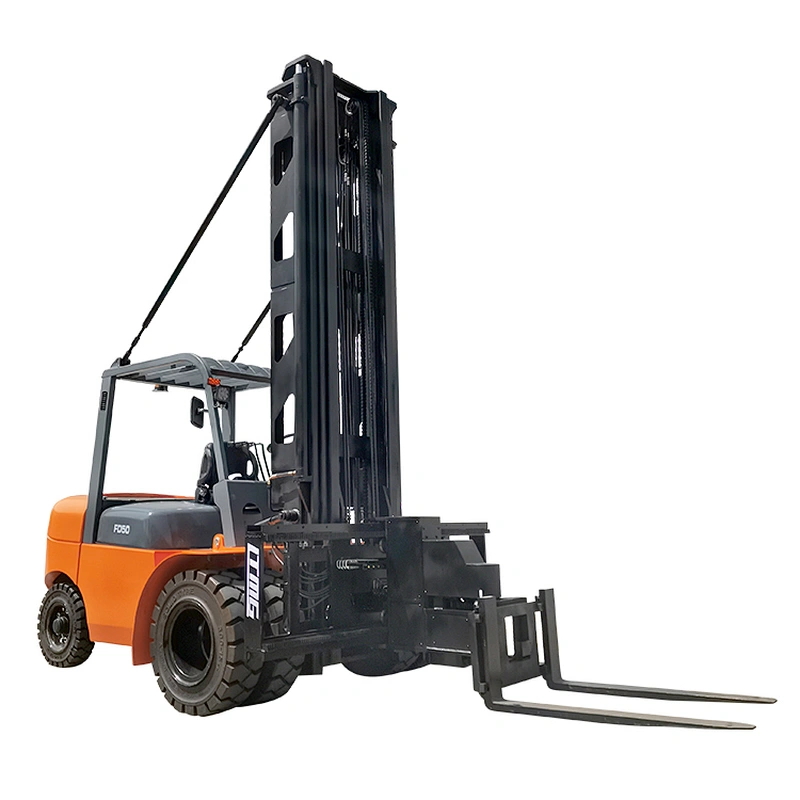

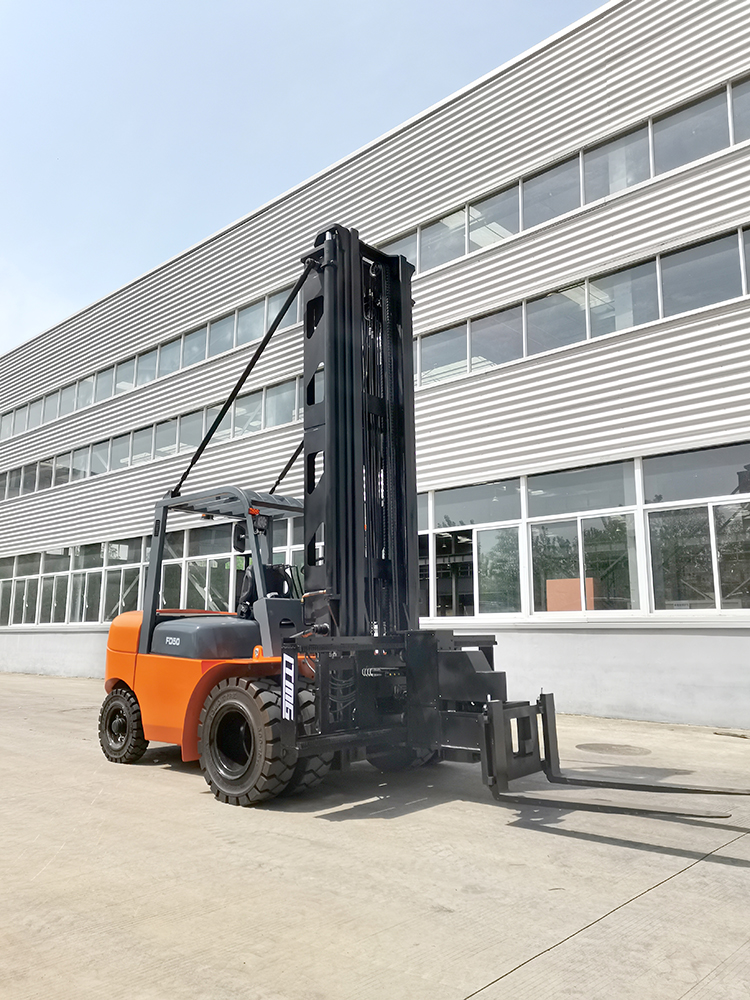

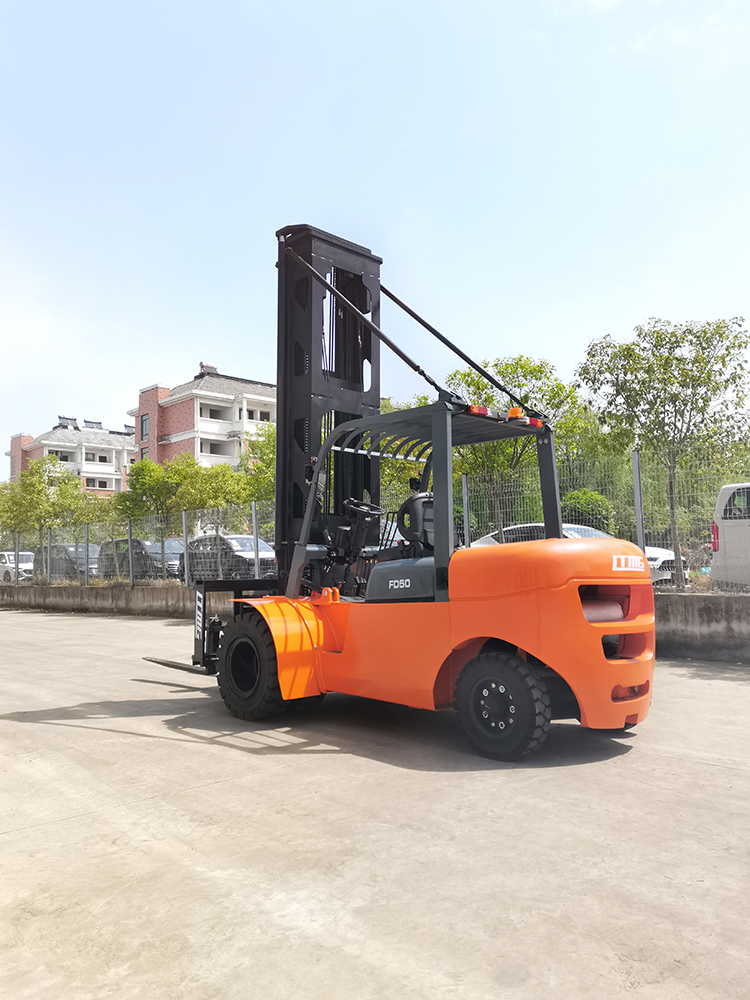

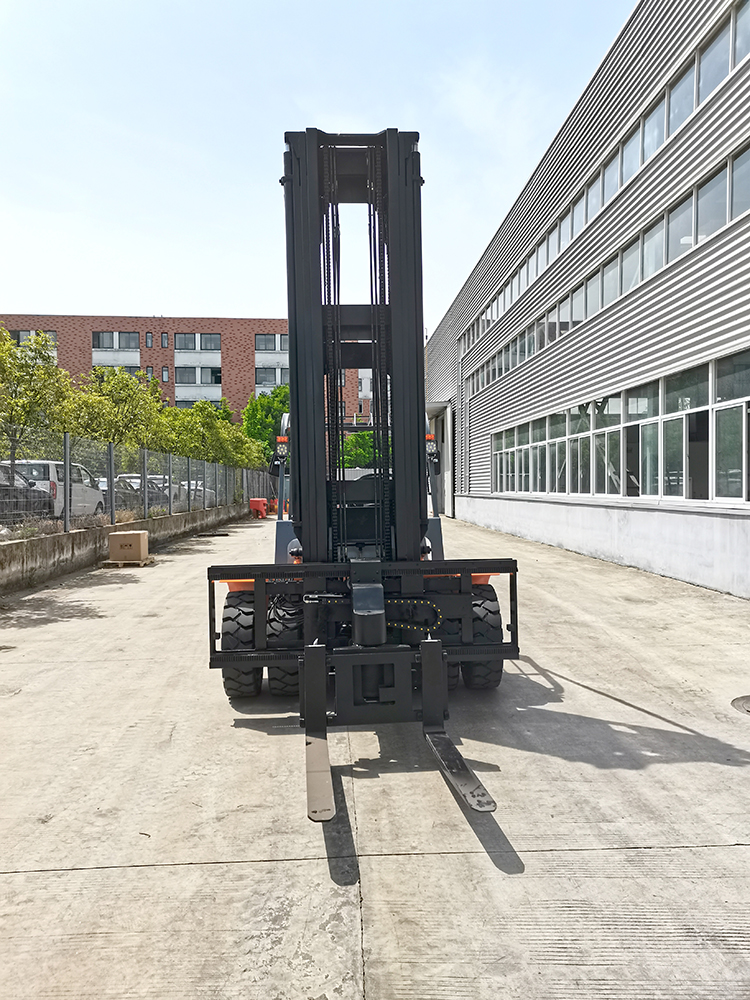

5 ton diesel forklift
Lifting capacity: 5 ton7.5m lifting height 3-stage mast Hydraulic transmissionISUZU 6BG1 enginesolid tyresDual front tiresCameraLifting 7.5m, 800kg loadFork length:1220mmAisle size: 2.4m
LTMG 3 ton 4 ton 5 ton forklift specification as below: | ||||||||||
Model | FD30 | FD40 | FD50 | |||||||
Power type | Diesel | Diesel | Diesel | |||||||
Rated capacity | kg | 3000 | 4000 | 5000 | ||||||
Load center | mm | 500 | 500 | 500 | ||||||
Lift height | mm | 3000 | 3000 | 3000 | ||||||
Fork size | L*W*T | mm | 1070*125*45 | 1070*150*50 | 1070*150*50 | |||||
Mast tilt angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | |||||
Fork Overhang(Wheel center to fork face) | mm | 480 | 495 | 579 | ||||||
Ground clearance | mm | 140 | 140 | 150 | ||||||
Overall dimension | Length to face of fork (without fork) | mm | 2730 | 2890 | 3260 | |||||
Overall width | mm | 1225 | 1410 | 1460 | ||||||
Mast lowered height | mm | 2115 | 2195 | 2270 | ||||||
Mast extended height (with backrest) | mm | 4150 | 4180 | 4165 | ||||||
Overhead guard height | mm | 2090 | 2120 | 2340 | ||||||
Turning radius(outside) | mm | 2440 | 2700 | 2910 | ||||||
Speed | Travel(Full load) | km/h | 20 | 19 | 25 | |||||
Lifting(Full load) | mm/s | 510 | 320 | 380 | ||||||
Max gradeability | % | 20 | 20 | 20 | ||||||
Tyre | Front | mm | 28*9-15-12PR | 250-15-16PR | 300-15-18PR | |||||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||||
Wheel base | mm | 1700 | 1900 | 2100 | ||||||
Service weight | kg | 4300 | 5100 | 6880 | ||||||
Engine | Model | C240 | 4JG2PE-01 | 6BG1-05 | ||||||
Manufacture | Isuzu | Isuzu | Isuzu | |||||||
Rated output | kw | 35.4/2500 | 46/2450 | 68.4/2000 | ||||||
Rated torque | N.m | 137.7/1800 | 184.7/1800 | 333/1500 | ||||||
No of cylinder | 4 | 4 | 6 | |||||||
Bore*stroke | 86*102 | 95.4*107 | 105*125 | |||||||
Displacement | cc | 2369 | 3059 | 6494 | ||||||
Fuel tank capacity | L | 70 | 70 | 105 | ||||||
Transmission | Type | Hydraulic/Manual | Hydraulic/Manual | Hydraulic/Manual | ||||||
Stage FWD/RVS | 1/1 | 1/1 | 2/1 | |||||||
