- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Spare parts
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Brazil
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Place of Origin:CN;FUJ
- Power Souce:LP Gas Engine
- Warranty:1 year
- After-sales Service Provided:Video technical support
- Brand Name:LTMG
- Max. Lifting Height:3m
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:5800*2200*3015mm
- Certification:CE/ISO9001:2008
- Applicable Industries:warehouse logistics

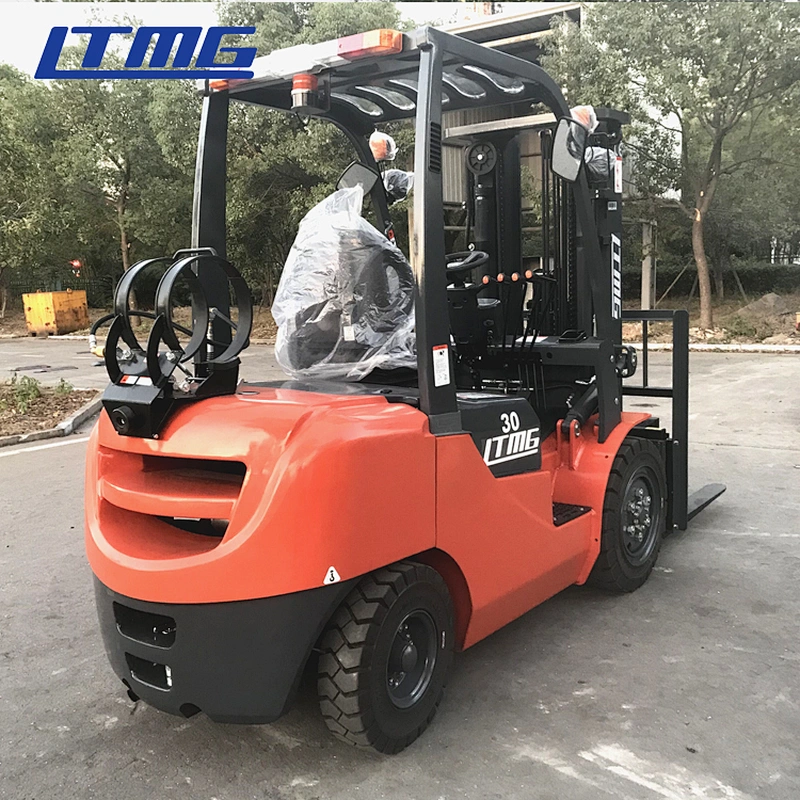

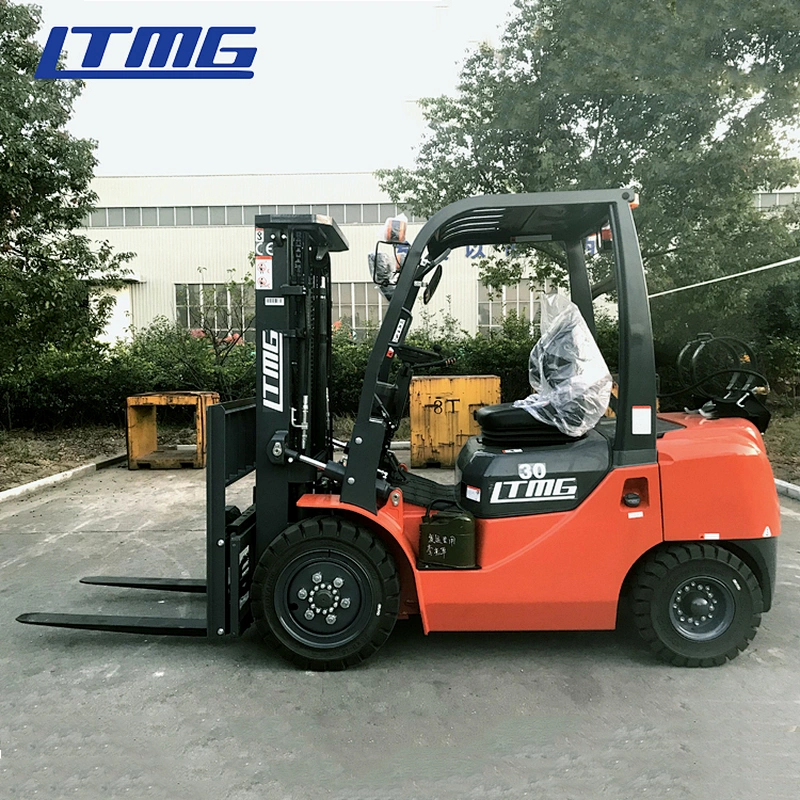

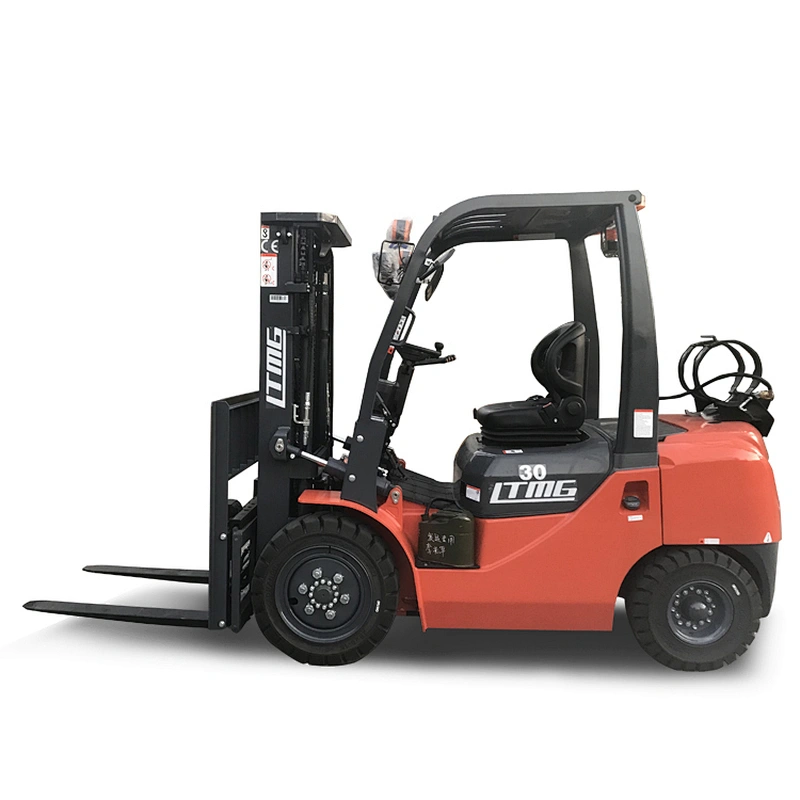

General | Model | FG30 | ||||||
Power Type | LPG & Gasoline | |||||||
Rated Capacity | kg | 3000 | ||||||
Load Centre | mm | 500 | ||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||
Fork Size | L×W×T | mm | 1070×125×45 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 480 | ||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | |||||
Overall Width | mm | 1225 | ||||||
Mast Lowered Height | mm | 2115 | ||||||
Mast Extended Height(With backrest) | mm | 4150 | ||||||
Overhead Guard Height | mm | 2090 | ||||||
Turning Radius (outside) | mm | 2440 | ||||||
Performance | Speed | Travel (Empty load) | km/h | 20 | ||||
Travel (Empty load) | mm/s | 510 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Chassis | Tire | Front | mm | 28×9-15-12PR | ||||
Rear | mm | 6.50-10-10PR | ||||||
Wheelbase | mm | 1700 | ||||||
Service weight | kg | 4300 | ||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||
Engine | Model | K25 | ||||||
Manufacture | GCT (NISSAN) | |||||||
Rated output/r.p.m. | kw | 35.6/2100 | ||||||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 89×100 | ||||||
Displacement | cc | 2488 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
What are the features of our products?
1.The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.

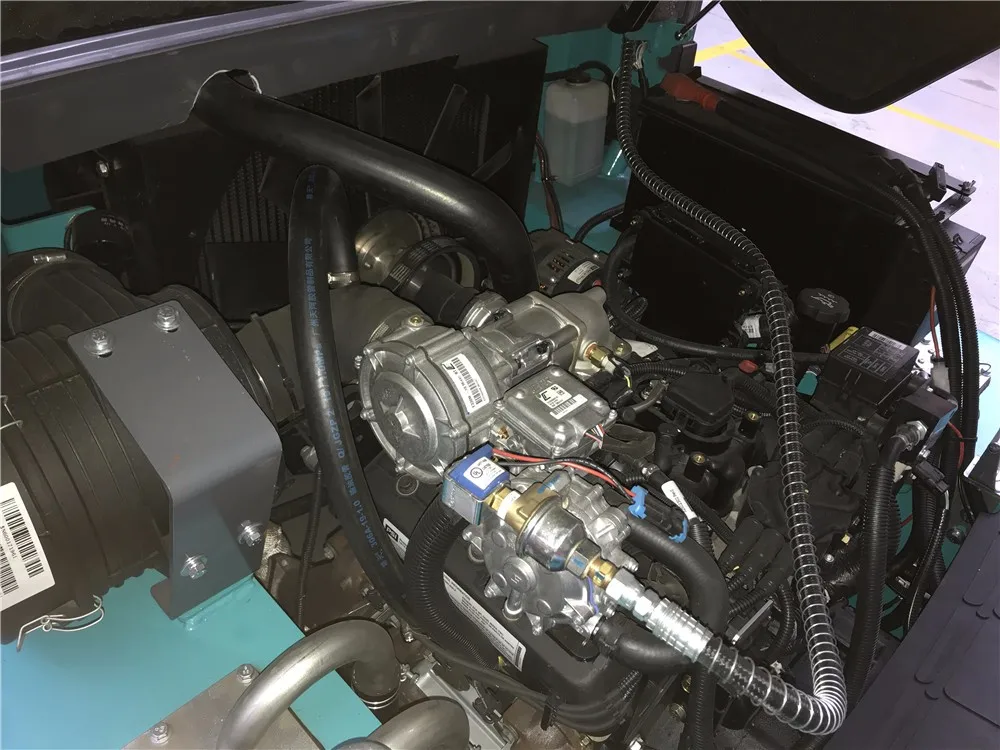

2.Equipped with USA IMPCO gas system which is more reliable.
3.Thicker reinforcing plate ensures the safety and efficiency.
4.New designed overhead guard protective device prevent the sudden accidents.

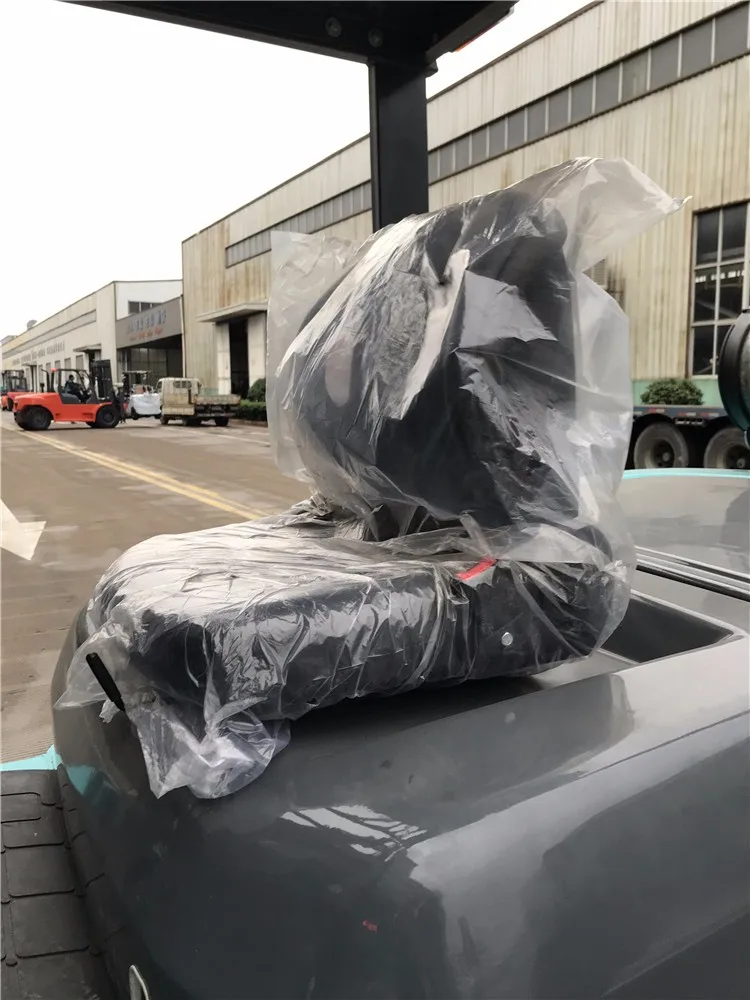

5. Original Toyota seat with safety belt
6. Japanese Nissan K25 EPA engine
After-sale Service
LTMG grants our clients a twelve-month-periodor2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
