Model | FD40 | FD50 | |||
Power type | Diesel | Diesel | |||
Rated capacity | kg | 4000 | 5000 | ||
Load center | mm | 500 | 500 | ||
Lift height | mm | 3000 | 3000 | ||
Fork size | L*W*T | mm | 1070*150*50 | 1070*150*50 | |
Mast tilt angle | F/R | Deg | 6°/12° | 6°/12° | |
Fork Overhang(Wheel center to fork face) | mm | 495 | 579 | ||
Ground clearance | mm | 140 | 150 | ||
Overall dimension | Length to face of fork (without fork) | mm | 2890 | 3260 | |
Overall width | mm | 1410 | 1460 | ||
Mast lowered height | mm | 2195 | 2270 | ||
Mast extended height (with backrest) | mm | 4180 | 4165 | ||
Overhead guard height | mm | 2120 | 2340 | ||
Turning radius(outside) | mm | 2700 | 2910 | ||
Speed | Travel(Full load) | km/h | 19 | 25 | |
Lifting(Full load) | mm/s | 320 | 380 | ||
Max gradeability | % | 20 | 20 | ||
Tyre | Front | mm | 250-15-16PR | 300-15-18PR | |
Rear | mm | 6.50-10-10PR | 7.00-12-12PR | ||
Wheel base | mm | 1800 | 2100 | ||
Service weight | kg | 5100 | 6880 | ||

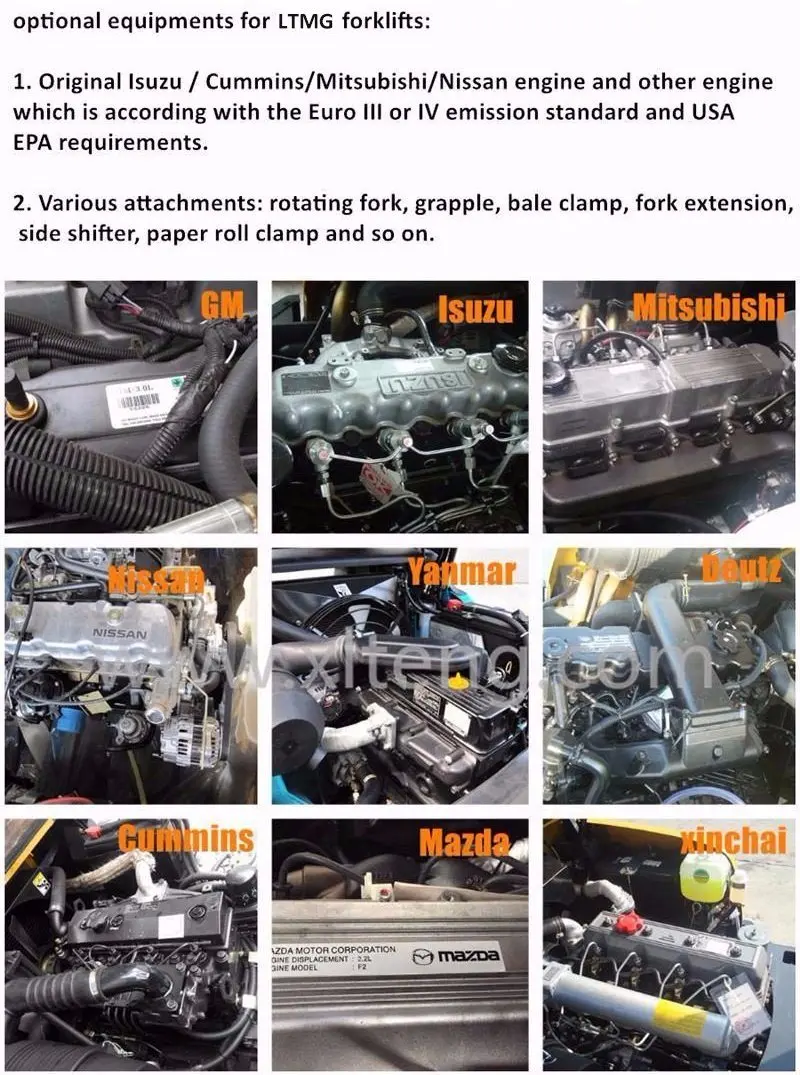

Engine | Model | 4JG2PE-01 | 6BG1-05 | ||
Manufacture | Isuzu | Isuzu | |||
Rated output | kw | 46/2450 | 68.4/2000 | ||
Rated torque | N.m | 184.7/1800 | 333/1500 | ||
No of cylinder | 4 | 6 | |||
Bore*stroke | 95.4*107 | 105*125 | |||
Displacement | cc | 3059 | 6494 | ||
Fuel tank capacity | L | 70 | 105 | ||
Transmission | Type | Hydraulic | Hydraulic | ||
Stage FWD/RVS | 1/1 | 2/1 | |||

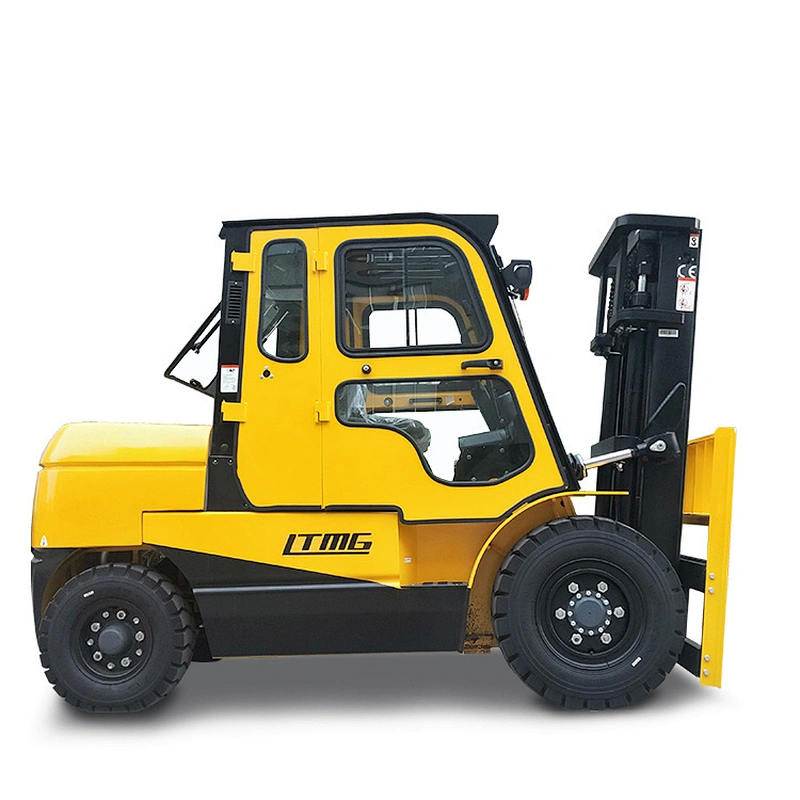

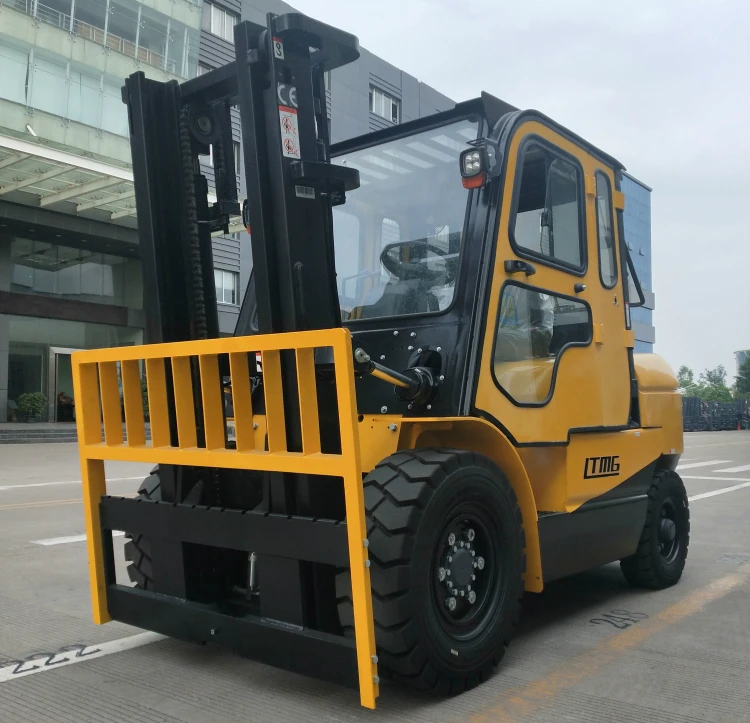

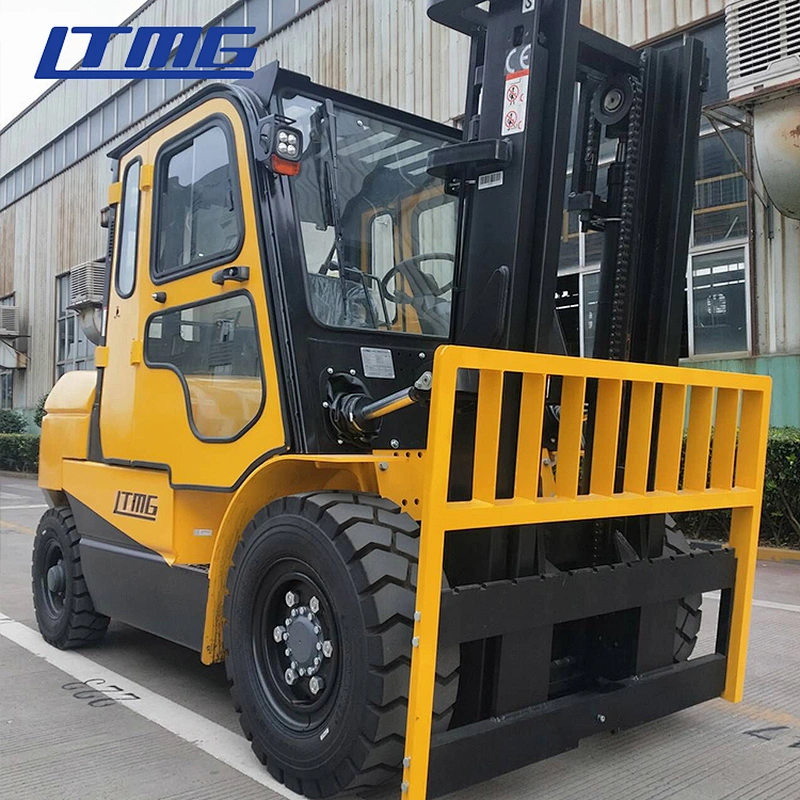

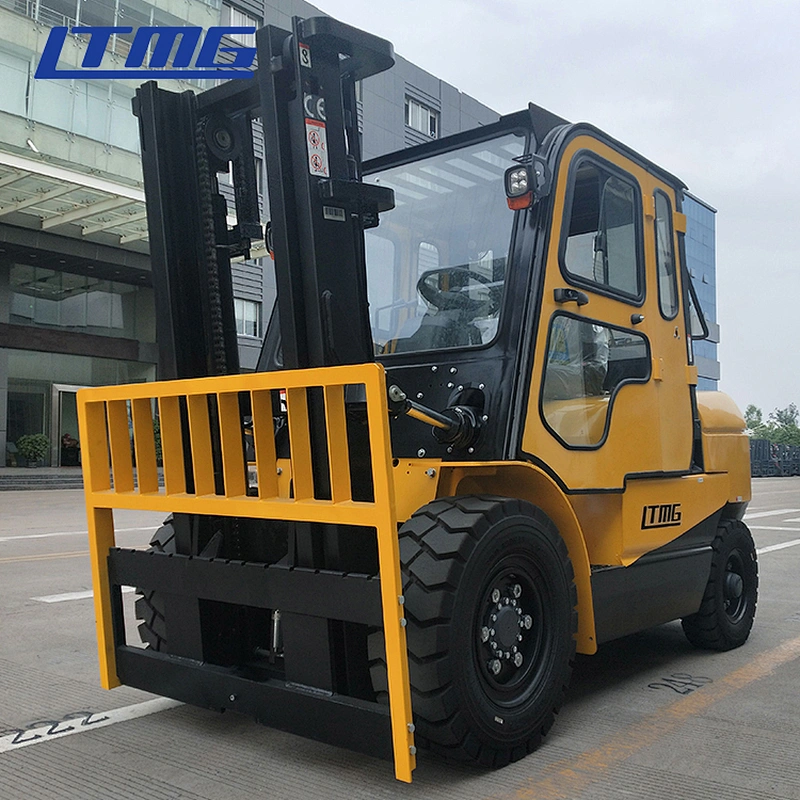

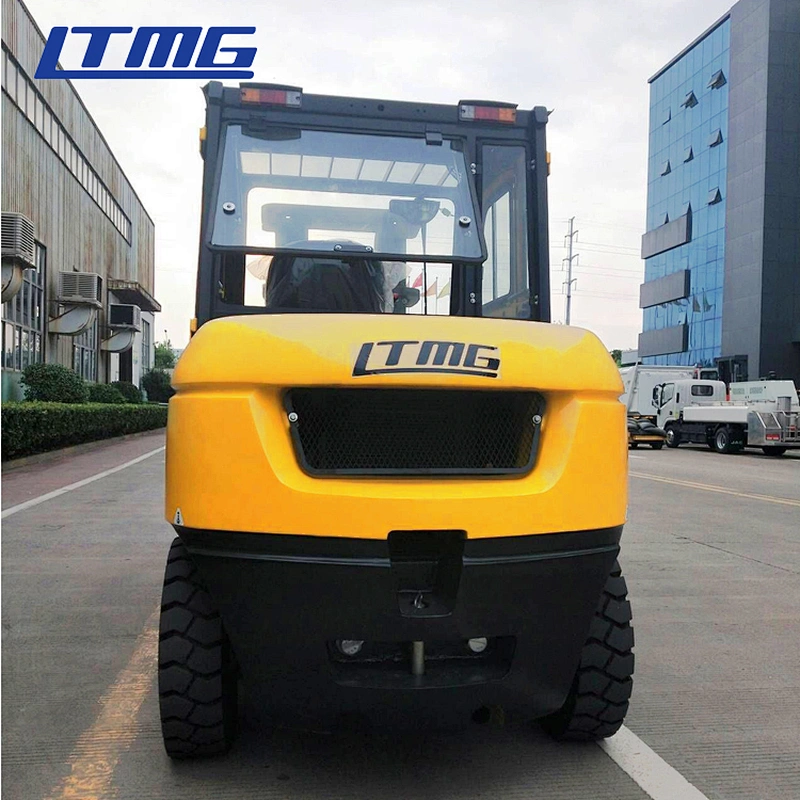

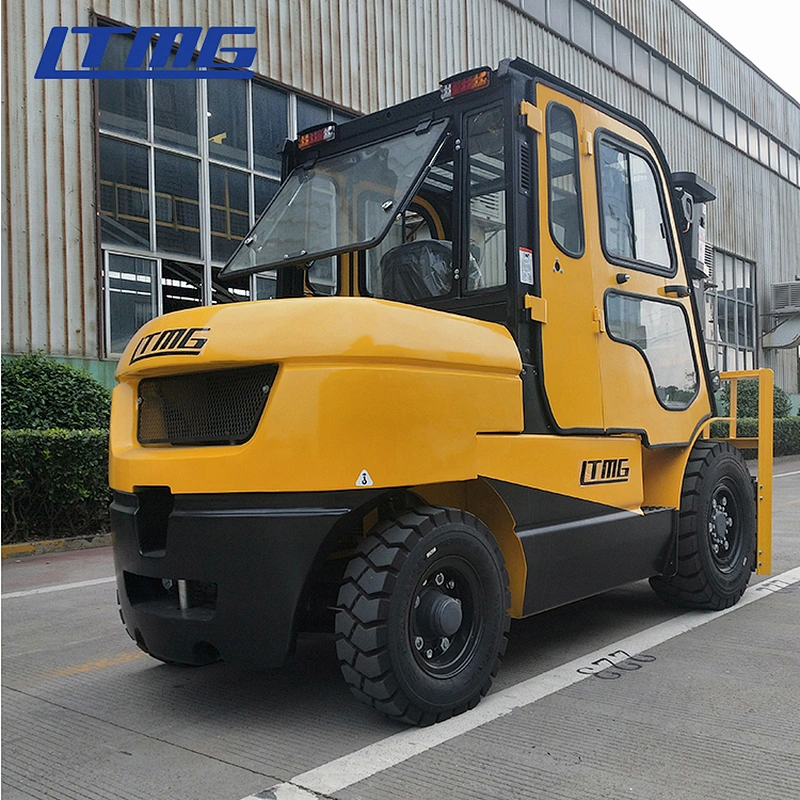

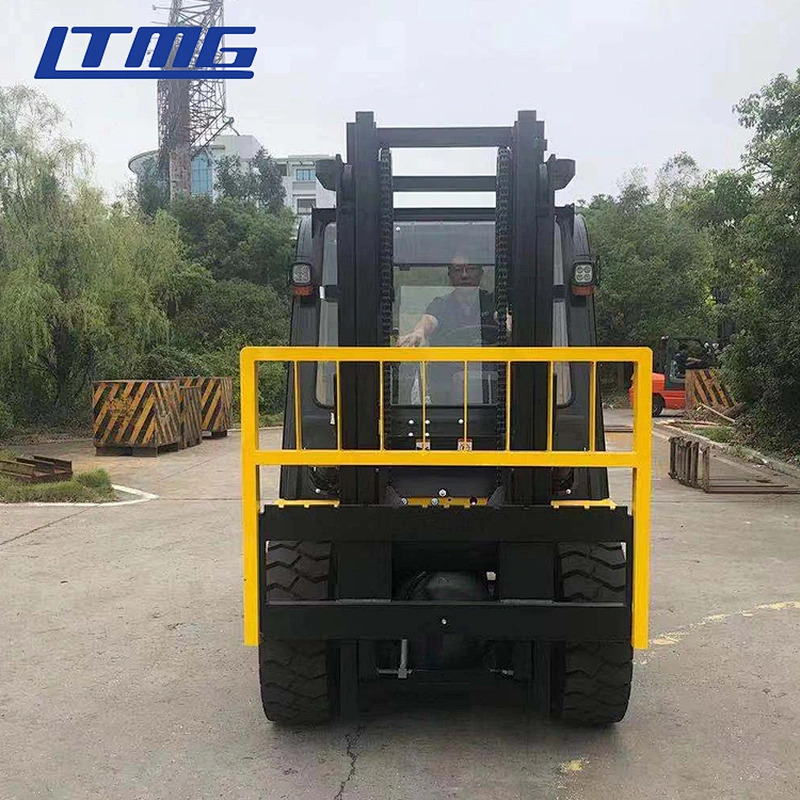

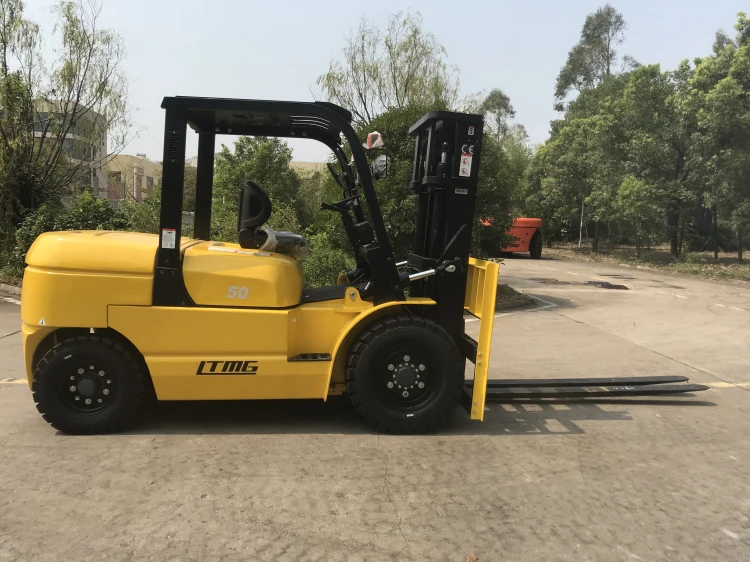

FD50
6900.00~13990.00
FD50
6900.00~13990.00
