- Condition:New
- Place of Origin:CN;FUJ
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:5000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2460x1150x1995mm
- Certification:CE/ISO9001:2008
Product Description

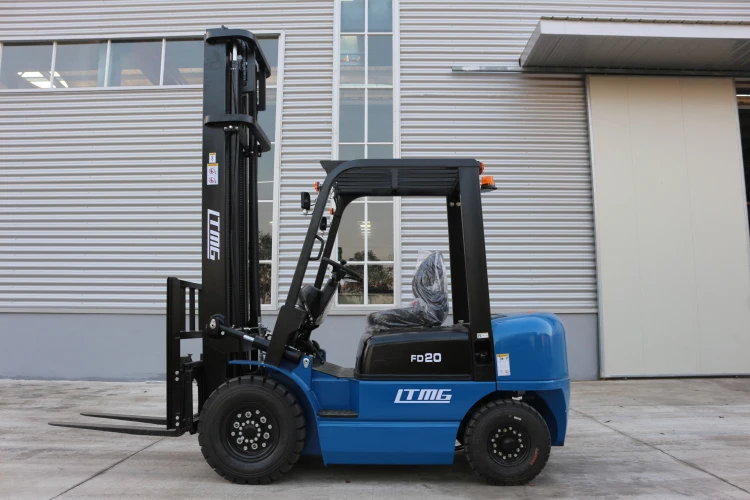

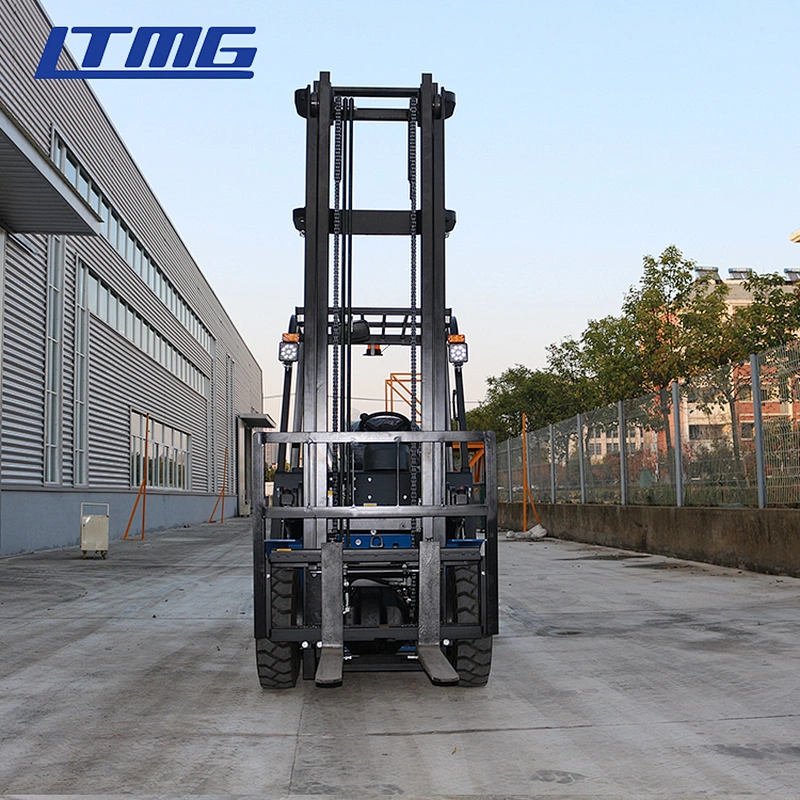

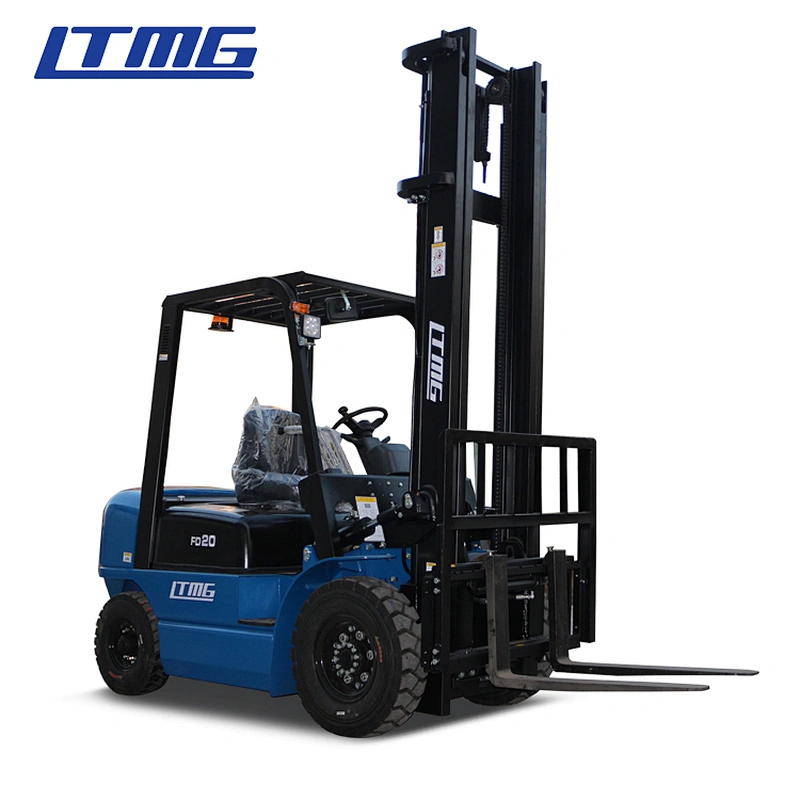

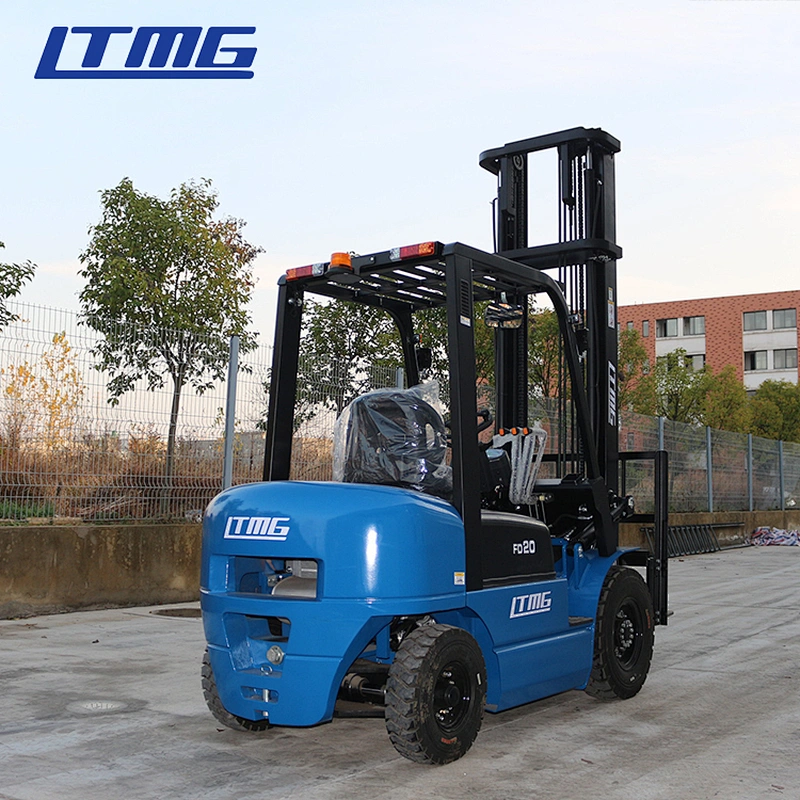

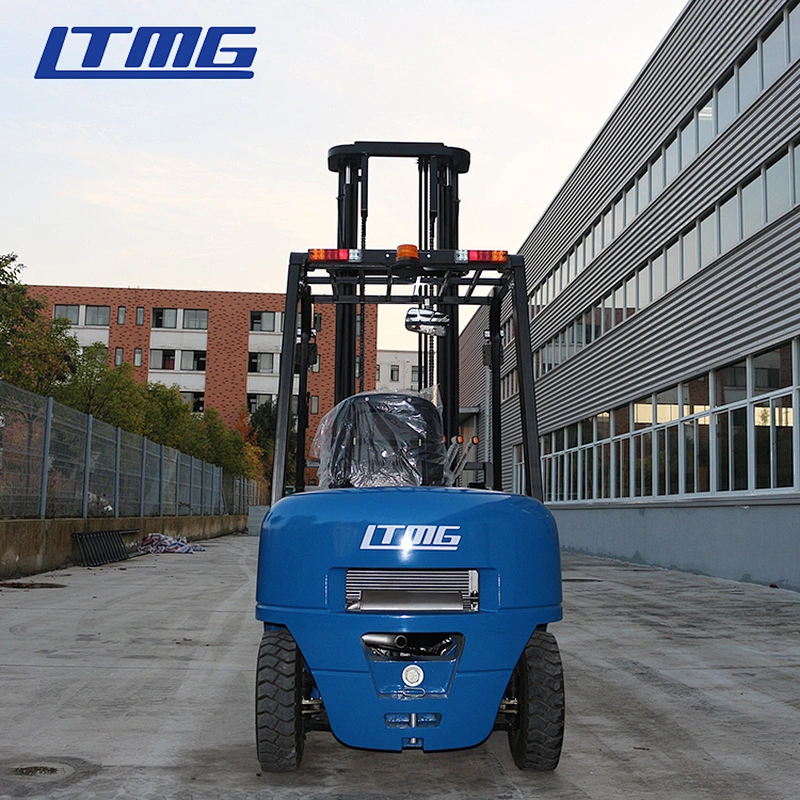

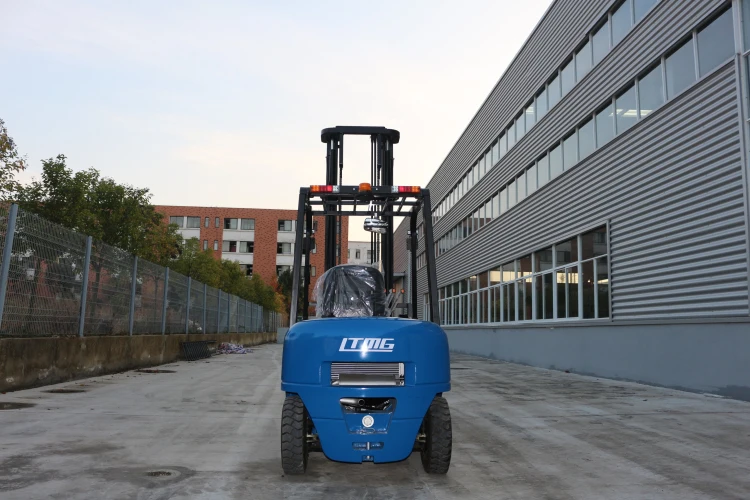

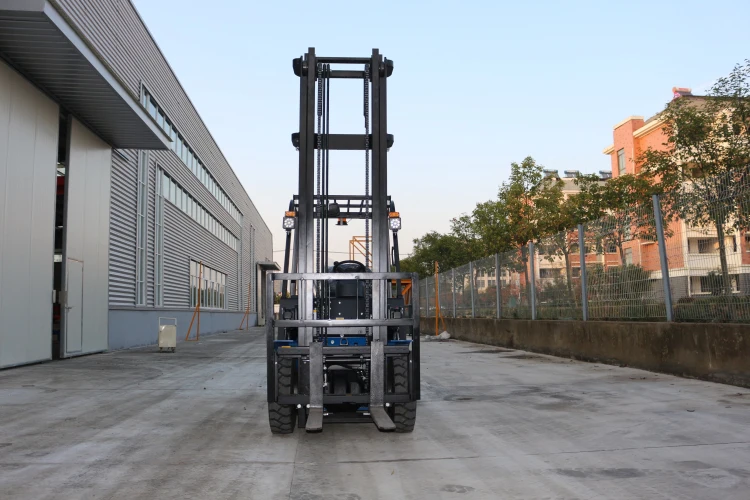

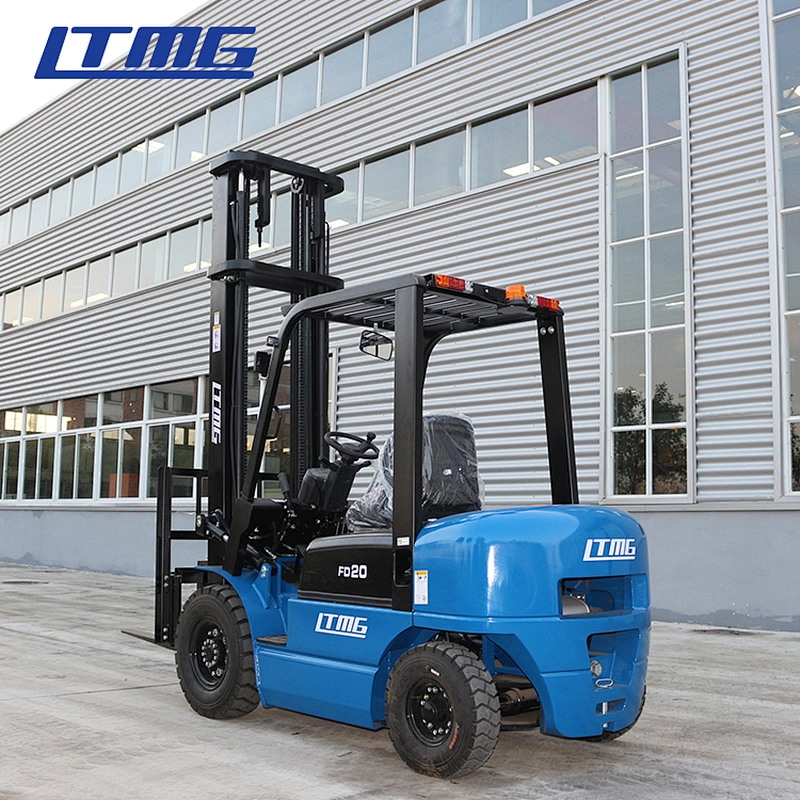

LTMG 2 ton 2000kg diesel forklift with 2-stage mast 5m and side shifter
Lifting capacity: 2ton
5m two stage mast
Length of fork: 1670mm
Pneumatic tires
Hydraulic transmission
ISUZU engine
Side shift
optional:double air filter,fork positioner, cabin with heater, Air conditioner, pre-heating system,warning light,EPA engine, EURO3 engine, paper roll clamp.block clamp,etc.
The specification of 2 ton diesel forklift | ||||
Model | FD20 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 2000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×120×40 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 465 | ||
Ground Clearance（Bottom of mast） | mm | 110 | ||
Length to face of fork(Without fork) | mm | 2595 | ||
Overall Width | mm | 1150 | ||
Mast Lowered Height | mm | 2070 | ||
Mast Extended Height(With backrest) | mm | 4070 | ||
Overhead Guard Height | mm | 2070 | ||
Turning Radius (outside) | mm | 2310 | ||
Travel Speed(Full load) | km/h | 19 | ||
Lifting Speed(Full load) | mm/s | 530 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 7.00-12-12PR | ||
Rear Tire | mm | 6.00-9-10PR | ||
Wheelbase | mm | 1600 | ||
Service weight | kg | 3590 | ||
Battery(Voltage/Capacity) | V/Ah | 12/80 | ||
Engine Model | C240 | |||
Manufacture | ISUZU | |||
Rated output/r.p.m. | kw | 35.4/2500 | ||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||
No.of Cylinder | 4 | |||
Bore×Stroke | mm | 86×102 | ||
Displacement | cc | 2369 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 1/1 | ||

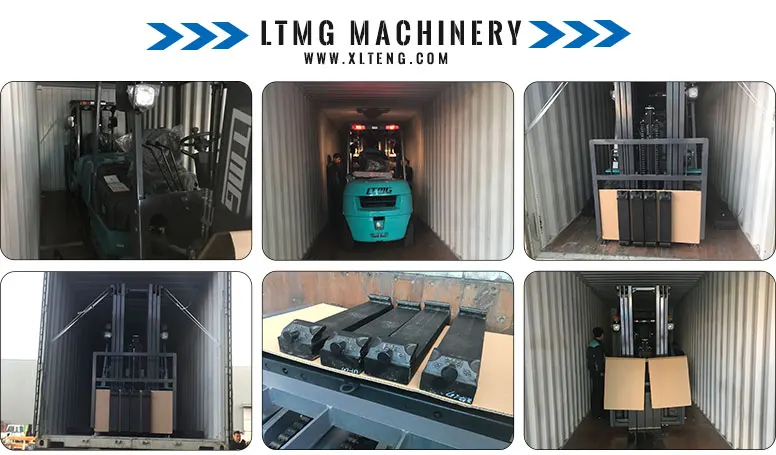

Packing & Delivery
Our Factory
Machine application
Exhibition & Clients
After-Sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
