- Product Name:big tonnes 30 ton diesel forklift with enclosed A/C Cab
- Mast lifting height:3500mm
- Item:large forklift
- Fork size:2440X320X110 mm
- Engine:Chinese engine/Japanese engine
- Wheelbase:4800mm
- Load center:1250mm
- Min. ground clearance:350mm
- Turning raduis(outside):6800mm
- optional:sider shifter, cab air conditioner, fork positioner
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Uzbekistan
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:2440mm
- Fork Width:320mm
- Overall Dimensions:9640*3200*4000 mm
- Certification:CE/ISO9001
- Marketing Type:Hot Product 2020

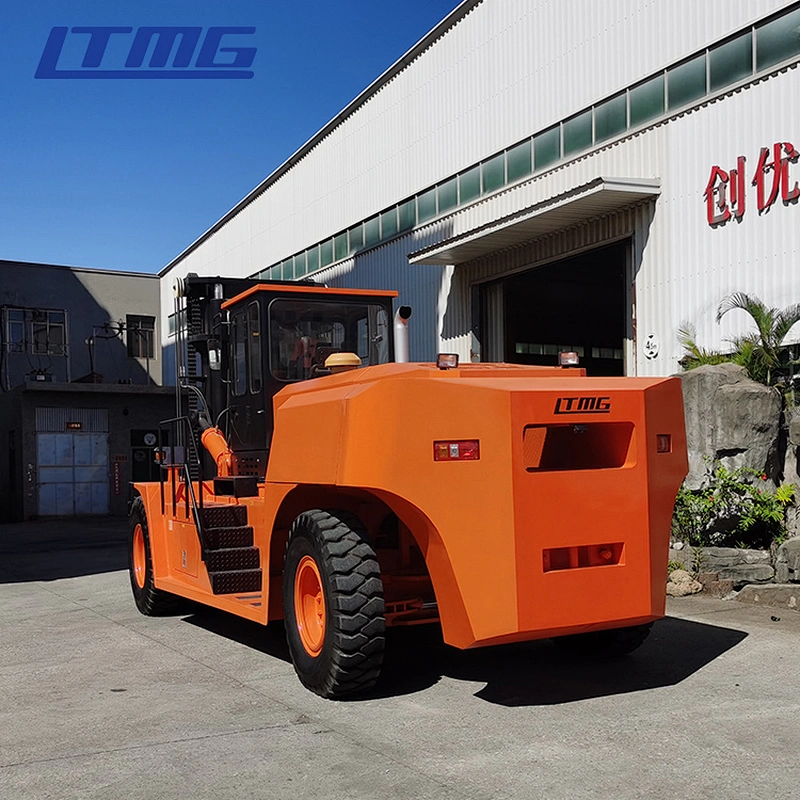

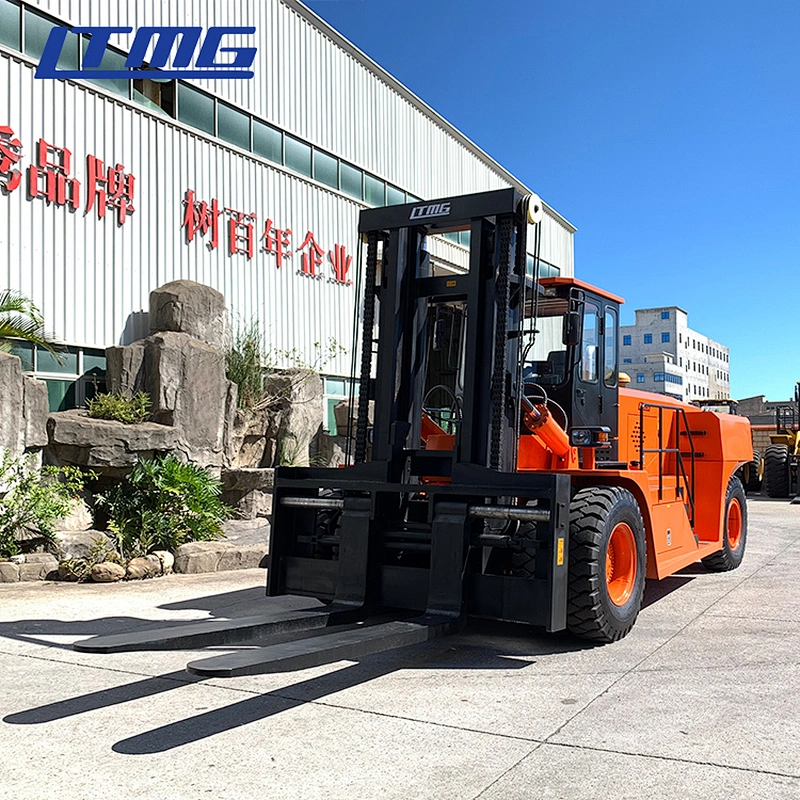

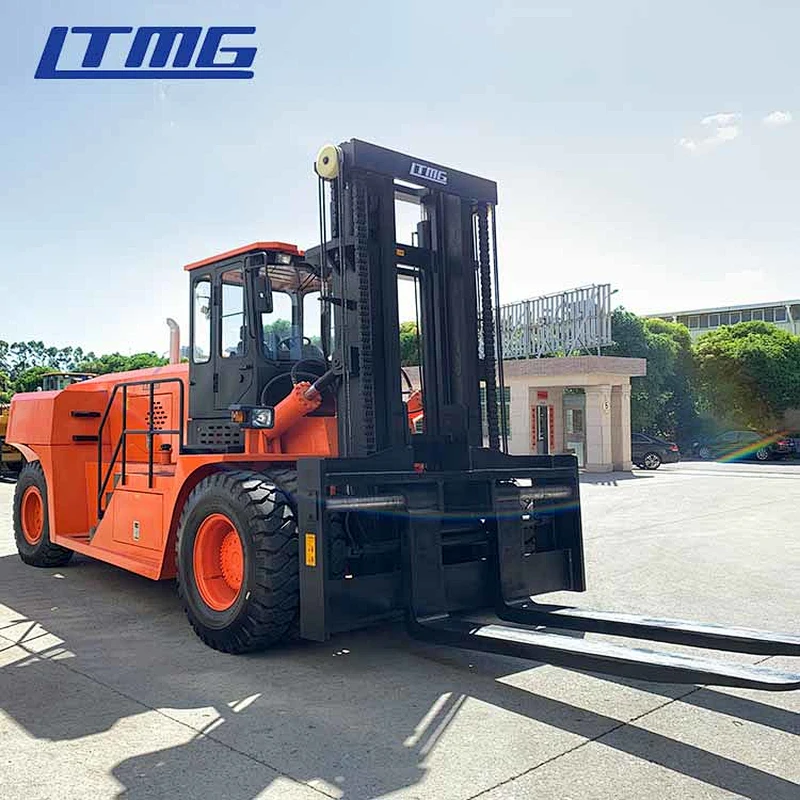

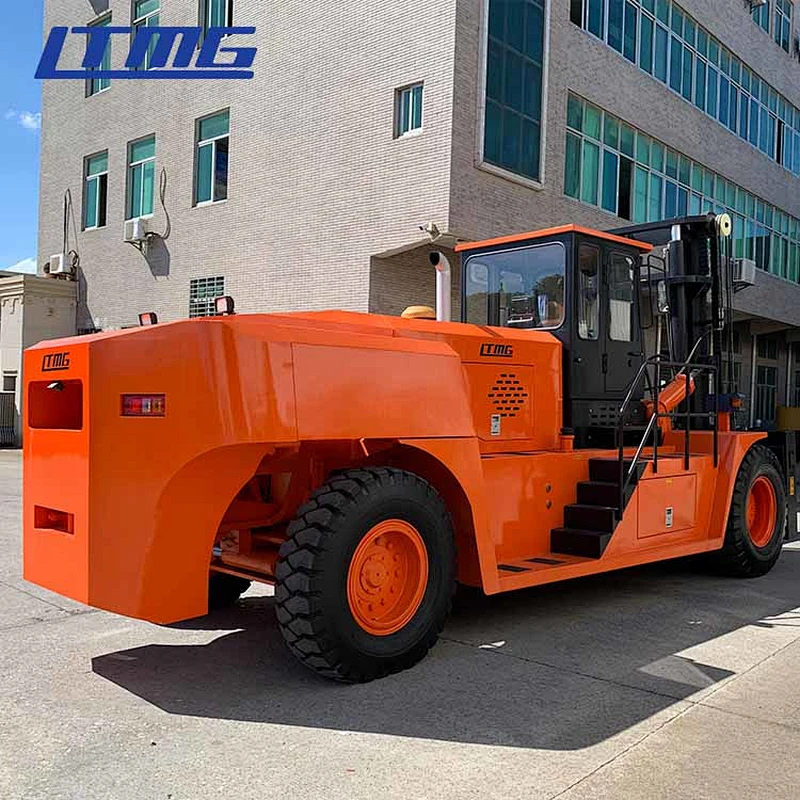

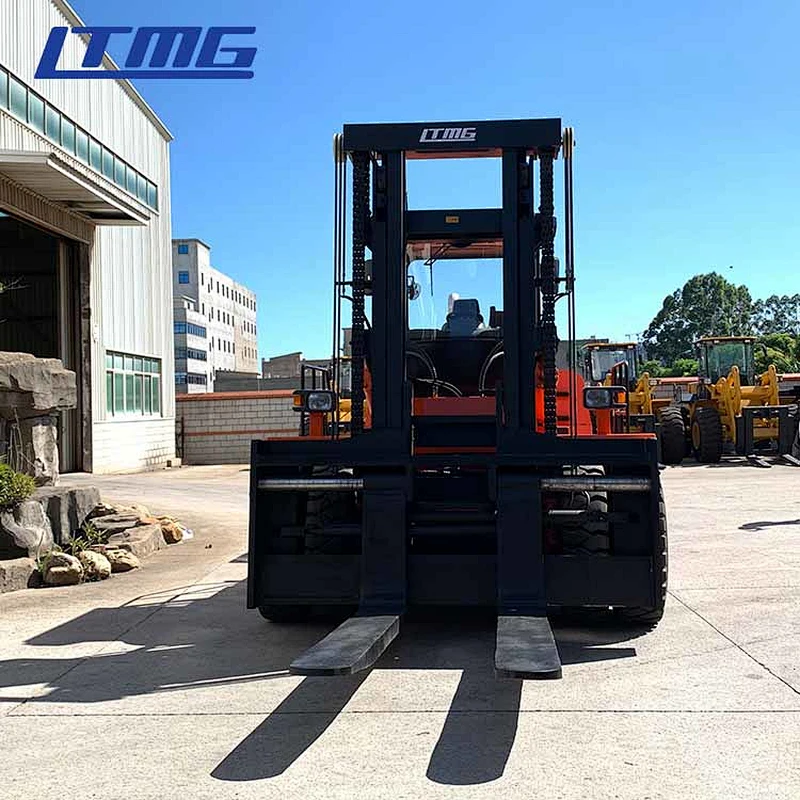

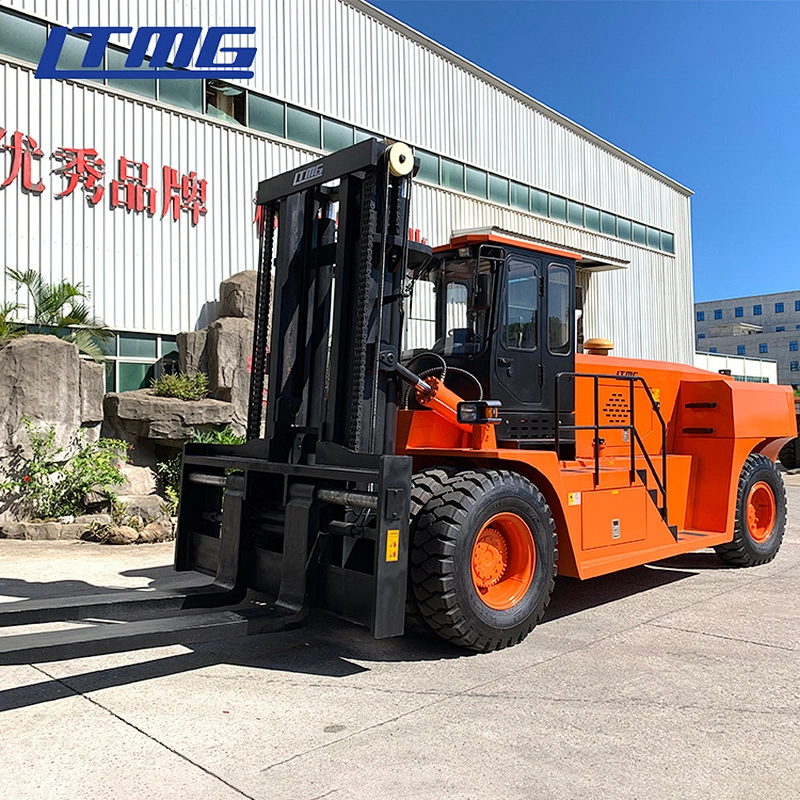

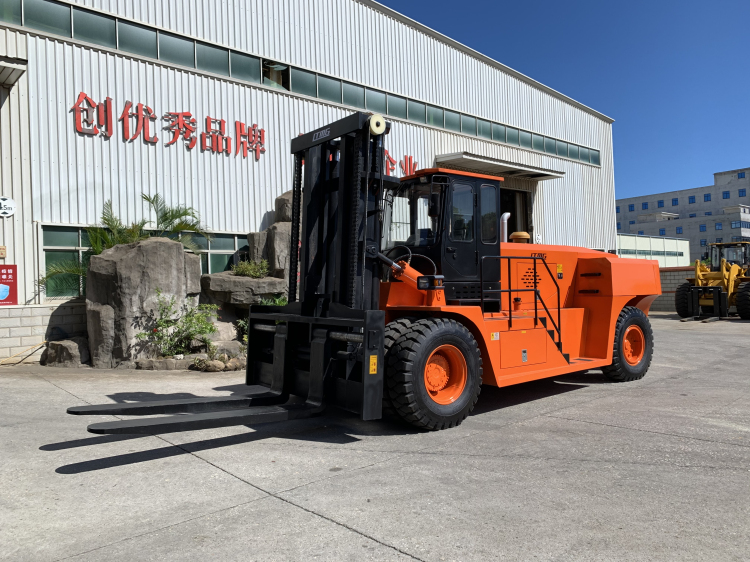

joystick controller big tonnes 30 ton diesel forklift with enclosed A/C Cab
Specification of 30 ton forklift | ||||||
Item | Technical Parameter | FD300 | ||||
Features | Rated Load | Q(Kg) | 30000 | |||
Load Center | c(mm) | 1220 | ||||
Wheelbase | y(mm) | 4400 | ||||
Weight | Weight | kg | 38000 | |||
Chassis | Tire Specs:Front | 14.00-24 | ||||
Tire Specs:Rear | 14.00-24 | |||||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | |||||
Wheel tread:Front | b3(mm) | 2220 | ||||
Wheel tread:Rear | b4(mm) | 2300 | ||||
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | |||
Mast height(fork lowering) | h1(mm) | 3970 | ||||
Mast lifting height | h2(mm) | 4000 | ||||
Max.height | h3(mm) | 5940 | ||||
height to head guard(height to cab) | h4(mm) | 3440 | ||||
Overall height（with forks) | L3(mm) | 8950 | ||||
Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 6550 | ||||
Overall width | b1(mm) | 3060 | ||||
Fork dimension | (mm) | 2400*320*110 | ||||
Fork carriage width | b2(mm) | 3000 | ||||
Mast min ground(with load) | m1(mm) | 350 | ||||
Wheelbase center min ground(with load) | m2(mm) | 420 | ||||
Min.turning Radius | Wa(mm) | 6160 | ||||
Travel speed(with load/without load) | km/h | 24/28 | ||||
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 | |||
tractionn | KN | 180 | ||||
gradeability(with load/without load) | % | 20/22 | ||||
Driving brake | Hydraulic clamp disvc | |||||
Engine | Engine brand/model | Optional one | WeiChai Engine | |||
WD10G240E | ||||||
Optional two | Dongfeng cummins | |||||
Rated Output | 178(Kw) | |||||
Cylinder No | 6 | |||||
Others | Transmission gears(Front/rear) | 2/1 | ||||
1.Engine: Strong power, energy conservation and environmental protection.2. Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.3. Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.4. Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.5. Explosion proof safety valve for pipeline: avoid the pipeline bursting suddenly,ensure system working safety and reliability.6. Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity.7. Cooling system: adopt independent transmission oil and hydraulic oil cooling,increasing system stability8. Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.9. Fork: standard with hydraulic fork positioner, easy operation and reduce drivers' labor intensity.10. Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.11.Cab: Smooth and beautiful appearance, the cab uses new composite decoration materials, and match with air-conditioner, more open vision.
