- Product Type:Diesel forklift
- Fork size:1070*120*40 mm
- Lift Height:3000 mm
- Wheel base:1600 mm
- Engine:Chinese engine/Japanese engine
- Tire type:Pneumatic
- Mast:2 stage mast / 3 stage mast
- Turning Radius (outside):2310 mm
- Options:sideshift,cabin,air-conditioner, protection chain,etc
- Attachments:Paper Roll Clamp,bale clampe ,ratator , block clamp ect.
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:United States
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:United States
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0 mm
- Fork Length:1070 mm
- Fork Width:120 mm
- Overall Dimensions:2595*1150*2070 mm
- Certification:CE/ISO9001:2008
Product Description

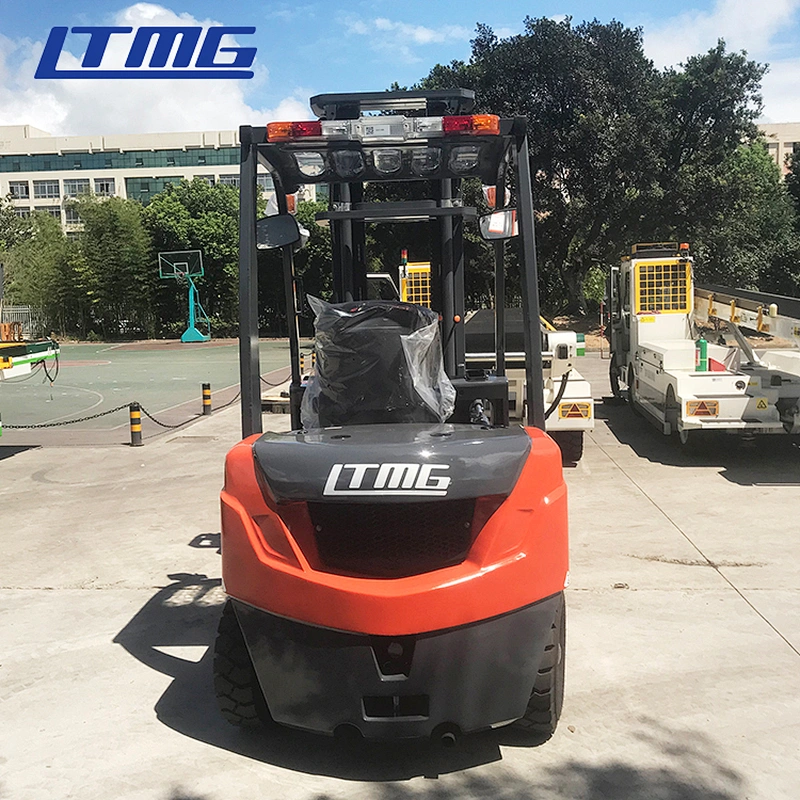

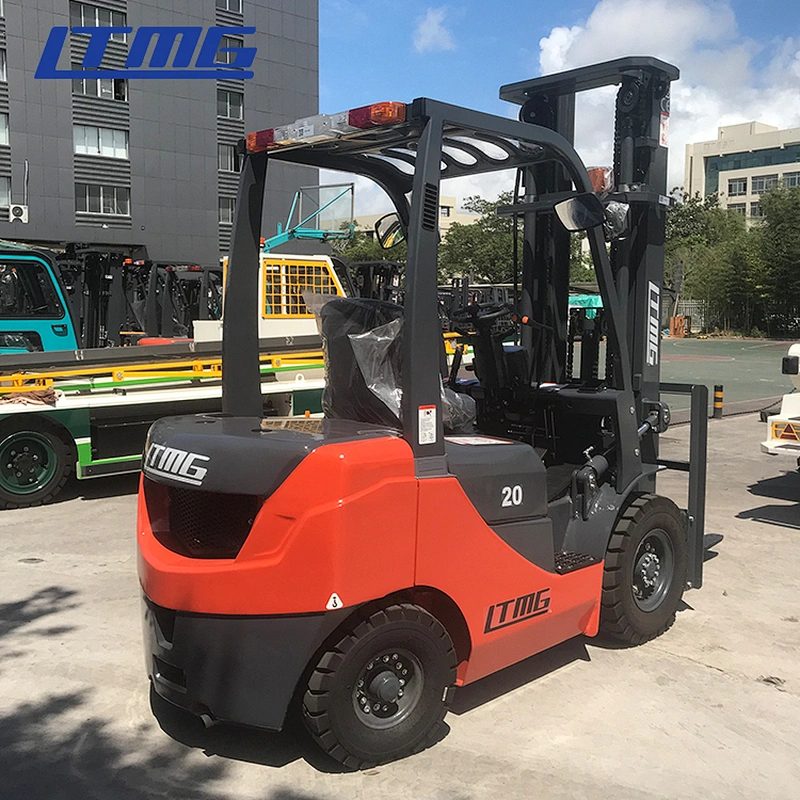

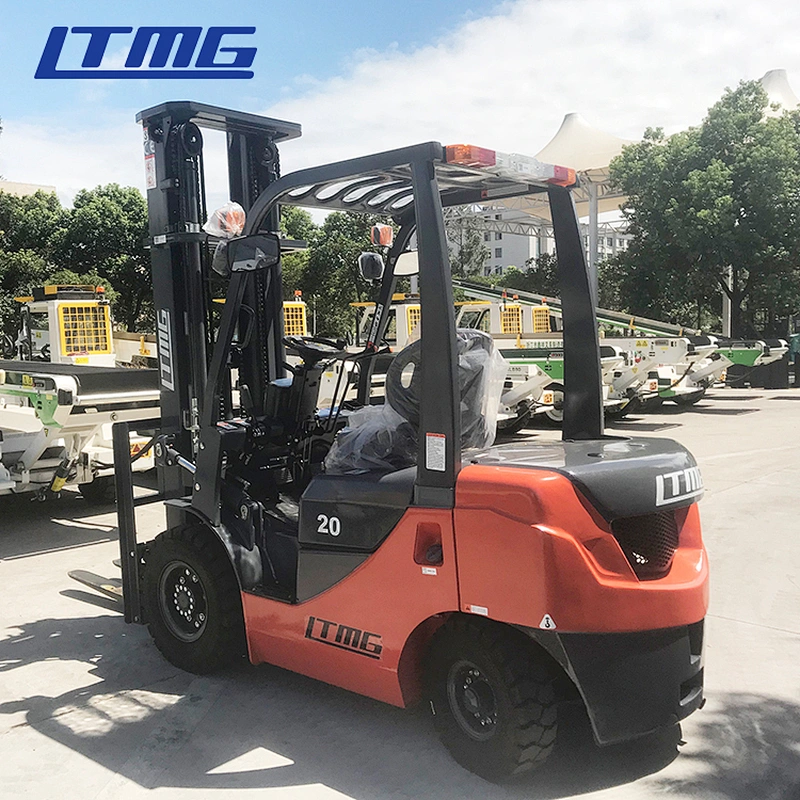

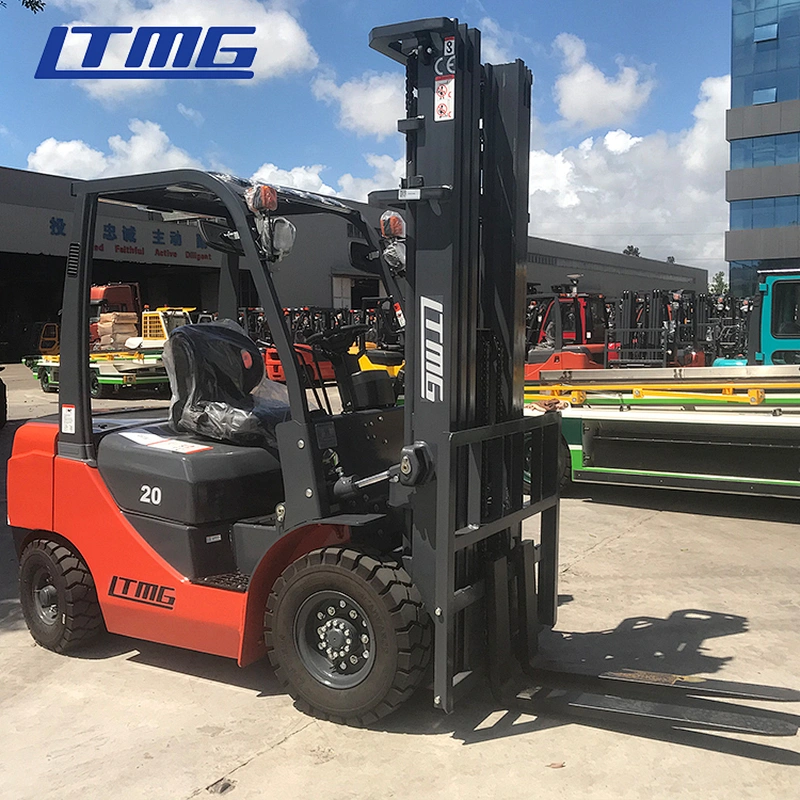

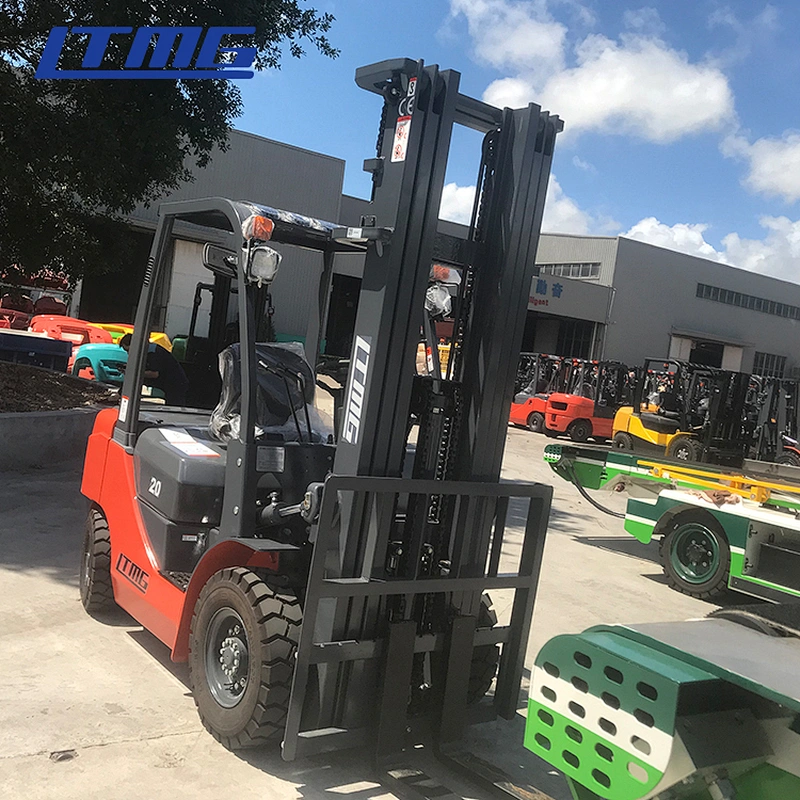

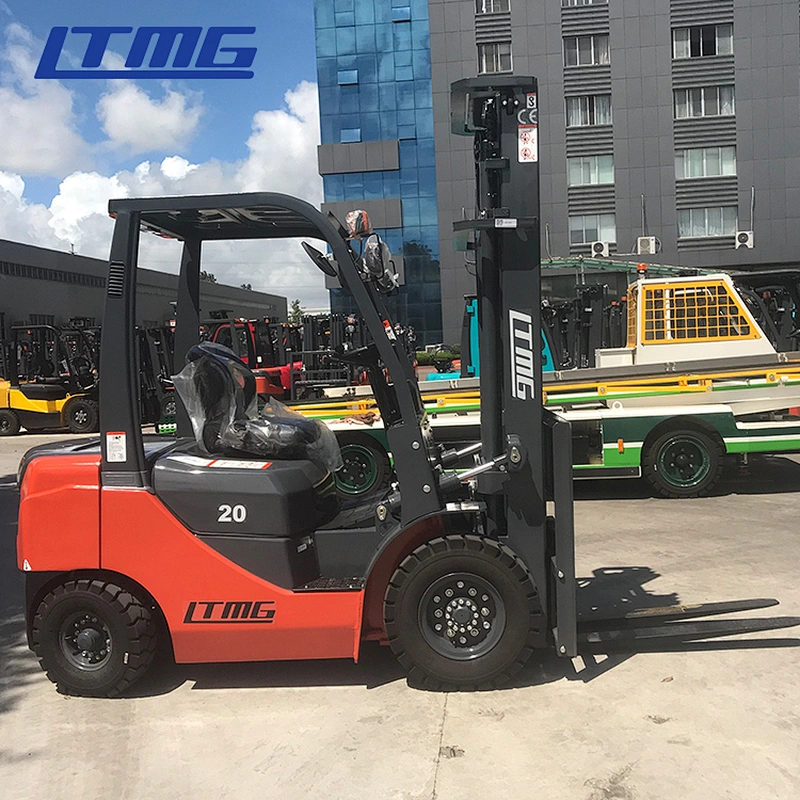

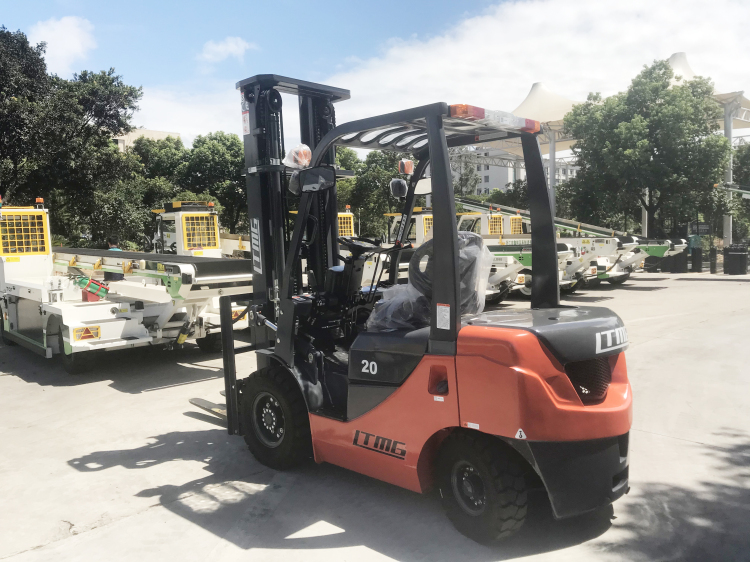

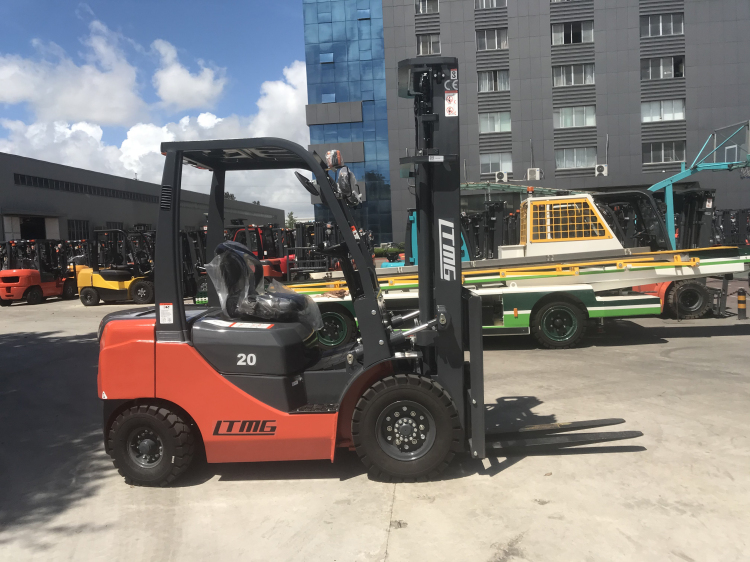

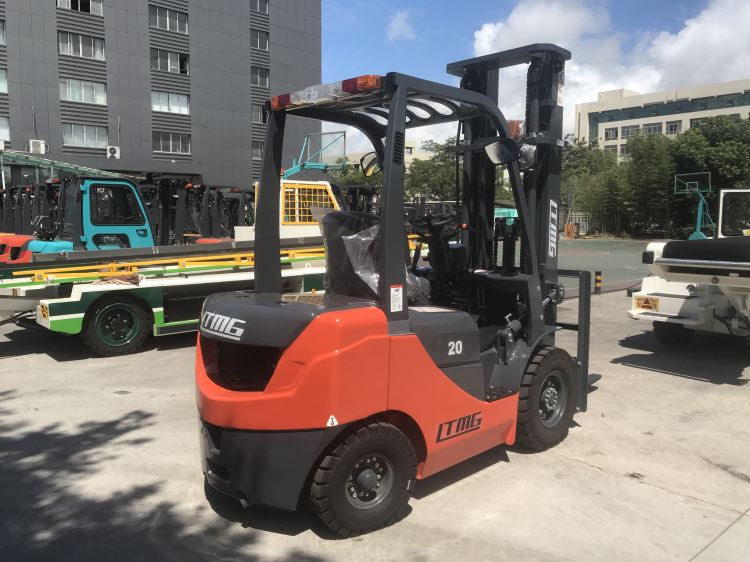

Japanese engine hydraulic forklift 2 ton 3 ton diesel forklift with CE Certification
The specification of 2 ton diesel forklift | ||||||||
Model | FD20 | |||||||
Power Type | Diesel | |||||||
Rated Capacity | kg | 2000 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×120×40 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | ||||||
Ground Clearance（Bottom of mast） | mm | 110 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | |||||
Overall Width | mm | 1150 | ||||||
Mast Lowered Height | mm | 2070 | ||||||
Mast Extended Height(With backrest) | mm | 4070 | ||||||
Overhead Guard Height | mm | 2070 | ||||||
Turning Radius (outside) | mm | 2310 | ||||||
Speed | Travel (Full load) | km/h | 19 | |||||
Lifting (Full load) | mm/s | 530 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 7.00-12-12PR | |||||
Rear | mm | 6.00-9-10PR | ||||||
Wheelbase | mm | 1600 | ||||||
Service weight | kg | 3590 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||
Model | 3E22 | |||||||
Manufacture | Xinchai | |||||||
Rated output/r.p.m. | kw | 45/2400 | ||||||
Rated torque/r.p.m. | N·m | 210/1600 | ||||||
No.of Cylinder | 3 | |||||||
Bore×Stroke | mm | 86×102 | ||||||
Displacement | cc | 2369 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
Product Features
The advantages of 2 ton diesel forklift
1. Japanese engine is optional.
2. Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.
3. Middle muffler, more environmental.
4. Thicker reinforcing overhead guard protective device, ensure the safety. with windshield
5. The Maintenance Free Radiators adopt Germany Technology.
2. Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.
3. Middle muffler, more environmental.
4. Thicker reinforcing overhead guard protective device, ensure the safety. with windshield
5. The Maintenance Free Radiators adopt Germany Technology.

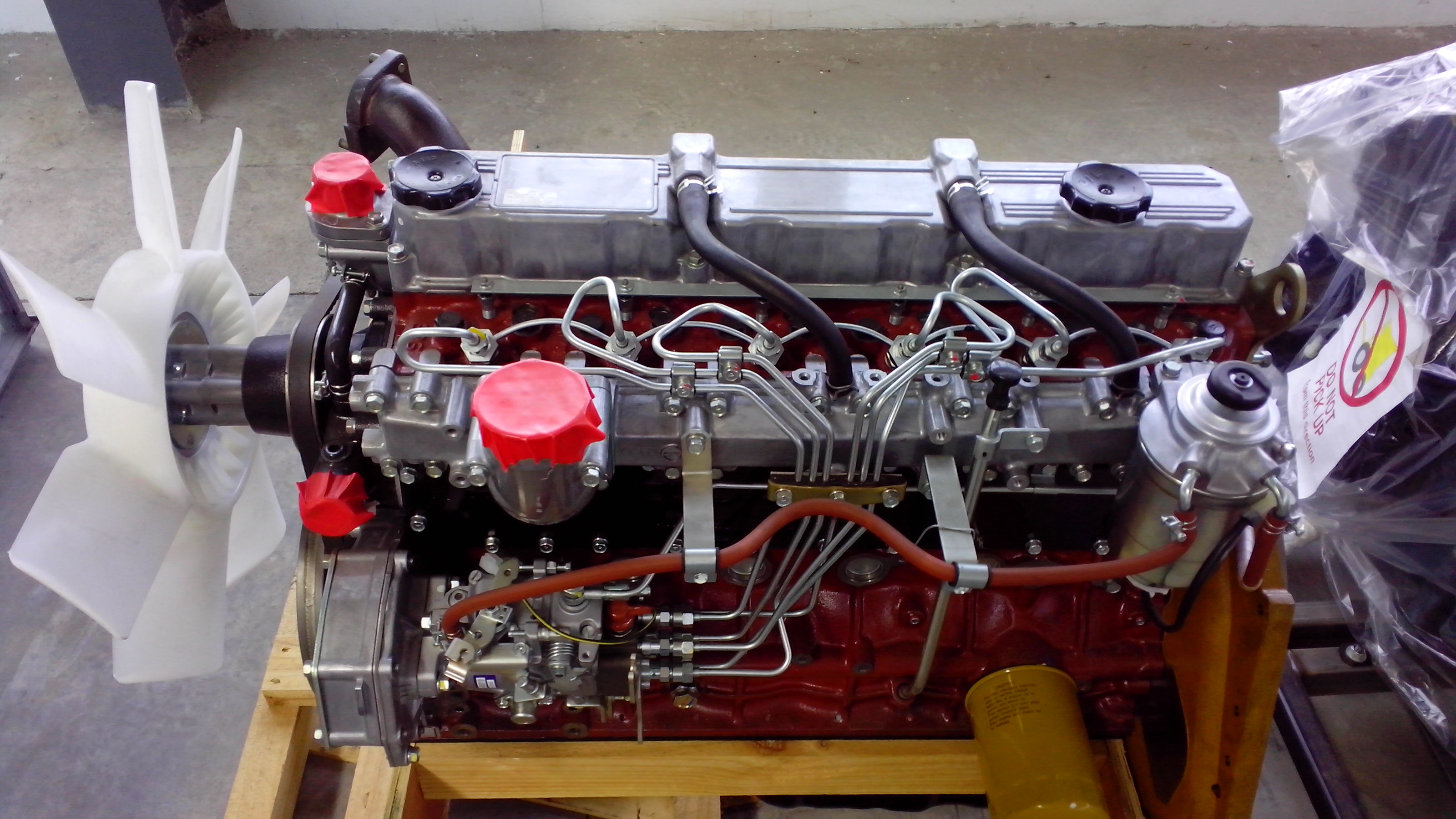

Mitsubishiengine

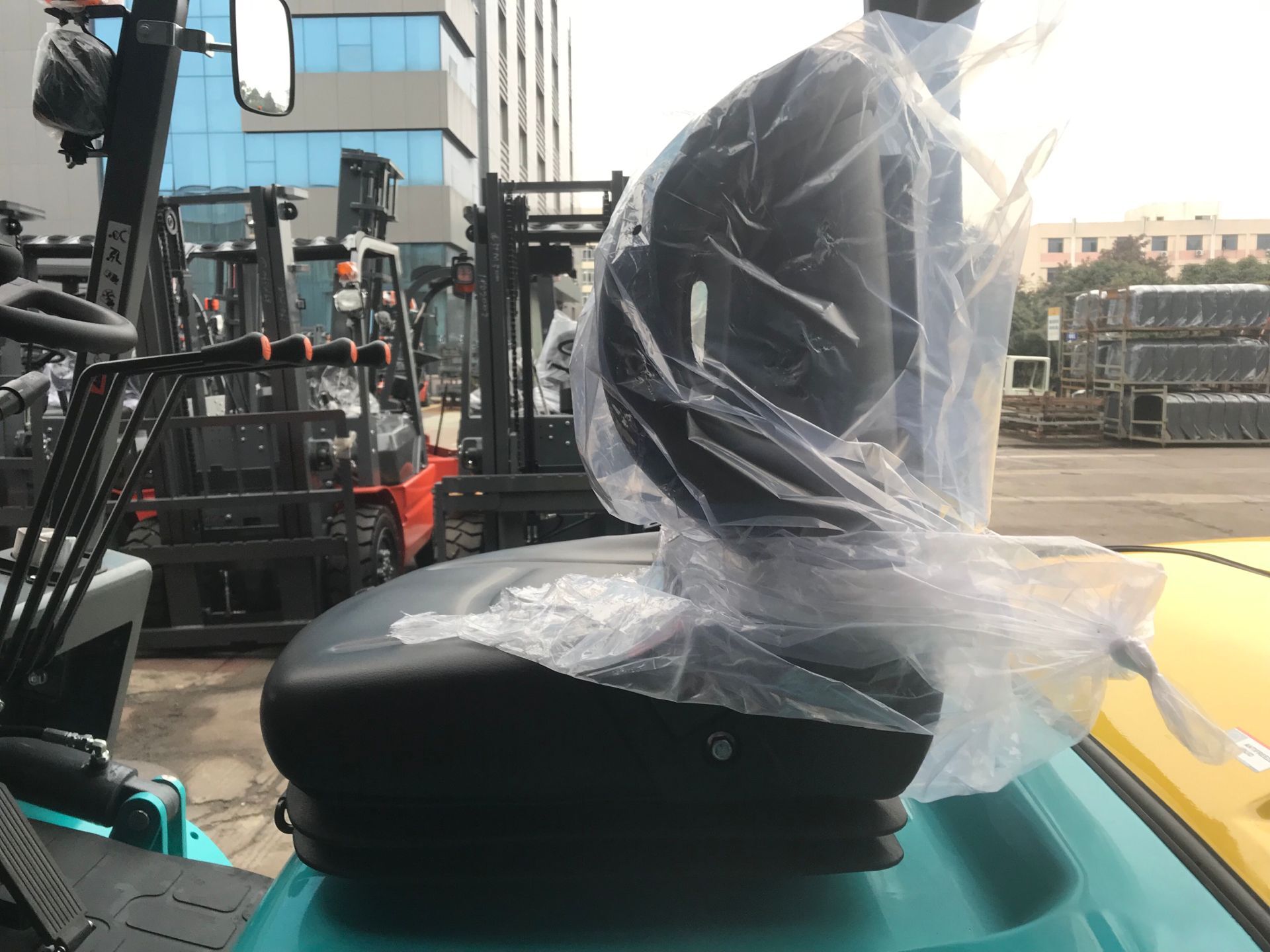

Toyota suspension seat with safety belt

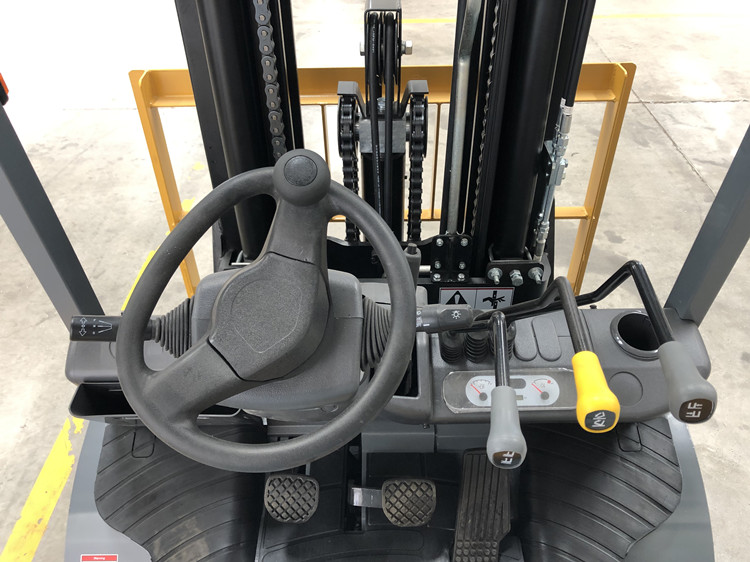

dashboard cover

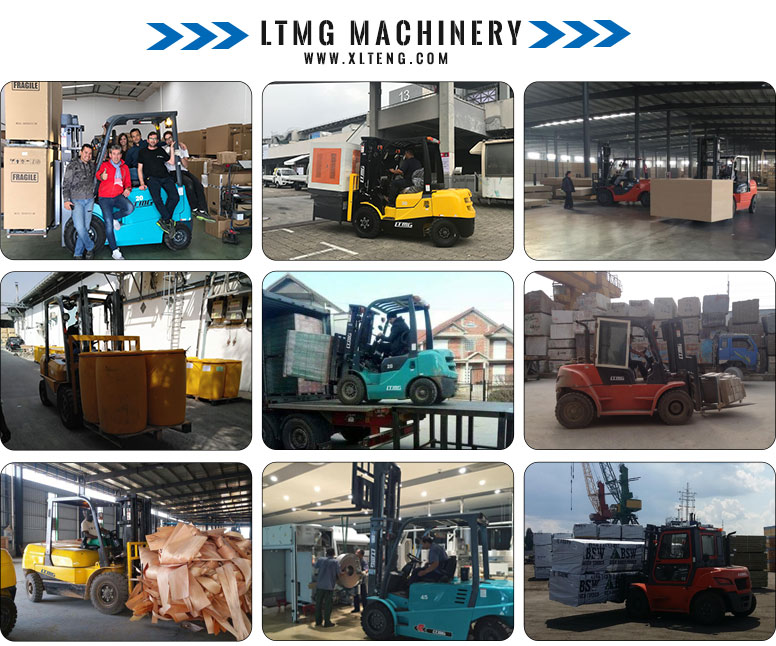

Machine application

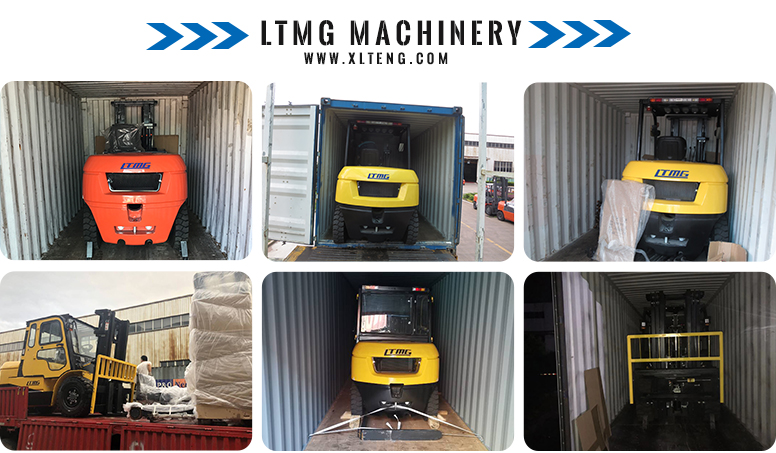

Packing & Delivery
Our Factory
Exhibition & Clients
Our Service
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
