- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Place of Origin:CN;FUJ
- Type:Powered Pallet Truck
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Applicable Industries:Material Handling Equipment
- Brand Name:LTMG
- Max. Lifting Height:6m
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:2890*1410*2195 mm
- Certification:CE/ISO9001

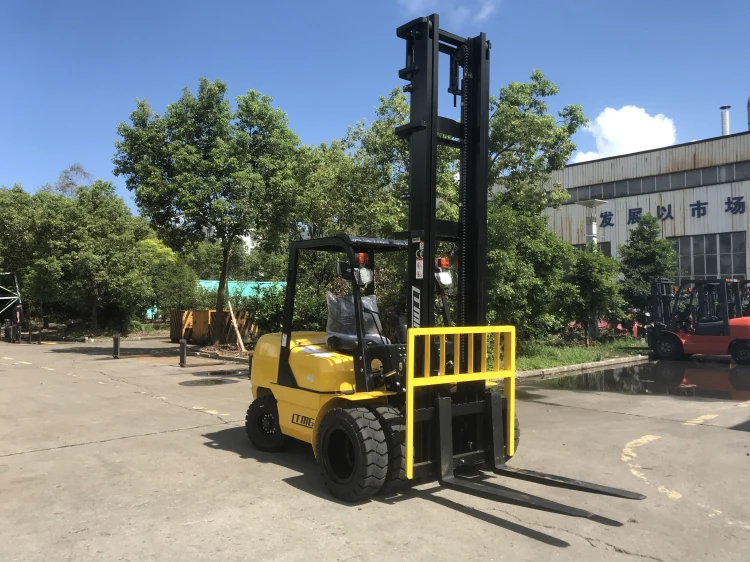

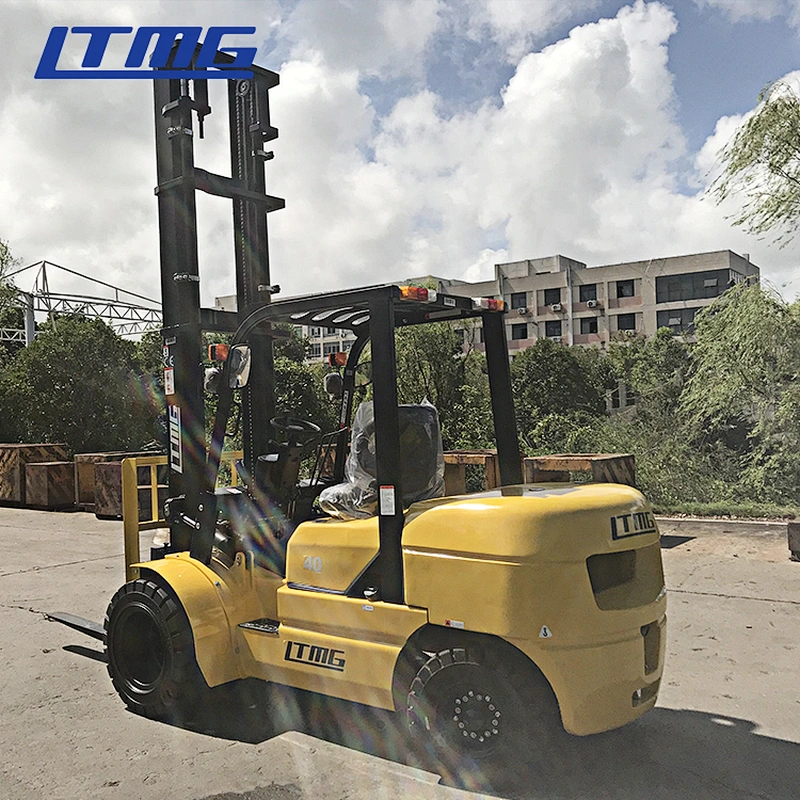

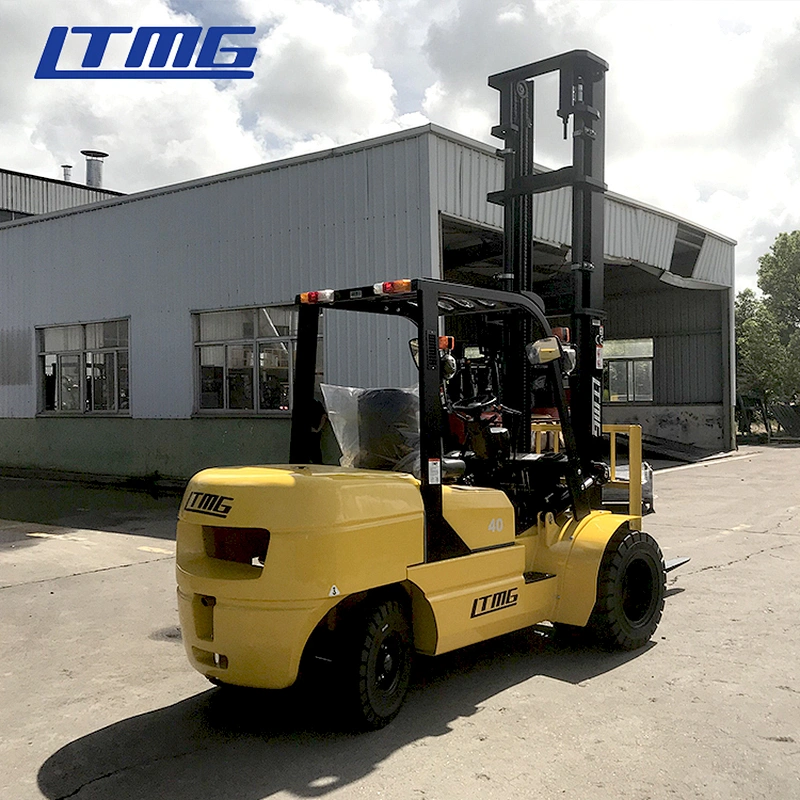

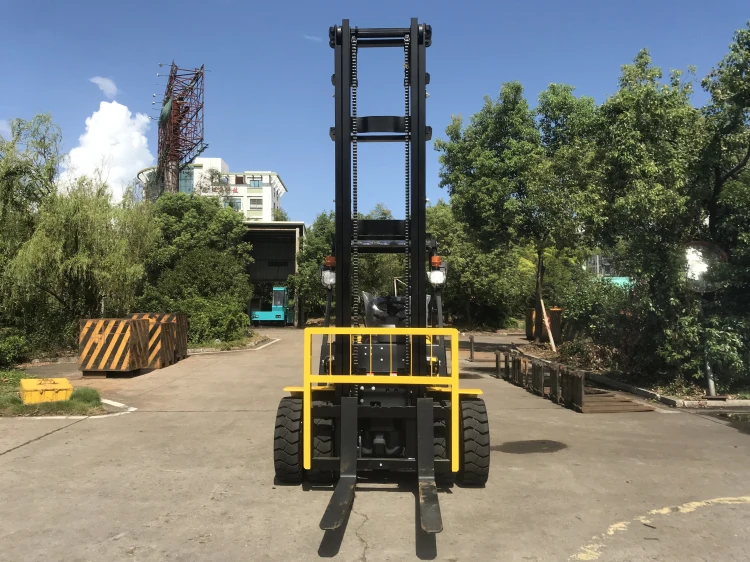

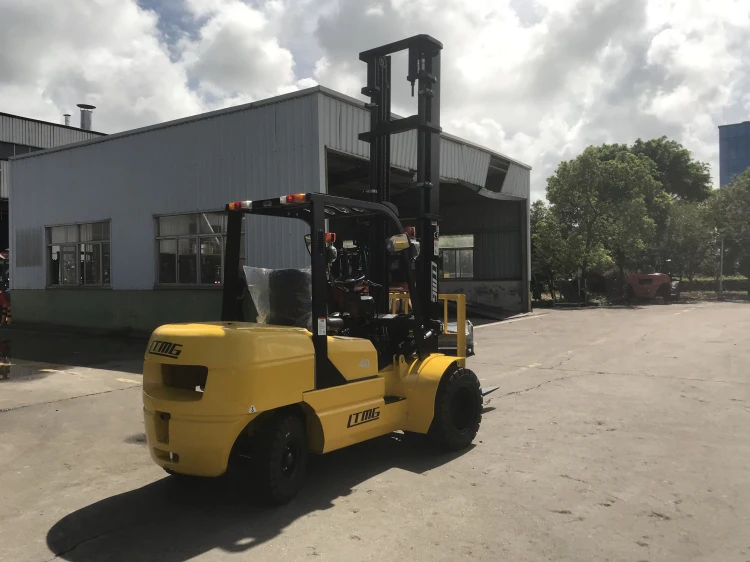

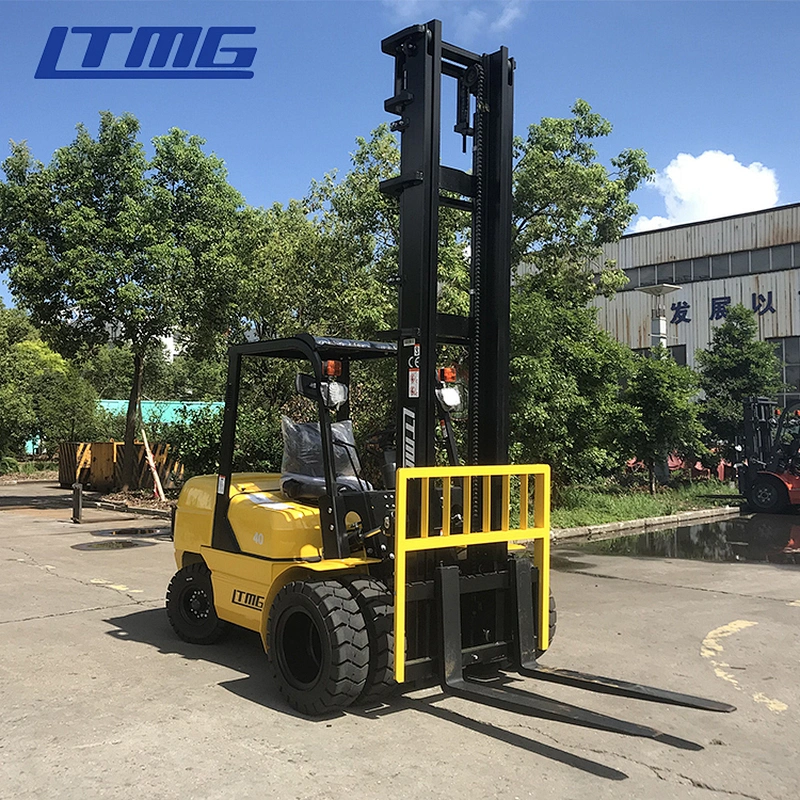

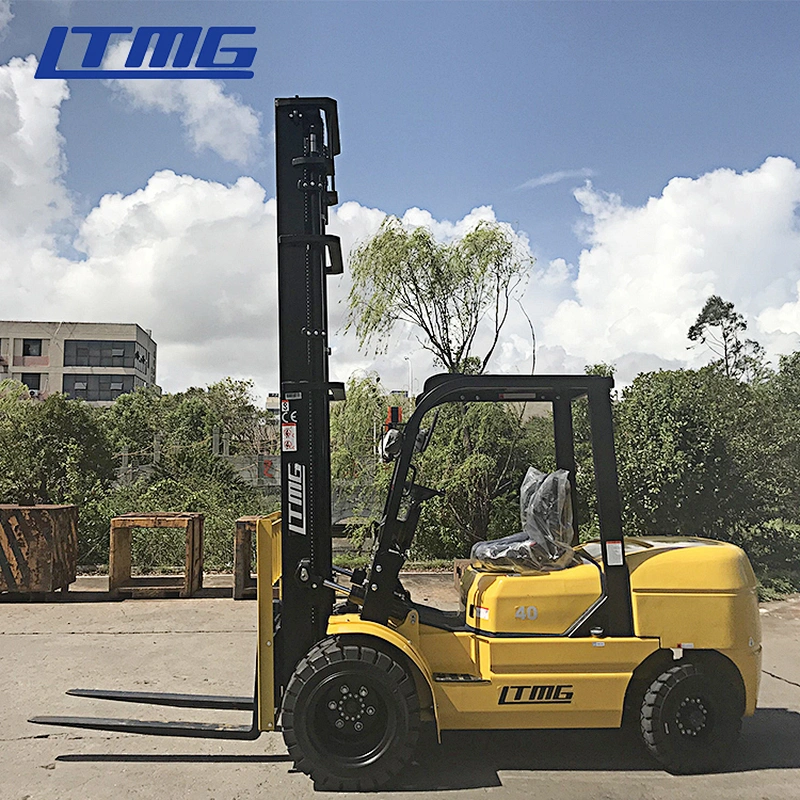

hydraulic forklift Chinese ltmg brand 4 ton diesel forklift specification
The specification of LTMG 4 ton diesel forklift | ||||||||||
General | Model | FD40 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 4000 | ||||||||
Load Centre | mm | 500 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1070×125×50 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 495 | ||||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2890 | |||||||
Overall Width | mm | 1410 | ||||||||
Mast Lowered Height | mm | 2195 | ||||||||
Mast Extended Height(With backrest) | mm | 4180 | ||||||||
Overhead Guard Height | mm | 2120 | ||||||||
Turning Radius (outside) | mm | 2700 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 19 | ||||||
Lifting (Full load) | mm/s | 320 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 250-15-16PR | ||||||
Rear | mm | 6.50-10-10PR | ||||||||
Wheelbase | mm | 1900 | ||||||||
Service weight | kg | 5100 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||||
Engine | Model | 4TNE98 | ||||||||
Manufacture | YANMAR | |||||||||
Rated output/r.p.m. | kw | 43/2300 | ||||||||
Rated torque/r.p.m. | N·m | 177.6-196.3/1700 | ||||||||
No.of Cylinder | 4 | |||||||||
Bore×Stroke | mm | 98×110 | ||||||||
Displacement | cc | 3318 | ||||||||
Fuel Tank Capacity | L | 70 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 1/1 | ||||||||

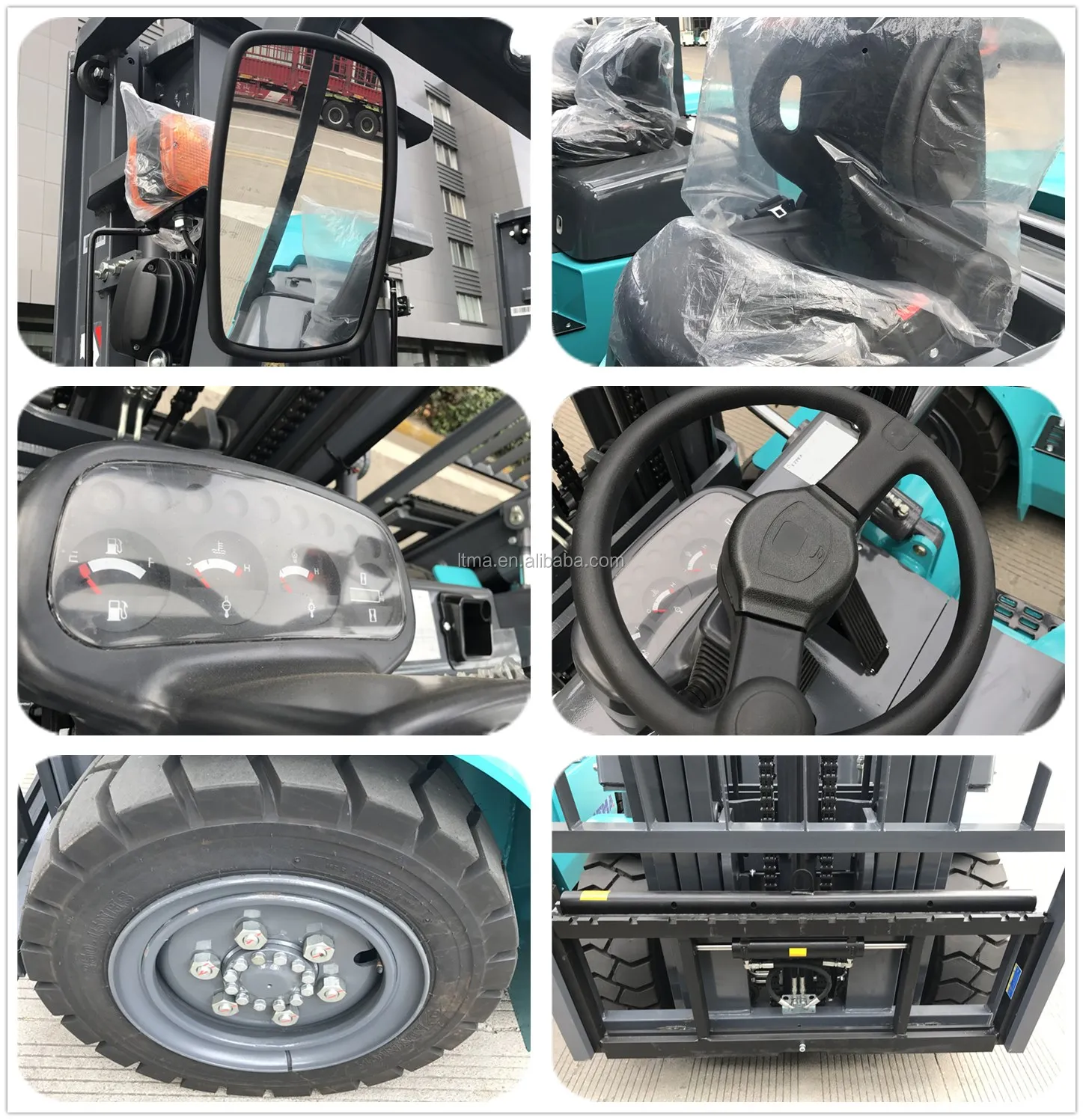

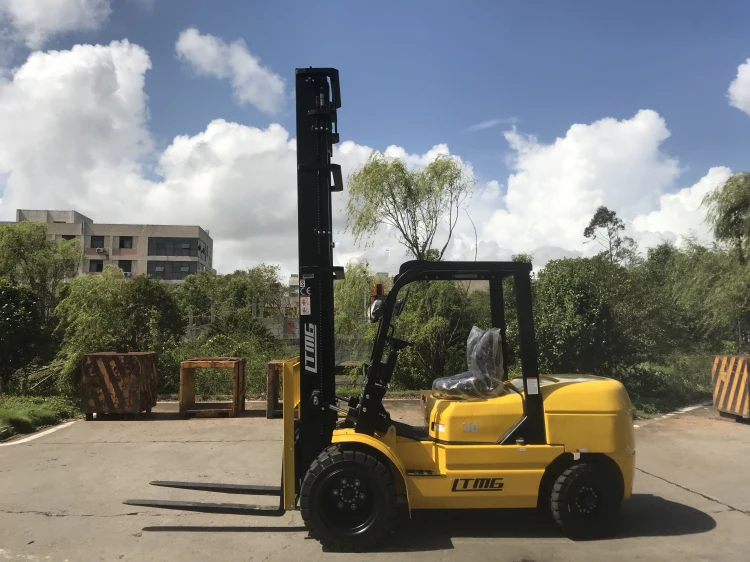

LTMG Diesel Forklift
1. Advanced Hydraulic Automatic Transmission.
2. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
3. Electric-hydraulic Directional Control Valve.
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
9.Middle muffler, more environmental.
LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.
At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 100 countries and regions around the world.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
