- Type:Powered Pallet Truck
- Optional:AC closed cabin, fork positioner, solid tyre
- Color:Customer Demanded
- Engine:Xinchai / suzu o/mitsubishi/ EPA engine
- Fork size:1070*150*50mm
- Max. lifting height:3000mm
- Load Center:500mm
- Wheelbase:1800mm
- Mast:2 stage / 3 stage
- Transmission type:Automatic Tranmission
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Italy
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Colombia
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Australia
- Showroom Location:None
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0m
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:2870*1365*2150 mm
- Certification:CE/ISO9001

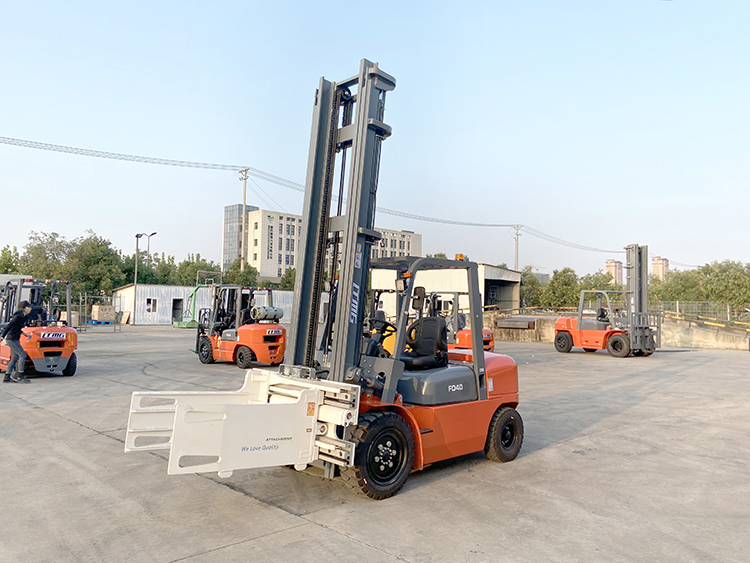

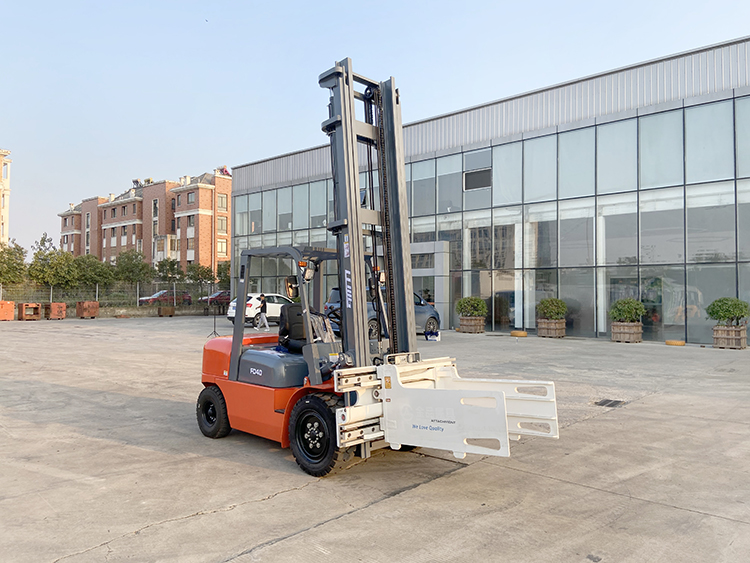

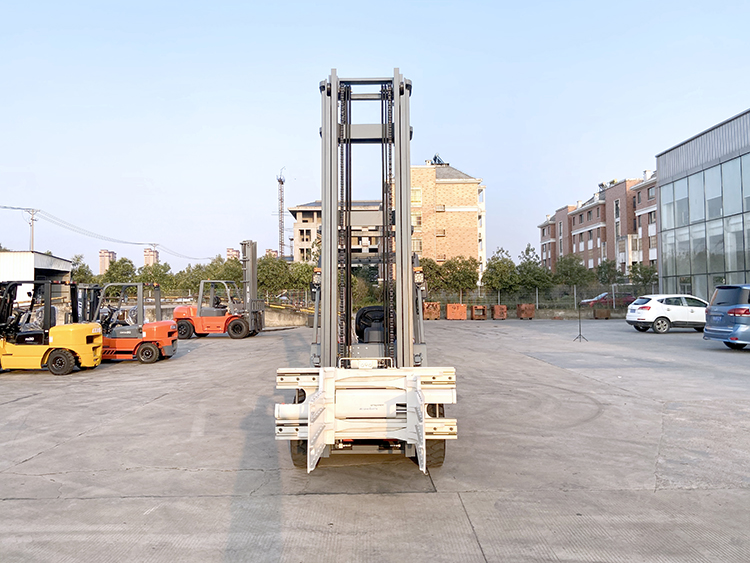

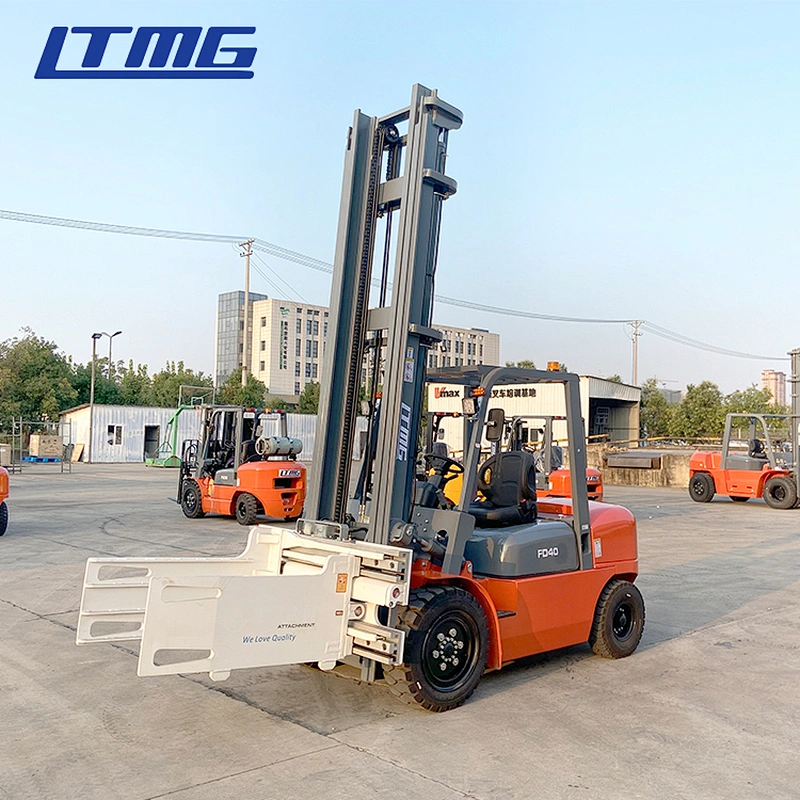

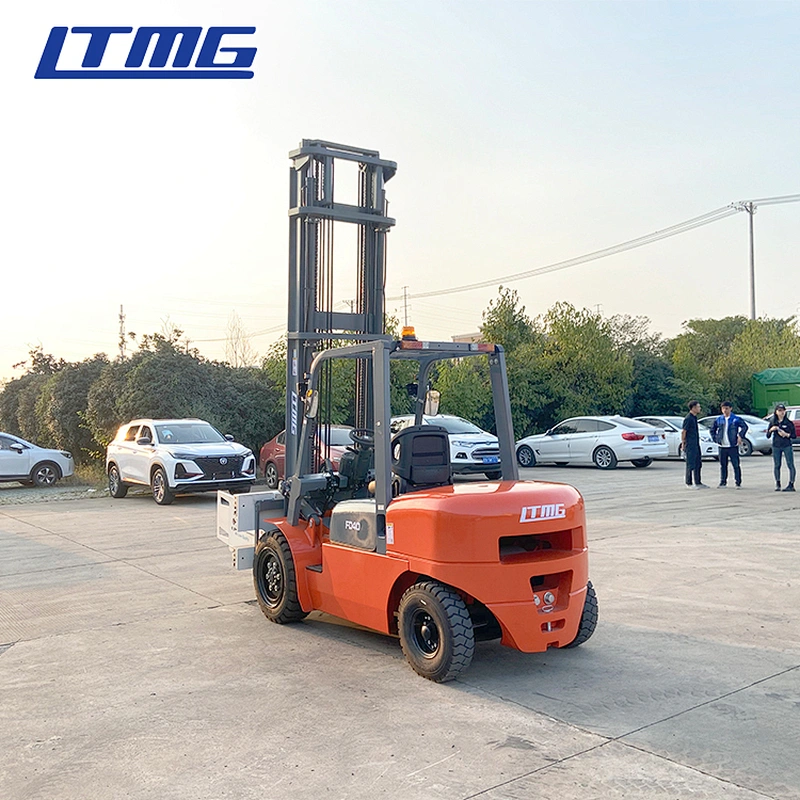

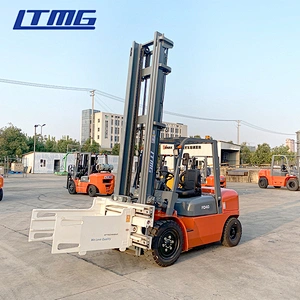

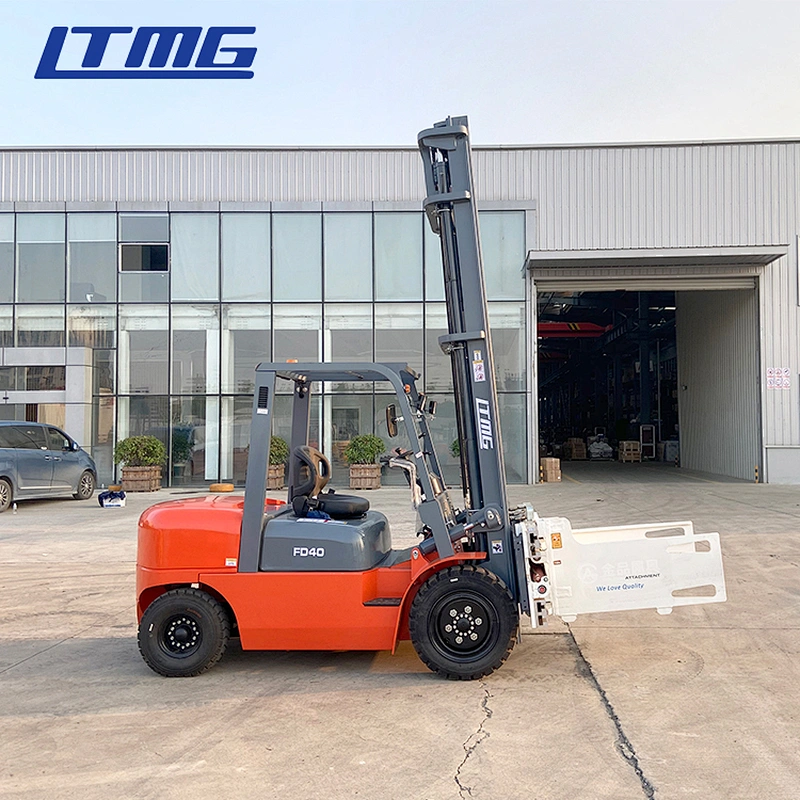

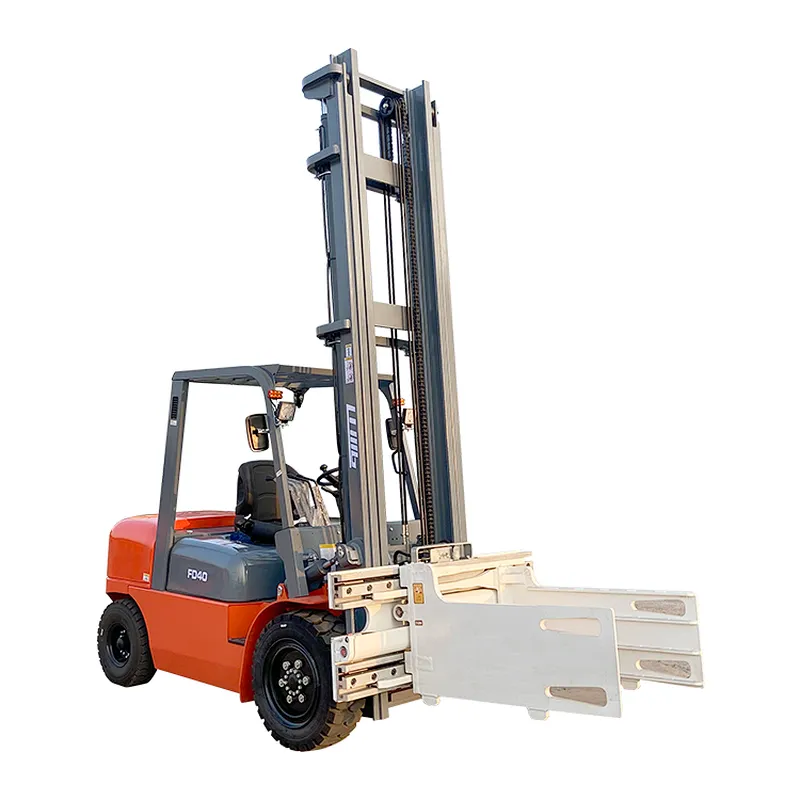

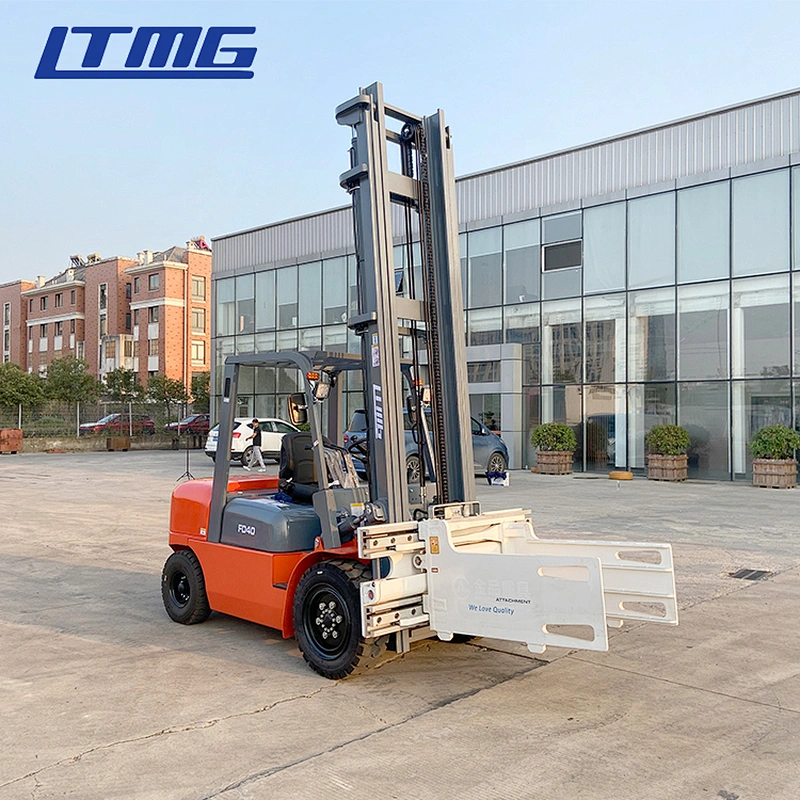

The specification of LTMG brand 4000kg counterbalance diesel forklift | ||||||||||
General | Model | FD40 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 4000 | ||||||||
Load Centre | mm | 500 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1070×125×50 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 495 | ||||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2890 | |||||||
Overall Width | mm | 1410 | ||||||||
Mast Lowered Height | mm | 2195 | ||||||||
Mast Extended Height(With backrest) | mm | 4180 | ||||||||
Overhead Guard Height | mm | 2120 | ||||||||
Turning Radius (outside) | mm | 2700 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 19 | ||||||
Lifting (Full load) | mm/s | 320 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 250-15-16PR | ||||||
Rear | mm | 6.50-10-10PR | ||||||||
Wheelbase | mm | 1900 | ||||||||
Service weight | kg | 5100 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||||
Engine | Model | 4TNE98 | ||||||||
Manufacture | YANMAR | |||||||||
Rated output/r.p.m. | kw | 43/2300 | ||||||||
Rated torque/r.p.m. | N·m | 177.6-196.3/1700 | ||||||||
No.of Cylinder | 4 | |||||||||
Bore×Stroke | mm | 98×110 | ||||||||
Displacement | cc | 3318 | ||||||||
Fuel Tank Capacity | L | 70 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 1/1 | ||||||||

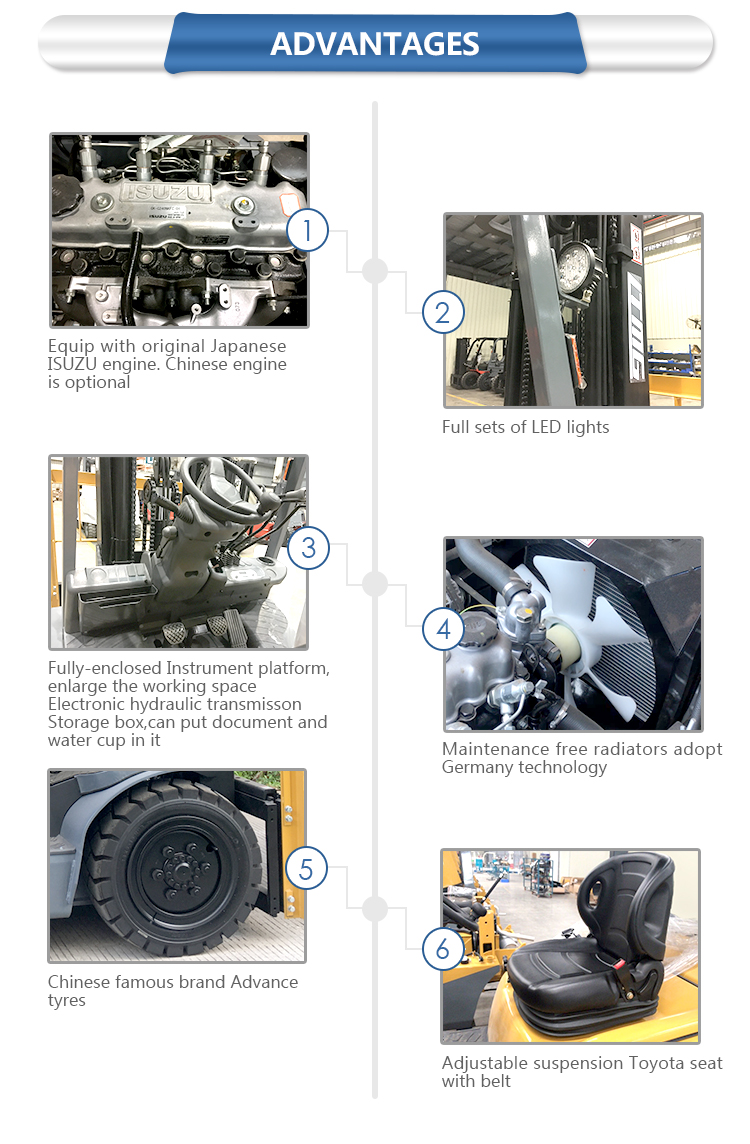

1、Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu,Mitsubishi and Cummins engines are optional.

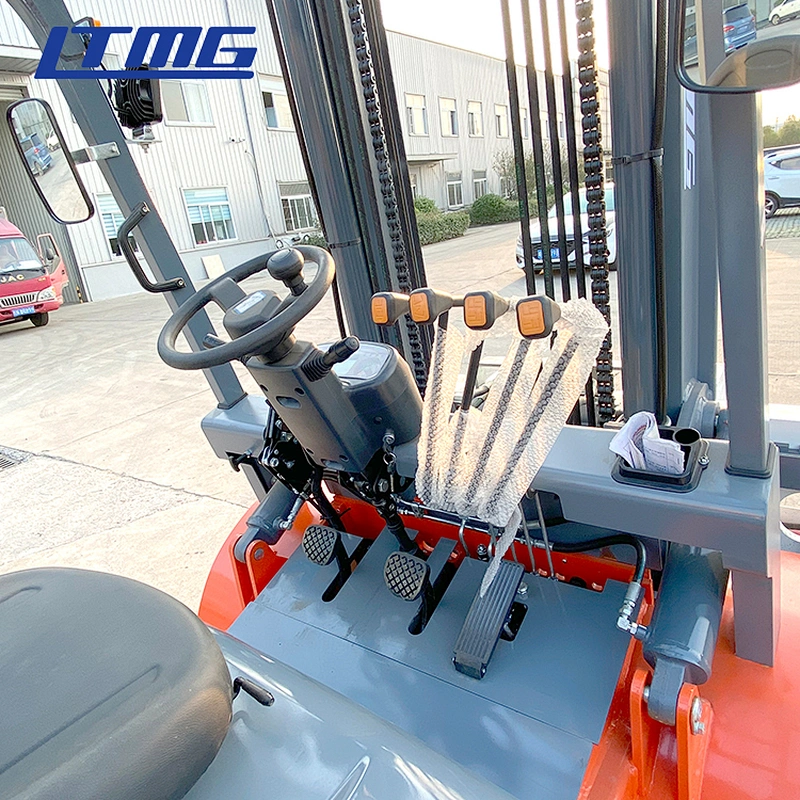

2、Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3、Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust.
4、Install heavy-duty driving axle to ensure safety work at bad working conditions.
5、Adopt advanced load sense technology which offers flow for steering system to save energy ,protect environment ,and lower the system heat.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
