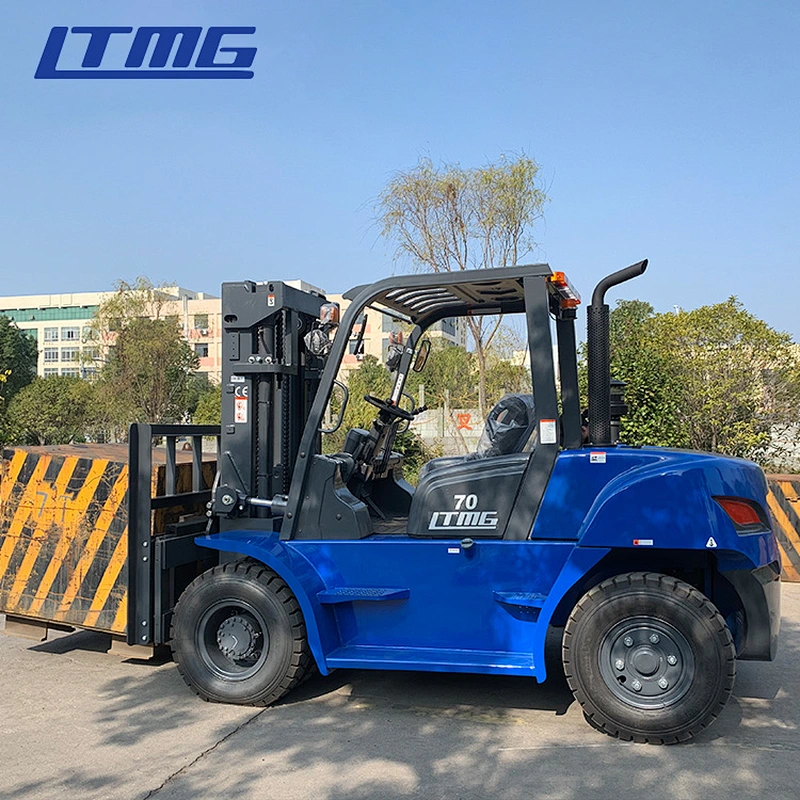

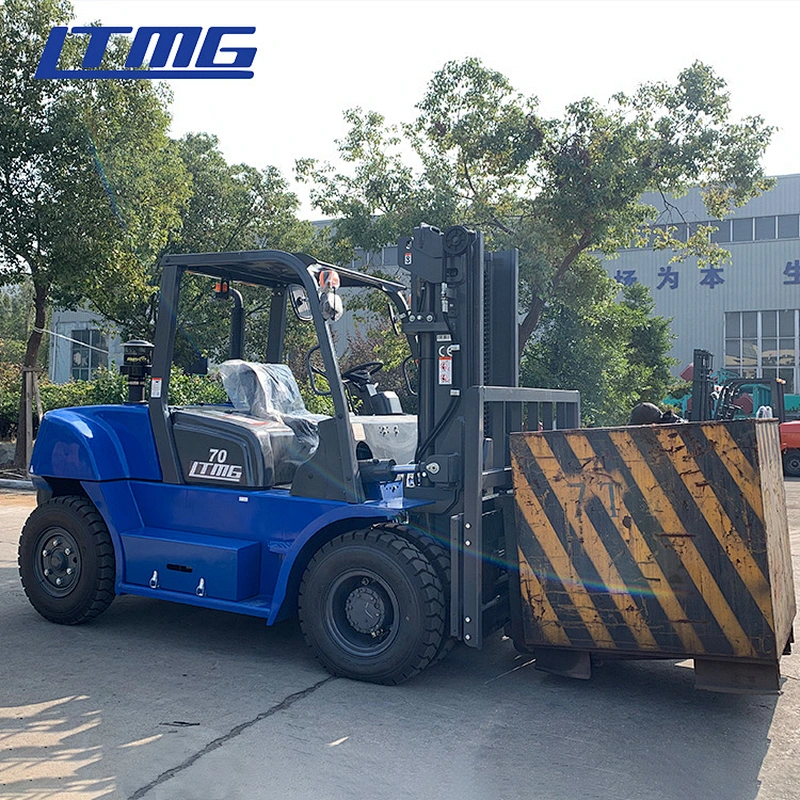

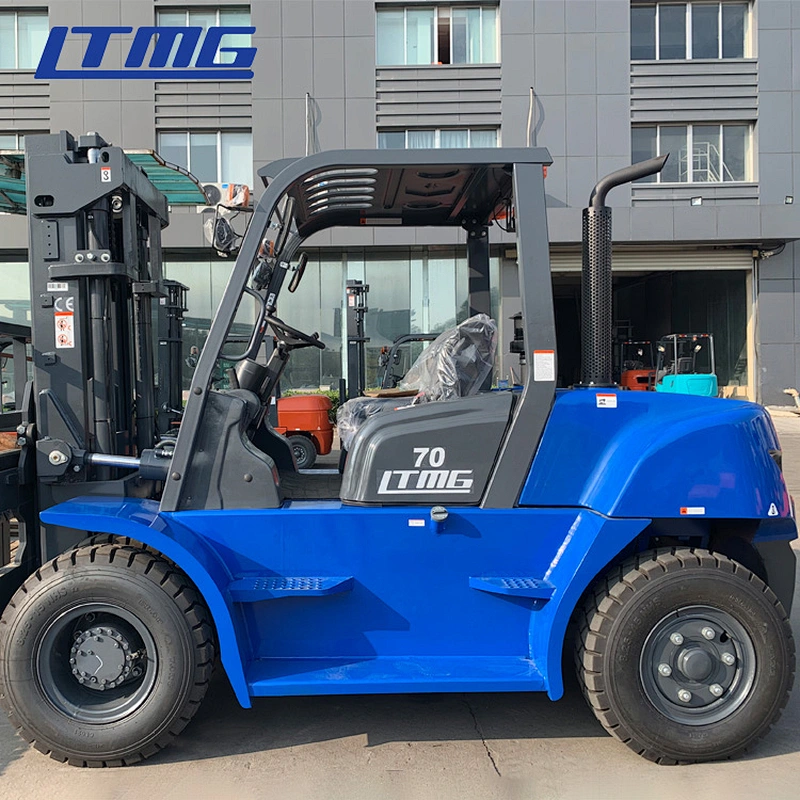

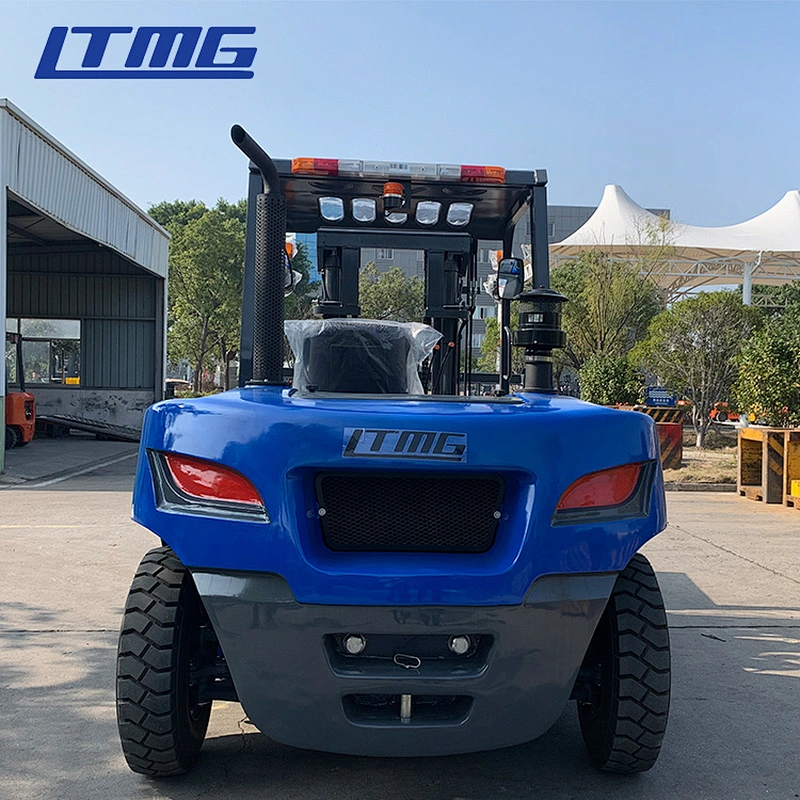

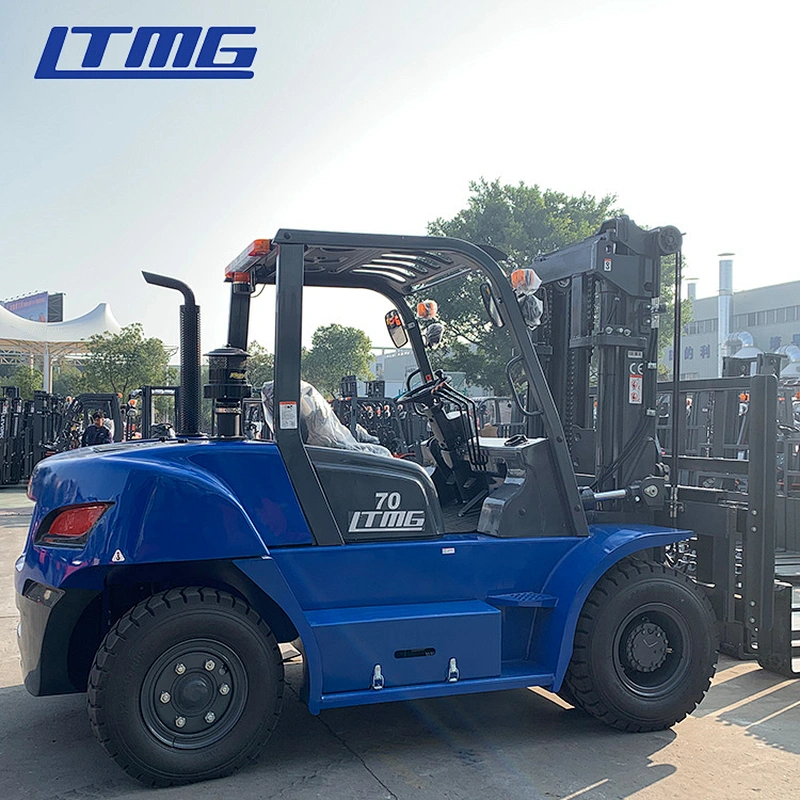

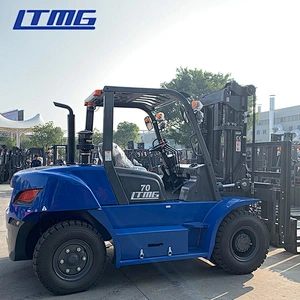

7 ton diesel forklift

Model NO.: FD70
Price:: USD 21011.00-21011.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Month
Country of Origin: Ningbo Port, China

Quantity:

Product Description

Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
After Warranty Service:Spare parts
Local Service Location:Turkey
Local Service Location:Brazil
Local Service Location:Mexico
Local Service Location:Australia
Local Service Location:Colombia
Local Service Location:South Africa
Showroom Location:Saudi Arabia
Showroom Location:Colombia
Showroom Location:South Africa
Showroom Location:Australia
Condition:New
Place of Origin:CN;FUJ
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Free spare parts
Brand Name:LTMG
Max. Lifting Height:3000mm
Min. Lifting Height:0
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3590*1995*2500MM
Certification:CE/ISO9001
Applicable Industries:logistics transportation

Product Description

The Specification of 7ton diesel forklift
General	Model					FD70
		Power Type					Diesel
		Rated Capacity					kg	7000
		Load Centre					mm	600
Characteristic&Dimension	Lift Height					mm	3000
		Fork Size			L×W×T	mm	1220×150×70
		Mast Tilt Angle			F/R	Deg	6°/12°
		Fork Overhang (Wheel center to fork face)					mm	595
		Ground Clearance(Bottom of mast)					mm	200
		Overall Dimension			Length to face of fork(Without fork)	mm	3565
						Overall Width	mm	2010
						Mast Lowered Height	mm	2500
						Mast Extended Height(With backrest)	mm	4415
						Overhead Guard Height	mm	2430
		Turning Radius (outside)					mm	3350
Performance	Speed			Travel (Full load)	km/h	30
	Speed					Lifting (Full load)	mm/s	460
		Max.Gradeability					%	20
Chassis	Tyre			Front	mm	8.25-15-14PR
	Tyre					Rear	mm	8.25-15-14PR
		Wheelbase					mm	2250
		Self weight					kg	9750
Power&Transmission	Battery	Voltage/Capacity			V/Ah	(12/80) x 2
		Engine	Model				6BG1-02
				Manufacture				ISUZU
				Rated output/r.p.m.			kw	82.4/2000
				Rated torque/r.p.m.			N·m	416/1600
				No.of Cylinder				6
				Bore×Stroke			mm	105×125
				Displacement			cc	6494
				Fuel Tank Capacity			L	125
		Transmission	Type				Hydraulic
		Transmission		Stage	FWD/RVS		2/2

Product Features

1.Automatic transmission, hydraulic system.

2.Xichai 6110 powerful engine or Isuzuengine.

3.Side shifter,2500mm long fork length.

4. Original Toyotaseat with safty belt.

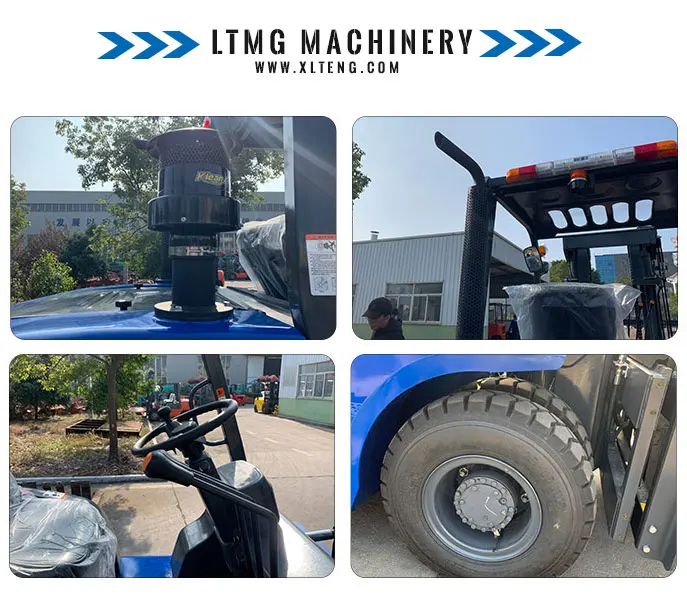

5.Double air filters with high instake, which effectively reduce the resistence and dust into engine, improving engine life.

6.High exhaust pipe to protect your health and environment.

7.Shimadzu pump and valve, Eaton pipe and Nok cylinder seals.

Company Information

LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported
to more than 100 countries and regions around the world.

LTMG Customer

LTMG taked part in many domestic and foreign exhibitions every year.

LTMG focus on the quality of products and the service to customers.
The quality and service has been recognized by our customers.

LTMG Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours(which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
