- Product name:container forklift 15 ton 16 ton diesel forklift with cabine
- Product Type:Diesel Forklift
- Item:16 ton forklift
- Lifting height:3000mm - 6000mm
- Load center:900mm
- Wheel base:3600mm
- Engine:Import engine
- Tires:12.0-24
- Driving brake:Hydraulic clamp disvc
- other standard configuaration:enclosed cab, air conditioner, fork positioner, etc
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Italy
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1800mm
- Fork Width:200mm
- Overall Dimensions:7200*2750*3500mm
- Certification:CE/ISO9001:2008
Product Description

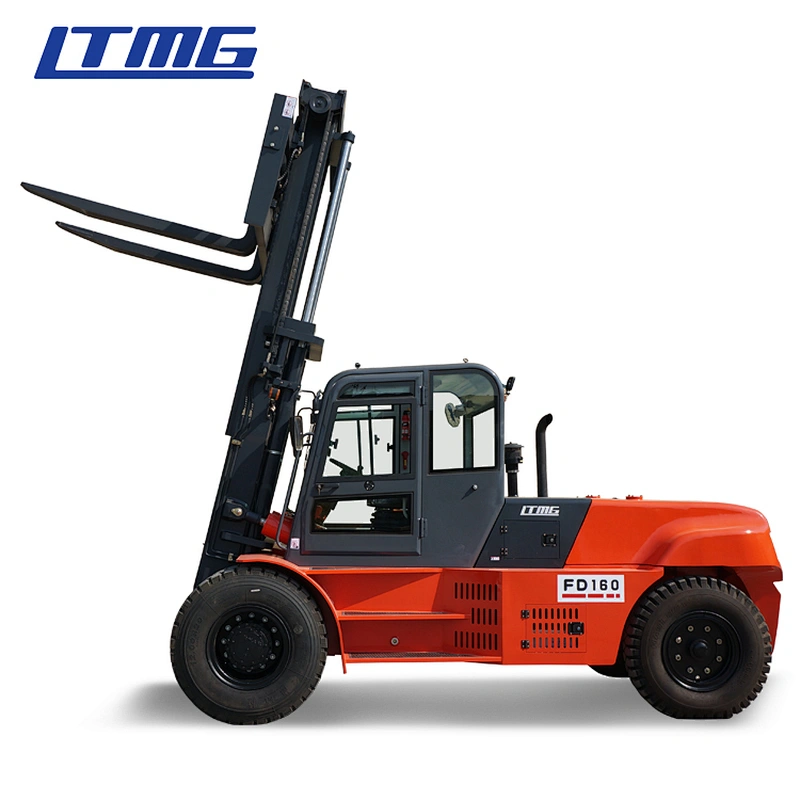

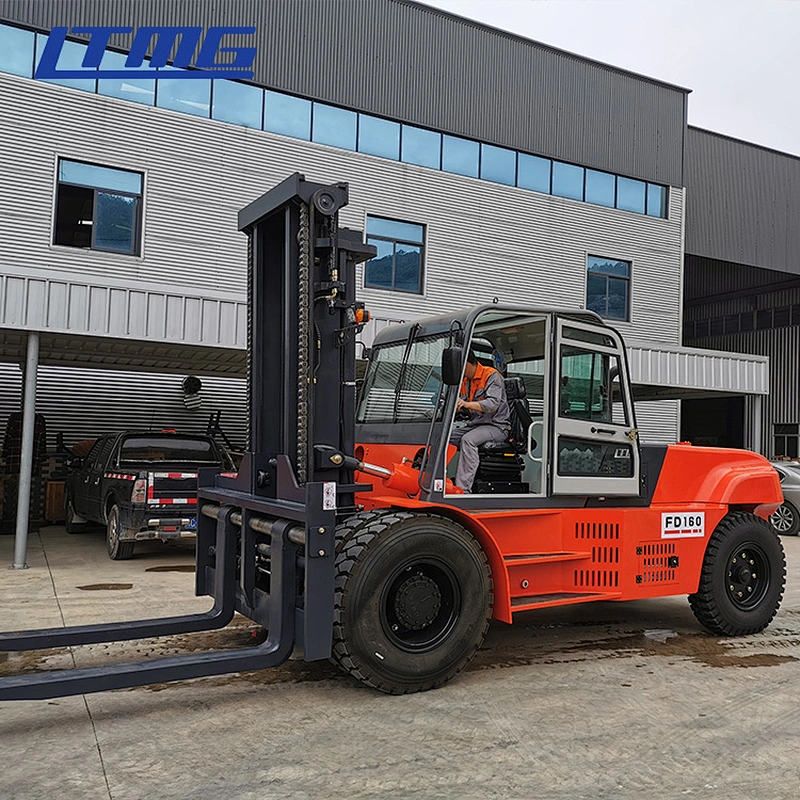

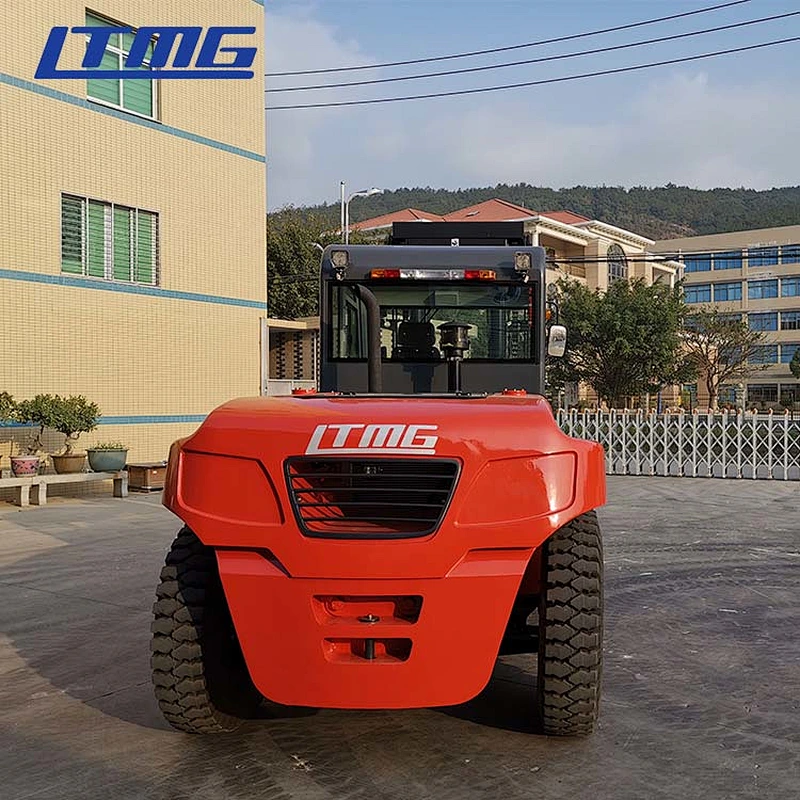

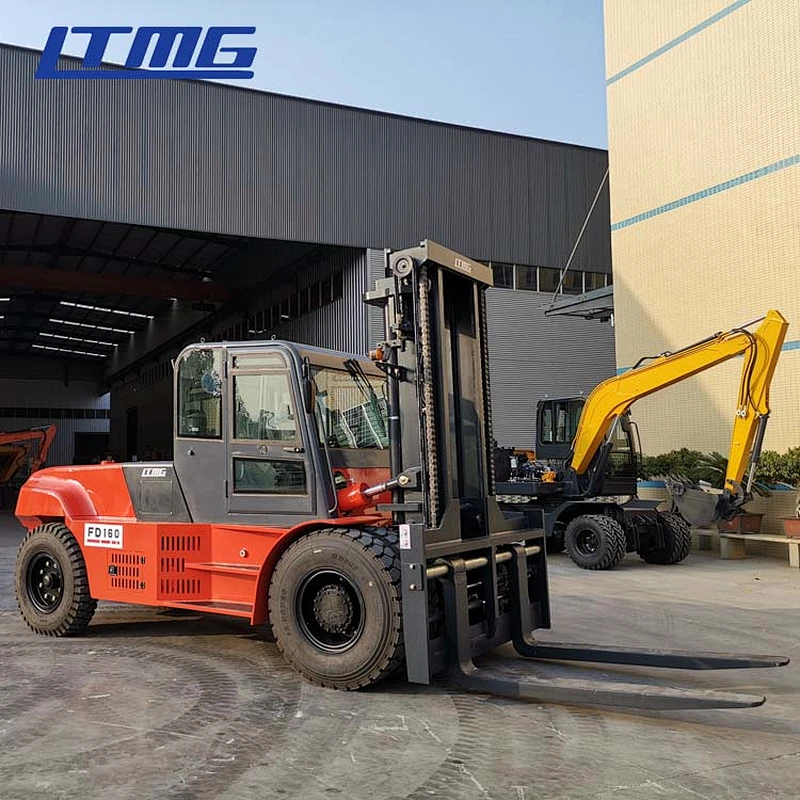

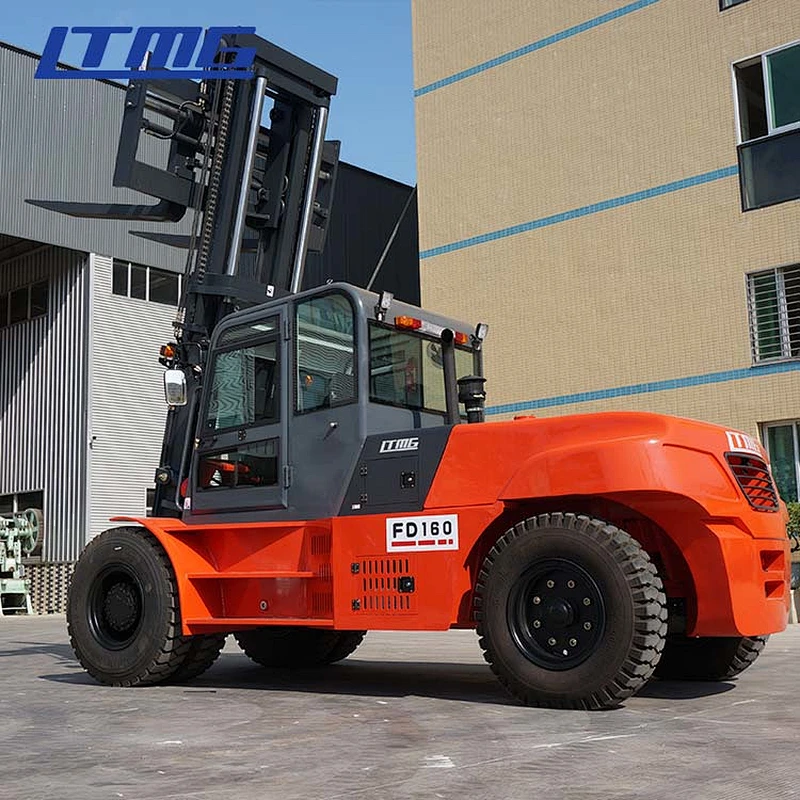

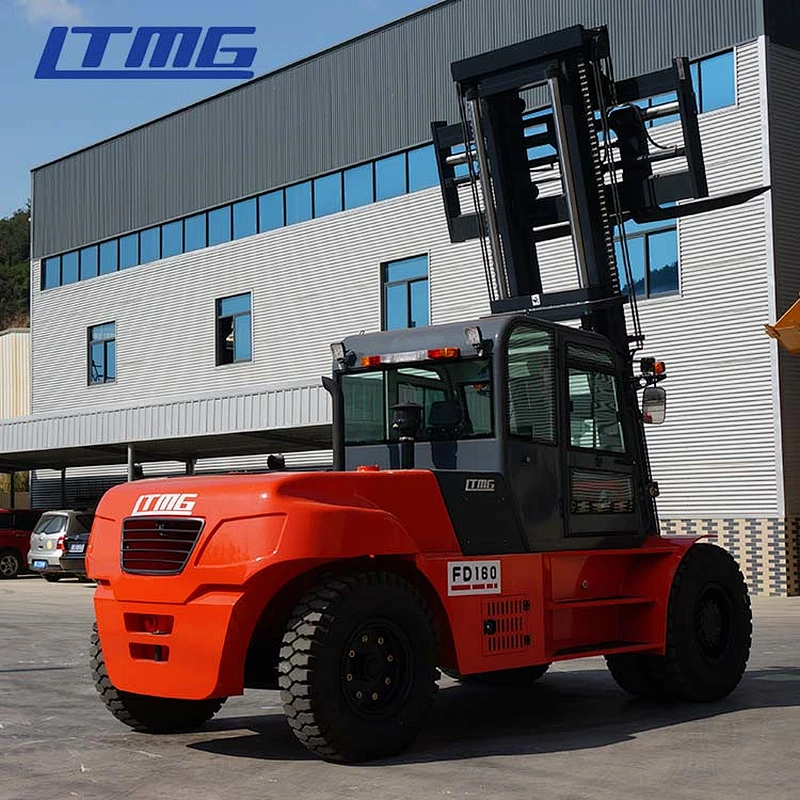

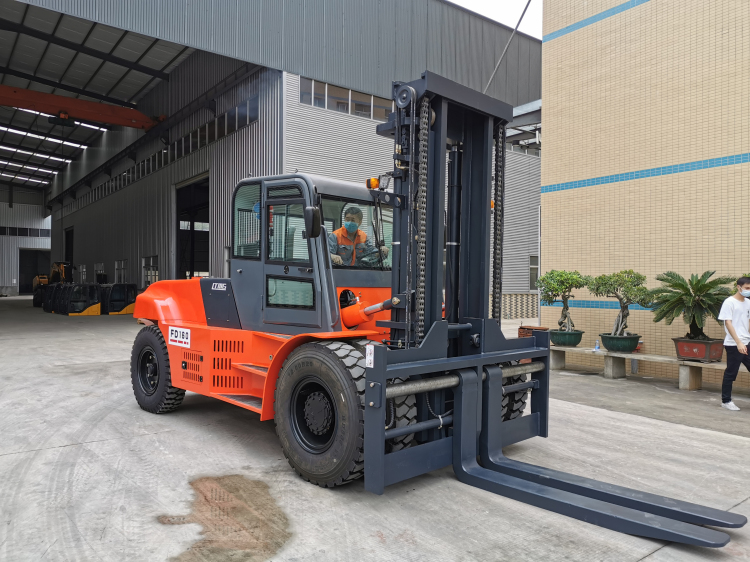

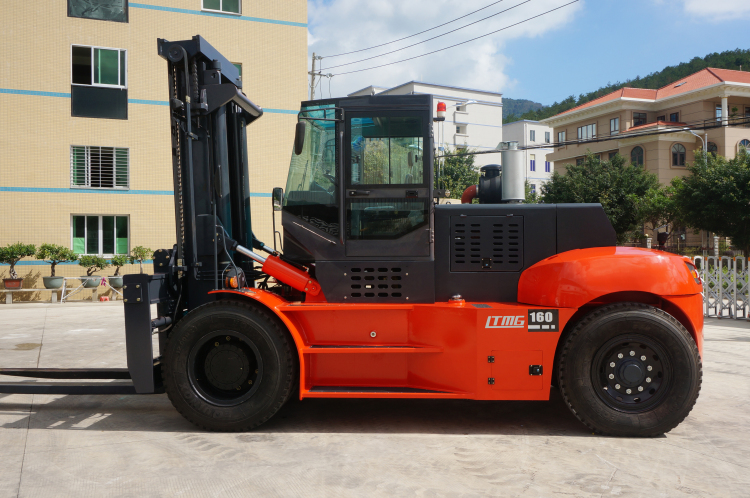

container forklift 15 ton 16 tonluk diesel forklift with cabine
The Specification of container forklift 15 ton 16 tonluk diesel forklift with cabine | ||||||
Model | FD160 | |||||
Features | Rated Load | Kg | 16000 | |||
Load Center | mm | 900 | ||||
Wheelbase | mm | 3600 | ||||
Weight | Weight | Kg | 21000 | |||
Chassis | Tire Specs:Front | 12.00-24 | ||||
Tire Specs:Rear | 12.00-20 | |||||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | |||||
Wheel tread:Front | mm | 2070 | ||||
Wheel tread:Rear | mm | 2130 | ||||
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | |||
Mast height(fork lowering) | mm | 3500 | ||||
Mast lifting height | mm | 3500 | ||||
Max.height | mm | 5220 | ||||
height to head guard(height to cab) | mm | 3220 | ||||
Overall height（with forks) | mm | 7200 | ||||
Fork front verticaal sueface to the rear end of the vehicle | mm | 5400 | ||||
Overall width | mm | 2750 | ||||
Fork dimension | mm | 1800*200*90 | ||||
Fork carriage width | mm | 2500 | ||||
Mast min ground(with load) | mm | 270 | ||||
Wheelbase center min ground(with load) | mm | 310 | ||||
Min.turning Radius | mm | 5050 | ||||
Travel speed(with load/without load) | km/h | 22/30 | ||||
Performance | Max.lifting speed(with load/without load) | mm/s | 240/300 | |||
traction | KN | 120 | ||||
gradeability(with load/without load) | % | 20/22 | ||||
Driving brake | Hydraulic clamp disvc | |||||
Engine | Engine | brand | Yuchai Engine | |||
model | YC6B160Z-T20 | |||||
Rated Output | 129(Kw) | |||||
Cylinder No | 6 | |||||
Others | Transmission gears(Front/rear) | 2/1 | ||||
Product Features
1. Original Parker hydraulic valve and pump.
2. Heigh strength 3.5m lifting height mast and 1800mm longer fork.
3. FOPS/ROPS cab and OPS/ORS adjustable suspension seat.

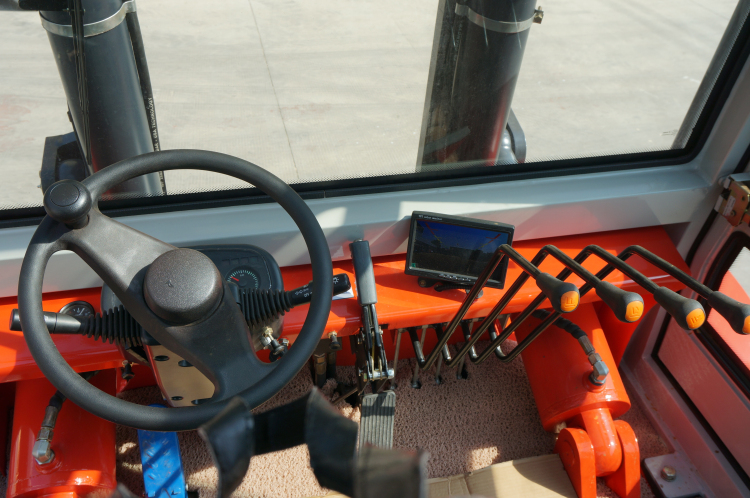

4. Standard enclosed operator cabin, air-conditioner, fork positioner.
5. Optional Import engine, HangChi transmission.
6. Maintenance free radiators adopt Germany technology

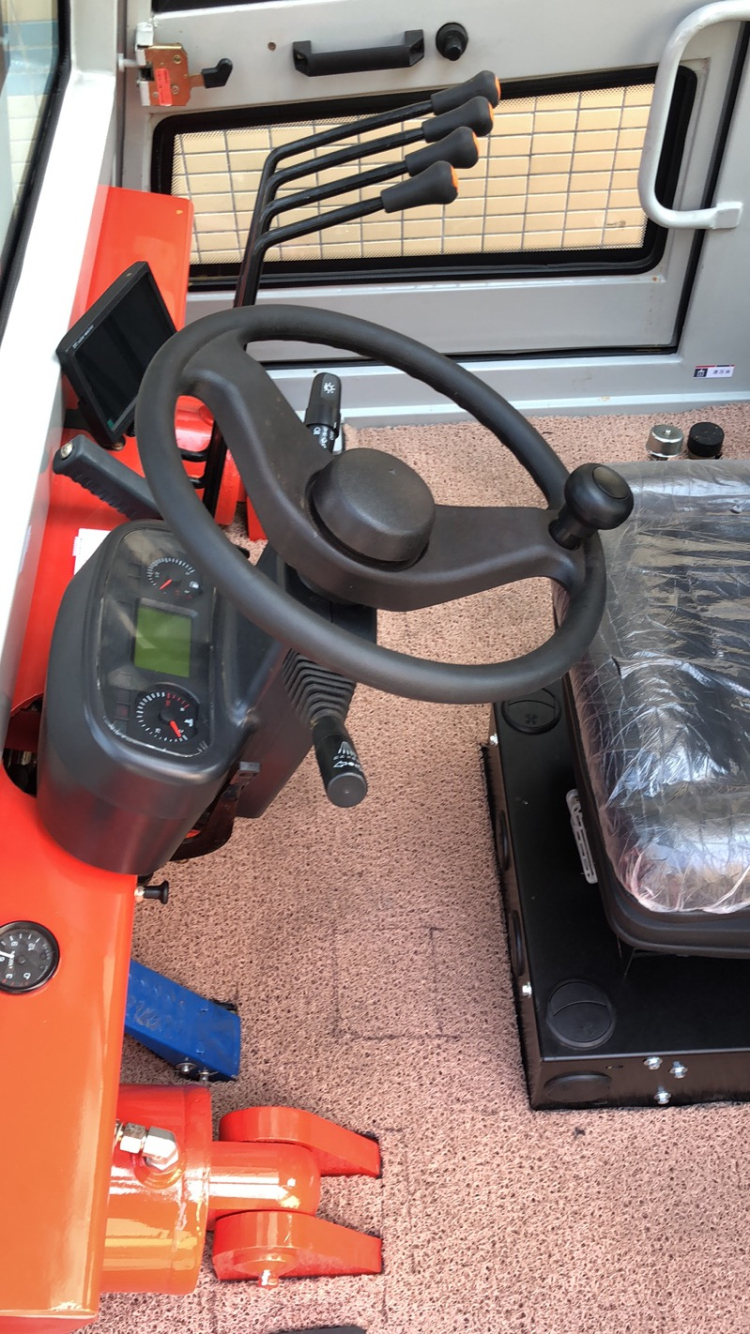

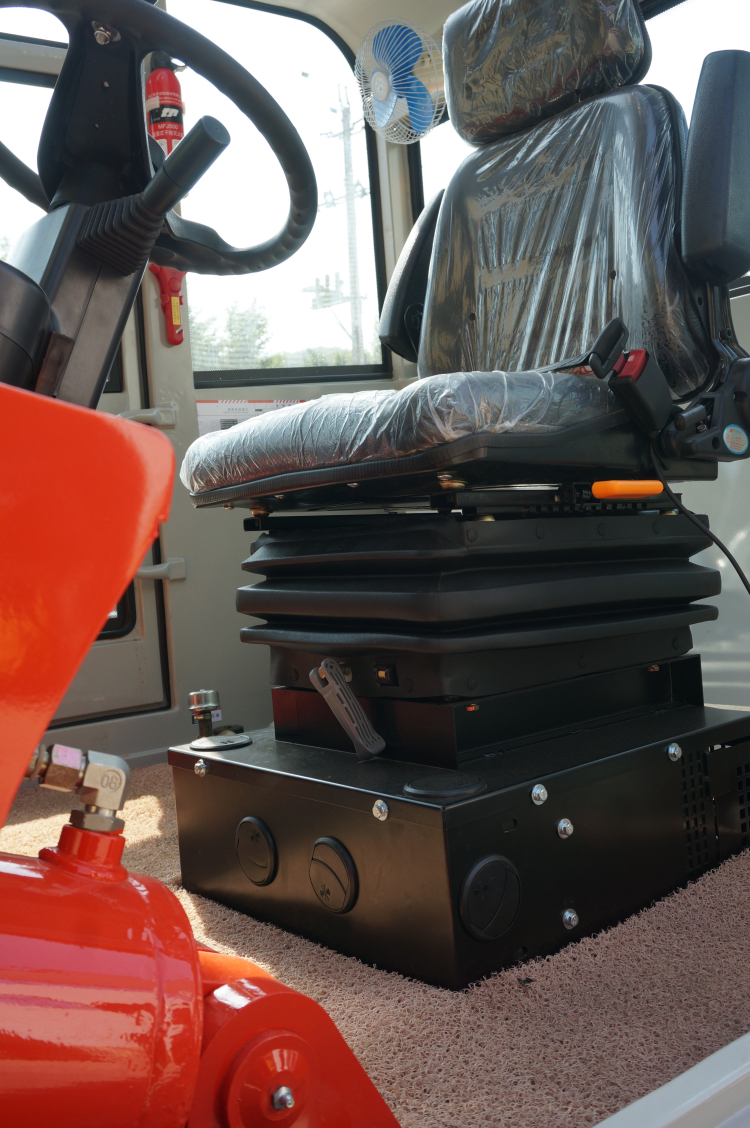

OPS/ORS adjustable suspension seat.

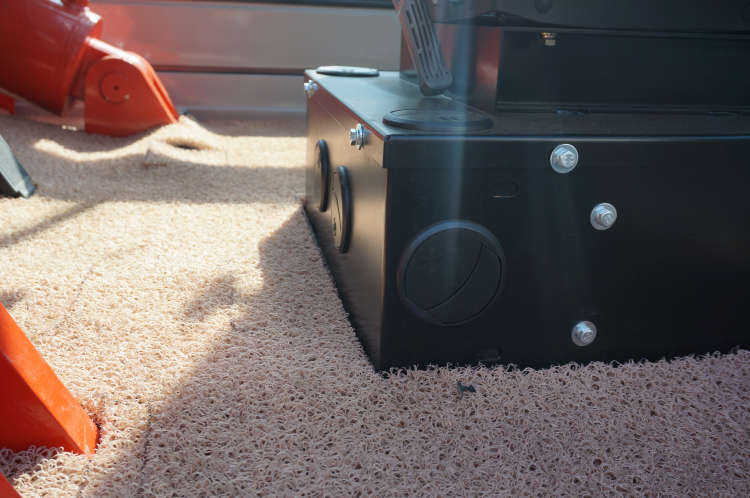

Air-conditioner
Reversing imager
Electric control forward and backward gear

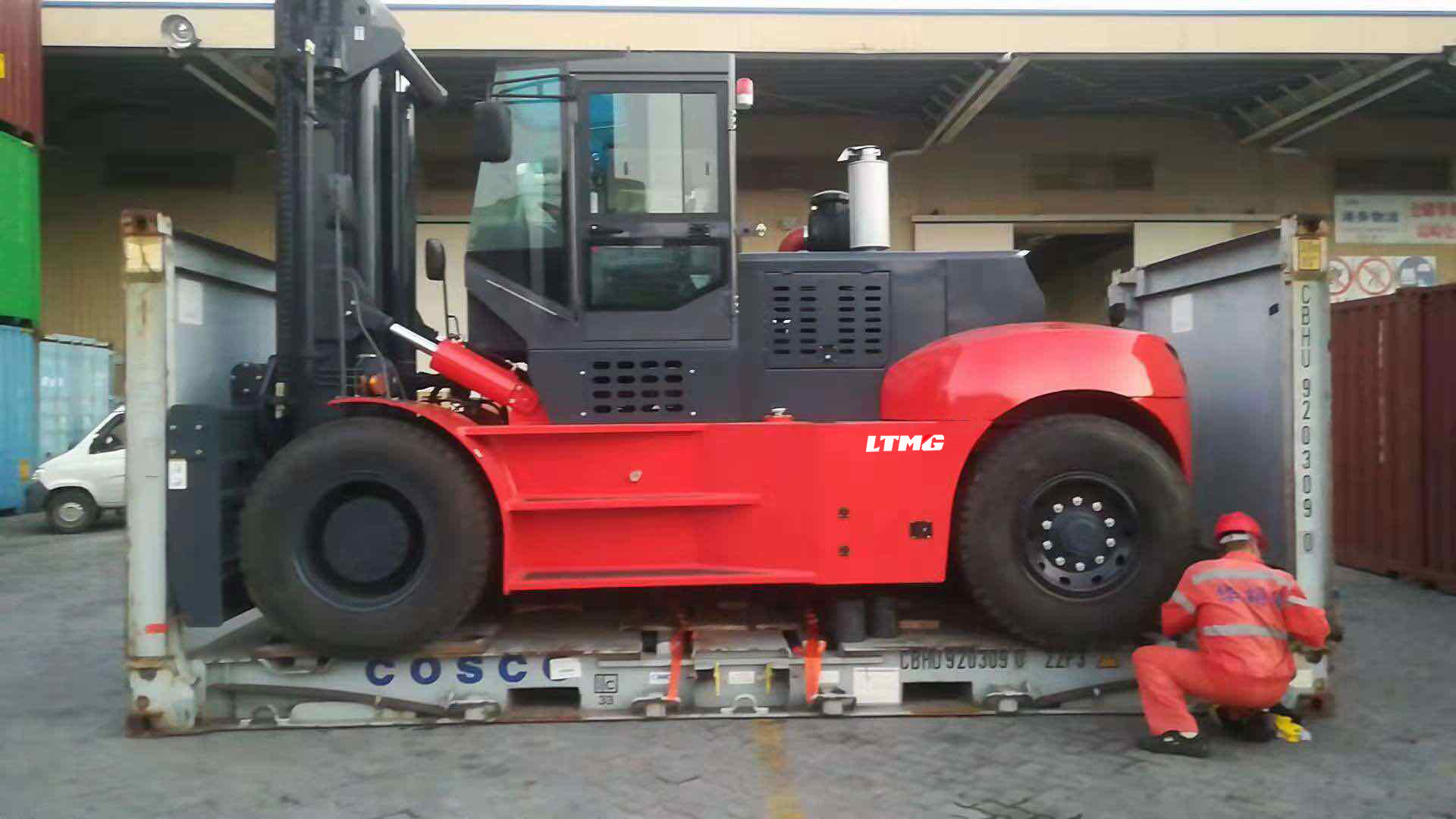

Packing & Delivery
Our Factory
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
