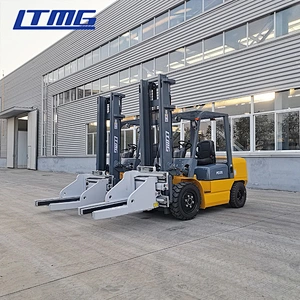

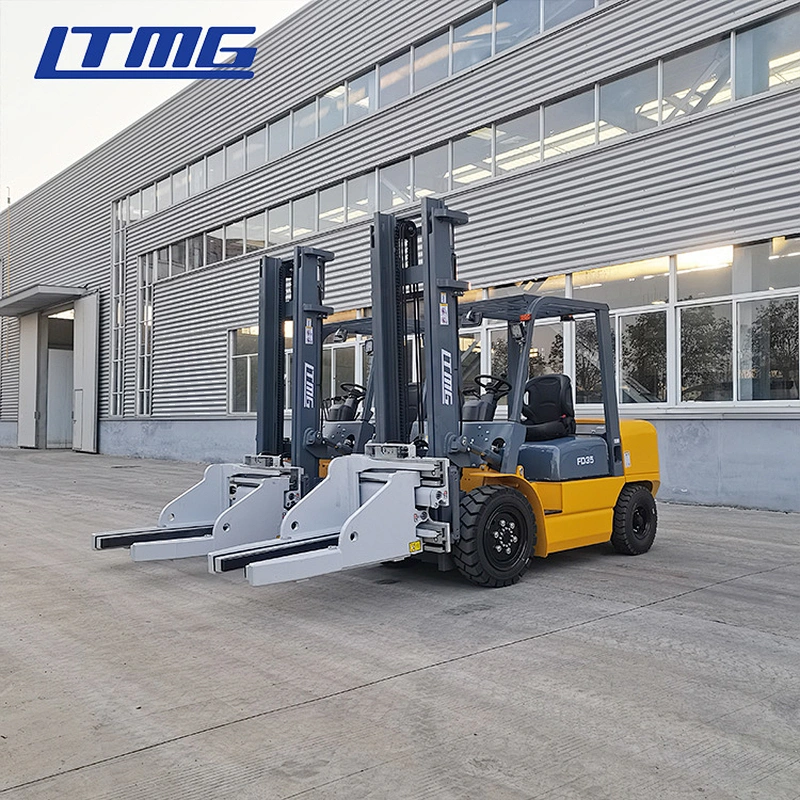

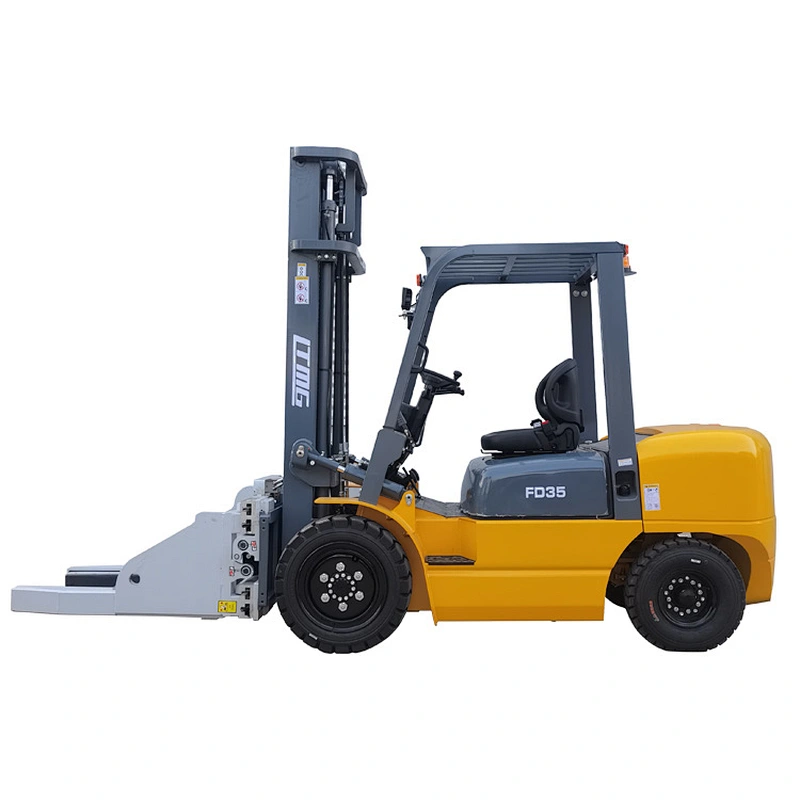

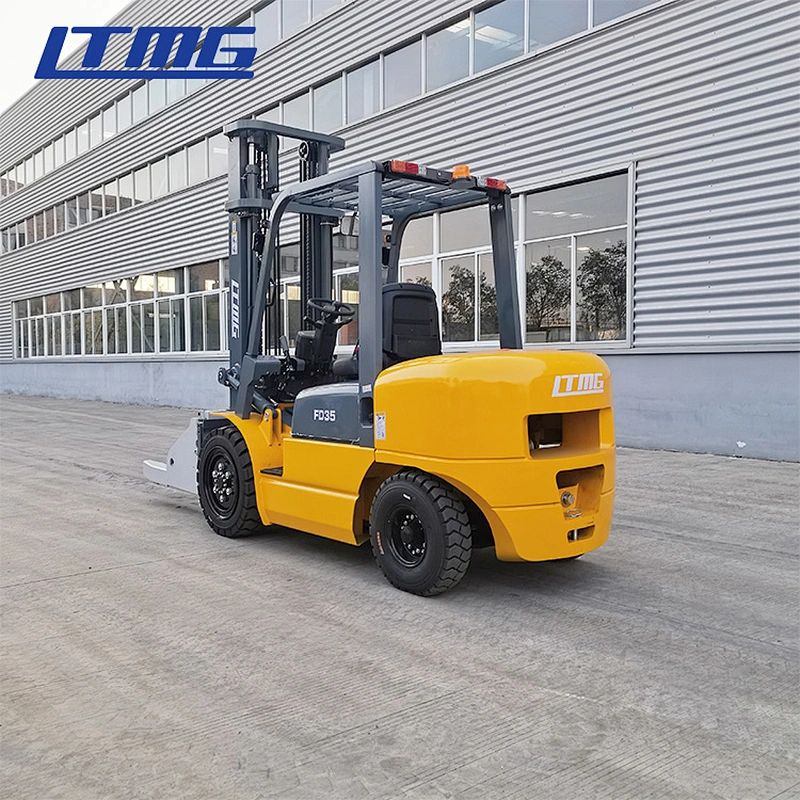

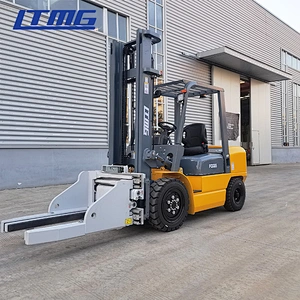

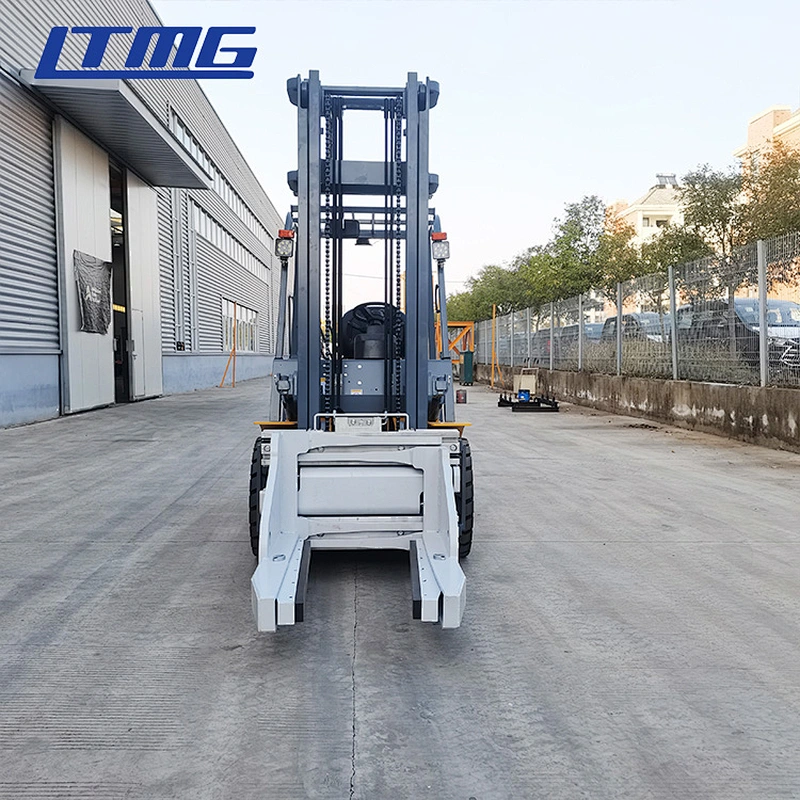

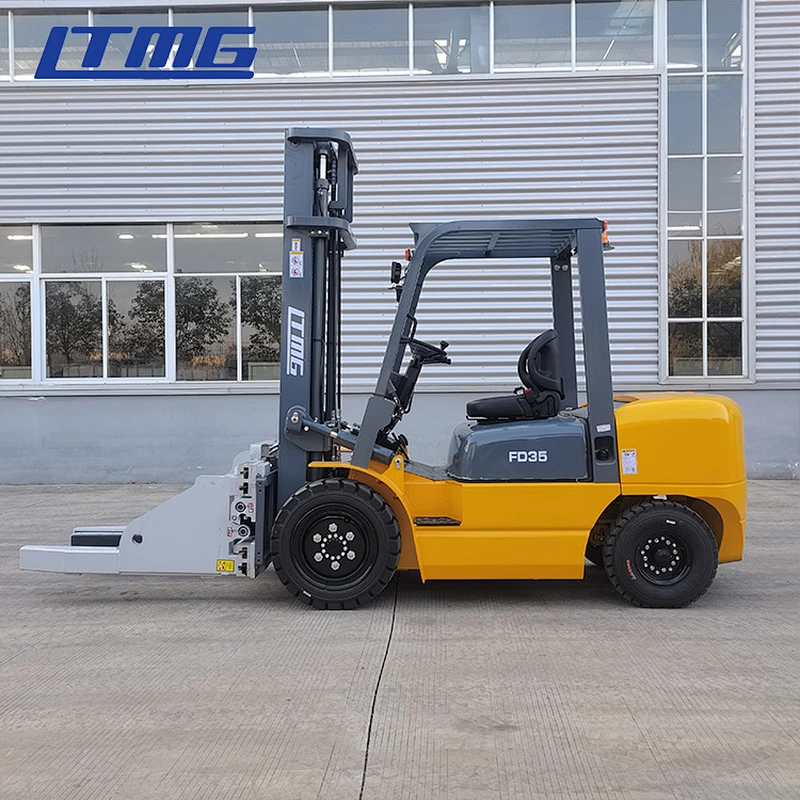

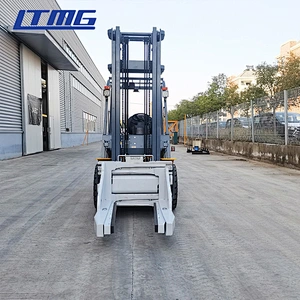

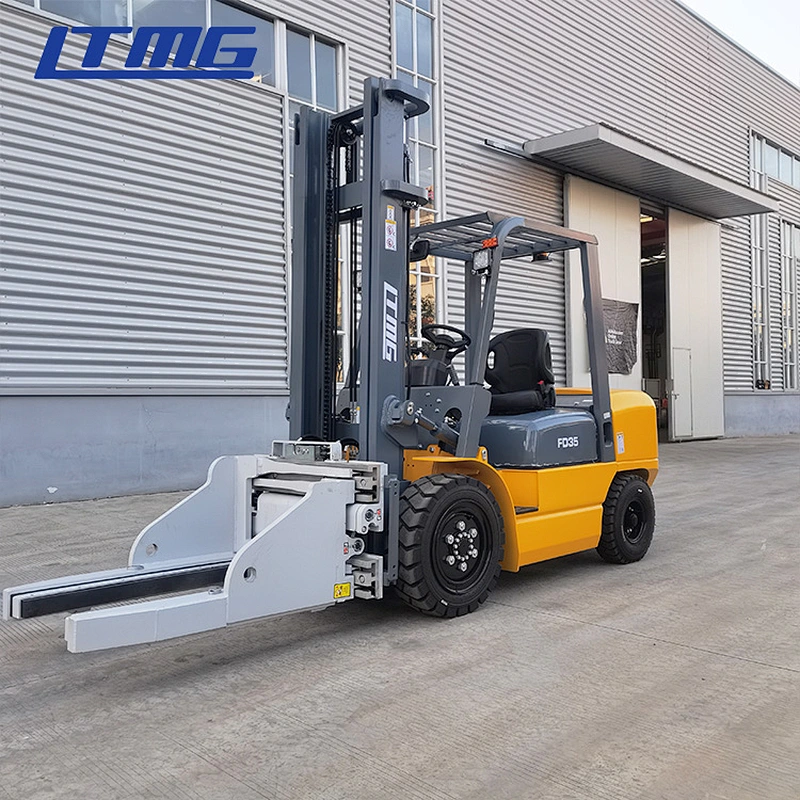

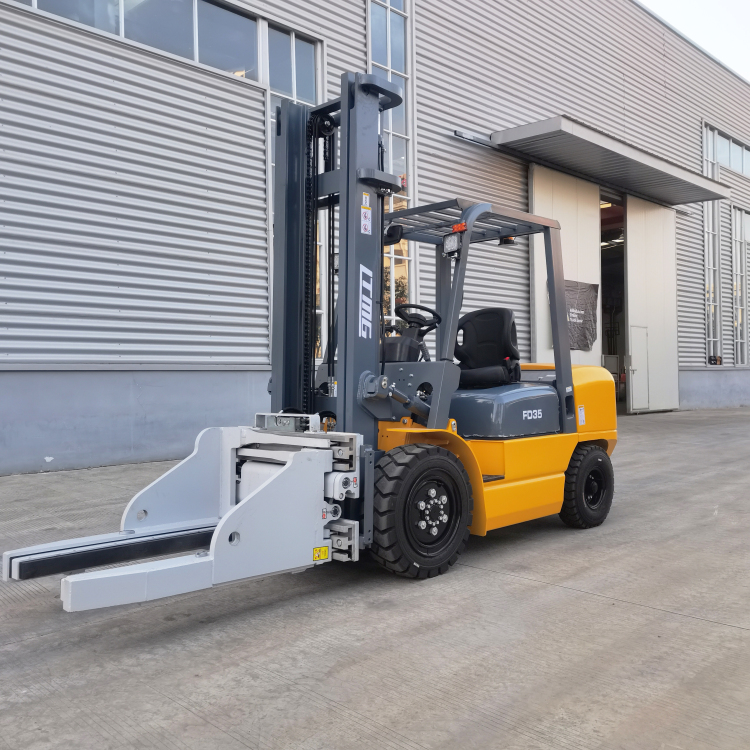

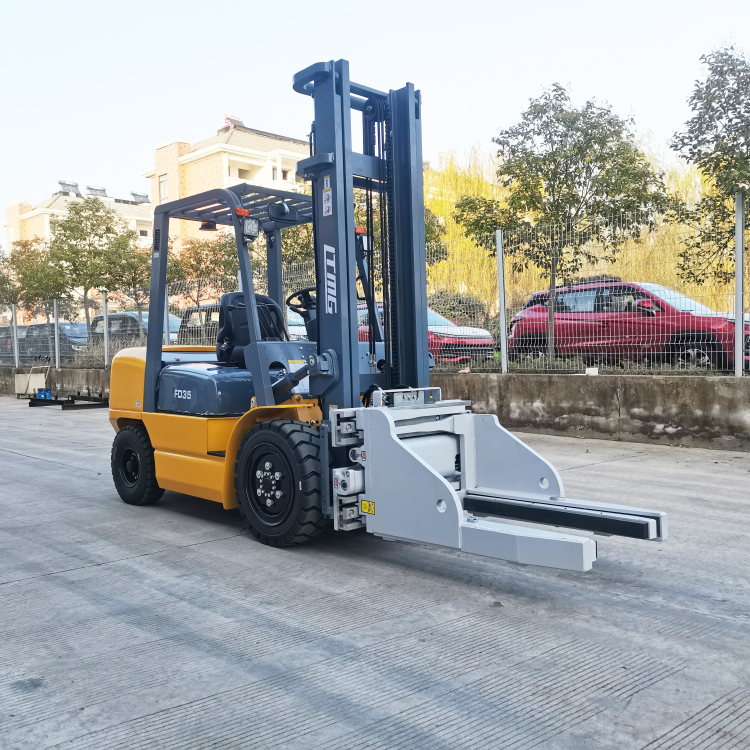

- Type:forklift with block clamp
- Load Center:500mm
- Product Name:3 ton forklift truck for sale
- Color:Customer Demanded
- Feature:3 ton forklift
- Free lift:150mm
- Fork Length:1070mm
- Wheelbase:1700mm
- Transmission type:Automatic Transmission
- Engine:Xinchai, Mitsubishi, Isuzu, etc.
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Italy
- Local Service Location:Philippines
- Local Service Location:Peru
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Colombia
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Argentina
- Showroom Location:Chile
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:120m
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2705*1225*2075mm
- Certification:CE/ISO9001
Specifications for hydraulic transmission 3 ton diesel forklift | ||||||
Manufacturer | LTMG | |||||
Model | Power shift T/M | FD30T | ||||
Manual shift T/M | FD30C | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2705 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised(with backrest) | mm | 4250 | ||||
Height to head guard | mm | 2140 | ||||
Turning raduis(outside) | mm | 2445 | ||||
Front face of fork to front axle | mm | 480 | ||||
Min. right angle stacking aisle | without load length&clearence | mm | 2925 | |||
Speed | Max Travelling full/no load | km/h | 18/19.5 | |||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/450 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 | |||
Manual shift T/M full/no load | kg | 1550/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |||
Manual shift T/M full/no load | % | 18/20 | ||||
Truck weight | kg | 4380 | ||||
Weight distribution | Full load front/rear | kg | 6490/890 | |||
No load front/rear | kg | 1670/2700 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1000/970 | |||
Ground clearence | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/80 | |||
Engine | Model | ISUZU C240 | ||||
Rated power | kw/rpm | 34.3/2500 | ||||
Rated torque | N.m/rpm | 138/1800 | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.369 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |||
After-sale Service
Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
