- Product Name:LTMG trucks forklift 2 ton 3.8 ton forklift machine price
- Product Type:Diesel forklift
- Item:3.8 ton forklift
- Load Center:500mm
- Lifting Height:3000mm - 6000mm
- Mast:2 stage mast / 3 stage mast
- Engine:Chinese Xinchai / Japanese Isuzu or Mitsubishi or mitsubishi
- Tire:Pneumatc tires
- Transmission type:Hydraulic
- Options:Mast, Side shifter, Fork positioner, Cabin, Air conditioner
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:France
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Fork Length:1070
- Fork Width:125
- Overall Dimensions:2835*1230*2150
- Certification:CE/ISO9001
Product Specification

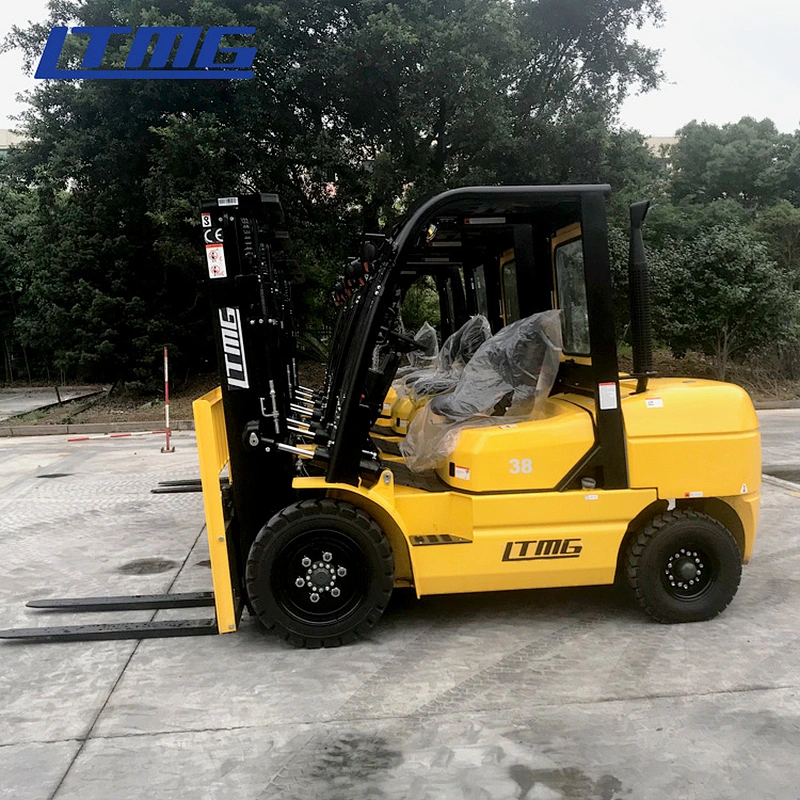

Chinese brand montacarga LTMG trucks forklift 2 ton 3.8 ton forklift machine price
Specification of LTMG trucks forklift 3.8 ton forklift | ||||||
Model | FD38 | |||||
Power Type | Diesel | |||||
Rated Capacity | 3800 | |||||
Load Centre | 500 | |||||
Lift Height | 3000 | |||||
Fork Size | L×W×T | 1070×125×50 | ||||
Mast Tilt Angle | F/R | 6°/12° | ||||
Front Overhang (Wheel center to fork face) | 485 | |||||
Ground Clearance（Bottom of mast） | 140 | |||||
Overall Dimension | Length to face of fork(Without fork) | 2835 | ||||
Overall Width | 1230 | |||||
Mast Lowered Height | 2150 | |||||
Mast Extended Height(With backrest) | 4175 | |||||
Overhead Guard Height | 2110 | |||||
Turning Radius (outside) | 2570 | |||||
Speed | Travel (Empty load) | 20 | ||||
Lifting (Full load) | 430 | |||||
Max.Gradeability (No load/Full load) | 20 | |||||
Tire | Front | 28×9-15-12PR | ||||
Rear | 6.50-10-10PR | |||||
Wheelbase | 1800 | |||||
Service weight | 4900 | |||||
Battery | Voltage/Capacity | 12/80 | ||||
Engine | Model | 4TNE98 | ||||
Manufacture | YANMAR | |||||
Rated output/r.p.m. | 43/2300 | |||||
Rated torque/r.p.m. | 177.6-196.3/1700 | |||||
No.of Cylinder | 4 | |||||
Bore×Stroke | 98×110 | |||||
Displacement | 3318 | |||||
Fuel Tank Capacity | 70 | |||||
Transmission | Type | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | ||||

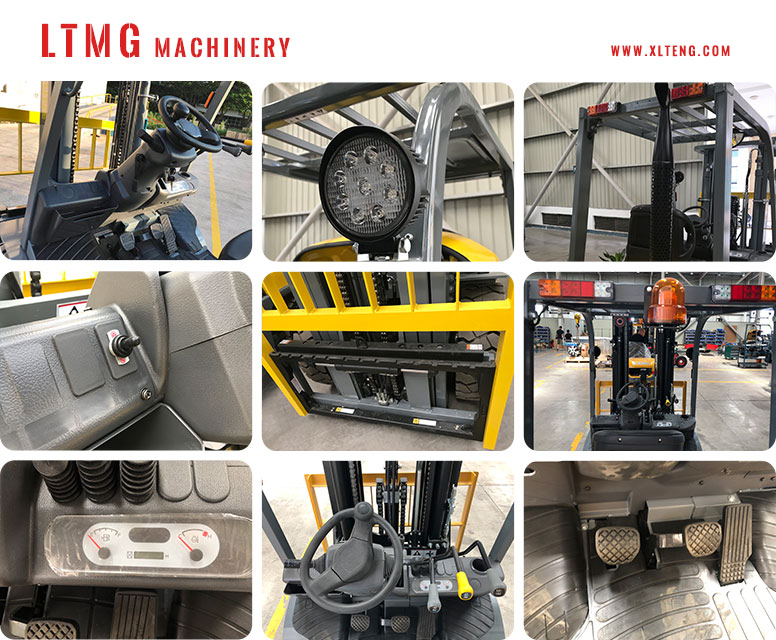

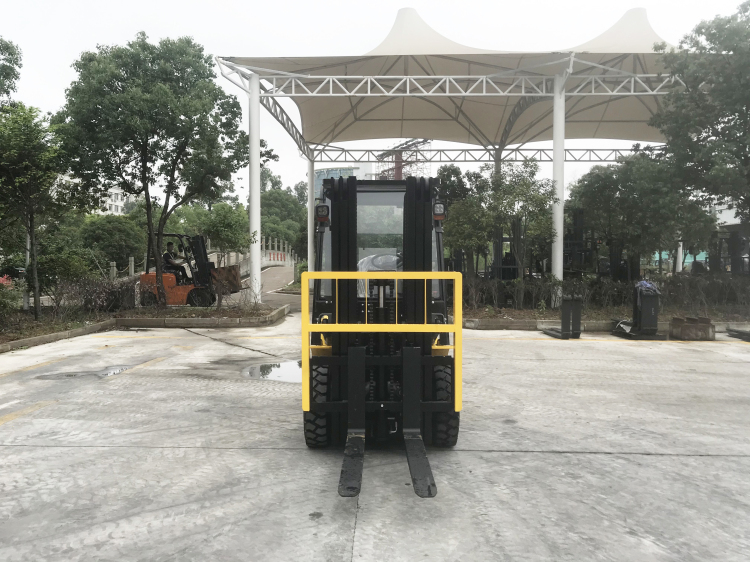

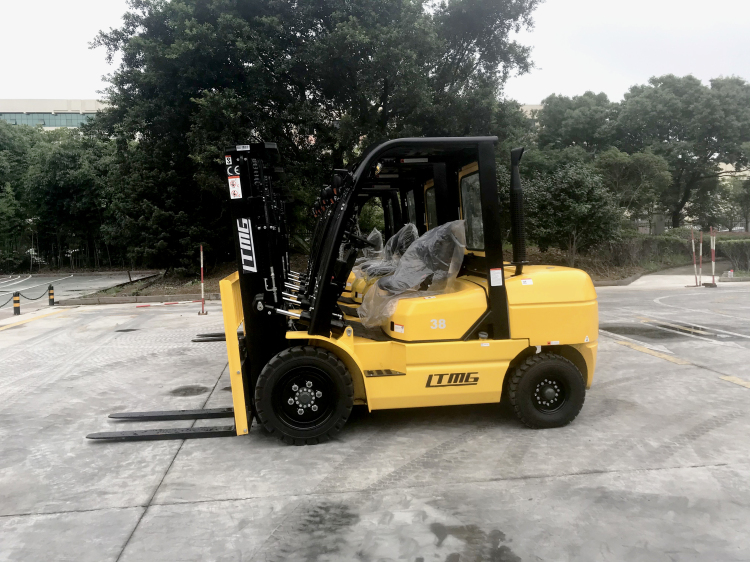

Detailed Images

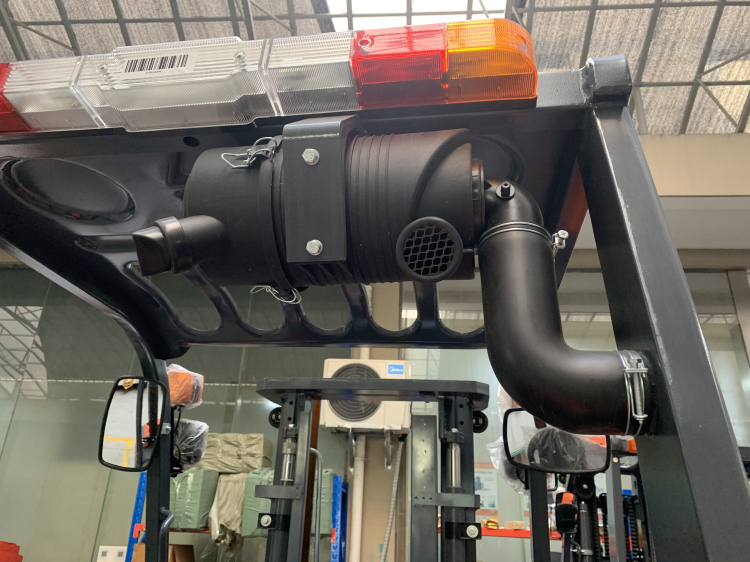

Double air filters

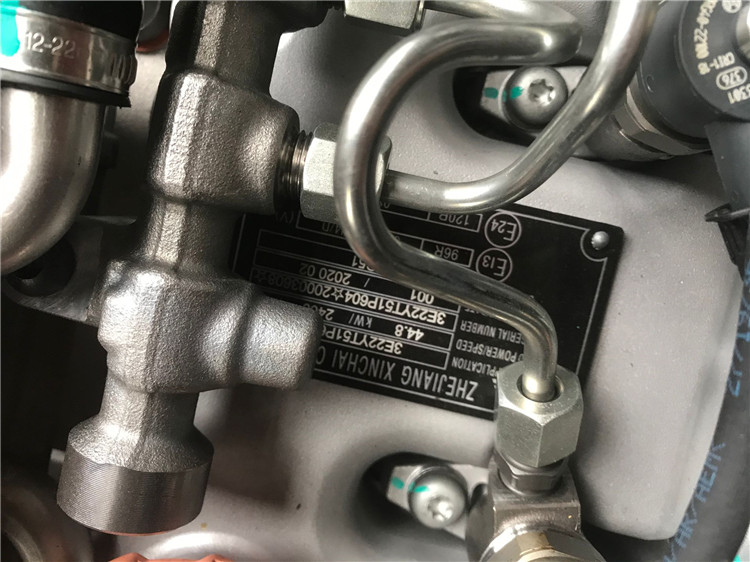

Xinchai euro 5 engine

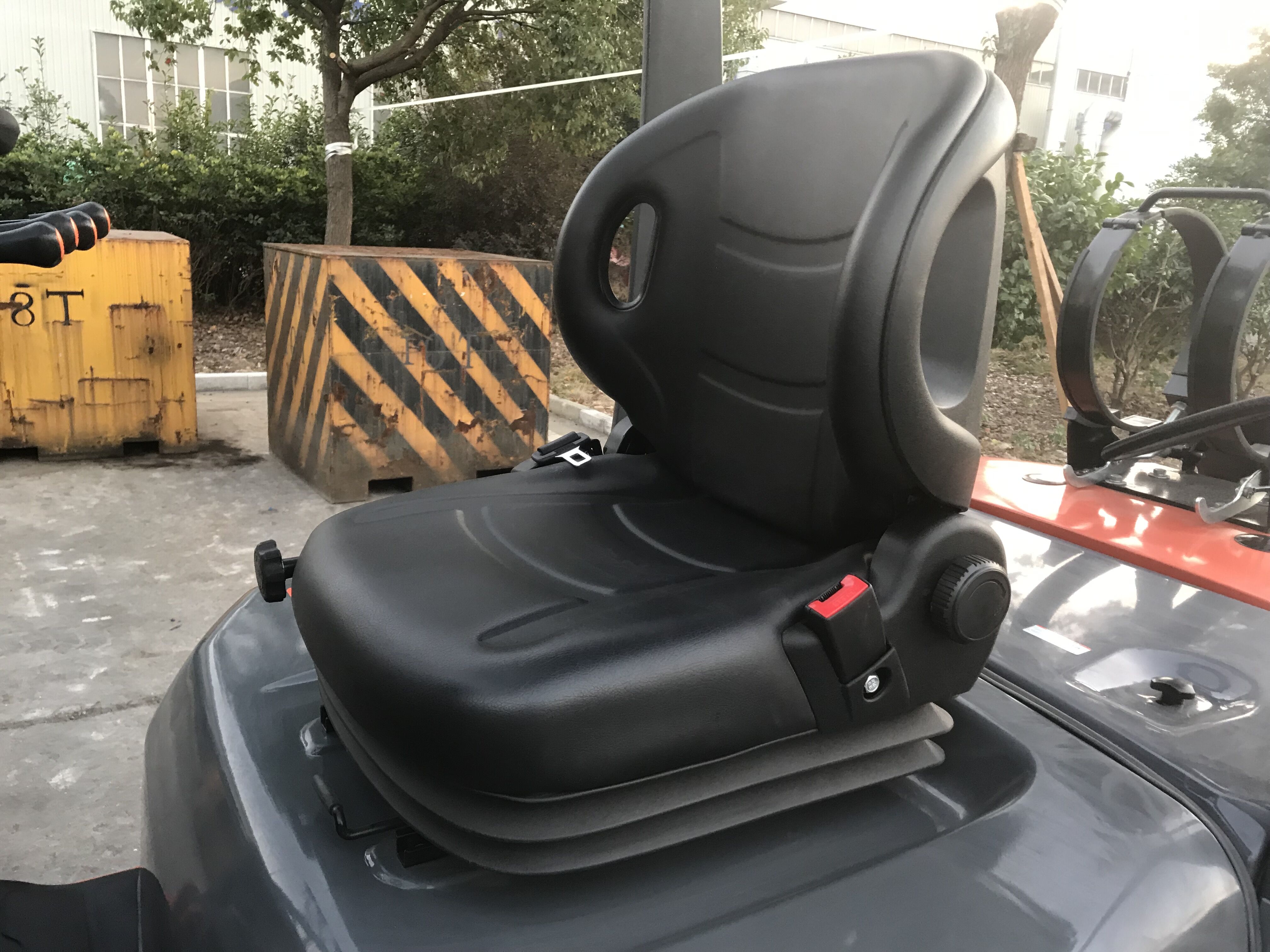

Toyota suspension seat with safety belt

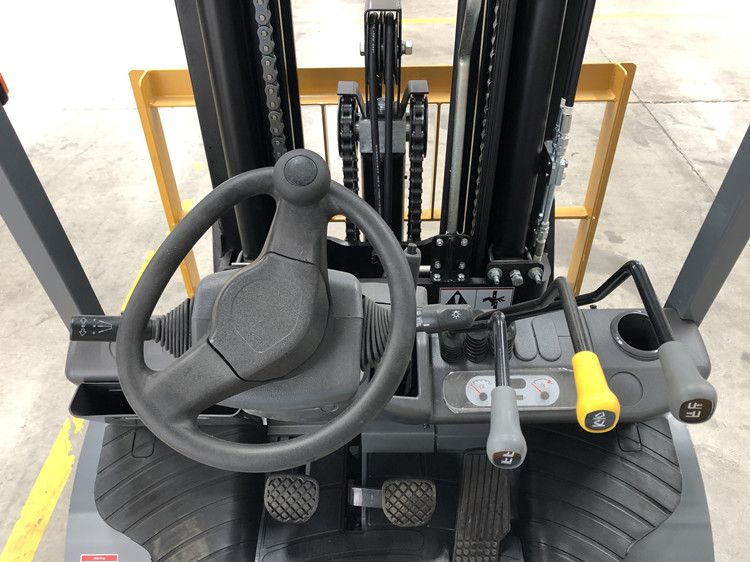

Dashboard cover
Product Features
Chinese brand montacarga LTMG trucks forklift 2 ton 3.8 ton forklift machine price
1. Xinchai euro 5 engine, Japanese Isuzu engine and Mitsubishi engine is optional.2. Adopt Priority Steering System, which improve the work efficiency.3. Original Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.Electric-hydraulic Directional Control Valve.4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.5. Advanced Hydraulic Automatic Transmission.6.The Maintenance Free Radiators adopt Germany Technology.

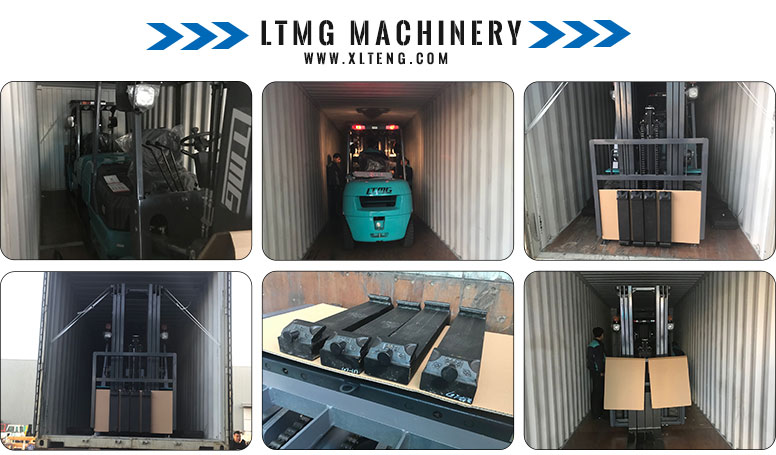

Packing&Shipping

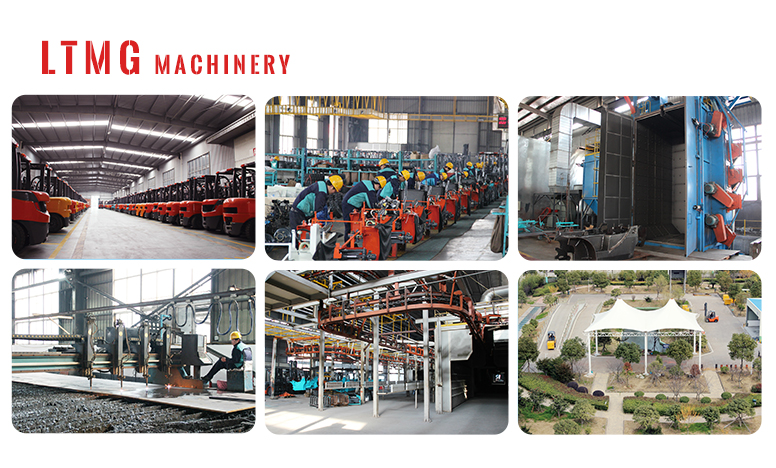

Factory&Company

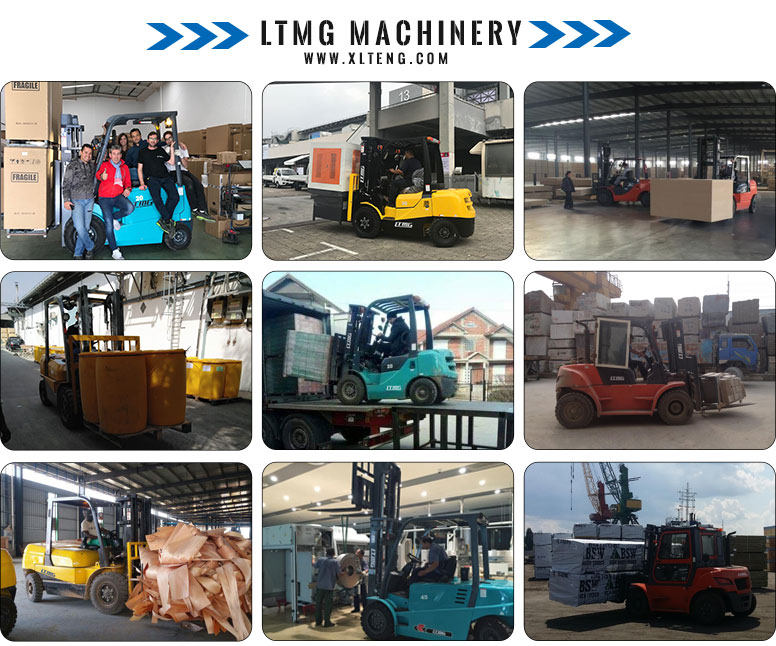

Machine application
Exhibition and Clients
After Sales Service
LTMG always treat after-sale servive as important as sale.All the product of LTMG supplied with one year or 2000 working hours(which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
