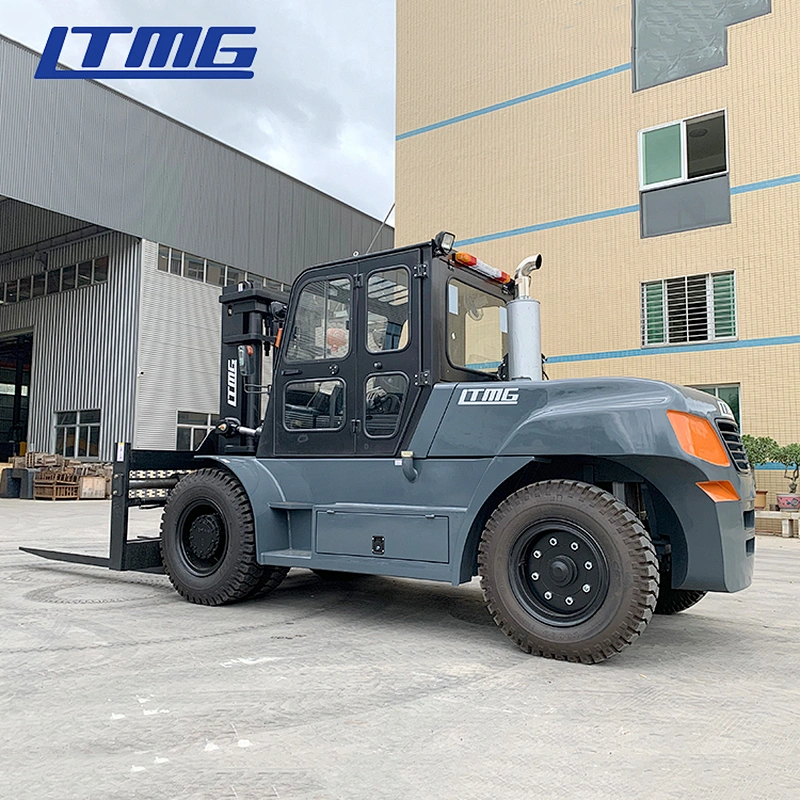

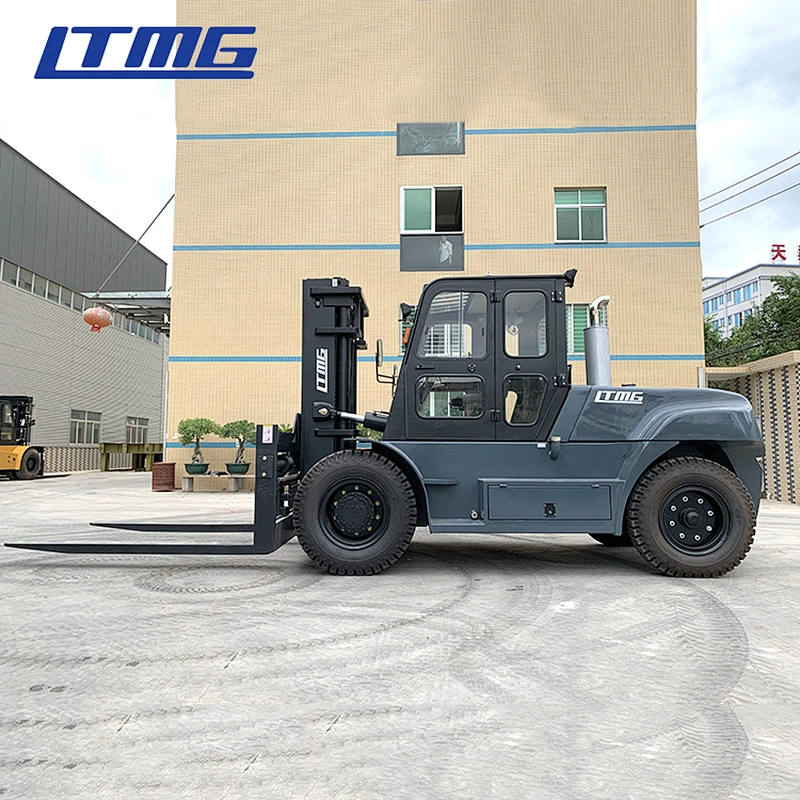

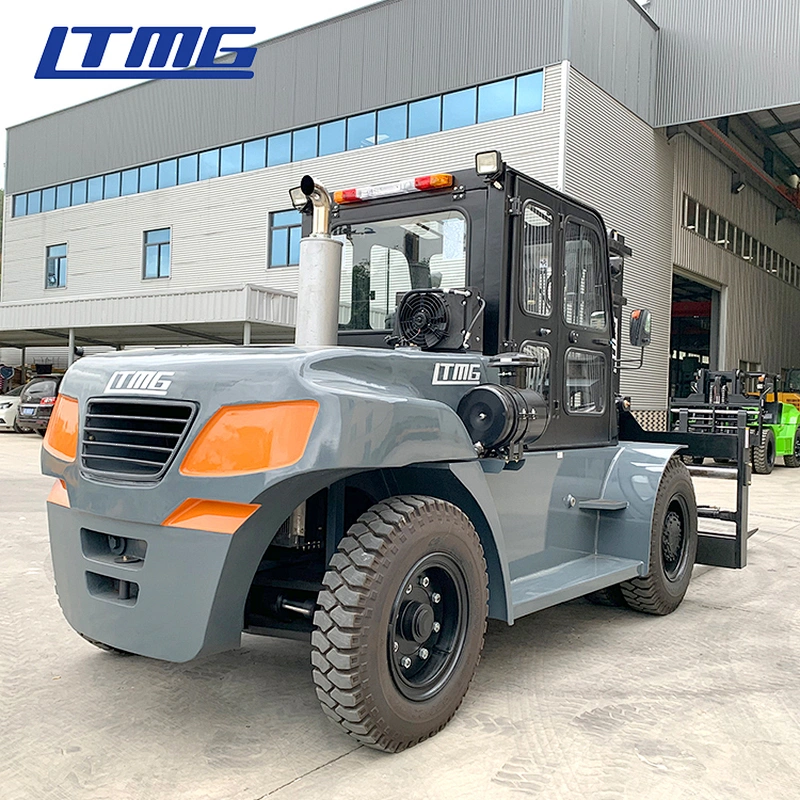

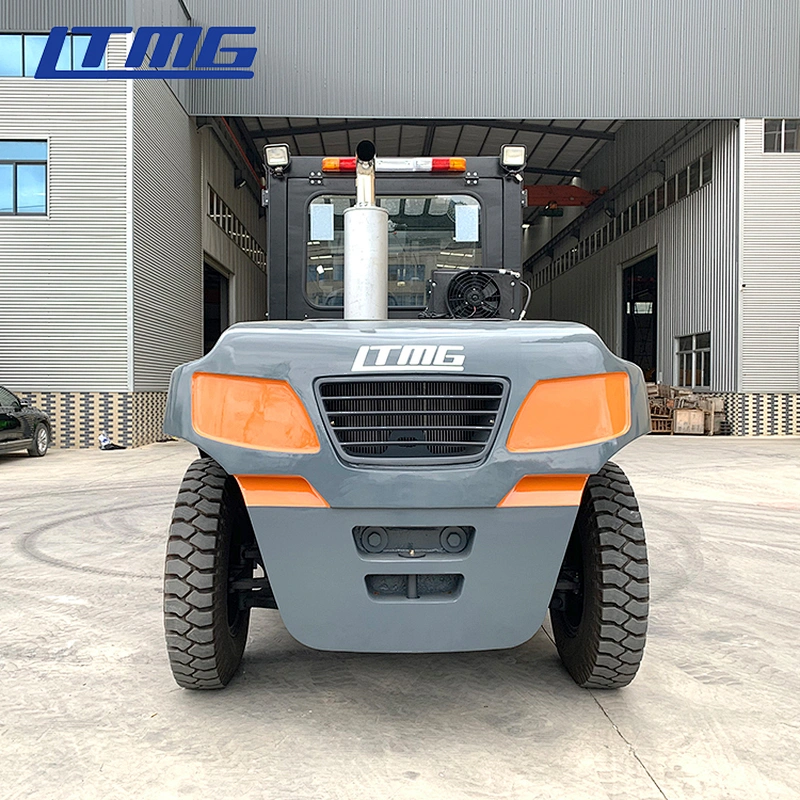

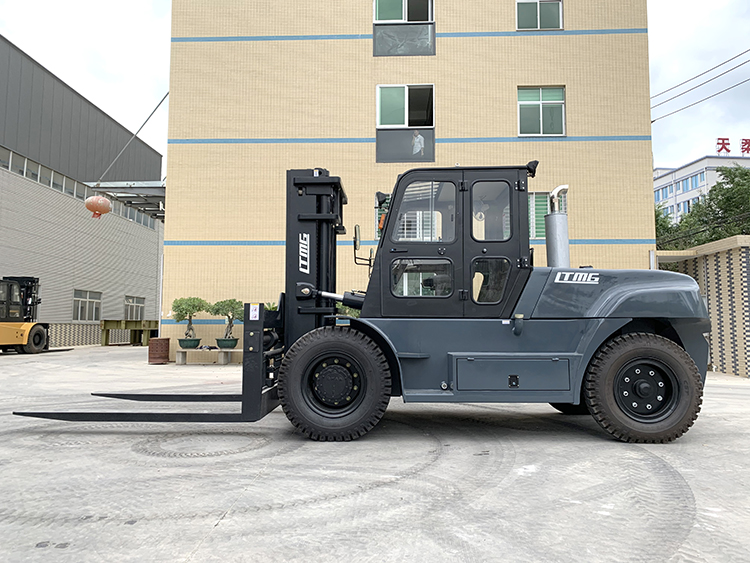

China LTMG 10 ton 12 ton automatic diesel forklift price

China LTMG 10 ton 12 ton automatic diesel forklift price

Price:: US $ 32303.00-32303.00 / set
Minimum order quantity: 1 set
Supply Ability: 500.0 set / Month
Country of Origin: Xiamen Port, China

Quantity:

Product Description

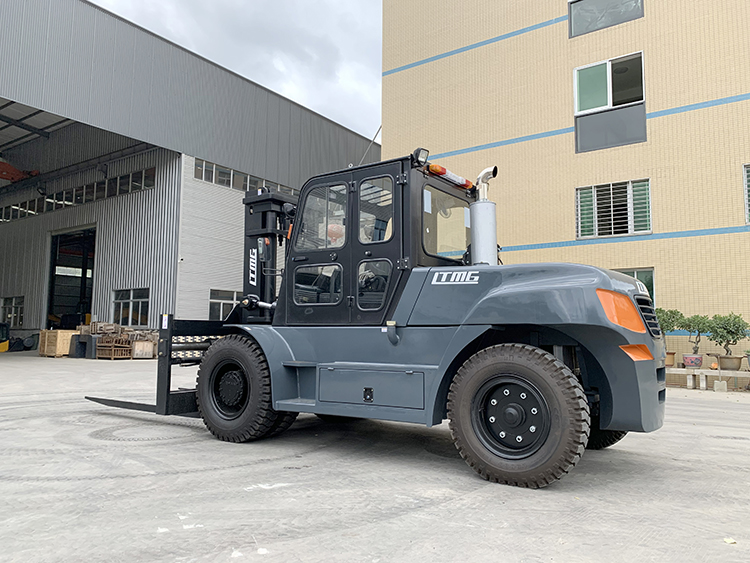

Product type:12 ton diesel forklift with automactic transmission fork positioner
Color:Customer Demanded
Warranty:1 Year or 2000 Working Hours
Fork size:1600*180*90mm
Standard lifting height:3000mm
Wheelbase:2950mm
Ground clearence:300
Min.turning Radius:4350mm
Weight:15500kg
Load Center:600mm
After Warranty Service:Spare parts
Local Service Location:Viet Nam
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Indonesia
Local Service Location:Russia
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:Chile
Local Service Location:Colombia
Local Service Location:South Africa
Showroom Location:Viet Nam
Showroom Location:Brazil
Showroom Location:Indonesia
Showroom Location:India
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:Chile
Showroom Location:Colombia
Showroom Location:South Africa
Showroom Location:Ukraine
Showroom Location:Australia
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Engine
Place of Origin:CN;FUJ
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Applicable Industries:Food & Beverage Shops
Applicable Industries:logistics transportation
Brand Name:LTMG
Min. Lifting Height:0
Fork Length:1600mm
Fork Width:180mm
Overall Dimensions:6070mm*2230mm*2670mm
Certification:ISO,CE

Specification of China LTMG brand 12 ton diesel forklift
Item			FD120
Features	Rated Load	Q(Kg)	12000
		Load Center	c(mm)	600
		Wheelbase	y(mm)	2950
Weight	Weight	kg	15500
Chassis	Tire Specs:Front		11.00-20-18PR
		Tire Specs:Rear		10.00-20-18PR
		Tires Qty,front/rear(X-dreve wheels)		4/2
		Wheel tread:Front	b3(mm)	1630
		Wheel tread:Rear	b4(mm)	1780
Dimensions	Mast/carriage tilt angle(front/rear)	Degree(°)	6/12
		Mast height(fork lowering)	h1(mm)	2940
		Mast lifting height	h2(mm)	3000
		Max.height	h3(mm)	4410
		height to head guard(height to cab)	h4(mm)	2670
		Overall height(with forks)	L3(mm)	6070
		Fork front verticaal sueface to the rear end of the vehicle	L2(mm)	4470
		Overall width	b1(mm)	2230
		Fork dimension	(mm)	160018090
		Fork carriage width	b2(mm)	2080
		Mast min ground(with load)	m1(mm)	300
		Wheelbase center min ground(with load)	m2(mm)	350
		Min.turning Radius	Wa(mm)	4350
		Travel speed(with load/without load)	km/h	23/28
Performance	Max.lifting speed(with load/without load)	mm/s	220/280
		tractionn	KN	100
		gradeability(with load/without load)	%	20/22
		Driving brake		Hydraulic clamp disvc
Engine	Engine brand/model	Optional one	Yuchai Engine
					YC6B125-T21
				Optional two	Dongfeng cummins
				Rated Output	110(Kw)
				Cylinder No	6
Others	Transmission gears(Front/rear)		2/2

1. Engine: Yuchai Engine, strong power, energy conservation and environmental protection.

2. Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

3. Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.

4. Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.

5. Explosion proof safety valve for pipeline: avoid the pipeline bursting suddenly,ensure system working safety and reliability.

6. Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity.

7. Cooling system: adopt independent transmission oil and hydraulic oil cooling,increasing system stability

8. Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.

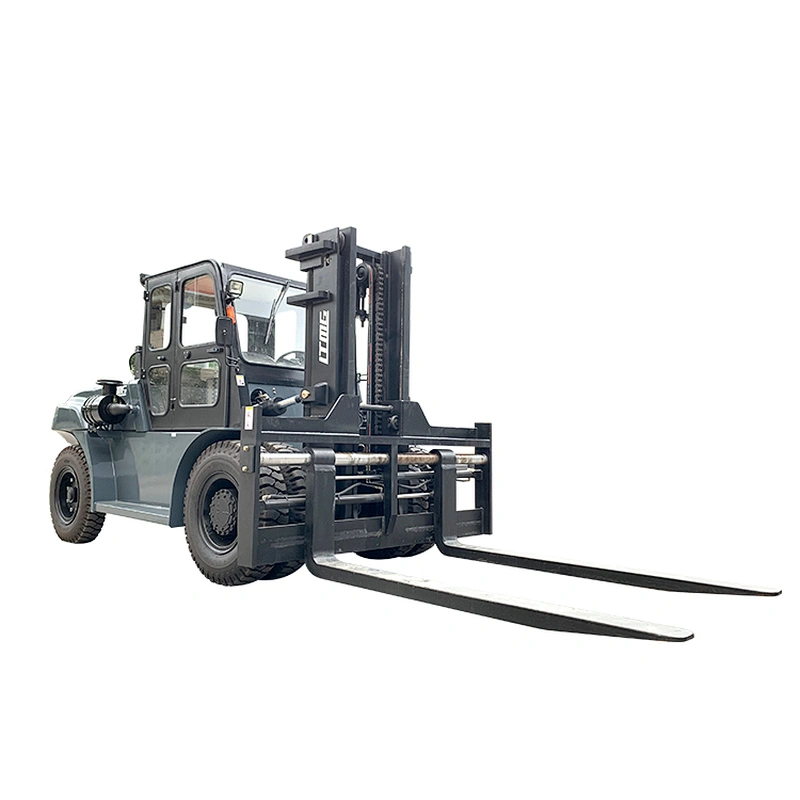

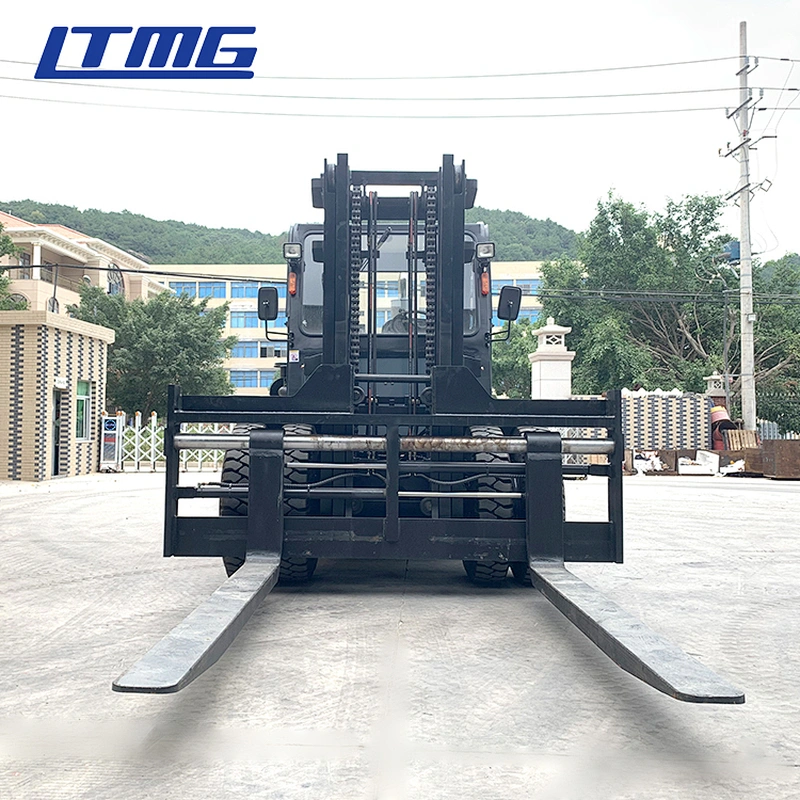

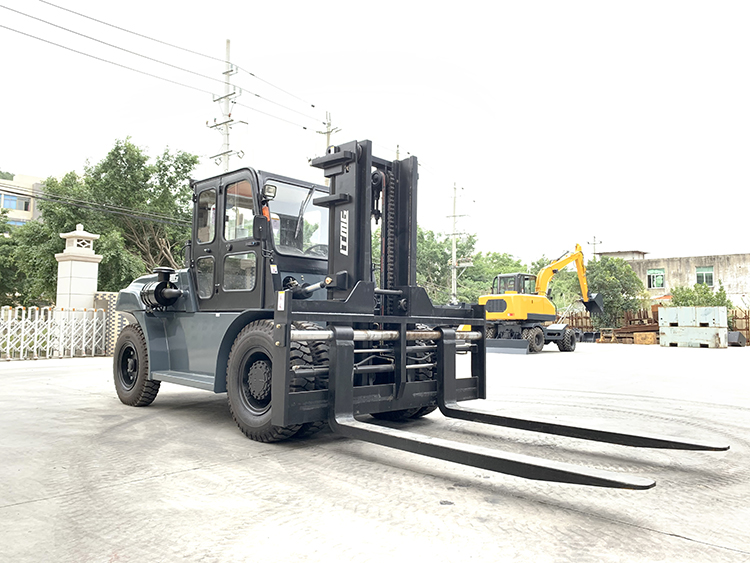

9. Fork: standard with hydraulic fork positioner, easy operation and reduce drivers' labor intensity.

10. Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
