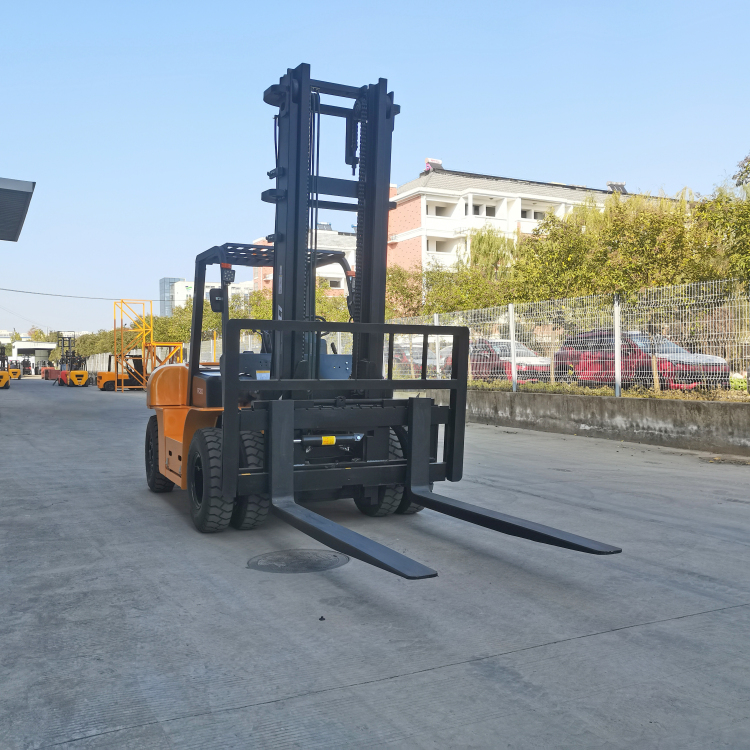

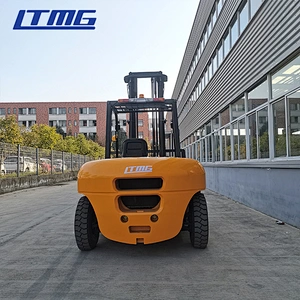

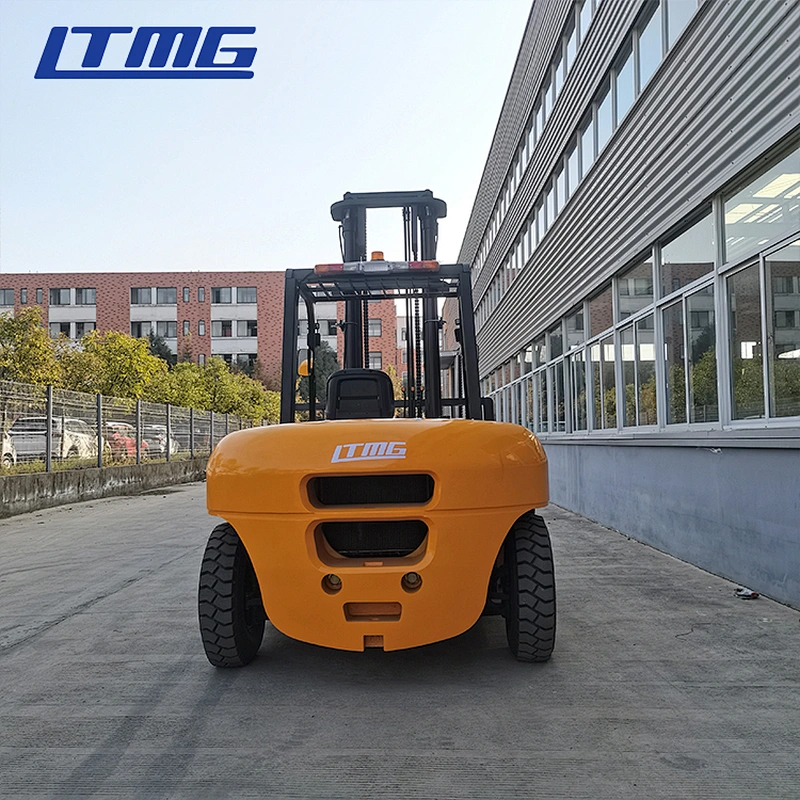

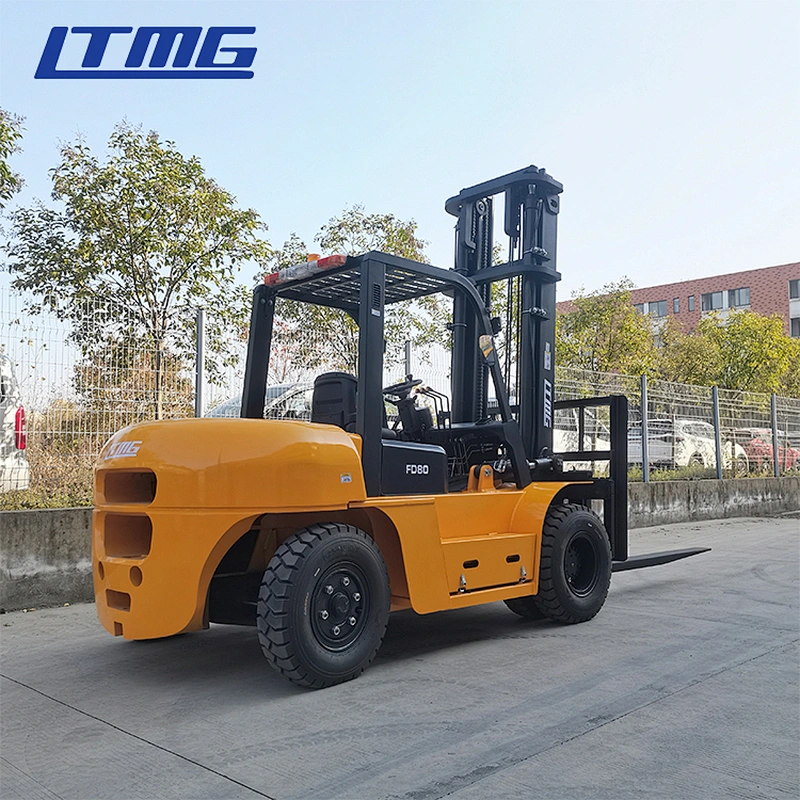

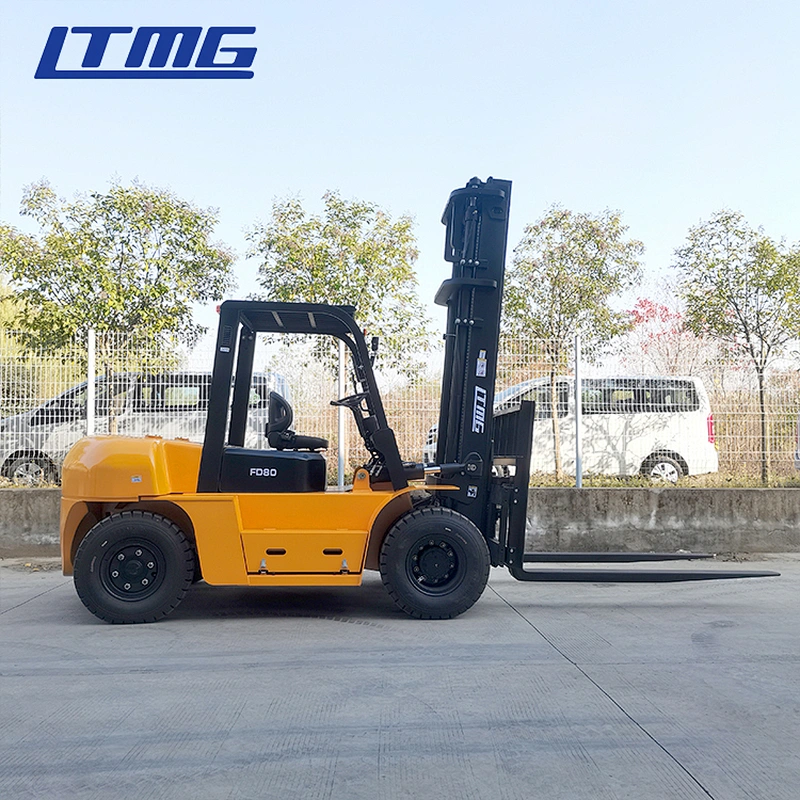

- Product Name:7 ton Forklift Diesel Forklift
- Rated load:7000kg
- Load center:600mm
- Engine:Xichai/Isuzu/Mitsubishi
- Displacement:6494cc
- Ground clearance:200mm
- Transmission:Hydraulic
- Wheelbase:2250mm
- Tire:8.25-15-18PR
- Service Weight:9750kg
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Turkey
- Local Service Location:United Kingdom
- Local Service Location:Brazil
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Saudi Arabia
- Showroom Location:Pakistan
- Showroom Location:Argentina
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3565*2010*2430MM
- Certification:CE/ISO9001
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents and 21 after centers around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.

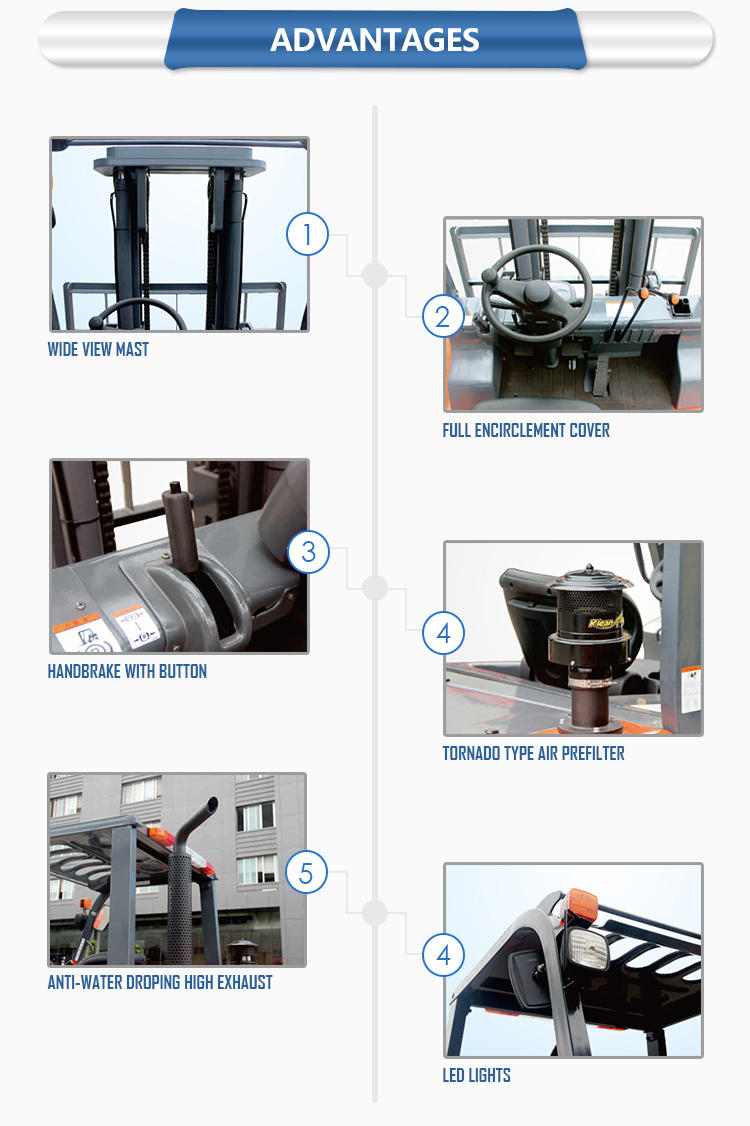

>>>Automatic transmission, hydraulic system.
>>>Xichai 6110 powerful engine or Isuzu engine.
>>>Xichai 6110 powerful engine or Isuzu engine.

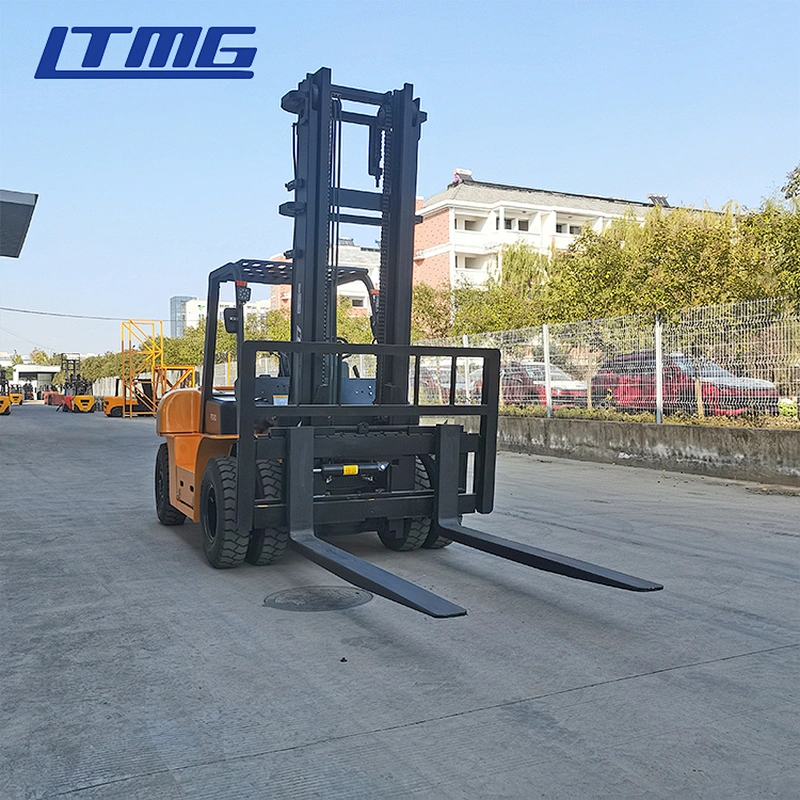

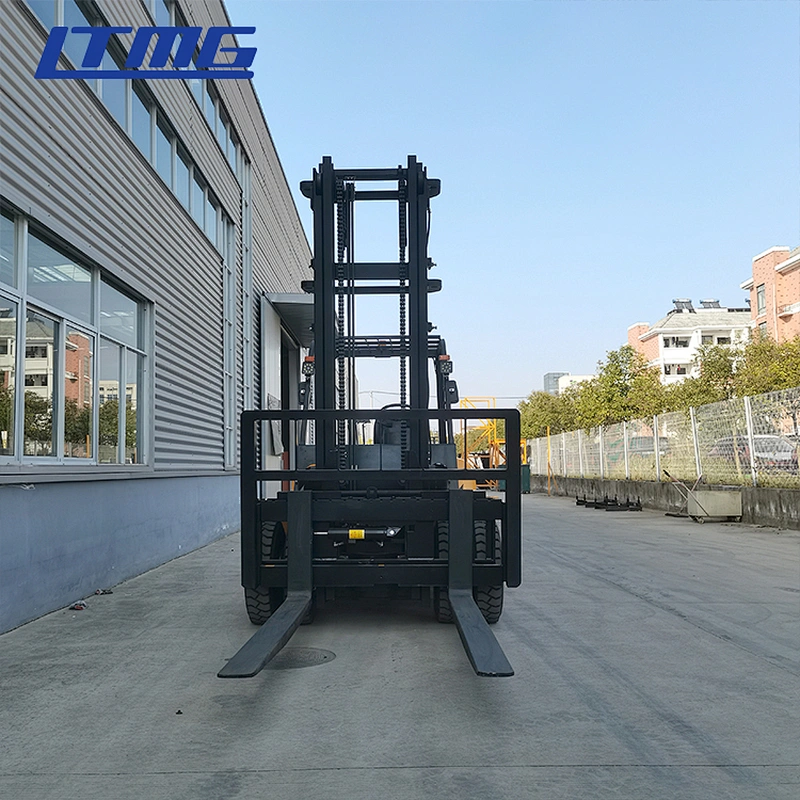

>>> Side shifter, 2500mm long fork length.
>>>Original Toyota seat with safty belt.
>>>Double air filters with high instake, which effectively reduce the resistence and dust into engine, improving engine life.
>>>High exhaust pipe to protect your health and environment.
>>>Shimadzu pump and valve, Eaton pipe and Nok cylinder seals
>>>Original Toyota seat with safty belt.
>>>Double air filters with high instake, which effectively reduce the resistence and dust into engine, improving engine life.
>>>High exhaust pipe to protect your health and environment.
>>>Shimadzu pump and valve, Eaton pipe and Nok cylinder seals

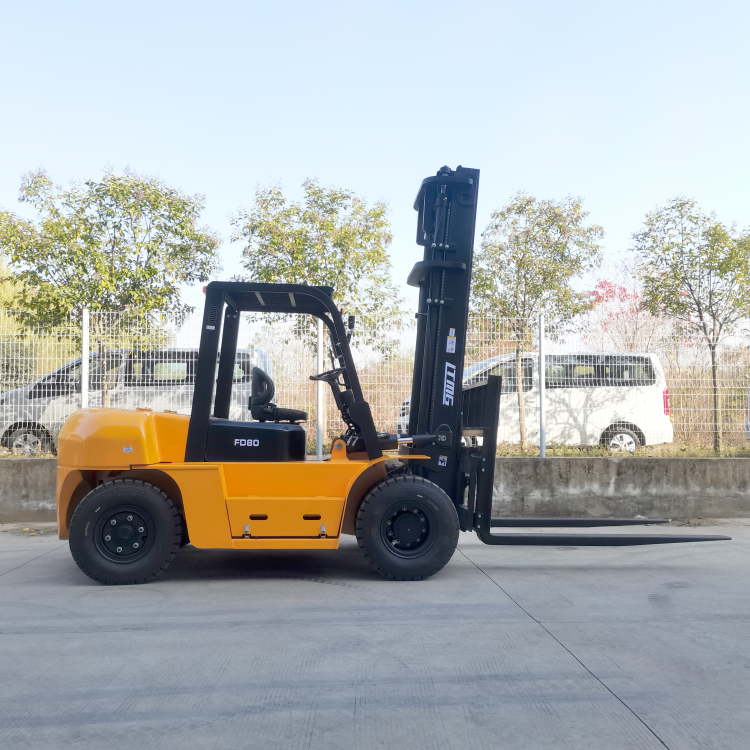

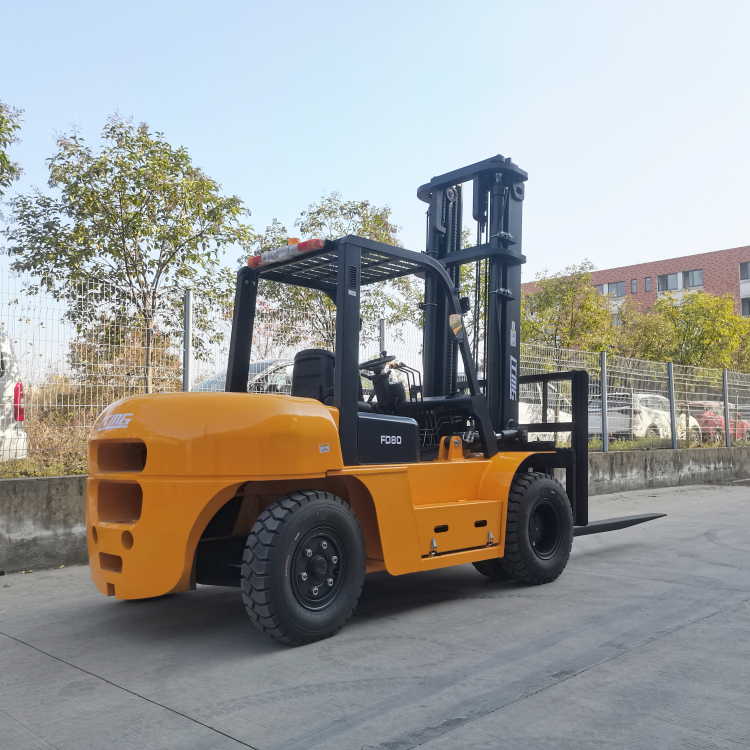

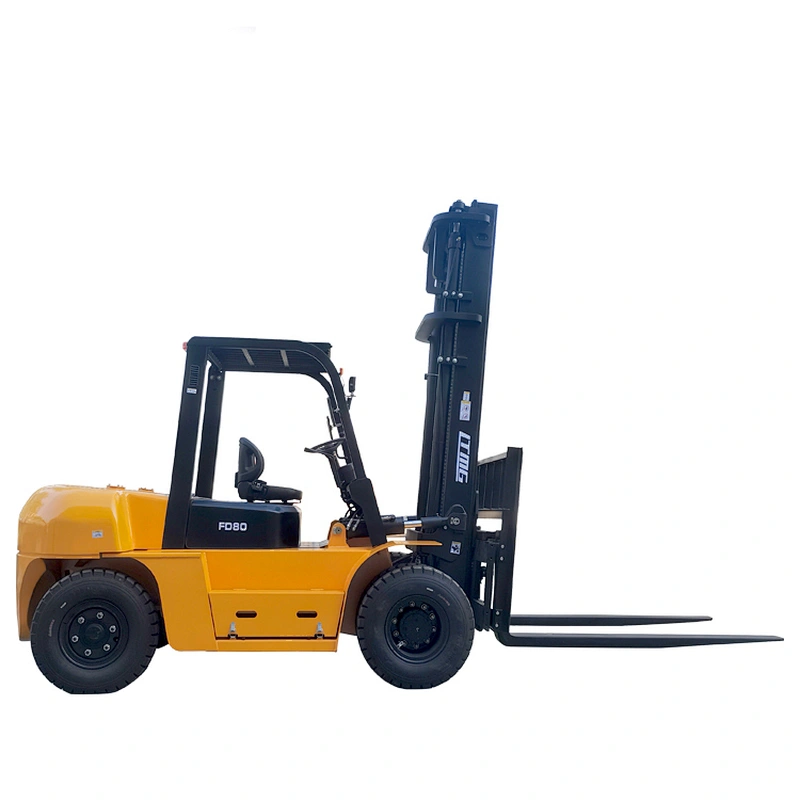

Model | FD70 | FD80 | |||||
Power Type | Diesel | Diesel | |||||
Rated Capacity | kg | 7000 | 8000 | ||||
Load Centre | mm | 600 | 600 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1220×150×70 | 1220×150×70 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Fork Overhang (Wheel center to fork face) | mm | 595 | 595 | ||||
Ground Clearance（Bottom of mast） | mm | 200 | 200 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 3565 | 3565 | |||
Overall Width | mm | 2010 | 2010 | ||||
Mast Lowered Height | mm | 2500 | 2500 | ||||
Mast Extended Height(With backrest) | mm | 4415 | 4415 | ||||
Overhead Guard Height | mm | 2430 | 2430 | ||||
Turning Radius (outside) | mm | 3350 | 3350 | ||||
Speed | Travel (Full load) | km/h | 30 | 28 | |||
Lifting (Full load) | mm/s | 460 | 430 | ||||
Max.Gradeability | % | 20 | 20 | ||||
Tyre | Front | mm | 8.25-15-14PR | 8.25-15-18PR | |||
Rear | mm | 8.25-15-14PR | 8.25-15-18PR | ||||
Wheelbase | mm | 2250 | 2250 | ||||
Self weight | kg | 9750 | 10350 | ||||
Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | (12/80) x 2 | |||
Engine | Model | 6BG1-02 | 6BG1-02 | ||||
Manufacture | ISUZU | ISUZU | |||||
Rated output/r.p.m. | kw | 82.4/2000 | 82.4/2000 | ||||
Rated torque/r.p.m. | N·m | 416/1600 | 416/1600 | ||||
No.of Cylinder | 6 | 6 | |||||
Bore×Stroke | mm | 105×125 | 105×125 | ||||
Displacement | cc | 6494 | 6494 | ||||
Fuel Tank Capacity | L | 125 | 125 | ||||
Transmission | Type | Hydraulic | Hydraulic | ||||
Stage | FWD/RVS | 2/2 | 2/2 | ||||
