- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Viet Nam
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Condition:New
- Place of Origin:CN;FUJ
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Certification:CE/ISO

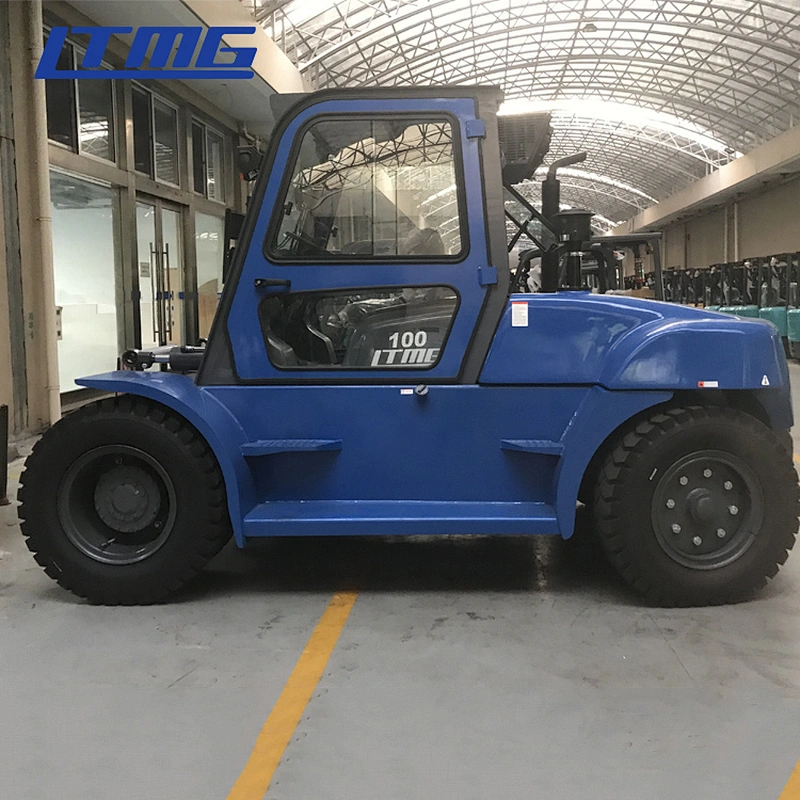

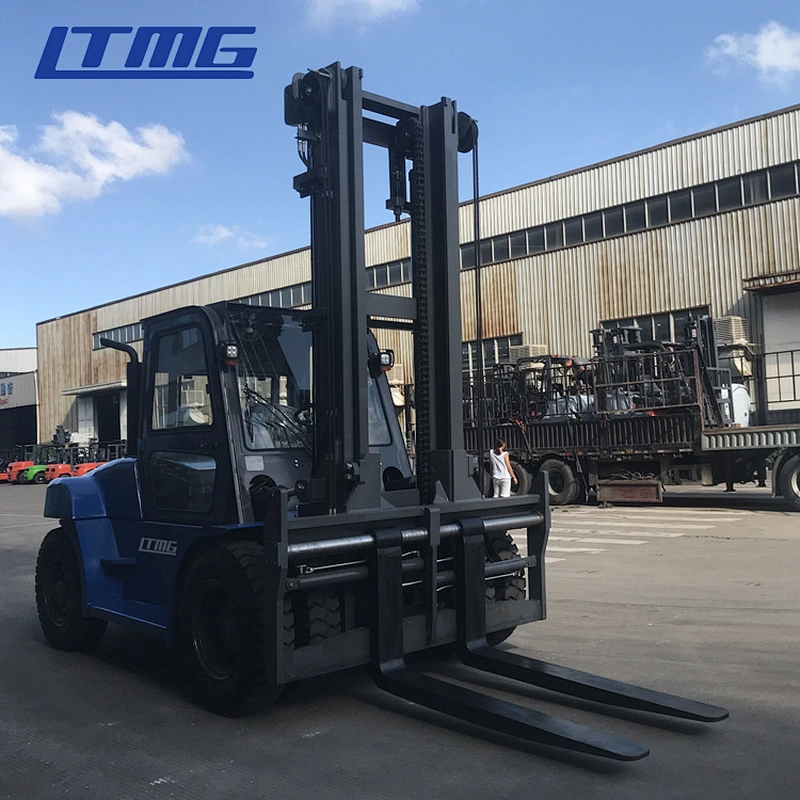

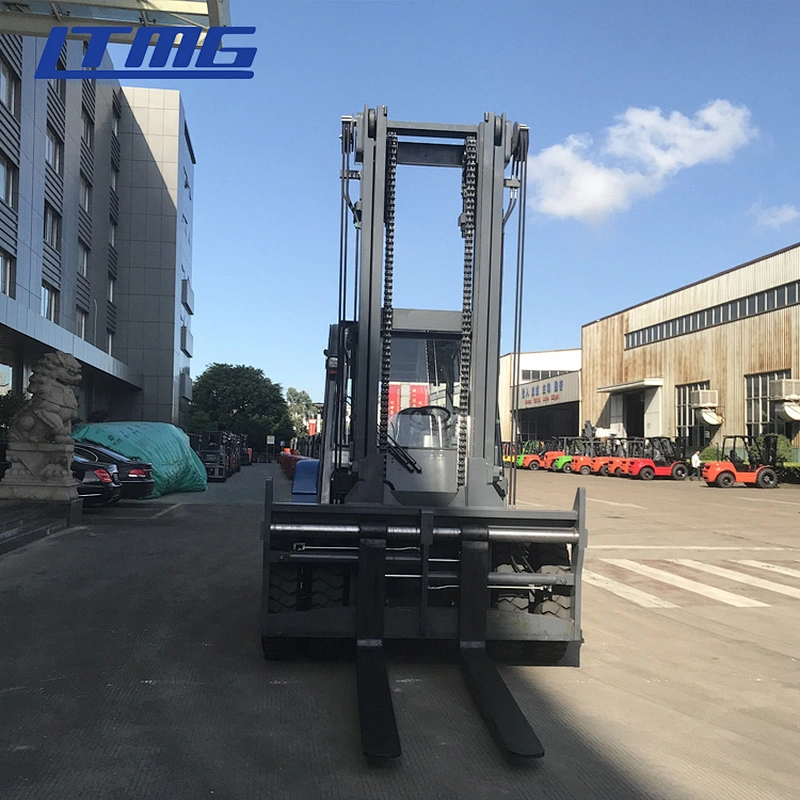

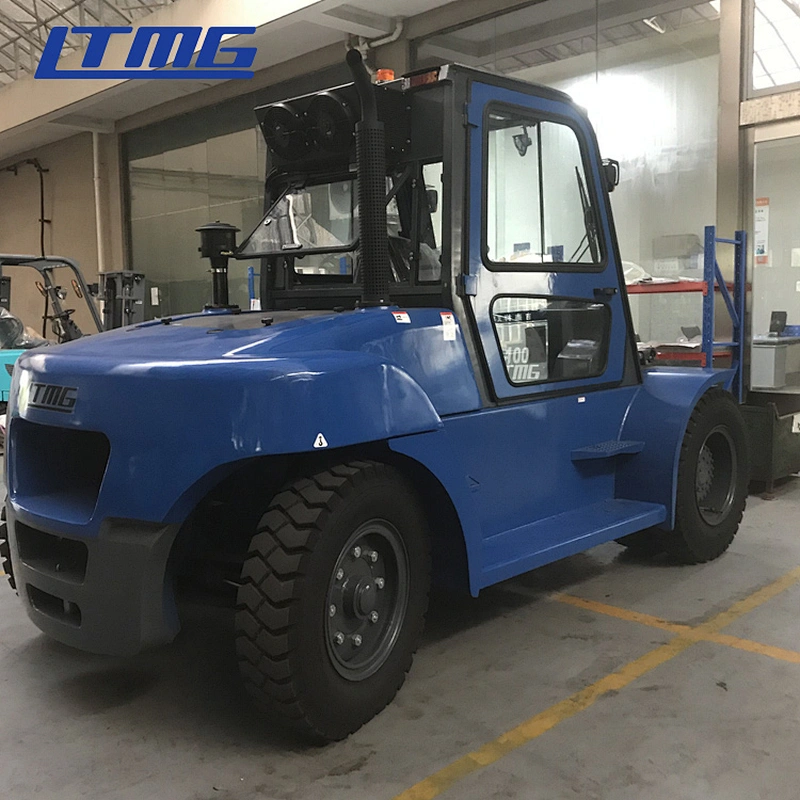

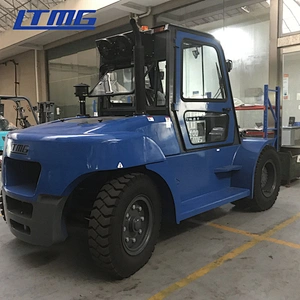

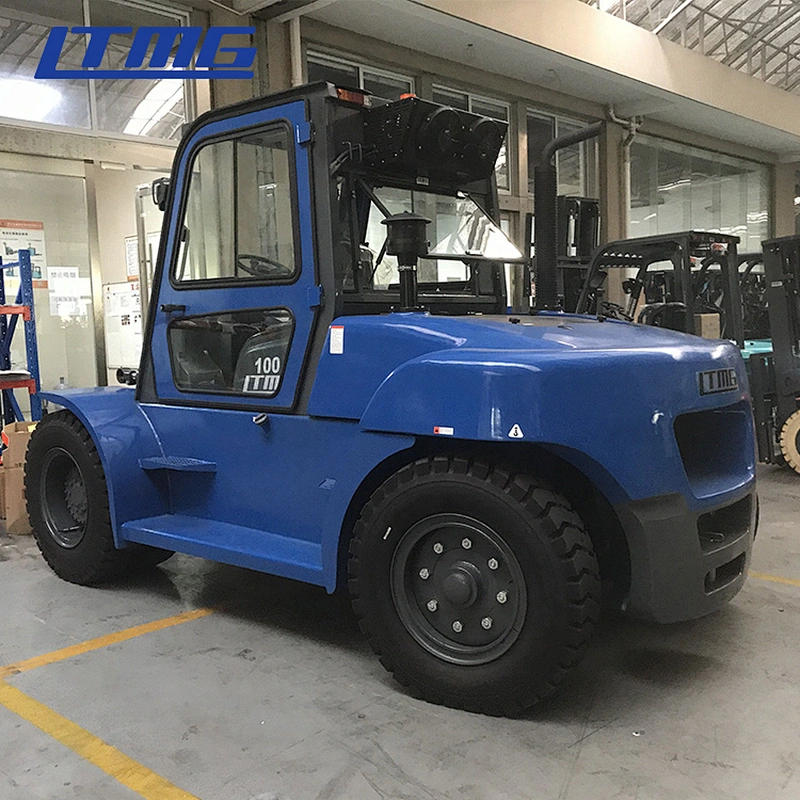

Automatic transmission 10 ton diesel forklift with new price
What are the features of our product?
Equiped with the powerful and efficient engine Isuzu 6BG1 engine,makes the forklift high handing performance.Optional Mitsubishi S6S-T engine suitable for the Europe 3 emission standard.
The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.
Noise-isolation and vibration absorberLuxury cab with the air-conditioner,back-view camera ensure easy operation and more comfortable.(Optional)
Automatic transmission 10 ton diesel forklift with new price

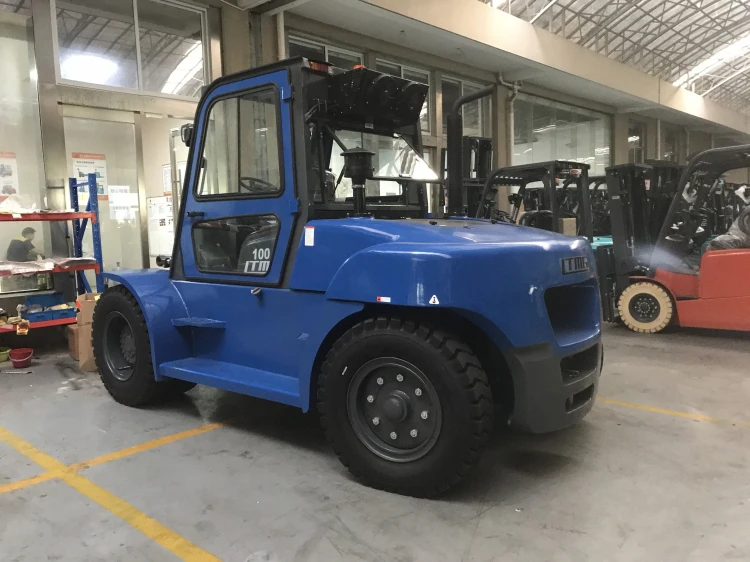

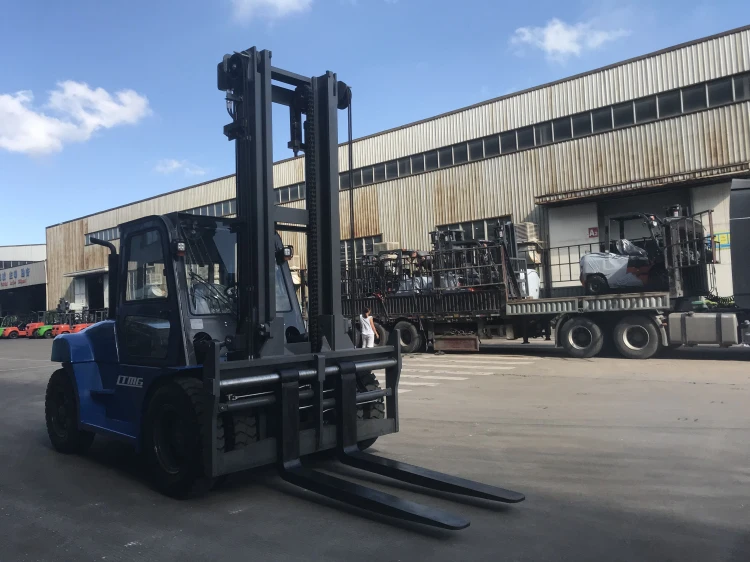

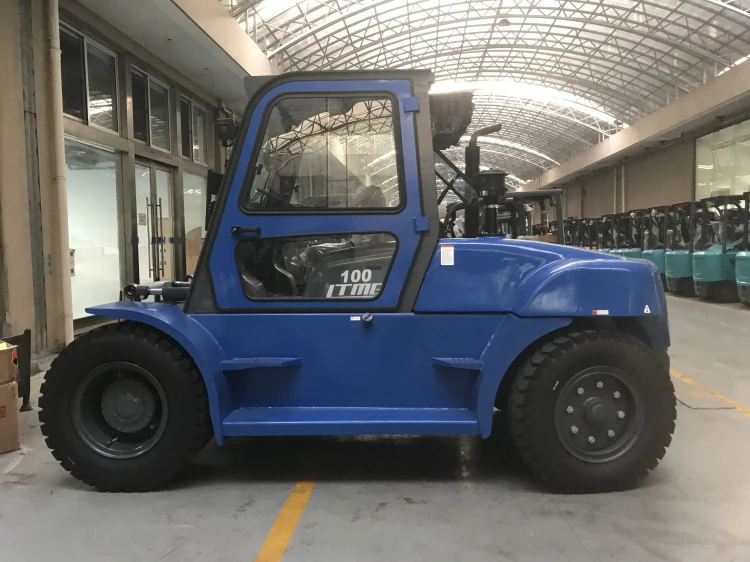

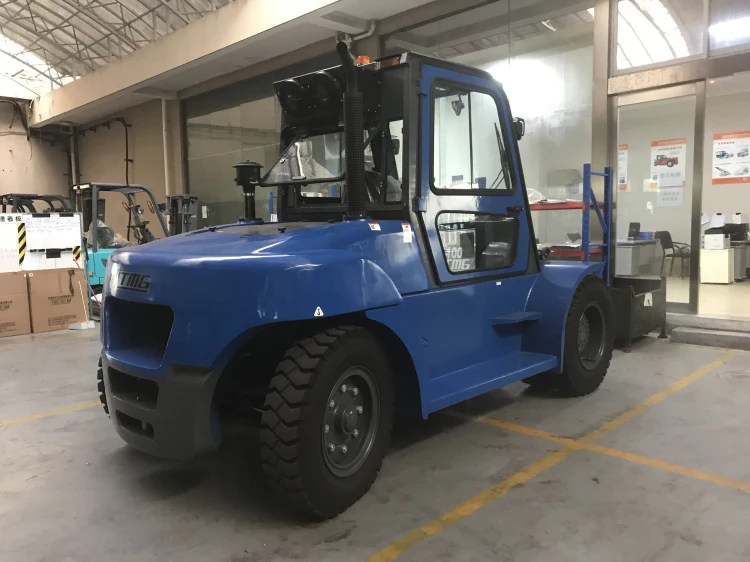

Specification of Automatic transmission 10 ton diesel forklift with new price :FD100
| Features | 1 | Manufacturer | LTMG | ||
| 2 | Model | FD100 | |||
| 3 | Load capacity | kg | 10000 | ||
| 4 | Load center | mm | 600 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Pneumatic | |||
| 8 | Wheel | Front/rear | 4/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 205 | ||
| 11 | Fork size | L*W*T | mm | 1220*175*75 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 4255 | ||
| 14 | Total width | mm | 2245 | ||
| 15 | Mast height (fork lowering) | mm | 2850 | ||
| 16 | Overall height fork raised | With backrest | mm | 4330 | |
| 17 | Height to head guard | mm | 2560 | ||
| 18 | Turning raduis(outside) | mm | 3900 | ||
| 19 | Front face of fork to front axle | mm | 710 | ||
| 20 | Min. right angle stacking aisle | pallet size :1100×1100 add clearence | mm | 6250 | |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 24/30 |
| 22 | Lifting full/no load | mm/s | 390/410 | ||
| 23 | Lowering full/no load | mm/s | 470/340 | ||
| 24 | Max.drawbar pull | full/no load | kg | 5850/3200 | |
| 25 | Gradeability at 1.6km/h | full load | % | 22 | |
| Max. Gradeability | full/no load | % | 24/20 | ||
| Weight | 26 | Truck weight | kg | 12450 | |
| 27 | Weight distribution | Full load front/rear | kg | 20160/2290 | |
| 28 | No load front/rear | kg | 5480/6970 | ||
| Frame | 29 | Tires | Number | front/rear | 4/2 |
| 30 | Model | front axle | 9.00x20-14PR | ||
| 31 | rear axle | 9.00x20-14PR | |||
| 32 | Wheelbase | mm | 2800 | ||
| 33 | Tread | Front/rear | mm | 1600/1700 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 245 | |
| Frame | mm | 320 | |||
| 35 | Brake | Service brake | power brake | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 2x12V-80AH |
| 37 | Engine | Model | ISUZU 6BG1 | ||
| Rated power | kw/rpm | 82.3/2000 | |||
| Rated torque | N-m/rpm | 418/1500 | |||
| Number of cylinders | 6 | ||||
| Displacement | L | 6.494 | |||
| Fuel tank capacity | L | 140 | |||
| 38 | Transmission | shift stage(front/rear-type) | 2-2 automatic | ||
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 200 |
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
