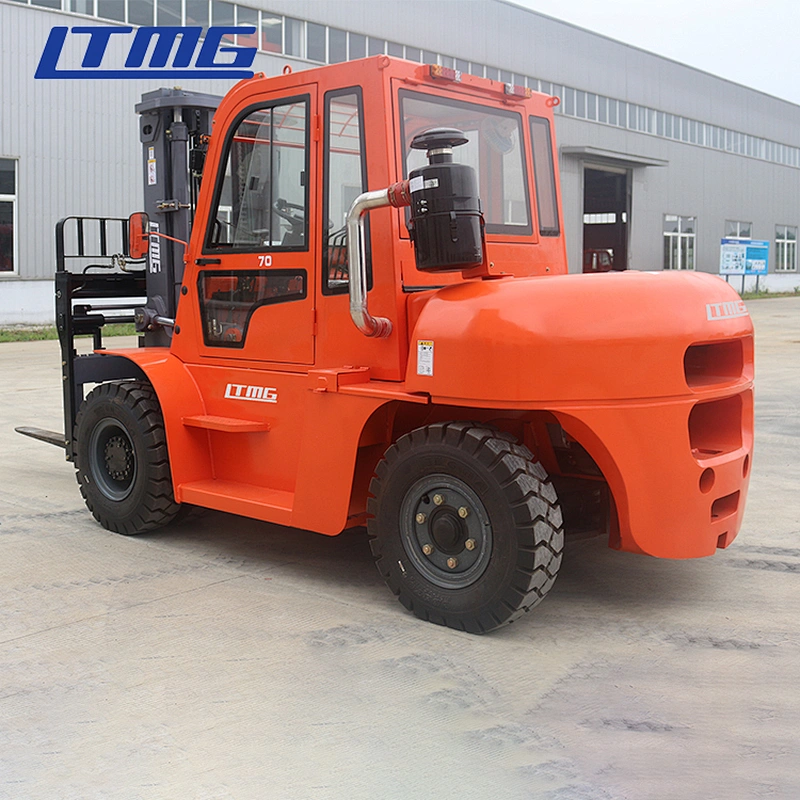

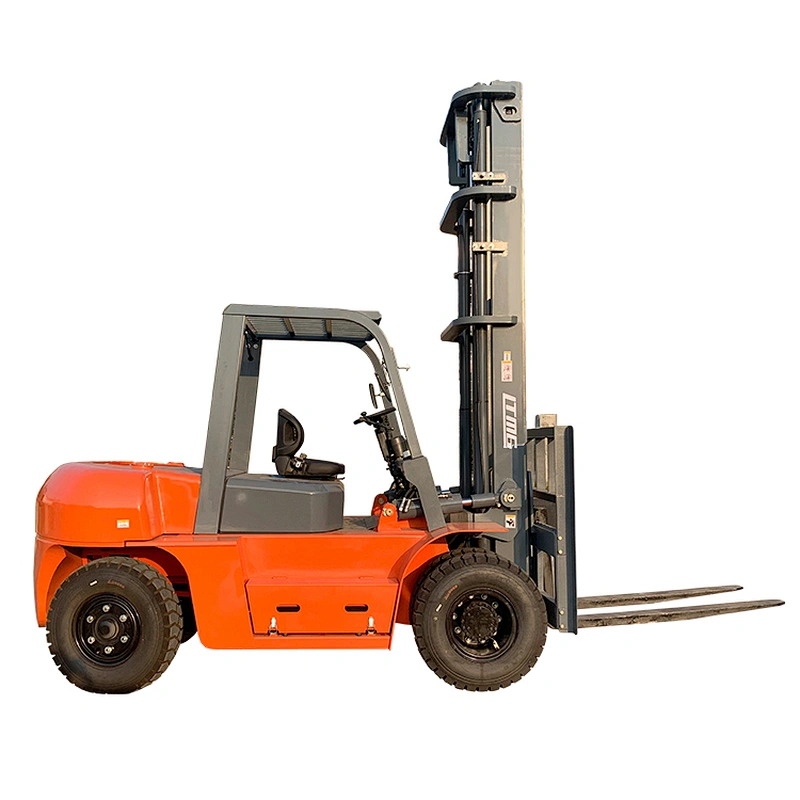

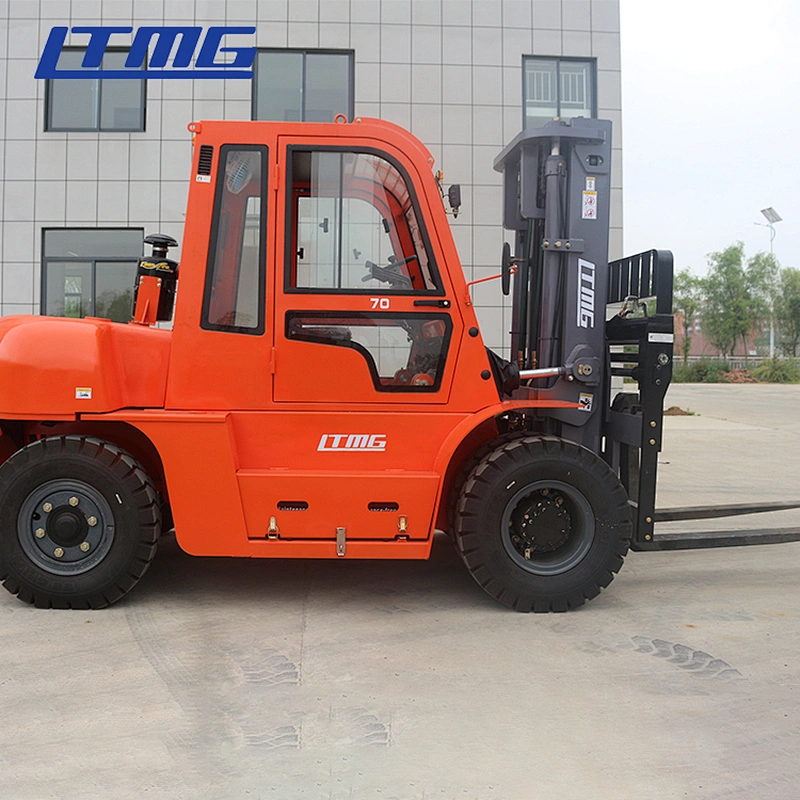

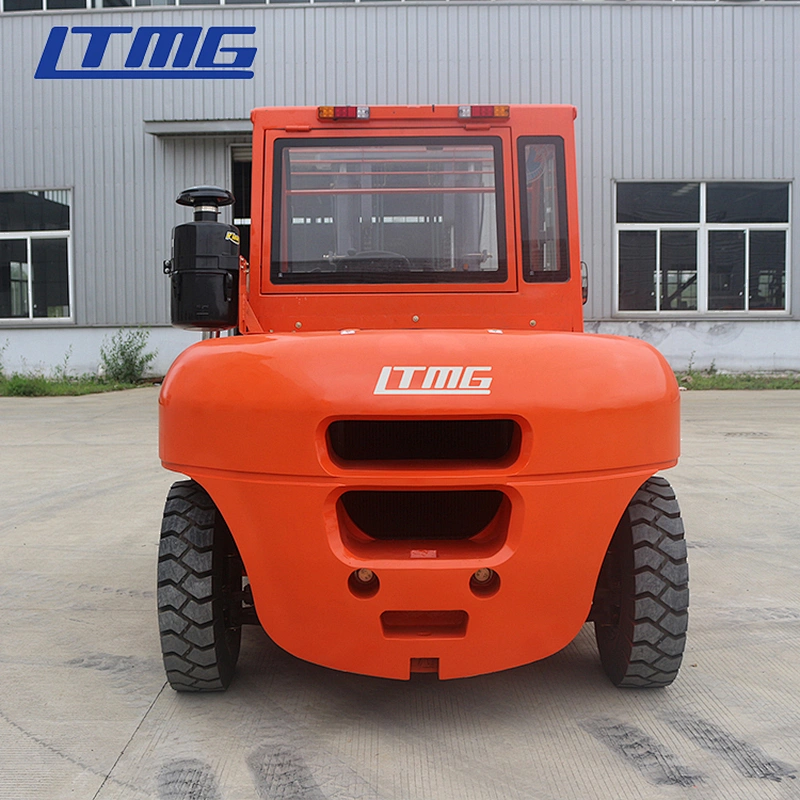

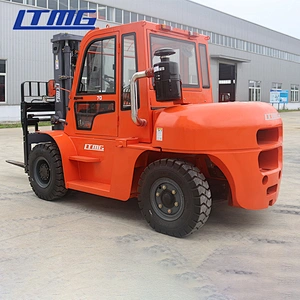

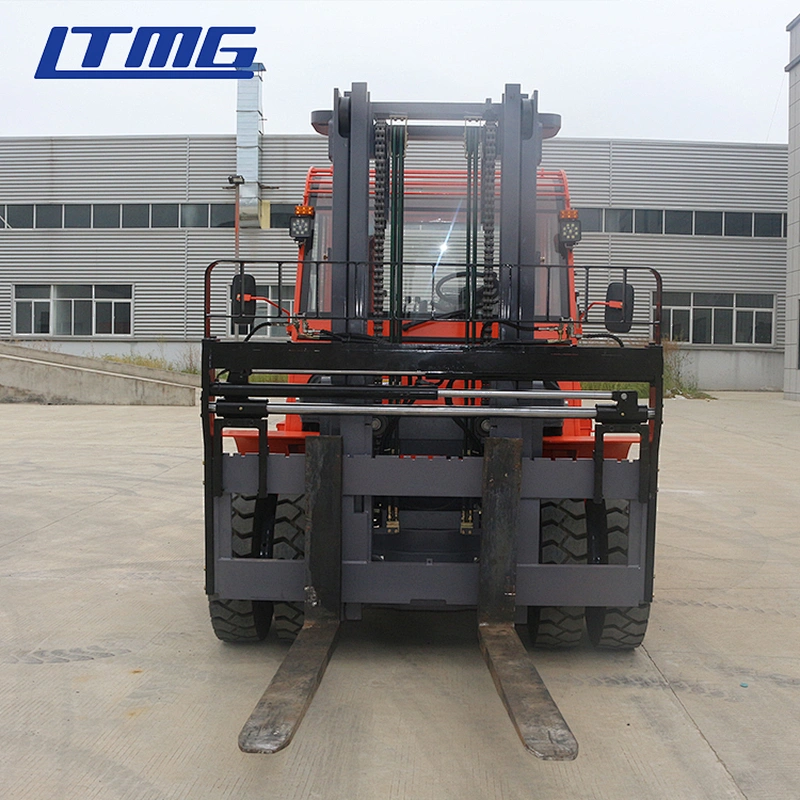

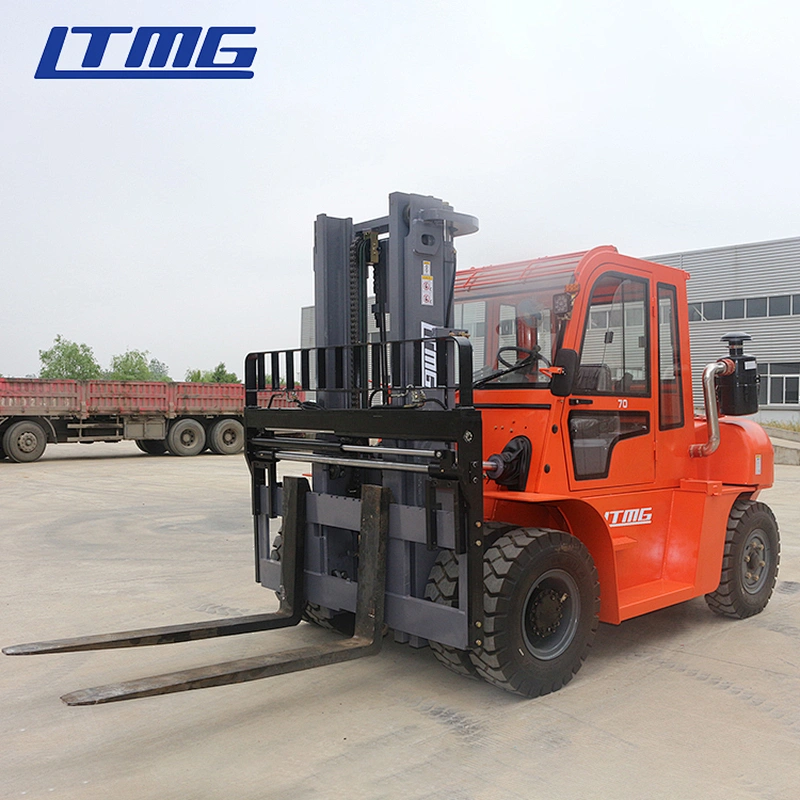

8 meters lifting height forklift with optional mast height

8 meters lifting height forklift with optional mast height

Price:: US $ 20668.00-20668.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 800.0 unit / Month
Country of Origin: Ningbo

Quantity:

Product Description

Type:Powered Pallet Truck
Product Name:6 ton 7 ton 8 ton 9 ton 10 ton diesel forklift truck for sale
Rated Capacity:7000kg
Warranty:1 Year/2000 Working Hours
Load Centre:500mm
Lift Height:3000mm
Fork Size:1220mm*175mm*75mm
Tyre:Pneumatic
Turning Radius:3360mm
Wheelbase:2250mm
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Farms
Applicable Industries:Retail
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Applicable Industries:Food & Beverage Shops
After Warranty Service:Video technical support
After Warranty Service:Online support

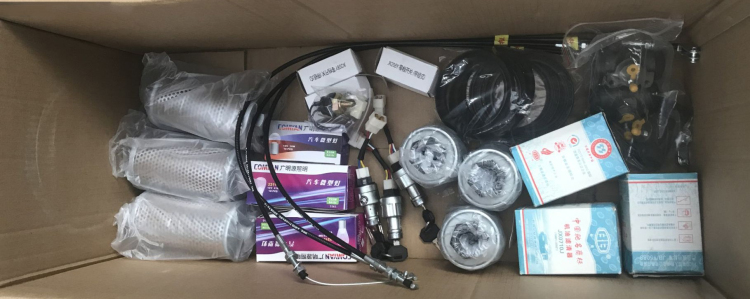

After Warranty Service:Spare parts
Local Service Location:Turkey
Local Service Location:United Kingdom
Local Service Location:Brazil
Local Service Location:Pakistan
Local Service Location:Mexico
Local Service Location:Russia
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:Argentina
Local Service Location:South Africa
Local Service Location:Ukraine
Showroom Location:Egypt
Showroom Location:Canada
Showroom Location:United Kingdom
Showroom Location:United States
Showroom Location:France
Showroom Location:Germany
Showroom Location:Saudi Arabia
Showroom Location:Pakistan
Showroom Location:Argentina
Showroom Location:South Africa
Showroom Location:Ukraine
Showroom Location:Australia
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Online support
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Pressure vessel
Core Components:Bearing
Core Components:Gear
Core Components:Pump
Core Components:Gearbox
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Min. Lifting Height:0mm
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3590*1995*2500mm
Certification:CE/ISO9001:2008
Marketing Type:Hot Product 2020

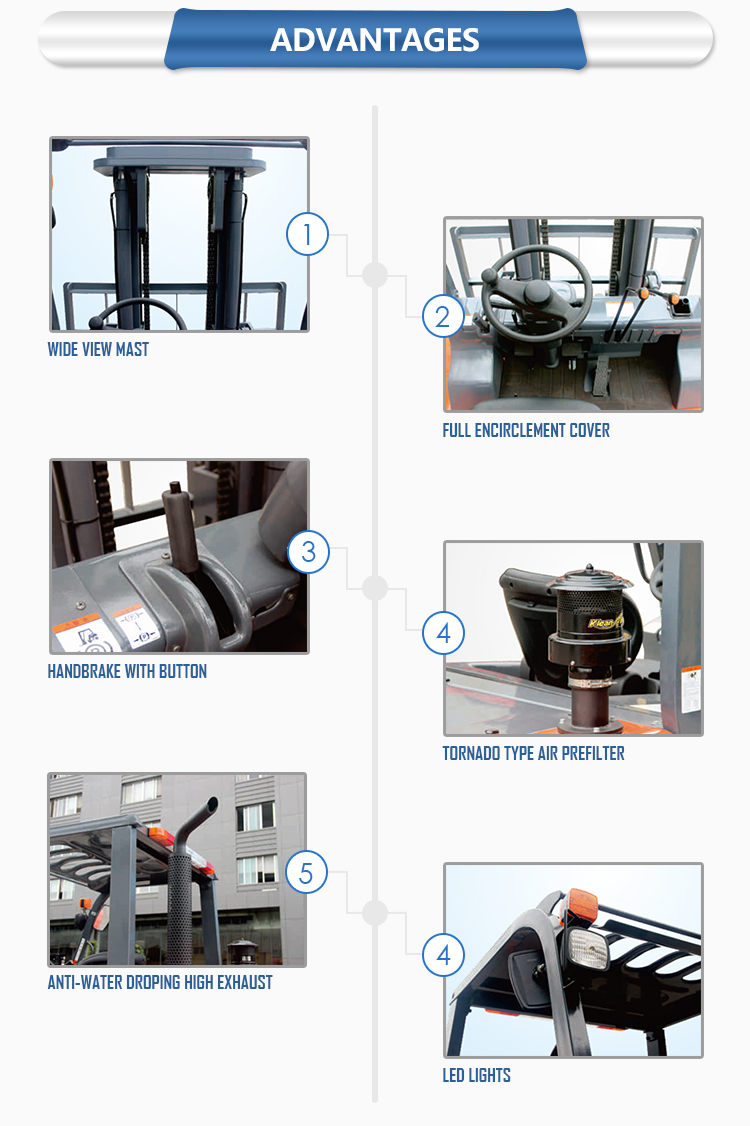

Standard Configuration

》Hydraulic AutomaticTransmission.

》Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.

》Electric-hydraulic Directional Control Valve.

》TheCasting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.

》The Maintenance Free Radiators adopt Germany Technology.

》AdoptPriority Steering System, which improve the work efficiency.

》OriginalToyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.

》Thicker reinforcing overhead guard protective device, ensure the safety.

》Middle muffler, more environmental.

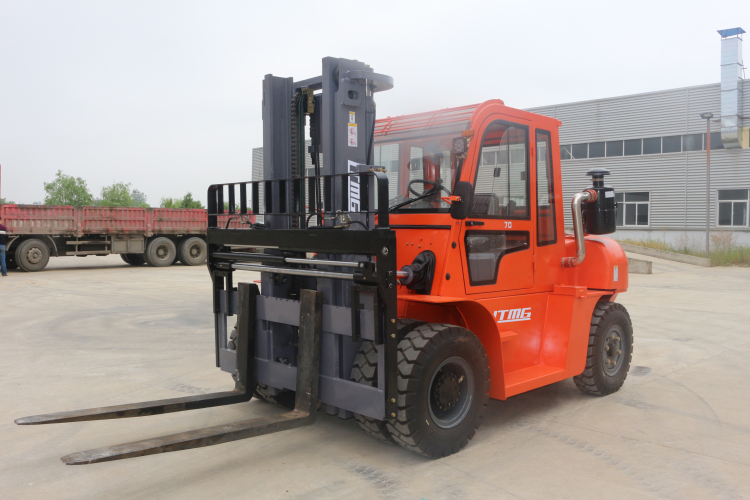

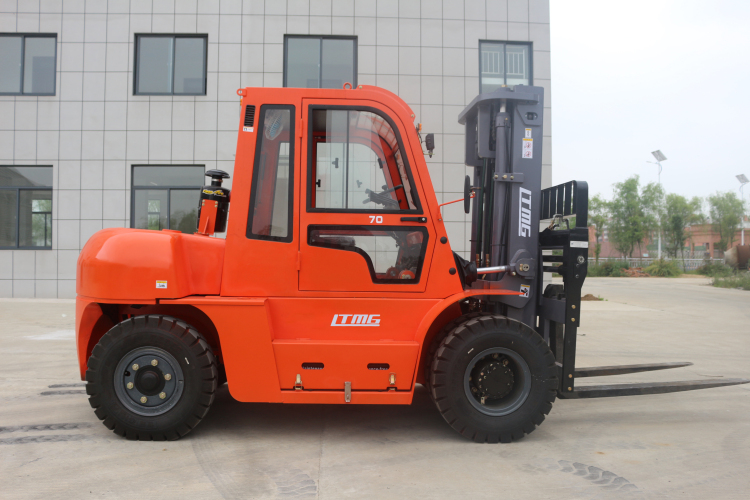

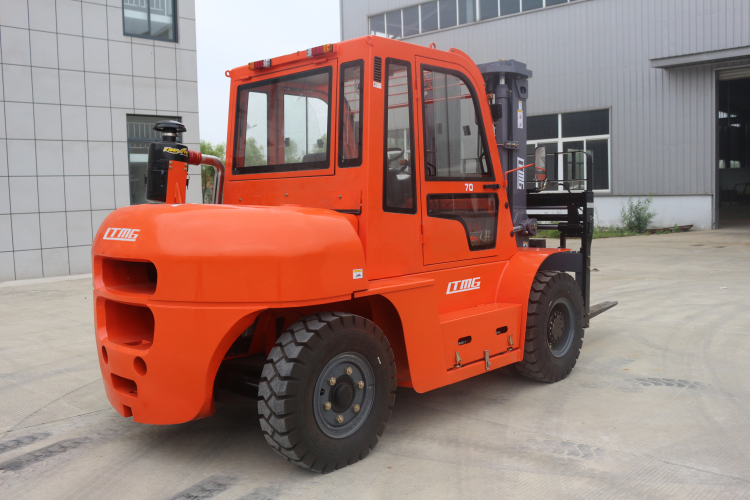

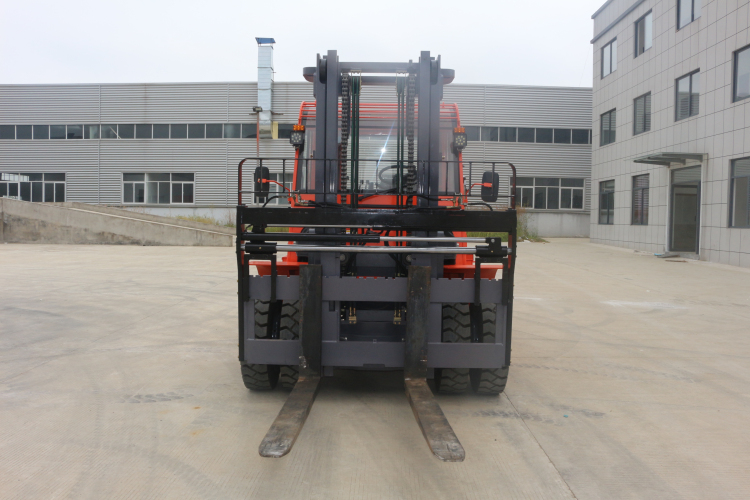

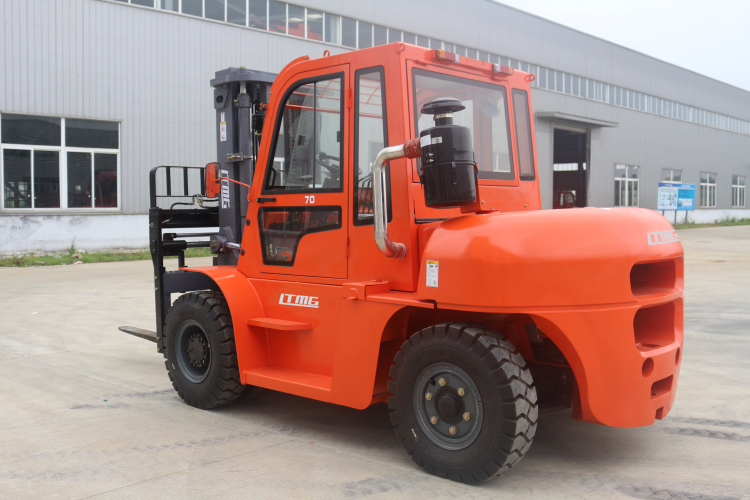

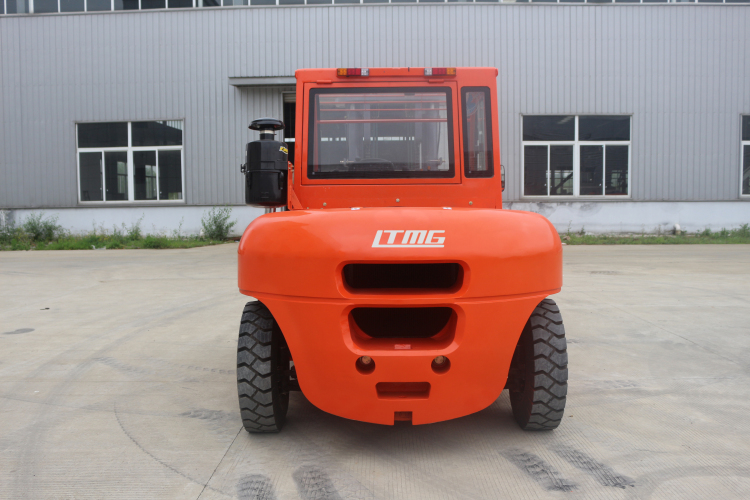

The Specification of 7ton diesel forklift
General	Model					FD70
		Power Type					Diesel
		Rated Capacity					kg	7000
		Load Centre					mm	600
Characteristic&Dimension	Lift Height					mm	3000
		Fork Size			L×W×T	mm	1220×150×70
		Mast Tilt Angle			F/R	Deg	6°/12°
		Fork Overhang (Wheel center to fork face)					mm	595
		Ground Clearance(Bottom of mast)					mm	200
		Overall Dimension			Length to face of fork(Without fork)	mm	3565
						Overall Width	mm	2010
						Mast Lowered Height	mm	2500
						Mast Extended Height(With backrest)	mm	4415
						Overhead Guard Height	mm	2430
		Turning Radius (outside)					mm	3350
Performance	Speed			Travel (Full load)	km/h	30
	Speed					Lifting (Full load)	mm/s	460
		Max.Gradeability					%	20
Chassis	Tyre			Front	mm	8.25-15-14PR
	Tyre					Rear	mm	8.25-15-14PR
		Wheelbase					mm	2250
		Self weight					kg	9750
Power&Transmission	Battery	Voltage/Capacity			V/Ah	(12/80) x 2
		Engine	Model				6BG1-02
				Manufacture				ISUZU
				Rated output/r.p.m.			kw	82.4/2000
				Rated torque/r.p.m.			N·m	416/1600
				No.of Cylinder				6
				Bore×Stroke			mm	105×125
				Displacement			cc	6494
				Fuel Tank Capacity			L	125
		Transmission	Type				Hydraulic
		Transmission		Stage	FWD/RVS		2/2
