- Warranty:1 Year or 2000 Working Hours, Which Occurs Earlier
- Rated load:7000kg
- Fork size:1220*150*65mm
- Load center:600mm
- Item:forklift 7 ton
- Engine:ISUZU
- Ground clearance:230mm
- Free lift:210mm
- Truck weight:9450kg
- Wheelbase:2250mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Spare parts
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Saudi Arabia
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Applicable Industries:logistics transportation
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Overall Dimensions:3590*1995*2500MM
- Fork Width:150mm
- Fork Length:1220mm
- Min. Lifting Height:0
- Certification:CE/ISO9001
Product Description

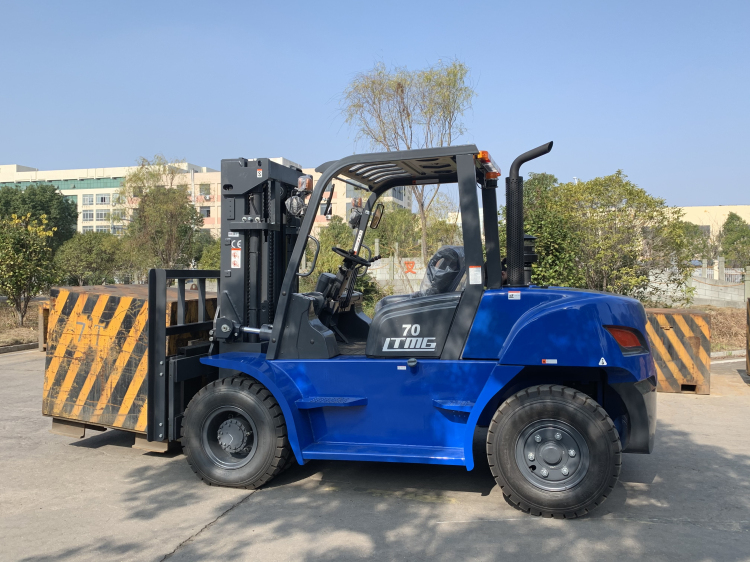

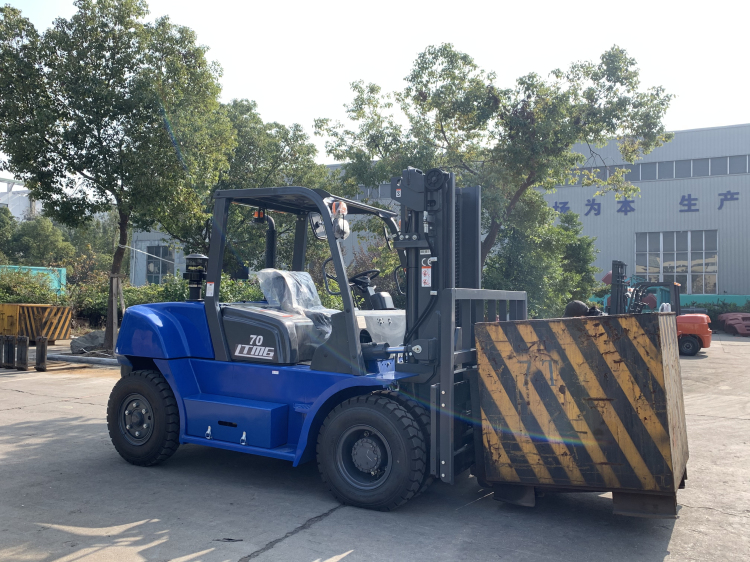

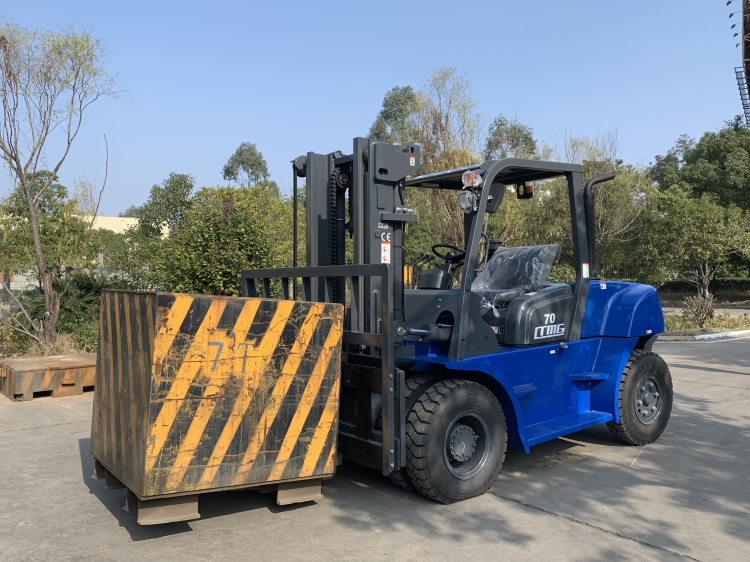

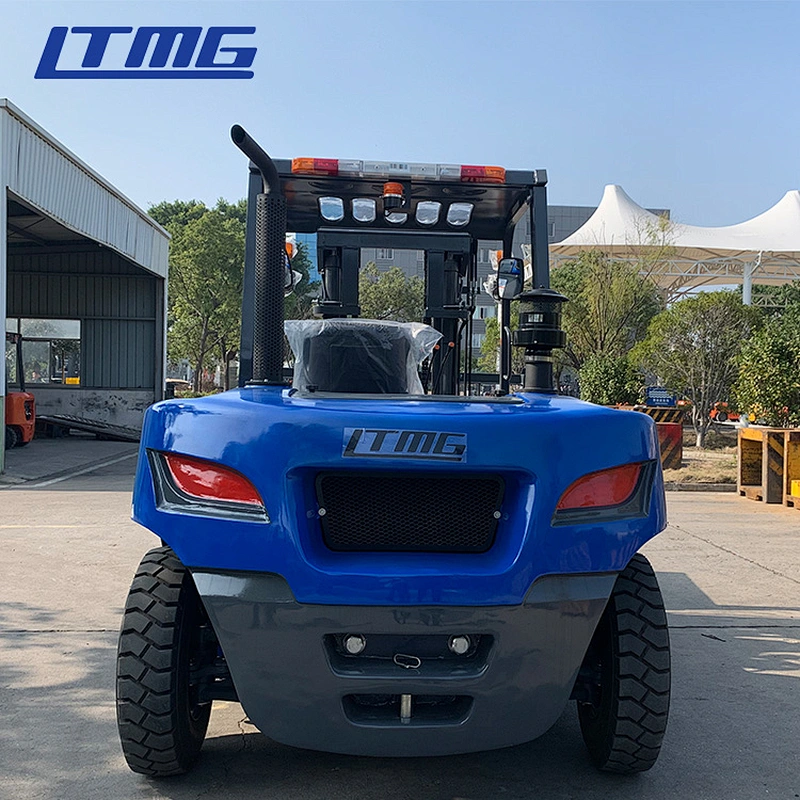

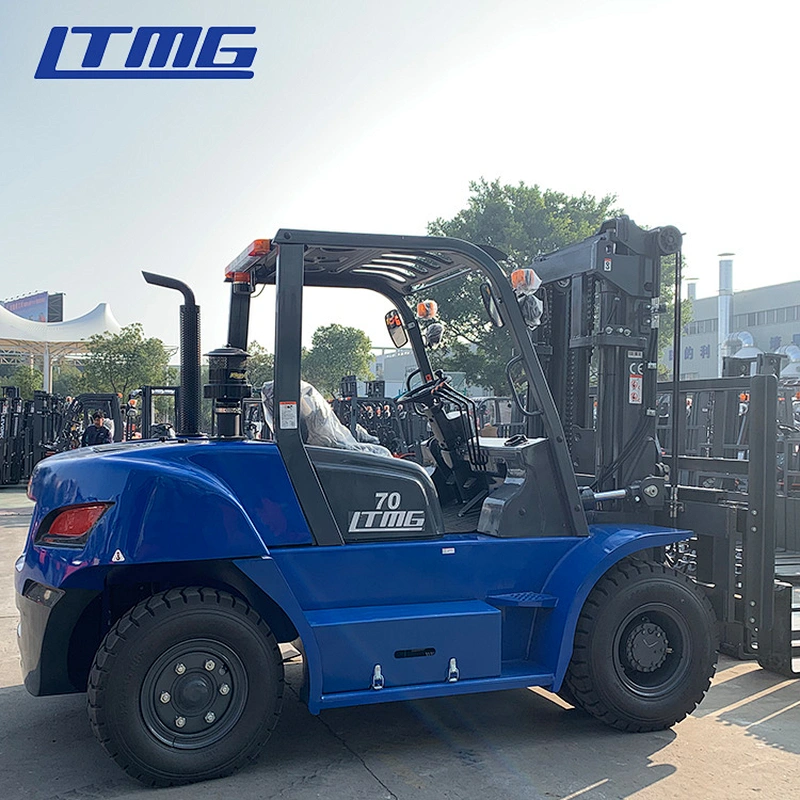

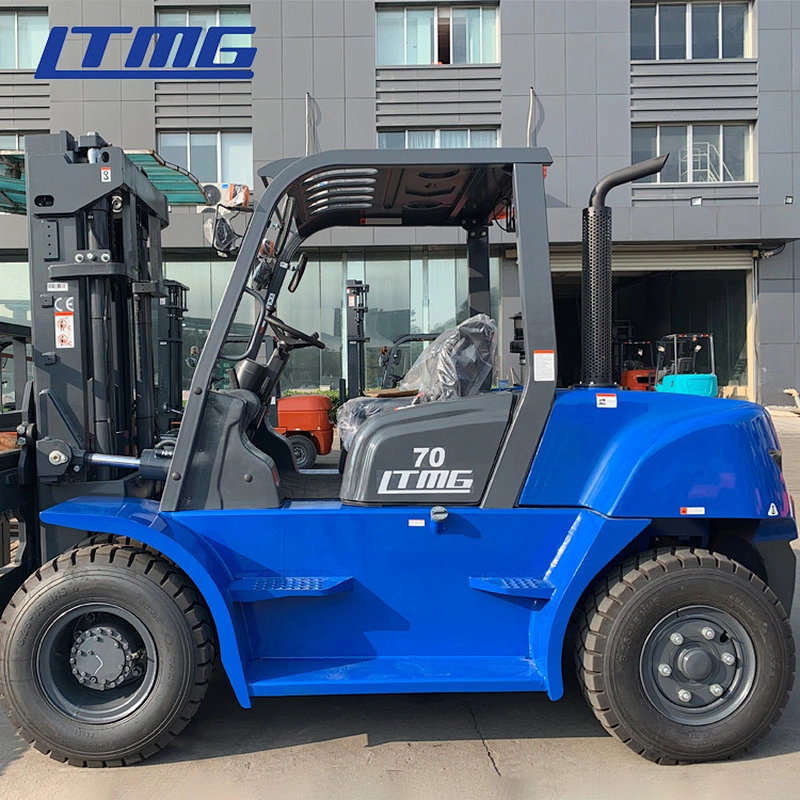

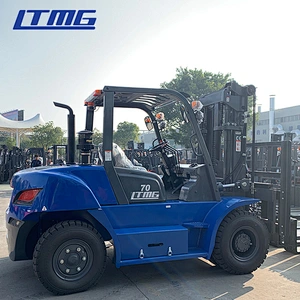

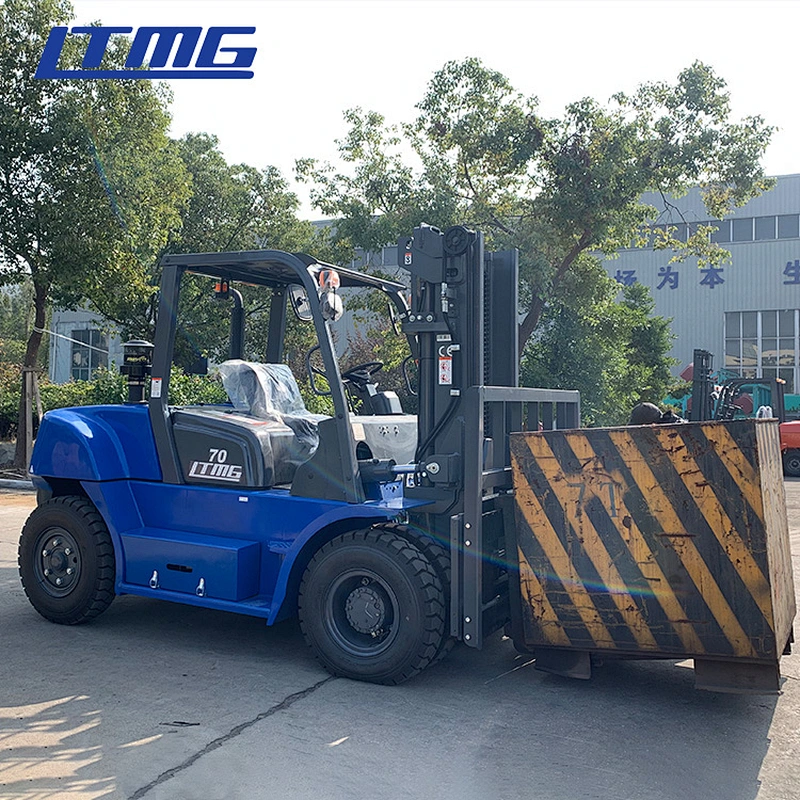

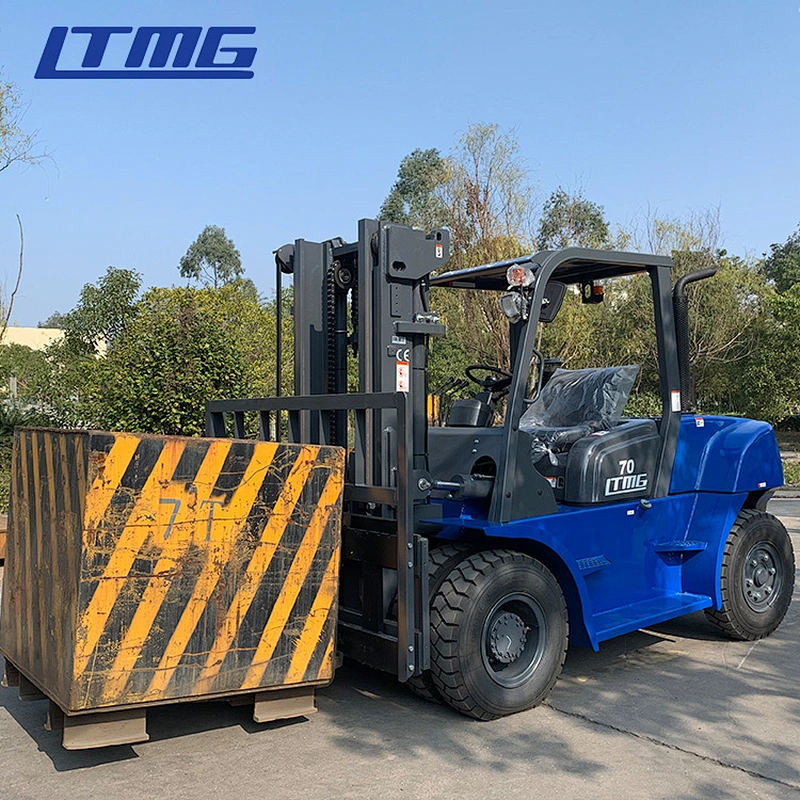

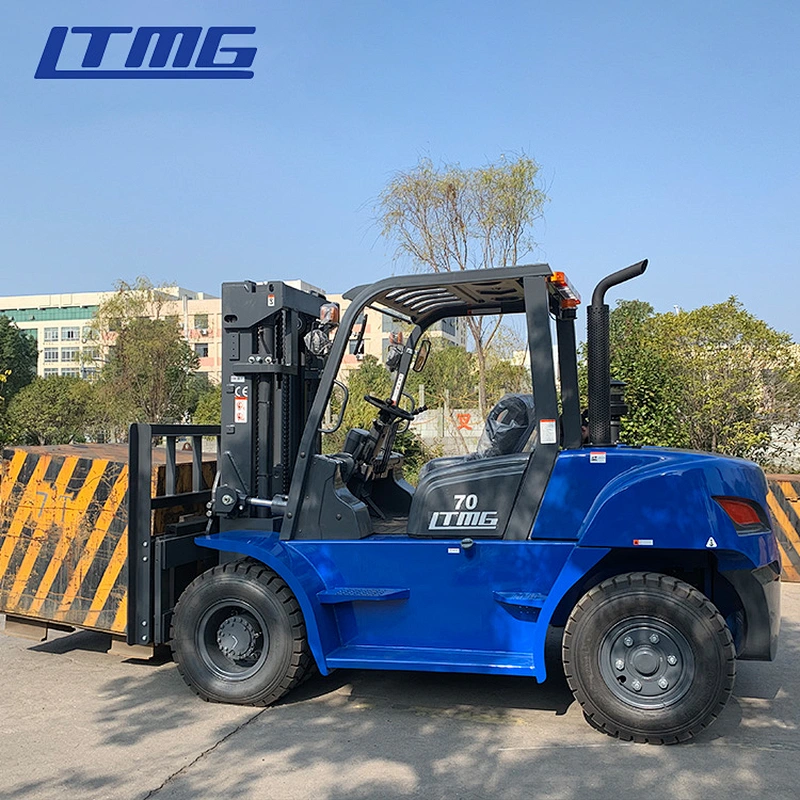

The Specification of 7ton diesel forklift | ||||||||||
Model | FD70 | |||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 7000 | ||||||||
Load Centre | mm | 600 | ||||||||
Lift Height | mm | 3000 | ||||||||
Fork Size | L×W×T | mm | 1220×150×70 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Fork Overhang (Wheel center to fork face) | mm | 595 | ||||||||
Ground Clearance(Bottom of mast) | mm | 200 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 3565 | |||||||
Overall Width | mm | 2010 | ||||||||
Mast Lowered Height | mm | 2500 | ||||||||
Mast Extended Height(With backrest) | mm | 4415 | ||||||||
Overhead Guard Height | mm | 2430 | ||||||||
Turning Radius (outside) | mm | 3350 | ||||||||
Travel (Full load) | km/h | 30 | ||||||||
Lifting (Full load) | mm/s | 460 | ||||||||
Max.Gradeability | % | 20 | ||||||||
Tyre | Front | mm | 8.25-15-14PR | |||||||
Rear | mm | 8.25-15-14PR | ||||||||
Wheelbase | mm | 2250 | ||||||||
Self weight | kg | 9750 | ||||||||
Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | |||||||
Engine | Model | 6BG1-02 | ||||||||
Manufacture | ISUZU | |||||||||
Rated output/r.p.m. | kw | 82.4/2000 | ||||||||
Rated torque/r.p.m. | N·m | 416/1600 | ||||||||
No.of Cylinder | 6 | |||||||||
Bore×Stroke | mm | 105×125 | ||||||||
Displacement | cc | 6494 | ||||||||
Fuel Tank Capacity | L | 125 | ||||||||
Type | Hydraulic | |||||||||
Stage | FWD/RVS | 2/2 | ||||||||
Product Features
1.Automatic transmission, hydraulic system.
2.Xichai 6110 powerful engine or Isuzuengine.
3.Side shifter,2500mm long fork length.
4. Original Toyotaseat with safty belt.

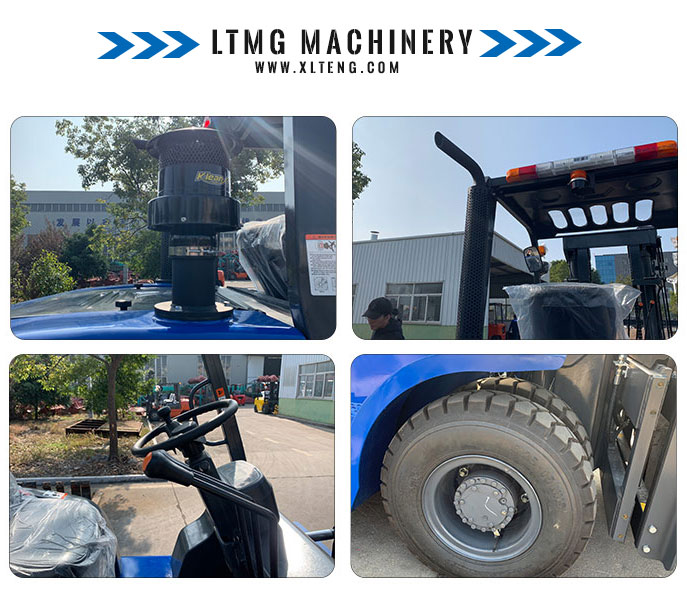

5.Double air filters with high instake, which effectively reduce the resistence and dust into engine, improving engine life.
6.High exhaust pipe to protect your health and environment.
7.Shimadzu pump and valve, Eaton pipe and Nok cylinder seals.
LTMG Customer
Company Information
LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.
At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported
to more than 100 countries and regions around the world.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported
to more than 100 countries and regions around the world.
LTMG Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours(which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours(which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
