- Product Name:5 Tons Lift Truck Forklift
- Rated Capacity:5000Kg
- Loading Center:600mm
- Wheelbase:2250mm
- Lifting height:3000mm - 6000mm
- Tire:Pneumatic tire(Solid Tyre Optional)
- Transmission type:Automatic Tranmission
- Engine:Chinese Engine
- Service Weight:8150kg
- Mast:2 Stage/3 Stage
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Storage
- After Warranty Service:Online support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Philippines
- Local Service Location:Indonesia
- Local Service Location:Russia
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Morocco
- Local Service Location:UAE
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Spain
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:South Africa
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:3440*2010*2430mm
- Fork Width:150mm
- Fork Length:1220mm
- Certification:CE/ISO9001
- Min. Lifting Height:200mm

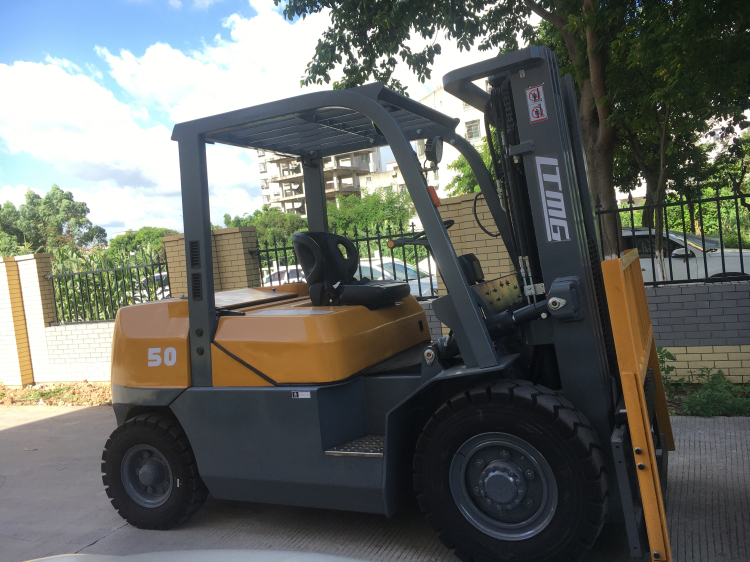

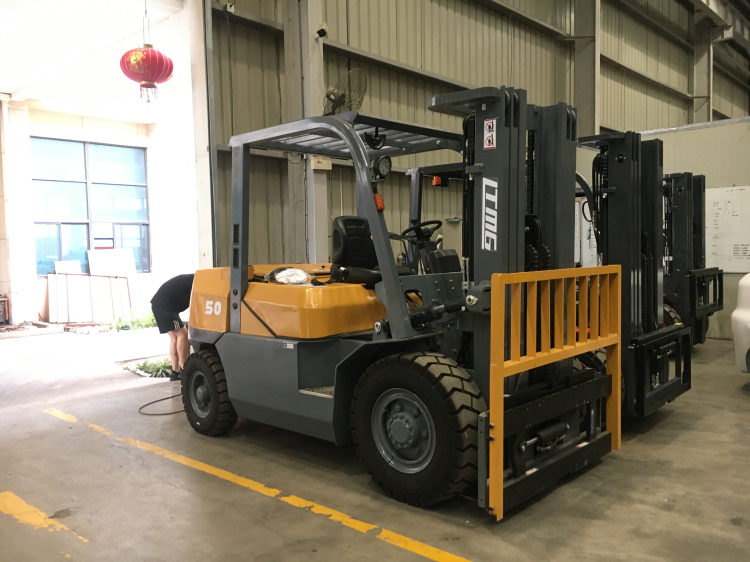

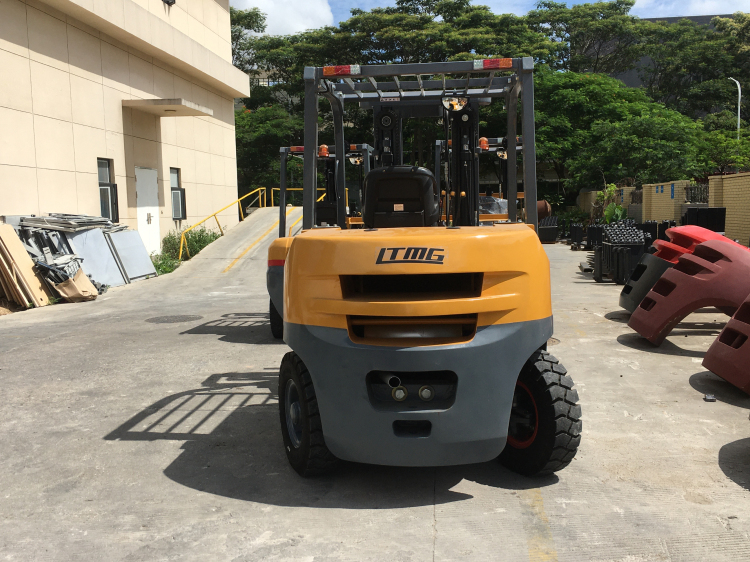

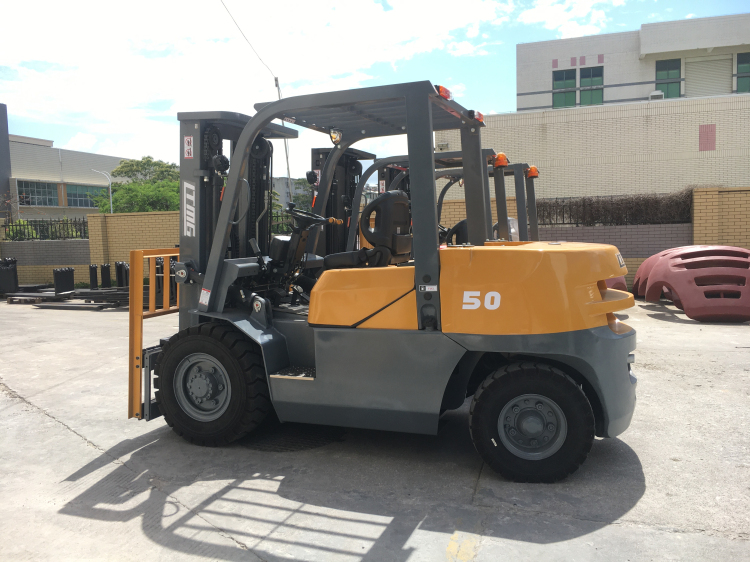

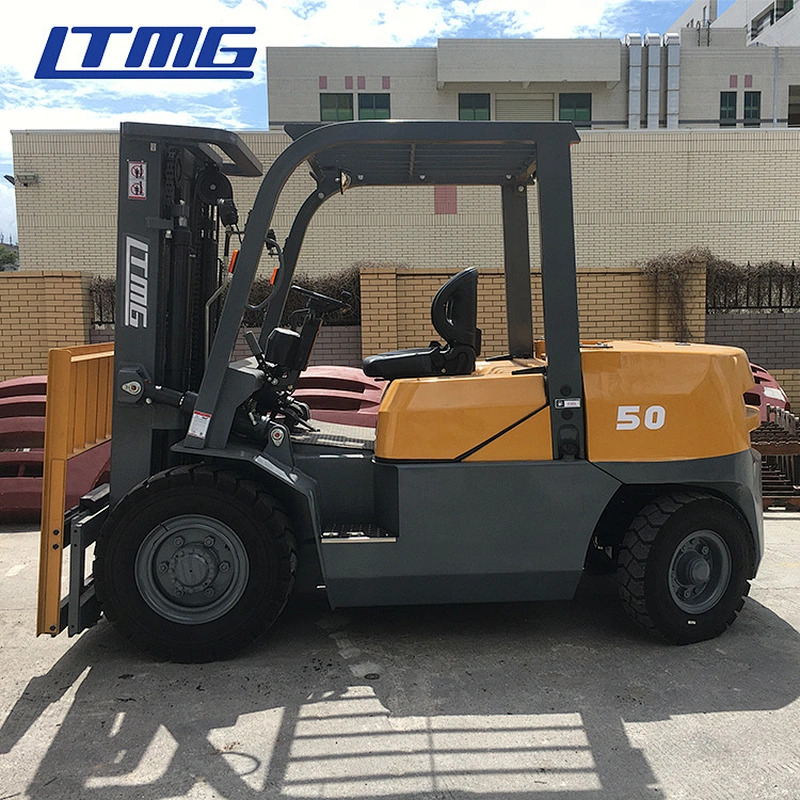

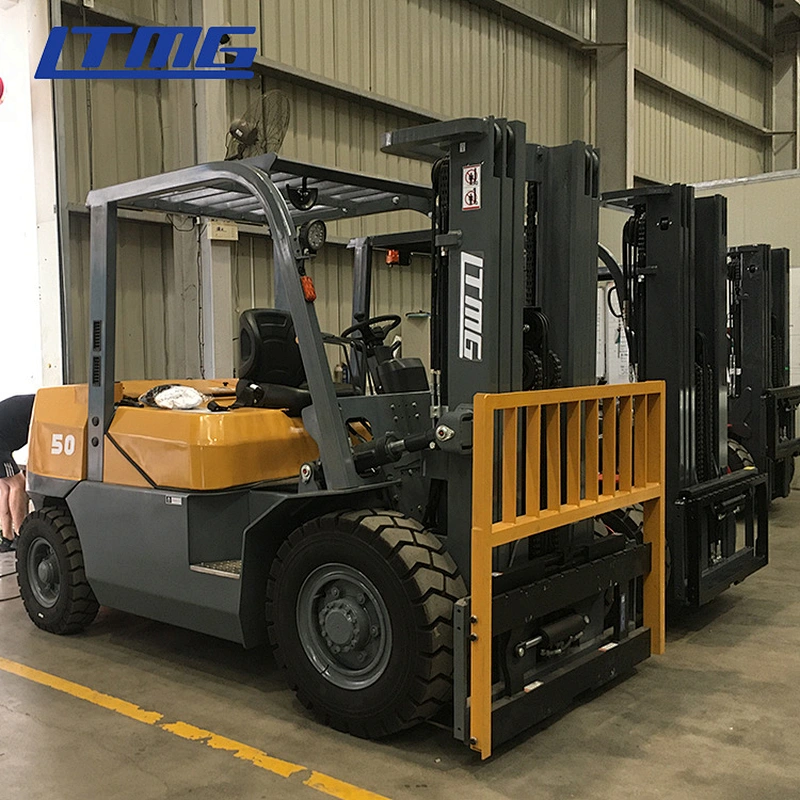

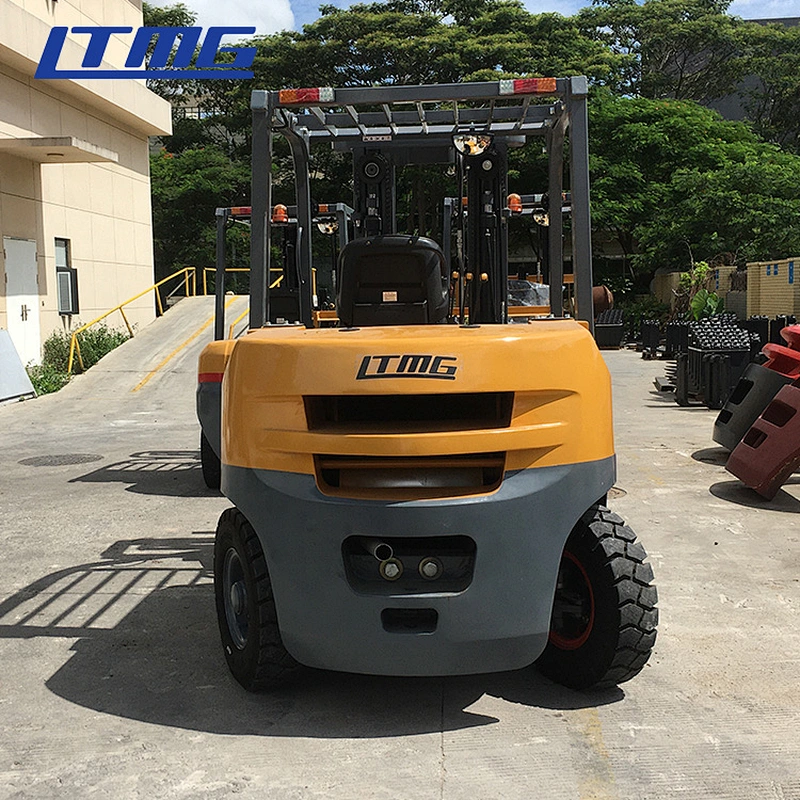

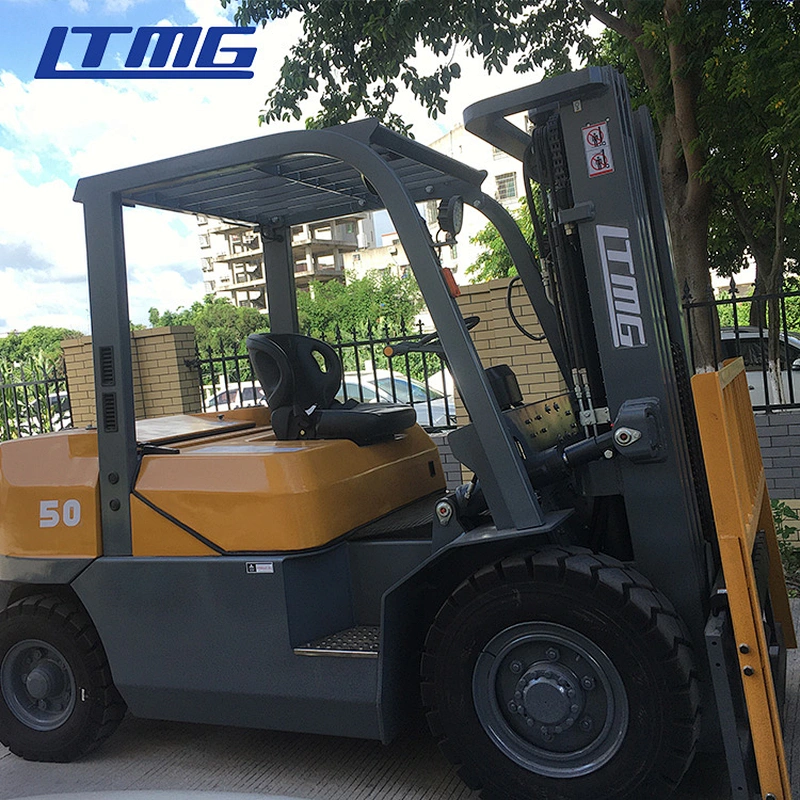

Product Picture
Product Description

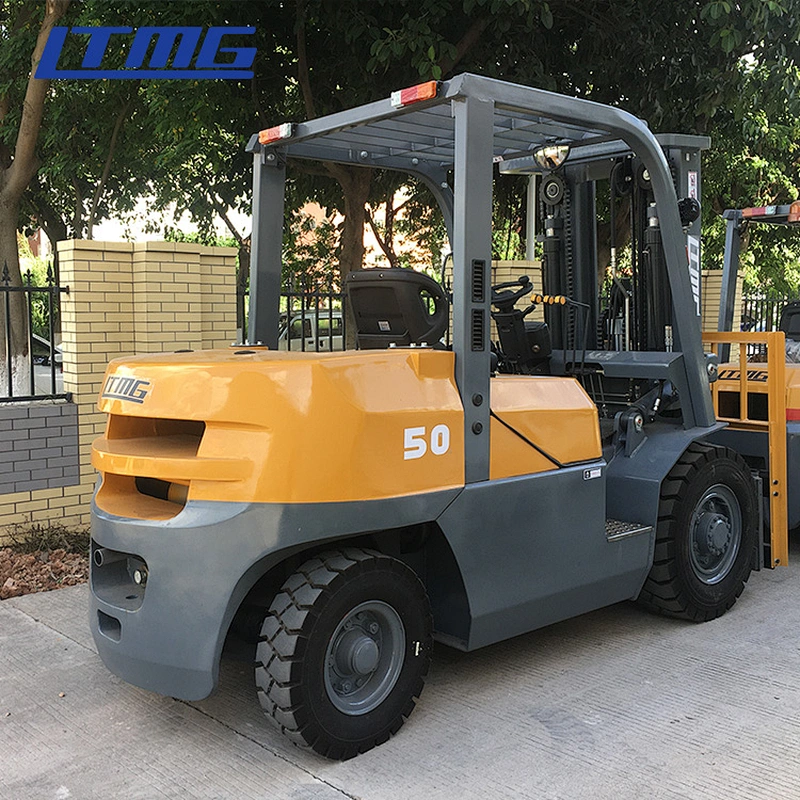

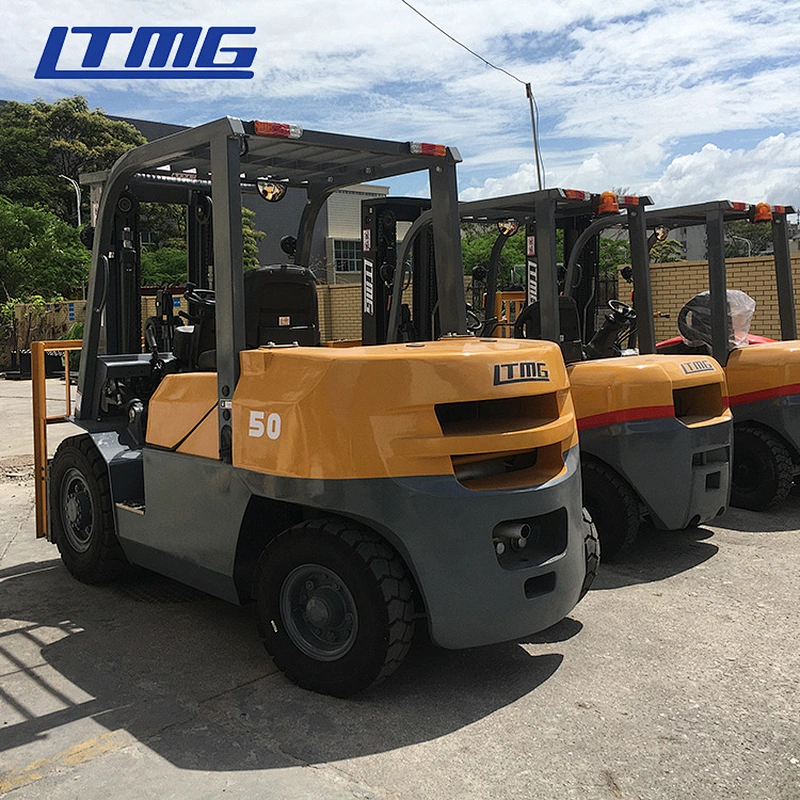

5 Tons Diesel Engine Power Lift Truck Forklift Truck Pneumatic Solid Tyre Optional
Model | FD50 | FD60 | |||||
Power Type | Diesel | Diesel | |||||
Rated Capacity | kg | 5000 | 6000 | ||||
Load Centre | mm | 600 | 600 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1220×150×60 | 1220×150×60 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Fork Overhang (Wheel center to fork face) | mm | 590 | 590 | ||||
Ground Clearance（Bottom of mast） | mm | 200 | 200 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 3440 | 3440 | |||
Overall Width | mm | 2010 | 2010 | ||||
Mast Lowered Height | mm | 2500 | 2500 | ||||
Mast Extended Height(With backrest) | mm | 4415 | 4415 | ||||
Overhead Guard Height | mm | 2430 | 2430 | ||||
Turning Radius (outside) | mm | 3250 | 3250 | ||||
Speed | Travel (Full load) | km/h | 30 | 30 | |||
Lifting (Full load) | mm/s | 500 | 500 | ||||
Max.Gradeability | % | 20 | 20 | ||||
Tyre | Front | mm | 8.25-15-14PR | 8.25-15-14PR | |||
Rear | mm | 8.25-15-14PR | 8.25-15-14PR | ||||
Wheelbase | mm | 2250 | 2250 | ||||
Self weight | kg | 8150 | 8750 | ||||
Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | (12/80) x 2 | |||
Engine | Model | Chinese Engine | |||||
Manufacture | China Brand(Japan Optional) | ||||||
Rated output/r.p.m. | kw | 82.4/2000 | |||||
Rated torque/r.p.m. | N·m | 416/1600 | |||||
No.of Cylinder | 6 | ||||||
Bore×Stroke | mm | 105×125 | |||||
Displacement | cc | 6494 | |||||
Fuel Tank Capacity | L | 125 | 125 | ||||
Transmission | Type | Hydraulic | Hydraulic | ||||
Stage | FWD/RVS | 2/2 | 2/2 | ||||
Various attachment

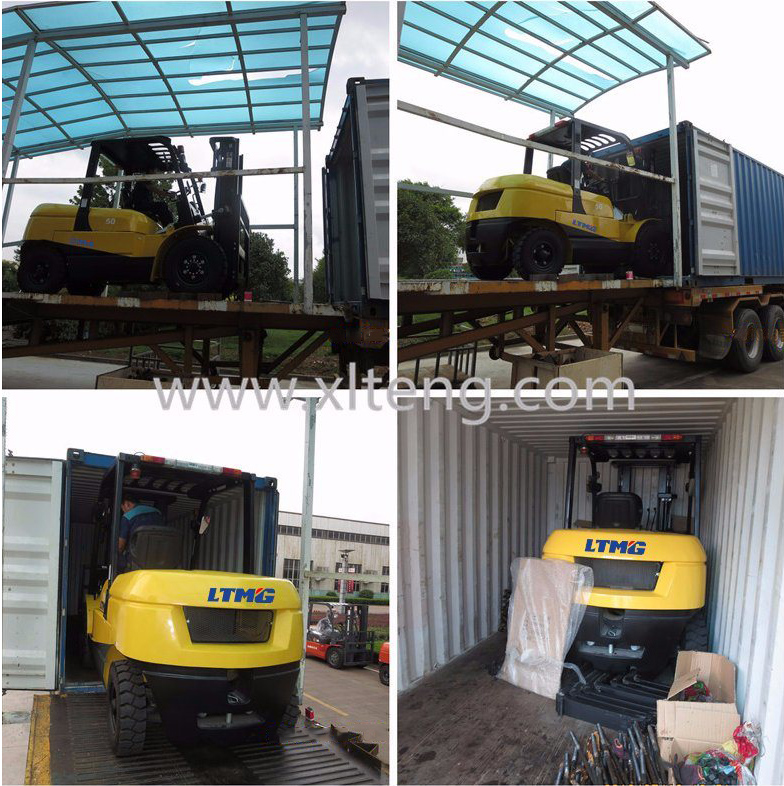

Packing&Shipping
Company Introduction
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG,battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.),wheel excavators and so on .
Exhibition and Clients
After Sales Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
