1,Greatly reduce exhaust emissions
2,improve the lubrication of the engine3, improve the working condition of the engine
4, reduce fuel costs
5, reliable security
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Spain
- Local Service Location:Japan
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Canada
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Kenya
- Showroom Location:UAE
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Max. Lifting Height:6 meter
- Min. Lifting Height:0
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3440*2010*2500
- Certification:CE&ISO9001;2008

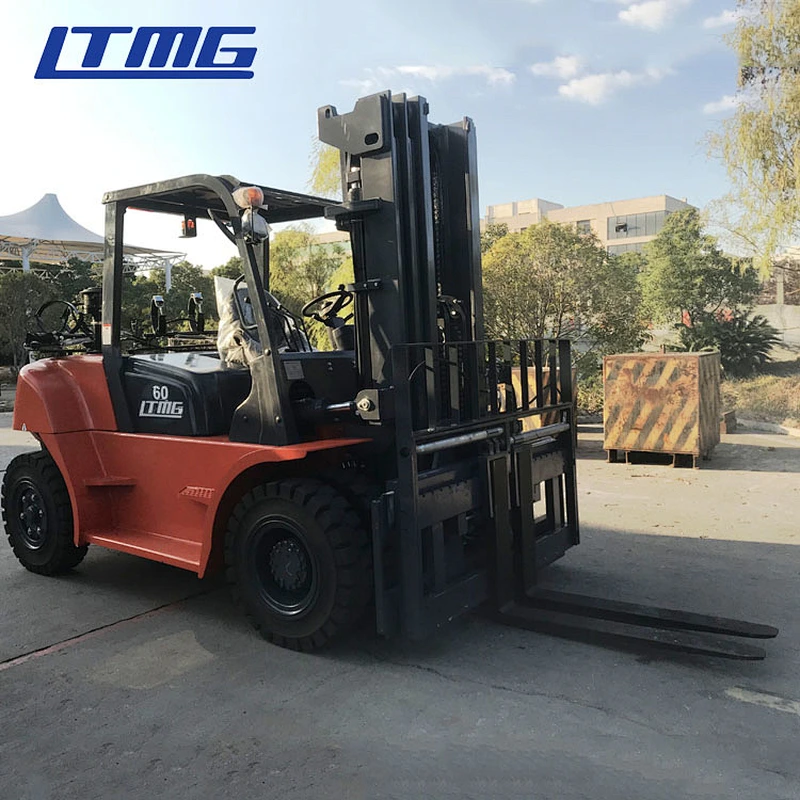

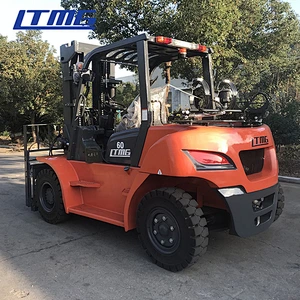

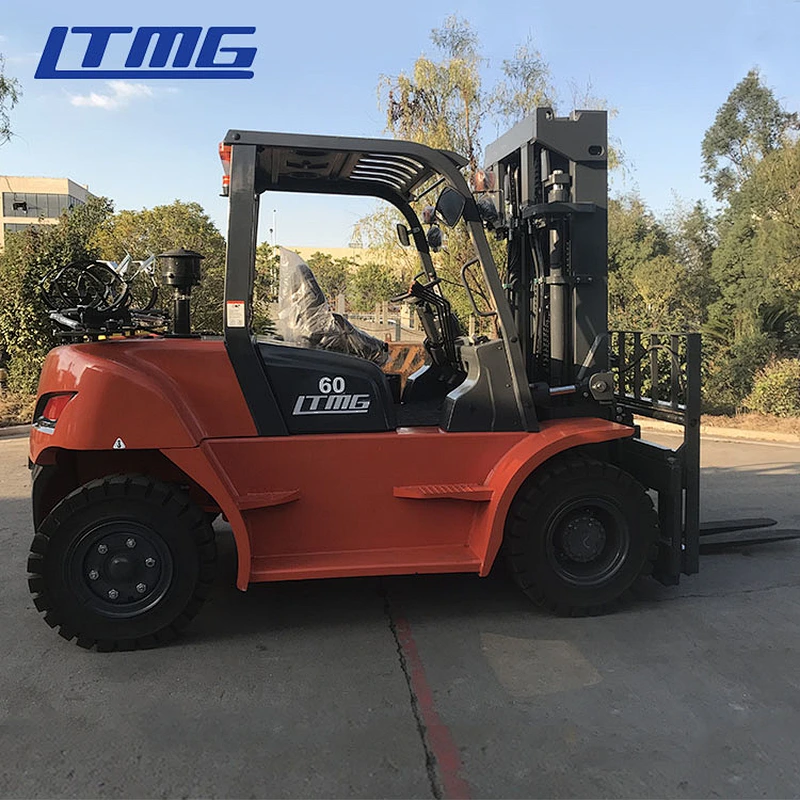

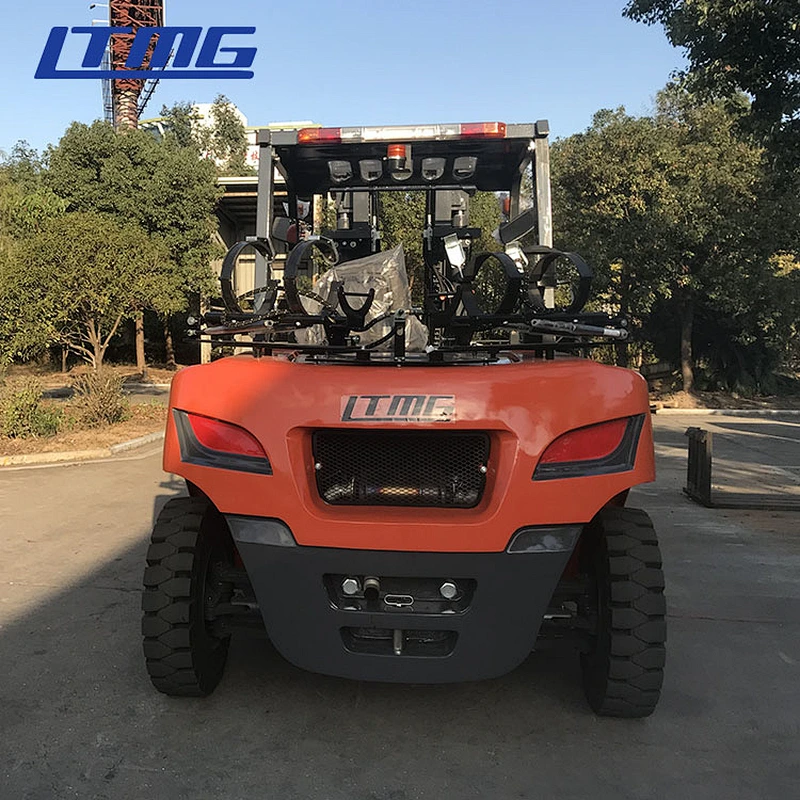

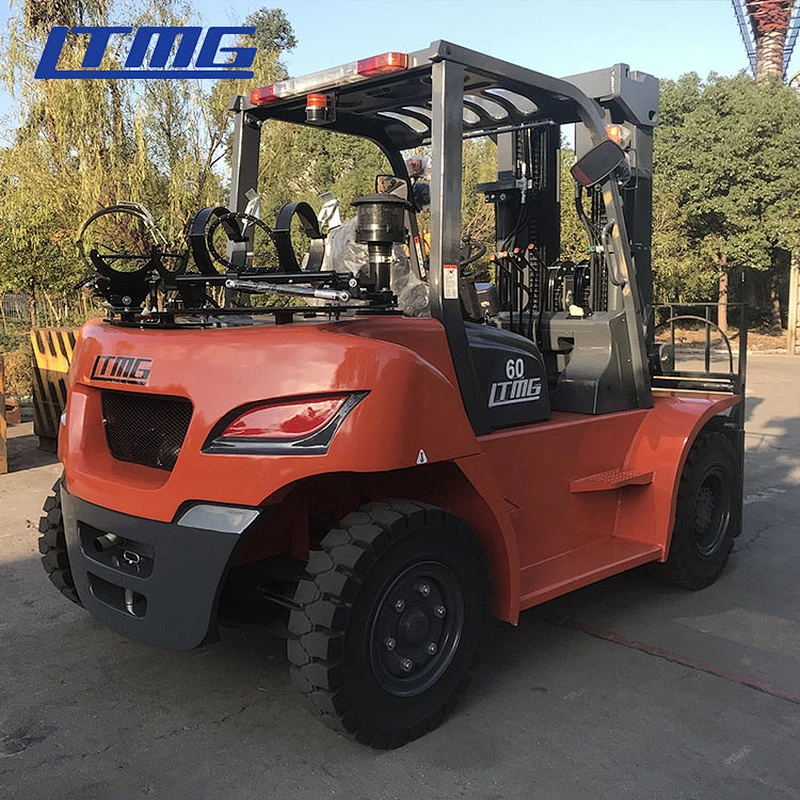

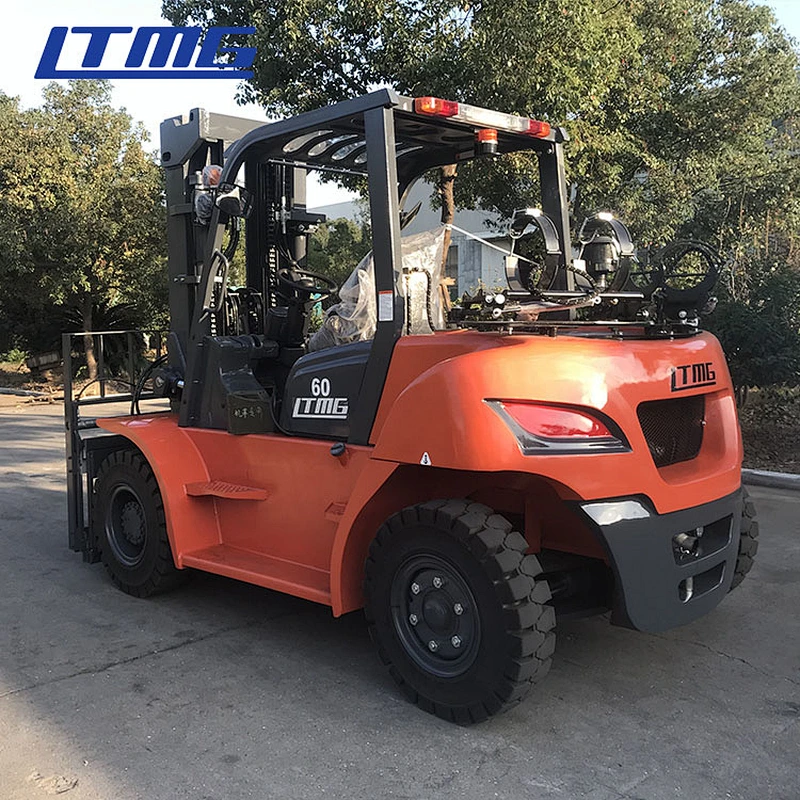

Product Show
Product Parameter
Model | FG50 | FG60 | |||
Power Type | LPG | LPG | |||
Rated Capacity | kg | 5000 | 6000 | ||
Load Centre | mm | 600 | 600 | ||
Lift Height | mm | 3000 | 3000 | ||
Fork Size | L×W×T | mm | 1070×150×60 | 1220×150×60 | |
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |
Fork Overhang (Wheel center to fork face) | mm | 590 | 590 | ||
Ground Clearance（Bottom of mast） | mm | 200 | 200 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 3440 | 3440 | |
Overall Width | mm | 2010 | 2010 | ||
Mast Lowered Height | mm | 2500 | 2500 | ||
Mast Extended Height(With backrest) | mm | 4415 | 4415 | ||
Overhead Guard Height | mm | 2430 | 2430 | ||
Turning Radius (outside) | mm | 3250 | 3250 | ||
Speed | Travel (Full load) | km/h | 30 | 30 | |
Lifting (Full load) | mm/s | 500 | 500 | ||
Max.Gradeability | % | 20 | 20 | ||
Tyre | Front | mm | 8.25-15-14PR | 8.25-15-14PR | |
Rear | mm | 8.25-15-14PR | 8.25-15-14PR | ||
Wheelbase | mm | 2250 | 2250 | ||
Self weight | kg | 8150 | 8750 | ||
Battery | V/Ah | 12/120 | 12/120 | ||
Engine | Model | PSI4.3L | |||
Manufacture | PSI | ||||
Rated output/r.p.m | kw | 76/2300 | |||
Rated torque/r.p.m | N·m | 324/1700 | |||
No.of Cylinder | 6 | ||||
Bore*stroke | mm | 101.6×88.4 | |||
Displacement | cc | 4300 | |||
Fuel Tank Capacity | L | 125 | 125 | ||
Transmission | Hydraulic | Hydraulic | |||
FWD/RVS | 2/2 | 2/2 | |||

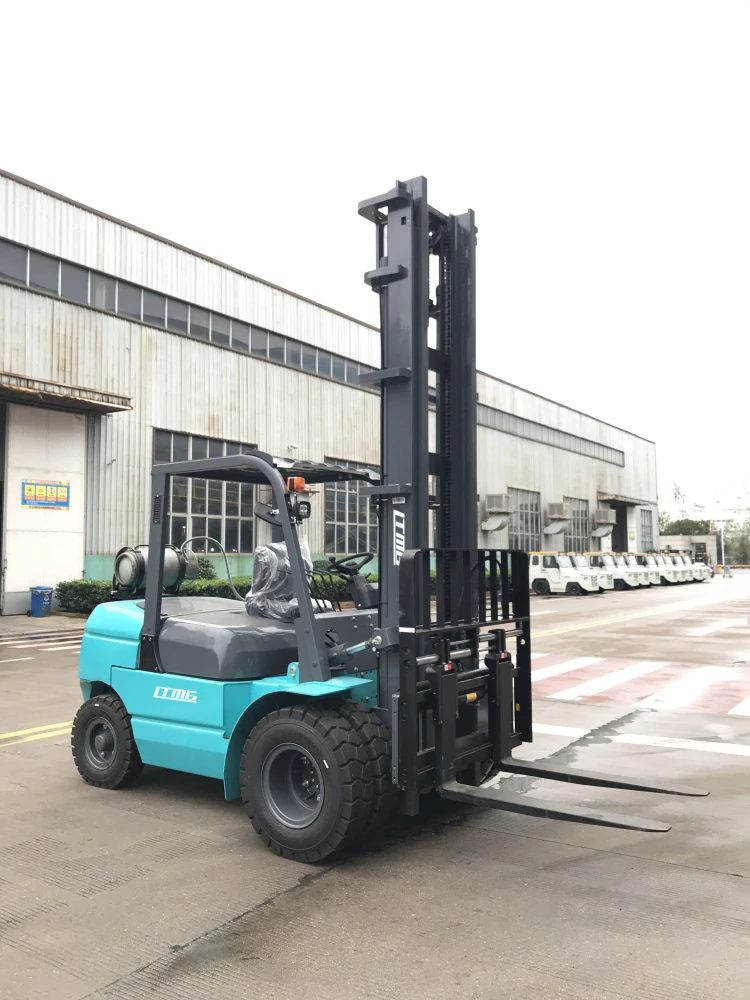

Product Advantage

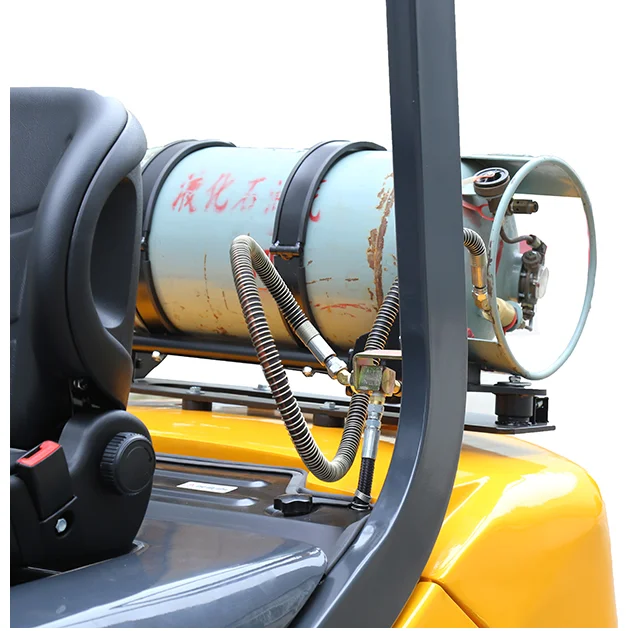

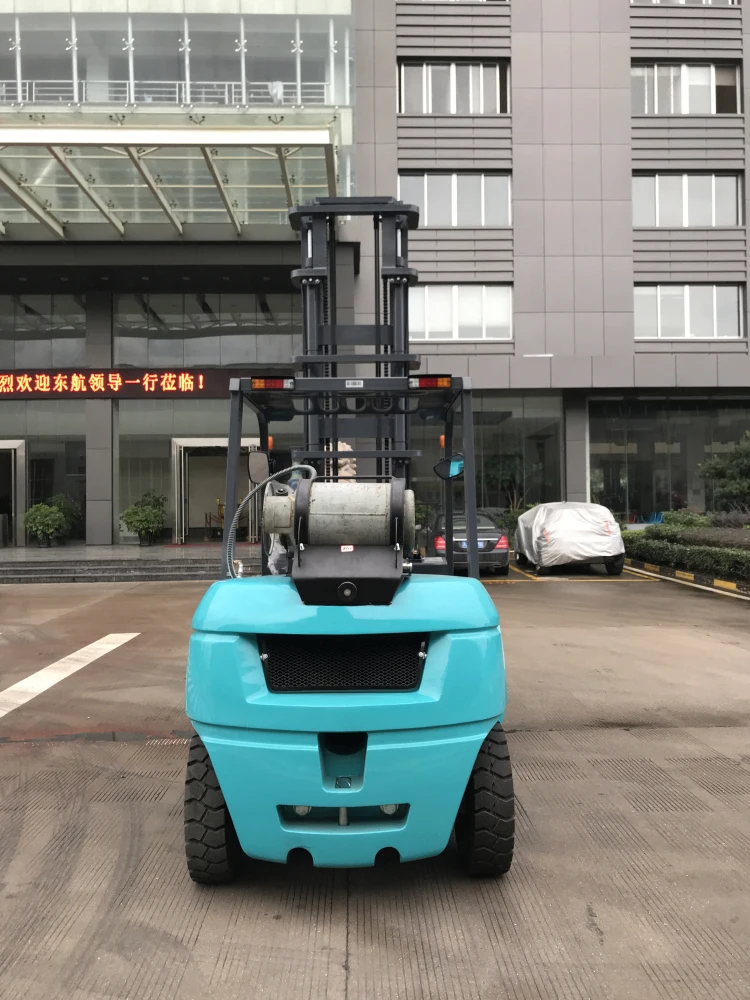

LPG Advantage
Optional
1.Lifting Height 3m-7m
2.Full-free Duplex or Triplex Mast
3.Side Shift, Solid Tires, Suspension Seat, fork positioner .
4.Driver's Cabin, Customized Color, air-conditioner, etc.
5.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
1.Lifting Height 3m-7m
2.Full-free Duplex or Triplex Mast
3.Side Shift, Solid Tires, Suspension Seat, fork positioner .
4.Driver's Cabin, Customized Color, air-conditioner, etc.
5.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Related Products
Electric Forklift
Rough Terrain Forklift
Diesel Forklift

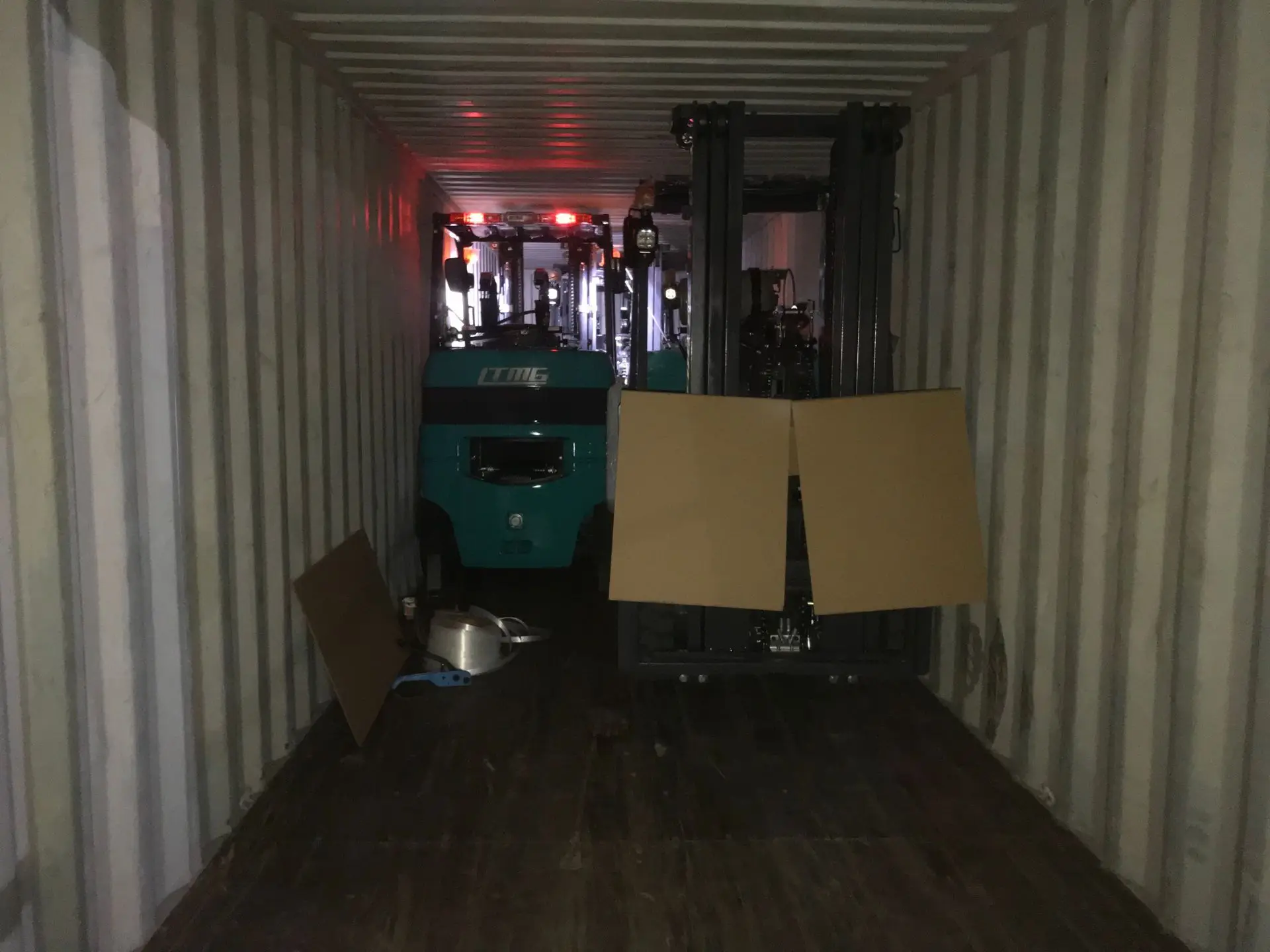

Packing&Shipping
Company Introduction
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .
