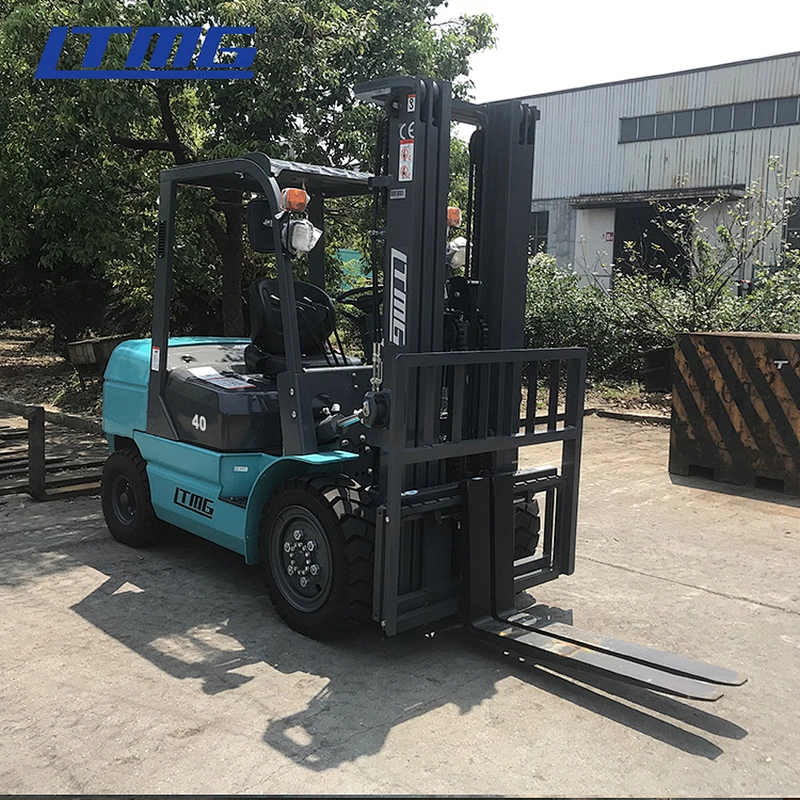

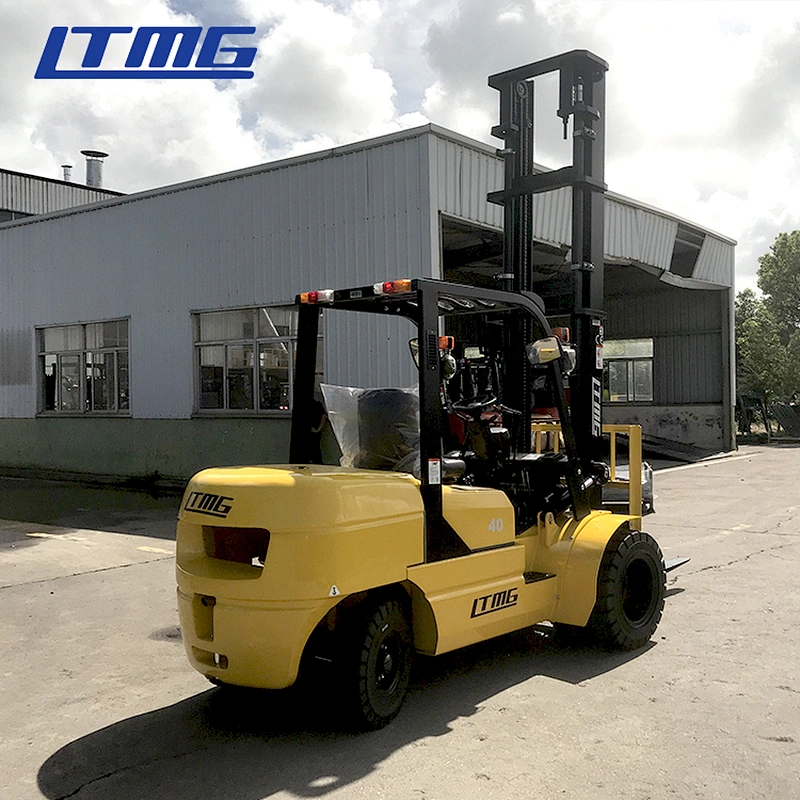

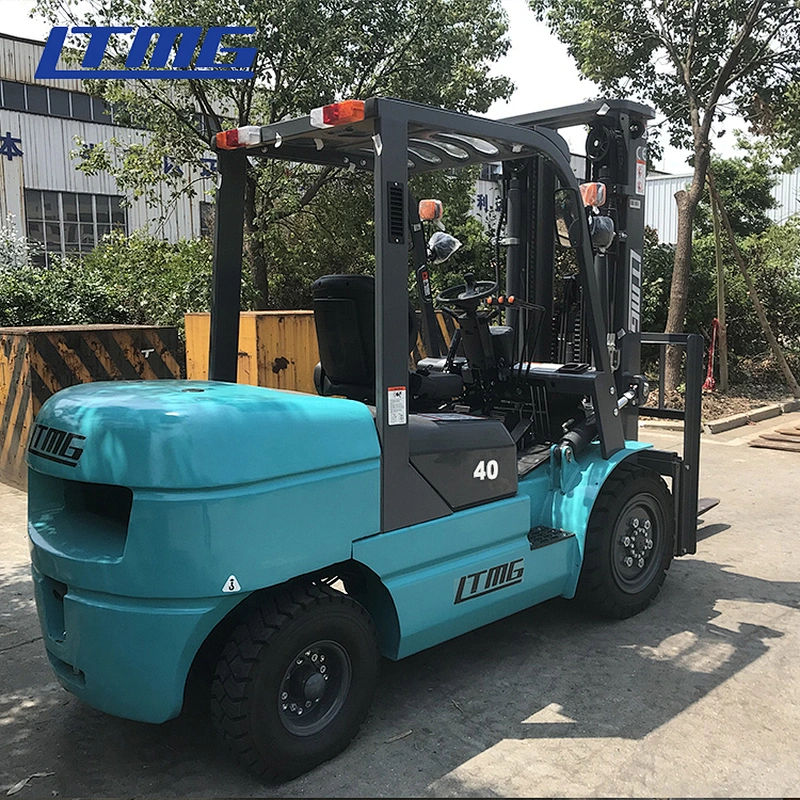

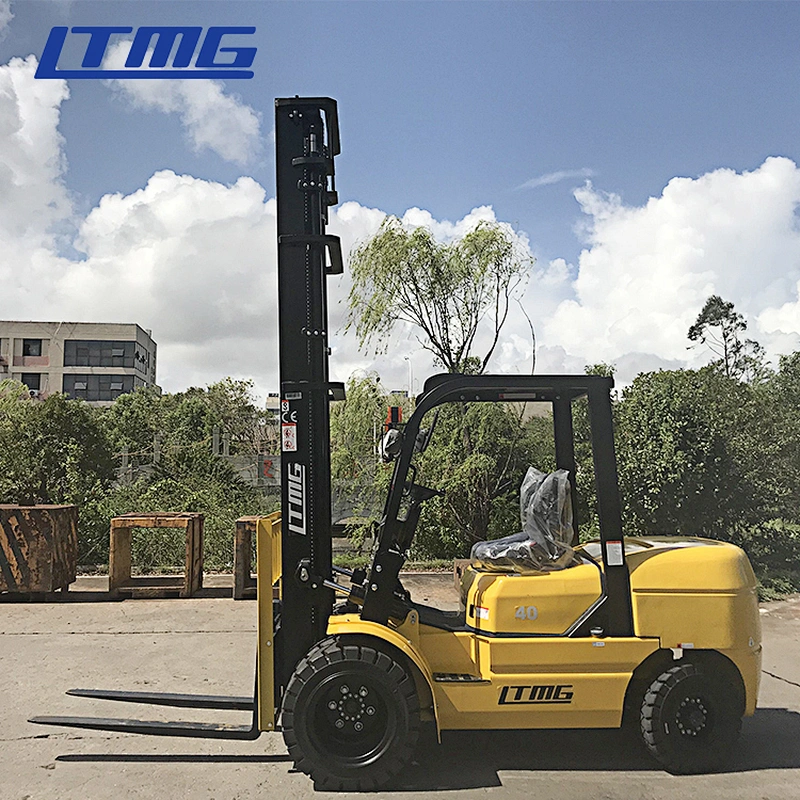

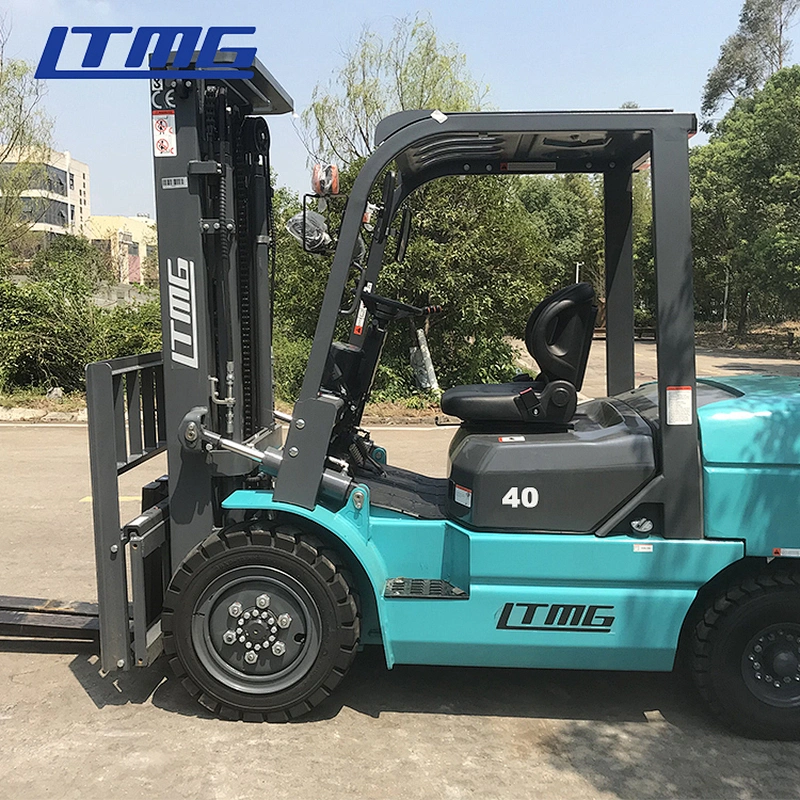

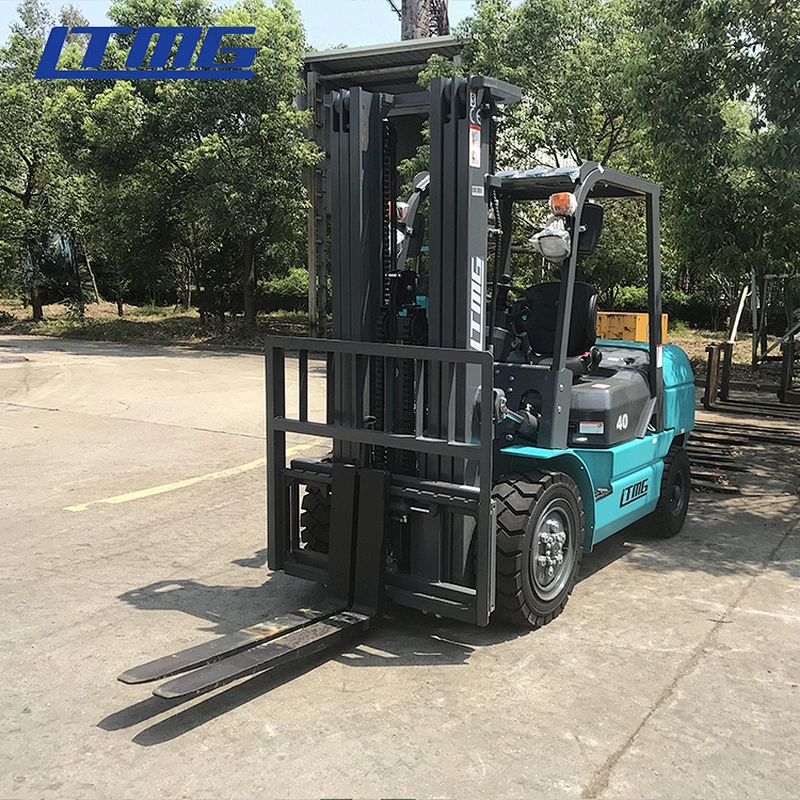

4 ton tonne radiator forklift 4000kg diesel forklift truck FD40 forklift

4 ton tonne radiator forklift 4000kg diesel forklift truck FD40 forklift

Price:: US $ 6874.00-7100.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 300.0 unit / Month
Country of Origin: Xiamen

Quantity:

Product Description

Type:Powered Pallet Truck
Product Name:Diesel Forklift Truck
Color:Customized Color
Engine:ISUZU,Mitsubishi or Chinese engine
Mast:2-3 Stages
Ground clearance:140mm
Options:Side-shifter,rotator,forkpositioner
Load Center:500mm
Transmission:Hydraulic Transmission
Tire:Pneumatic Standard or solid tire
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Construction works
After Warranty Service:Online support
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Spain
Local Service Location:Japan
Local Service Location:Argentina
Local Service Location:UAE
Local Service Location:South Africa
Showroom Location:Canada
Showroom Location:Philippines
Showroom Location:Indonesia
Showroom Location:Kenya
Showroom Location:UAE
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Pressure vessel
Core Components:Motor
Core Components:Bearing
Core Components:Gear
Core Components:Pump
Core Components:Gearbox
Core Components:Engine
Brand Name:LTMG
Place of Origin:CN;FUJ
Overall Dimensions:2835*1230*2110
Fork Width:120mm
Fork Length:1070mm
Certification:CE&ISO9001
Min. Lifting Height:0

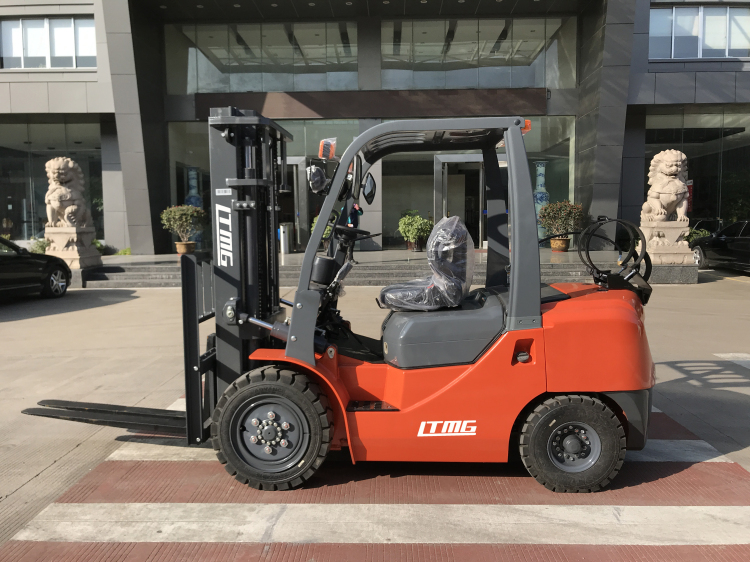

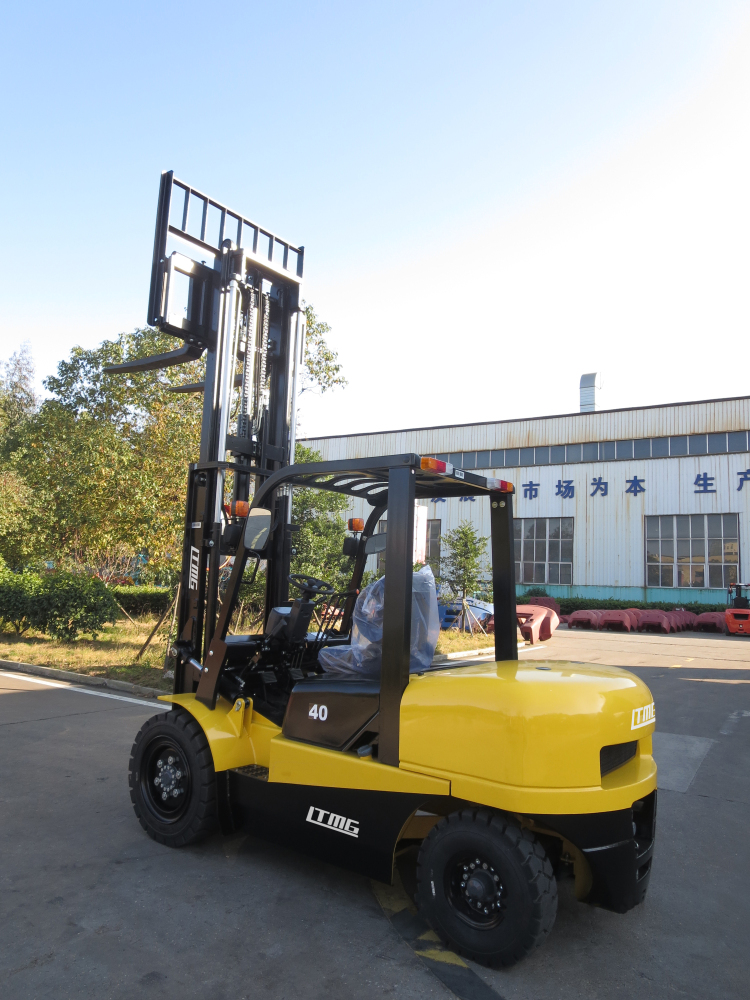

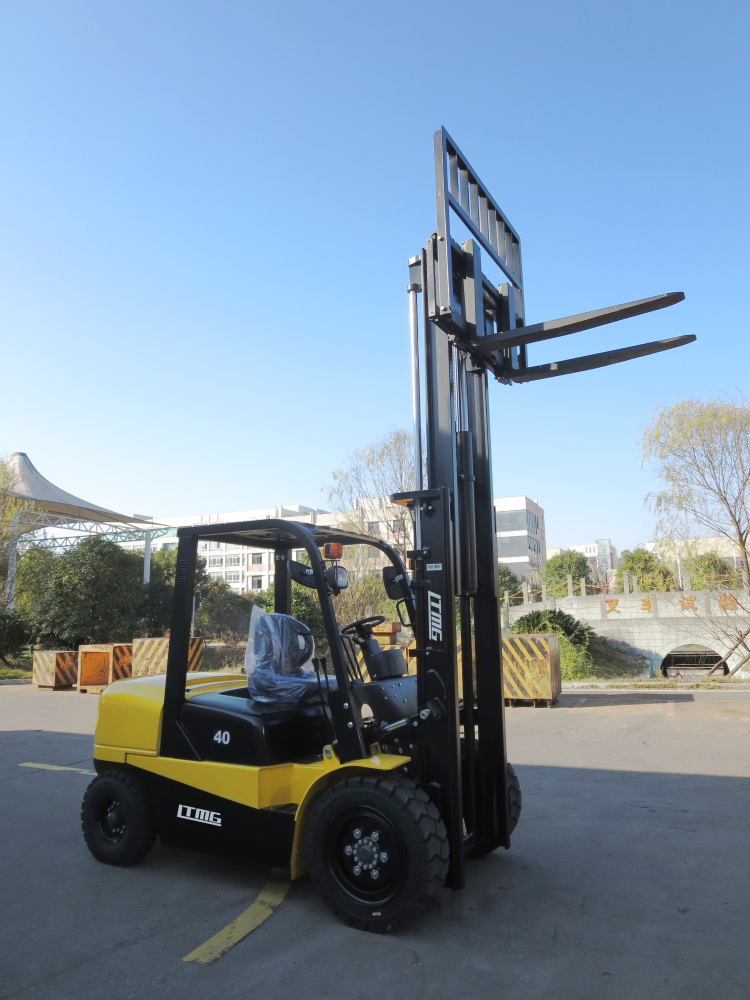

Product Show

Product Parameter

Model						FD35	FD40
Power Type						Diesel	Diesel
Rated Capacity					kg	3500	4000
Load Centre					mm	500	500
Lift Height					mm	3000	3000
Fork Size			L×W×T	mm	1070×125×50	1070×120×40
Mast Tilt Angle			F/R	Deg	6°/12°	6°/12°
Front Overhang (Wheel center to fork face)					mm	485	495
Ground Clearance（Bottom of mast）					mm	140	140
Overall Dimension			Length to face of fork(Without fork)	mm	2835	2890
				Overall Width	mm	1230	1410
				Mast Lowered Height	mm	2150	2195
				Mast Extended Height(With backrest)	mm	4175	4180
				Overhead Guard Height	mm	2110	2120
Turning Radius (outside)					mm	2570	2700
Speed			Travel (Full load)	km/h	20	20
Speed				Lifting (Full load)	mm/s	440	320
Max.Gradeability (No load/Full load)					%	20	20
Tire			Front	mm	28*9-15-12PR	250-15-16PR
Tire				Rear	mm	6.50-10-10PR	6.50-10-10PR
Wheelbase					mm	1800	1800
Service weight					kg	4700	5100
Battery	Voltage/Capacity			V/Ah	12/80	12/80
Engine	Model				4JG2PE-01
		Manufacture				ISUZU
		Rated output/r.p.m.			kw	46/2450
		Rated torque/r.p.m.			N·m	184.7/1800
		No.of Cylinder				4
		Bore×Stroke			mm	95.4×107
		Displacement			cc	3059
		Fuel Tank Capacity			L	70
Transmission	Type				Hydraulic
Transmission		Stage	FWD/RVS		1/1

Product Advantage

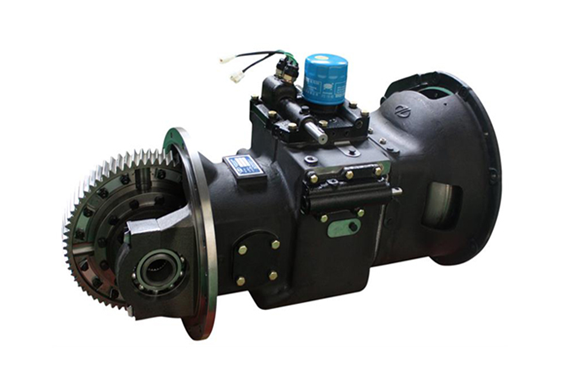

Gradeability improving style transmission

efficiency 5% improved

climbing torque 8% increased noise 3~5dB reduced thermal equilibrium temperature 8~10° decreased.

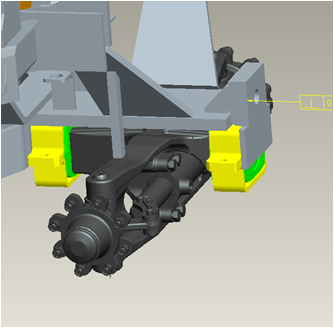

Steering axle

The steering axle will be replaced by integral casting, with better strength and more accurate size. At the same time, the connection with the frame will be replaced by soft connection, which can greatly reduce the vibration.

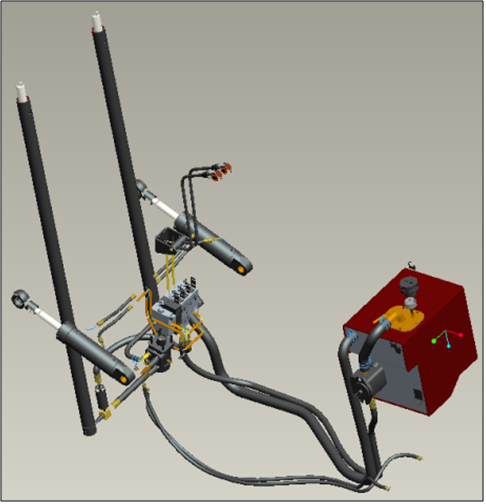

Hydraulic System

Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve

operation comfort.

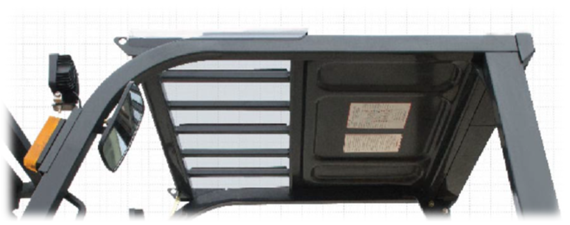

Overhead guard

New designed overhead guard protective device prevent the sudden accidents.

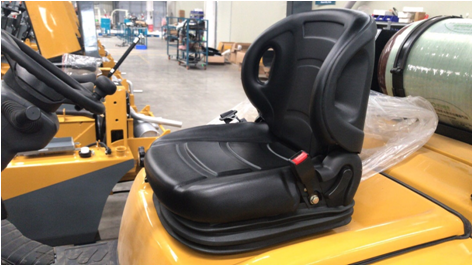

Seat

New suspension adjustable seat makes the long time operating more comfortable

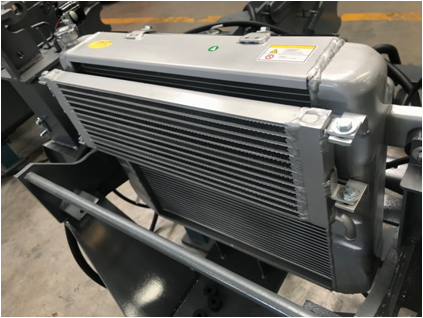

Radiators

Maintenance free radiators adopt Germany technology. (linde water tank).

Optional

1.many kinds of engine optional
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.

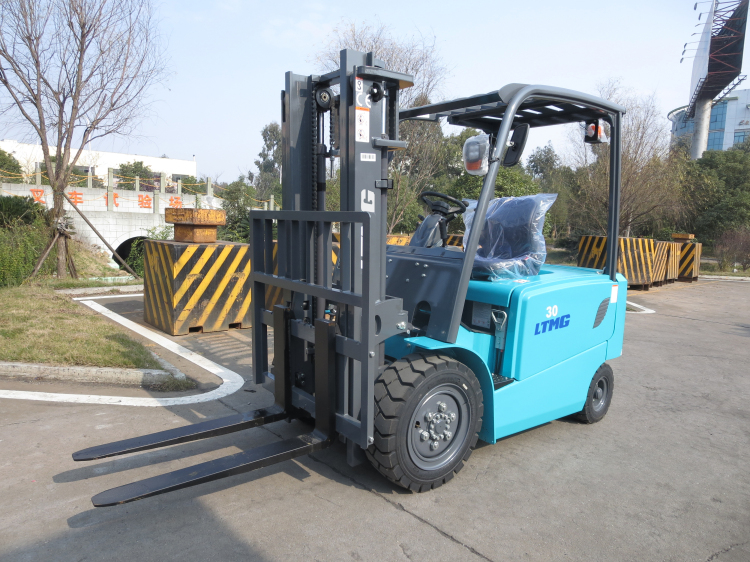

Electric Forklift

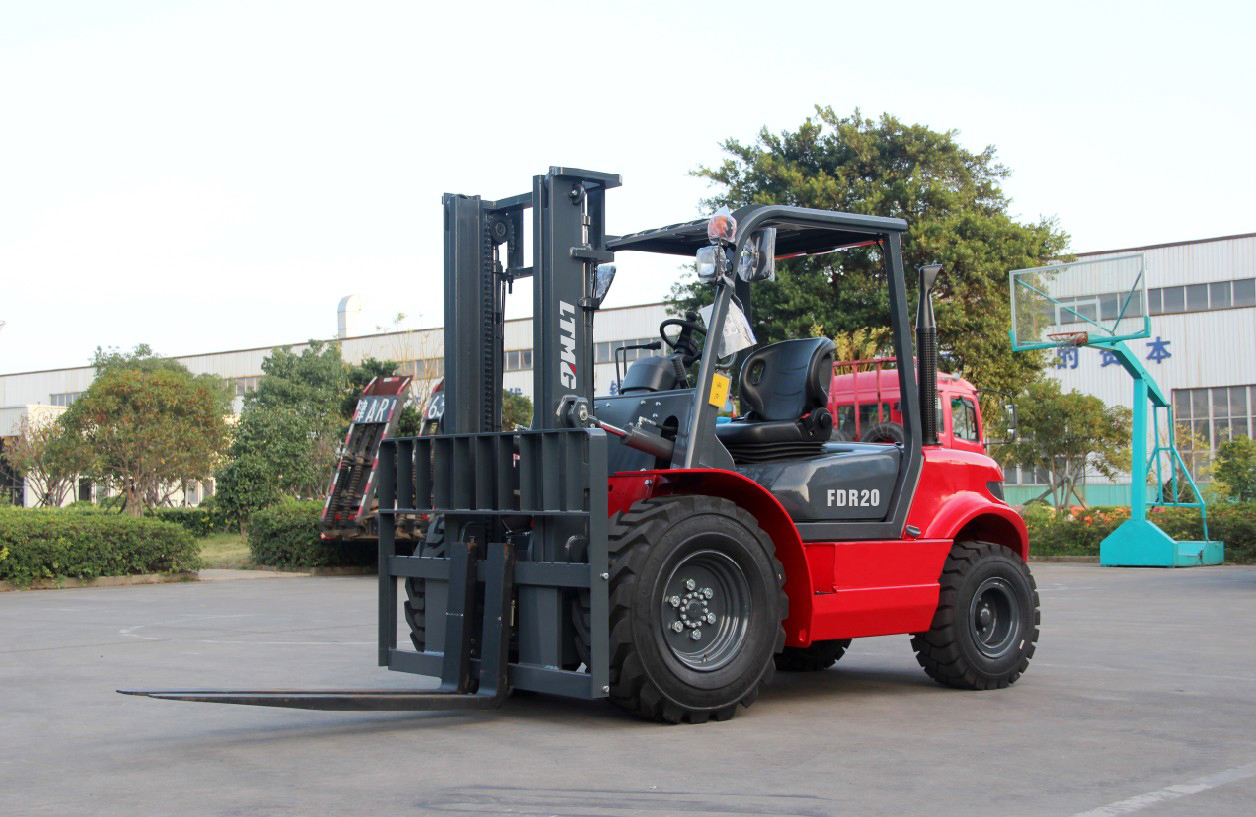

Rough Terrain Forklift

LPG&Gasoline Forklift

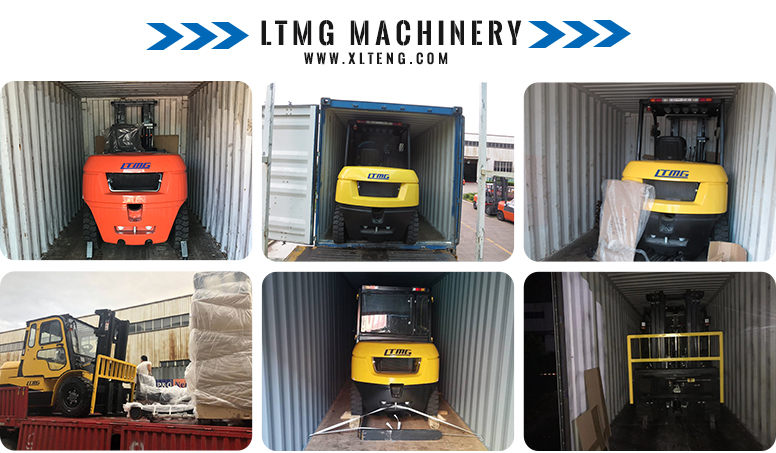

Packing&Shipping

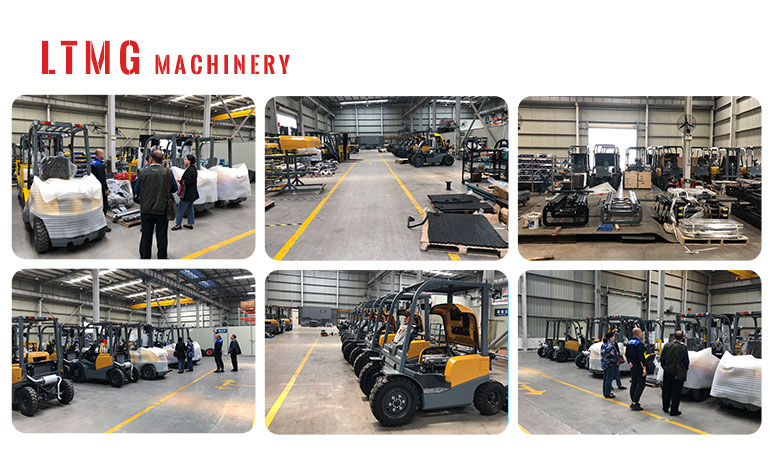

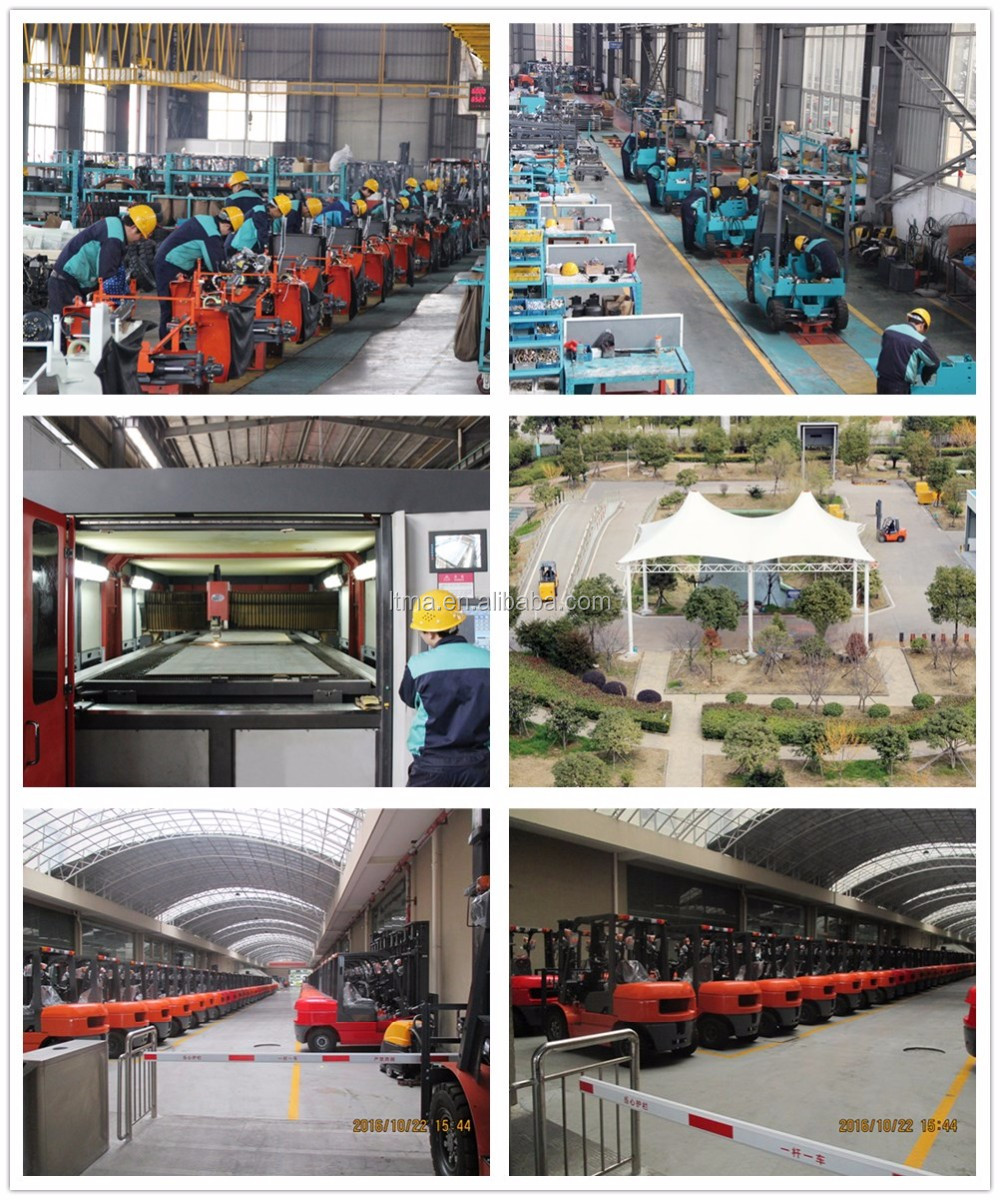

Company Introduction

Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .
