- After-sales Service Provided:Overseas third-party support available
- Item:3 ton forklift
- Engine:Chinese Brand engine, Japanese engine optional
- Warranty:1 year or 2000 working hours,which occurs first
- Service Weight:4300Kg
- Brand:LTMG
- Wheelbase:1700mm
- Max. lifting height:3000mm
- Transmission:Mechanical/Automatic
- Color:Customer Demanded
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Australia
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Saudi Arabia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Showroom Location:Morocco
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;JIA
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2705*1225*2075mm
- Certification:CE/ISO9001:2008
Product Description

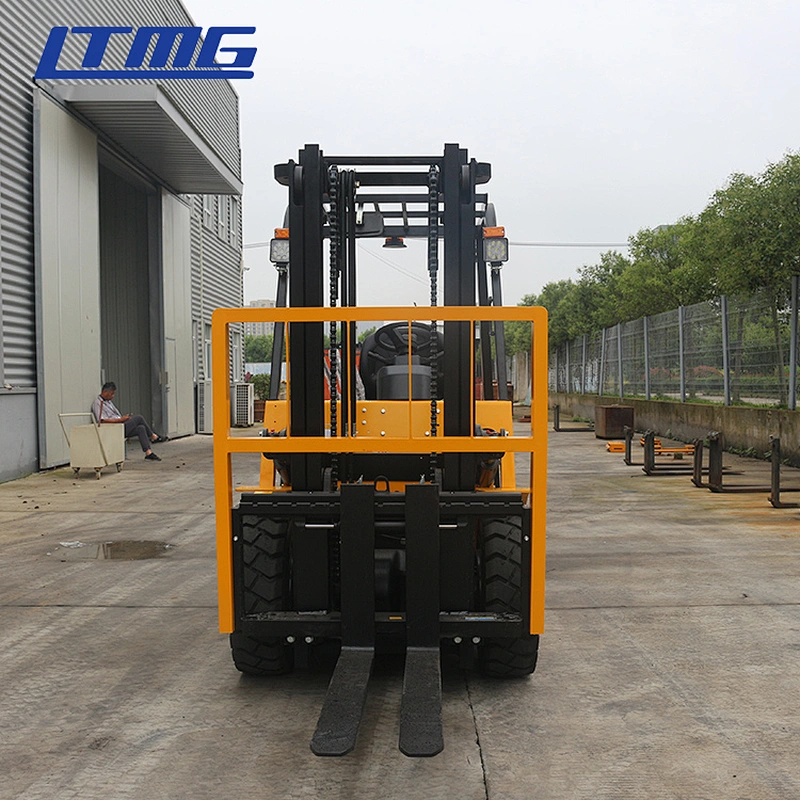

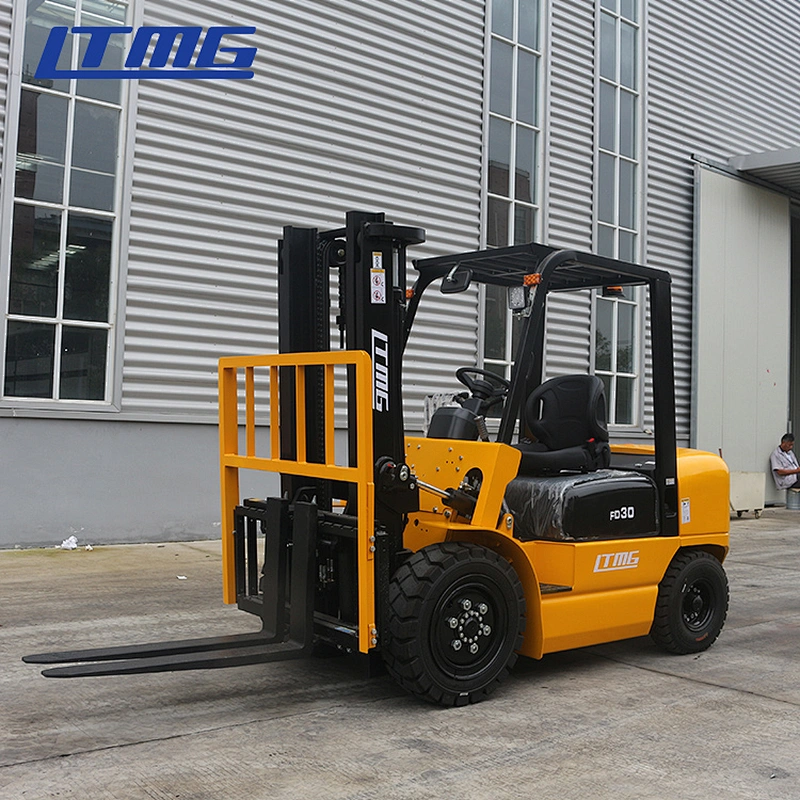

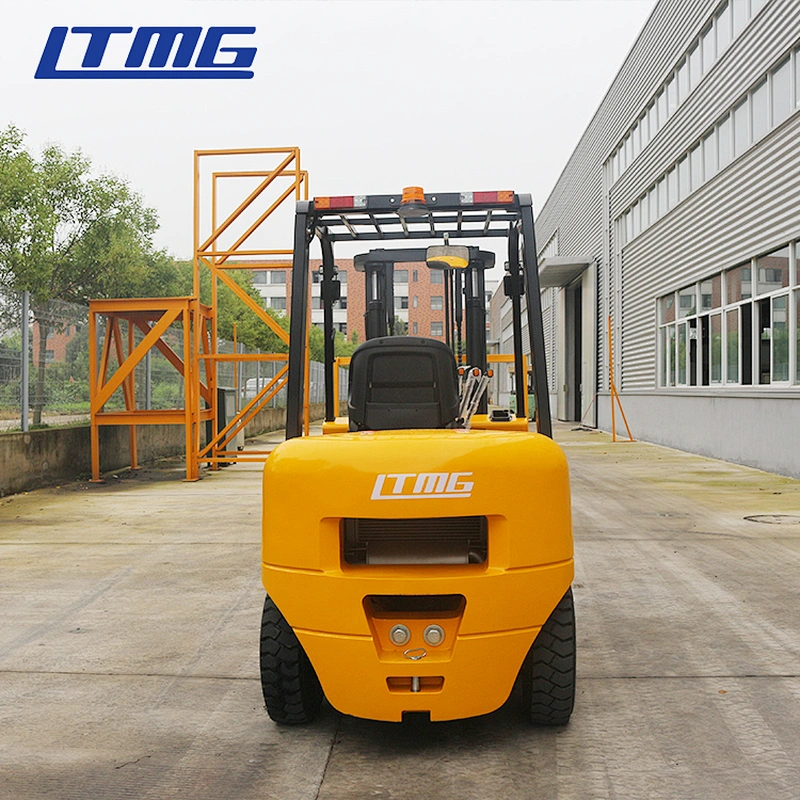

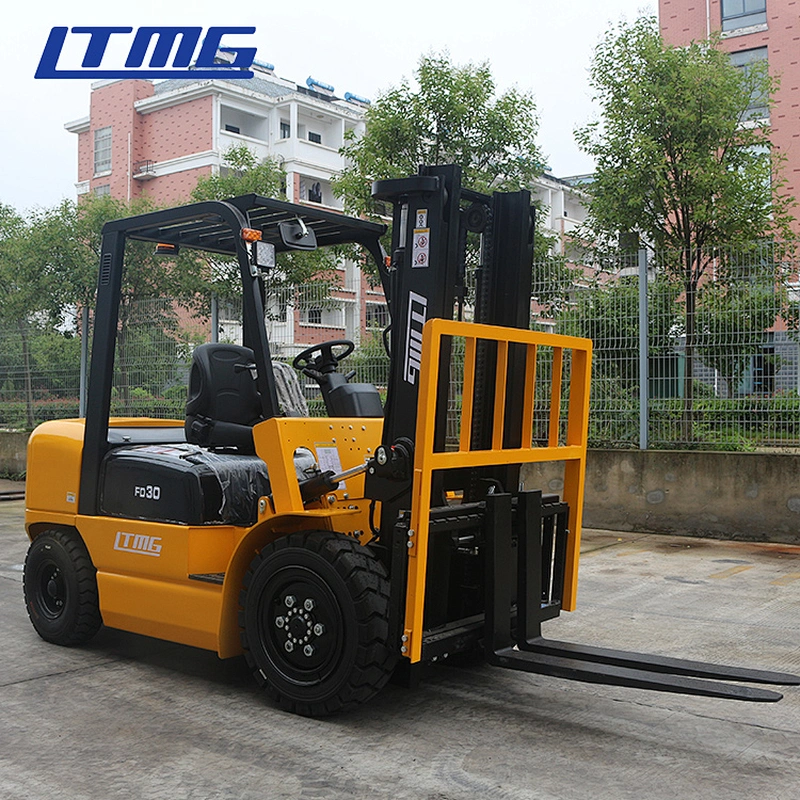

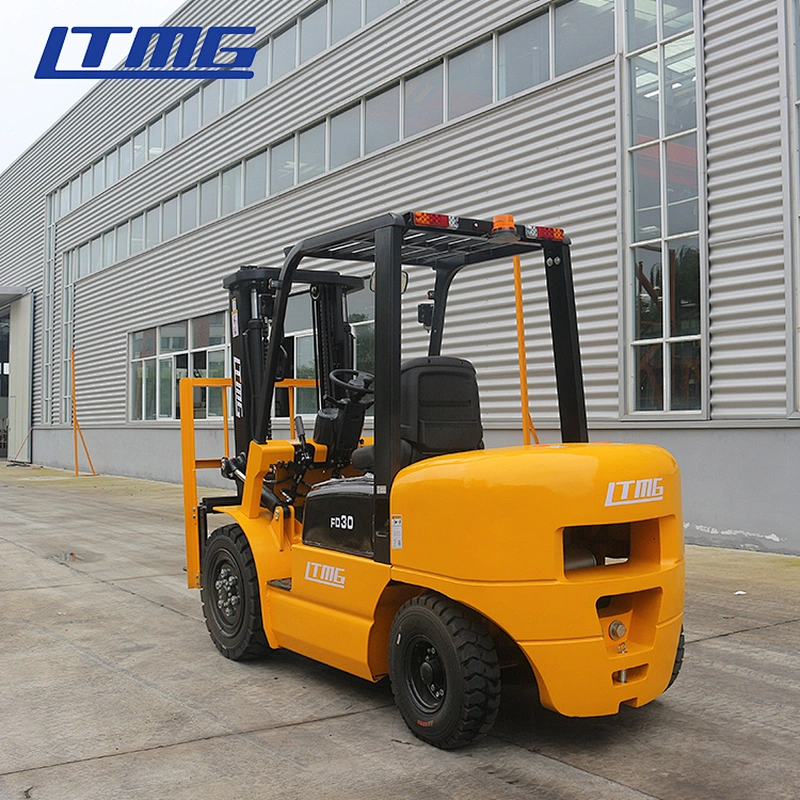

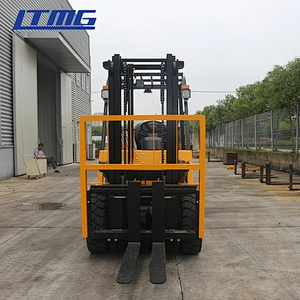

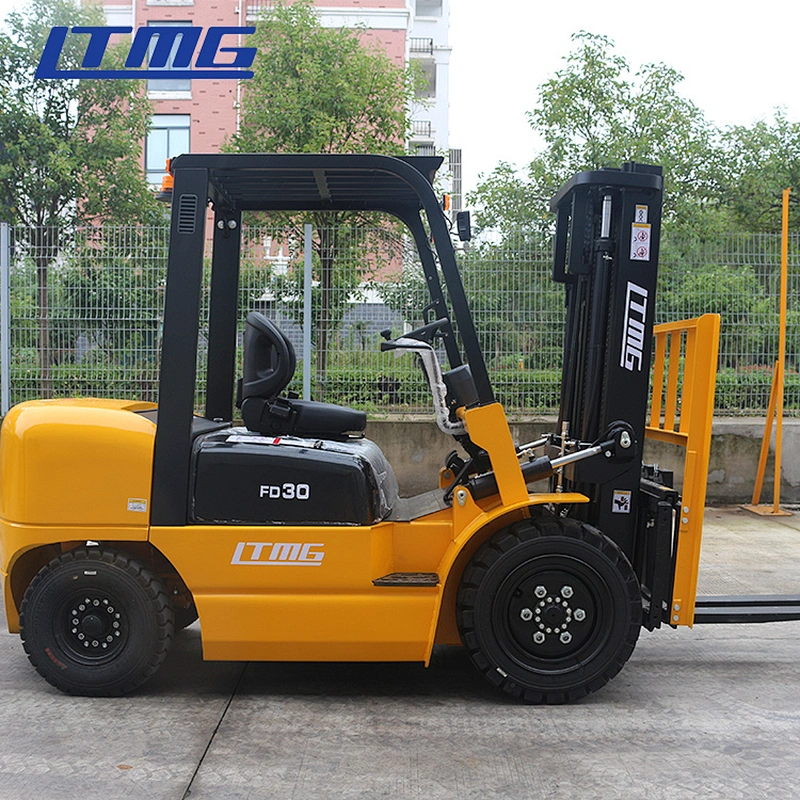

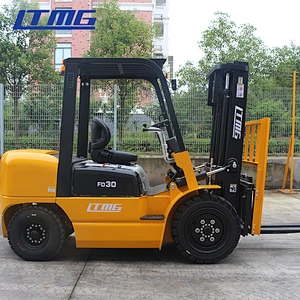

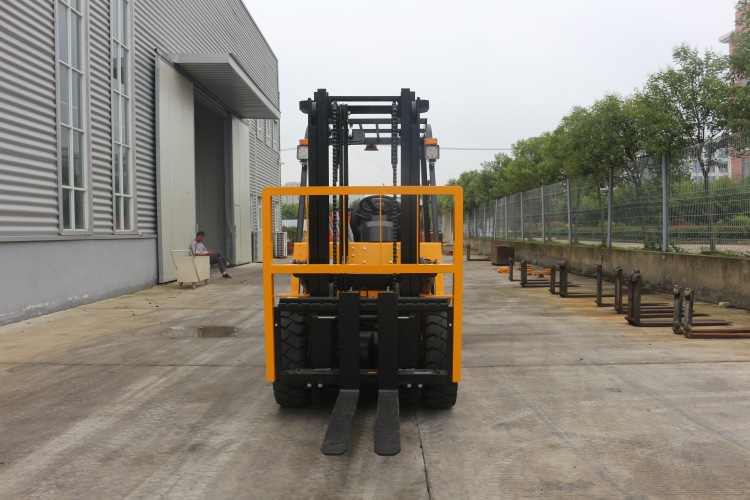

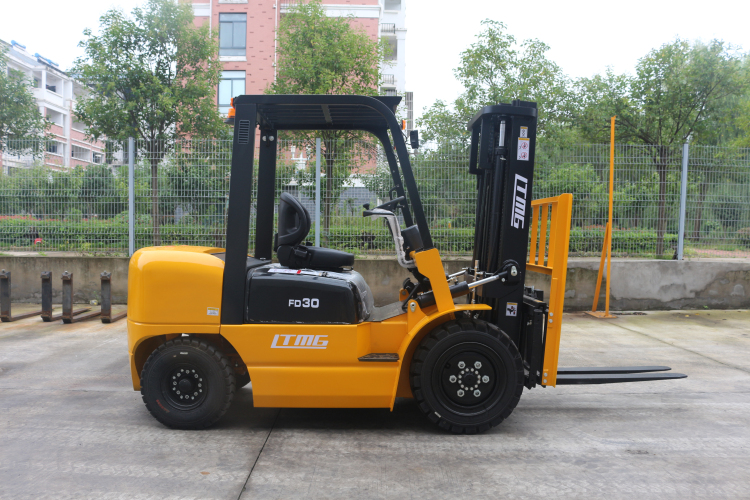

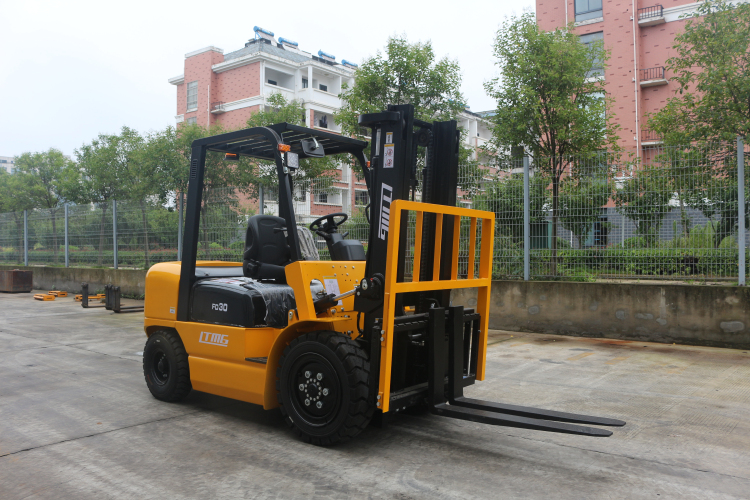

3 ton Forklift Hydraulic Forklift with Multi Attachments Optional
Specification of LTMG 3 ton diesel forklift with hanged bucket attachment | ||||||
Manufacturer | LTMG | |||||
Model | Power shift T/M | FD30 | ||||
Manual shift T/M | FD30 | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2705 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised | With backrest | mm | 4250 | |||
Height to head guard | mm | 2140 | ||||
Turning raduis(outside) | mm | 2445 | ||||
Front face of fork to front axle | mm | 480 | ||||
Min. right angle stacking aisle | without load length&clearence | mm | 2925 | |||
Speed | Max Travelling full/no load | km/h | 18/19.5 | |||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/450 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 | |||
Manual shift T/M full/no load | kg | 1550/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |||
Manual shift T/M full/no load | % | 18/20 | ||||
Truck weight | kg | 4380 | ||||
Weight distribution | Full load front/rear | kg | 6490/890 | |||
No load front/rear | kg | 1670/2700 | ||||
Tires | Number | front/rear | 43133 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1000/970 | |||
Ground clearence | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/80 | |||
Model | XinChai or ISUZU C240 | |||||
Rated power | kw/rpm | 34.3/2500 | ||||
Rated torque | N.m/rpm | 138/1800 | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.369 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |||
Operating pressure | Hydraulic system pressure | kg/cm² | ||||
Product Features
Good Operating Experience:
1.High Strength Overhead GuardThe overhead guard adopts the high strength steel sheet to press molding, providing moresophisticated security for the driver, it can also prevent wind and rain.
2.Reliable Lifting System
Wide view mast design, ensure the driver has an excellent view,which makes loading and unloading operations more secure andefficient.
3.High Performance Hydraulic System
Load sensing priority steering hydraulicsystem design，flexible steering, mast liftspeed increased by 20%

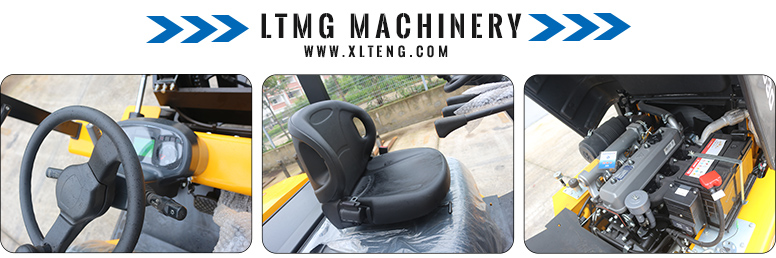

4.Comfortable Driving Space
All accessories like engine, gear box are support bydomestic and world famous brand, high quality, reliableafter-sales.
Abundant Optional Cofiguration:
1. Standard Config Chinese Brand Engine Xinchai, Yuchai, Xichai, Imported Japan Engine, US Engine, German Engine like ISUZU, Mitsubishi, Nissan, Yanmar, Deutz, PSI, Hatz Optional
2. Mechanical and Hydraulic Automatic Transmission can be chosen.
2.Shimadzu's PumpValve,Eaton Pipe andNOK Hydraulic Cylinder Seals.
3. Electric-hydraulic Directional Control Valve.
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
9.Middle muffler, more environmental.
2.Shimadzu's PumpValve,Eaton Pipe andNOK Hydraulic Cylinder Seals.
3. Electric-hydraulic Directional Control Valve.
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
9.Middle muffler, more environmental.

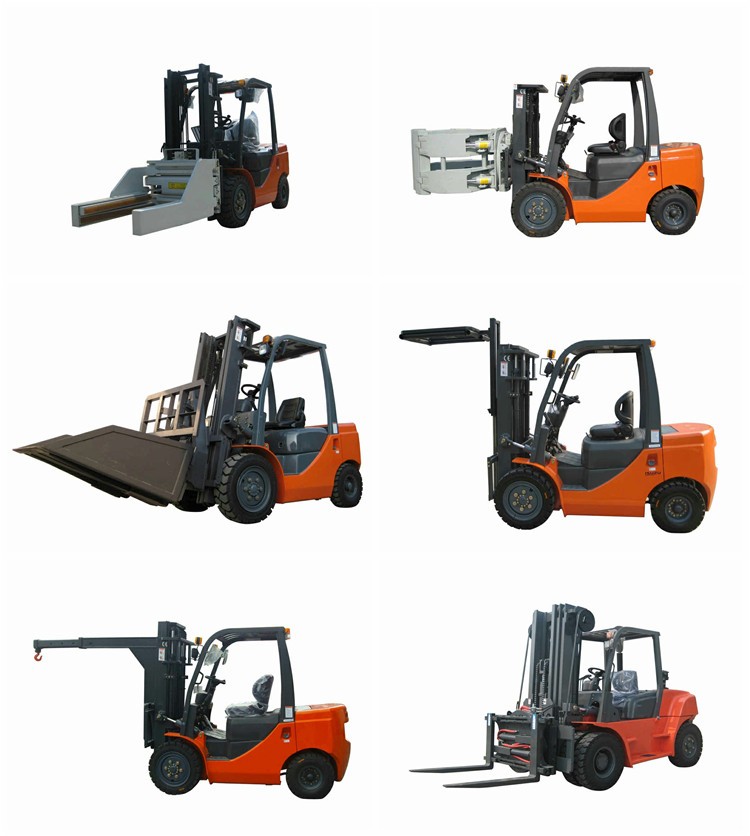

Optional attachment
Customers
Company Information
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG,battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.),wheel excavators and so on .
Certificate
Our Service
After-sale Service.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (whichever occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
