- After-sales Service Provided:Overseas third-party support available
- Product Name:3 stage diesel 4 ton forklift with side shifter for sale
- Engine:XinChai A498BPG-520
- Warranty:1 year or 2000 working hours
- Load center:500mm
- Tire:Pneumatic
- Max. lifting height:4500mm
- Truck weight:5050kg
- Wheelbase:1800mm
- Ground clearence:120mm
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Energy & Mining
- Applicable Industries:Advertising Company
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Applicable Industries:warehouse and logistics
- Max. Lifting Height:3000mm
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:2870*1365*2150 mm
- Fork Width:150mm
- Fork Length:1070mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0mm

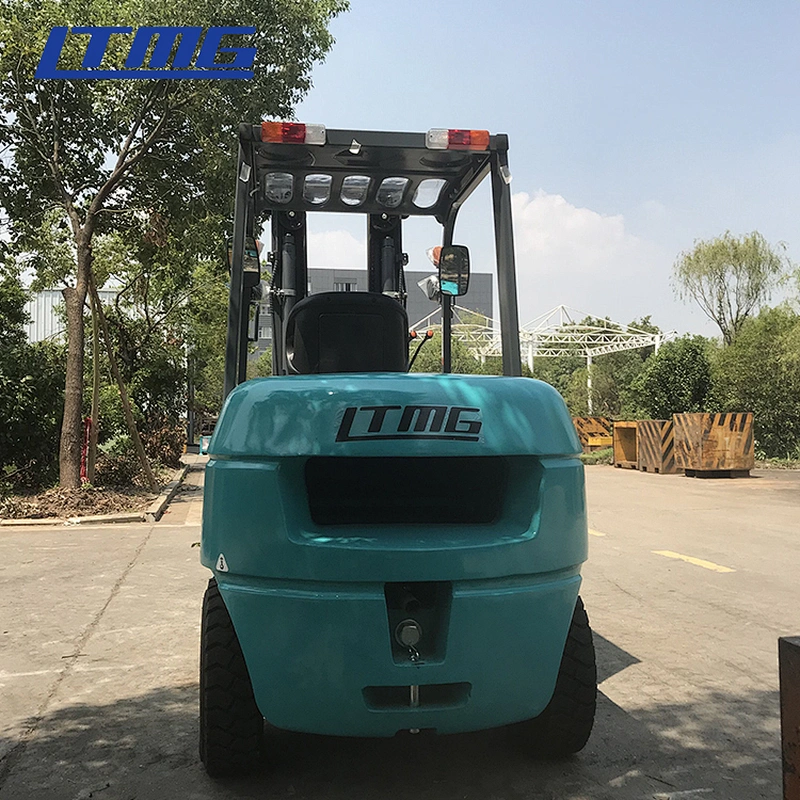

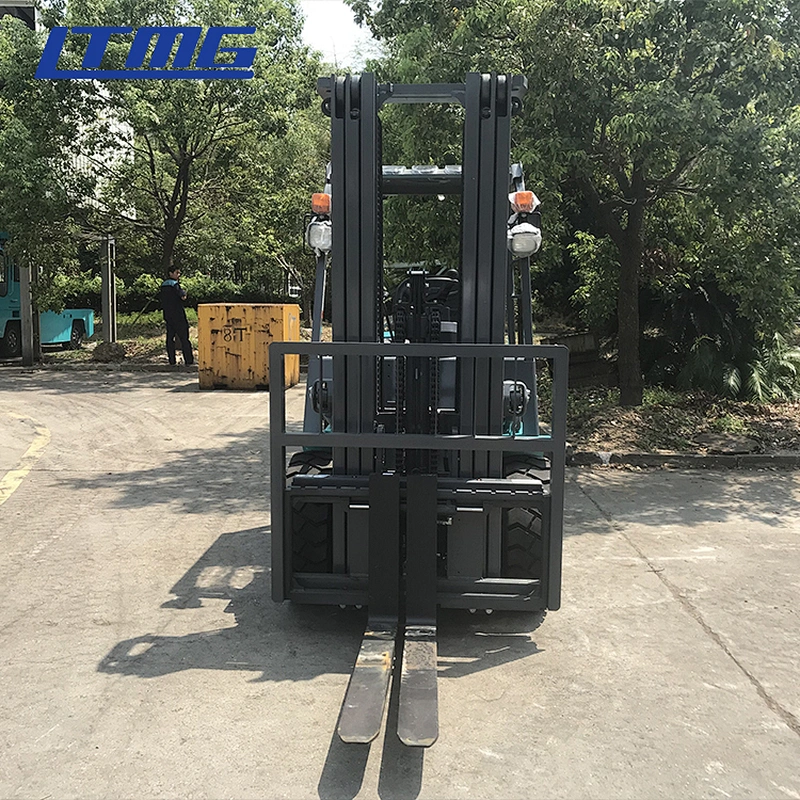

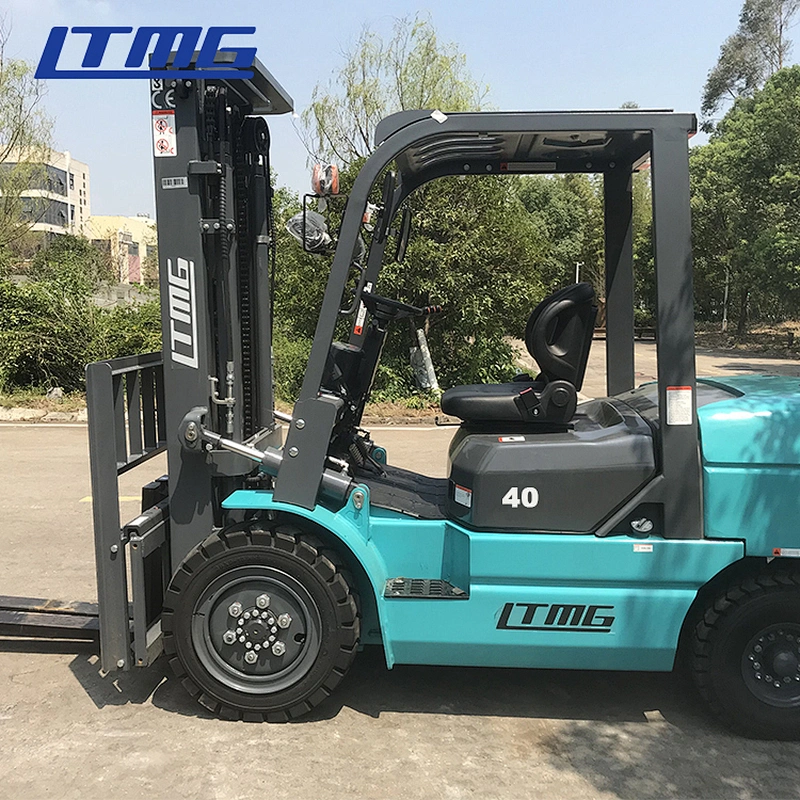

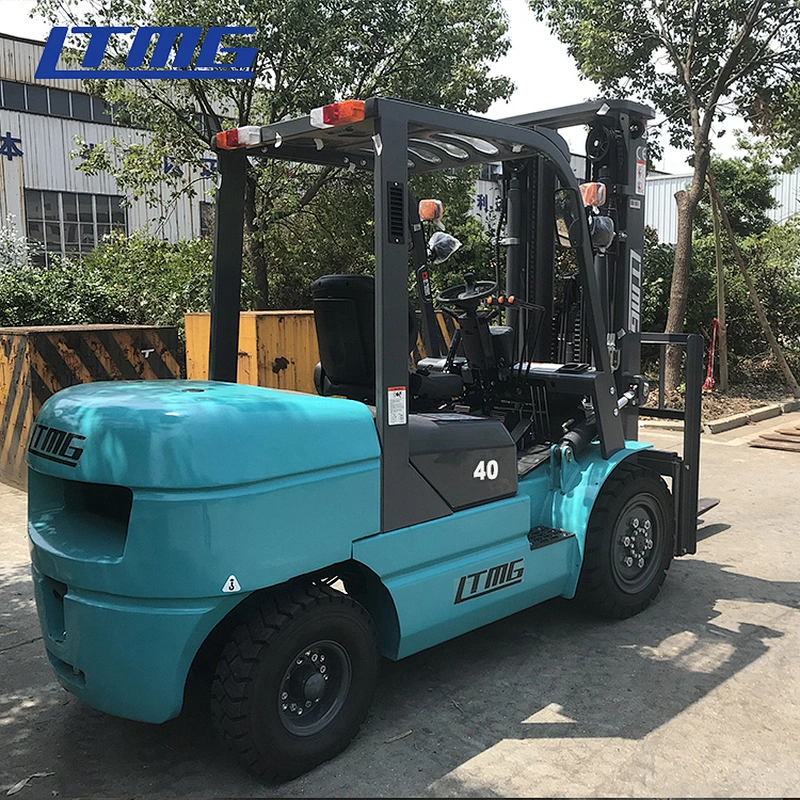

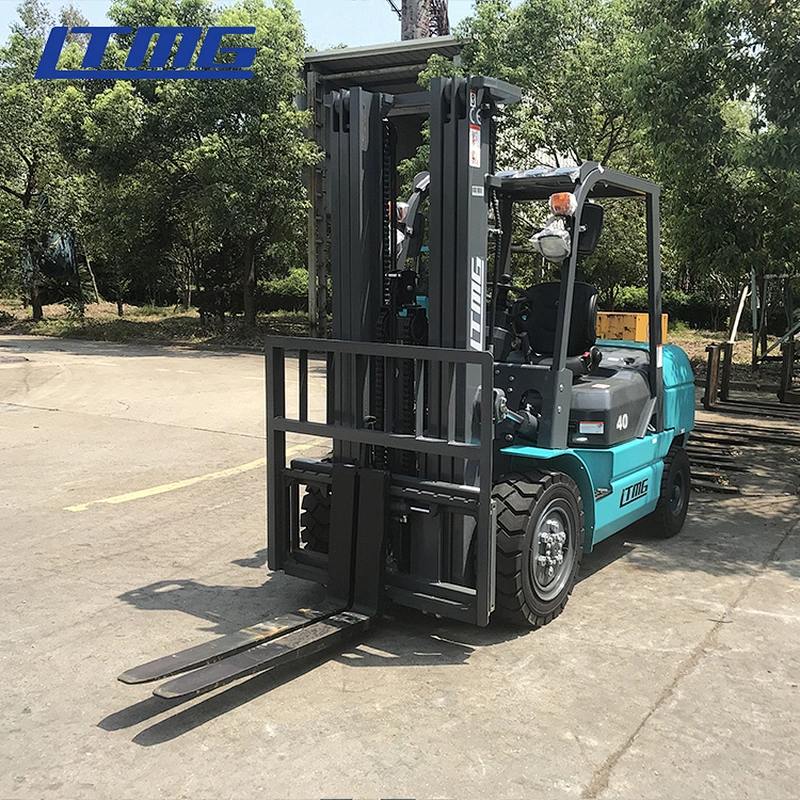

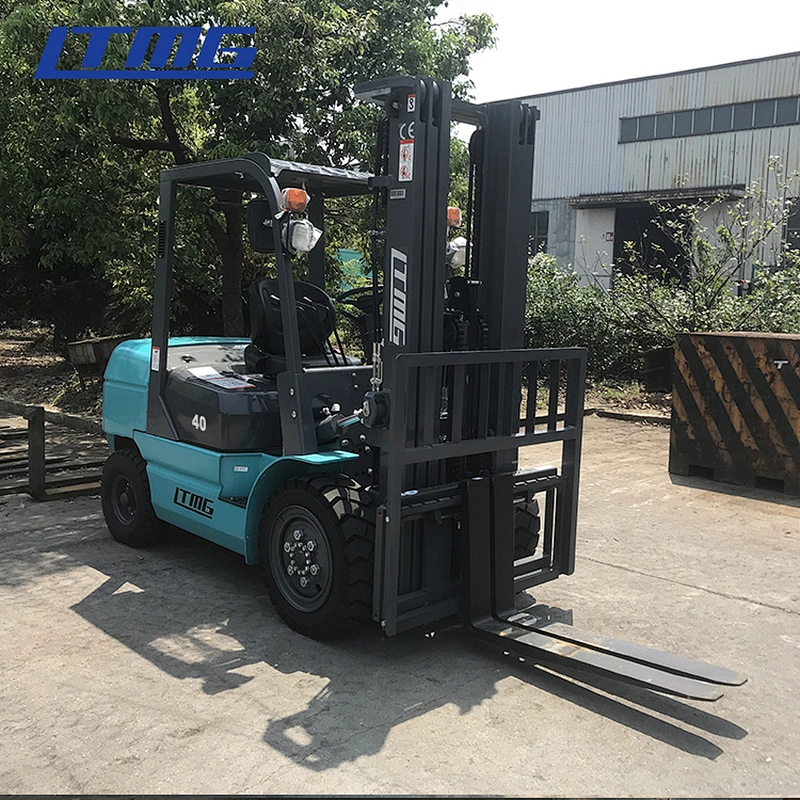

3 stage diesel 4 ton forklift with side shifter for sale

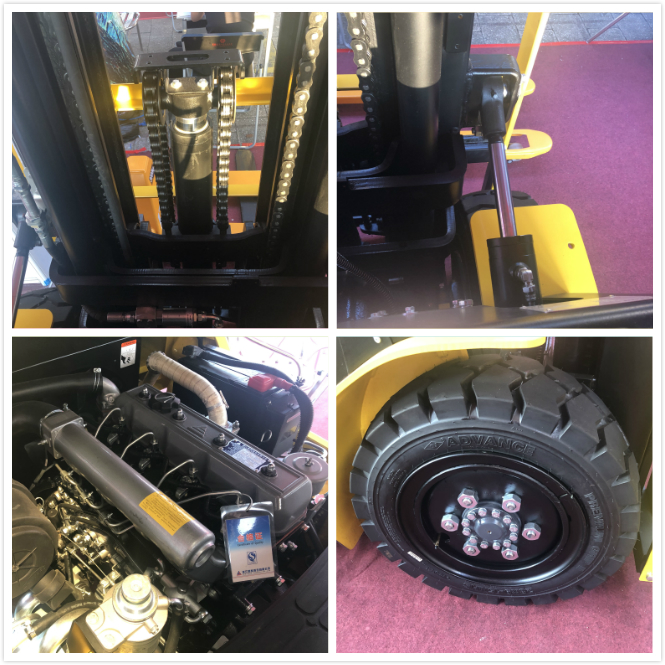

Features of 3 stage diesel 4 ton forklift with side shifter for sale
1.The powerful engine ensures LTMG forklift truck high handling performance.Original Isuzu or Mitsubishi engine ,high quality compliant with worldwide stage IIIA emission standard.
2.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
3.Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust.(Optional)
4. New designed overhead guard protective device prevent the sudden accidents.
Specifications of 4 ton forklift for sale
| Features | 1 | Manufacturer | LTMG | ||

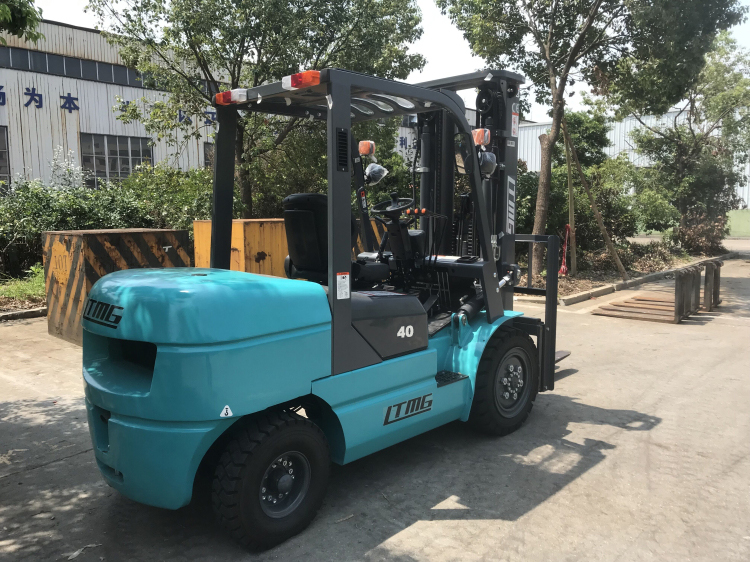

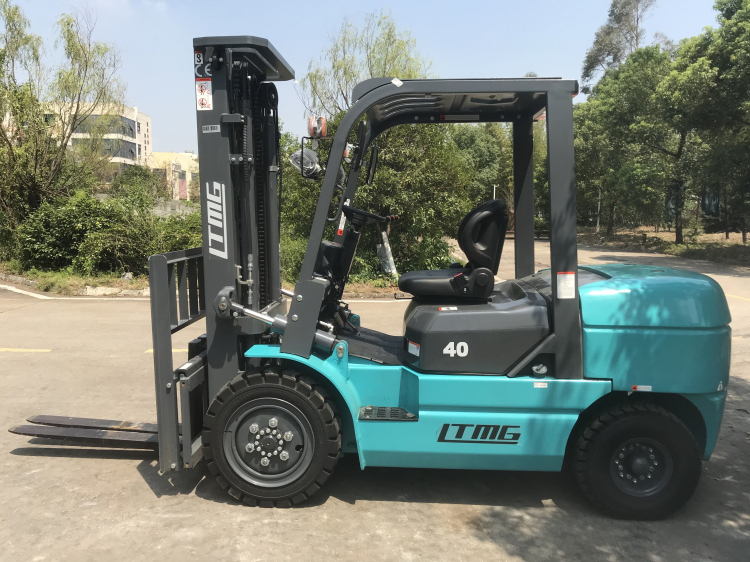

| 2 | Model | Power shift T/M | FD40 | ||
| 3 | Load capacity | kg | 4000 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Pneumatic | |||
| 8 | Wheel | Front/rear | 2/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 150 | ||
| 11 | Fork size | L*W*T | mm | 1070*150*50 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2870 | ||
| 14 | Total width | mm | 1365 | ||
| 15 | Mast height (fork lowering) | mm | 2150 | ||
| 16 | Overall height fork raised | With backrest | mm | 4250 | |
| 17 | Height to head guard | mm | 2140 | ||
| 18 | Turning raduis(outside) | mm | 2530 | ||
| 19 | Front face of fork to front axle | mm | 485 | ||
| 20 | Min. right angle stacking aisle without load length&clearence | mm | 2940 | ||
| Performance | 21 | Speed | Max Travellin full/no load | km/h | 16.5/18 |
| 22 | Lifting full/no load | mm/s | 380/480 | ||
| 23 | Lowering full/no load | mm/s | 450/420 | ||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 2200/1000 | |
| Manual shift T/M full/no load | kg | 2200/1000 | |||
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |
| Manual shift T/M full/no load | % | 18/20 | |||
| Weight | 26 | Truck weight | kg | 5050 | |
| 27 | Weight distribution | Full load front/rear | kg | 7890/1140 | |
| 28 | No load front/rear | kg | 1810/3240 | ||
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 250-15-16PR | ||
| 31 | rear axle | 6.50-10-10PR | |||
| 32 | Wheelbase | mm | 1800 | ||
| 33 | Tread | Front/rear | mm | 1120/970 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 120 | |
| Frame | mm | 135 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 |
| 37 | Engine | Model | Deutz engine CA498 | ||
| Rated power | kw/rpm | 44.8/2450 | |||
| Rated torque | N.m/rpm | 186/1800 | |||
| Number of cylinders | 4 | ||||
| Placement | L | 3.059 | |||
| Fuel tank capacity | L | 70 | |||
| 38 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |

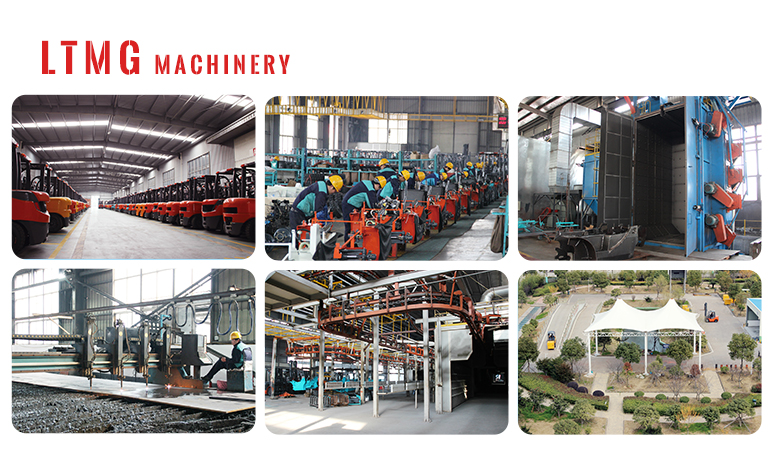

Xiamen LTMG Machinery Co., Ltd. is a manufacturer, which is specialized in the development
and production of material handling equipment.
LTMG forklift factory have been visited by many customers from all over the world.
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
