- Type:Powered Pallet Truck
- Product Name:Diesel Forklift Truck
- Color:Customized Color
- Engine:ISUZU,Mitsubishi or Chinese engine
- Mast:2-3 Stages
- Ground clearance:140mm
- Options:Side-shifter,rotator,forkpositioner
- Load Center:500mm
- Transmission:Hydraulic Transmission
- Tire:Pneumatic Standard or solid tire
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Spain
- Local Service Location:Japan
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Canada
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Kenya
- Showroom Location:UAE
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:2835*1230*2150
- Fork Width:120mm
- Fork Length:1070mm
- Certification:CE&ISO9001
- Min. Lifting Height:0

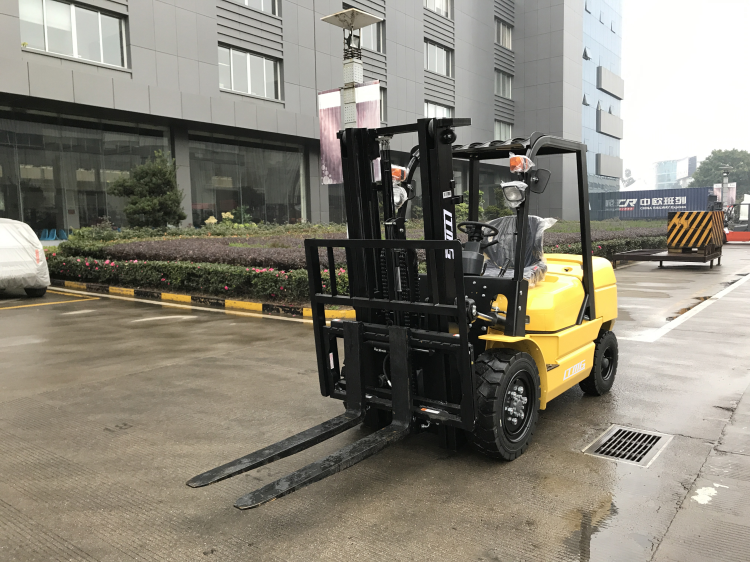

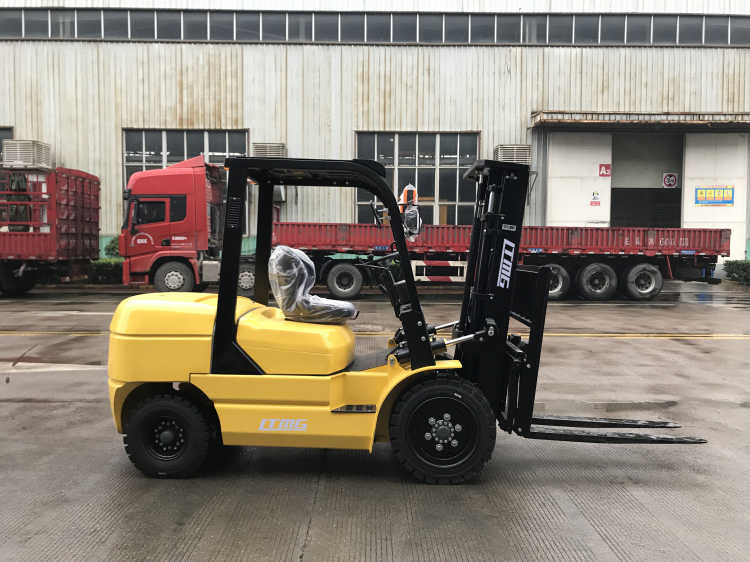

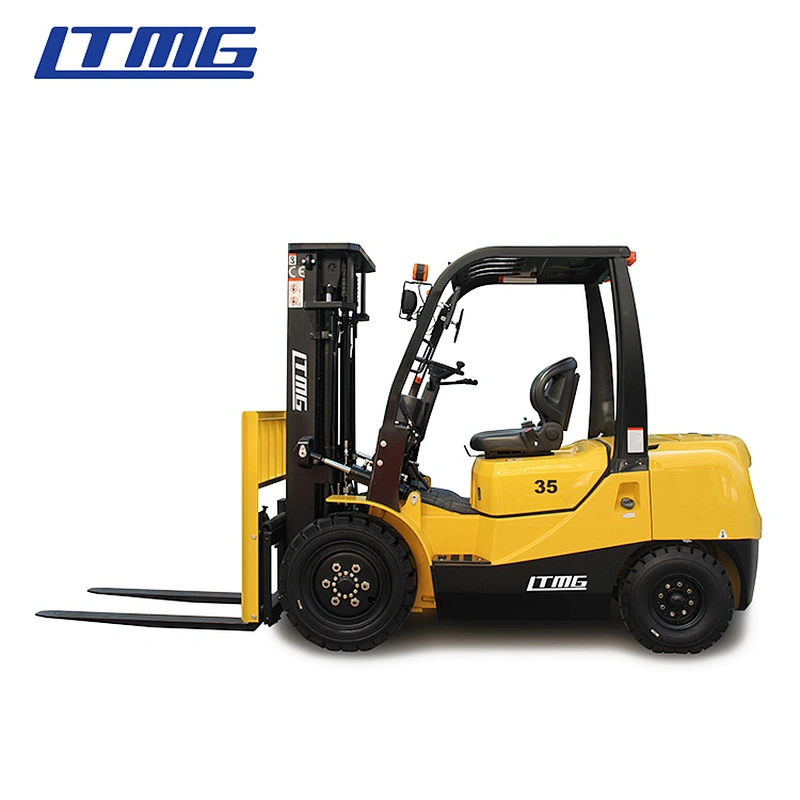

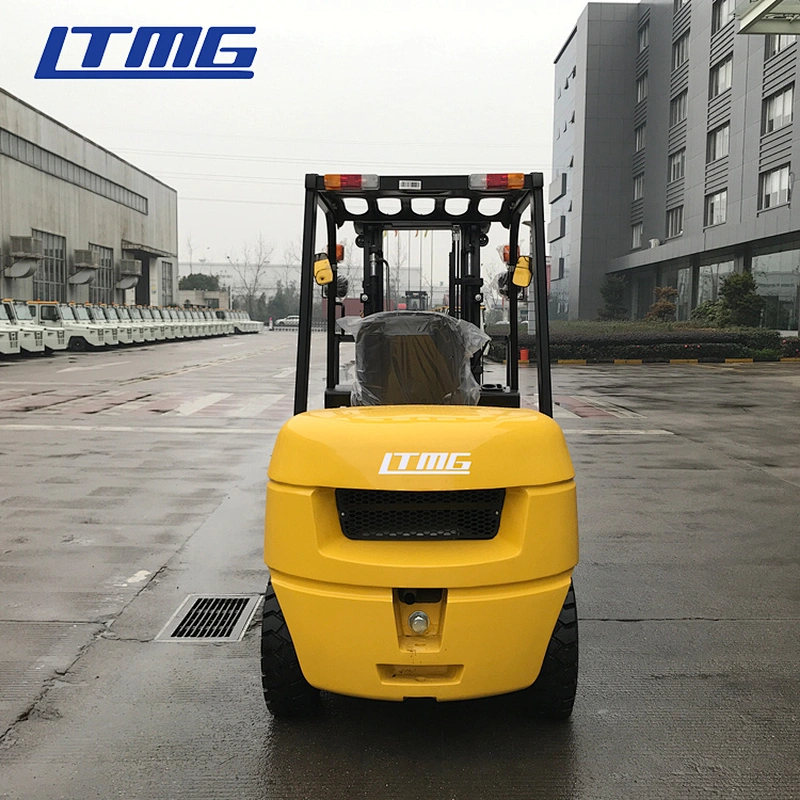

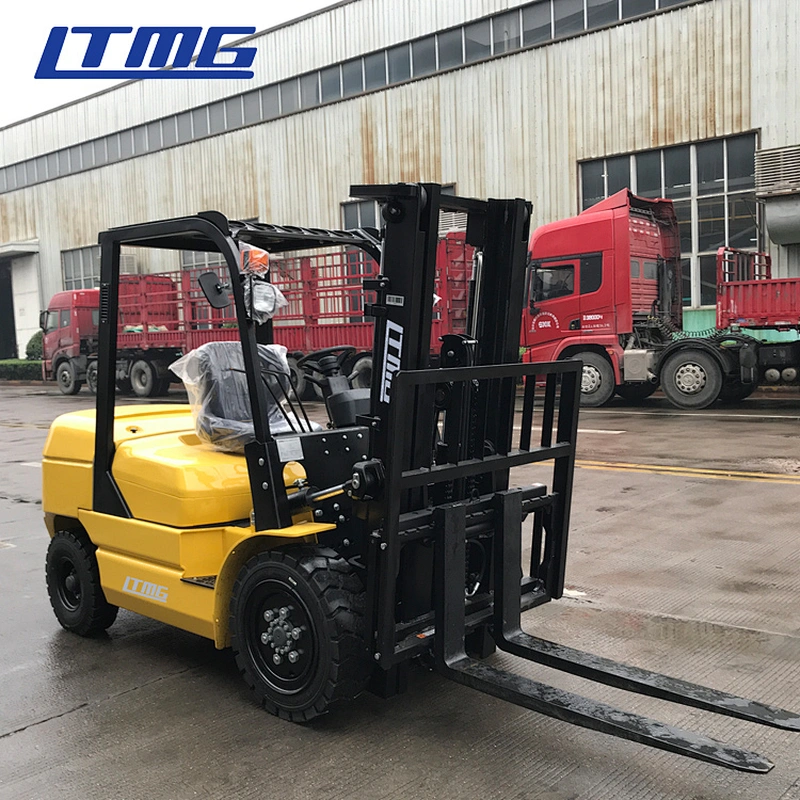

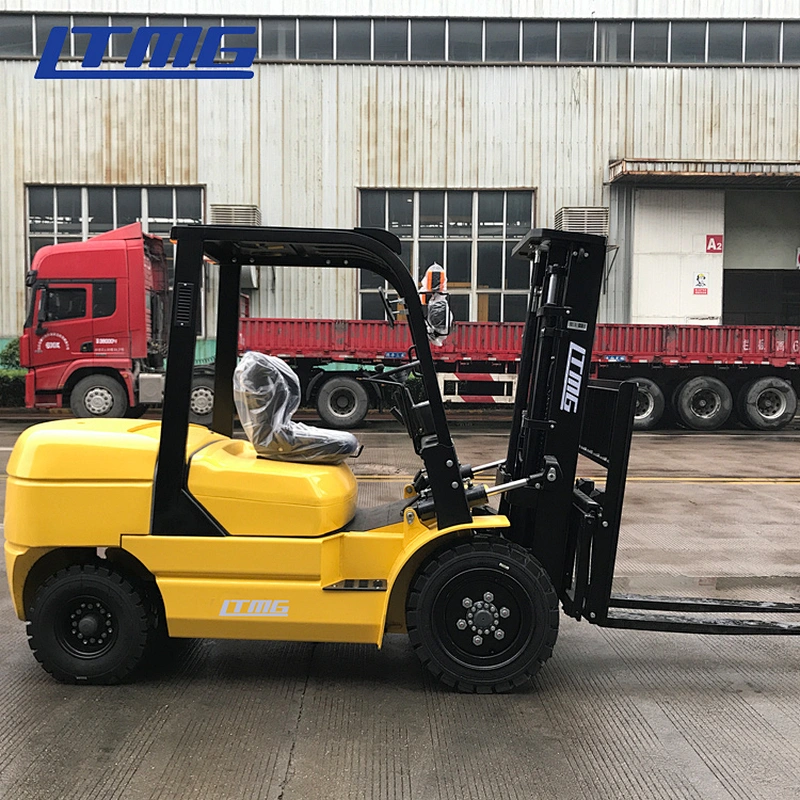

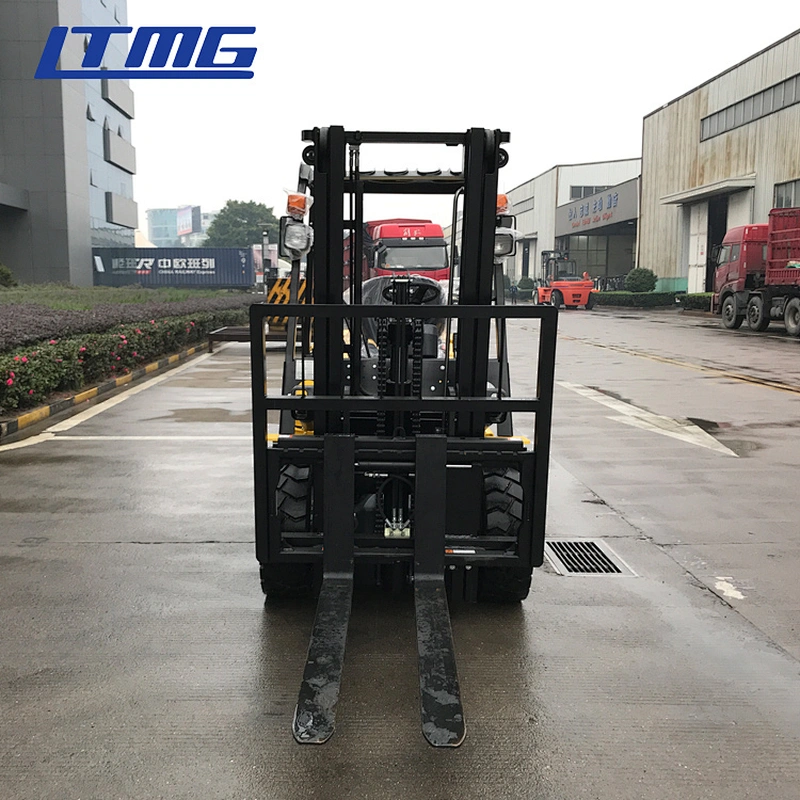

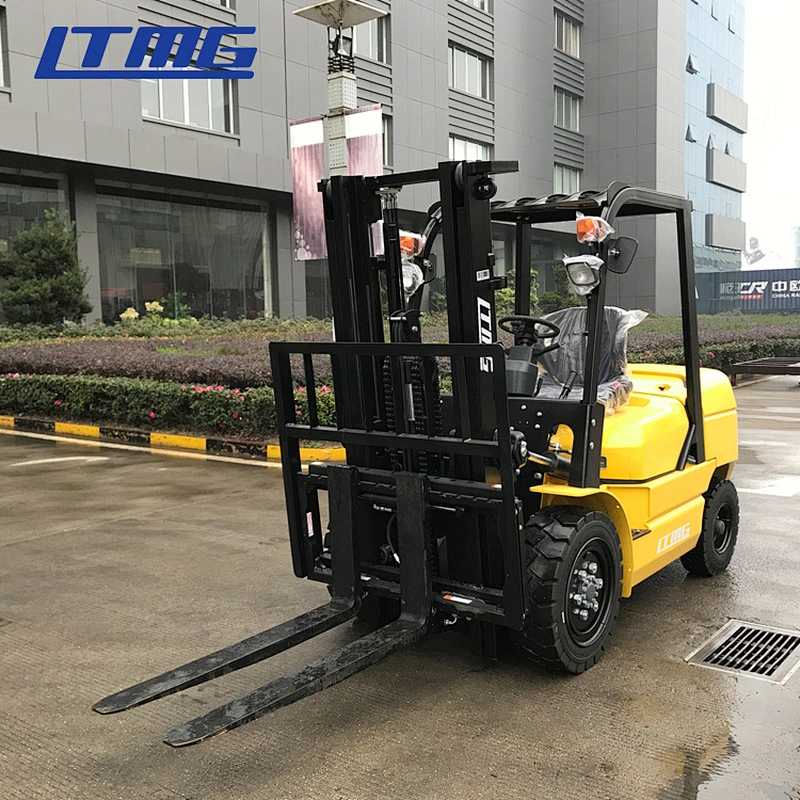

Product Show
Product Parameter
Model | FD35 | FD40 | |||||
Power Type | Diesel | Diesel | |||||
Rated Capacity | kg | 3500 | 4000 | ||||
Load Centre | mm | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 480 | 495 | ||||
Ground Clearance（Bottom of mast） | mm | 140 | 140 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2835 | 2890 | |||
Overall Width | mm | 1230 | 1410 | ||||
Mast Lowered Height | mm | 2150 | 2195 | ||||
Mast Extended Height(With backrest) | mm | 4175 | 4180 | ||||
Overhead Guard Height | mm | 2110 | 2120 | ||||
Turning Radius (outside) | mm | 2570 | 2700 | ||||
Speed | Travel (Full load) | km/h | 20 | 19 | |||
Lifting (Full load) | mm/s | 440 | 320 | ||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | ||||
Tire | Front | mm | 28*9-15-12PR | 250-15-16PR | |||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | ||||
Wheelbase | mm | 1800 | 1900 | ||||
Service weight | kg | 4700 | 5100 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |||
Engine | Model | 4JG22PE-01 | |||||
Manufacture | ISUZU | ||||||
Rated output/r.p.m. | kw | 46/2450 | |||||
Rated torque/r.p.m. | N·m | 184.7/1800 | |||||
No.of Cylinder | 4 | ||||||
Bore×Stroke | mm | 95.4×107 | |||||
Displacement | cc | 3059 | |||||
Fuel Tank Capacity | L | 70 | |||||
Transmission | Type | Hydraulic | |||||
Stage | FWD/RVS | 1/1 | |||||
Product Advantage

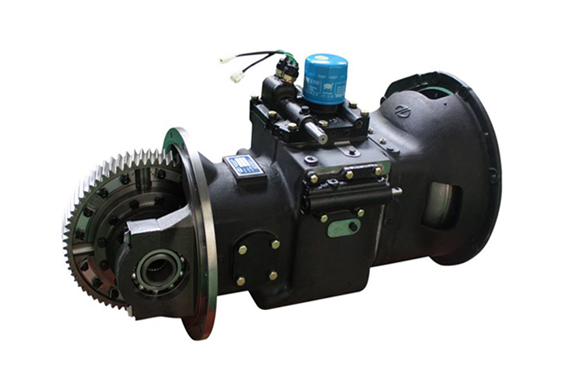

Gradeability improving style transmission
efficiency 5% improved
climbing torque 8% increased noise 3~5dB reduced thermal equilibrium temperature 8~10° decreased.

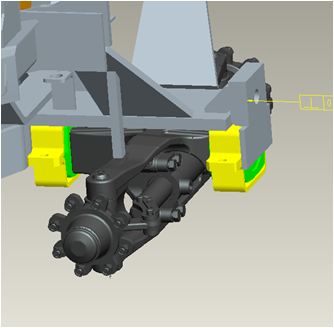

Steering axle
The steering axle will be replaced by integral casting, with better strength and more accurate size. At the same time, the connection with the frame will be replaced by soft connection, which can greatly reduce the vibration.

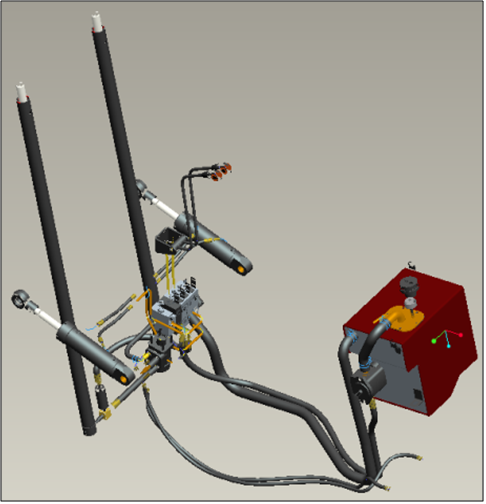

Hydraulic System
Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve
operation comfort.

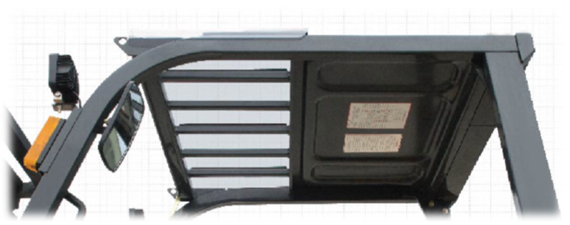

Overhead guard
New designed overhead guard protective device prevent the sudden accidents.

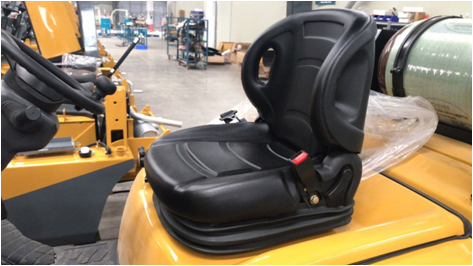

Seat
New suspension adjustable seat makes the long time operating more comfortable

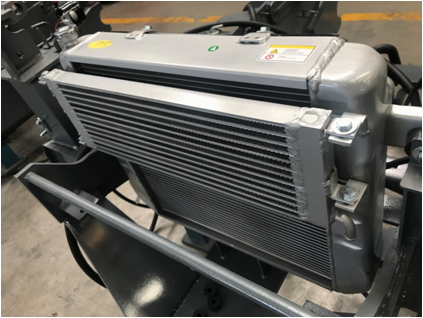

Radiators
Maintenance free radiators adopt Germany technology. (linde water tank).
Optional
1.many kinds of optional engine
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
1.many kinds of optional engine
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Related Products

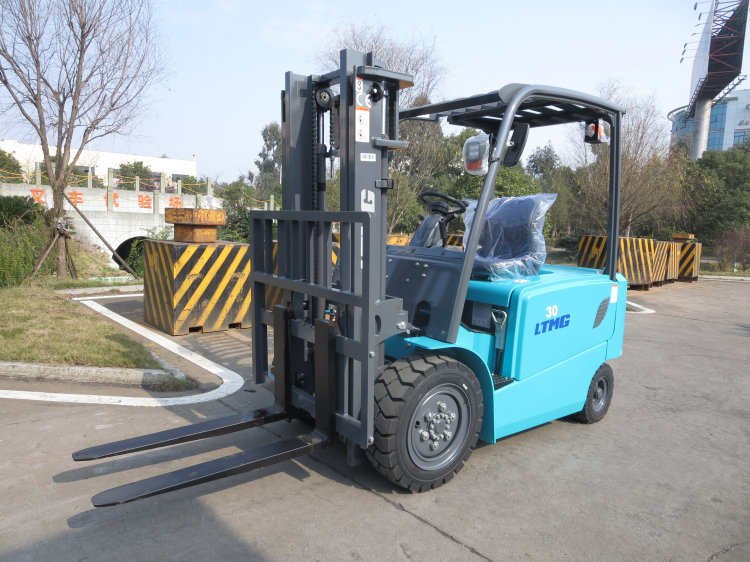

Electric Forklift

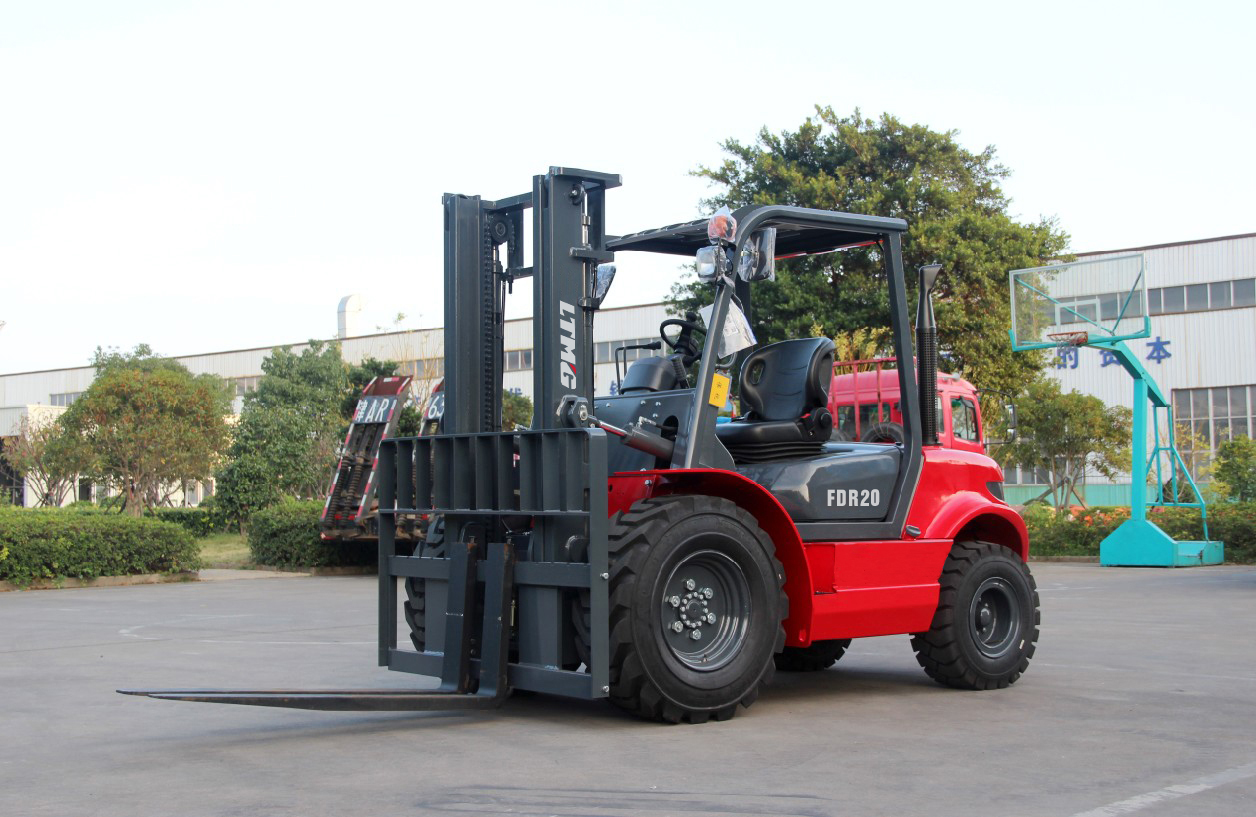

Rough Terrain Forklift

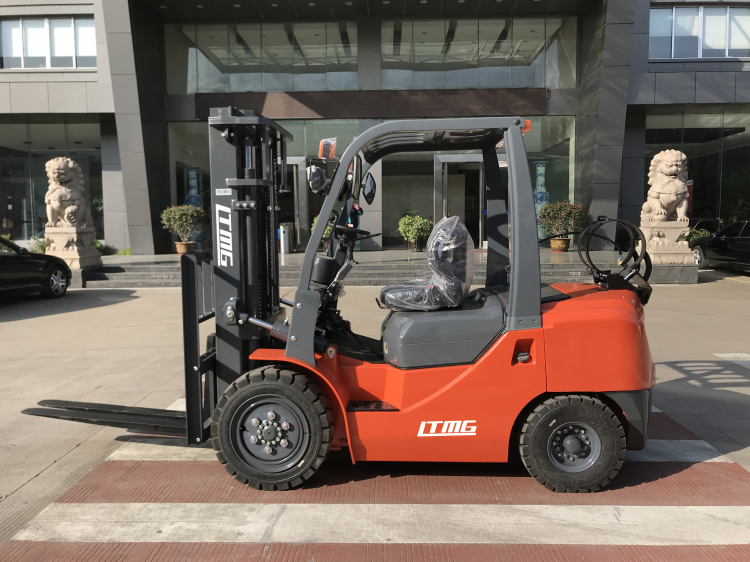

LPG&Gasoline Forklift

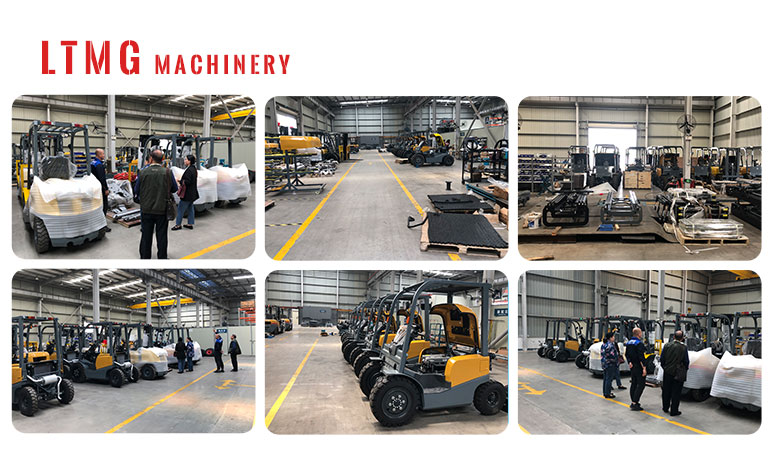

Packing&Shipping

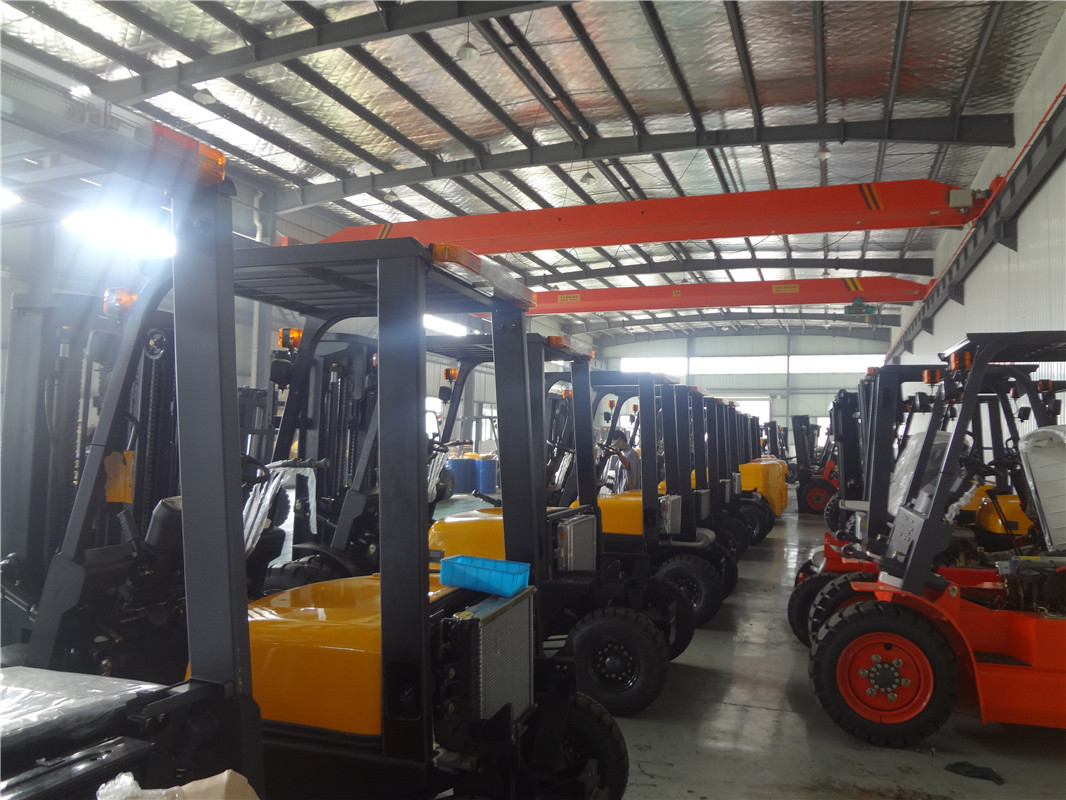

Company Introduction
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .
