- Type:Powered Pallet Truck
- After-sales Service Provided:Overseas third-party support available
- Engine:NISSAN K25
- Free lift:150mm
- Item:3 ton forklift
- Warranty:2000 Working Hours
- Tire:Pneumatic Tire
- Transmission type:Automatic Tranmission
- Wheel base:1700mm
- Loading Capacity:3000kg
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- Local Service Location:Russia
- Local Service Location:Thailand
- Local Service Location:Japan
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Algeria
- Local Service Location:Bangladesh
- Showroom Location:Russia
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Algeria
- Showroom Location:Sri Lanka
- Showroom Location:South Africa
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2730*1225*2115mm
- Certification:CE/ISO9001
- Marketing Type:New Product 2021

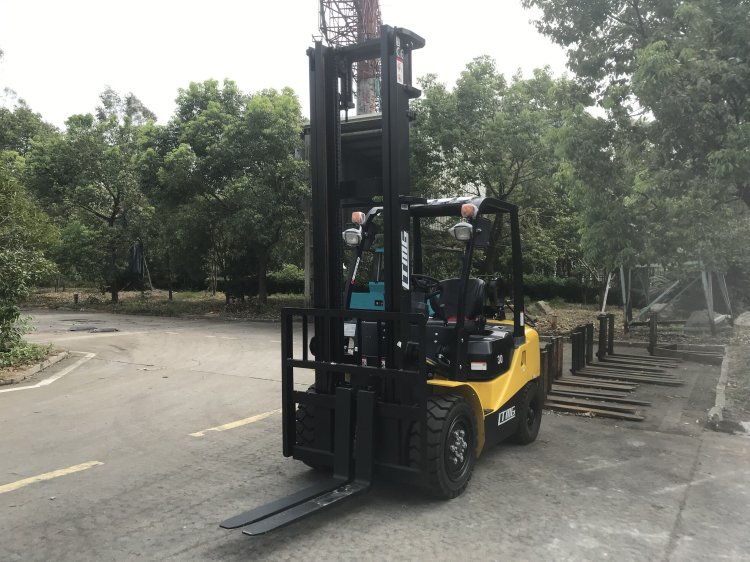

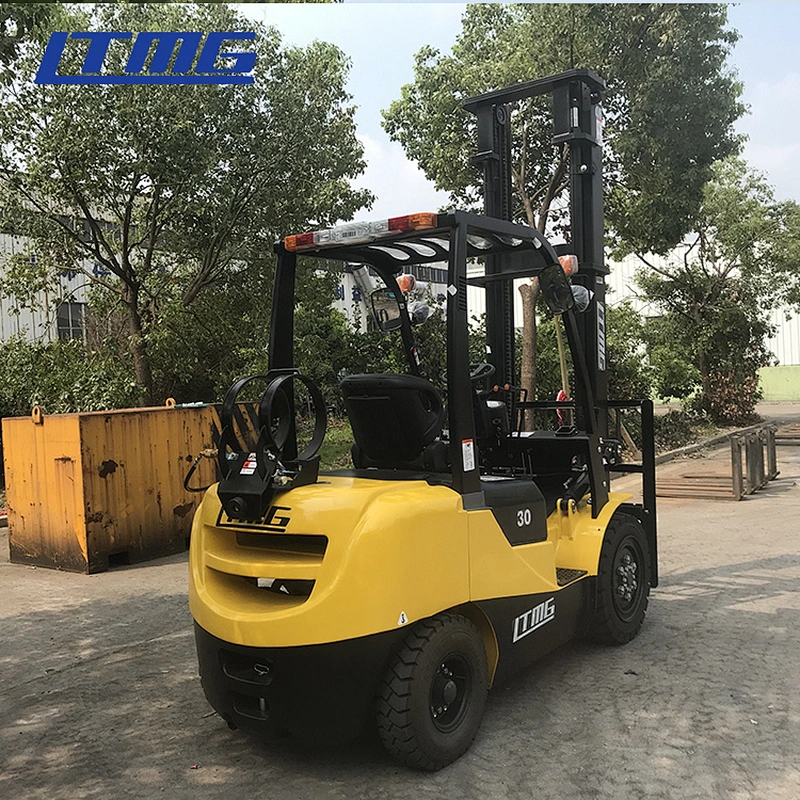

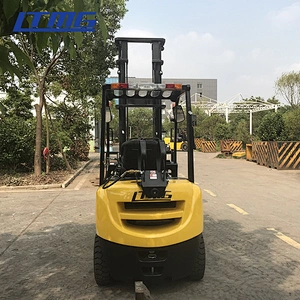

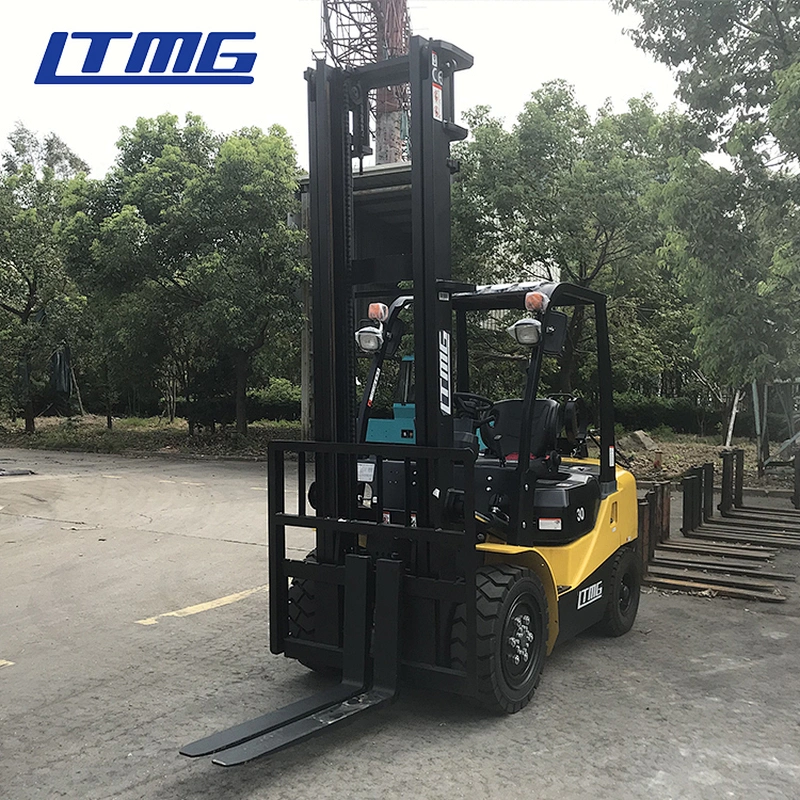

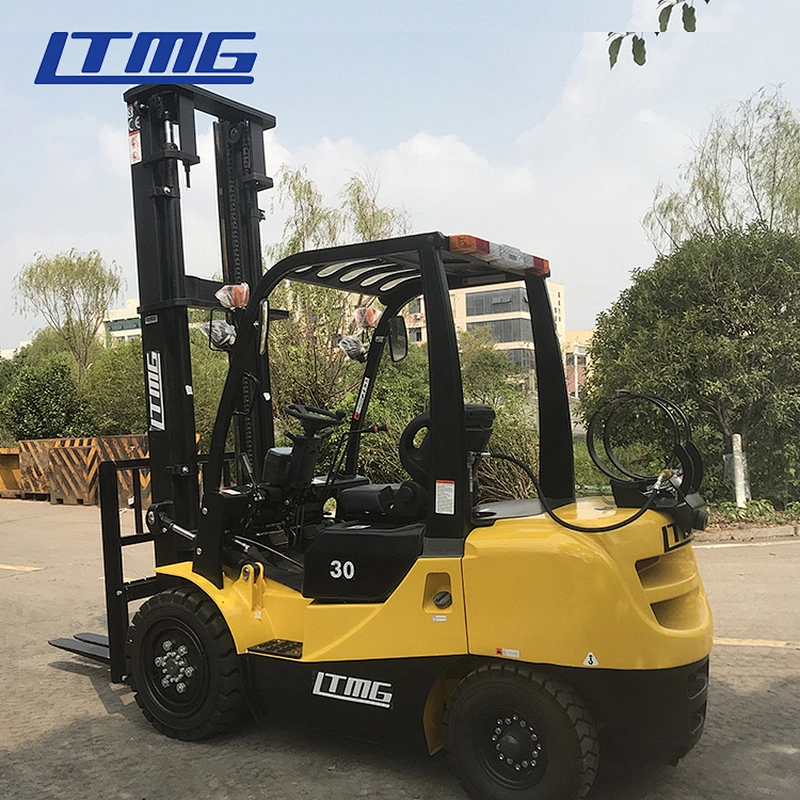

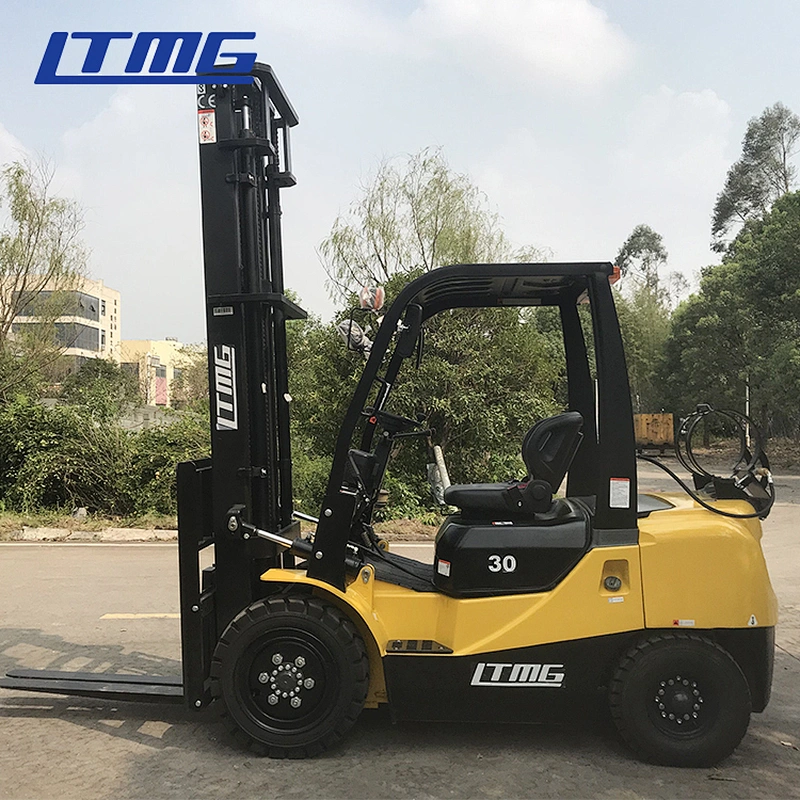

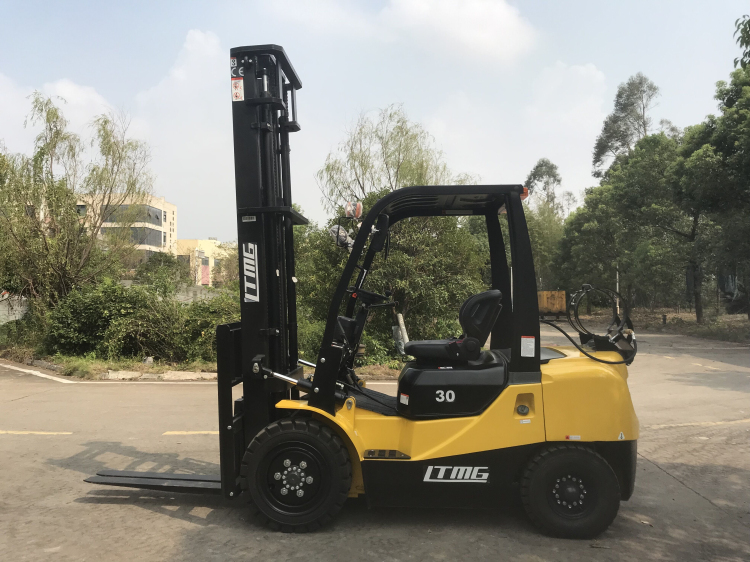

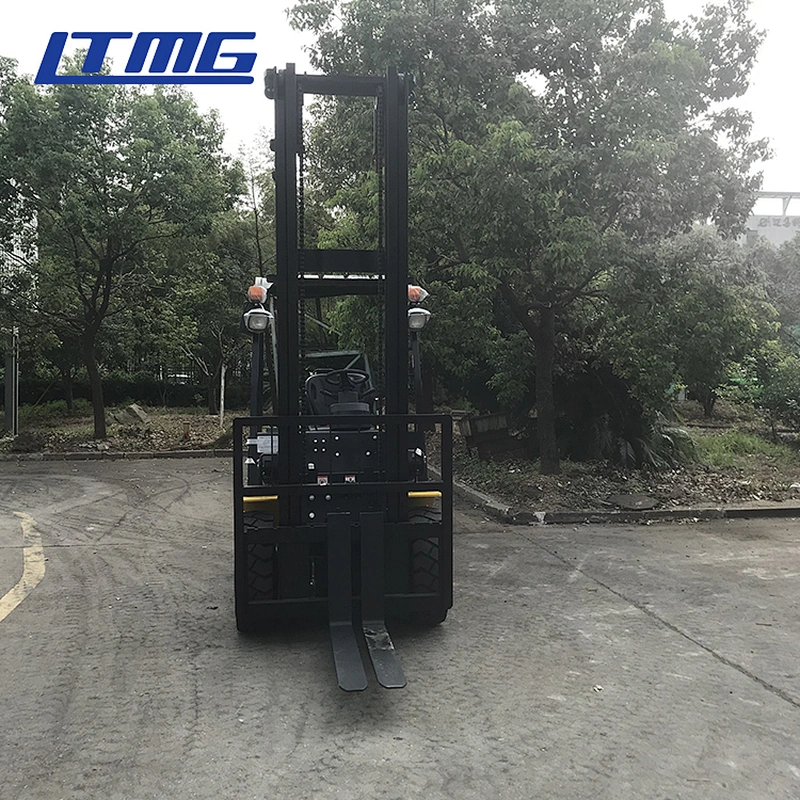

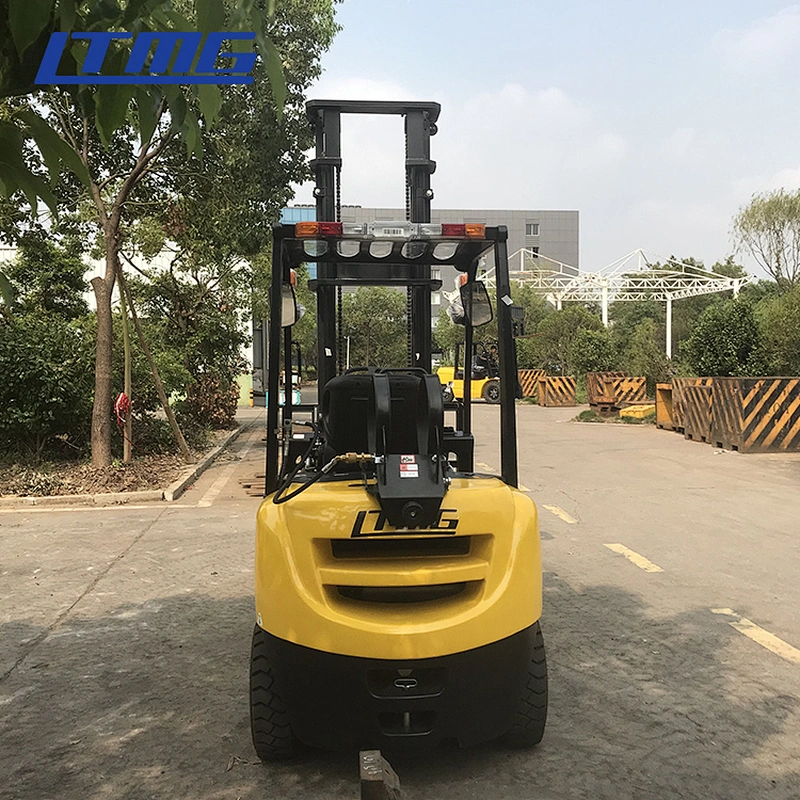

The specification of 3 ton LPG forklift | ||||||||
Model | FG30 | |||||||
Power Type | LPG & Gasoline | |||||||
Rated Capacity | kg | 3000 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×125×45 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 480 | ||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | |||||
Overall Width | mm | 1225 | ||||||
Mast Lowered Height | mm | 2115 | ||||||
Mast Extended Height(With backrest) | mm | 4150 | ||||||
Overhead Guard Height | mm | 2090 | ||||||
Turning Radius (outside) | mm | 2440 | ||||||
Speed | Travel (Empty load) | km/h | 20 | |||||
Lifting (Full load) | mm/s | 510 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 28×9-15-12PR | |||||
Rear | mm | 6.50-10-10PR | ||||||
Wheelbase | mm | 1700 | ||||||
Service weight | kg | 4300 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||
Engine | Model | K25 | ||||||
Manufacture | GCT (NISSAN) | |||||||
Rated output/r.p.m. | kw | 35.6/2100 | ||||||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 89×100 | ||||||
Displacement | cc | 2488 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
