- Brand:LTMG
- Color:Customer Demanded
- Load Center:500mm

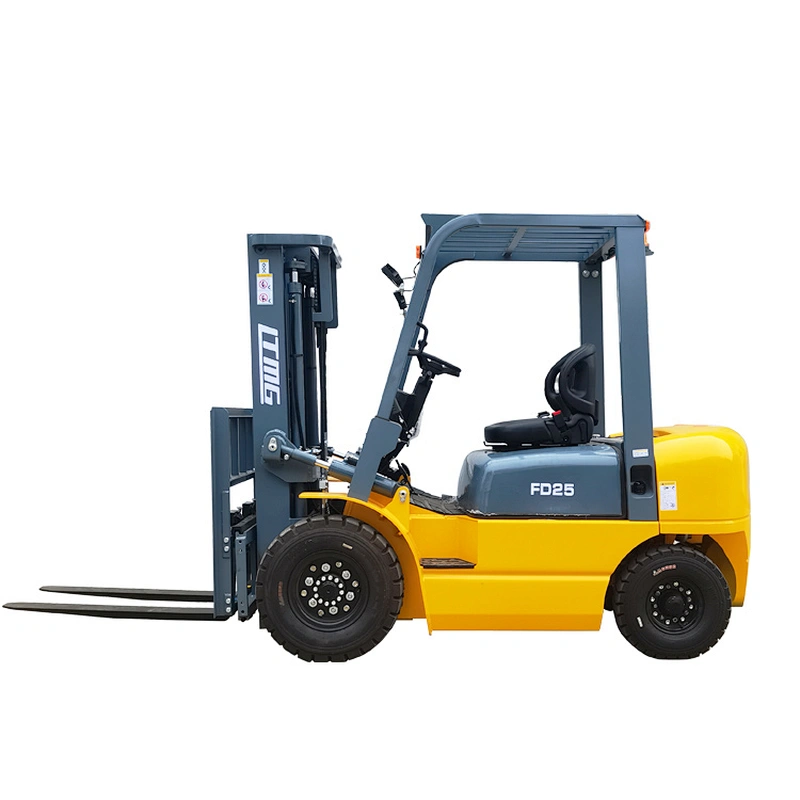

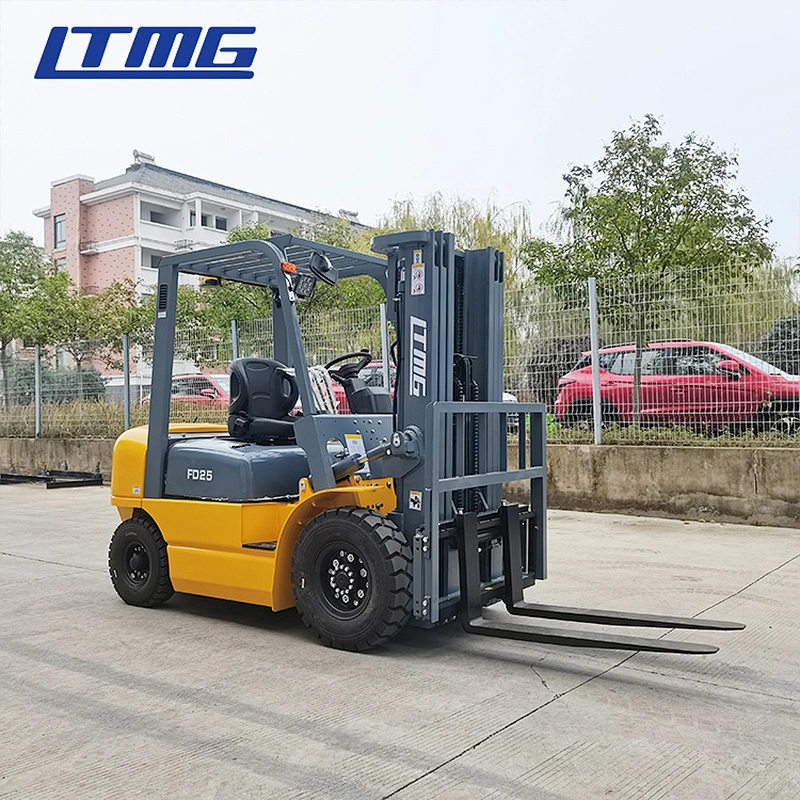

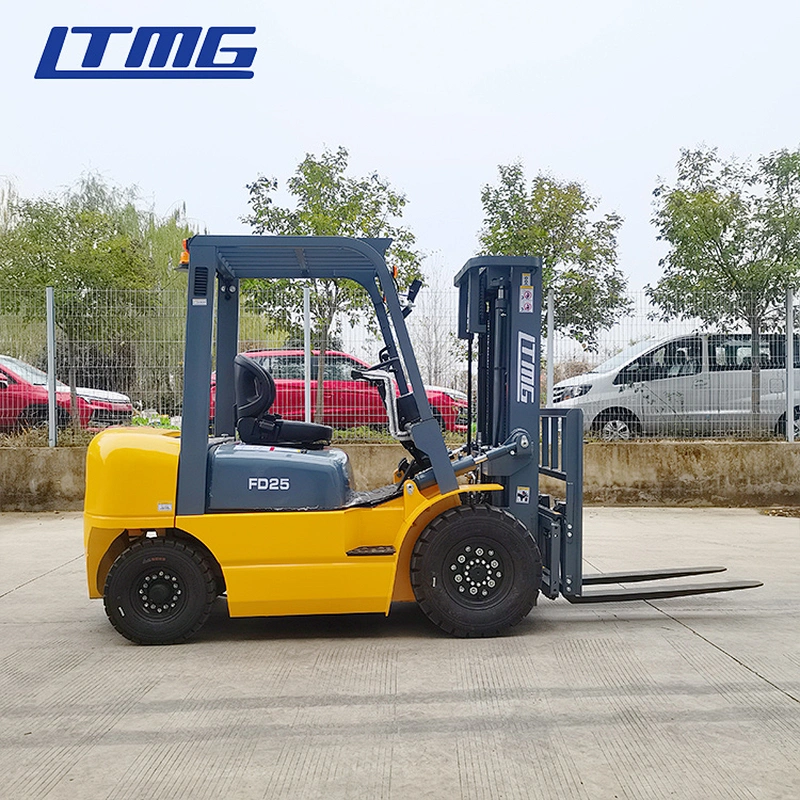

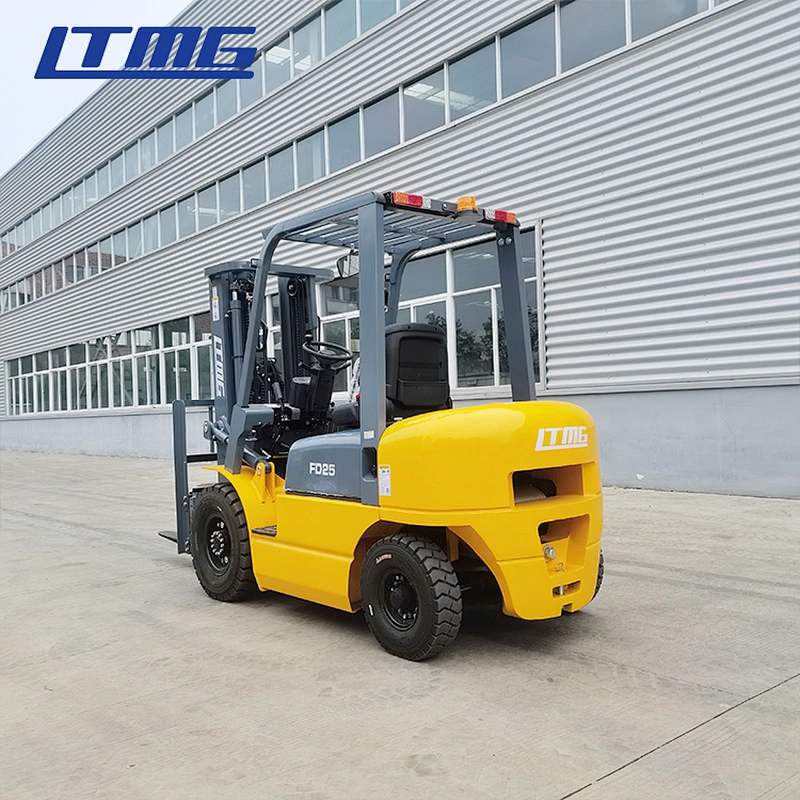

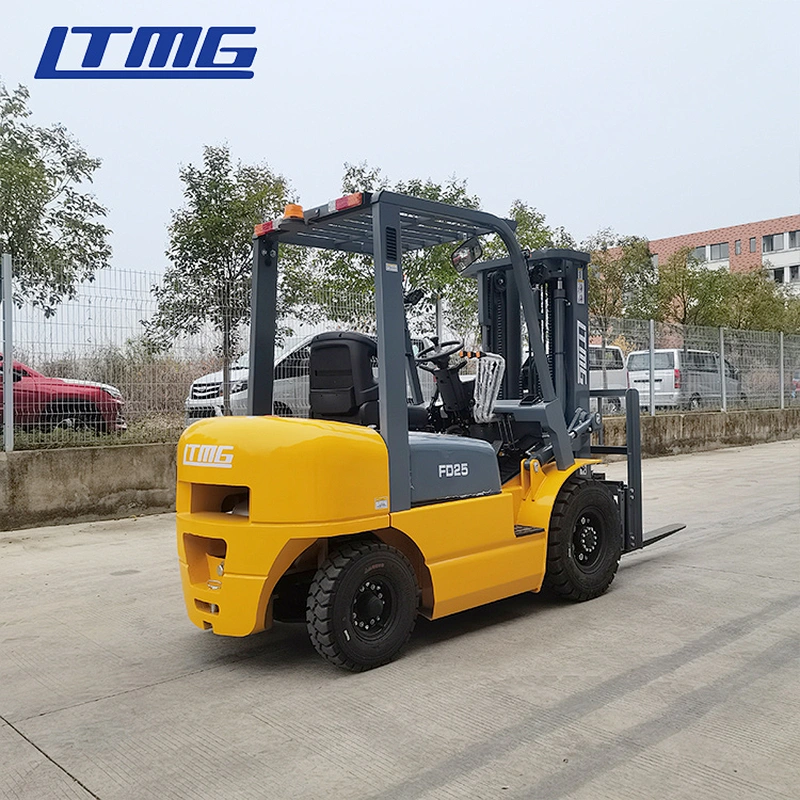

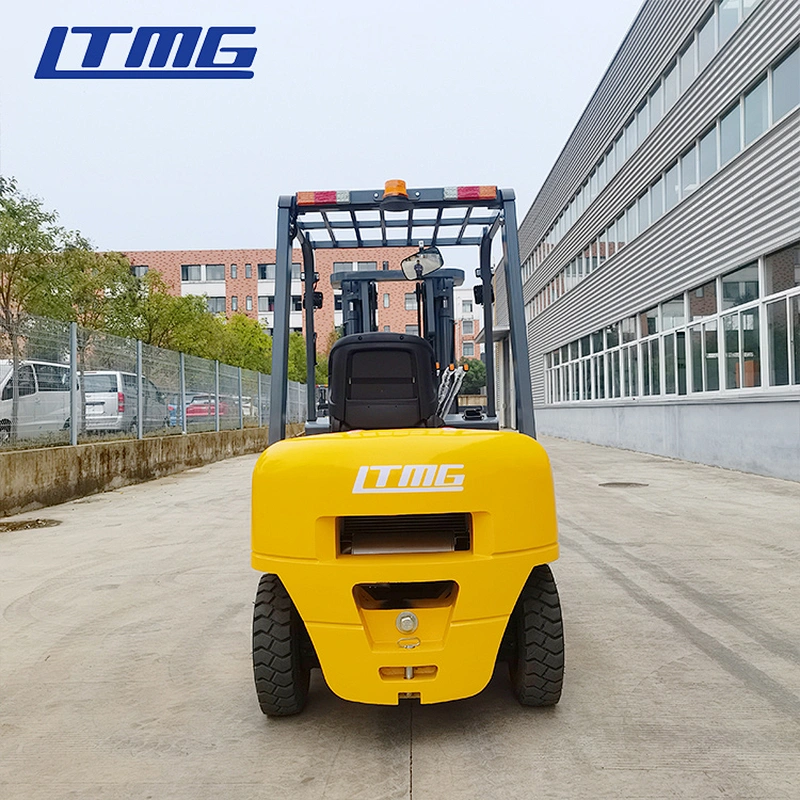

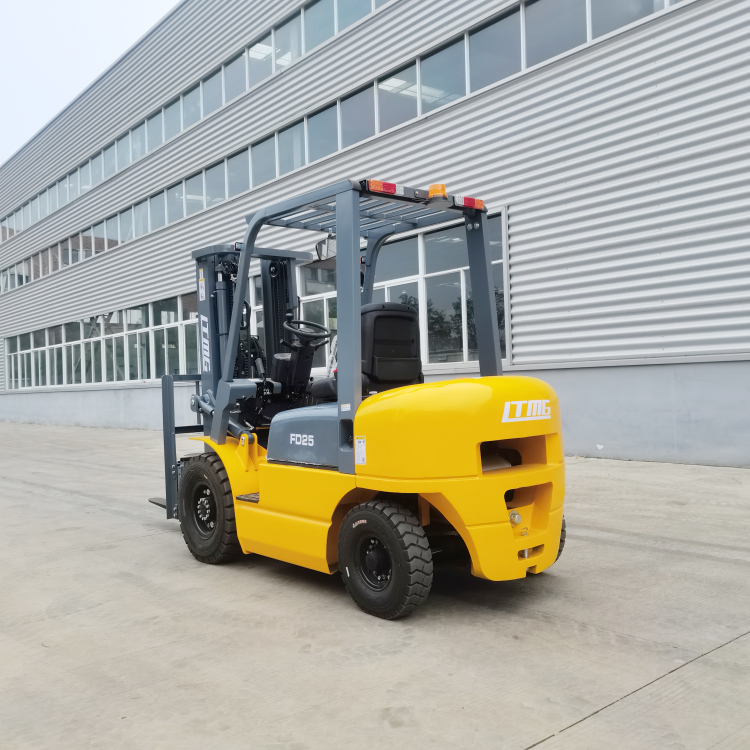

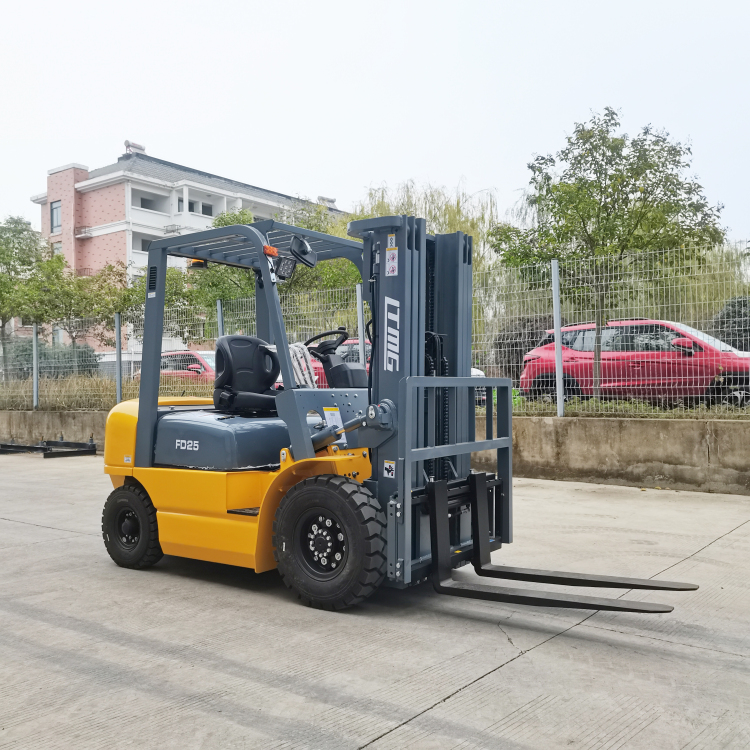

- Product Name:2 ton 3 ton diesel forklift warehouse forklift for sale
- Mast:2 Stage/3 Stage
- Free lift:150mm
- Fork Length:1070mm
- Wheelbase:1700mm
- Transmission type:Automatic Transmission

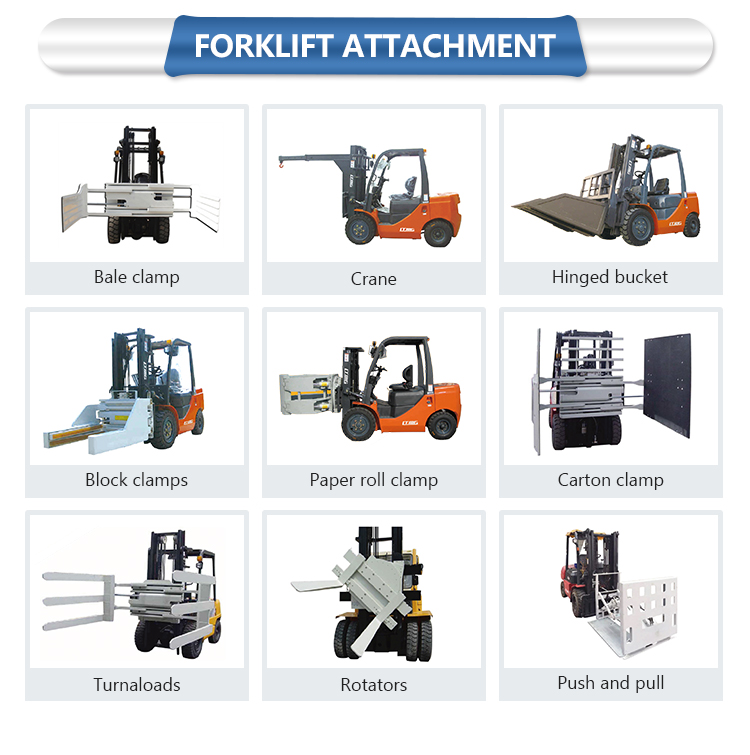

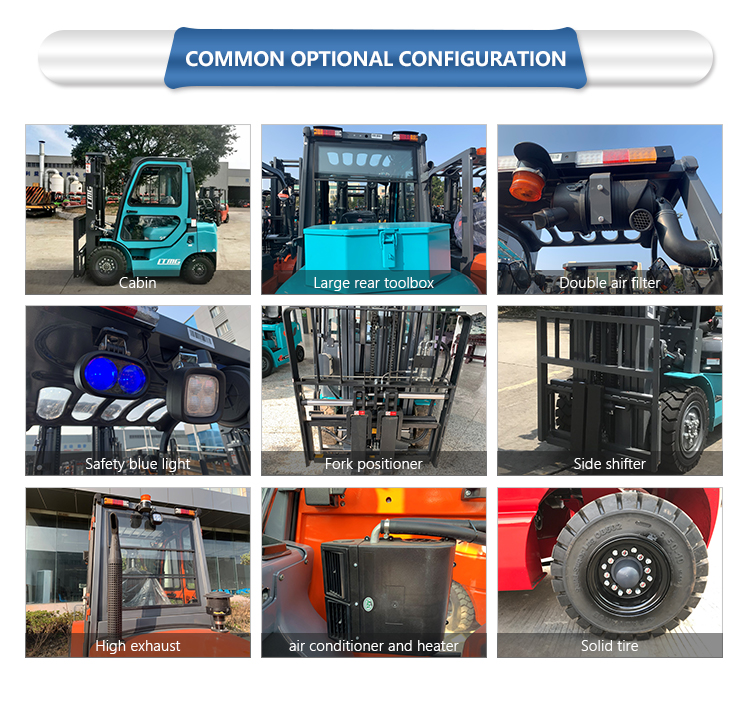

- optional:side shift, lifting height, enclosed cab, etc
- Applicable Industries:Hotels
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Brazil
- Showroom Location:Kenya
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:3000mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2705*1225*2075
- Certification:CE/ISO9001
Model | FD20 | FD25 | |||
Power type | Diesel | Diesel | |||
Rated capacity | kg | 2000 | 2500 | ||
Load center | mm | 500 | 500 | ||
Lift height | mm | 3000 | 3000 | ||
Fork size | L*W*T | mm | 1070*120*40 | 1070*120*40 | |
Mast tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |
Front overhang(Wheel center to fork face) | mm | 465 | 465 | ||
Ground clearance(Bottom of mast) | mm | 110 | 110 | ||
Overall Dimension | Length to face of fork(without fork) | mm | 2595 | 2595 | |
Overall width | mm | 1150 | 1150 | ||
Mast lowered height | mm | 2070 | 2070 | ||
Mast extended height(with backrest) | mm | 4070 | 4070 | ||
Overhead guard height | mm | 2070 | 2070 | ||
Turning radius(outside) | mm | 2310 | 2310 | ||
Speed | Travel(Full load) | Km/h | 19 | 19 | |
Lifting(Full load) | mm/s | 530 | 530 | ||
Max gradeability(No load/Full load) | % | 20 | 20 | ||
Tire | Front | mm | 7.00-12-12PR | 7.00-12-12PR | |
Rear | mm | 6.00-9-10PR | 6.00-9-10PR | ||
Wheelbase | mm | 1600 | 1600 | ||
Service weight | kg | 3590 | 3790 | ||
Battery | Voltage/Capacity | V/ah | 12/80 | 12/80 | |
Engine | Model | C240 | C240 | ||
Manufacture | Isuzu | Isuzu | |||
Rated output/rpm | Kw | 35.4/2500 | 35.4/2500 | ||
Rated torque/rpm | N.m | 137.7/1800 | 137.7/1800 | ||
No of cylinder | 4 | 4 | |||
Bore*stroke | mm | 86*102 | 86*102 | ||
Displacement | cc | 2369 | 2369 | ||
Fuel tank | L | 60 | 60 | ||
Transmission | Type | Hydraulic | Hydraulic | ||
Stage FWD/RVS | 1/1 | 1/1 | |||
After-sale Service
Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
