- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Condition:New
- Place of Origin:CN;SHN
- Type:Powered Pallet Truck
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Brand Name:LTMG
- Max. Lifting Height:4000mm
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:250mm
- Overall Dimensions:4000*1800*2750mm
- Certification:CE/ISO

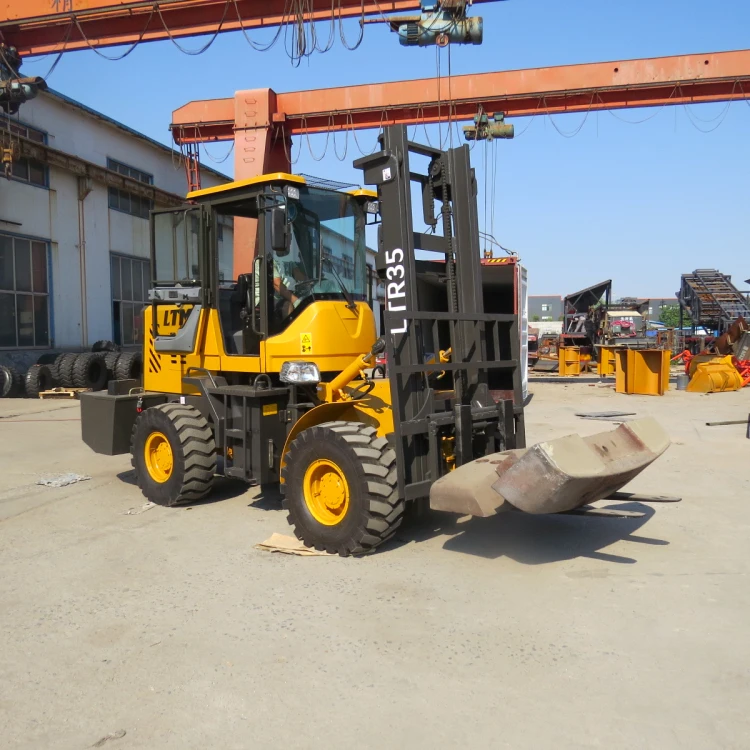

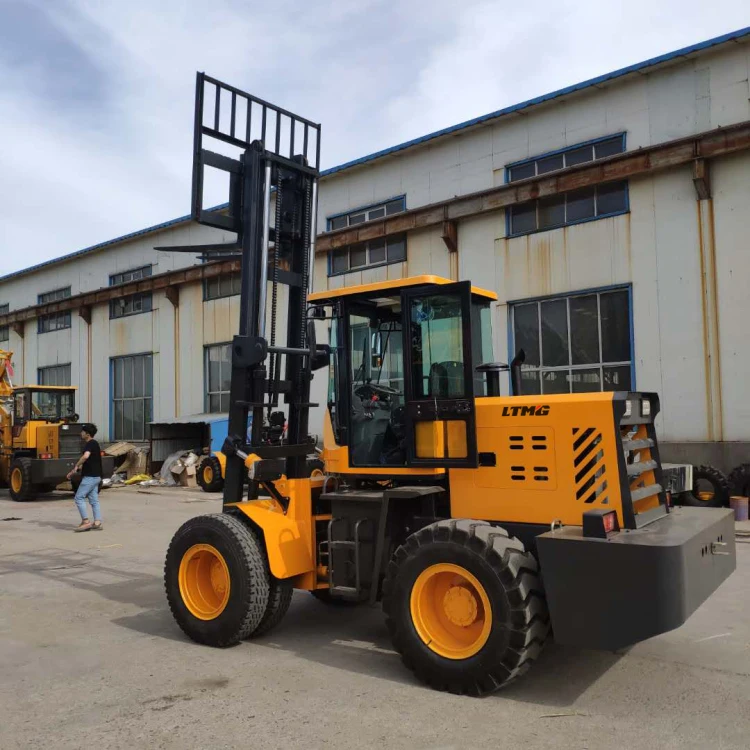

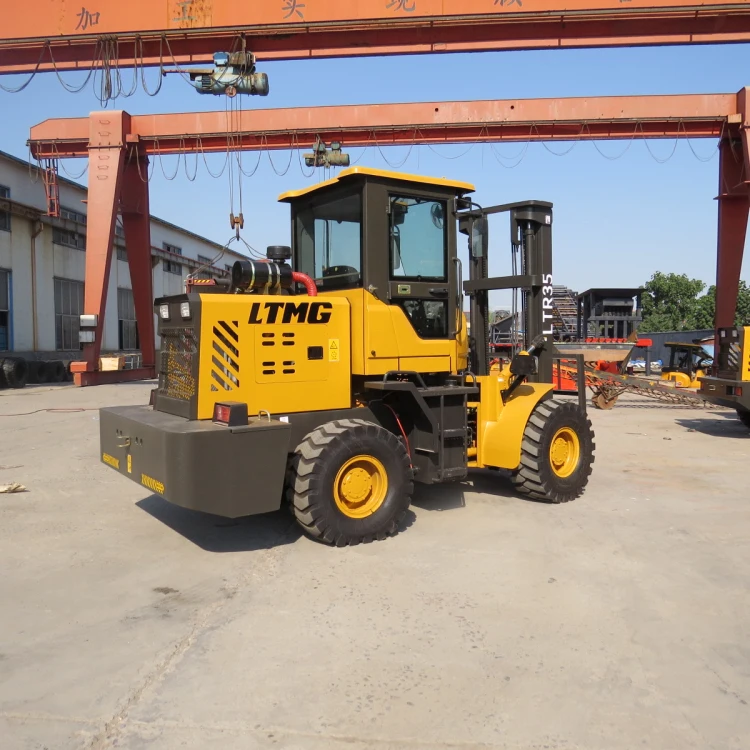

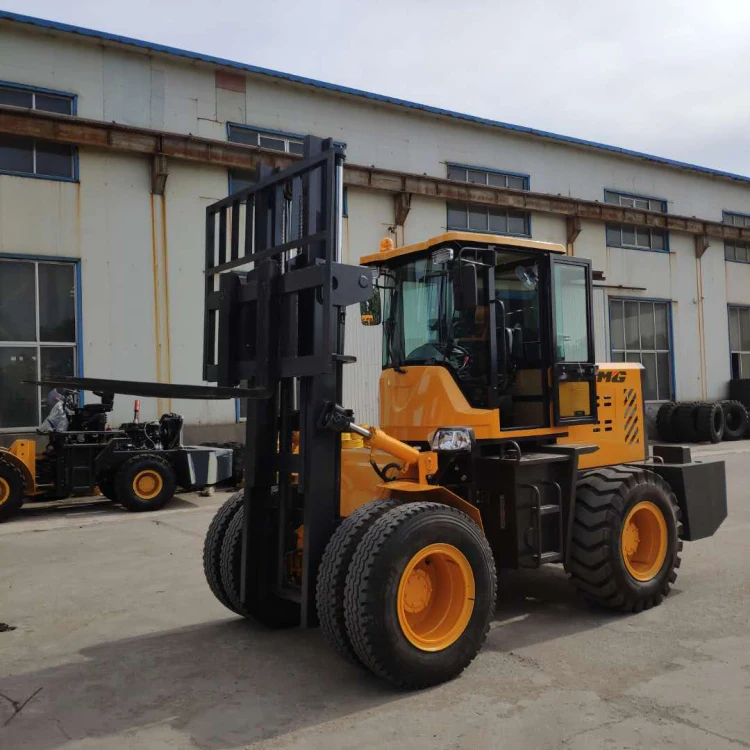

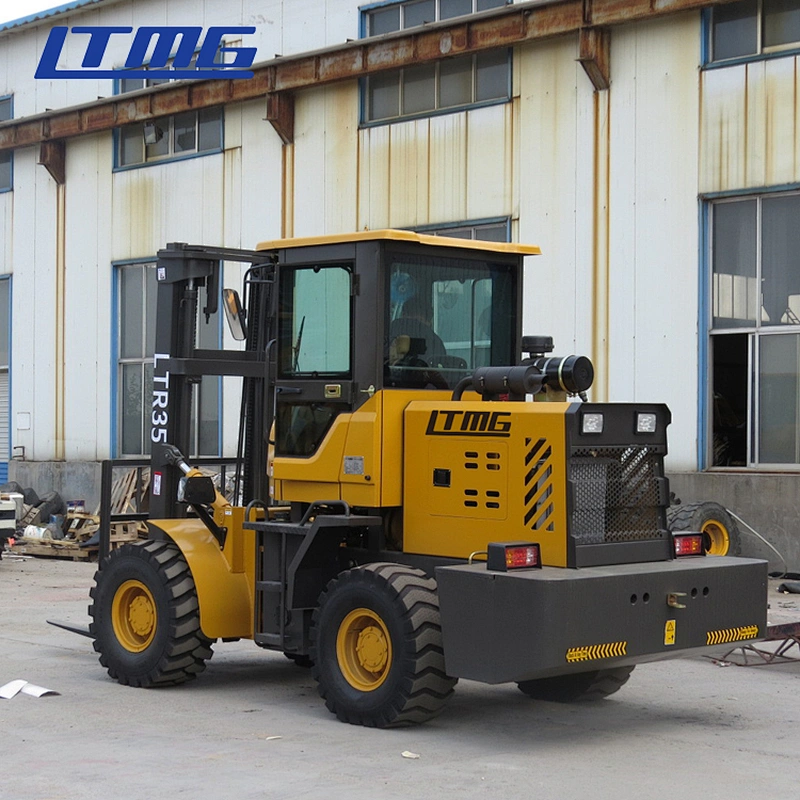

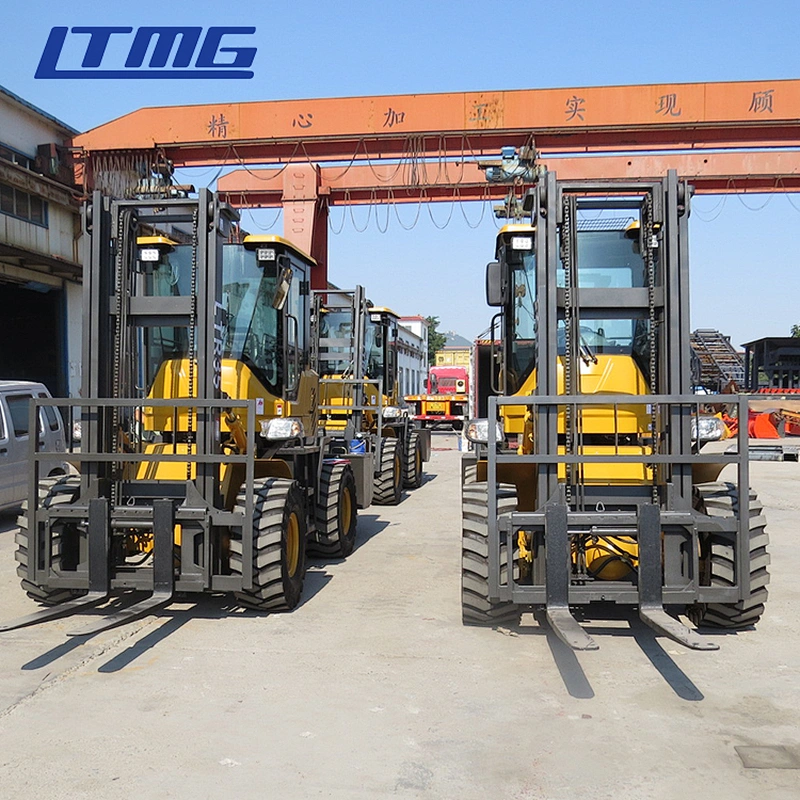

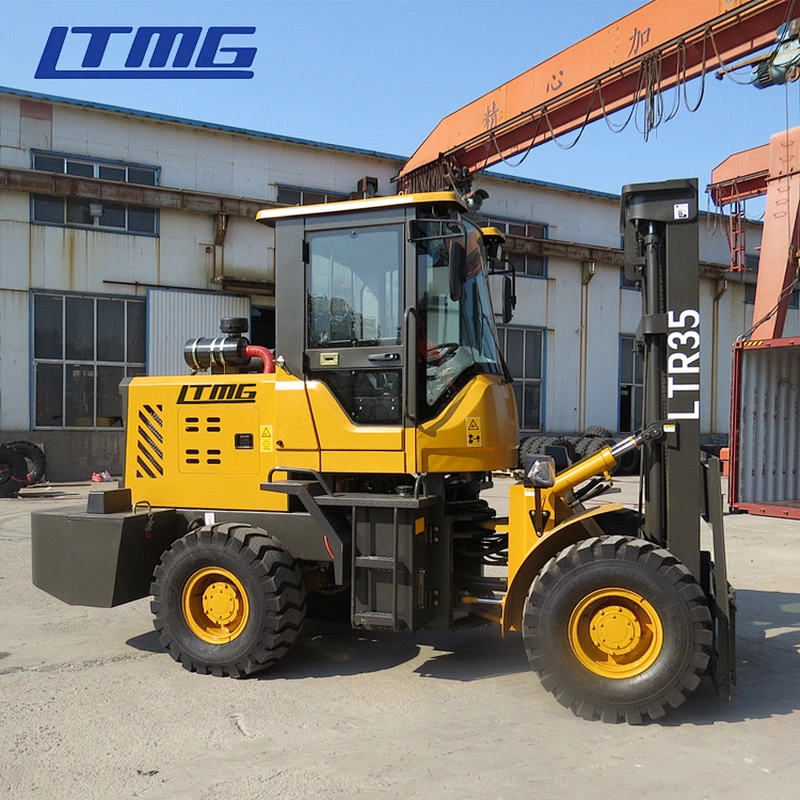

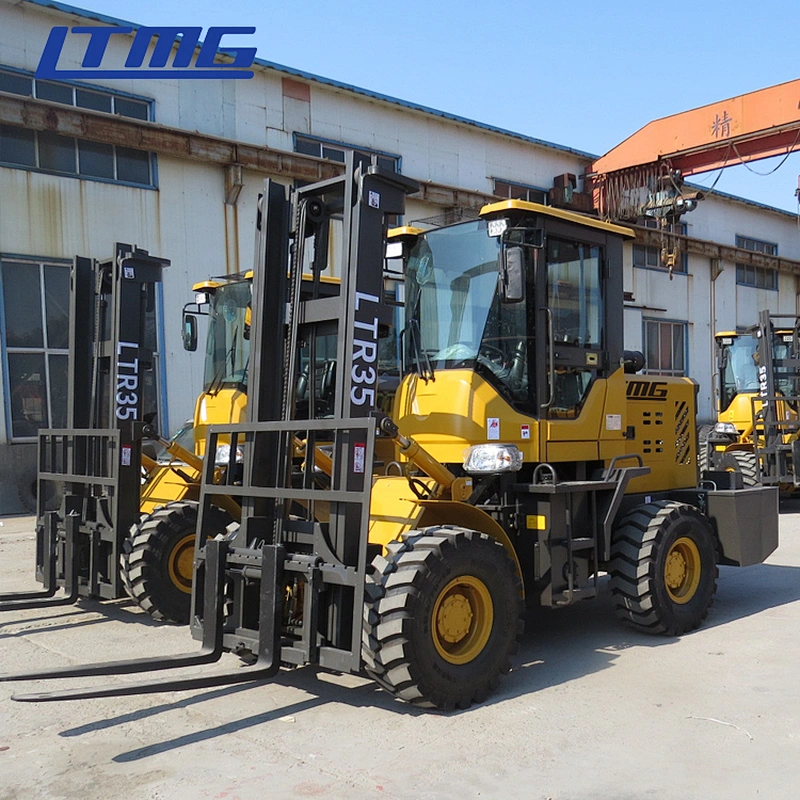

The specification of 3.5 ton rough terrain forklift | ||||||
Model | unit | LTR35T | ||||
Product | ||||||
Rated load | Kg | 3500 | ||||
Load center distance | mm | 500 | ||||
Lifting height | mm | 4000 | ||||
Gantry tilt angle(forward/backward tilt) | ° | (6)(12) | ||||
Maximum travel speed | Km/h | 30 | ||||
Full load grade | ° | 28 | ||||
Self weight | Kg | 4680 | ||||
Track(front/rear) | mm | 1560 | ||||
Wheelbase | mm | 2100 | ||||
Tire | front | 2x20.5/70-16 | ||||
rear | 2x20.5/70-16 | |||||
Dimensions (length x width x height) | mm | 4000x1800x2750 | ||||
Full load liftingspeed | mm/s | 380 | ||||
Minimum turning radius | mm | 4500 | ||||
Minimum ground clearance | mm | 270 | ||||

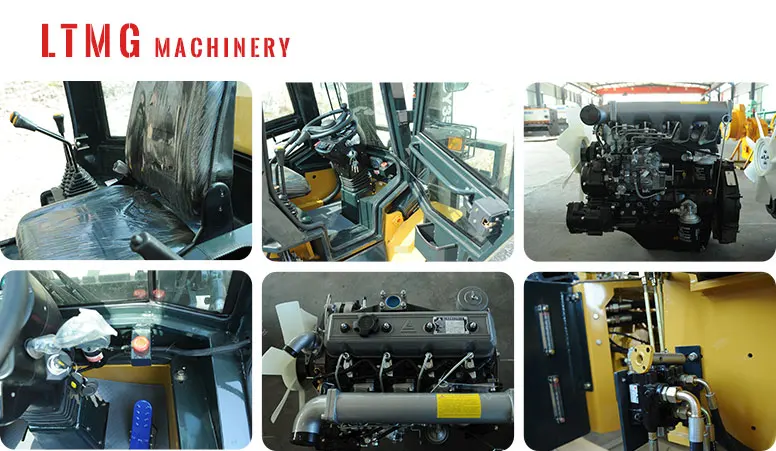

LTMG LTR35T basic configuration | ||||||
Engine | model | YN38 | ||||
manufacture | Yunnei | |||||
Rated power/speed | Kw/r/min | 60/2400 | ||||
Battery | Voltage | V | 24 | |||
capacity | Ah | 80 | ||||
Transmission | Hydraulic | |||||
Working system | Pilot operating system | |||||
Drive axle | Dedicated wheel side deceleration bridge | four-wheel drive | Pneumatic clamp brake | |||
Cabin | Sealed cab with sound system, fan / open cockpit | |||||

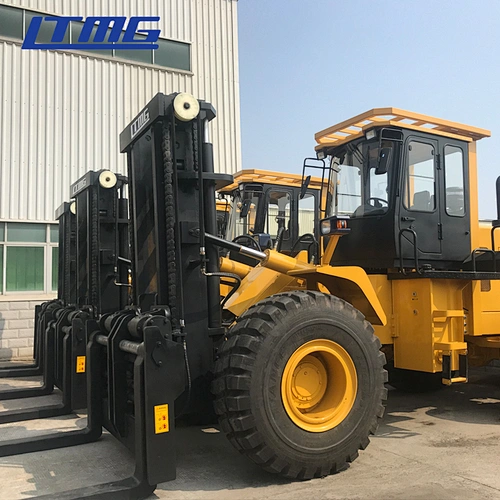

LTMG A-series rough terrain forklift is suitable for bad road conditions, such as soft soil, grassland, wading, jungle, desert, mountain, mine and other rough road conditions, loading and unloading of materials, palletizing, short-distance transportation and other operations.
1. The whole hydraulic electronically controlled gearbox, steering and pilot workmanship make the whole machine more flexible.
2. Equipped with double-bridge four or six-wheel drive, which has large traction and makes it more safe and stable.
3. The articulated frame has a small turning radius and the walking operation handle adopts the advanced technology of German ZF.

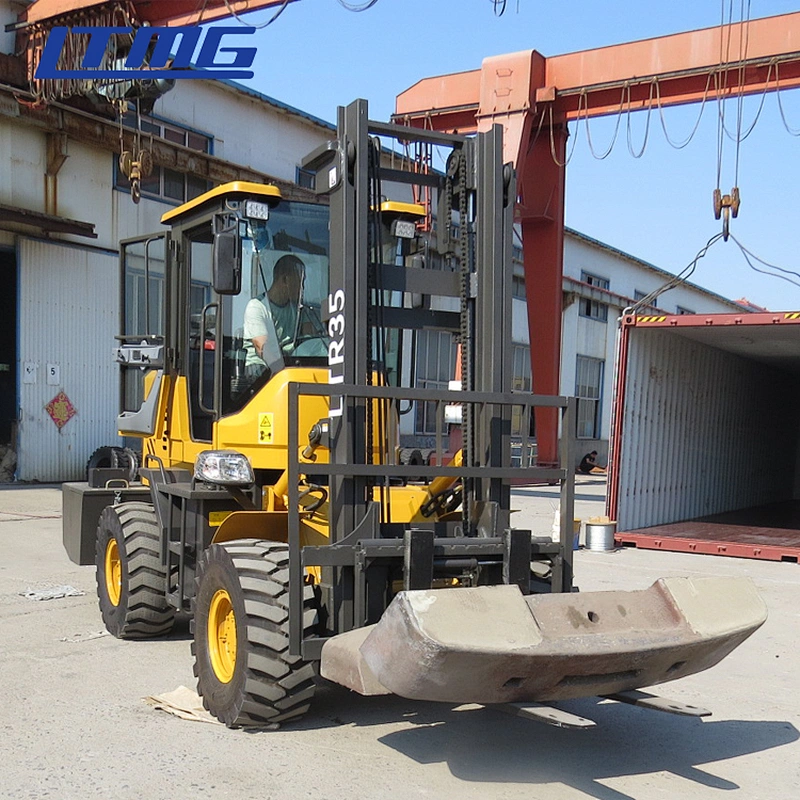

4. Install tire clamp attachments which to replace large-scale mining machinery tires, and configure various special-shaped attachments.
The quality and service has been recognized by the customers.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
